OHAUS SHRC0719DG User manual

Instruction Manual
Shaker, Reciprocating, SHRC0719DG
16 kg, Analog, Shaker, Heavy Duty, SHHD1619AL
16 kg, Digital, Shaker, Heavy Duty, SHHD1619DG
23 kg, Analog, Shaker, Heavy Duty, SHHD2325AL
23 kg, Digital, Shaker, Heavy Duty, SHHD2325DG
45 kg, 25 mm Orbit, Digital, Shaker, Heavy Duty, SHHD4525DG
45 kg, 50 mm Orbit, Digital, Shaker, Heavy Duty, SHHD4550DG
68 kg, 25 mm Orbit, Digital, Shaker, Heavy Duty, SHHD6825DG
68 kg, 50 mm Orbit, Digital, Shaker, Heavy Duty, SHHD6850DG
Revision 3
22/05/17
EN - English ......... 1
FR - Français ......... 16
ES - Español ......... 32
IT - Italiano ......... 48
DE - Deutsch ......... 64
PT - Português ......... 80
NL - Nederlands ........ 96
NO - Norsk .........102
DA - Dansk .........108
SV - Svenska .........114
FI - Suomi .........120
HU - Magyar .........126
PL - Polski ......... 132
CZ - Czech ......... 138
KR - Korean ......... 143
JP - Japanese ......... 159

Package contents
Reciprocating or Heavy Duty Shaker
Non-skid rubber mat
Power Cord
Instruction manual
Warranty card
1
service information
If the troubleshooting section does not resolve or describe your problem, contact your
authorized OHAUS service agent. For service assistance or technical support in the
United States call toll-free 1-800-672-7722 ext. 7852 between 8:00 AM and 5:00 PM EST.
An OHAUS product service specialist will be available to provide assistance. Outside the
USA, please visit our web site, www.ohaus.com to locate the Ohaus office nearest you.
Serial Number: _______________________________________________________
Date of Purchase: ____________________________________________________
Supplier: ___________________________________________________________
table of contents
Package Contents . . . . . . . . . . . . . . . 1
Service Information . . . . . . . . . . . . . . . 1
Installation . . . . . . . . . . . . . . . 2
Maintenance & Servicing . . . . . . . . . . . . . . . 2
Intended Use . . . . . . . . . . . . . . . 2
Environmental Conditions . . . . . . . . . . . . . . . 2
Equipment Disposal . . . . . . . . . . . . . . . 3
Safety Instructions . . . . . . . . . . . . . . . 3
Standards & Regulations . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . 4-5

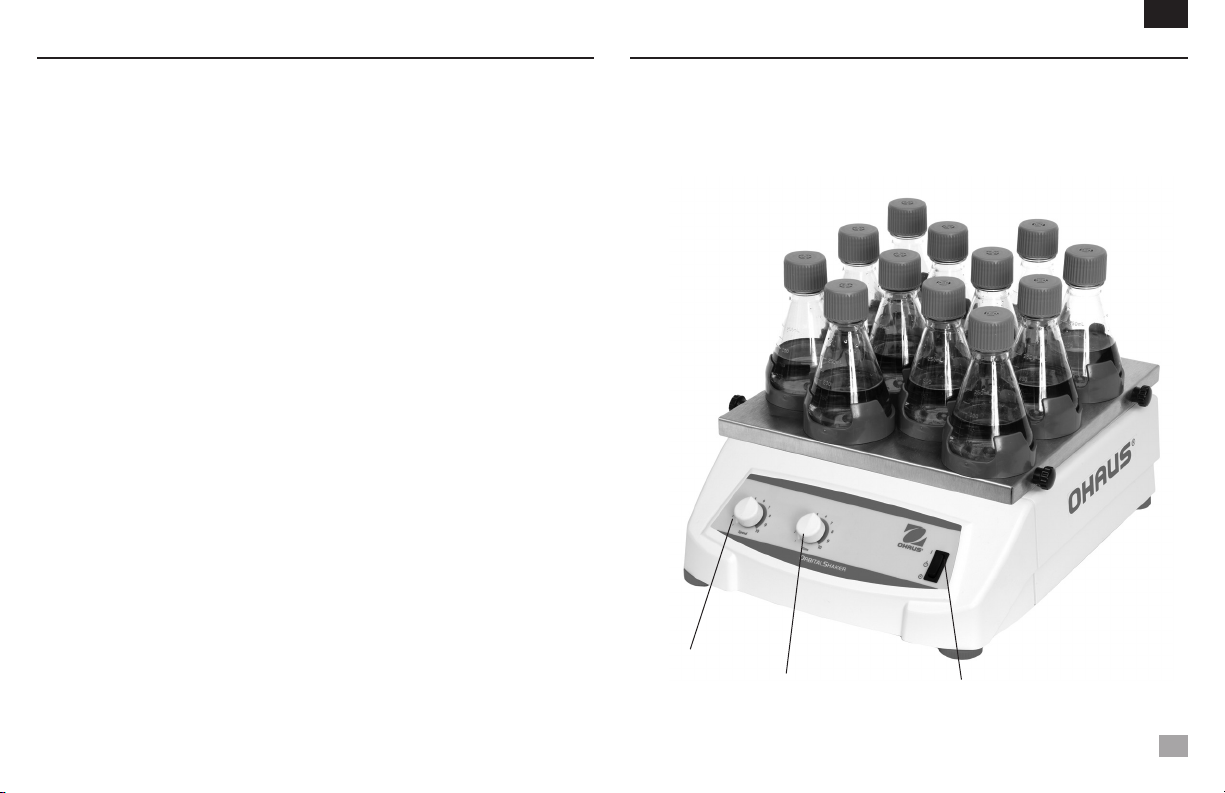

Analog Operating Instructions . . . . . . . . . . . . . . . 6

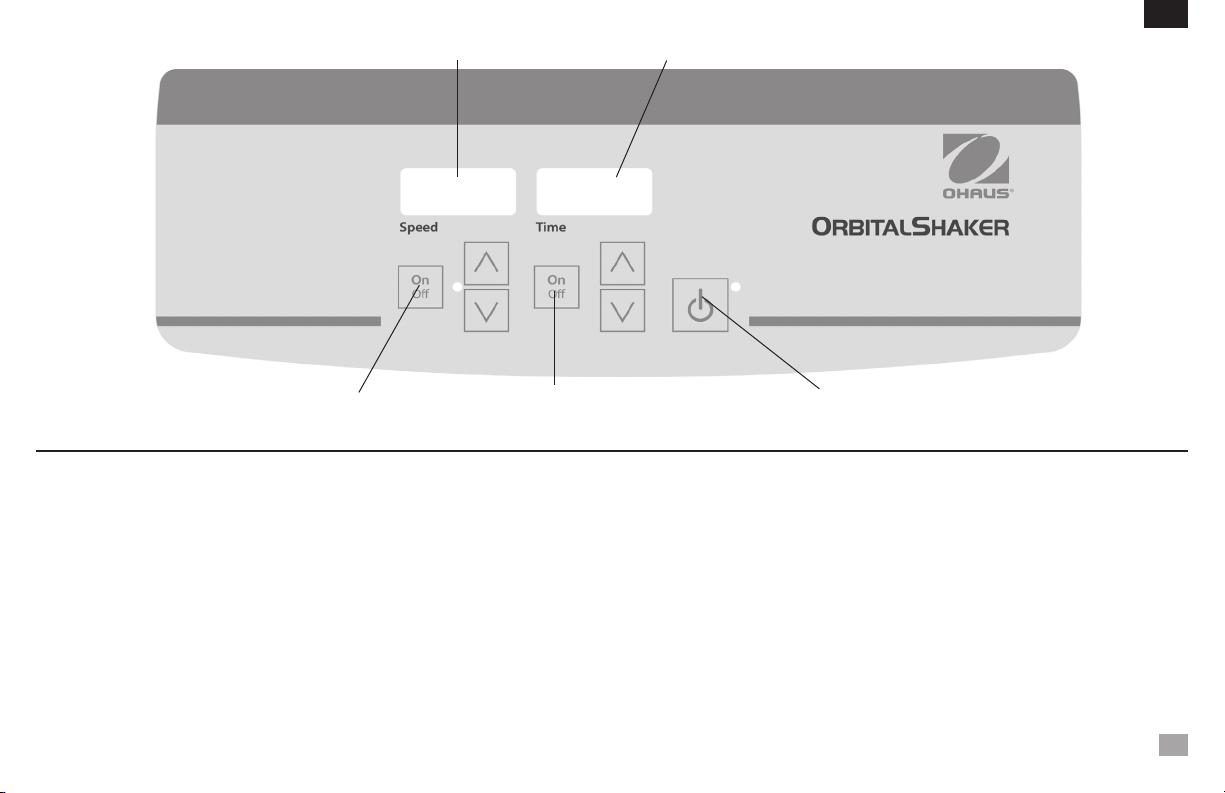

Digital Control Panel . . . . . . . . . . . . . . . 7
Digital Operating Instructions . . . . . . . . . . . . . . . 8-9
Troubleshooting . . . . . . . . . . . . . . . 10
Platform Usage Chart . . . . . . . . . . . . . . . 11
Flask Clamp Platform Capacity . . . . . . . . . . . . . . . 12-13
Test Tube Rack Platform Capacity. . . . . . . . . . . . . . 14-15
EN

Upon receiving the Ohaus Heavy Duty or Reciprocating Shaker, check to ensure
that no damage has occurred during shipment. It is important that any damage that
occurred in transport is detected at the time of unpacking. If you do find such damage
the carrier must be notified immediately.
After unpacking, place the shaker on a level bench or table, away from explosive
vapors. Ensure that the surface on which the unit is placed will withstand typical heat
produced by the unit and place the unit a minimum of six (6) inches from vertical
surfaces. Always place the unit on a sturdy work surface.
The Heavy Duty or Reciprocating Shaker is supplied with a power cord that is inserted
into the IEC connector on the back of the unit first, then it can be plugged into a
properly grounded outlet. The 120V unit plugs into a 120 volt, 50/60 Hz source. The
230V unit plugs into a 230 volt, 50/60 Hz source.
maintenance & servicing
The Heavy Duty or Reciprocating Shaker is built for long, trouble-free, dependable
service. No lubrication or other technical user maintenance is required. It needs no
user maintenance beyond keeping the surfaces clean. However at least every three
(3) months you should:
• Unplug the unit.
• Remove any accumulated dirt from the base and tray.
• Check all accessible items to make sure they are properly tightened.
The unit should be given the care normally required for any electrical appliance. Avoid
wetting or unnecessary exposure to fumes. DO NOT use a cleaning agent or solvent
on the front panel which is abrasive or harmful to plastics, nor one which is flammable.
Always ensure the power is disconnected from the unit prior to any cleaning. If the unit
ever requires service, contact your Ohaus representative.
These Shakers are intended for general laboratory use.
environmental conditions - analog
Operating Conditions: Indoor use only.
*For use in CO2 environments, incubators, or cold rooms.
Temperature: 0 to 40°C (32 to 104°F)
Humidity: maximum 80% relative humidity, non-condensing
Altitude: 0 to 6,562 ft (2000 M) above sea level
Non-Operating Storage:
Temperature: -20 to 65°C (-4 to 149°F)
Humidity: maximum 80% relative humidity, non-condensing
Installation Category II and Pollution Degree 2 in accordance with IEC 664.
environmental conditions - digital & reciProcating
Operating Conditions: Indoor use only.
*For use in CO2 environments, incubators, or cold rooms.
Temperature: -10 to 60°C (14 to 140°F)
Temperature: -10 to 40°C (14 to 104°F) (Heavy Duty Digital)
Humidity: maximum 80% relative humidity, non-condensing
Altitude: 0 to 6,562 ft (2000 M) above sea level
Mains supply voltage: Fluctuations are not to exceed 10 percent of the nominal
supply voltage.
Non-Operating Storage:
Temperature: -20 to 65°C (-4 to 149°F)
Humidity: maximum 80% relative humidity, non-condensing
Installation Category II and Pollution Degree 2 in accordance with IEC 664.
*Avoid cold starts: Unit is not designed to start after being in a cold room environment.
Bring unit into cold room from a room temperature environment, operate and remove
unit from cold room as soon as operation is complete. 2
installation intended Use
EN

Please read the entire instruction manual before operating the Heavy Duty Shaker.
WARNING! DO NOT use the Heavy Duty Shaker in a hazardous atmosphere
or with hazardous materials for which the unit was not designed. Also, the user
should be aware that the protection provided by the equipment may be impaired
if used with accessories not provided or recommended by the manufacturer, or
used in a manner not specified by the manufacturer.
Always operate unit on a level surface for best performance and maximum safety.
DO NOT lift the unit by the tray.
CAUTION! To avoid electrical shock, completely cut off power to the unit by
disconnecting the power cord from the unit or unplug from the wall outlet.
Disconnect unit from the power supply prior to maintenance and servicing.
Spills should be removed promptly. DO NOT immerse the unit for cleaning.
DO NOT operate the unit if it shows signs of electrical or mechanical damage.
Compliance to the following standards and regulations is indicated by the corresponding mark
on the product.
Mark Standards and Regulations
OHAUS Corporation declares that the SHHD, SHLD, SHRC series shakers comply
with directives 2011/63/EU, 2014/30/EU, 2014/35/EU and standards EN 50581, EN
61010-1, EN 61010-2-051, EN 61326-1.
The full text of the EU declaration of conformity is available at the following internet
address: www.ohaus.com/ce.
This product complies with directive 2012/19/EU. Please dispose of this product in
accordance with local regulations at the collecting point specified for electrical and
electronic equipment.
For disposal instructions in Europe, refer to www.ohaus.com/weee.
EN 61326-1
CAN/CSA C22.2 61010-1, CAN/CSA C22.2 61010-2-051
UL 61010-1, UL 61010-2-051
Global Notice
Warning: This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Canada Notice
This Class A digital apparatus complies with Canadian ICES-003.
FCC Notice
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Changes or modifications not expressly approved by Ohaus Corporation could void the user’s authority
to operate the equipment.
3
safety instrUctions
This equipment must not be disposed of with unsorted waste. It is your responsibility to
correctly dispose of the equipment at life-cycle-end by handing it over
to an authorized facility for separate collection and recycling. It is also
your responsibility to decontaminate the equipment in case of biological,
chemical and/or radiological contamination, so as to protect the persons
involved in the disposal and recycling of the equipment from health
hazards.
For more information about where you can drop off your waste of equipment, please
contact your local dealer from whom you originally purchased this equipment. By doing
so, you will help to conserve natural and environmental resources and you will ensure that
your equipment is recycled in a manner that protects human health.
eqUiPment disPosal standards & regUlations
EN

sPecifications
4
16 kg, Shaker, Heavy Duty, SHHD1619
Overall dimensions LxWxH 16.3 x 14.0 x 5.9” (41.3 x 35.5 x 14.9 cm)
Tray dimensions LxW 13 x 11” (33 x 22.2cm)
Electrical 120 volts: 5 amps, 75 watts
230 volts: 2.5 amps, 75 watts
Fuses 5mm x 20mm, 5 amp quick acting
Speed Range Digital: 15 to 500 rpm
Analog: 25 to 500 rpm
Speed Accuracy Digital:
Above 100rpm ±1% of set speed
Below 100rpm ±1rpm
Orbit 0.75” (19mm)
Capacity 16kg @ 75 rpm
2.3kg @ 500 rpm
Timer Digital: 1 second to 9999 hours
Analog:1 to 120 minutes
Controls Digital: See page 7
Ship Weight 22.2 kgSHAKER,
Shaker, Reciprocating, SHRC0719
Overall dimensions LxWxH 16.3 x 14.0 x 5.9” (41.3 x 35.5 x 14.9 cm)
Tray dimensions LxW 13 x 11” (33 x 22.2cm)
Electrical 120 volts: 5 amps, 40 watts
230 volts: 2.5 amps, 40 watts
Fuses 5mm x 20mm, 5 amp quick acting
Speed Range 20 to 300 rpm
Speed Accuracy
Above 100rpm ±1% of set speed
Below 100rpm ±1rpm
Orbit 0.75” (19mm) Total Travel
Capacity 6.8 kg @ 300 rpm
Timer 1 second to 9999 hours
Controls See page 7
Ship Weight 22.2 kg
23 kg, Shaker, Heavy Duty, SHHD2325
Overall dimensions LxWxH 24.0 x 26.7 x 5.9“ (61.0 x 67.8 x 14.9 cm)
Tray dimensions LxW 18 x 24” (45.7 x 70 cm)
Electrical 120 volts: 5 amps, 75 watts
230 volts: 2.5 amps, 75 watts
Fuses 5mm x 20mm, 5 amp quick acting
Speed Range Digital: 20 to 500 rpm
Analog: 25 to 500 rpm
Speed Accuracy Digital:
Above 100rpm ±1% of set speed
Below 100rpm ±1rpm
Orbit 1” (25.4 mm)
Capacity 23 kg @ 125 rpm
4.5 kg @ 500 rpm
Timer Digital: 1 second to 9999 hours
Analog: 1 to 120 minutes
Controls Digital: See page 7
Ship Weight 49.5 kg
EN

5
45 kg, Shaker, Heavy Duty
Overall dimensions LxWxH 28.7 x 26.7 x 6.7” (72.9 x 67.8 x 17.0 cm)
Tray dimensions LxW 24 x 24” (70 x 70cm)
Electrical 120 volts: 5 amps, 80 watts
230 volts: 2.5 amps, 80 watts
Fuses 5mm x 20mm, 5 amp quick acting
Speed Range 10000-1 = 15 to 500 rpm
10000-2 = 15 to 300 rpm
Speed Accuracy
Above 100rpm ±1% of set speed
Below 100rpm ±1rpm
Orbit 10000-1 = 1”
10000-2 = 2”
Capacity 45 kg @ 100 rpm *
18 kg @ 300 rpm
Timer 1 second to 9999 hours
Controls See page 7
Ship Weight 90.9 kg
68 kg, Shaker, Heavy Duty
Overall dimensions LxWxH 29.3 x 36.0 x 6.7” (74.4 x 91.4 x 17.0 cm)
Tray dimensions LxW 24 x 36” (70 x 91.4cm)
Electrical 120 volts: 5 amps, 80 watts
230 volts: 2.5 amps, 80 watts
Fuses 5mm x 20mm, 5 amp quick acting
Speed Range 15000-1 = 15 to 500 rpm
15000-2 = 15 to 300 rpm
Speed Accuracy
Above 100rpm ±1% of set speed
Below 100rpm ±1rpm
Orbit 15000-1 = 1”
15000-2 = 2”
Capacity 68 kg @ 100 rpm *
18 kg @ 300 rpm
Timer 1 second to 9999 hours
Controls See page 7
Ship Weight 104.5 kg
sPecifications cont’danalog Heavy dUty sHaker
*With optional platform and ask clamp
speed knob
time knob rocker switch
EN

2. Setting speed:
a. To run in continuous mode, push rocker to the run position. Set speed knob to
desired setting and adjust if necessary. Unit will run until you move the rocker
switch to the standby position. The microprocessor speed control slowly ramps
to set speed to avoid splashing.
3. Setting time:
a. To run in timed mode, set timer and the speed knob to the desired settings.
Press the rocker switch to the time position and release. The shaker will now
run for the set time.
b. To exit the timed mode turn the time knob to the extreme counter-clockwise
position.
4. Turning unit off:
a. To stop shaking function, turn the speed knob to the extreme counter clockwise
position and push the rocker switch to the standby position. The shaker should be
kept in the standby position when not in use. To completely cut off power to the
unit, disconnect the power cord from the unit or unplug from the wall outlet.
OPERATING TIPS
Centering your sample and even weight distribution on the tray helps with balance
and stability. As a safety feature, a built-in program will shut power off to the motor if
the tray is prevented from rotating, or the unit is overloaded beyond its recommended
weight capacity. To reset the unit, press the rocker switch to standby and then press
the rocker switch to the on position. The shaker will automatically restart after a power
interruption. Built-in memory maintains the last used speed and time settings during
a power interruption.
6
analog Heavy dUty sHaker oPerating instrUctions
The Heavy Duty Shaker is used for general laboratory shaking needs.
16 kg, Shaker, Heavy Duty, SHHD1619
1. Getting ready:
a. The speed knob should be at their extreme counter-clockwise position or at the
#1 on the dial.
b. Make sure the rocker switch is in the off position.
c. Plug the cord into a properly grounded outlet.
2. Setting speed:
a. To run push rocker to the on or position. Set speed knob to desired setting
and adjust if necessary. Unit will run until you move the rocker switch to the off
position. The microprocessor speed control slowly ramps to set speed to avoid
splashing.
3. Turning unit off:
a. To stop shaking function, turn the speed knob to the extreme counter-clockwise
position and push the rocker switch to the standby position. The shaker should
be kept in the standby position when not in use. To completely cut off power to
the unit, disconnect the power cord from the unit or unplug from the wall outlet.
OPERATING TIPS
Centering your sample and even weight distribution on the tray helps with balance
and stability.
The shaker will automatically restart after a power interruption.
23 kg, Shaker, Heavy Duty, SHHD2325
1. Getting ready:
a. The speed and time knobs have a built in on-off switch at their extreme counter-
clockwise position. Turn both knobs to the off position.
b. Make sure the rocker switch is in the standby position.
c. Plug the cord into a properly grounded outlet.
EN

7
A.
The front panel of the Heavy Duty Shaker contains all the controls and displays
needed to operate the unit.
A. Standby button/standby indicator light: The standby indicator light will
illuminate when the unit is plugged in. The unit will be in standby mode. Press the
standby button to start the speed and time functions. The standby indicator light will
shut off. Press the standby button again and the unit will once again be in standby
mode.
B. Speed display: Displays the speed of the shaker.
C. Up/down arrows: For set-point control. On/off button starts/stops shaking
function.
D. Time display: Displays accumulated time (continuous mode) or how much time is
remaining (timed mode). The display range is from 0 to 9,999 minutes in one (1)
second increments. The display will indicate minutes and seconds until the timer
reaches 99 minutes and 59 seconds (99:59), then the display will automatically
display minutes up to 9,999.
E. Up/down arrows for setpoint control. On/off button starts/stops the timer function.
control Panel - digital Heavy dUty sHaker
D.
E.
C.
B.
EN

The Digital Heavy Duty Shaker has been designed for the speed and time functions
to work independently of one another. The speed can be re-set without re-setting
the timer and the timer can be stopped and started without interrupting the shaking
function.
1. Getting ready:
a. Plug the cord into a properly grounded outlet. The standby indicator light will
illuminate, verifying power to the shaker.
b. Press the standby button to move the unit from standby mode. The standby
indicator light will turn off and the speed and time displays will illuminate,
displaying the previously used settings.
2. Setting speed:
a. Press the up/down arrow below the speed display until you reach the desired
speed. When you release the button, the display will blink off and then on
indicating the new set speed has been accepted.
b. Press the on/off button to start the shaking function. The indicator light below
the speed display will illuminate and blink until the setpoint is reached. Once the
set-point is reached the light will stop blinking and remain lit until shaking has
ceased. The microprocessor controlled ramping feature slowly increases speed
until the set-point is reached which helps to avoid splashing, and provides
excellent low end control.
c. Speed adjustments can be made without interrupting shaking by using the up/
down arrows below the speed display. After the change has been made and
you release the button, the display will blink off and then on indicating the new
set speed has been accepted.
d. To stop the shaking function press the on/off button below the speed display.
The speed indicator light will turn off.
3. Setting time to zero (0:00) and continuous mode: Accumulated time.
a. Press and hold the on/off button below the time display. After three (3) seconds,
the display will indicate the previous set time.
b. Simultaneously press both the up and the down arrows, the display will indicate
zero (0:00). The unit time is now set to zero (0:00) minutes. Alternately, you can
use the up/down arrows to get to zero (0:00).
c. Press the on/off button below the time display. The display will indicate
accumulated time. The up/down arrows will become inactive. To stop timer,
press the on/off button again. IMPORTANT: This will NOT interrupt the shaking
function. Press the on/off button below the speed display to interrupt the shaking
function.
d. To reset, press and hold the on/off button below the time display. After three (3)
seconds the display will indicate the previous set time, which was zero (0:00).
4. Setting timed mode: Programmed time.
a. Press the up/down arrows below the time display until you reach the desired
time.
b. Start this function by pressing the on/off button below the time display. The unit
will run for the selected time, the up/down arrows will become inactive while
the timer is running. The unit will stop shaking when time display reaches zero
(0:00). Four (4) audible beeps will indicate the count down function is complete.
The time display will default back to the set time. To repeat for the same time,
simply depress the on/off button again.
c. To interrupt an automatic timing cycle before it is completed, press the on/off
button below the time display. The display will flash off and on to indicate the
time function is on “hold”. IMPORTANT: This will NOT interrupt the shaking
function. Press the on/off button below the speed display to interrupt the
shaking function. Restart the timer by pressing the on/off button below the
time display. Unit will continue counting down to zero (0:00). When the display
reaches zero (0:00), you will hear the four (4) audible beeps that indicate the
count down function is complete and the shaking function will cease.
digital Heavy dUty sHaker oPerating instrUctions
8
EN

5. Turning unit off:
a. To turn the unit off, press the standby button. The speed and time displays will
be blank, the standby indicator light will illuminate. The Heavy Duty Shaker
should be kept in standby mode when not in use. To completely cut off power to
the unit, disconnect the power cord from the unit or unplug from the wall outlet.
OPERATING TIPS
Centering your sample and even weight distribution on the tray helps with balance
and stability. As a safety feature, a built-in program will shut power off to the motor if
the tray is prevented from rotating, or the unit is overloaded beyond its recommended
weight capacity. The shaker will automatically restart after a power interruption. Built-in
memory maintains the last used speed and time settings during a power interruption.
LOAD SENSING FUNCTION (Digital Heavy Duty Shakers Model 16KG and up)
The Digital Heavy Duty Shaker is equipped with a load sensing function that can be
activated by the user. This function provides protection against improper positioning of
load and maximum load being exceeded. When activated, the unit will automatically
sense improper load conditions and slow to a safe running speed, then display that
speed followed by E04 on the speed display. The unit will also beep three (3) times
every 60 seconds until the error is reset by pressing the speed on/off button. To
activate the load sensing function use the following steps:
1. Place the unit in standby mode.
2. Press and hold the speed on/off button and press the standby button. The unit will
beep two (2) times, confirming the function is enabled.
3. To restore normal operation, remove AC power to the unit for ten (10) seconds
and then restore. If the E04 error occurs be sure the load is within the maximum
specification and properly balanced (centered on tray) and/or reduce sample
size/speed before restarting the unit. If the E04 occurs due to acceptable sample
vibration or another vibration source, the vibration sensing function can be disabled
as described above.
ADDITIONAL LOAD SENSING FEATURE
The Digital Heavy Duty Shaker Models 3750 and up, are equipped with an additional
overload protection feature that lets the user know when the unit’s set speed is higher
than the achievable speed of the unit. The unit speed display will show an E7. The
unit will also beep three (3) times every 60 seconds until the error is reset by pressing
the speed on/off button.
To disable this feature perform the following steps:
1. Place the unit in standby mode by pressing the standby button.
2. Press and hold the speed up button and press on/off button. The unit will beep two
(2) times, confirming the function is disabled.
3. To restore unit to normal operation, remove AC power to unit (unplug power cord
from wall outlet) for ten (10) seconds and restart.
BEEPER PREFERENCE
To silence beeper operation (except for error codes), with the unit in standby mode,
press and hold the time on/off button and press the standby button. To restore normal
beeper operation, remove AC power to unit for ten (10) seconds and then restore.
CALIBRATION PROCEDURE (Digital Heavy Duty Shakers Model 16KG and up)
This procedure is used to self calibrate the Digital Heavy Duty Shaker. The tray should
be free of any samples, vessels, and accessories prior to calibrating.
1. Turn unit on. Speed and time displays will be illuminated.
2. Press and hold the standby button and momentarily press the speed on/off button.
The speed display should read “CAL”.
3. The unit will run for approximately one (1) minute and automatically calibrate.
RS-232 SERIAL PORT (Digital Heavy Duty Shakers Model 16KG and up)
RS-232 serial port provides two-way communications for data logging and unit
control. If you need additional details, please contact your local Ohaus representative
or visit ohaus.com. If you need additional details, please contact your local Ohaus
representative or visit ohaus.com.
9
oPerating instrUctions cont’d
EN

10
troUblesHooting - Heavy dUty sHaker
Problem Cause Solution
Unit will not run Mechanical obstruction
Motor obstruction
Add or replace fuse as necessary. If problem persists, please contact your Ohaus representative for
repair.
Unit is excessively noisy Sensor fan misaligned
Motor misaligned
Ensure that tray is secured tightly. If problem persists, please contact your Ohaus representative for
repair.
Unit not shaking at proper speed - Perform speed calibration test on page 9. If problem persists, please contact your Ohaus representative
for repair.
E3
Mechanical obstruction
Drive system failure
Ceased bearing
Drive belt broken
Remove mechanical obstruction. If problem persists, the reason may be the drive system and should not
be addressed by the end user. Contact your Ohaus representative for repair.
E4 Improper positioning of load
Maximum load exceeded
Ensure the load is evenly distributed and does not exceed the maximum load capacity for the unit. See
“Load Sensing Function” on page 9. If problem persists, please contact your Ohaus representative for
repair.
E7 Unable to reach set speed
Reduce the speed setting or weight. This function can be disabled by following the instructions listed
under “Additional Load Sensing Feature” on page 9. (NOTE: This function is only available on models
3750 and up and is not available on Model Heavy Duty Shaker 16Kg shakers.)
E8 Electronics error This error cannot be xed by the end user. Please contact your Ohaus representative for repair.
EN

Platform Usage cHart
11
Platform Size Platform Type Used on Shaker Model Number Part Number
11 x 13” Universal Model 16kg, Model 3750 980169
13 x 13” Universal Model 16kg, Model 3750 980434
18 x 18” Universal Model 16kg, Model 3750** 980435
18 x 24”* Universal Model 16kg, Model 3750, Model 5000** 980436
18 x 30”* Universal Model 5000 980438
24 x 24” Universal Model 10000 980437
24 x 36” Universal Model 15000 980439
13 x 13” (125mL) 16 x 125mL Model 16kg, Model 3750 980449
13 x 13 (250mL) 12 x 250mL Model 16kg, Model 3750 980450
13 x 13 (500mL) 8 x 500mL Model 16kg, Model 3750 980451
13 x 13 (1L) 4 x 1L Model 16kg, Model 3750 980452
18 x 18” (125mL)* 27 x 125mL Model 16kg, Model 3750** 980453
18 x 18” (250mL)* 20 x 250mL Model 16kg, Model 3750** 980454
18 x 18” (500mL)* 13 x 500mL Model 16kg, Model 3750** 980455
18 x 18” (1L)* 9 x 1L Model 16kg, Model 3750** 980456
Two-Tier Braces 980077
18 x 18”* Culture Platform Model 16kg, Model 3750** 980440
18 x 24”* Culture Platform Model 16kg, Model 3750**, Model 5000** 980441
18 x 18” Adjustable Platform Model 16kg 980442
18 x 24” Adjustable Platform Model 5000 980443
30 x 18” Large Vessel Carrier Model 5000 980444
24 x 24” Large Vessel Carrier Model 10000 980445
24 x 36” Large Vessel Carrier Model 15000 980446
18 x 18” Separatory Funnel Platform Model 16kg, Model 3750 980447
* Two Tier Ready ** Platform Stacking is Not Available on Model 3750 and Model 5000
EN

12
flask clamP Platform caPacity
Stainless Steel Erlenmeyer Flask Clamps
Platform
Size
Part
Number
10mL
980078
25mL
980079
50mL
980080
125mL
980081
250mL
980082
500mL
980083
1L
980086
2L
980087
2.8L
980088
3L
980106
4L
980089
5L
980107
6L
980090
11 x 13 980169 60 25 13 10 9 7 4 N/A N/A N/A N/A N/A N/A
13 x 13 980434 60 30 15 12 12 8 4 3 3 1 1 1 1
18 x 18 980435 113 64 32 20 20 13 8 5 5 2 4 4 2
18 x 24 980436 158 88 44 28 28 20 12 6 6 3 4 4 3
18 x 30 980438 203 112 56 36 36 26 15 8 8 3 6 6 4
24 x 24 980437 221 121 61 41 42 25 16 9 9 5 5 5 5
24 x 36 980439 336 160 94 61 64 40 24 14 14 7 9 7 7
EN

flask clamP Platform caPacity
PVC Erlenmeyer Flask Clamps Stainless Steel Media Bottle Clamps
Microplate Clamp
Platform
Size
Part
Number
125mL
980428
250mL
980429
500mL
980430
1L
980431
2L
980432
11 x 13 980169 10 8 5 2 N/A
13 x 13 980434 12 10 6 4 3
18 x 18 980435 20 18 12 8 4
18 x 24 980436 28 25 16 10 6
18 x 30 980438 36 33 20 14 8
24 x 24 980437 41 35 24 13 9
24 x 36 980439 61 55 38 22 13
Platform
Size
Part
Number
500mL
980092
1L
980093
11 x 13 980169 5 2
13 x 13 980434 6 5
18 x 18 980435 16 10
18 x 24 980436 20 13
18 x 30 980438 28 18
24 x 24 980437 25 18
24 x 36 980439 40 30
Platform
Size
Part
Number
Microplate
Clamp
980458
11 x 13 980169 4
13 x 13 980434 6
18 x 18 980435 12
18 x 24 980436 18
18 x 30 980438 21
24 x 24 980437 24
24 x 36 980439 36
13
EN

test tUbe rack Platform caPacity
Full Size Stationary
Half Size Stationary
Platform
Size
Part
Number
1.5 to 2mL
Microtube Rack
capacity = 70
980191
10 to 13mm
Test Tube Rack
capacity = 63
980193
14 to 16mm
Test Tube Rack
capacity = 48
980194
18 to 20mm
Test Tube Rack
capacity = 35
980195
22 to 25mm
Test Tube Rack
capacity = 24
980196
15mL Centrifuge
Test Tube Rack
capacity = 35
980198
50mL Centrifuge
Test Tube Rack
capacity = 12
980199
11 x 13 980169 2222222
13 x 13 980434 2222222
18 x 18 980435 4444444
18 x 24 980436 6666666
18 x 30 980438 8888888
24 x 24 980437 8888888
24 x 36 980439 7777777
Platform
Size
Part
Number
10 to 14mm
Test Tube Rack capacity = 48
980040
16 to 20mm
Test Tube Rack capacity = 33
980041
21 to 25mm
Test Tube Rack capacity = 21
980042
50mL Centrifuge
Test Tube Rack capacity = 17
980043
11 x 13 980169 N/A N/A N/A N/A
13 x 13 980434 N/A N/A N/A N/A
18 x 18 980435 3 3 3 3
18 x 24 980436 5 5 5 5
18 x 30 980438 6 6 6 6
24 x 24 980437 7 7 7 7
24 x 36 980439 5 5 5 5
14
EN

test tUbe rack Platform caPacity cont’d
Platform Size Part Number
13mm Test Tube Rack
capacity = 90
980459
16mm Test Tube Rack
capacity = 60
980460
20mm Test Tube Rack
capacity = 40
980461
25mm Test Tube Rack
capacity = 24
980462
30mm Test Tube Rack
capacity = 21
980463
11 x 13 980169 1 1 1 1 1
13 x 13 980434 2 2 2 2 2
18 x 18 980435 2 2 2 2 2
18 x 24 980436 3 3 3 3 3
18 x 30 980438 4 4 4 4 4
24 x 24 980437 4 4 4 4 4
24 x 36 980439 6 6 6 6 6
15
EN

Manuel d’Instruction
Agitateur, Alternatif, SHRC0719DG
16 kg, Analogique, Shaker, Lourd Devoir, SHHD1619AL
16 kg, Numérique, Shaker, Lourd Devoir, SHHD1619DG
23 kg, Analogique, Shaker, Lourd Devoir, SHHD2325AL
23 kg, Numérique, Shaker, Lourd Devoir, SHHD2325DG
45 kg, 25 mm Orbite, Numérique, Agitateur, Lourd Devoir, SHHD4525DG
45 kg, 50 mm Orbite, Numérique, Agitateur, Lourd Devoir, SHHD4550DG
68 kg, 25 mm Orbite, Numérique, Agitateur, Lourd Devoir, SHHD6825DG
68 kg, 50 mm Orbite, Numérique, Agitateur, Lourd Devoir, SHHD6850DG
Révision 3
22/05/17
EN - English ......... 1
FR - Français ......... 16
ES - Español ......... 32
IT - Italiano ......... 48
DE - Deutsch ......... 64
PT - Português ......... 80
NL - Nederlands ........ 96
NO - Norsk .........102
DA - Dansk .........108
SV - Svenska .........114
FI - Suomi ......... 120
HU - Magyar .........126
PL - Polski ......... 132
CZ - Czech ......... 138
KR - Korean ......... 143
JP - Japanese ......... 159

contenU de l’emballage
Secoueur orbital ou va-et-vient
Tapis en caoutchouc antidérapant
Cordon d’alimentation
Manuel d’instructions
Carte de garantie
17
des informations de service
Si la section de dépannage ne permet pas de résoudre ou ne décrit pas le problème,
contacter l’agent d’entretien agréé OHAUS. Pour un service d’assistance ou une prise
en charge technique aux États-Unis, composer le numéro gratuit 1-800-672-7722, poste
7852 entre 8h00 et 17h00 (GMT - 5). Un spécialiste du service produit OHAUS est
disponible pour apporter son aide. En dehors des États-Unis, bien vouloir se rendre sur
notre site web, www.ohaus.com pour rechercher la filiale OHAUS la plus proche.
Numéro de série: ____________________________________________________
Date d’achat: _______________________________________________________
Fournisseur: ________________________________________________________
table des matiéres
Contenu de l’emballage . . . . . . . . . . . . . . . 17
Des informations de service . . . . . . . . . . . . . . . 17
Installation . . . . . . . . . . . . . . . 18
Maintenance et réparation . . . . . . . . . . . . . . . 18
Utilisation prévue . . . . . . . . . . . . . . . 18
Conditions ambiantes . . . . . . . . . . . . . . . 18
Élimination de matériel . . . . . . . . . . . . . . . 19
Consignes de sécurité . . . . . . . . . . . . . . . 19
Normes et réglementations . . . . . . . . . . . . . . . 19
Caractéristiques . . . . . . . . . . . . . . . 20-21
Instructions d’utilisation analogiques. . . . . . . . . . . . . 22
Panneau de commande numérique . . . . . . . . . . . . . 23
Manuel d’utilisation numérique . . . . . . . . . . . . . . . 24-25
Dépannage . . . . . . . . . . . . . . . 26
Tableau d’utilisation de la plate-forme. . . . . . . . . . . . 27
Capacité de la plate-forme . . . . . . . . . . . . . . . 28-29
Capacité de la plate-forme du plateau de test . . . . . . . . 30-31
FR

À la réception de l’Ohaus lourd ou secoueur alternatif, vérifier pour s’assurer qu’aucun
dommage n’a eu lieu pendant l’expédition. Il est important que tout dommage
survenant lors du transport soit détecté au moment du déballage. Si vous constatez
de tels dommages, le transporteur doit être immédiatement informé.
Après le déballage, placer le shaker sur un banc ou table de niveau, loin des vapeurs
explosives. Assurez-vous que la surface sur laquelle l’appareil est placé résistera à la
chaleur typique produite par l’unité et placez l’appareil à un minimum de six (6) pouces
des surfaces verticales. Placez toujours l’appareil sur une surface de travail robuste.
Le shaker de service lourd ou alternatif est fourni avec un cordon d’alimentation
qui est inséré dans le connecteur IEC à l’arrière de l’unité d’abord, puis il peut être
branché dans une prise correctement mise à la terre. L’unité 120V se branche sur
une source de 120 volts, 50/60 Hz. L’unité 230V se branche sur une source de 230
volts, 50/60 Hz.
maintenance et réParation
La conception du secoueur orbital ou va-et-vient assure le fonctionnement durable,
sans incident et fiable de l’appareil. Aucune lubrification ou autre entretien technique n’est
requis de la part de l’utilisateur. L’utilisateur est uniquement tenu de veiller à garder les
surfaces propres. Toutefois, au moins une fois tous les trois (3) mois, il convient de:
• Débrancher l’appareil.
• Nettoyer tout résidu accumulé dans le support et le plateau.
• Vérifier toutes les pièces accessibles pour s’assurer qu’elles sont correctement fixées.
L’appareil doit être entretenu selon les procédures généralement requises pour tout
appareil électrique. Éviter de mouiller l’appareil ou de l’exposer inutilement aux vapeurs.
NE PAS nettoyer le panneau avant avec un produit de nettoyage ou un solvant abrasif,
nocif pour les plastiques ou inflammable. Toujours s’assurer que le cordon d’alimentation
est débranché de l’appareil avant de procéder à son nettoyage. En cas de besoin de
réparation, contacter le représentant Ohaus régional.
Ces secoueurs sont destinés à une utilisation en laboratoire générale.
conditions ambiantes - analogiqUe
Conditions d’utilisation: pour une utilisation intérieure uniquement.
*Pour utilisation dans des environnements de CO2, des incubateurs ou des
chambres froides.
Température: 0 à 40°C (32 à 104°F)
Humidité: Maximum 80% d’humidité relative, sans condensation
Altitude: 0 à 6562 ft (2000 M) au-dessus du niveau de la mer
Conditions d’entreposage:
Température: -20 à 65°C (-4 à 149°F)
Humidité: Maximum 80% d’humidité relative, sans condensation
Installation de catégorie II et degré de pollution 2 conformément à la norme CEI 664.
conditions ambiantes - nUmériqUe & alternatif
Conditions d’utilisation: pour une utilisation intérieure uniquement.
*Pour utilisation dans des environnements de CO2, des incubateurs ou des
chambres froides.
Température: -10 à 60°C (14 à 140°F)
Température: -10 à 40°C (14 à 104°F) (Numérique lourde)
Humidité: Maximum 80% d’humidité relative, sans condensation
Altitude: 0 à 6562 ft (2000 M) au-dessus du niveau de la mer
Tension d’alimentation: Les fluctuations ne doivent pas dépasser 10% de la
tension d’alimentation nominale.
Conditions d’entreposage:
Température: -20 à 65°C (-4 à 149°F)
Humidité: Maximum 80% d’humidité relative, sans condensation
Installation de catégorie II et degré de pollution 2 conformément à la norme CEI 664.
* Évitez les démarrages à froid: L’appareil n’est pas conçu pour démarrer après avoir
été dans un environnement de chambre froide. Amener l’unité dans une chambre froide à
partir d’un environnement à température ambiante, faire fonctionner et retirer l’unité de la
chambre froide dès que l’opération est terminée. 18
installation Utilisation PrévUe
FR

Lire entièrement le manuel d’utilisation du secoueur orbital avant de mettre en
marche l’appareil.
AVERTISSEMENT ! NE PAS utiliser le secoueur orbital dans un milie u dangereux
ou en présence de matières dangereuses non conformes à la conception de
l’appareil. L’utilisateur doit également être conscient que laprotection assurée par
l’équipement peut être amoindrie en cas d’utilisation avec tout accessoire autre
que ceux fournis ou recommandés par le fabricant ou en cas d’utilisation contraire
aux spécifications du fabricant.
Toujours utiliser l’appareil sur une surface nivelée pour assurer une performance
optimale et un maximum de sécurité.
NE PAS soulever l’appareil en le tenant par le plateau.
MISE EN GARDE! Pour éviter les électrocutions, couper complètement
l’alimentation électrique de l’appareil en débranchant le cordon d’alimentation de
l’appareil ou de la prise murale. Déconnecter l’appareil de la source d’alimentation
électrique avant de procéder à tout entretien ou réparation.
Essuyer immédiatement tout liquide renversé par accident.
NE PAS immerger l’appareil en vue de son nettoyage.
NE PAS utiliser l’appareil en présence de tout signe de dommage électrique ou
mécanique.
La conformité aux normes et réglementations suivantes est indiquée par la marque
correspondante sur le produit.
Marque Normes et Réglementations
OHAUS Corporation déclare que les shakers SHHD, SHLD, SHRC sont conformes
aux directives 2011/63 / UE, 2014/30 / UE, 2014/35 / EU et aux normes EN 50581, EN
61010-1, EN 61010-2-051, FR 61326-1.
Le texte intégral de la déclaration de conformité de l’UE est disponible à l’adresse
Internet suivante: www.ohaus.com/ce.
Ce produit est conforme à la directive 2012/19 / UE. Veuillez jeter ce produit
conformément à la réglementation locale au point de collecte spécifié pour les
équipements électriques et électroniques.
Pour obtenir des instructions d’élimination en Europe, consultez www.ohaus.com/
weee.
EN 61326-1
CAN/CSA C22.2 61010-1, CAN/CSA C22.2 61010-2-051
UL 61010-1, UL 61010-2-051
Avis Global
Avertissement: Il s’agit d’un produit de classe A. Dans un environnement domestique, ce produit peut causer
des interférences radio, auquel cas l’utilisateur peut être amené à prendre des mesures adéquates.
Canada Avis
Cet appareil numérique de classe A est conforme à la norme ICES-003 du Canada.
Avis de la FCC
REMARQUE: Cet équipement a été testé et déclaré conforme aux limites d’un appareil numérique de classe
A, conformément à la partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection
raisonnable contre les interférences nuisibles lorsque l’équipement est utilisé dans un environnement
commercial. Cet équipement génère, utilise et peut émettre de l’énergie radiofréquence et, s’il n’est pas installé
et utilisé conformément au manuel d’instructions, peut causer des interférences nuisibles aux communications
radio. Le fonctionnement de cet équipement dans une zone résidentielle est susceptible de causer des
interférences nuisibles, auquel cas l’utilisateur devra corriger l’interférence à ses propres frais.
Les modifications ou modifications non expressément approuvées par Ohaus Corporation peuvent annuler
l’autorisation de l’utilisateur d’utiliser l’équipement.
19
consignes de sécUrité
Cet équipement ne doit pas être mis au rebut avec les déchets non triés. Il est
de la responsabilité de l’utilisateur de mettre au rebut l’équipement
convenablement au terme de son cycle de vie en le remettant à un
établissement agréé pour la récolte et le recyclage de ce type de déchets.
Il incombe également à l’utilisateur de décontaminer l’équipement en cas
de contamination biologique, chimique et/ou radiologique, afin de protéger
contre tout danger sanitaire les personnes impliquées dans la mise au
rebut et le recyclage de l’équipement.
Pour tout renseignement supplémentaire concernant les établissements
de mise au rebut de l’équipement, contacter le distributeur régional responsable de la vente
de cet appareil. En procédant de cette manière, l’utilisateur contribue à la conservation des
ressources naturelles et de l’environnement et s’assure que l’équipement est recyclé dans le
respect de la santé humaine.
élimination dU matériel normes et réglementations
FR
