Oji Mansion iLock X2 User manual

User Manual

Thank you for choosing Mansion iLock X2
Please read the instructions before use in order to
understand the correct operation of the product.
CONTENTS:
1 x Mansion iLock X2
2 x Lock Case
4 x AAA Batteries
1 x Screwdriver
!
!

Spindle
Semi-Conductor
Fingerprint
Collector
Password
Keyboard

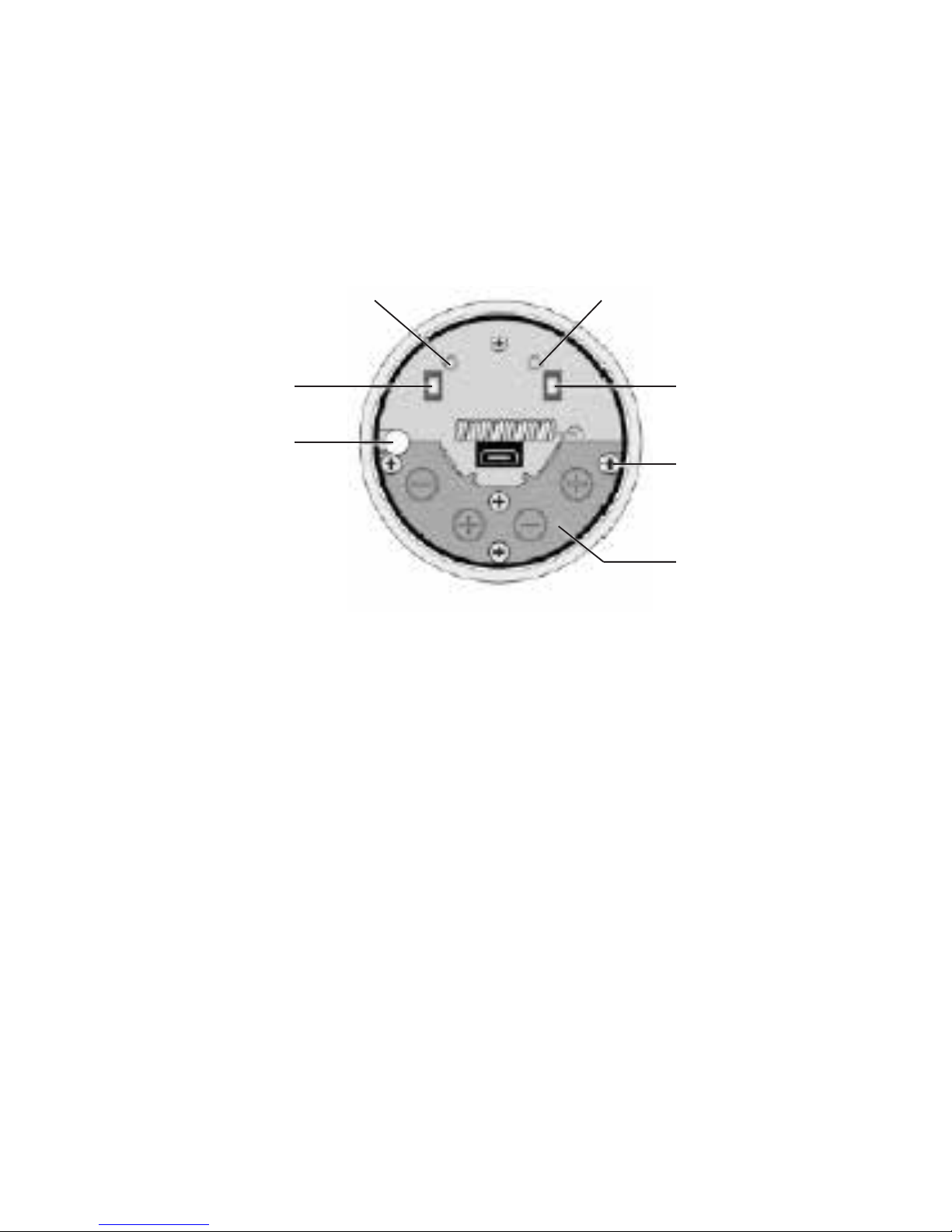

Inner
Knob
Outer
Knob
Emergency
Power Supply
Interface
Back Cover Of
Inner Knob
Inner Knob Case
Triangle Mark
Fixing Screw Hole
Regulating Screw
Adjusting Hole
Outer Knob Touch Points

L2
Network Key
Screw x 4
Battery Cover
Recovery
Key
L1
Adjusting Hole
(in lock body)

1. Lock and Unlock Function
a. To Unlock: At the door, enter the correct fingerprint or
password, then turn the outer knob to open the door lock
until you hear “Welcome home” after a successful verifi-
cation. Five seconds later, the outer knob automatically
recovers to idle state so that the door can't be unlocked.
b. On Exit: At the door, enter the correct fingerprint or
password, then turn the outer knob to double lock the
door until you hear “Bon voyage” after a successful
verification. Five seconds later, the outer knob automati-
cally recovers to idle state so that the door can't be
unlocked. The Door is successfully locked
2. Tamper Alarm Function
If the outer case of the lock body is removed or opened
forcibly, the lock cylinder will give off a high-pitched alarm
sound.
3. Random Password Function
Input random numbers before or after the correct pass-
word to prevent malicious theft.
Part1: Functions

5. Pseudo Password Function
a. When a wrong password is input continuously five
times, the keypad will be automatically locked for three
minutes. It will not recognize any password during that
period, but the correct fingerprint can be entered to
remove the locked password.
6. Thief-Proof Function
a.Protect Mode: At the door, long press the “#” key for
two seconds after successful verification until you hear
“On Protection”.
b. When a wrong fingerprint is input continuously five
times, the keypad will automatically be locked for three
minutes. It will not recognize any fingerprint during that
period, but the correct password can be entered to
remove the locked fingerprint.
b.Unprotect: At the door, if the fingerprint / password is
verified successfully, the protection is lifted.
If the door is opened under protection mode, the lock
cylinder gives off a high-pitched alarm.
4. Touch Function
A touch sensor on the password keyboard and fingerprint
contact offer a more comfortable user experience.

7. Voice Prompt
Voice prompts “Welcome home” and “Bon Voyage” can
be heard every time the door unlocks. These can be
turned off in the setting menu.
8. Low-Voltage Alarm
When the batteries are running down, it gives off a
warning prompt “low-voltage, please replace the battery
in time”.
9. Emergency Power Supply
If the fingerprint or password fails to be recognized due to
a delayed replacement of batteries, connect the
Micro-USB interface on the outer knob with a portable
battery and then open the door normally. After that,
please replace the batteries in the lock cylinder immedi-
ately

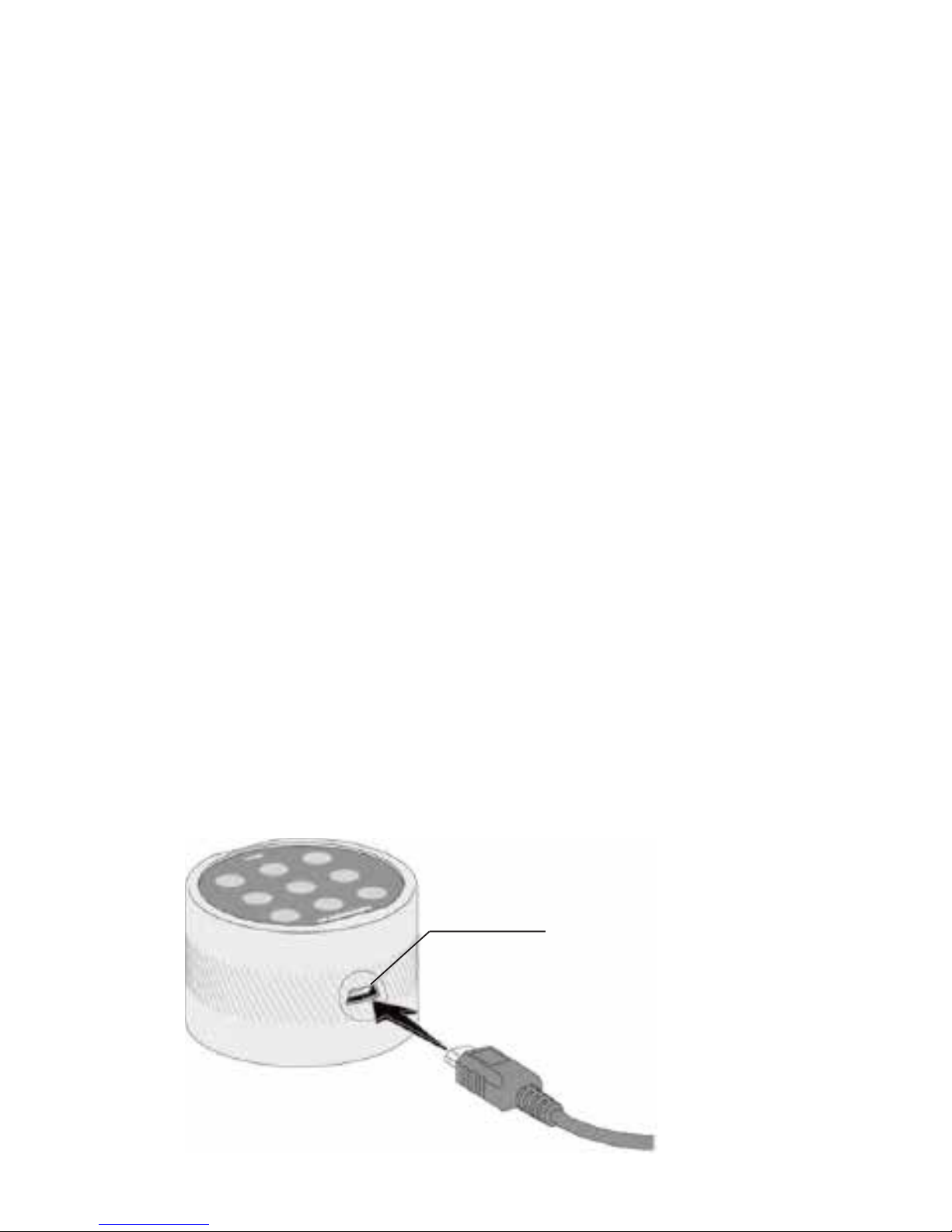

Emergency
Battery Interface

1: Remove the Original Lock Cylinder
Part2: Installation

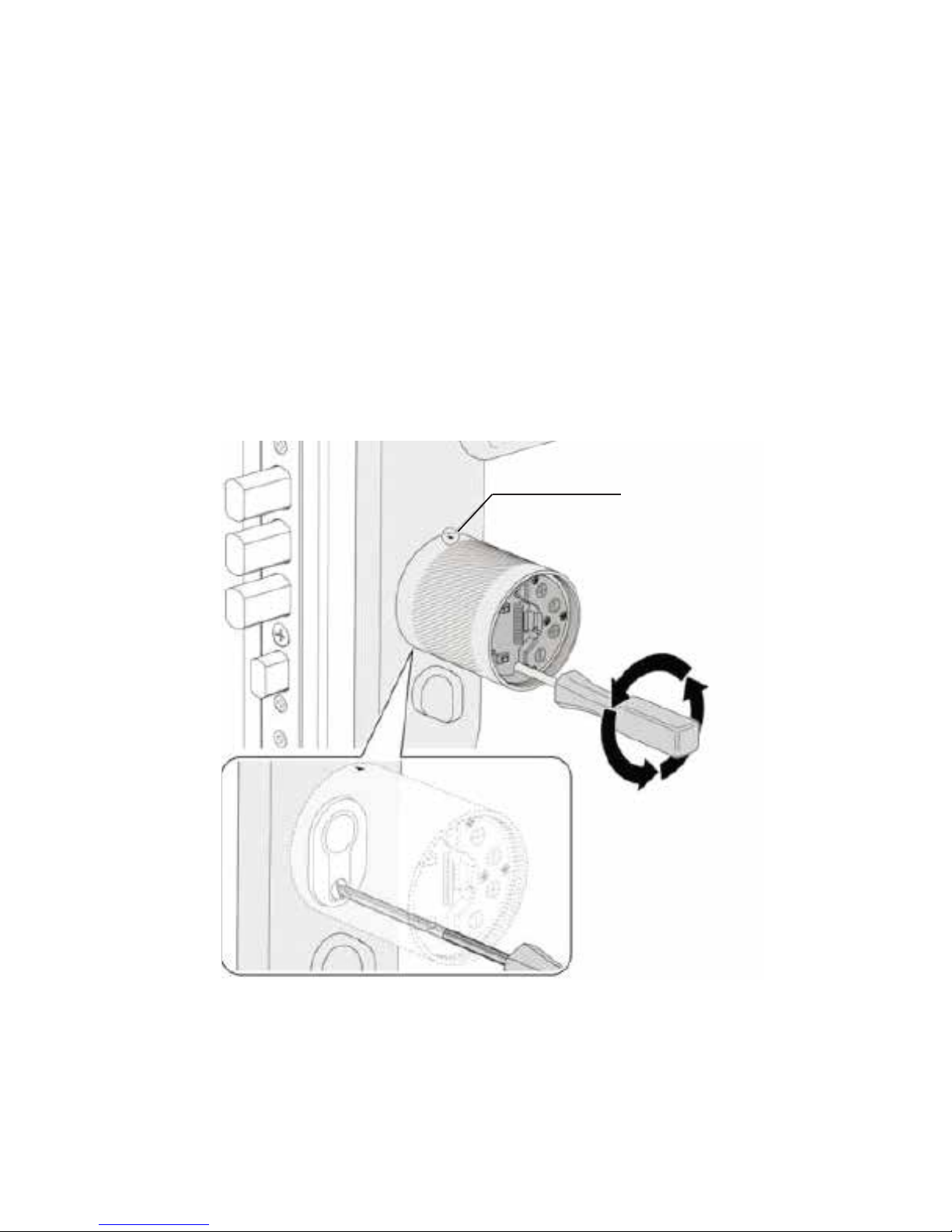

Using the screw driver, unfasten the screws from the
inside of the door and remove the panel and accessories.

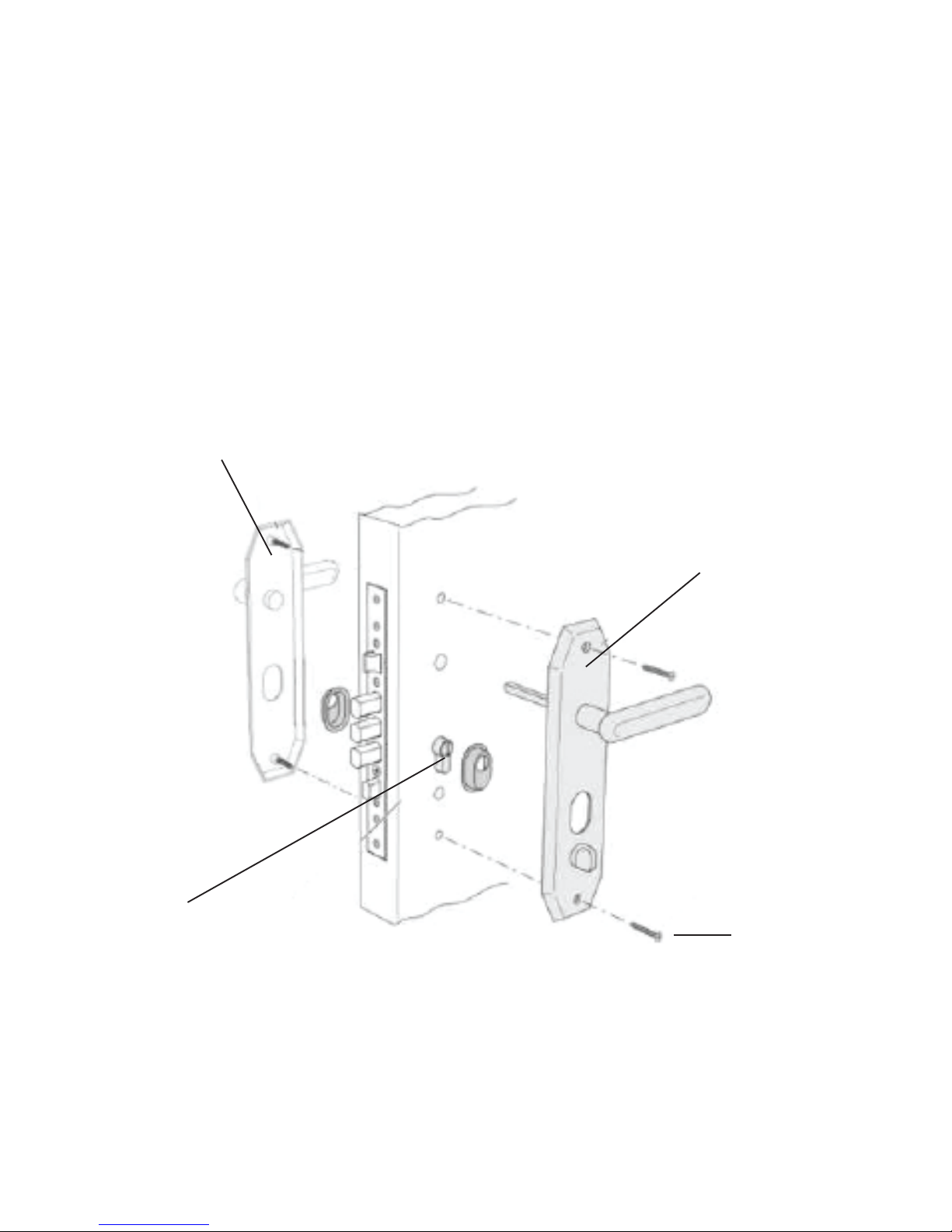

Inner Plate
Outer Panel
Lock Cylinder Screw

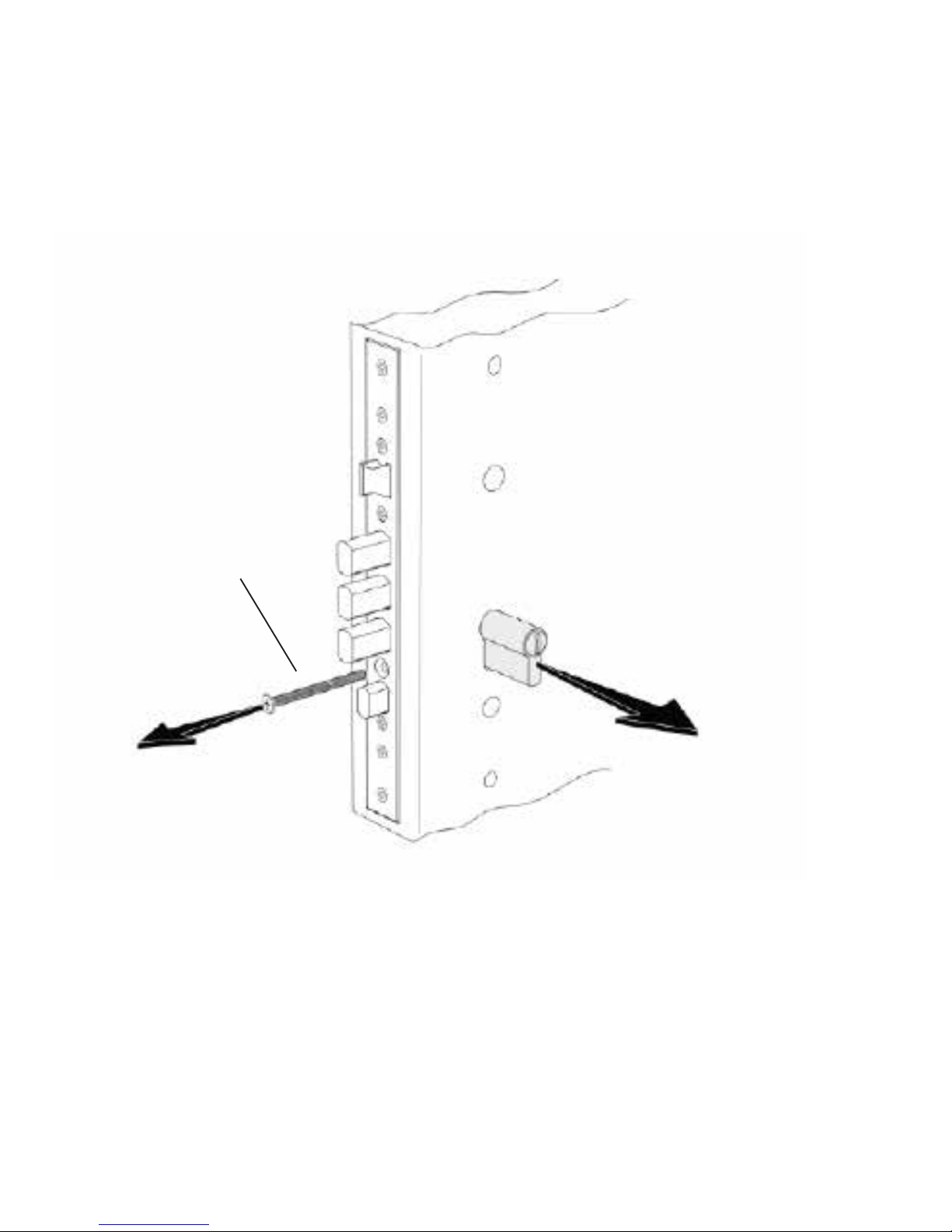

2. Unfasten the screws to remove the lock cylinder from
the side of the door.
Screw
Note:
Insert the key into the lock cylinder and rotate to an
appropriate angle, then the lock cylinder can be removed.

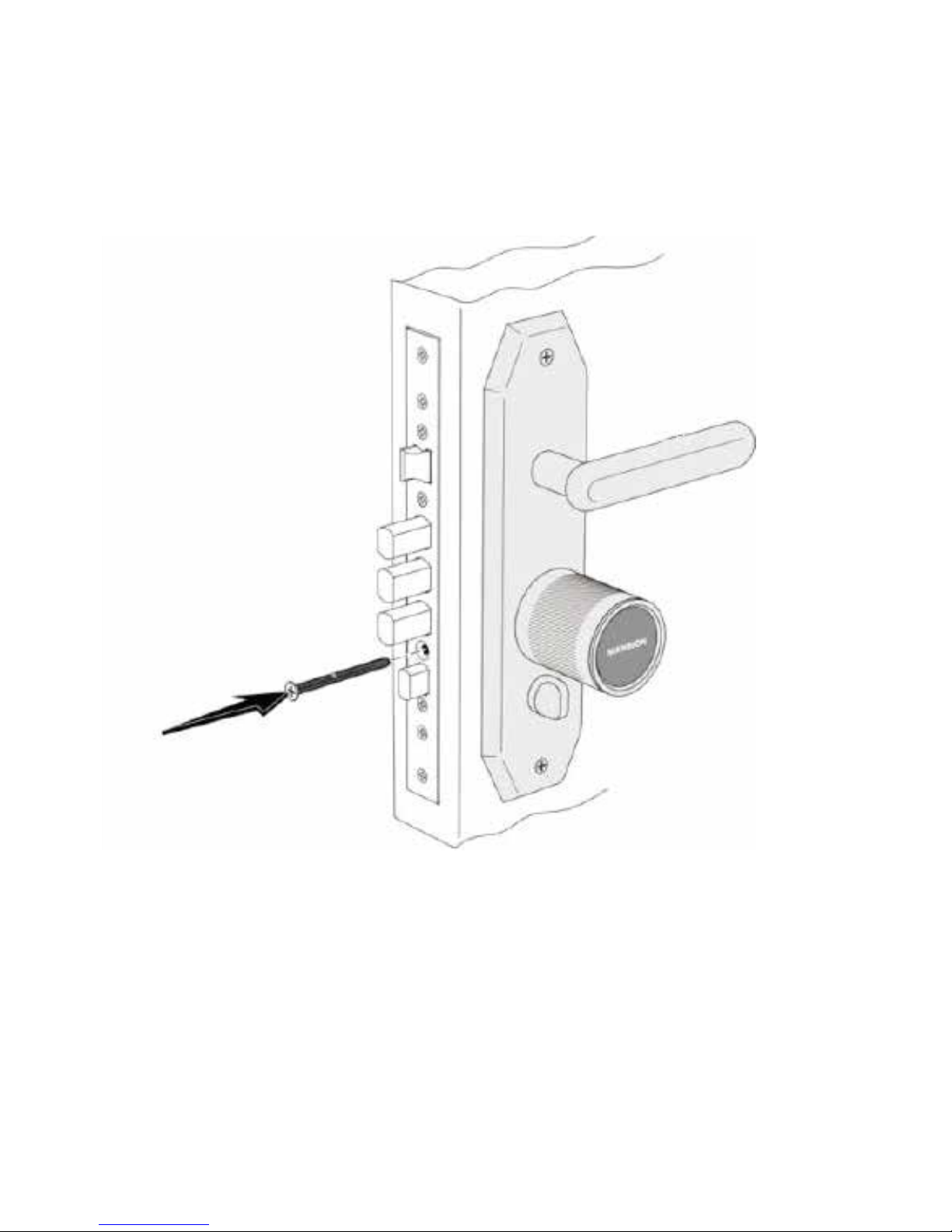

Installing the lock

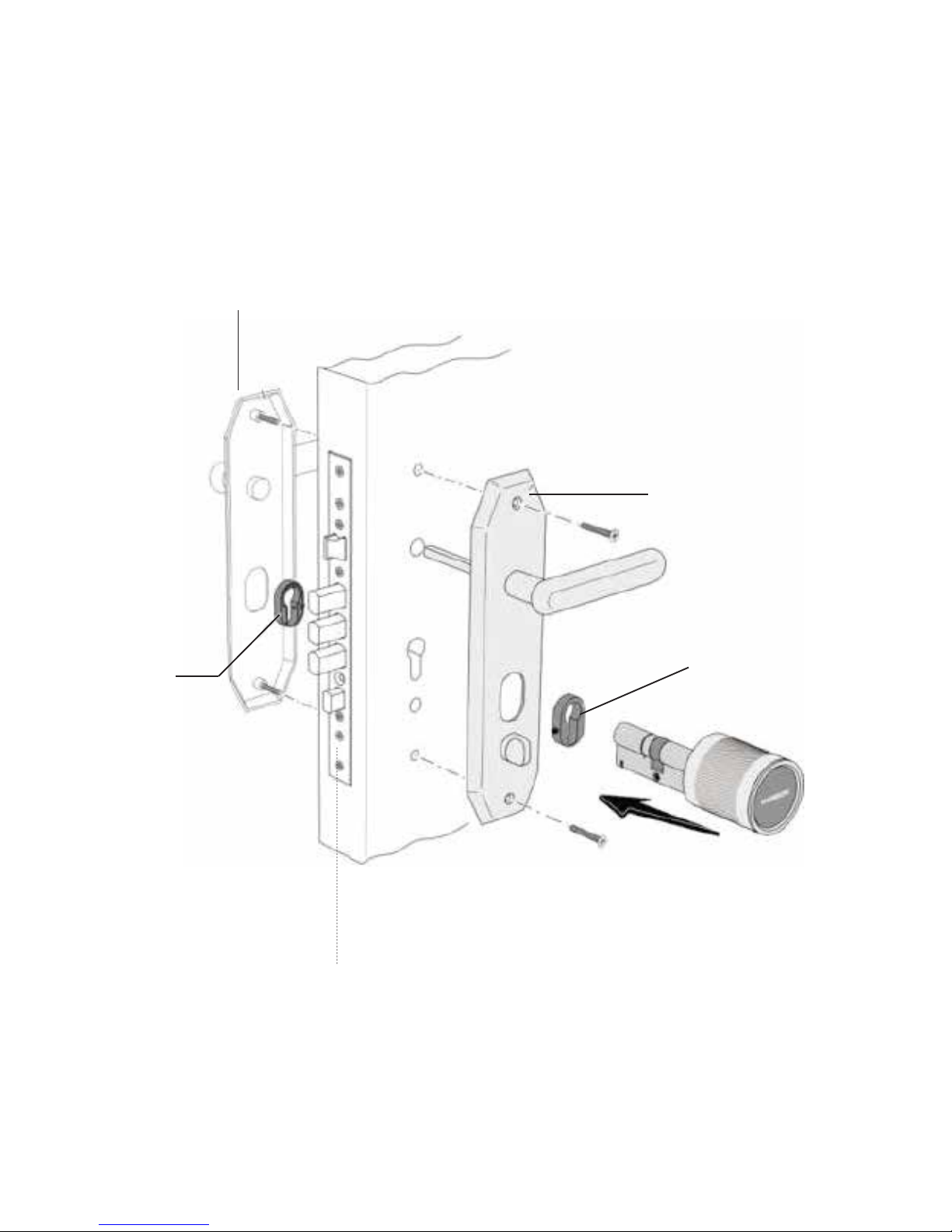

1. Fix on the original panel and install the lock cylinder of
iLock X2 from inside the door.
OUTSIDE
THE DOOR
INSIDE
THE DOOR
Outer Panel
Inner Panel
Lock
Case
Lock
Case
