OLIMAC Drago GT Operating instructions

User and maintenance manual
CORN HEAD

Page | 1
Contents
CONTENTS 1
SECTION 1 – INTRODUCTION 4
SECTION 2 - CORN HEAD SAFETY 5
2.1 –FOLLOW ALL SAFETY INSTRUCTIONS 7
2.2 –UNDERSTANDING SIGNAL WORDS 7
2.3 –OPERATING SAFETY PRECAUTIONS 8
2.4 –MAINTENANCE SAFETY PRECAUTIONS 9
2.5 –SAFETY DECAL LOCATIONS 12

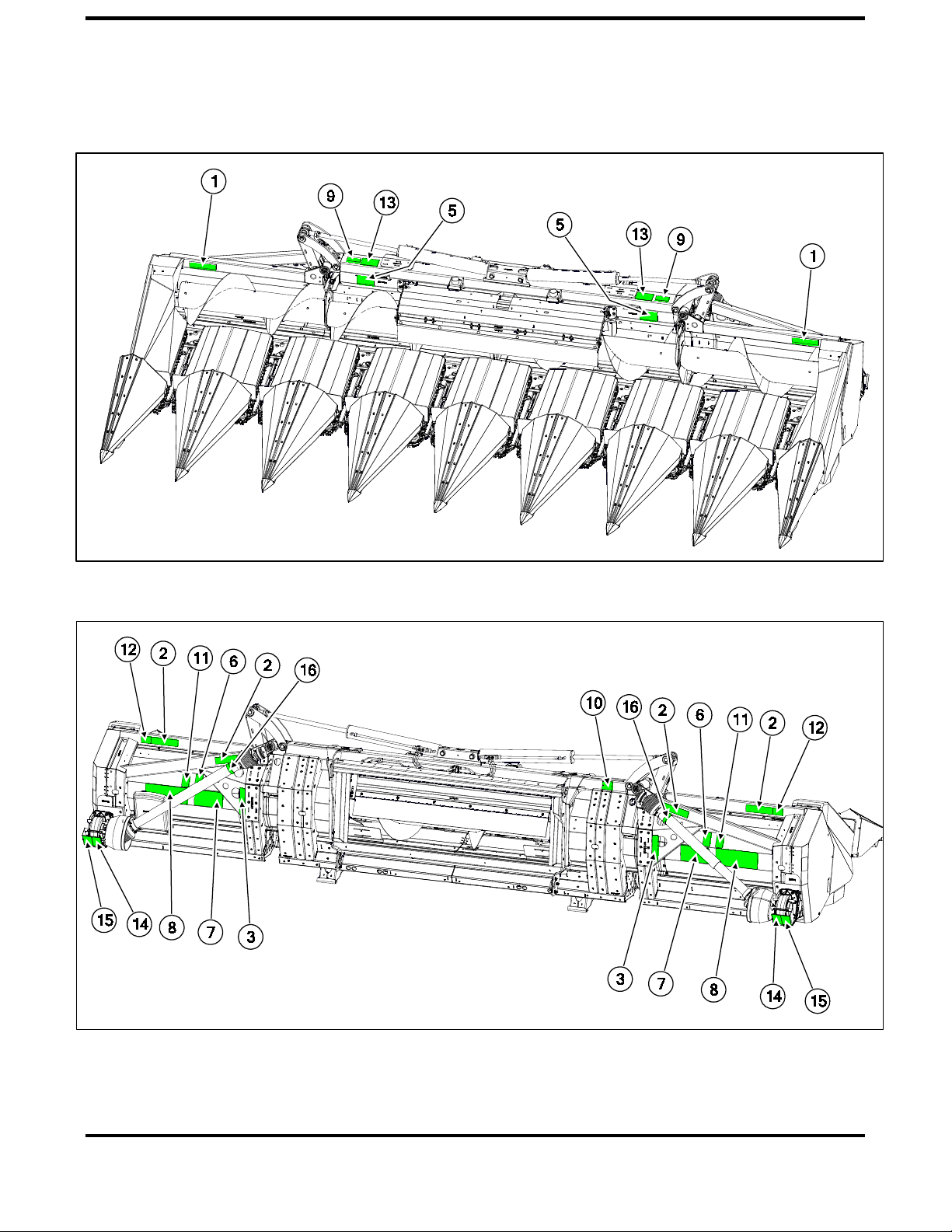

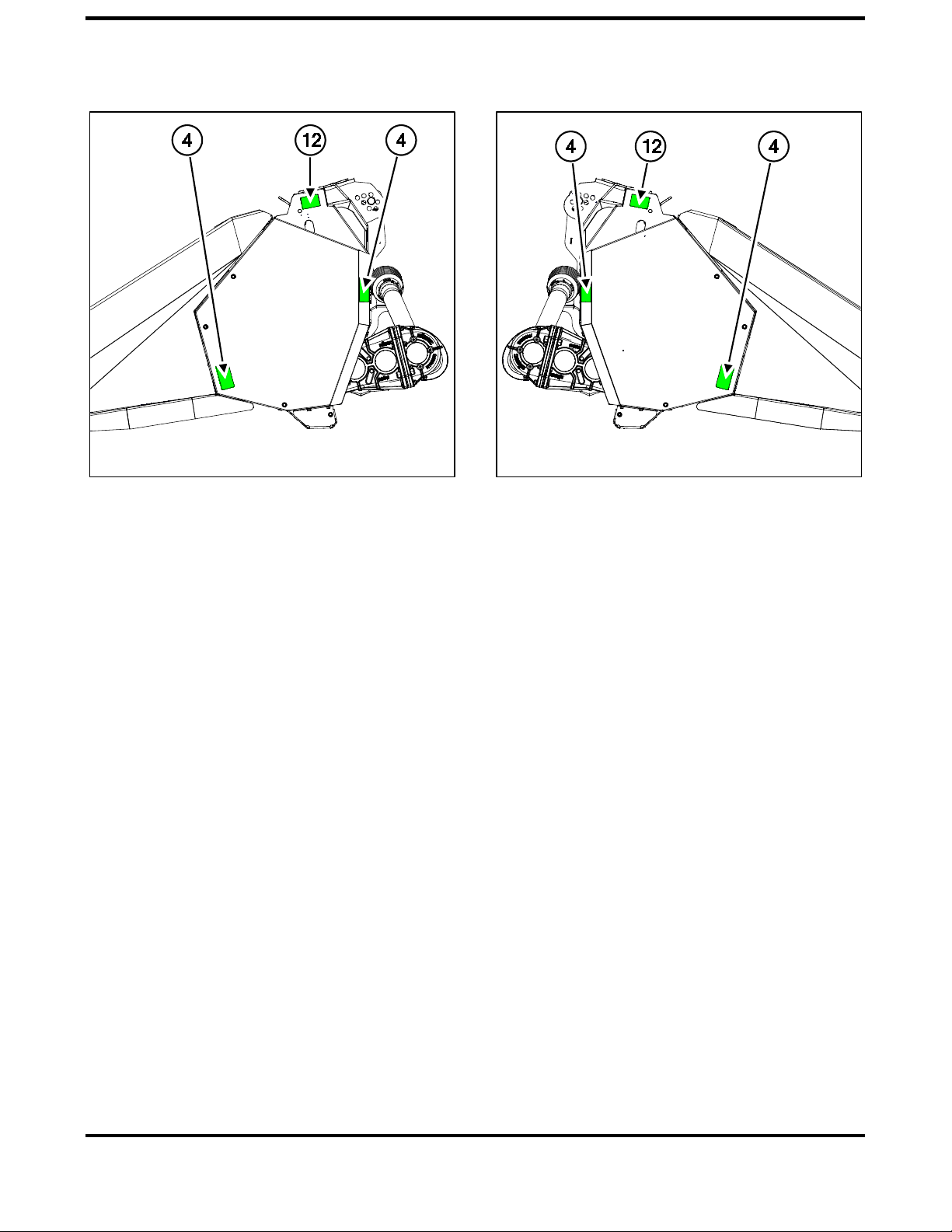

2.5.1 –RIGID CORN HEAD SAFETY DECAL LOCATIONS 13
2.5.2 –FOLDING CORN HEAD DECAL LOCATIONS 15
2.5.3 –DECAL DESCRIPTIONS 16
2.6 –INTENDED USE 22
2.6.1 -EQUIPMENT OPERATING RANGES: 22
2.6.2 -EQUIPMENT OPERATION 23
2.7 –CONTRAINDICATIONS FOR USE 24
2.8 –SHIPPING POSITION 25
2.8.1 –SHIPPING STAND 25
2.8.2 –USING A STAND 26
2.8.3 –LIFTING/LOWERING THE CORN HEAD 27
SECTION 3 – ATTACHING/DETACHING CORN HEAD 29
3.1 –ATTACHING 30
3.2 –DETACHING 31
3.3 –ADDITIONAL CORN HEAD CONNECTIONS 32
3.4 –PTO SHAFT PHASING 33
SECTION 4 – TRANSPORTING 34
4.1 –TRUCKING 34
4.2 –TRANSPORT WITH COMBINE HARVESTER 35

Page | 2
SECTION 5 – OPERATION 36
5.1 –GENERAL INFORMATION36
5.2 –INDIVIDUAL COMPONENT PROTECTION 39
5.3 –POWER TRANSFER 41
5.4 –DECK PLATES 42
5.4.1 –DECK PLATE PRESSURE 42
5.4.2 –QUADSUSPENSION 43
5.5 –FOLDING FRAME 44
5.5.1 –FOLDING PROCEDURE 44
5.5.2 –UNFOLDING PROCEDURE 44
5.6 –AUTOMATIC HEADER HEIGHT CONTROL 45
5.7 –BEFORE STARTING IN THE FIELD 46
5.7.1 -START WORKING IN THE FIELD 47
SECTION 6 – ADJUSTMENTS 48
6.1 –CORN HEAD ANGLE 49
6.1.1 –CORN HEAD ANGLE ADJUSTMENT 49
6.1.2 –ADAPTER FRAME ADJUSTMENT 50
6.2 –GATHERING POINT ADJUSTMENTS 51
6.2.1 –CENTER PIVOT LINE 51
6.3 –STALK ROLLER KNIVES 52
6.3.1 –REMOVING THE STALK ROLLER 52
6.3.2 –REPLACING STALK ROLLER KNIVES 53
6.3.3 –STALK ROLLER ADJUSTMENT 54
6.4 –TRASH KNIVES 55
6.5 –ROW UNIT ALIGNMENT 56
6.6 –DECK PLATES 57
6.6.1 –MAXIMUM OPENING 57
6.6.2 –MINIMUM OPENING 58
6.6.3 –DECK PLATE TENSION 59
6.7 –GATHERING CHAINS 60
6.7.1 –GATHERING CHAIN TENSION 60
6.7.2 –REPLACING GATHERING CHAINS 61
6.7.3 –GATHERING CHAIN TIMING 63
6.7.4 –GATHERING CHAIN GUIDE POSITION 66
6.8 BACK-FEED SHIELD 67

Page | 3
SECTION 7 – LUBRICATION/MAINTENANCE 68
7.1 –LUBRICATION TYPE &CAPACITIES 70
7.2 –LUBRICANT PART NUMBERS 70
7.3 –LUBRICATION SCHEDULE 71
TABLE 7.3.1 –NORMAL OPERATION 71
TABLE 7.3.2 –DOWN CORN /SEVERE SERVICE 72
7.4 –PRE-SEASON 73
7.4.1 –PRE-SEASON FLUID CHECK 73
7.4.2 –PRE-SEASON ADJUST/INSPECT 75
7.5 –EVERY 20 HOURS OF OPERATION 77
7.5.1 –20 HOUR GREASE/LUBRICATE 77
7.5.2 –20 HOUR ADJUST/INSPECT 78
7.6 –EVERY 100 HOURS OF OPERATION 79
7.6.1 –100 HOUR FLUID CHECK 79
7.6.2 –100 HOUR GREASE/LUBRICATE 81
7.6.3 –100 HOUR ADJUST/INSPECT 84
7.7 –EVERY 250 HOURS OF OPERATION OR ANNUALLY 85
7.7.1 –250 HOUR OR ANNUALLY GREASE/LUBRICATE 85
7.7.2 –250 HOUR OR ANNUALLY ADJUST/INSPECT 87
SECTION 8 – TROUBLESHOOTING 89
8.1 –TROUBLESHOOTING 89
SECTION 9 – SPECIFICATIONS 92
9.1 –CORN HEAD SPECIFICATIONS 92
9.2 –BOLT TORQUES 94
10 - LIST OF REFERENCE REGULATIONS 95
11 - DISPOSAL 95
12 - COPY OF THE EC DECLARATION OF CONFORMITY 95

Page | 4
Section 1 – Introduction
To the Owner/Operator:
OLIMAC SRL wants to thank you for purchasing a Drago GT Corn Head. Before starting harvest, please read
and understand this manual carefully to learn how to operate and service your corn head correctly. Failure to
do so could result in personal injury or equipment damage. If any portion of this manual is not understood,
please call OLIMAC SRL.
This manual should be considered a permanent part of your corn head and should remain with the corn head.
Measurements are given in both metric and customary US unit equivalents. Use only original replacement
parts including fasteners. Metric and inch fasteners may require a specific metric or inch wrench.
Right-hand and left-hand sides are determined by facing in the direction the implement will travel when
going forward.
Warranty is provided as part of OLIMAC SRL support program for customers who operate and maintain their
corn head as described in this manual. OLIMAC SRL warranty assures that OLIMAC SRL will warrant its
product when manufacturing defects appear within the warranty period. Should the equipment be abused, or
modified to change its performance, beyond the original factory specifications, without prior approval from
OLIMAC SRL, the warranty will become void. Use of non OLIMAC SRL approved lubricants will void the
warranty.
Write product identification numbers in the appropriate section below. You will need these numbers when
ordering parts or submitting warranty claims.
Model Number: ______________________________________
Serial Number: ______________________________________
Type of Combine: ____________________________________
Date of Purchase: ____________________________________
This data is the property of OLIMAC SRL.All use and/or reproduction not specifically authorized by OLIMAC
SRL is prohibited. All information, illustrations and specifications in this manual are based on the latest
information available at the time of publication. The right is reserved to make changes at any time without
prior notification.

Page | 5
Section 2 - Corn Head Safety
Since the equipment - corn head - named "Drago GT" has features that involve a significant degree of
dangerousness due to the nature of the harvesting system, the operator and any people standing within the
operating range of the equipment must take into utmost account the recommendations described in this
manual, as well as those included in the Operator's Manual of the combine.
Before working with the corn head read carefully and thoroughly this manual, the manual of the
PTO drive shafts supplied with the equipment and the Operator's Manual of the combine.
Through this manual you will acquire all the information regarding the general characteristics of the
equipment needed to train personnel on safe handling.
Important: Please note the decals placed in visible positions on the equipment that detect
dangerous items and behaviors that are recommended for your safety (danger-warning–caution)
followed by specific instructions. These recommendations are intended to achieve the protection of
the personal safety of the operator and those who work with you. Before using the equipment it is
necessary to read and understand these contents.
Based on the activities you are going to perform while using this equipment, wear the appropriate
PPE. In particular, the following are recommended:
PPE
WHEN
Safety footwear
Always
Gloves
Always
Eye protection
For maintenance, adjustment and lubrication
Helmet
During handling operations, for loading and unloading
and during any activity which require the operator stays
under the equipment.
Ear protectors
During the operation of the machine.
Dress appropriately, not baggy
garments or with loose parts
that may get caught/dragged
by the moving parts of the
machine.
Always
Keep efficient emergency signs attached to the corn head. Replace lost or damaged signs. Make sure that the
new components on the equipment and the spare parts include the decals available at your local OLIMAC
dealer.
Learn how to use the machine and how to use the controls properly.
Do not let anyone operate without having been properly informed, educated and trained in the use of the
corn head.

Page | 6
Keep your equipment in proper working conditions. Unauthorized to the machine may impair the functions
and/or safety and have a negative impact on the efficiency thereof.
If you are not sure or you do not understand any part of this manual, before taking any action seek
assistance and please contact your nearest OLIMAC dealer.
Keep your corn head in good working condition. Unauthorized modifications may damage the safety functions
and affect the equipment life/warranty.
FAILURE TO FOLLOW THE INSTRUCTIONS CONTAINED IN THIS MANUAL
COULD RESULT IN SERIOUS INJURIES

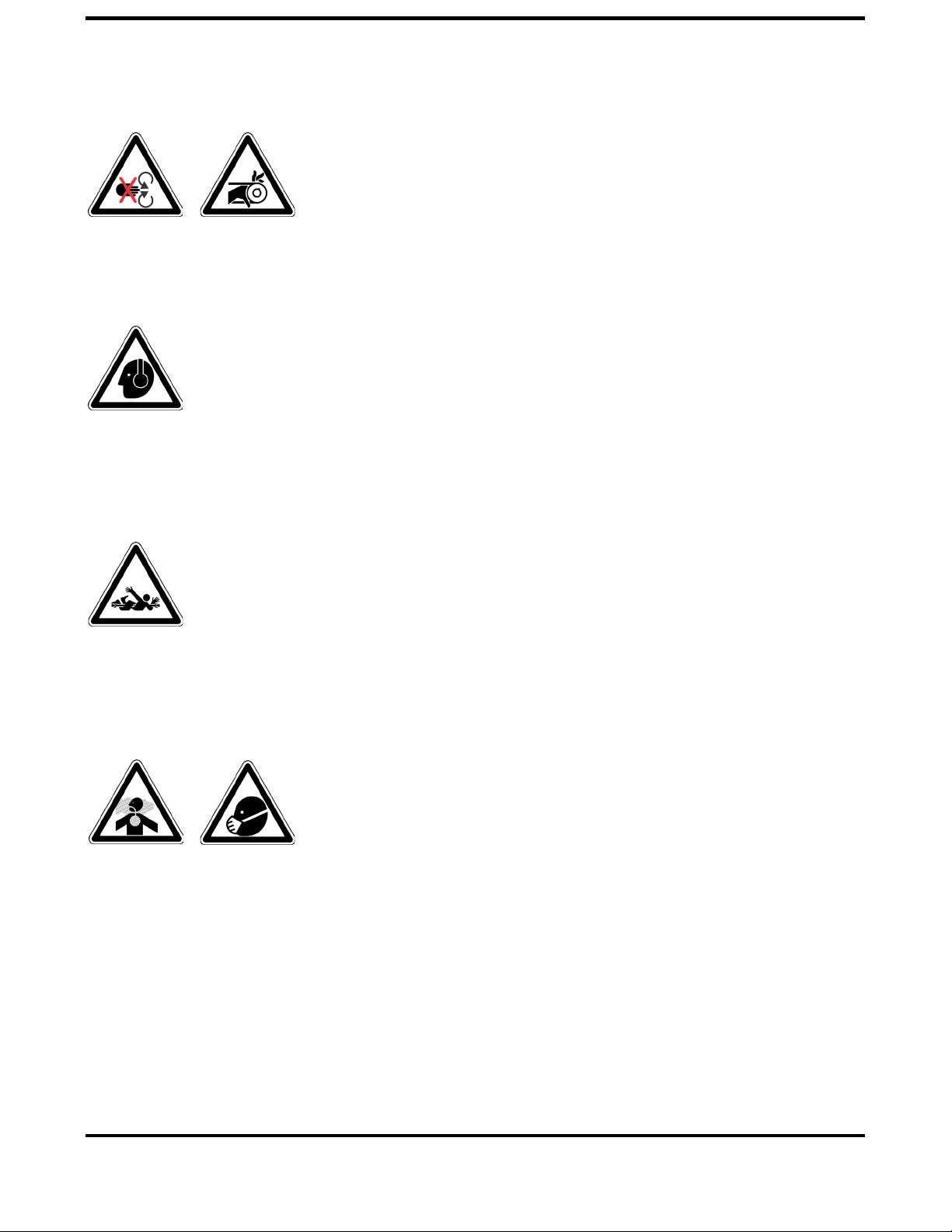

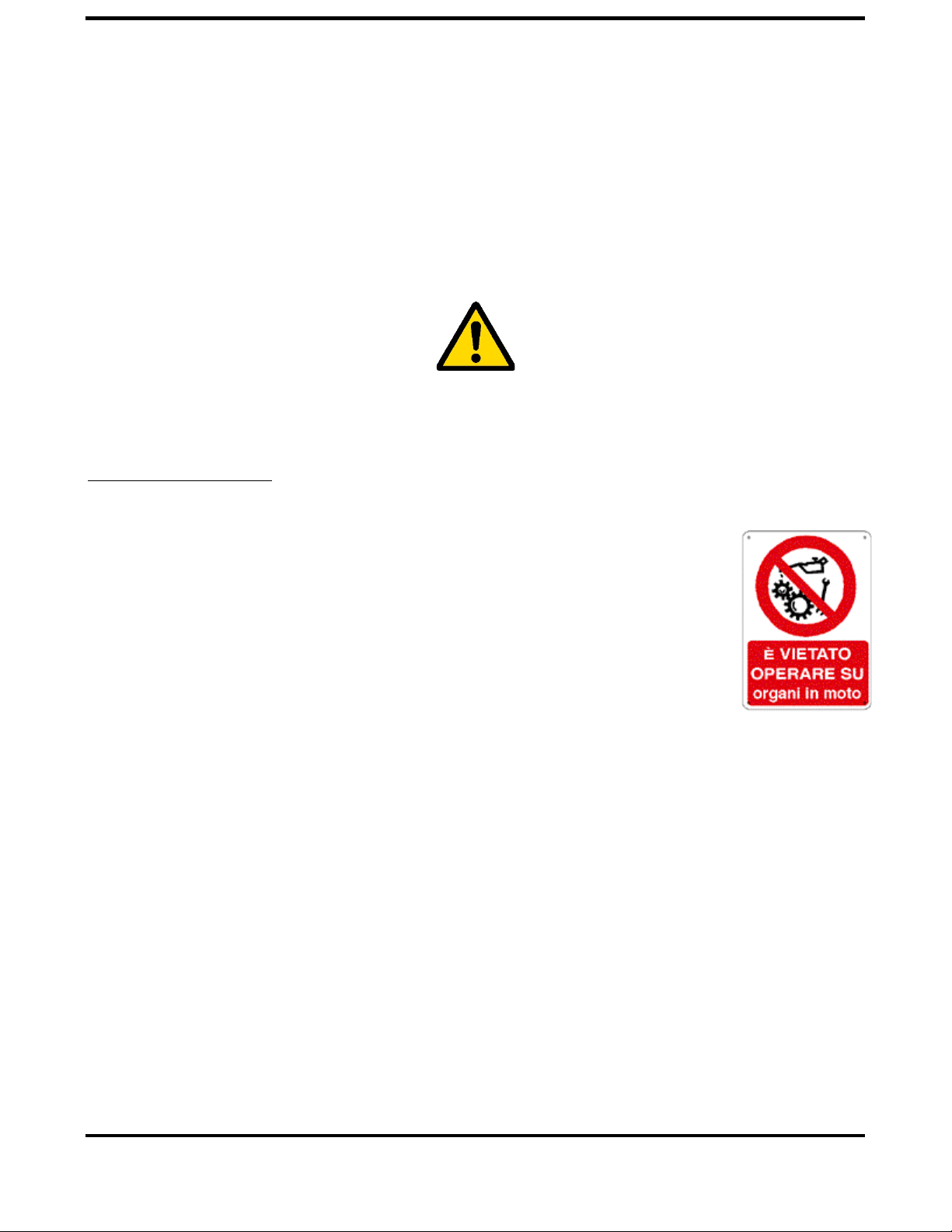

AVOID BEING CAUGHT:
To avoid being caught:
-No activity or operation must be conducted with staff in the vicinity of the head when it is
operating.
-The personnel should not wear clothing unsuitable for work such as belts
or parts of loose or fluttering fabric.
-It is strictly forbidden to attempt to intervene with temporary non-
dedicated tools during normal operation of the machine or to resolve
anomalies.
-Any operation, also unclogging the head, must be carried out when the
machine is stopped and powered down as described in the following
chapters.
Failure to follow instructions could be fatal since the harvesting system is
aggressive in nature.
When being caught, you must:
-Secure the machine by removing and by disconnecting from any source of energy;
-as appropriate, disassemble and remove the parts that cause entanglement or manually operate
the rotation of the moving parts in the reverse, making sure, beforehand, to avoid further injury.

Page | 7
2.1 – Follow All Safety Instructions
Carefully read all safety messages in this manual and on your corn head safety decals. Keep all decals
in good condition. Replace any missing or damaged decals. Be sure new components/equipment and
repair parts include the current safety decals. Replacement
safety decals are available from your
Authorized Drago dealer.
Learn how to operate the corn head and how to use controls properly. Do not let anyone
operate
without instruction.
Keep your corn head in proper working condition. Unauthorized modifications to the
corn head may
impair the function and/or safety and affect machine life/warranty.
If you do not understand any part of this manual and need assistance, contact your Authorized Drago
dealer or OLIMAC SRL.

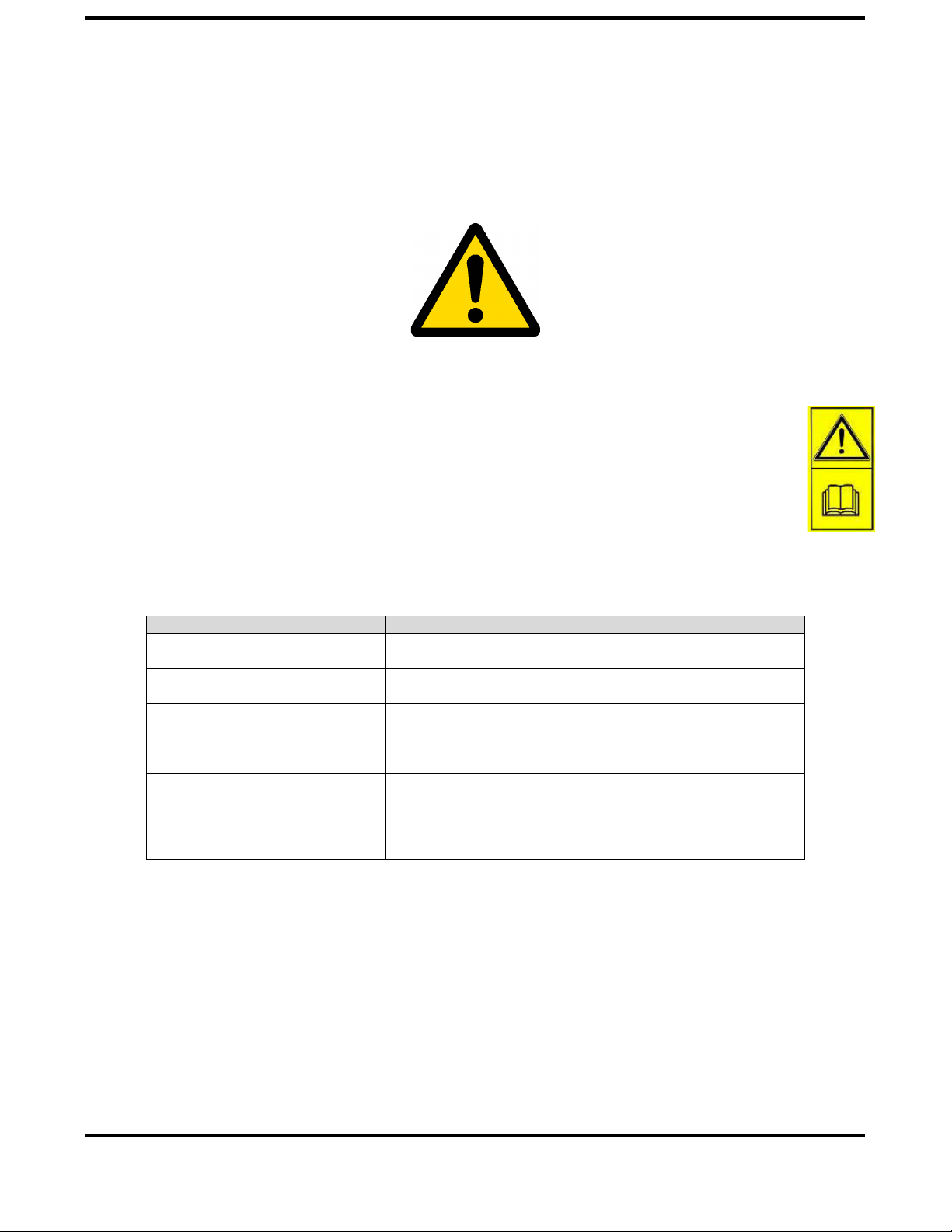

2.2 – Understanding Signal Words
Throughout this manual and on corn head decals you will find precautionary statements, including the
following safety alert symbols. Danger and Warning safety signs are located near specific hazards. General
precautions are listed on the Caution safety signs.
This is a safety-alert symbol. When you see this symbol on your machine or in this manual, be
alert to the potential for personal injury.
This is an important information symbol. When you see this symbol in this manual it is calling
attention to important safety or adjustment procedures.
Follow recommended precautions and safe operating practices.
DANGER indicates an immediate hazardous situation that, if not avoided, will
result in serious injury or death. The color associated with danger is red.
WARNING indicates a potentially hazardous situation that, if not avoided, could
result in serious injury or death. The color associated with warning is orange.
CAUTION indicates a potentially hazardous situation that, if not avoided, may
result in minor or moderate injury. It may also be used to alert against unsafe
practices. The color associated with caution is yellow.
Failure to follow the Danger, Warning and Caution instructions may result in serious bodily injury
or death.

Page | 8
2.3 – Operating Safety Precautions
Before operating this corn head, thoroughly read and understand this manual, as well as your Combine
Operators Manual. Make all information available contained therein to those working with you and/or for
you.
1) Before start-up, check corn head for operational and traffic safety tips.
2) Ensure everyone is clear of the combine before starting.
3) Pay attention to all local safety regulations in addition to the recommendations made in this
operator’s manual.
4) Before starting work, get familiar with all devices and their functions.
5) The combine should always be equipped with sufficient rear axle weight for safe
operation. Under
some field conditions, more weight may be required at the rear axle for adequate stability. See
Table 9.1 for corn head weight and the Combine Operators Manual for required ballasting. For
any corn heads not listed in Table 9.1 call OLIMAC SRL.
6) Pay attention to permissible axle loads and total weights.
7) The mounted corn head influences speed, steering and braking capability – observe sufficient
steering and braking capability.
8) Only allow passengers on the combine for brief periods for training or observation only.
9) Keep all safety shields in place. Failure to do so may result in serious injury or death.
10) Never wear loose fitting clothing that might catch on moving parts while working around the corn head or
combine.

Page | 9
2.4 – Maintenance Safety Precautions
Before performing any repairs or maintenance on the combine or corn head:
1) Lower the corn head to the ground or raise the corn head completely and lower the feeder
house lift cylinder safety stops.
2) Engage the parking brake.
3) Shut off the combine engine and remove key.
4) Disconnect corn head drive shafts.
5) Hang a “Do Not Operate” tag in the operator’s station.

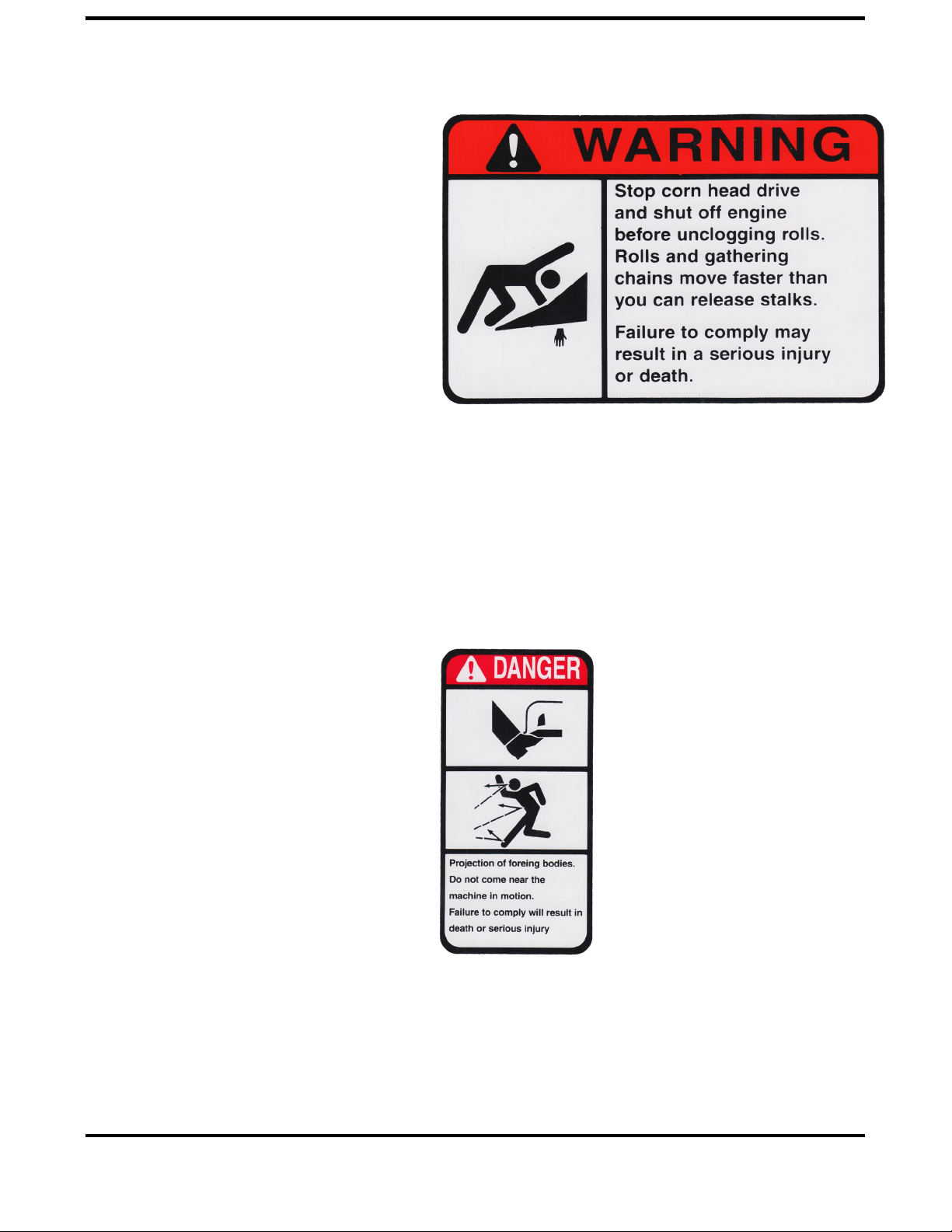

6) If the corn head should become plugged, stop the combine and engine before
removing the
obstruction. Failure to do so could result in serious injury or death.
Before performing any lubrication or adjustment to the combine or corn head:
1) Lower the corn head to the ground or raise the corn head completely and lower
the cylinder
safety stops.
2) Engage the parking brake.
3) Shut off the combine engine and remove the key.
4) Disconnect corn head drive shafts.
5) Hang a “Do Not Operate” tag in the operator’s station.
Avoid High Pressure Fluids
1) Lower the corn head to the ground or raise the corn head completely and lower
the cylinder
safety stops.
2) Always release all hydraulic pressure prior to opening the system. Failure to do so may result
in a hydraulic injection injury.
3) Inspect all hoses for damage or wear at least once per season. If any hoses show signs of
wear or failure replace immediately.
4) To inspect for leaks use a piece of card board, never use hands. If an accident occurs, contact a
hand surgeon or specialist familiar with injection injuries immediately. Do not contact a general
practitioner. Any fluid injected into the skin must be surgically removed within a few hours or
gangrene may result.

Page | 10
Do Not Feed Material by Hand
To avoid entanglement, do not feed crop material into the corn head by hand, or
attempt to manually
unplug the corn head while it is running. The stalk rollers can feed the crop material in faster than you can
release your grip on the material.
Avoid Hearing Loss
Prolonged exposure to loud noise can cause hearing impairment or loss of hearing. Wear a suitable
protective hearing device such as earmuffs or earplugs to guard against objectionable or
uncomfortable loud noise.
Avoid Rotating Components
Pay attention to the corn head when in motion. Stalk rollers of the corn head, etc. cannot be
completely shielded due to their movement.Always stay clear of these
moving parts during
operation.
Remove paint before welding or heating to avoid toxic fumes and dust.
1)
Disconnect all batteries prior to welding.
2)
Work only in well-ventilated areas.
3)
Remove paint to a minimum distance of 3” (76mm) away from the area to be effected by heating.
4)
If you must sand or grind, avoid breathing the dust. Wear an approved respirator.
5)
If using solvent or paint stripper, remove the stripper with soap and water before welding.
Never use chlorinated brake cleaner before welding.
6)
Remove all aerosols, combustible fluids and any other flammable material from the work area.
Allow fumes to disperse at least 15 minutes before welding or heating.
7)
Keep all hydraulic lines and oil reservoirs away from the work area while using heat. Failure to
do so can rupture lines causing pressurized fluids to ignite.
8)
Dispose of paint and solvents safely.

Page | 11
IMPORTANT: Use only original spare parts.
When ordering spare parts, refer to the type and serial number of your corn head.
Corn Head Identification :
The serial number is printed on the identification plate located on the upper right side of the
frame. You should communicate the information shown on it whenever it is necessary to order
spare parts.
SERIAL N. ………………………………………………………………………………
TYPE OF MT……………………………………………………………………………
DATE OF PURCHASE………………………………………………………………
ENHANCEMENT
OLIMAC SRL is constantly working to improve and develop its product.
OLIMAC SRL reserves the right to make improvements or changes when it becomes practical and possible to
do so, without incurring any obligation to make changes or additions to the equipment sold previously.

Page | 12
2.5 – Safety Decal Locations
The following decals have been placed on the corn head as shown in the pictures on the following pages.
They are intended to ensure personal safety and to prevent dangerous working practices. Please take this
manual, walk around the corn head and note the contents of the safety signs. Re-examine its contents with
all operators and workers along with instructions on proper use of the equipment.
Keep decals clean and readable. If one or more of them are damaged or missing, replace and
move to other positions.
The signs (decals) express the degree of attention that should be kept by the operator.
DANGER
It indicates an immediate hazardous situation that, in not avoided, will result in death of serious injury. The
color associated with DANGER is RED.
WARNING
It indicates a specific behavior that should be avoided and that may be dangerous and may result in death
or serious injury. The color associated with WARNING is ORANGE.
CAUTION
It indicates a recommended behavior that, if failed to be performed, could result in a danger. It is also used
to alert against unsafe working practices and usage. The color associated with CAUTION is YELLOW.
The safety decals below must be placed on your equipment within the specified space for your personal
safety and for those who work with you.
Please take this manual, walk around the corn head and note its contents.
Review the decals and instructions in this manual with your hear operator.
Keep decals clean and readable. Should decals be missing on their specific parts of reference, get new
copies from your OLIMAC dealer.

Page | 13
2.5.1 – Rigid Corn Head Safety Decal Locations
Rigid Head – Rear View
Rigid Head – Front View

Page | 14
Rigid Head – Left Side View
Rigid Head – Right Side View

Page | 15
2.5.2 – Folding Corn Head Decal Locations
Folding Head – Front View
Folding Head – Rear View

Page | 16
Folding Head – Right Side View
2.5.3 – Decal Descriptions
Folding Head – Left Side View

Page | 17
1) Decal not provided for the EU
market
2) Decal not provided for the EU
market
3) Decal not provided for the EU
market
4) SD-0004
DANGER
Projection of foreign bodies.
Do not come near the machine in
motion.
Failure to comply will result in
death or serious injury.
5) SD-0005

Page | 18
WARNING
Stop corn head drive and shut off
engine before unclogging rolls.
Rolls and gathering chains move
faster than you can release stalks.
Failure to comply may result in
serious injury or death.
6) SD-0006
DANGER
Rest header on the ground or set
header lift cylinder safety lock
before going under unit.
Failure to comply will result in
death or serious injury.
7) SD-0034
Corn head angle instructions
8) SD-0035

Page | 19
Lubrication Decal
9) SD-0010
WARNING
SLIPPERY SURFACE
Do not use this area as a step or
platform.
Failure to comply could result in a
serious injury or death.
10) Serial Number Plate
Contact OLIMAC SRL if this
becomes damaged or missing.
11) SD-0014
DANGER
