Olimpia electronics GR-424 User manual

GR-424/1PL
GR-424/1PL
GR-424/1PL
4.4 W / 4.6 VA
150-250V DC, 140-250V AC / 50-60Hz
16 white LEDs
500lm
IP40
EN 60598-1, EN 60598-2-22, ΕΝ 55015,
ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3
Aluminum, ABS/PC, PC, Acrylic plate
50 m
310 x 310 x 330 mm
2520gr.
MAINS EMERGENCY
LUMINAIRE SIGN
923424003_09_004 923424003_09_004
Olympia Electronics S.A.
11.05 - 11.15V DC
2.8W
1006195
IP40
Central
Battery
CBS
50m
4 5
LABELING EXPLANATION:
G: Internally illuminated safety sign
NOTE: LED= Light Emitting Diode
Z: Central supply
1: Maintained operation (*)
Light output
500lm
MANUFACTURER
MODEL NUMBER
VOLTAGE RANGE
CONNECTIONS
NOMINAL POWER
TEMPERATURE (tc)
70 °C max. across the board
Fixed connection between main pcb and led module
Z1G
Non Maintained operation: The luminaire lights its illumination source, only in
power supply’s failure.
(*) Maintained operation: The luminaire lights its illumination source, when it
is powered by the mains power supply or not.
LED Characteristics
The light source of this luminaire is not user replaceable. When the light
source reaches its end of life the whole luminaire shall be replaced.
ATTENTION!!!
MAXIMUM POWER CONSUMPTION
ILLUMINATION
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
VIEWING DISTANCE
OPERATION TEMPERATURE RANGE
EXTERNAL DIMENSION (L x W x H)
3 years
OPERATION VOLTAGE
LIGHT SOURCE
RELATIVE HUMIDITY
CONSTRUCTION MATERIAL
WEIGHT
GUARANTEE
o
-30 to 50 C
Up to 95%
Technical Characteristics
N for neutral, L for live and for
ground.
Hanging Installation
12
12
3 4
5
Olympia Electronics guarantees the quality, condition and operation of the
goods. The period of warranty is specified in the official catalogue of Olympia
Electronics and also in the technical leaflet, which accompanies each product.
This warranty ceases to exist if the buyer does not follow the technical
instructions included in official documents given by Olympia Electronics or if the
buyer modifies the goods provided or has any repairs or re-setting done by a third
party, unless Olympia Electronics has fully agreed to them in writing. Products
that have been damaged can be returned to the premises of our company for
repair or replacement, as long as the warranty period is valid.
Olympia Electronics reserves the right to repair or to replace the returned goods
and to or not charge the buyer depending on the reason of defection. Olympia
Electronics reserves the right to charge or not the buyer the transportation cost.
Warranty
72nd km. O.N.R. Thessaloniki-Katerini
P.C. 60300 P.O. Box 06 Εginio Pierias Greece
www.olympia-electronics.com
[e-mail]
Thank you for your trust in our products
Olympia Electronics - European manufacturer
European
manufacturers

923424003_09_004 923424003_09_004 923424003_09_004

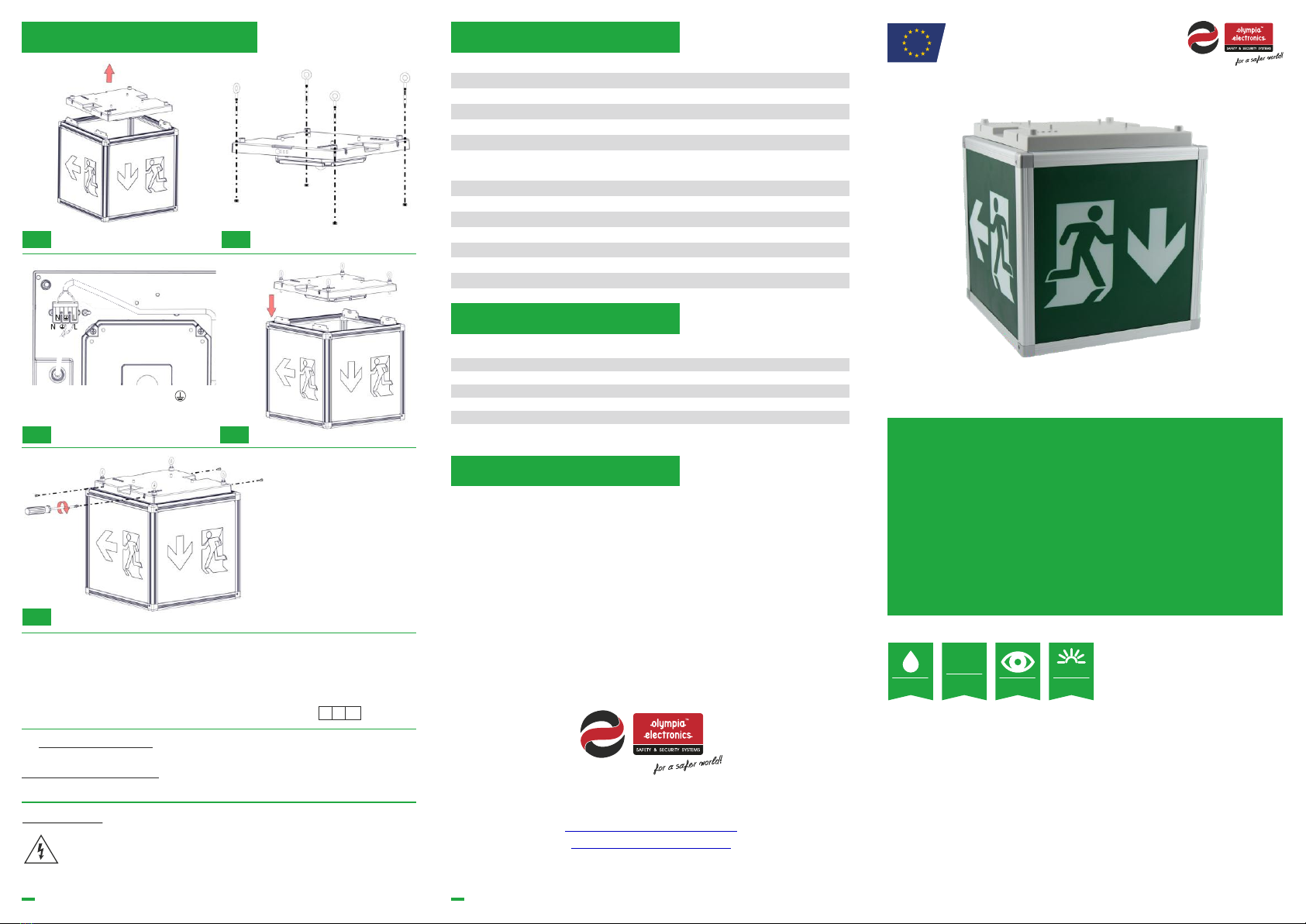

Installation Methods
Installation Instructions
1 2 3
3
5
4
INSTALLATION
To install the luminaire follow the installation procedure as described bellow.
ΑΤΤΕΝΤΙΟΝ!!!
1. Operations for installation, maintainance or testing must be done by
authorized personel, only when the device is disconnected from the mains
power supply.
These luminaires are used in places where emergency luminaires (CBS) are
needed.
Each luminaire must be permanently connected to mains power supply.
2. The device must be connected to the mains power supply through a fuse
dependent by the total amount of the line’s power load.
N for neutral, L for live and for
ground.
Package Contents
General
The luminaire can be installed in 2 different ways. It can be installed either at
the ceiling or hanging with eye bolts. All mounting accessories are including in
the package.
ACeiling
mounting
BHanging installation
with hooks
Ceiling Mounting
12
Mind the orientation of placement!!
The top cover placement is achieved
according to the bottom part of the
luminaire and the already installed
pictograms.
Changing Pictograms
12
Pl a c e th e ap p ro p ri a te
pictograms according to the
position of the luminaire.
Firstly, remove the retaining
plastic clip.
Install the pictogram and make
sure it goes all the way down.
Remove the protective films
from both sides of the acrylic
plate and install it in front of
the pictogram. Mind the
orientation of the acrylic plate.
Place the plastic retaining
clip, press until you hear click
sound. Follow the same steps
for the remaining sides of the
pictogram.
34
1
1
4
1
1
Luminaire (Housing)
Mounting accessories
Manual
Set of 5 pictograms (U, D, R, L, B)
Acrylic Plates
