Oliver 1708-N Operation instructions

1708S20000CV2
Grand Rapids, Michigan, U.S.A. 49504-5298
USER’S OPERATING AND INSTRUCTION MANUAL
MODEL 1708-N
SELF-ACTUATING TRAY LIDDER

1708 SELF-ACTUATING LIDDER
4/26/96 1708S20017
INDEX
SAFETY INSTRUCTIONS........................................................................................... 1708S20008
SET UP........................................................................................................................ 1708S20009
OPERATING PROCEDURE........................................................................................ 1708S20010
ADJUSTMENTS........................................................................................................... 1708S20011
TECHNICAL SPECIFICATIONS.................................................................................. 1708S20012
CLEANING................................................................................................................... 1708S20013
MAINTENANCE & TROUBLE SHOOTING................................................................. 1708S20014
RECOMMENDED SPARE PARTS LIST...................................................................... 1708S20018
ASSEMBLY DRAWINGS & PARTS LIST
Final Assembly........................................................................................................ 1708S20020
Base Assembly....................................................................................................... 1708S20000
Arch Assembly........................................................................................................ 1708S20001
Heater Platen Assembly.......................................................................................... 1708S20002
Pneumatics Assembly............................................................................................. 1708S20003
Tray Carrier Assembly............................................................................................. 1708S20004
Film Roll Dispenser Assembly................................................................................. 1708S20005
MACHINE EXCHANGE PROGRAM.............................................................................GEN 050819
WARRANTY.................................................................................................................. GEN 040225
WARRANTY PROCEDURE..........................................................................................GEN 040226
RETURNED PARTS POLICY....................................................................................... GEN 040227

1708 SELF-ACTUATING LIDDER
7/30/96 1708S20008
SAFETY
Various safety devices and methods of guarding have been provided on this machine. It is essential,
however, that machine operators and maintenance personnel observe the following safety
precautions. Improper installation or operation of this equipment may cause injury to personnel or
damage to equipment.
•Before operating the Self-Actuating Lidder read through this manual. Never allow an untrained
person to operate this machine.
NOTE
•DO NOT ACTUATE MACHINE WITHOUT A TRAY HOLDER IN PLACE. Personal harm and
damage to the machine may occur if the machine is actuated without a tray carrier in place.
CAUTION
•CAUTION HOT: The heater cover and upper platen are very HOT! Caution must be used to
protect yourself and others.
•Always make sure the unit has been unplugged from power and air before cleaning or servicing.
•In addition to these general safety instructions, follow the specific instructions given through out
this manual.

1708 SELF-ACTUATING LIDDER
4/16/96 1708S20009
SET UP
1. Unpack and carefully remove the Self-Actuating Lidder. Check for completeness of your order
and that none of the items have been damaged during shipment. Save packing material for
future shipping.
2. Place the Self-Actuating Lidder in a suitable location that provides adequate working space. The
location must be sturdy, level, and capable of holding 175 lbs. per machine. For maximum
efficency of the Self-Actuating Lidder use the Workstation Stand option.
3. Use a quick detachable coupler with one way shut-off, connect air pressure to the 1/4” NPT
female fitting located on the filter/regulator. The Self-Actuating Lidder requires a minimum of 1
CFM at 90 PSI. If needed an Air Compressor option is available for the Self-Actuating Lidder.
NOTE
•DO NOT USE AN OILER OR LUBRICATOR WITH THIS MACHINE.
NOTE
•DO NOT CONNECT TO AIR PRESSURE ABOVE 150 PSI.
4. Plug the power cord into a grounded electrical outlet. The Self-Actuating Lidder requires single
phase 90 to 130 VAC, 60 Hertz with 10 ampere (minimum) circuit breaker protection.
5. To install the tray carrier, completely extend the tray carrier supports to their locked position.
Position the tray carrier over the tray carrier supports with the retractable pins facing up and the
knob facing forward. lower the tray carrier into position while locating the four tray carrier holes
on the four tray carrier support pins.

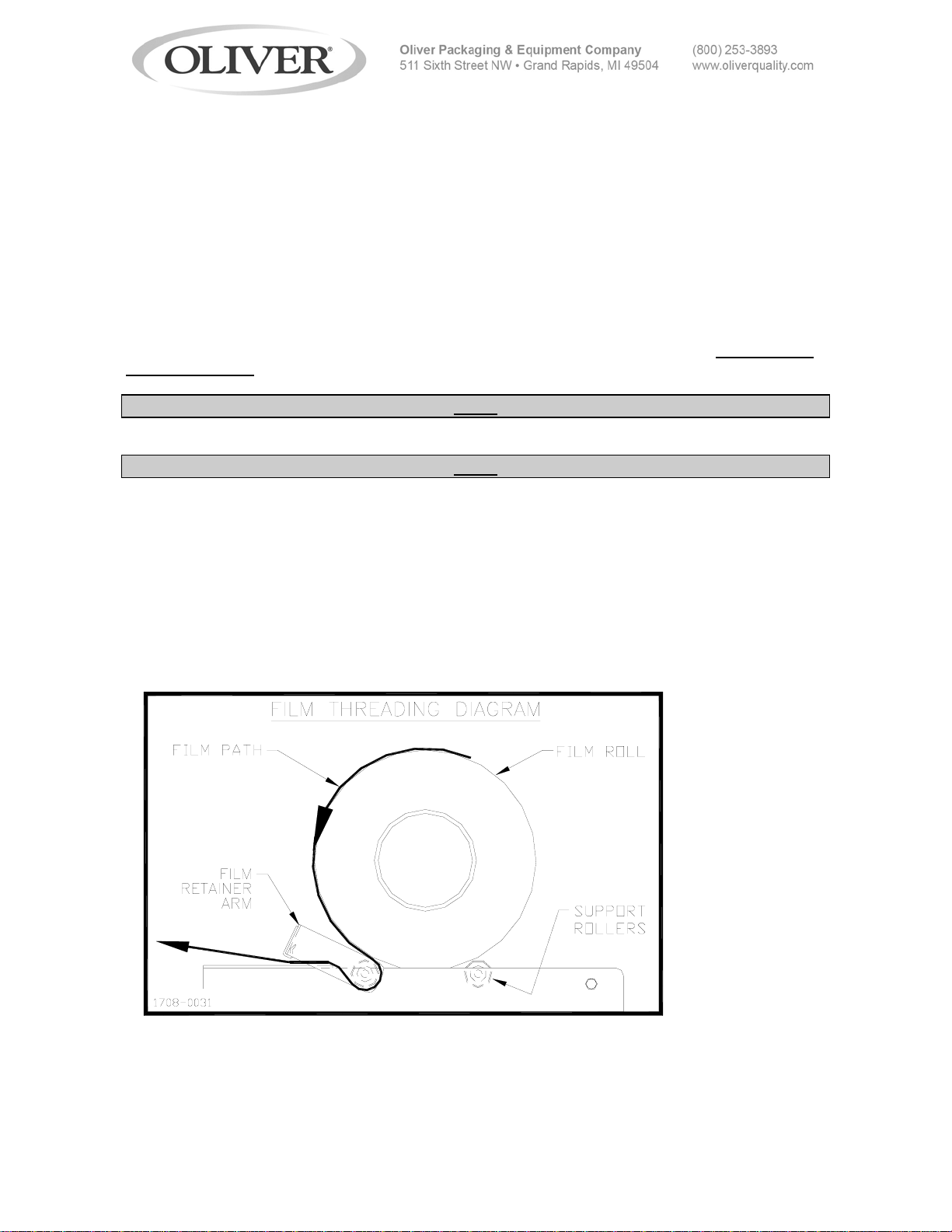

6. Load and thread lid dispenser as shown below.

1708 SELF-ACTUATING LIDDER
4/16/96 1708S20010
OPERATING PROCEDURE

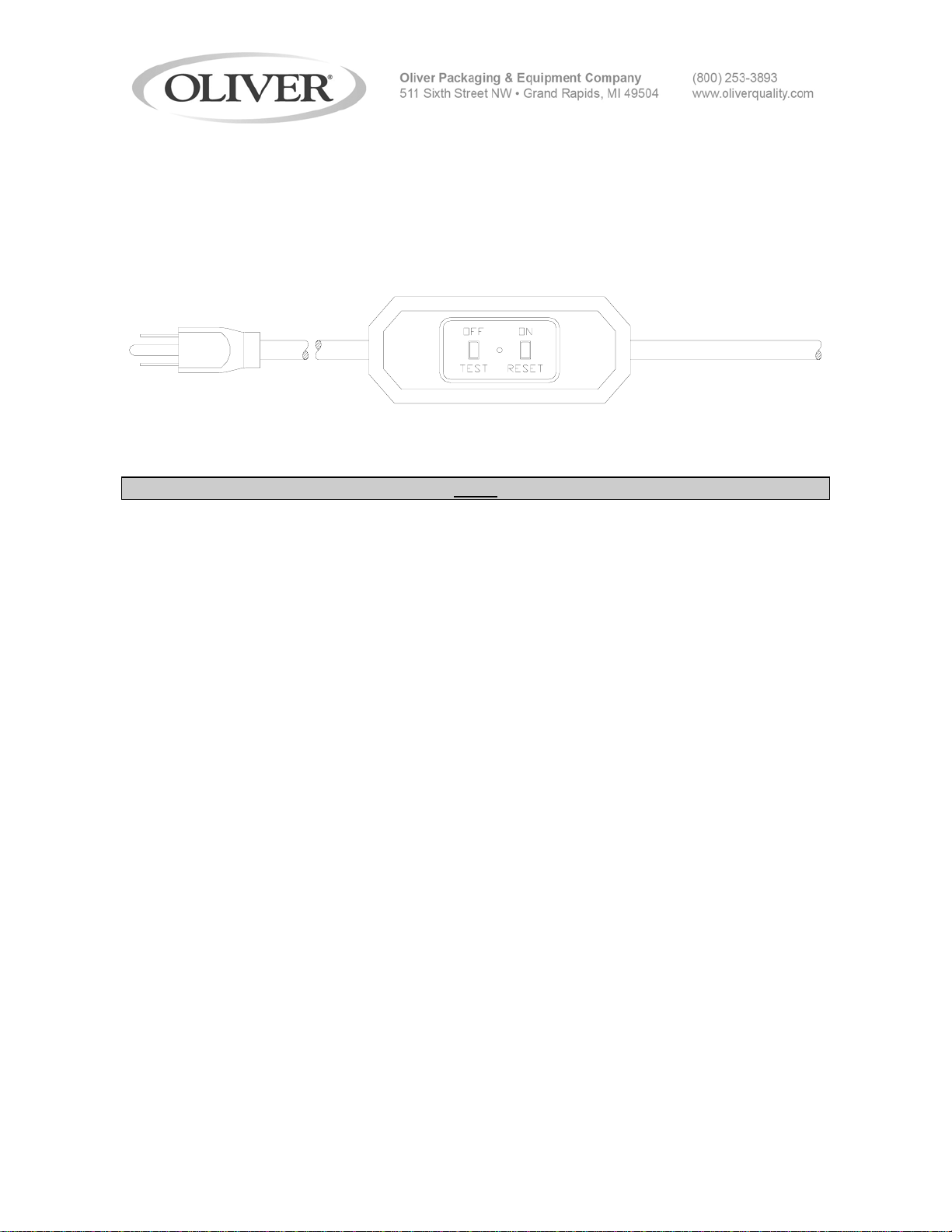

1. Switch the heater power switch on by firmly pressing the “ON/RESET” button located on the
yellow power cord. A small yellow light in the center of the switch will illuminate indicating the
power is on. Wait approximately 40 minutes to allow the heated upper platen time to stabilize at
the working temperature.
2. Place a tray in the tray carrier and position a single lid on the tray. Use the retractable pins on the
tray carrier to center the lids over the tray. Be sure the adhesive side of the lid is against the tray.
NOTE
•The adhesive side of the lid can be determined by pinching a fold and rubbing the lid material
against itself. Test both sides of the lid. The rough or tacky side of the lid will be the adhesive
side.
3. Push the tray carrier into the Self-Actuating Lidder until it stops. This will cycle the heated upper
platen down, applying pressure on the film and tray flanges. As the heated upper platen lifts back
to the open position, the tray carrier will automatically reopen.
4. Remove the lidded tray by rotating the knob on the front of the tray carrier.

1708 SELF-ACTUATING LIDDER
4/16/96 1708S20011
ADJUSTMENTS
Your Self-Actuating Lidder was tested at the factory, using the same trays and film as you will use.
Regulated pressure, temperature, and dwell time where adjusted during this test to provide a good
seal. Our test results indicate the following:
Regulated Pressure
PSI
Temperature
°F
DwellTime
Seconds
When checking for a good seal look for seal completeness and reasonable seal strength. A poor
seal will occur if the product in the tray contaminates the tray flanges. Moisture will have the same
negative affect. Trays that have irregular flanges or are deformed also seal poorly. Defective trays
should be discarded.
Under different operating conditions, you may find it necessary to adjust one or all of the sealing
parameters. When making adjustments; change only one parameter at a time, make small
incremental adjustments, and record the change made. This is one situation where "MORE IS NOT
BETTER"! In other words, more heat plus more pressure plus longer dwell time does not necessarily
equal better seals.
REGULATED PRESSURE: To adjust the regulated pressure simply pull up the black knob on the
top of the filter/regulator and rotate until the gauge shows the desired pressure (40 PSI min.). Push
the black knob back down to lock. The knob may be removed to assure tamper resistance.
DWELL TIME: The dwell time adjustment knob is on the top of the control box located on the right
side of the machine. The dwell time can be adjusted from .1 seconds to 30 seconds. Rotate the
knob between the "0" and "F" knob markings until the desired dwell time is found. The greater the
angle (clockwise direction), the greater the dwell time setting.

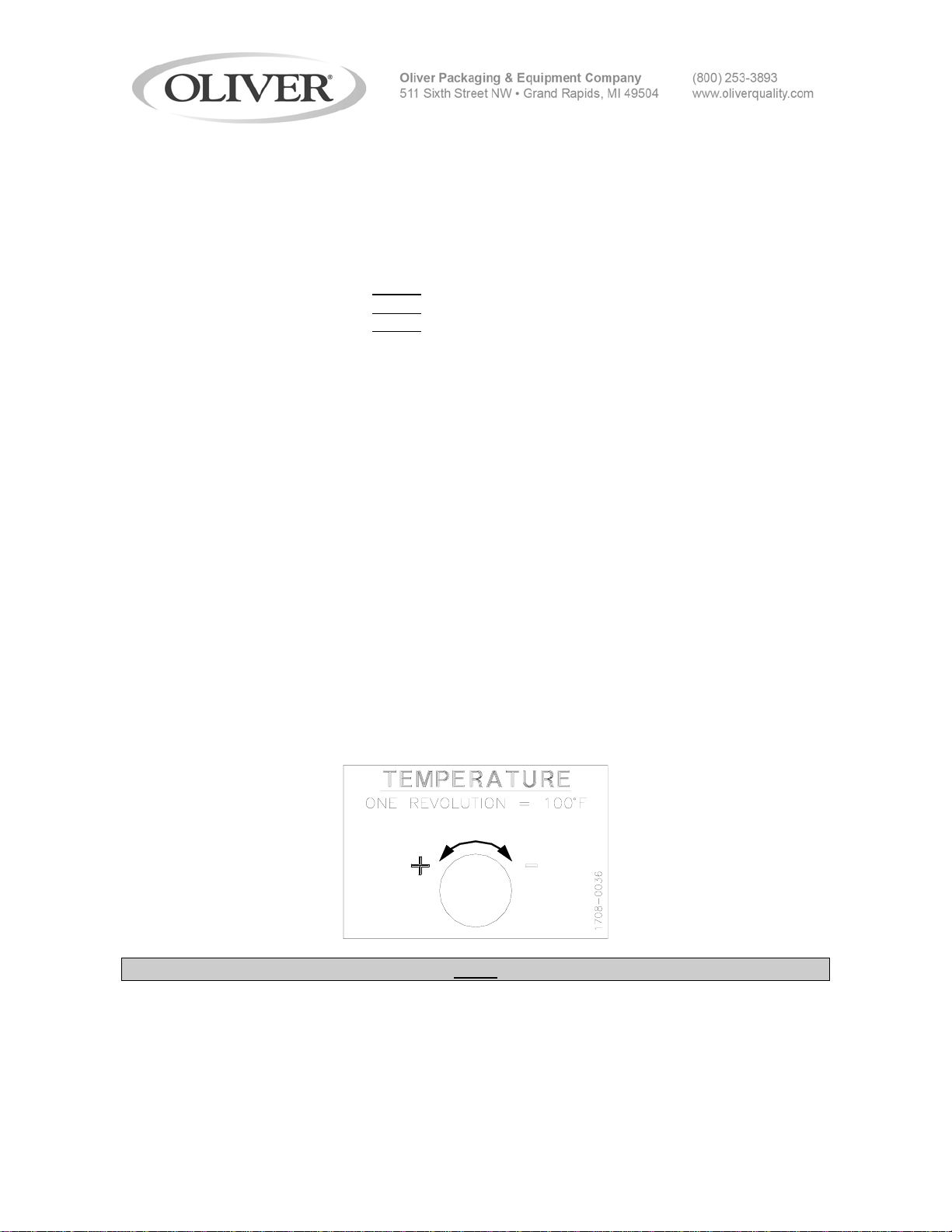

TEMPERATURE: The temperature of the heated upper platen can be adjusted through an access
hole on the back side of the heater cover. Use a slotted blade screwdriver to make the adjustment.
NOTE
•DO NOT remove the adjusting sleeve or turn it in farther than necessary for the desired setting.
This action will permanently damage the thermo-switch.
Once the right combination of the three parameters is found, no further adjustments should be
necessary - so long as you do not change the film or tray material.

1708 SELF-ACTUATING LIDDER
5/29/96 1708S20012
TECHNICAL SPECIFICATIONS
Tray Capacities:
10" (254mm) by 12" (305mm) maximum top outside-dimension tray.
Temperature Range:
50°F (10°C) to 400°F (204°C)
Machine Dimensions:
Weight:
155 lbs. (70.4 kg)
Electrical:
120 VAC, 9 Amps, Single Phase, 50/60 Hz OR
240 VAC, 5 Amps, Single Phase, 50/60 Hz Air:
100 PSI at 0.5 CFM minimum, 150 PSI maximum

1708 SELF-ACTUATING LIDDER
5/24/96 1708S20013
CLEANING
•If the machine has been operating, allow the unit to cool before cleaning.
CAUTION
•CAUTION HOT: The heater cover and upper platen are very HOT! Caution must be used to
protect yourself and others.
•Make sure the unit has been unplugged from power and air before cleaning.
•Clean the Self-Actuating Lidder with a mild cleaner and a damp cloth.
•To clean or access the heated upper platen,
remove the pin on the right side of the arch
support and carefully rotate the entire arch
assembly counter clockwise. Do not release
the arch assembly until it is resting securely
against the arch stop. A round knob on the
right side of the arch support is provided as a
handle specifically for this task. Be sure that
the removable arch support pin is fully
engaged when replacing it.
CAUTION
•MAKE SURE UNIT IS SECURE AND WILL NOT TIP OVER
•Use an abrasive scrubbing pad and a mild cleaner to clean the heated upper platen.
•To remove tray carrier slides for cleaning, remove tray carrier, press and hold the locking tab and
pulling slide completly out (refer to drawing below).

1708 SELF-ACTUATING LIDDER
4/18/96 1708S20014
MAINTENANCE
•If the machine has been operating, allow the unit to cool before working on it.
CAUTION
•CAUTION HOT: The heater cover and upper platen are very HOT! Caution must be used to
protect yourself and others.
•Always make sure the machine has been unplugged from power and air before servicing.
•The machine is to be serviced by authorized personnel only.
•Use only factory authorized replacement parts.
•To prevent damage to the pneumatic components drain the filter/regulator bowl frequently.
TROUBLE SHOOTING
Symptom Corrective Action
Heater won’t power up 1. Verify that the power cord is plugged in.
2. Press “ON/RESET” on power cord switch
3. Press Reset on Circuit Breaker
Heated upper platen won’t cycle 1. Verify that the air line is plugged in.
2. Verify air pressure at the filter/regulator
Lid folding, shifting or sliding off in the machine 1. Verify that the adhesive side of lid is down.
2. Verify that the trays are not over filled.
3. Clean the heated upper platen.
Poor seal quality 1. Verify the regulated pressure setting.
2. Verify the temperature setting.
3.Verifythedwelltimesetting.
4. Clean the heated upper platen.
Oliver Products Company 24 HR Emergency Service 1 800 554-5603

1708 SELF-ACTUATING LIDDER
1708S20020
FINAL ASSEMBLY
Rev. 11/5/96

1708 SELF-ACTUATING LIDDER
1708S20000
BASE ASSEMBLY
Rev. 2/25/97

1708 SELF-ACTUATING LIDDER
1708S20001
ARCH ASSEMBLY
Rev. 7-1-08

1708 SELF-ACTUATING LIDDER
1708S20002

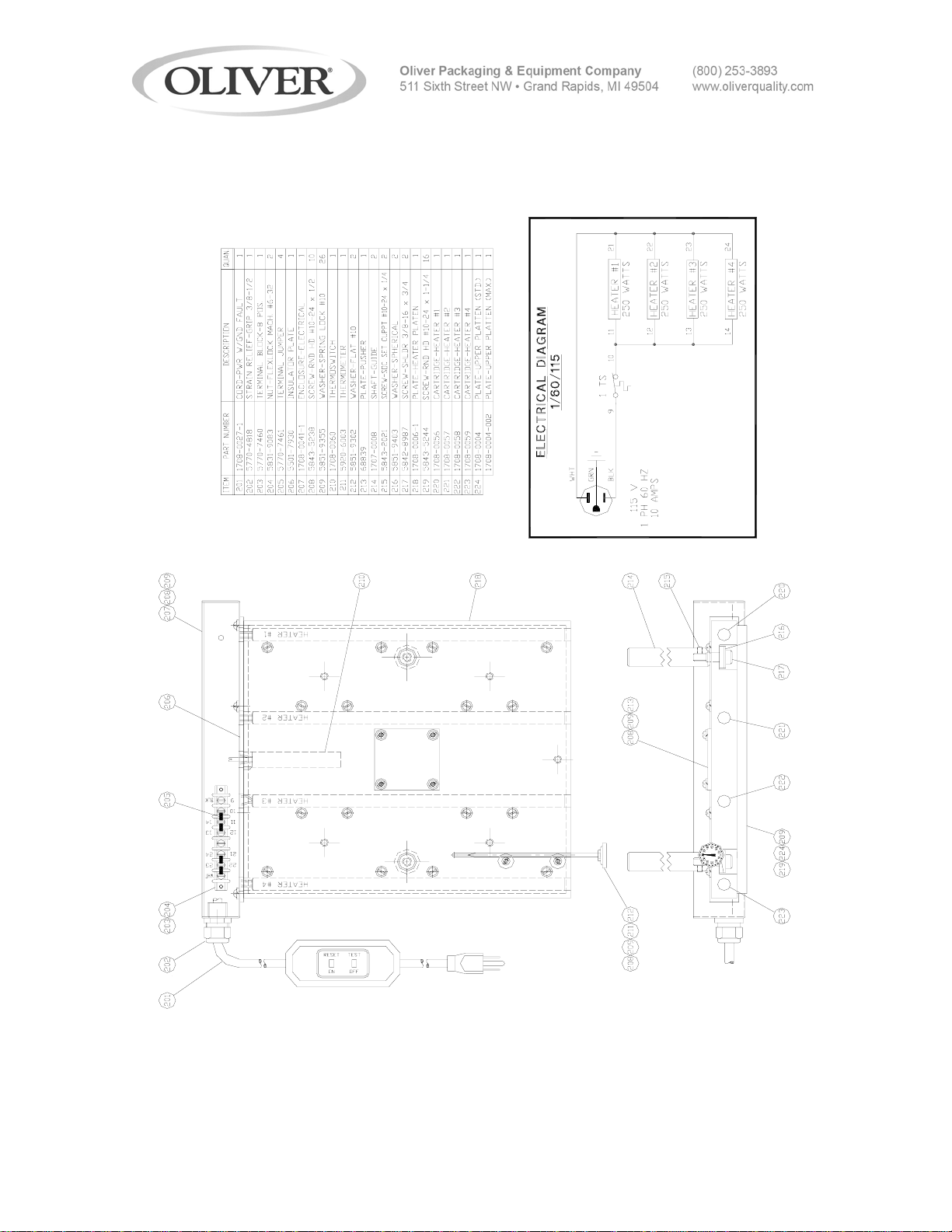

HEATER PLATEN ASSEMBLY
.
REV 4/13/00

1708 SELF-ACTUATING LIDDER
1708S20003
PNEUMATICS ASSEMBLY
Rev. 7-17-08

1708 SELF ACTUATING LIDDER
1708S20004

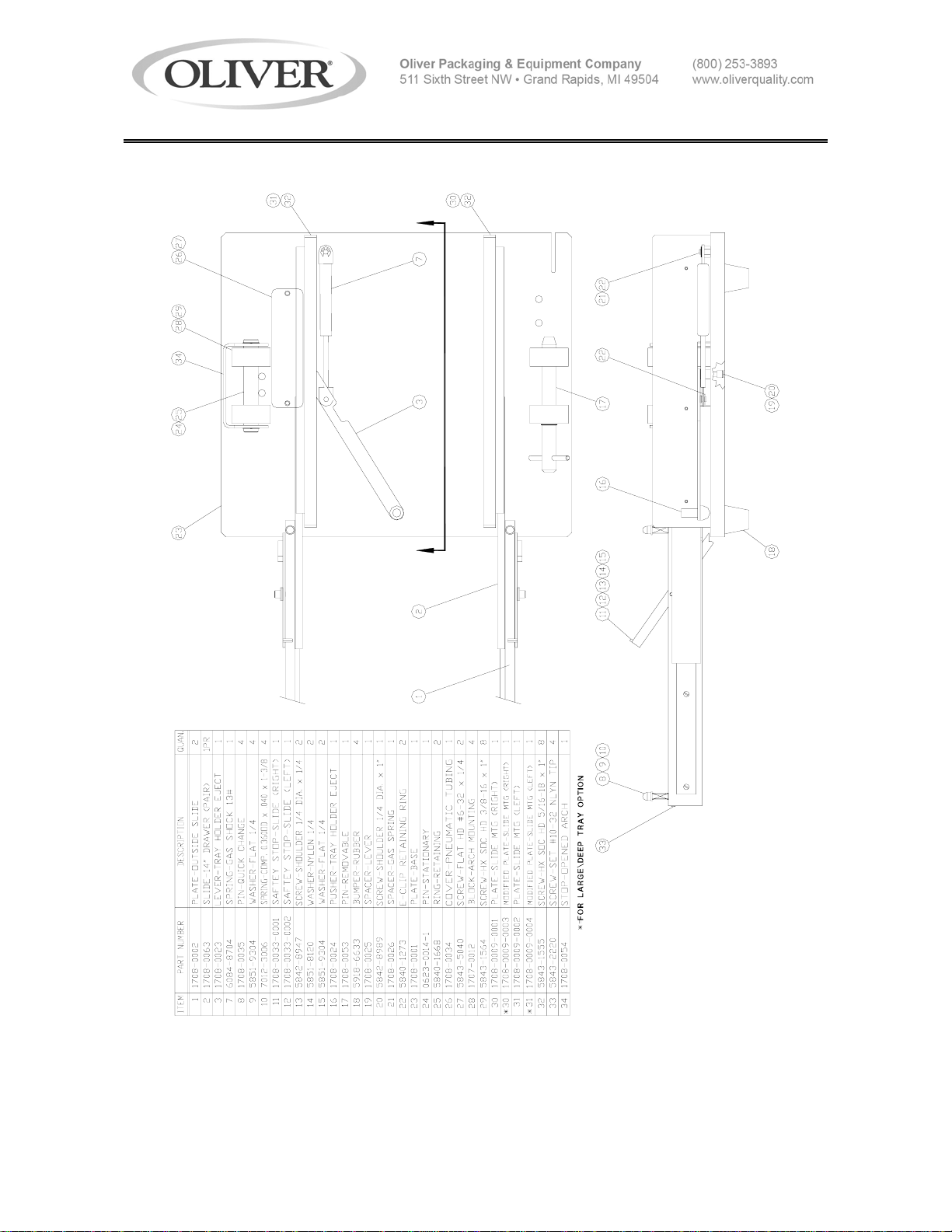

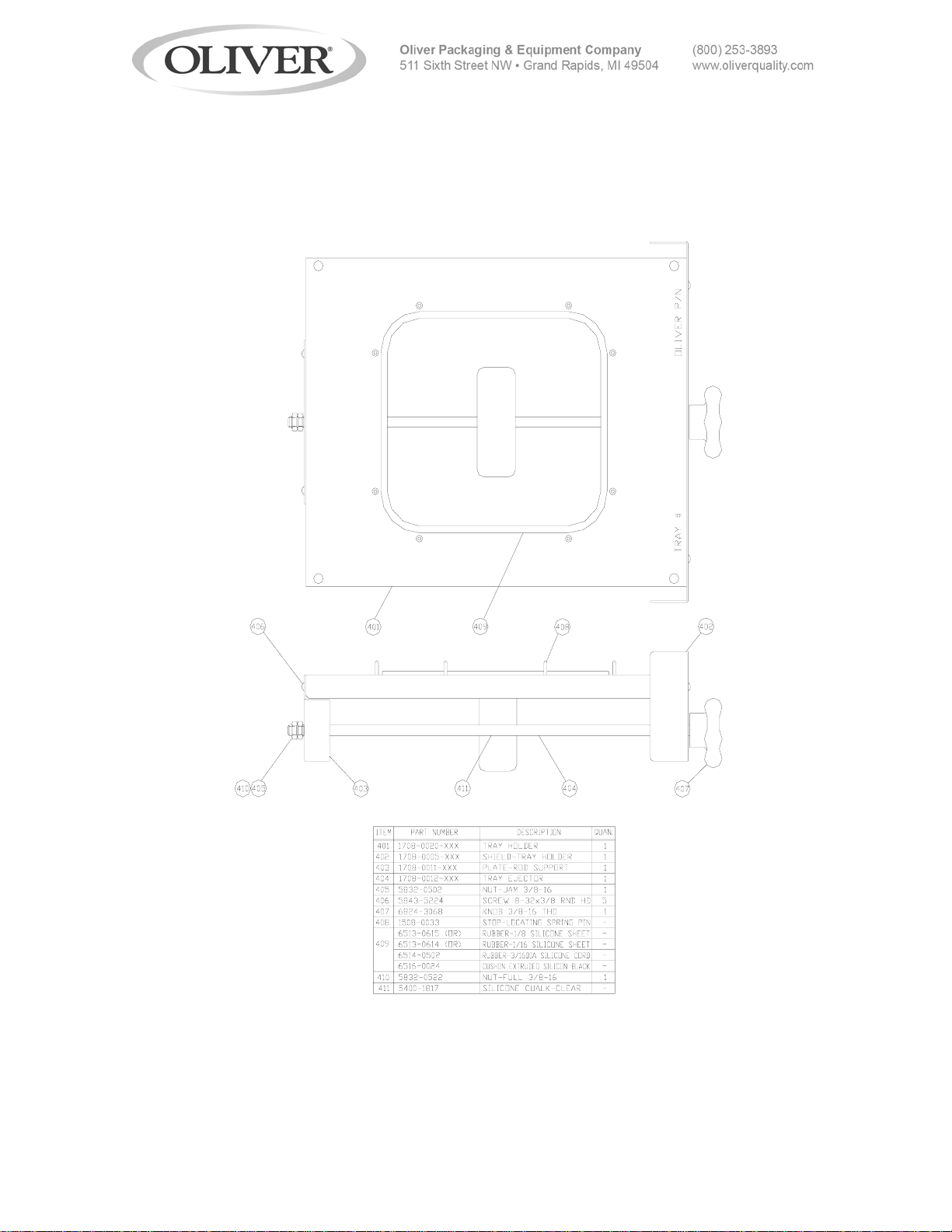

TRAY CARRIER ASSEMBLY
REV 12/7/09

1708 SELF-ACTUATING LIDDER
1708S20005

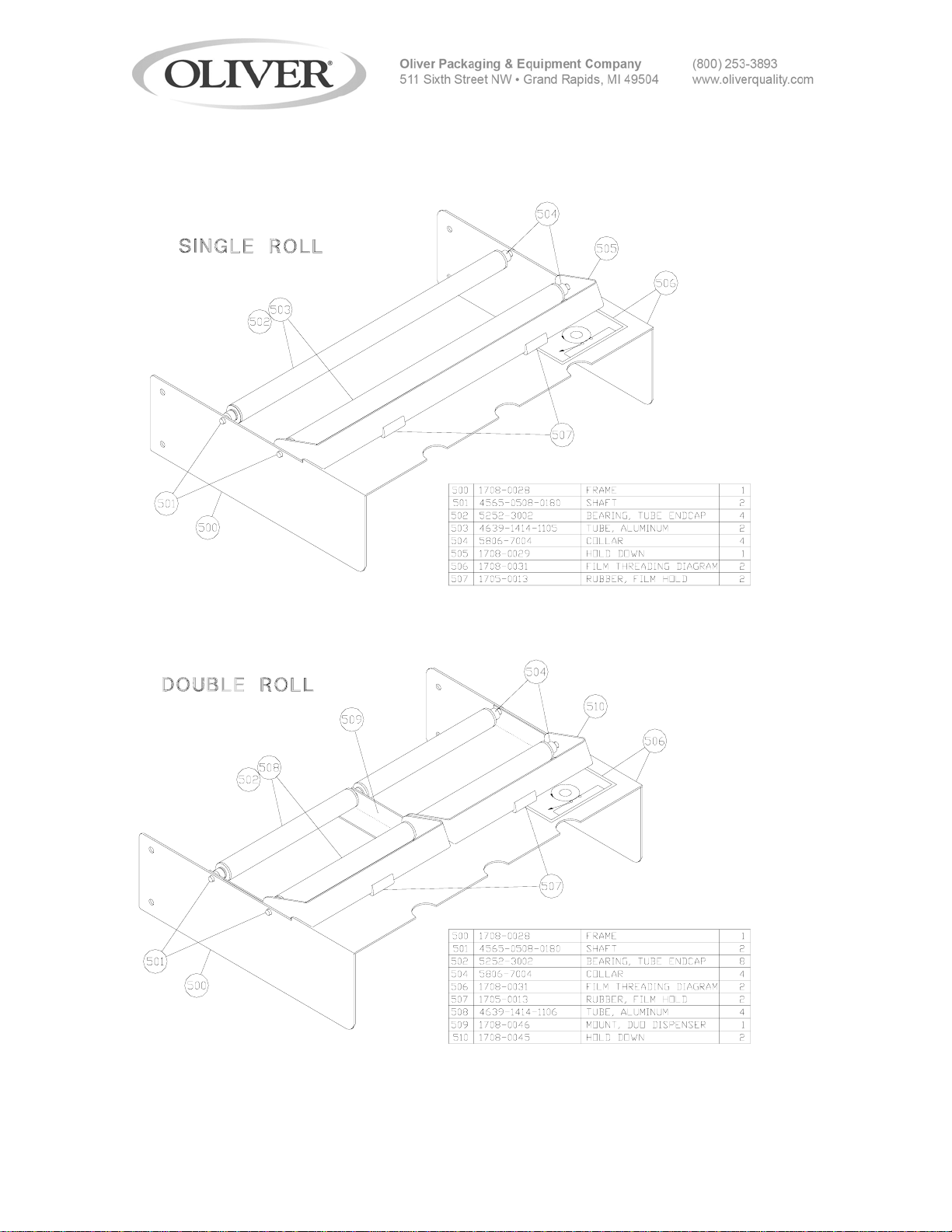

FILM ROLL DISPENSER ASSEMBLY
Rev. 10/22/97

GEN 040225
WARRANTY
PARTS
Oliver Packaging & Equipment Company (Oliver) warrants that if any part of the equipment (other
than a part not manufactured by Oliver) proves to be defective (as defined below) within one year
after shipment, and if Buyer returns the defective part to Oliver within one year, Freight Prepaid to
Oliver’s plant in Grand Rapids, MI, then Oliver, shall, at Oliver’s option, either repair or replace the
defective part, at Oliver’s expense.
LABOR
Oliver further warrants that equipment properly installed in accordance with our special instructions,
which proves to be defective in material or workmanship under normal use within one (1) year from
installation or one (1) year and three (3) months from actual shipment date, whichever date comes
first, will be repaired by Oliver or an Oliver Authorized Service Dealer, in accordance with Oliver’s
published Service Schedule.
For purposes of this warranty, a defective part or defective equipment is a part or equipment which is
found by Oliver to have been defective in materials workmanship, if the defect materially impairs the
value of the equipment to Buyer. Oliver has no obligation as to parts or components not
manufactured by Oliver, but Oliver assigns to Buyer any warranties made to Oliver by the
manufacturer thereof.
This warranty does not apply to:
1. Damage caused by shipping or accident.
2. Damage resulting from improper installation or alteration.
3. Equipment misused, abused, altered, not maintained on a regular basis, operated carelessly, or
used in abnormal conditions.
4. Equipment used in conjunction with products of other manufacturers unless such use is approved
by Oliver Products in writing.
5. Periodic maintenance of equipment, including but not limited to lubrication, replacement of wear
items, and other adjustments required due to installation, set up, or normal wear.
6. Losses or damage resulting from malfunction.
The foregoing warranty is in lieu of all other warranties expressed or implied AND OLIVER MAKES
NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR PURPOSE REGARDING THE
EQUIPMENT COVERED BY THIS WARRANTY. Oliver neither assumes nor authorizes any person
to assume for it any other obligations or liability in connection with said equipment. OLIVER SHALL
NOT BE LIABLE FOR LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, INCIDENTAL OR
CONSEQUENTIAL DAMAGES.

GEN 040226
WARRANTY PROCEDURE
1. If a problem should occur, either the dealer or the end user must contact the Parts and
Service Department and explain the problem.
2. The Parts and Service Manager will determine if the warranty will apply to this particular
problem.
3. If the Parts and Service Manager approves, a Work Authorization Number will be
generated, and the appropriate service agency will perform the service.
4. The service dealer will then complete an invoice and send it to the Parts and Service
Department at Oliver Products Company.
5. The Parts and Service Manager of Oliver Packaging and Equipment Company will
review the invoice and returned parts, if applicable, and approve for payment.

GEN 040227
RETURNED PARTS POLICY
This policy applies to all parts returned to the factory whether for warranted credit,
replacement, repair or re-stocking.
Oliver Packaging and Equipment Company requires that the customer obtain a Return
Material Authorization (RMA) number before returning any part. This number should appear
on the shipping label and inside the shipping carton as well. All parts are to be returned
prepaid.Following this procedure will insure prompt handling of all returned parts.
To obtain an RMA number contact the Repair Parts Deptartment toll free at [phone].
Parts returned for re-stocking are subject to a RE-STOCKING CHARGE.
Thank you for your cooperation,
Repair Parts Manager
Oliver Packaging and Equipment Company
