OLT Garden Chalet User manual

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Thank you for purchasing a 4x2
Garden Chalet. Please take the time
to identify all the parts prior to
assembly.
Please use Safety Eyewear and Gloves
while assembling. Be sure to read and
follow all operating instructions for any
tools used during assembly.
Remember - NO SAW CUTTING IS
REQUIRED!
Safety Points and Other Considerations
Our products are built for use based on
proper installation and normal residential
use, on level ground.
Please follow the instruction manual when
building your Garden Chalet and retain the
manual for future maintenance purposes.
Some of the safety and usage measures
you may wish to consider include:
-If the product is elevated, any structural
and building code requirements are solely
the customer's responsibility, and should
be abided by.
-In high or gusty wind conditions it is
advisable to keep the structure securely
grounded.
-Have a regular maintenance plan to ensure
screws, doors, roof and parts are tight.
Garden Chalet 4X2 - Bevel
Assembly Manual
Page 1
Revision #16
August 25, 2020
In the event of a missing or broken piece, simply call the Outdoor Living Today
Customer Support Line @ 1-888-658-1658 within 30 days of the delivery of your
purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
4x2 Garden Chalet Dimensions:
A: Outside Height (Rear) = 73”
B: Outside Height (Front) = 68”
C: Outside Width = 49 1/4”
D: Outside Depth = 22 1/2”
E: Door Width = 40"
F: Door Height = 61 3/8"
G: Inside Height (Rear) = 65 1/8”
H: Inside Height (Front) = 62”
I: Inside Width = 44”
J: Inside Depth = 18 1/2”

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2
1
Exploded View and Parts List for 4’x2’ Garden Chalet - BEVEL
Trim Section
4A 2 - Front Corner Door Trims - 1/2” x 2 1/2” x 65 1/4”
4B 2 - Doors - 20 1/4” x 61 3/8”
4C 1 - Door Flange - 1/2” x 2 1/2” x 61 3/8”
4D 2 - Side Facia Trims - 1/2” x 2 1/2” x 21 3/4” - angle cut ends
4E 2 - Side / Front Corner Trim - 1/2” x 2 1/2” x 61” - angle cut end
4F 2 - Side / Rear Corner Trim - 1/2” x 3 1/2” x 65 1/2” - angle cut
4G 1 - Upper Rear Hor. Filler Trim (Bevel) - 1/2” x 2 1/2” x 45 1/2”
4H 1 - Upper Rear Hor.Trim - 1/2” x 2 1/2” x 45 1/2”
4I 3 - Rear Corner (2) & Center (1) Trim - 1/2” x 2 1/2” x 65 1/2”
4J 2 - Bottom Side Skirting - 1/2” x 2 1/2” x 21 1/8”
4K 1 - Bottom Rear Skirting - 1/2” x 2 1/2” x 45 1/4”
4L 1 - Front Bottom Skirting - 1/2” x 2 1/2” x 41 1/4”
4M 1 - Front Door Header Trim - 1/2” x 1” x 41 1/4”
4N 1 - Roof Ridge Cap - 1/2” x 3 1/2” x 49 1/4”
4O 1 - Lower Door Stop - 3/4” x 1 1/2” x 8”
** Plus 2 Cedar Shingle Shims (4P) discard after shimming doors
Floor Section
1 1 - Floor Section - 20 5/8” x 45 1/4” x 2 1/2”
1A 4 - Floor Legs - 1 1/2” x 3 1/2” x 4”
Wall Section
2A 1 - Left Angled Side Wall - 18 1/2” x 67”
2B 1 - Right Angled Side Wall - 18 1/2” x 67”
2C 2 - Bottom Plates for Angled Side Walls - 1 1/2 x 1 1/2” x 15 1/2”
2D 2 - Rear Walls - 22 5/8” x 67”
2E 2 - Bottom Plates for Rear Walls - 1 1/2 x 1 1/2” x 19 5/8”
2F 1 - Door Header - 1 1/2” x 2 1/2” x 41” - Dado Cut
2G 1 - Vertical Shelf Support - 1 1/2” x 1 1/2” x 35”
2H 4 - Shelf Supports - 3/4” x 1 1/2” x 17 3/4”
2I 2 - Shelves - 16 3/4” Deep x 18 1/2” Wide
Roof Section
3 1 - Shingled Roof Panel (side shingles to install) - 23”d x 45 1/4”w
3A 3 - 16” long x 5” wide Shingles (includes 1 extra)
3B 3 - 16” long x 6” wide Shingles (includes 1 extra)
3C 3 - 15” long x 5” wide Shingles (includes 1 extra)
3D 2 - 7” long x 6” wide Last Row Shingles
Parts List
Note: We recommend you drill a 1/8” pilot hole for each screw, to avoid splitting wood. The hole depth should be
equal to 3/4 the length of screw.
Note: All Trim and Skirting pieces are graded best face rough.
This means the rough side will be exposed when completing these Sections.
1A
2B
2C
2D
2E
2F
2G
2H
2I
3
3A
3B
3C
4A
4B
4C
4D
4E
4F
4I 4G
4H
4L
4J
4K
4M
4N
4O
BB & UU
X
W
U
3D
2A

4x2 GARDEN CHALET - BEVEL
2 1/2”
3/4”
2”
3/4”
1 1/2”
7/8”
(U) Tee Hinge
x 4 pcs. (X) Door Handle
x 2 pcs.
Black Headed Screw
Black Headed Screw
Finishing
Shingle
Square Drive Bit
Hardware Kit (Provided)
Safety Glasses Work Gloves
Safety Equipment Required (Not Provided)
Ladder
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers
Tools Required (Not Provided)
(BB) Silver
Barrel Bolt
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
(W) Barrel Bolt
Silver
Page 3
1/8” & 3/8” Drill Bit
1 1/2”
Black Headed Bolt with Silver Nut and Washer
1 1/4”
C
H
E
G
J
K
M
FF
DD
(UU) 1/2”x 2 3/4”
Plywood Spacer
3/8” Wrench
1” F
2” D

1. Flip Floor (1) over on a level surface. Locate Legs (1A) and position in each corner tight to floor
and framing and attach with 2 - 2 1/2” Screws (C). Complete all leg attachments.
Level floor before proceeding to Step 2.
You can find the Square Drive Bit (DD) for the screws in the Hardware Kit Bag.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4
You can find the
Square Drive Bit (DD)
for the screws in the
Hardware Kit Bag.
2. Locate 2 - Bottom Plates for Angled Walls (2C) - 1 1/2” x 1 1/2” x 15 1/2” and 2 - Bottom
Plates for Rear Walls (2E) - 1 1/2” x 1 1/2” x 19 5/8”. Position plates flush to bottom of wall framing.
Pre-drill wall framing approximately 3/4” from end with 1/8” drill bit to prevent wood from splitting.
3. With bottom plate aligned flush with wall framing, attach with 1 - 2 1/2” Screw (C) per side.
Left/Right Angled
Side Walls.
Rear Walls.
Bottom Plates for Walls. Parts 2C & 2E.
Length will vary to fit wall correctly.

Front
4. Locate Left Angled Side Wall (2A). Position on floor
as illustrated above. Have helper hold wall while wall is
screwed down to floor with 2 - 2 1/2” Screws (C)
Important - confirm alignment before attaching.
Rear
Wall framing flush
with Floor Frame
at front.
At rear, a gap
will exist.
Optional - Caulking
seams will help prevent
moisture from entering
at seam. Caulking not
included in kit.
Side Wall
Rear Wall
5. Align Rear Wall (2D) flush to floor at the back. Wall frames will be offset by approximately 5/8”
when walls aligned correctly. Optional - Caulking wall seams will help prevent moisture from
entering at seam. Caulking not included in Kit.
Butt of siding even
with wall framing.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5
Front
Bottom of wall siding will sit
flush with outside of floor.
Bottom of rear wall siding will
sit flush with outside of floor.
wall framing
Siding Butt
Wall frames will be offset by approximately
5/8” when walls aligned correctly.

8. Position Right Angled Side Wall (2B) on floor and against rear wall as per Steps 4 - 5.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6
6. With side and rear walls correctly positioned, attach together at top, middle and bottom of
vertical wall frames with 3 - 2 1/2” Screws (C).
7. Have helper hold wall in place while screwing down to floor with 2 - 2 1/2” Screws (C)
Important - Confirm alignment before attaching.
Position 2nd Rear Wall (2D) on floor as per Step 5 & 6. Attach wall frames together at top, middle
and bottom with 3 - 2 1/2” Screws (C). Screw second rear wall down to floor with 2 - 2 1/2”
Screws (C) when aligned correctly. Caulking wall seam is an option once again.
Rear wall siding
flush with floor
at back.
Rear Wall
2 - 2 1/2”
screws.
Wall framing
even.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7
9. With Right Angled Side Wall correctly aligned to floor and rear wall framing, attach rear and side
walls together at top, middle and bottom of vertical wall frames with 3 - 2 1/2” Screws (C). Screw
wall plate to floor with 2 - 2 1/2” Screws (C) when correctly aligned.
Optional - Caulking seams
where wall and floor meet will
help prevent moisture from
entering at seam. Caulking
not included in kit.
Caulking
2 - 2 1/2”
Screws.
10. Locate Door Header (2F) - 1 1/2” x 2 1/2” x 41” (dado cut) and place between side wall
framing with dado cut facing down and to the front.
Door Header
(2F)
Dado cut to
front, facing
down.
Aligned flush at
front and top.

13. Locate 1 Shelf Support (2H) - 3/4” x 1 1/2” x 17 3/4” and position on
vertical shelf support and rear wall framing. Drill pilot hole in support to
prevent splitting and attach with 1 - 1 1/4” Screw (E) on each end.
Note - Make sure shelf support is level prior to attaching. Attach second
Shelf Support to side wall framing as described and shown to the right.
Place Shelf (2I) on top of shelf supports.
Shelf Support (2H).
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8

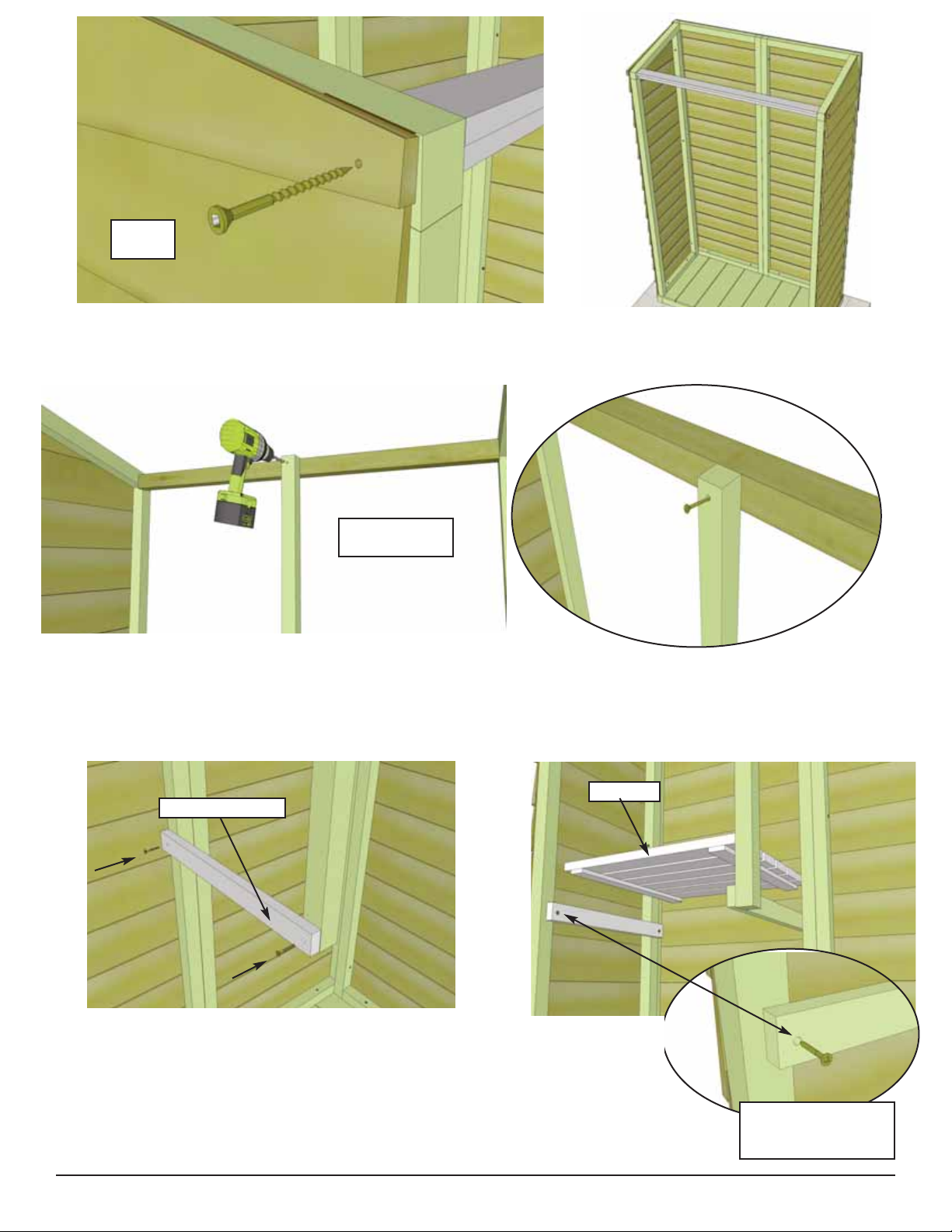

11. Side walls are pre-drilled at top front. Before attaching header to side walls, have your helper
hold header and wall steady. Secure with 2 - 2 1/2” Screws (C) per side.
12. Shelving may be mounted on left or right side of Chalet. This manual illustrates the shelving being
mounted on the left side. First, locate the Vertical Shelf Support (2G) 1 1/2” x 1 1/2” x 35”.
Measure 19” from left side wall framing from the inside. Mark position on door header. Drill pilot hole
near end of shelf support to prevent splitting and attach to door header with 1 - 2 1/2” Screw (C).
20 1/2”
19”
Drill Pilot Hole to
prevent Splitting.
Door Header
1 - 2 1/2”
Screw.
Vert. Shelf Support
Shelf (2I).
Vert. Shelf Support
Positioned 3/4” on Side
Wall framing. Drill pilot
hole before screwing.

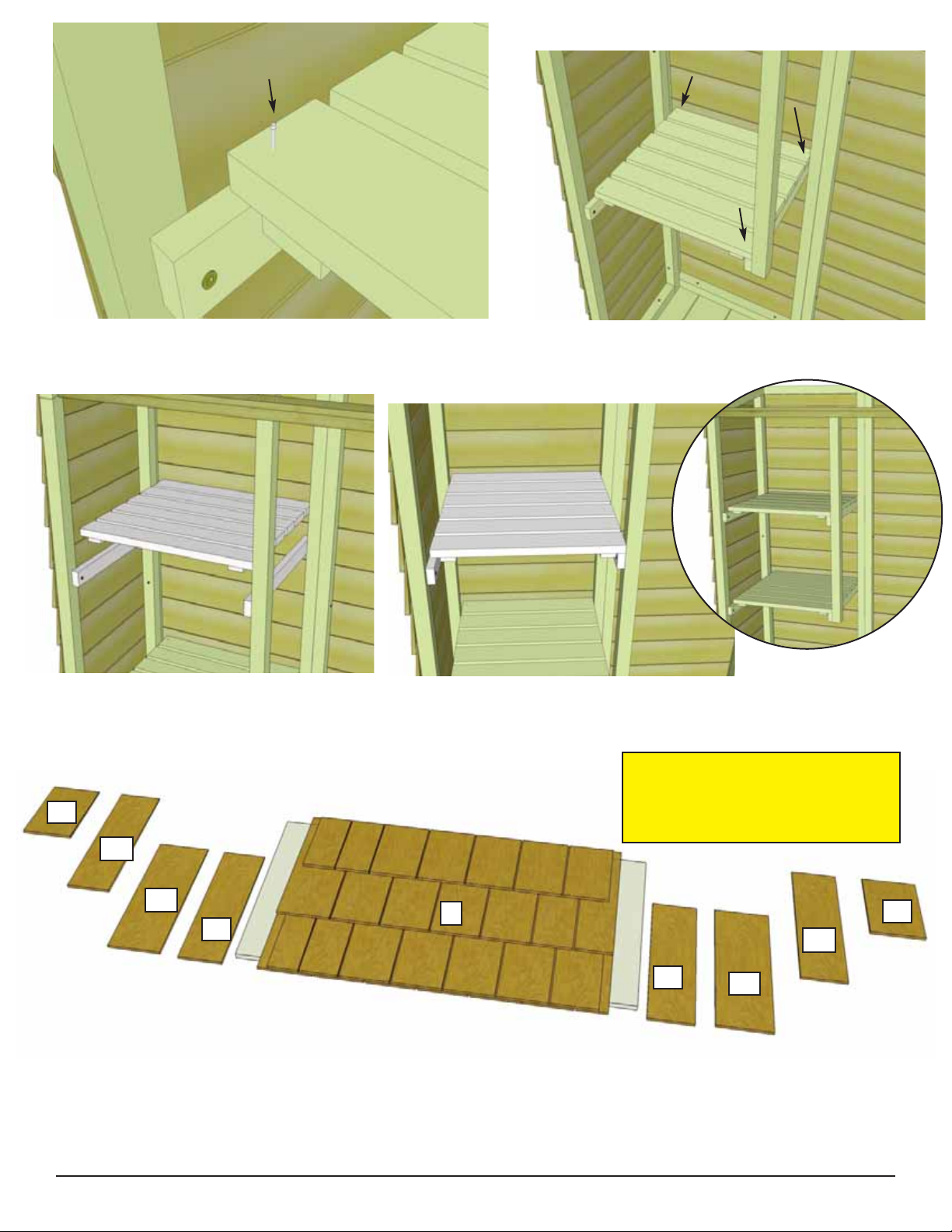

14. Secure shelf to shelf supports with 4 - 1 1/2” Finishing Nails (K)
15. Complete positioning and attachment of second shelf as per Step 13 - 14.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9
16. Lay Roof Panel (3) on flat level ground. Note, overhanging Outside Shingles have been
removed to avoid shipping damage and will need to be installed now. Locate 3A ,3B, 3C & 3D
Shingles. There are 3 - 5” wide x 16” long 3A Shingles, 3 - 6” wide x 16” long 3B Shingles,
3 - 5” wide x 15” long 3C Shingles and 2 - 6” wide x 7” long 3D Shingles.
Align Roof Panel so thick end of
Shingle (butt end) is facing front.
Extra shingles are included.
3A
3B
3C
3D
3
3A 3B
3C
3D

3D
6” wide
19. To finish side, place and attach 3D Shingle (6” wide x 7” long) in line with 3rd and final row of
shingles. Shingle 3D will partially cover Shingle 3C. Secure with 2 - 7/8” Shingle Nails (M) 2”- 3”
from top. (Nails will be covered by Ridge Cap - 4N). Complete attachment of shingles on opposite
roof panel side following Steps 17 - 18.
17. Position and attach 3A Shingle (5” wide) on Roof Panel with 3 - 7/8” Shingle Nails (M).
See above for details.
3A
Align 3A Shingle tight
against roof shingle.
3A
3B
Secure with 3 - 7/8”
Shingle Nails
Flush with other
Roof shingles.
18. Place and attach 3B Shingle (6” wide) directly on top of Shingle 3A. Shingle 3B will slide under 2nd
row shingle. Secure with 3 - 7/8” Shingle Nails (M) at least 9” from butt. Place and attach a
3C Shingle (5” wide x 15” long) in line with second row of shingles. Secure with 3 - 7/8” Shingle Nails
(M) at least 9” from Butt.
Thick End
5” wide
6” wide
3B
Thick End
3C
5” wide
Secure with 3 - 7/8”
Shingle Nails
2nd Row Shingle
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10

20. Carefully lift and place completed Shingle Roof Panel (3) on wall framing and door header. At
the front, recess the plywood sheathing of the roof slightly back 1/8”.
21. Align plywood sheathing of the roof evenly from side to side as illustrated above.
Recessed 1/8”
back from Header.
Header
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 11
22. From inside the chalet, secure roof to wall framing and door header. You will need to use 8 - 2”
Screws (D) for the sides and rear and 4 - 2 1/2” Screws (C) angled from the header into the roof
sheathing for the front header section.
Angle 2 1/2” Screws from
header into plywood roof
sheathing.
2” screws from plate into
plywood roof sheathing.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 12
23. Locate Front Corner Door Trims (4A) -
1/2” x 2 1/2” x 65 1/4”- 2 pcs. Position tight
underneath roof shingles and against side
wall framing. Align trim so there is 1/8” offset
on wall framing. From the outside, the trim
should overlap the thickest part of the wall
siding by 1/2”. See Step 29 for corner trim
alignment. Do a dry run with both front and
side corner trims (Parts 4A & 4E) to confirm
proper positioning before attaching front trim.
At the bottom, trim will align with bottom of
floor.
Attach with 6 - 1 1/2” Finishing Nails (K) per
trim. Complete both sides.
1/8” offset from framing.
Tight under shingles.
Front Corner
Door Trims (4A)
1/2” overlap past siding butt.
6 - 1 1/2”
Finishing Nails.
Trim flush with bottom of floor.
Note: All Trim and Skirting pieces are graded
best face rough. This means the rough side will
be exposed when completing these sections.

24. Locate Black “Tee” Hinges (U). Attach hinges to
horizontal door trim using 1 - 1 1/2” Bolt with Black
Head (FF).
Note - Door is pre-drilled for bolt. Tighten Silver Nut
using wrench. Finish hinge by securing with
2 - 3/4” Black Screws (J). Drill small pilot holes first to
prevent wood from splitting. Complete both doors.
(4 hinges). Starting with left side door, lift until hinges
contact door trims.
3/4” Black
Screws.
1 1/2” Bolt
with Black Top.
Silver Nut with Washer.
Pre-Drilled.
Left door complete
with hinges attached.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 13
1 - 2” screws per
Hinge initially.
25. Leave a gap on left side and bottom of
door approximately 1/8”. Use a shingle to
shim the door at bottom to help position
door evenly.
When door is aligned correctly, screw hinge
into vertical door frame trim with
3 - 2” Black Screws (H) per hinge.
Use only 1 screw initially per hinge until
both door alignments are confirmed. Drill
pilot holes to prevent wood from splitting.
Shim with
shingle (4P).
1/8”
gap.
1/8” gap.
Gap between
top of door
and door
header.
Lift door
into place.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 14
26. Position Right Side Door as per Steps 24 - 25. Once again, use only 1 - 2” Black Screw (H) per hinge
initially to secure door to vertical door frame trim. Open and close both doors to confirm proper door closing.
Re-adjust door screws if necessary. When satisfied, complete hinge attachments with 2additional 2” Black
Screws (H) per hinge.
1 - 2” Black
Screw initially.
Complete with 2 additional 2” Black
Screws per hinge when doors are
positioned correctly.
Gap between
doors will be
covered by
door flange
(4C).
Door flange (4C)
to be positioned
on left door.
27. Open Left Door and position Door Flange (4C)
- 1/2” x 2 1/2” x 61 3/8” flush against horizontal door trim
making sure also to align evenly at top and bottom of door trim.
From the inside, screw flange to door with 6 - 1” Silver Screws (F).
Important - Drill pilot holes first to prevent splitting of wood.
Left Door
Left Door
Hor. Door Trim

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 15
29. Place Side / Front Corner Trims (4E) - 1/2”x 2 1/2” x 61” (angle cut one end) tight against front
corner door trim and up underneath side facia trim. The bottom of the trim should be flush to the bottom
of the floor. Secure with 6 - 1 1/2” Finishing Nails (K). Once again there are left/right side corner trims.
Confirm before attaching. Complete both sides.
30. Locate Side / Rear Corner Trims (4F) - 1/2”x 3 1/2” x 65 1/2” (angle cut one end). Position in rear
corner as illustrated above. The side / rear trim will cap the rear trim (4I) found in Step 33. Do a dry run to
confirm location before attaching. The bottom of the trim should be flush to the bottom of the floor. When
correctly aligned, secure each piece with 8 - 1 1/2” Finishing Nails (K). Once again there are left/right
side / rear corner trims. Confirm before attaching. Complete both sides.
28. Locate and position Side Facia Trims (4D) - 1/2” x 2 1/2” x 21 3/4” (angle cut both ends) tight
underneath roof and against front corner door trims. Secure with 3 - 1 1/2” Finishing Nails (K).
Important - there are left/right side facia trims. Remember the rough side of the trim faces out and
should be used as the best face. Complete both sides.
Tight against
door trims.
3 - 1 1/2”
Finishing Nails.
Tight.
Trim overhangs
rear siding by 1/2”.
Note: All Trim and Skirting pieces
are graded best face rough.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 16
31. Locate Upper Rear Horizontal Filler Trim (4G) - 1/2” x 2 1/2” x 45 1/2” (Bevel - thick and thin
top/bottom). Position tight underneath roof shingles in the rear with thick butt facing up and evenly
spaced from side-to-side. Attach with 6 - 1 1/2” Finishing Nails (K).
32. Locate Upper Rear Horizontal Trim (4H) - 1/2” x 2 1/2” x 45 1/2”. Position against rear
horizontal filler and tight underneath roof shingles. Attach with 6 - 1 1/2” Finishing Nails (K).
33. Locate and position Rear Corner (2 pcs) and 1 Center Trim (4I) - 1/2”x 2 1/2” x 65 1/2” tight
underneath horizontal filler and against rear corner trim. Attach with 6 - 1 1/2” Finishing Nails (K).
Complete both sides. Position Center Trim to middle wall seam and attach with 6 - 1 1/2”
Finishing Nails (K).
Bevel siding Filler Trim is positioned
with the thick butt to the top.
Rear Hoz. Trim sits on against filler.
Tight underneath hor. filler and
against rear corner trim.

36. Locate Front Door Header Trim (4M) - 1/2” x 1” x 41 1/4” and place between corner door trim
flush against door header and plywood roof sheathing. Make sure door header trim is positioned so
it does not impede the opening and closing of doors. When correctly positioned, secure with
5 - 1 1/2” Finishing Nails (K).
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 17

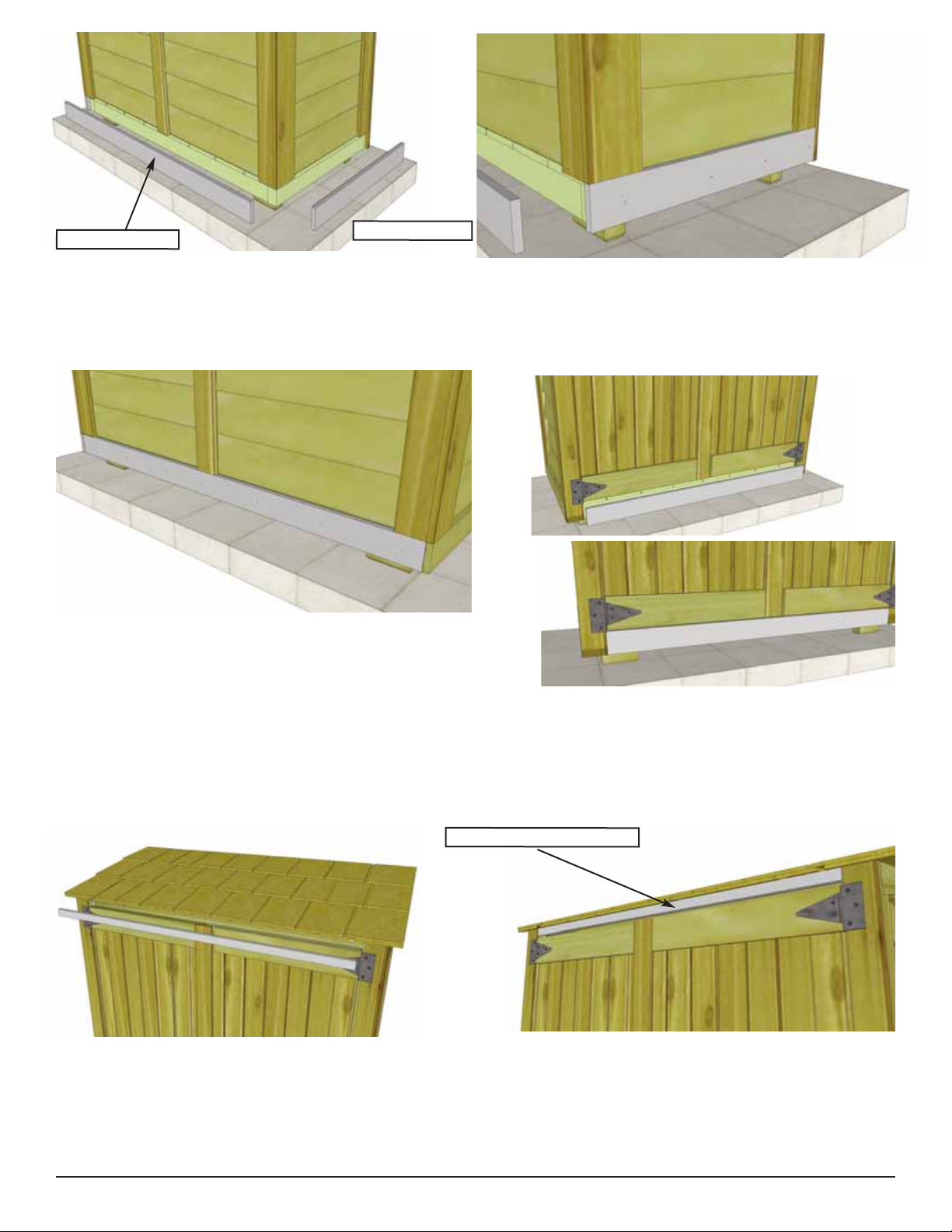

35. Position rear skirting piece between side skirtings and underneath rear and center trims. Secure
with 6 - 1 1/2” Finishing Nails (K). Locate Front Bottom Skirting (4L) - 1/2” x 2 1/2” x 41 1/4” and
place between front corner door trims even with the bottom of the floor. Secure with 6 - 1 1/2”
Finishing Nails (K).
34. Locate Bottom Side Skirting (4J) - 1/2” x 2 1/2” x 21 1/8” and Bottom Rear Skirting (4K) -
1/2” x 2 1/2” x 45 1/4” pieces. Starting with the sides, position tight to corner door trim and flush
underneath corner trims. Secure with 3 - 1 1/2” Finishing Nails (K). Complete both sides.
Rear Skirting (4K). Side Skirting (4J).
Front Door Header Trim (4M).
Rear Skirting
Front Skirting

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 18
Roof Ridge Cap
(4N).
37. Center Roof Ridge Cap (4N) from
side to side on the rear roof shingles.
Overhang the ridge cap slightly off the
back of the shingles. Secure with 4 - 2”
Screws (D). Be sure to screw through the
ridge cap and into rear wall framing.
Drill pilot holes in ridge cap to prevent
wood from splitting.
39. Install the Barrel Bolt Plywood Spacer (UU) - 1/2” x 2 3/4” x 2 3/4” 3/4” from top of the right door with
2 - 1” Silver Screws (F). Position the Interior Silver Barrel Bolt (BB) on the plywood spacer and attach
with 4 - 3/4” Silver Screws (G). Tap barrel of bolt with Hammer to mark location on header. Open door and
Drill with a 3/8” bit.
Right Door
Install 3/4” from
top of Door.
38. Attach Lower Door Stop (4O) - 3/4” x 1 1/2” x 8”
to floor with 2 - 1 1/4” screws (E). To align correctly,
close doors in best close door position. Mark and
attach. Drill pilot holes to prevent splitting.

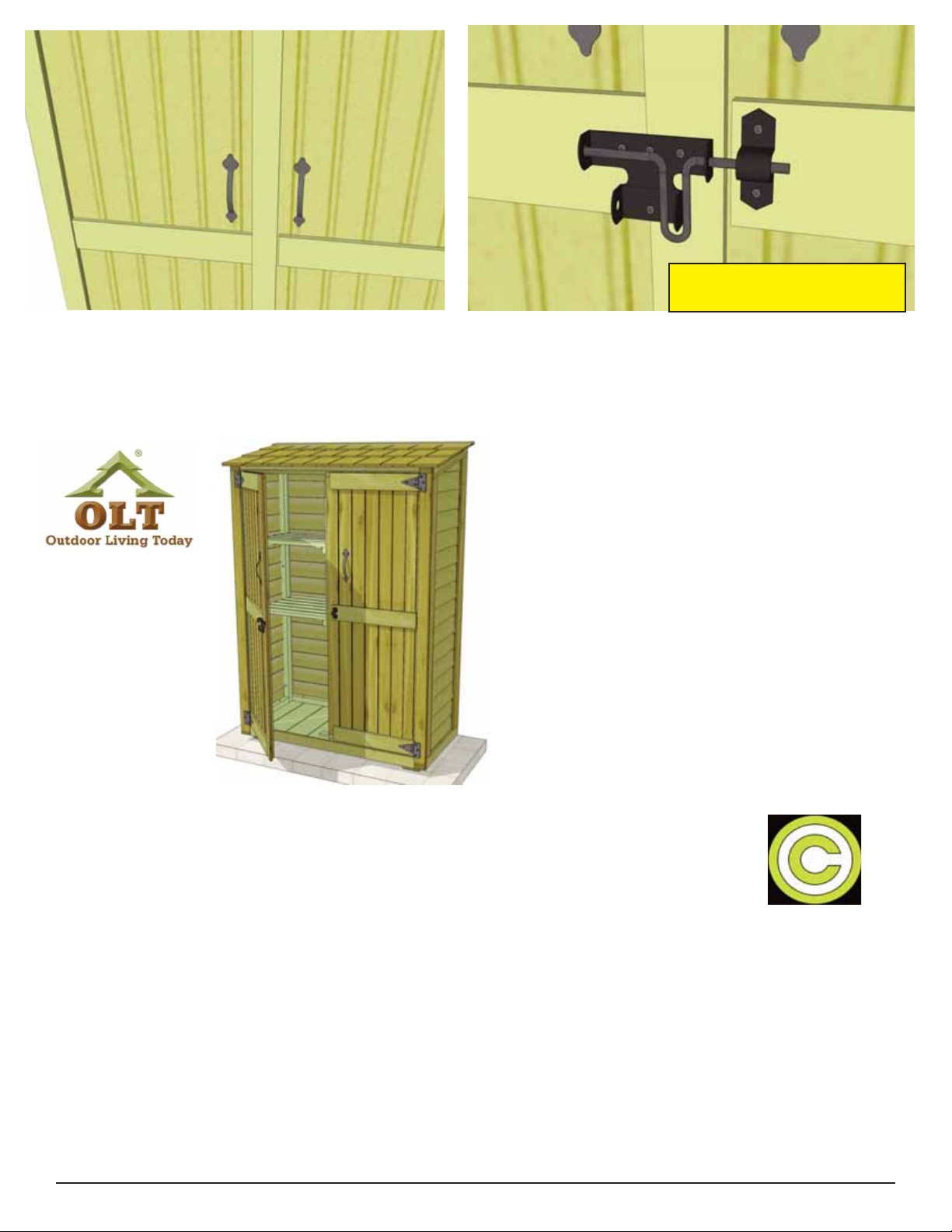

40. Attach Door Handles (X). Handles are positioned on top section of each door and mounted with
4 - 3/4” Black Screws (J) per handle. Attach Black Barrel Bolt (W) as illustrated above with 6 - 3/4”
Black Screws (J). Note how female part of barrel bolt is positioned higher than male. Do a dry run
first to position barrel bolt correctly. Important - drill pilot holes with 1/8” drill bit prior to securing with
screws to prevent wood splitting.
Important: Drill shallow pilot
holes to prevent splitting.
Congratulations on assembling
your 4x2 Garden Chalet!
Note; Our Sheds are shipped as an unfinished
product. If exposed to the elements, the
Western Red Cedar lumber will weather to a
silvery-gray color. If you prefer to keep the
cedar lumber looking closer to the original color,
we suggest that you treat the wood with a good
oil base wood stain. You may also wish to paint
your new shed rather than stain it. In both
cases we recommend that you consult with a
paint and stain dealer in your area for their
recommendations.
The materials contained in this Assembly
Manual may be downloaded or copied
provided that ALL copies retain the
copyright and any other proprietary
notices contained on the materials. No
material may be modified, edited or
taken out of context such that its use
creates a false or misleading statement
or impression as to the positions,
statements or actions.
Canadian Address
9393 287th Street
Maple Ridge, British Columbia
Canada V2W 1L1
United States Address
P.O. Box 96
Sumas, Washington
USA 98295
Toll Line: 1.888.658.1658 | Fax: [phone] | [e-mail]
Page 19
We hope your experience constructing our 4x2 Garden
Chalet has been both positive and rewarding. We value
your feedback and would like to hear back from you on how
well we are doing in the following areas:
1. Customer Service
2. On Time Shipping
3. Motor Freight Delivery
4. Quality of Materials
5. Assembly Manual
6. Overall Satisfaction.
Please call, write or email us at:
