OLT STU128 User manual

12x8 Studio Garden
Shed - Plywood Roof -
Assembly Manual
Version #1.5
July 19, 2021
1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 1
In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-
in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.
All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.
Thank you for purchasing a
12x8 Studio Garden Shed.
Please take the time to
identify all the parts prior to
assembly.
Safety Points and Other Considerations
Our products are built for use based on
proper installation on level ground and
normal residential use. Please follow the
instruction manual when building your
shed and retain the manual for future
maintenance purposes.
Customers are responsible for ensuring
a solid, level, well-draining site for
construction.
Please check with your local municipal
or county by-laws before ordering this
product to confirm it complies with
building codes.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it
is advisable to sweep snow off roof frequently.
- If the product is elevated, any structural and building code requirements are solely
the customer's responsibility, and should be abided by.
- In areas with high or gusty wind conditions, it is advisable to install the structure
securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are
tightly affixed.
Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.
Stock Code: STU128 - Plywood
Roof Area: 119 sqft

What to do before my Shed arrives?
Become familiar with this assembly manual and determine if you can•
complete the project yourself or will require a professional contractor.
Clear the construcon area and ensure a clear pathway for delivery when•
the freight company arrives. Remove all debris: roots, grass, rocks, etc.
Excavate the site. Contact your local ulies company to ensure there are•
no gas or electric lines buried in the area before digging.
Decide on the type of foundaon you will be using:•
 Concrete slab, or
 46 inches of crushed gravel with paver stones or 4x4 stringers.
You can find the footprint for your shed on Page 3 of your Assembly Manual.
If doing the assembly yourself, have all the necessary tools ready to go and in•
working condion. A list of required tools can be found aer the parts list.
One helper is recommended to assist in construcng your shed.•
It generally takes two people over two days to assemble a shed. If you’re
hiring a contractor, their rate should be in line with that duraon of work.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2

Foundation Types for 8x12 Garden Shed
Concrete Slab Foundation:
- Slab must be at least the same size as assembled floor frame (136 1/2” x 96”) or larger.
- 6” Deep foundation.
- 1.7 Cubic Yards of concrete required.
- A concrete slab will have the longest durability out of your foundation options.
Once level, a concrete slab is the easiest surface to build on.
Gravel with 4x4 Pressure Treated Stringers:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 2.1 Cubic Yards of gravel required, approximatley 19 wheelbarrows.
- 7 - 4x4 Pressure Treated Stringers 8’ long required.
- Evenly spaced, with one at each end of floor frame.
Saves money on materials, easy to level and work with.
Gravel with Patio Paver Stones:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 2.1 Cubic Yards of gravel required, approximatley 19 wheelbarrows.
- 25 patio pavers (8” x 8” or larger).
- Center patio paver stones underneath floor runners and underneath seams in floor joists.
Patio paver stones are widely available from most landscape stores.
96”
136 1/2”
6” Deep
108”
148 1/2”
7 - 4”x4”x96”
25 Patio Stones
Floor FrameConcrete Foundation Completed Foundation
18 5/8”
Gravel Foundation Gravel Foundation with treated stringers Completed Foundation
Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation
96”
136 1/2”
108”
148 1/2”
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 3

Thank you for purchasing our 12x8 Studio Garden Shed.
Please take the time to identify all the parts prior to assembly.

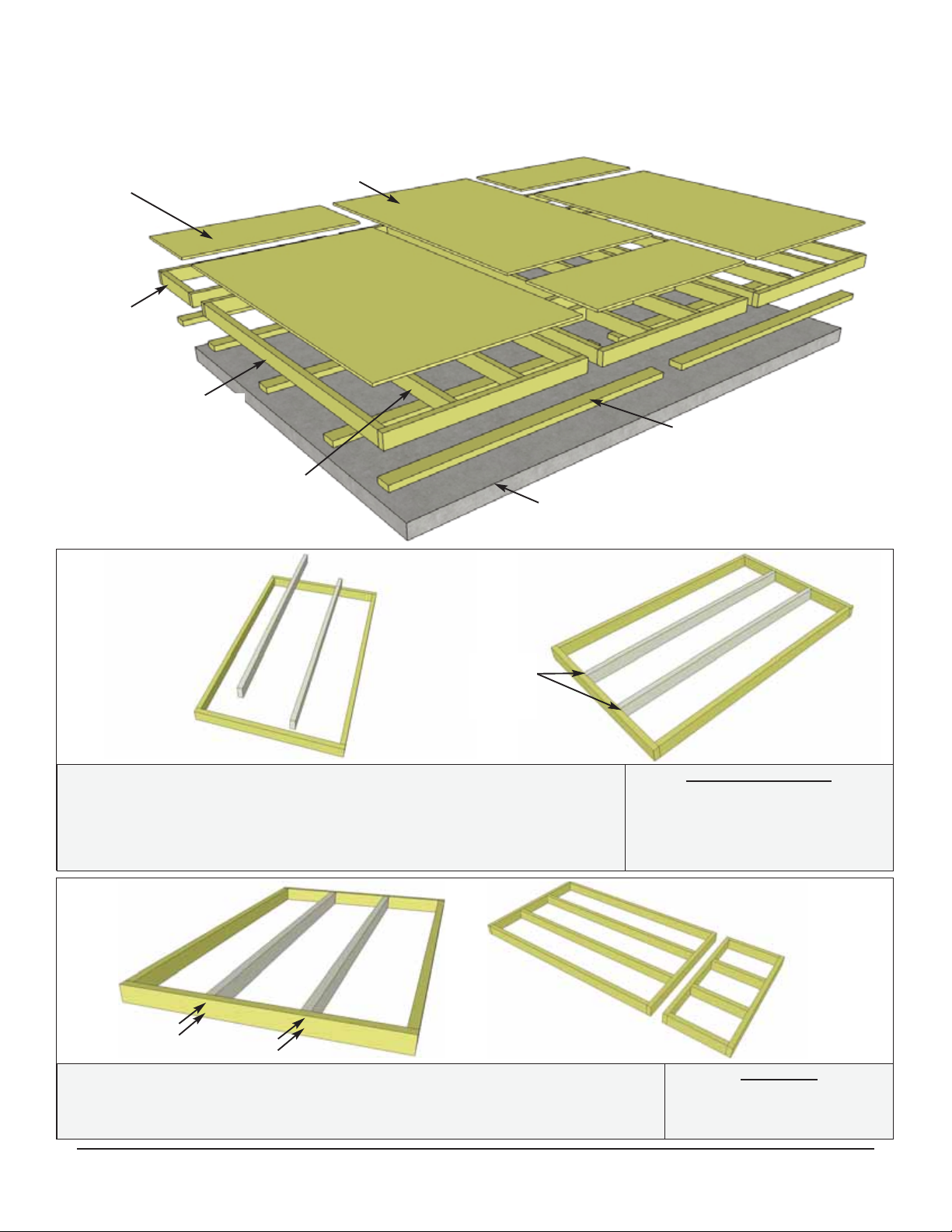

1. Floor Section
Floors
1A: 3 - 45 1/2” x 75” - Floor Joist Frames
1B: 6 - 1 1/2” x 3 1/2” x 71 3/4” - Center Floor Joists - Unattached
1C: 3 - 45 1/2” x 21” - Floor Joist Frames
1D: 3 - 45 1/2” x 75” - Plywood Floor - Large
1E: 3 - 45 1/2” x 21” - Plywood Floor - Small
1F: 10 - 1 1/2” x 3 1/2” x 68 3/16” Floor Runners
2. Wall Section
Main Wall Panels
2A: 2 - 48 3/4”w x 80 1/4”h - Front Window Wall Panels
2B: 7 - 45 1/2”w x 75”h - Solid Wall Panels (Bottom Plates Unattached)
2C: 7 - 1 5/8” x 2 1/2” x 45 3/8” - Bottom Wall Plates
Main Wall Plates
2D: 5 - 3/4” x 2 1/2” x 65 3/4” - Rear/Side/Middle Front
2E: 2 - 3/4” x 2 1/2” x 35 3/8” - Front
2F: 2 - 3/4” x 2 1/2” x 27 3/4” - Side
Rear Extender Walls - Rectangular
2G: 3 - 45 1/2”w x 9”h - Rear Extender Walls
Side Gable Walls (Trapezoid Shape)
2H: 2 - 45 1/2” w x 19” h x 10” h - Rear Side Gable Walls (R/L)
2I: 2 - 45 1/2” w x 28” h x 19” h - Front Side Gable Walls (R/L)
Upper Wall Plates
2J: 2 - 3/4” x 2 1/2” x 68 1/4” - 11 degree angle - Front
2K: 2 - 3/4” x 2 1/2” x 68 1/4” - 11 degree angle - Rear
Door Jambs
2L: 2 - 3/4” x 3 1/2” x 80 1/4” - Vertical Door Jambs
Upper Front Walls
2M: 2 - 48 1/2”w x 22 3/4”h - Upper Front Window Walls
2N: 1 - 39 1/2”w x 22 3/4”h - Centre Upper Front Window Wall
3. Rafter and Roof Section
Rafters
3A: 14 - 1 1/2” x 3 1/2” x 47” - Rafters (11° angle cut on ends)
3B: 14 - 1 1/2” x 3 1/2” x 72” - Rafters (11° angle cut on ends)
3C: 4 - 1 3/8” x 3 1/2” x 59 1/2” - Rafter Facia (11° angle cut on ends)
Rafter Spacers
3D: 2 - 1/2” x 2 1/2” x 60” Plywood Spacer Jig - Sides
3E: 1 - 1/2” x 2 1/2” x 44 7/8” Plywood Spacer Jig - Center
3F: 2 pcs - Front Rafter Overhang Spacer - 14 1/2” long (shingle marked)
Plywood Roof Panels (5)
3G: 3 - 5/8” x 48” x 86” - Large Roof Panels
3H: 2 - 5/8” x 33” x 72” - Small Roof Panels
Facia/Roof Nailing Strips
3M: 2 - 3/4” x 1 1/2” x 72”
3N: 2 - 3/4” x 1 1/2” x 44”
4. Trim Section
Soffits Front
4A: 2 - 3/4” x 3” x 14” (Outside L/R Cap)
4B: 8 - 3/4” x 3 1/2” x 67” (Tongue & Groove)
4C: 2 - 3/4” x 2 1/4” x 67” (Tongue cut off - positioned against shed)
4D: 1 - 1/2” x 2 1/2” x 13 3/4” (Center Cap)
21-22, 30
Steps
Steps
23-24
25-27
28, 30, 34
29
31-33
Steps
40-47
48-53
54
Steps
13-20
1-12
37-47
55-58
Parts List - Pages 2 and 3
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4

4. Trim Section Cont.
Soffits Rear
4E: 2 - 3/4” x 3” x 6 1/2” (Outside L/R Cap)
4F: 2 - 3/4” x 3 1/2” x 67” (Tongue & Groove)
4G: 2 - 3/4” x 3” x 67” (Tongue cut off - positioned against shed)
4H: 1 - 1/2” x 2 1/2” x 5 1/4” (Center Cap)
Top Horizontal Wall Trim
4I: 1 - 3/4” x 1” x 39” - Front
4J: 2 - 3/4” x 1” x 48 3/4” - Front
4K: 3 - 3/4” x 1” x 45 1/2” - Rear
Facia Trim
4L: 4 - 3/4” x 5 1/2” x 72 3/4” - Front/Rear
4M: 4 - 3/4” x 5 1/2” x 60” - Side (11° cut ends- mirror Image)
4N: 4 - 1/2” x 7 1/2” w x 5 1/2” - Facia Detail Plates
Bottom Skirting Trim
Side and Rear
4O: 7 - 3/4” x 4 1/2” x 45 1/2” - Bottom Skirting
Front
4P: 1 - 3/4” x 4 1/2” x 39” - Center Bottom Skirting
4Q: 2 - 3/4” x 4 1/2” x 48 3/4” - Outside Bottom Skirting
Corner & Wall Trim
Filler
4R: 4 - 7/8” x 2 1/2” x 72” - Filler Trims (all corners)
4S: 2 - 7/8” x 2 1/2” x 28 1/2” - Filler Trims (Front top)
4T: 2 - 7/8” x 2 1/2” x 12” - Filler Trims (Rear top)
Corner
4U: 2 - 1/2” x 2 1/2” x 46” - Top Front Narrow Corner (22° scarf cut)
4V: 2 -1/2” x 5 1/2” x 46 1/2 -Top Front Side Wide Corner (22° scarf /11°cut top)
4W: 2 - 1/2” x 2 1/2” x 62” - Bottom Front Narrow Corner (22° scarf cut)
4X: 2 - 1/2” x 5 1/2” x 62” - Bottom Front Side Wide Corner (22° scarf cut)
4Y: 2 - 1/2” x 5 1/2” x 91” - Rear Side Wide Corner (11° cut top - mirror)
4Z: 2 - 1/2” x 2 1/2” x 89” - Rear Corner Narrow
Side
4AB: 2 - 1/2” x 2 1/2” x 37 3/4” - Top Side (22° scarf /11° cut top - mirror image)
4AC: 2 - 1/2” x 2 1/2” x 62” - Bottom Side (22° scarf cut)
Rear
4AD: 2 - 1/2” x 2 1/2” x 89” - Rear Walls
Pre-Hung Door (Fiberglass - primed white)
4AE: 1 - 37 1/2” x 80”
Door Trim
4AF: 1 - 3/4” x 2 1/2” x 40” - Above Door Filler Trim (Bevel-install thick end up)
4AG: 2 - 1/2” x 2 1/2” x 84” - Vertical Door Trim
4AH: 1 - 1/2” x 3” x 44 1/2” - Horizontal Door Trim (angle cut - bottom corners)
Windows
4AI: 2 - Large Window Inserts - 30 1/4”w x 35” h
4AJ: 3 - Transom Window Inserts - 35”w x 10 1/8” h
Window Trim Pkgs.
4AK: Large Windows (2 Pkgs)
Top-1 -36 1/4” 11° cut / Sides - 2 -36 1/8” sq.cut / Bottom- 1 -35 1/4” sq.cut
4AL: Transom Windows (Left/Right) 2 Pkgs
Top-1 - 41” 11° cut / Sides- 2 -10 5/8” sq.cut / Bottom-1 -40” sq.cut
4AM: Transom Window (Center) 1 Pkg
2 Horizontal - 35 3/4” - sq.cut / 2 Vertical - 20 1/2” - sq.cut
Miscellaneous Pieces
4AN: 2 pc - Spare Wall Siding (48 1/2” long)
4AO: 8 pcs - Shim Shingles- use to shim door, etc.
Steps
59-60
61
62-67
68-70
71
72-74
75
76
77-78
79-80
81-84
85
86
87
If you plan on painting your door, we
suggest doing it prior to construction
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5

S1 - 2 1/2” Screws
S3 - 2” Screws
Hardware Kit (Provided)
Safety Glasses Work Gloves
Safety Equipment Required (Not Provided)
2
Ladders
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers
Tools Required (Not Provided)
Y2 - 90° Metal
Bracket (Roof)
1/8” & 3/8” Drill Bits
12X8 Studio Garden Shed - PLYWOOD - HARDWARE PACKAGE
Phillips
Screwdriver
x 20
x 425
x 71
x 356
x 475
S2 - 1 1/4” Screws
N1 - 1 1/2” Finishing Nails
BR1 - Square Drive Bit x 2
Door Handle
with hardware
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6

Regular Maintenance & Tips to prolong the life of your shed.
Before/During Assembly:
1.) Paint each face and edge of your plywood floor with a latex exterior paint.
2.) Caulk wall seams if gaps appear.
3.) Caulk around window framing.
4.) Caulk perimeter between floor plywood and bottom wall plate.
5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.
6.) Caulk edge of door threshold.
7.) Optional: Install a Sill Gasket between floor runners and foundation.
8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.
Routine Maintenance:
- Routinely check all fasteners are tight (ex. Door Hinges, Nails)
- Brush off dirt from walls.
- Brush off snow from roof regularly.
- Routinely remove needles and leaves from roof.
Painting/Staining
- Your cedar shed, if left untreated, will weather to a silvery grey colour.
- Painting or staining your structure is highly recommended and will prolong the life of your shed.
- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can be
—stained or painted immediately.
- Consult your local paint store for the best paint or stain for cedar.
- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)
1. 2. 3.
4. 5. 6.
7.
Sill Gasket
Floor Joists
Floor Runner
Foundation
8.
Floor Plywood
Wall Panel
Small gap between
bevel siding and
window trim
Dab of caulking
Strip of roofing paper over
apex of roof panels
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7

1. Floor Section
Flush
with
framing
Plywood Floor
Large - 3pcs. (Part 1D)
Floor Joist
Frames Large -
3pcs. (Part 1A) Floor Runners -
10pcs. (Part 1F)
Plywood Floor
Small - 3pcs.
(Part 1E)
Concrete Pad
(optional foundation method)
Floor Joist
FramesSmall -
3pcs. (Part 1C)
Exploded view of all parts necessary to complete
Floor Section. Identify all parts prior to starting.
Note: Floor Footprint is 136 1/2” wide x 96” deep.
2. When correctly positioned, attach each Joist with 4 - 2 1/2” screws
(2 per end). You can find the Square Drive Screw Bit in the Hardware
Kit Bag. Complete 2 remaining Large Floor Joist Frames.
Hardware
S1 - 2 1/2” Screws
x 24 total
1. Lay out 1A - Floor Joist Frames and two of 1B - Floor Joists as
illustrated above. Position Joists equally in Floor Joist Frame. Use
1C - Small Floor Joist Frame as a template to determine joist
position. Position Joist so flush with framing.
Parts (Steps 1 - 2)
1A - Large Floor Joist Frames
(45 1/2” x 75”) x 3
1B - Floor Joists
(1 1/2” x 3 1/2” x 71 3/4”) x 6
Center Floor
Joists - 6pcs.
(Part 1B)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8

96”
136 1/2”
Front of Shed
You can find BR1 - Square
Drive Bit for the screws in
with the Hardware Kit Bag.
8. Make sure Runners are flush with outside
and front and rear floor framing but not
overhanging.
7. Attach 1F - Floor Runners
to completed floor frame. There
are 2 floor runners per 136 1/2”
side and 5 completed runners
in total. Use 3 - 2 1/2” screws
per runner section.
Parts (Steps 7 - 9)
1F - Floor Runners
(1 1/2” x 3 1/2” x 68 3/16”)
x 10
Hardware (Steps 7 - 9)
S1 - 2 1/2” Screws
x 30 total
6. When completed, your floor footprint
should be 136 1/2” wide x 96” deep.
5. Complete all large and small
frame attachments. Screw each
completed section together with
8 - 2 1/2” screws.
Hardware
S1 - 2 1/2” Screws
x 16 total
4. Attach each large and small floor joist
frame together with 6 - 2 1/2” screws per
section.
Hardware
(S1 - 2 1/2” Screws) x 18 total
3. Lay out 1A & 1C - Floor Joist Frames as illustrated.
There are 3 larger and 3 smaller Frame Sections. The
Footprint for the floor when attached together will be
136 1/2” wide x 96” deep.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9

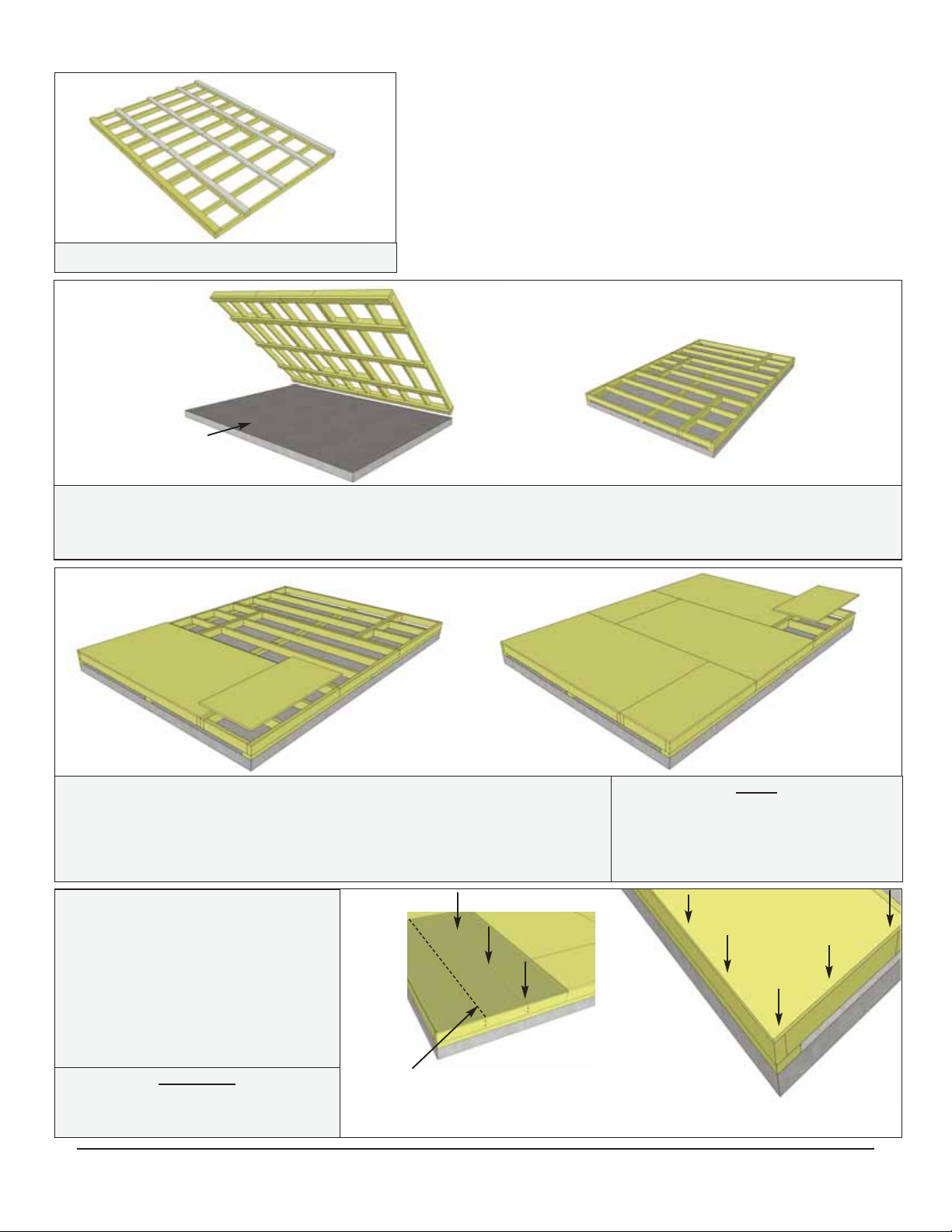

Note: The floor will be flipped over and the floor
runners will sit on your foundation. It is important
to note, that having a level foundation is critical.
Choosing a foundation will vary between regions.
Typical foundations can be concrete pads or patio
stones positioned underneath the floor runners.
Concrete Slab
Foundation
Foundations
Use chalk line to mark
location of mid joists for
interior screws.
Front
12. With Plywood positioned
correctly on floor framing, attach
with 1 1/4” Screws. Use screws
every 16” around perimeter of each
large floor section and 3 screws
through each mid joists. Adjust for
smaller floor sections accordingly.
11. Position parts 1D & 1E - Plywood Floor on top of completed
floor joists. Plywood will sit flush with outside of floor joist frame.
Parts
1D - Plywood Floor - Large
(5/8” x 45 3/8” x 74 7/8”) x 3
1E - Plywood Floor - Small
(5/8” x 45 3/8” x 20 7/8”) x 3
Hardware
S2 - 1 1/4” Screws
x 100 total (approx.)
10. With Floor Runners attached, carefully flip the floor over and place on your foundation.
Caution: you will need 2 people to assist you. Be careful when laying floor down not to bend or twist floor.
When in place, level floor completely.
9. Complete remaining Floor Runners.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10

2. Wall Section
Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to starting.
Upper Rear
Wall Plates 11°
edge cut - 2pcs.
(Part 2K)
Rear Side Gable Walls
- 2pcs. (Part 2H)
Door Jambs -
2pcs. (Part 2L)
Solid Wall
Panel - 7pcs.
(Part 2B)
Rear Extender Walls -
3pcs. (Part 2G)
Main Wall Side/Rear Top Plates
- 6pcs. (Parts 2D & 2F)
Upper Front Wall
Plates 11° edge cut
- 2pcs. (Part 2J)
Main Wall Front Top Plates -
3pcs. (Parts 2D & 2E)
Front Window Wall
Panels - 2pcs. (Part 2A)
Upper Front Window
Walls Left/Right
- 2pcs. (Part 2M)
Upper Front Window
Wall Centre - 1pc.
(Part 2N)
Front Side
Gable Walls
- 2pcs. (Part 2I)
13. Identify all wall section
components and become familiar with
their location.
There will be 2 Window Wall Panels,
7 Solid Wall Panels, 4 trapezoid
shaped Side Gable Walls, 3 Rear
Extender Walls and Top Plates
(upper and lower).
Make sure to position panels right
side up so water is directed away
from and not into shed. Look at
window wall panels to determine
proper wall position to confirm.
(Walls may have a QC colored dot on
them, these won’t be visible on the
shed, please ignore them).
Front
Bottom Wall Plate
Top Plates
Upper Top Plates
Upper Top Plates
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 11

Bottom Wall Plate
Important: Make sure all walls are aligned in their
upright position. If not, water may leak into your shed.
Unsure if panel is facing up or down?
Check siding on window wall panel to match alignment.
Outside 2x3 framing of wall panel should
be positioned flush with the outside of
floor framing when properly aligned.
Rear Wall Panel
Side of Shed
Side of Shed
You can find BR1 -
Square Drive Bit for
the screws in with the
Hardware Kit Bag.
16. The rear wall panels will sit even with the floor frame and the sidewall panels will be sandwiched
between the front and rear wall panels. The floor plywood may be slightly recessed.
Note: Siding will overhang the floor frame by approximately 3/4”.
15. Starting at Rear Corner, position a Solid Wall Panel on top of plywood floor. The Wall Panel bottom
framing will sit flush with plywood. Wall siding will overhang the floor.
14. Carefully lay 2B - Solid Wall Panels face
down. Position and attach 2C - Bottom Wall Plates
to bottom of wall studs of each wall panel with
3 - 2 1/2” Screws. Position so plates are flush with
framing.
Parts
2B - Solid Wall Panels
(45 1/2” wide x 75” high) x 7
2C - Bottom Wall Plates
(1 5/8” x 2 1/2” x 45 3/8”) x 7
Hardware
S1 - 2 1/2” Screws
x 21 total
Siding over-
hangs floor
frame by 3/4”
Ensure bottom plate
is flush side-to-side
with wall studs
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 12

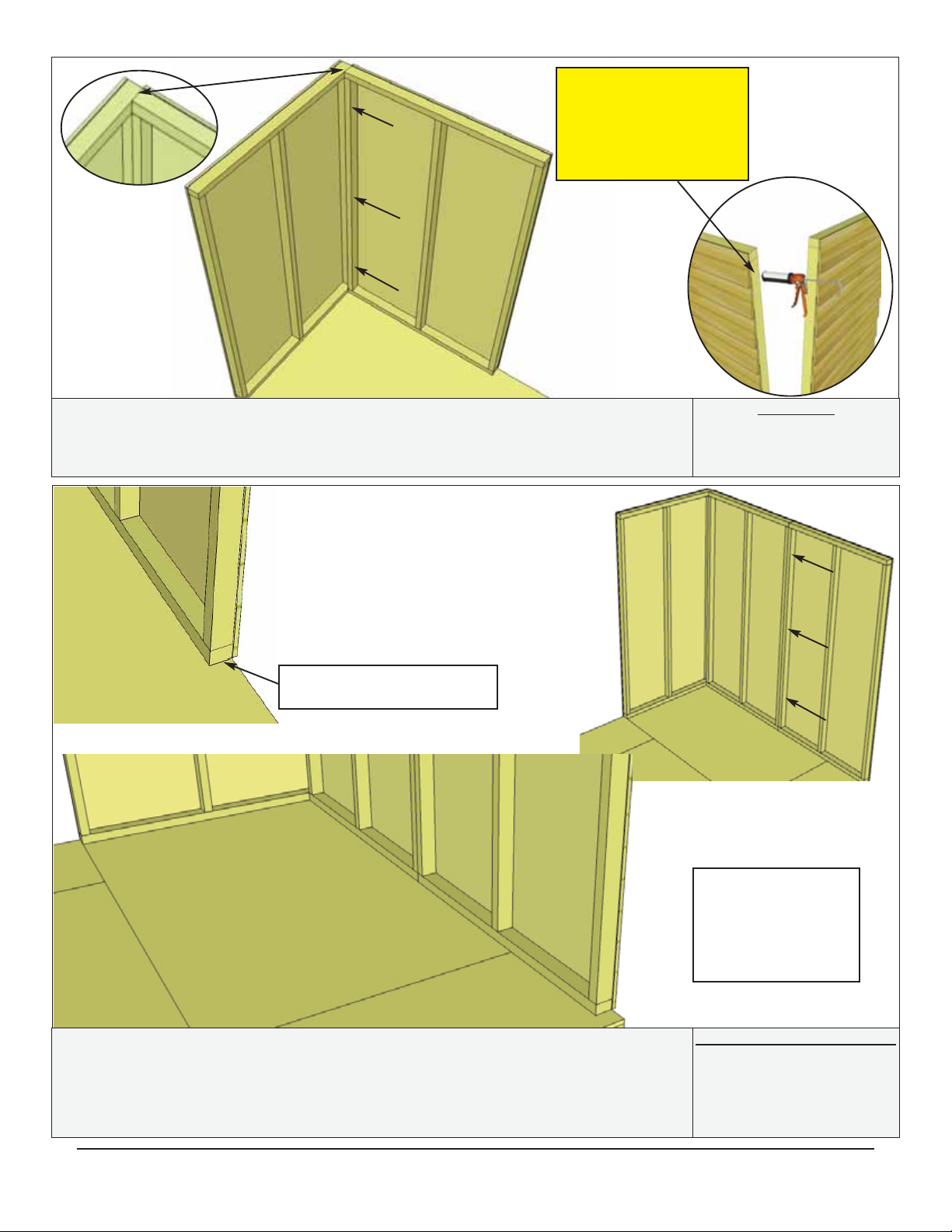

Side Wall Panels
Side Solid Wall
Rear Solid Wall
Side Solid Wall
2x3 wall framing flush with
outside of floor framing.
Be sure that the
side wall panels fit
between the front
and rear wall panels
(sandwiched).
Optional - Caulking
seams will help prevent
moisture from entering
at seam. Caulking not
included in kit.
Rear Wall Panel
18. With the corner wall attachment complete, position a second side wall
panel in place so bottom 2x3 wall framing is sitting flush with outside floor joists.
Wall siding should overhang floor by approximately 3/4”. When positioned
correctly, attach both side wall panel studs together as per Step 17.
17. Position side solid wall into place on plywood floor. Butt both vertical wall
studs of side and rear walls together and attach with 3 - 2 1/2” Screws. Screw at
the bottom, middle and top of stud to secure properly.
Hardware
S1 - 2 1/2” Screws
x 3 total
Hardware (Steps 18 - 20)
S1 - 2 1/2” Screws
x 21 total
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 13

Side of Shed
Wall panel will
sit flush with
floor framing at
side of shed.
Do Not Attach Walls To
Floor Until Step 35
20. Place Window Wall Panel in front and attach as per Step 17.
19. Complete all side and rear wall attachments as per Step 17.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 14

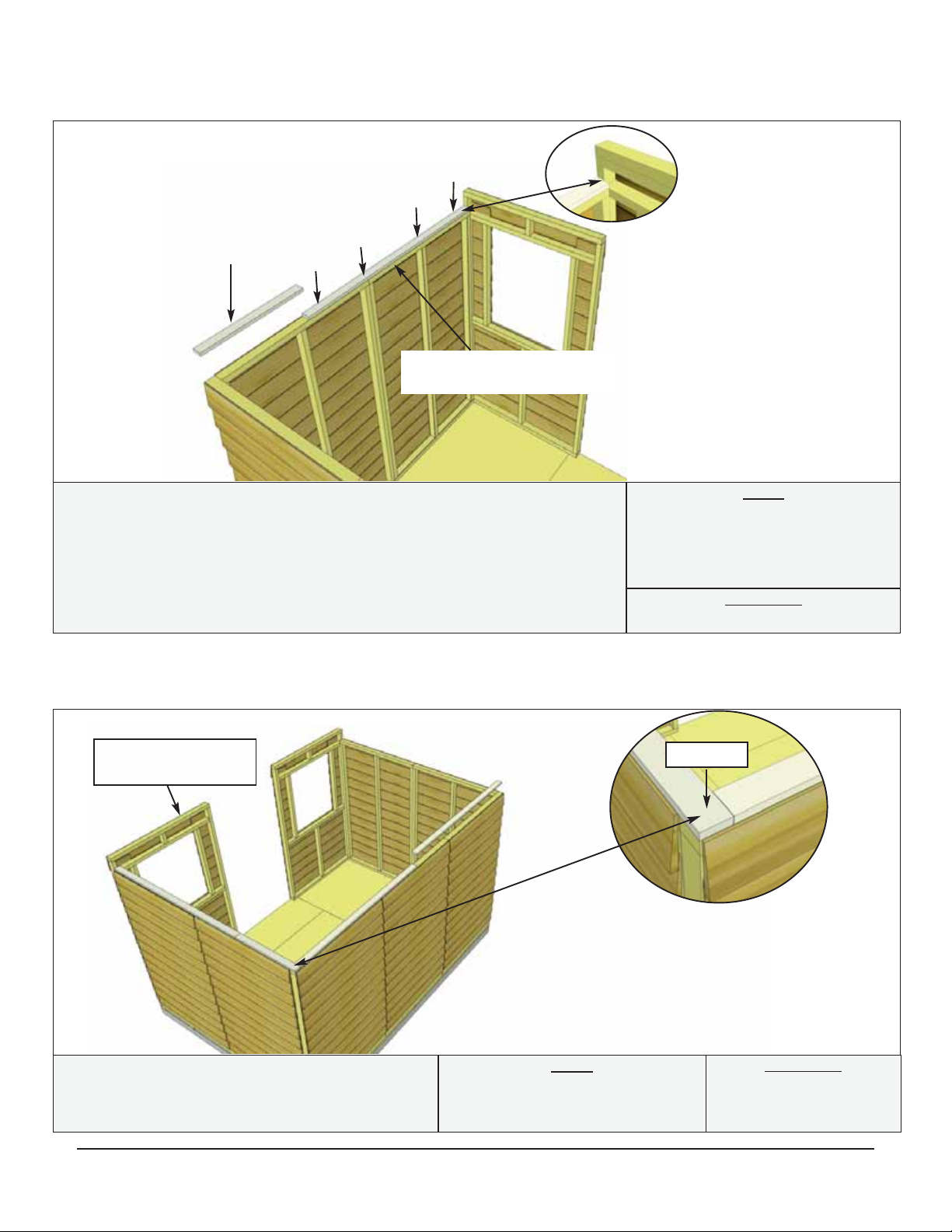

Top Plates should be flush
with inside of wall framing.
Rear
Main front plates
installed in Step 30.
22. Attach both 2D - Main Wall Rear Top
Plates with 4 - 2” screws per piece. Complete
remaining side wall plates as per Step 21.
Parts
2D - Main Wall Rear Top Plates
(3/4” x 2 1/2” x 65 3/4”) x 2
Hardware
S3 - 2” Screws
x 8 total
21. Position 2D & 2F - Main Wall Side Top Plates on top of wall
studs so they are flush on the inside with 2x3 wall stud. There are
2 plates per side - 1 long & 1 short. Attach by screwing down into top
wall framing with 4 - 2” Screws per long plate & 3 - 2” Screws per
short plate.
Parts
2D - Main Wall Side Top Plates
(3/4” x 2 1/2” x 65 3/4”) x 2
2F - Main Wall Side Top Plates
(3/4” x 2 1/2” x 27 3/4”) x 2
Hardware
(S3 - 2” Screws) x 14 total
2” Screw
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 15

Siding of
Extender Wall.
Siding of
rear wall.
Front Rear Siding of Gable
Wall overhangs
frame.
Vertical
frames.
25. Position bottom frame of 2H - Rear Side
Gable Wall onto side wall top plate. Align so
gable wall and side wall 2x3’s are even. Rear
gable vertical frame will sandwich against
extender vertical frame.
Parts (Steps 25 - 27)
2H - Rear Side Gable Walls
(2H - Right/Left Pair) x 2
2I - Front Side Gable Walls
(2I - Right/Left Pair) x 2
Hardware (Steps 25 - 27)
S1 - 2 1/2” Screws
x 22 total
24. With 2x3 wall framing aligned, attach extender walls to rear wall top plate with 4 - 2 1/2” Screws per
wall.
23. Place 2G - Rear Extender Walls on rear
wall plate with bottom siding overlapping that of
the rear wall.
Parts (Steps 23 - 24)
2G - Rear Extender Walls
(2G - 45 1/2” wide) x 3
Hardware (Steps 23 - 24)
S1 - 2 1/2” Screws
x 12 total
Cleat protects
overhanging siding
on upper walls from
damage. Please
remove before
installing.
Overhanging
siding.
Protective
cleat
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 16

Front Side
Gable.
Extender
Wall
Gable wall
framing.
Flush
Even
28. Position 2K - Rear Upper Wall Plates on rear
extender wall framing, flush with inside of extender
framing and even with outside wall. Attach each piece
with 4 - 2” Screws.
Parts
2K - Rear Upper Wall Plates - 11° angle on face
(3/4” x 2 1/2” x 68 1/4”) x 2
Hardware
(S3 - 2” Screws) x 8 total
27. Position bottom frame of 2I - Front Side Gable Wall onto side wall top plate. Align so gable wall and
side wall 2x3’s are even. Front gable vertical frame will sandwich against front window wall vertical frame.
When correctly aligned, attach with 6 - 2 1/2” Screws. Complete other side the same.
26. From the outside, siding of gable will overlap side wall. When aligned, secure gable with
5 - 2 1/2” Screws. On a ladder, push extender wall and gable wall together tight and then screw.
2” Screw.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 17

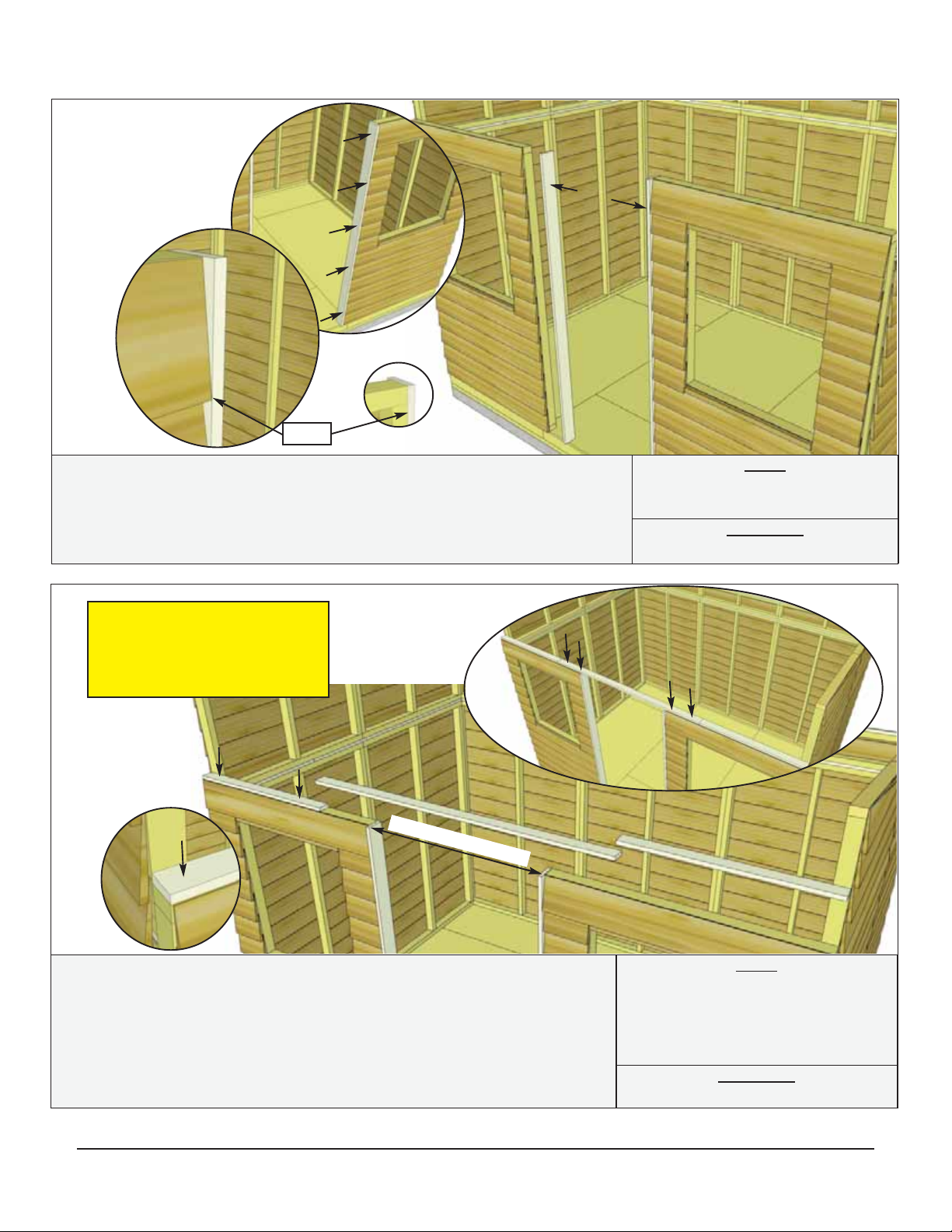

29. Position 2L - Door Jambs against window wall vertical framing.
Jamb should sit even with the thick bevel siding on the outside and even
with framing on the inside. Attach with 5 - 2 1/2” Screws / piece.
Even
Bevel
Inside
Advice -
Check Door Opening now.
Width should be 38”
Height inside of wall plate = 80 1/4”
Confirm final size at Step 35.
Parts
2L - Door Jambs
(3/4” x 3 1/2” x 80 1/4”) x 2
Hardware
(S1 - 2 1/2” Screws) x 10 total
30. Position 2D & 2E - Main Wall Front Top Plates on top of window
wall framing so they are flush on the inside with 2x3 wall stud. Align
plates on wall as per Step 21. There are 2 outside smaller plates (2E)
and 1 longer center plate (2D). Attach by screwing down into top of
wall framing with 2 - 2” Screws per shorter plate and 4 - 2” Screws
on the center plate.
Parts
2D - Main Wall Front Top Plate
(3/4” x 2 1/2” x 65 3/4”) x 1
2E - Main Wall Front Top Plates
(3/4” x 2 1/2” x 35 5/8”) x 2
Hardware
(S3 - 2” Screws) x 8 total
Door Opening 38” wide
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 18

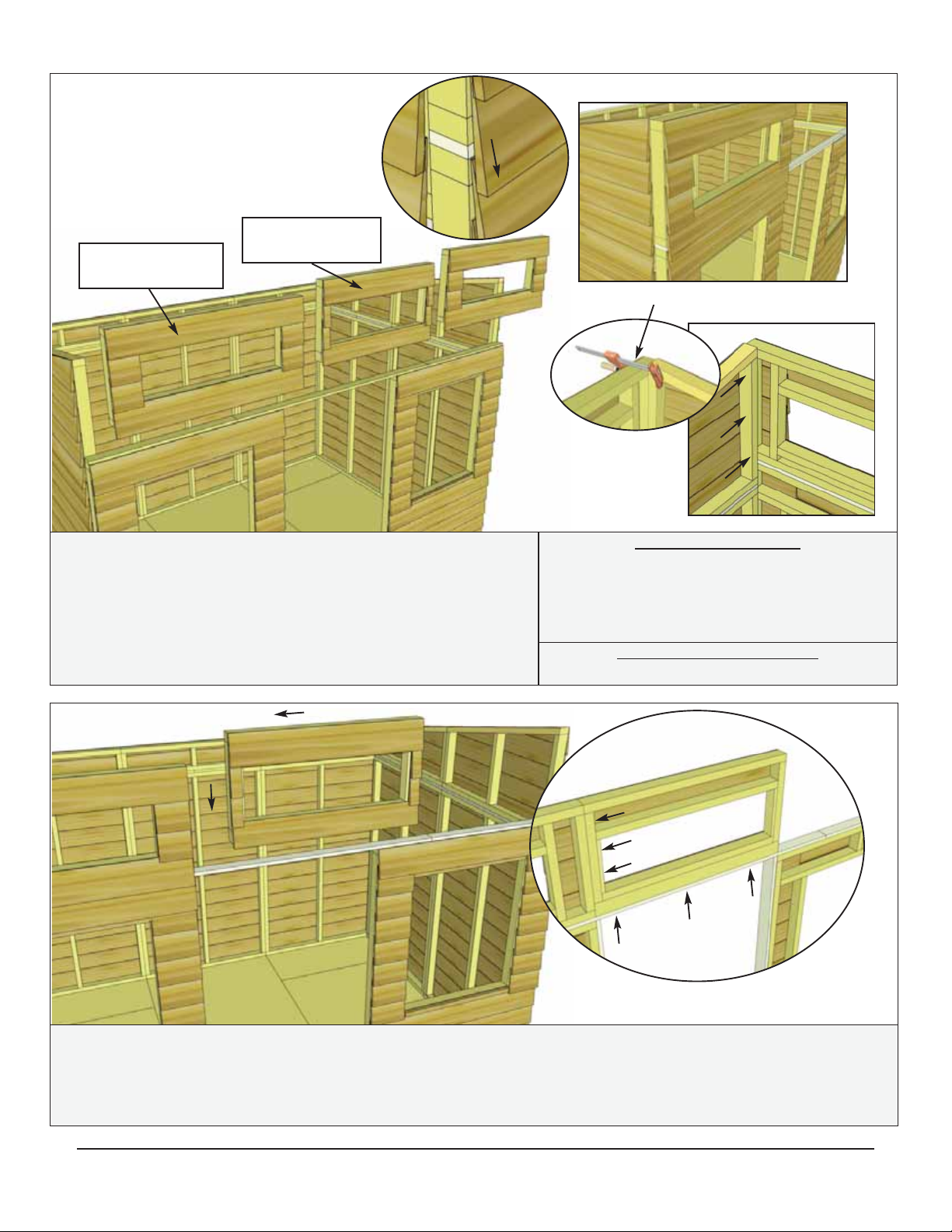

Front Upper
Window Walls (2)
Center Upper
Window Wall (1)
window wall
Gable
Clamp
31. Starting with a 2M - Upper Front Window Wall - Side,
place on front main wall top plate in corner. Upper wall siding
will overhang lower window wall siding. Line up vertical gable
framing with upper window framing and clamp together.
Screw frames together with 3 - 2 1/2” screws.
Parts (Steps 31 - 33)
2M - Upper Front Window Walls - Sides
(2M - 48 1/2” wide) x 2
2N - Upper Front Window Wall - Center
(2N - 39 1/2” wide) x 1
Hardware (Steps 31 - 33)
(S1 - 2 1/2” Screws) x 21 total
32. Position 2N - Upper Front Window Wall - Center on front main wall top plate tight against the
previously installed upper window frame. Line up vertical gable framings and screw frames together with
3 - 2 1/2” Screws. Use clamp to keep frames together tight. From underneath, attach 3 - 2 1/2” Screws
from the plate into the bottom of the window frame.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 19

33. Position and attach the remaining 2M - Upper Front Window Wall - Side on front main wall top plate
in corner as per Step 31. Clamp frames together to keep frames tight. To complete, screw both outside
upper window panels from underneath window wall framing with 3 - 2 1/2” Screws per panel.
34. Position 2J - Upper Wall Plates on upper front window
wall framing as per Step 28. Attach each piece with
4 - 2” Screws.
Parts
2J - Upper Wall Plates - 11° angle on face
(3/4” x 2 1/2” x 68 1/4”) x 2
Hardware
(S3 - 2” Screws) x 8 total
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 20
