OLT GGC63-TG-CEDAR User manual

Important Information:
- It is the sole responsibility of the customer to check with your local municipal or county by-laws before
ordering this product to confirm it complies with building codes in your area.
- If the product is elevated, any structural and building code requirements are solely the customer's
responsibility, and should be abided by.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it is advisable to sweep
snow off roof frequently.
- In areas with high or gusty wind conditions, it is advisable to install the structure securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are tightly affixed.
- All structures purchased from Outdoor Living Today are covered for a period of one year for defects in
manufacturing and workmanship. Costs incurred for customer installations are not included.
- Failure to use supplied parts included in this kit could result in poor product performance and may void your
warranty. Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our
written instructions.
Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 1
Thank you for purchasing a
6x3 Grand Garden Chalet.
Please take the time to
identify all the parts prior to
assembly.
6x3 GRAND
GARDEN CHALET
WITH CEDAR ROOF
ASSEMBLY MANUAL
Version #1.1
May 3, 2023
In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support Line
@ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our commitment to you to courier
replacement parts, free of charge, within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
Stock Code:
GGC63-TG-CEDAR
Customer agrees to hold Outdoor Living Today and any Authorized Dealers free of any liability for improper
installation, maintenance and repair.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 2
What to do before my Shed arrives?
Become familiar with this assembly manual and determine if you can•
complete the project yourself or will require a professional contractor.
Clear the construction area and ensure a clear pathway for delivery when•
the freight company arrives. Remove all debris: roots, grass, rocks, etc.
Excavate the site. Contact your local utilities company to ensure there are•
no gas or electric lines buried in the area before digging.
Decide on the type of foundation you will be using:•
 Concrete slab, or
 46 inches of crushed gravel with paver stones or 4x4 stringers.
You can find the footprint for your shed on Page 3 of your Assembly
Manual.
If doing the assembly yourself, have all the necessary tools ready to go•
and in working condition. A list of required tools can be found after the
parts list.
One helper is recommended to assist in constructing your chalet.•
It generally takes two people less than a day to assemble a chalet. If you’re
hiring a contractor, their rate should be in line with that duration of work.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 3
Foundation Types for 6x3 Garden Shed
Concrete Slab Foundation:
- Slab must be at least the same size as assembled floor frame (35” x 73”) or larger.
- 6” Deep foundation.
- 0.6 Cubic Yards of concrete required.
- A concrete slab will have the longest durability out of your foundation options.
Once level, a concrete slab is the easiest surface to build on.
Gravel with 4x4 Pressure Treated Stringers:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 0.6 Cubic Yards of gravel required, approximately 6 wheelbarrows.
- 5 - 4x4 Pressure Treated Stringers 34 3/4” long required.
- Evenly spaced, with one at each end of floor frame.
Saves money on materials, easy to level and work with.
Gravel with Patio Paver Stones:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 0.6 Cubic Yards of gravel required, approximately 6 wheelbarrows.
- 8 patio pavers (8” x 8” or larger).
- Center patio paver stones underneath floor runners and underneath seams in floor joists.
Patio paver stones are widely available from most landscape stores.
86 1/4”
47 3/4”
6” Deep
5 - 4”x4”x34 3/4”
8 Patio Stones
Floor FrameConcrete Foundation Completed Foundation
14 3/16”
Gravel Foundation Gravel Foundation with treated stringers Completed Foundation
Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation
73”
35”
86 1/4”
47 3/4”
86 1/4”
47 3/4”

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 4
Thank you for purchasing our 6x3 Grand Garden Chalet.
Please take the time to identify all the parts prior to assembly.
Note: Trim and Skirting pieces are graded with the best face being rough sawn.
Rough sawn cedar is much easier to paint and stain.
Parts List
A. - Floor Section
Floors
1 - Floor Section - 35” x 73”
1 - Mid Floor Joist - 1 1/2” x 2 1/2” x 70”
Steps
1
B. - Wall Section
Main Wall Panels
4 - Rear/Side Walls - 35” x 63 1/4” - Identical
4 - Top Wall Plates - 1 1/2” x 1 1/2” x 35”
2 - Front Narrow Walls - 12 1/2” x 61 3/4” - Identical
Header/Wall Extenders
1 - Front Header - 1 1/2” x 1 1/2” x 70”
1 - Interior Door Header - 1 1/2” x 1 1/2” x 44 7/8”
2 - Left/Right Side Angle Gables - 6 1/2” x 35”
2 - Wall Extenders - 6 1/4” x 35”
1 - Front Top Plate - 1 1/2” x 1 1/2” x 70”
Shelves
Storage Shelf Supports
Short (2 - 3/4” x 2 1/2” x 12 1/2”)
Long (2 - 3/4” x 2 1/2” x 35”)
2 - Storage Shelves - 11 1/2” x 31 7/8”
2 - 11
12 - 23
24 - 25
C. - Roof Section
Roof
1 - Cedar Shingle Roof Panel - 38 3/4” x 78 1/4”
26 - 27
D. - Trim / Misc. Section
Lower Skirting
2 - Lower Rear Skirting - 1/2” x 2 1/2” x 35”
2 - Lower Side Skirting - 1/2” x 2 1/2” x 33”
Lower Front Skirting
Short (2 - 1/2” x 2 1/2” x 11 1/8”)
Long (1 - 1/2” x 2 1/2” x 47 1/4”)
Filler Trim
8 - Front/Rear Filler Trims - 5/8” x 1 1/2” x 30”
1 - Front Header Filler Strip - 5/8” x 1” x 69 1/2”
1 - Front Top Plate Filler Strip - 5/8” x 1 1/2” x 69 1/2”
29
30 - 33
D. - Trim / Misc. Section Cont.
Outer Wall Trim and Fascia
1 - Upper Rear Horizontal Trim - 1/2” x 2 1/2” x 74 1/4”
2 - Side Fascia Trims - 1/2” x 2 1/2” x 37 5/8” - Angle Cut
Ends
2 - Rear Wide Corner Trims - 1/2” x 3 1/2” x 70 3/8”
2 - Rear Side Corner Trims - 1/2” x 2 1/2” x 70 3/8” - Angle
Cut End
2 - Front Wide Corner Trims - 1/2” x 3 1/2” x 67 3/4”
2 - Front Side Corner Trims - 1/2” x 2 1/2” x 65 1/2” - Angle
Cut End
1 - Rear Center Trim - 1/2” x 2 1/2” x 70 3/8”
2 - Vertical Door Frame Trim - 1/2” x 2 1/2” x 64 1/4”
Door System
1 - Door Threshold (Bevel) - 1/2” x 2 5/8” x 44 7/8”
2 - Left/Right Doors - 22 1/4” x 61 3/8”
1 - Door Flange - 1/2” x 2 1/2” x 61 3/8”
4 - Interior Vertical Door Stops - 3/4” x 3/4” x 29 7/8”
Miscellaneous
1 - Front Horizontal Trim - 1/2” x 3” x 67 1/4”
1 - Metal Drip Edge - 60”
2 - Roof Ridge Caps - 1/2” x 3 1/2” x 39 1/4”
** Plus 2 Cedar Shingle Shims - discard after shimming
doors
Steps
34 - 40
41 - 53
54 - 55
Note: We recommend you drill a 1/8” pilot hole for each
screw to avoid splitting wood. The hole depth should be
equal to 3/4 the length of screw.

Tools Required (Not Provided)
Safety Equipment Required (Not Provided)
Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 5
6x3 GRAND GARDEN CHALET - CEDAR ROOF
Safety Glasses
Work Gloves
Ladder
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers 1/8” & 3/8” Drill Bits
3/8” Wrench
Hardware Kit (Provided)
3/4”
1 1/2”
T Hinge
x 4 pcs
Door
Handle
x 2 pcs
Black Headed Screw
Finishing
Square Drive Bit
Silver
Barrel Bolt
Drop Latch
1 1/2”
Black Headed Bolt with Silver Nut and Washer
24 pcs
195 pcs
4 pcs
1 pc
1/2” x 2 1/2” x 2 1/2”
Plywood Spacer
2 1/2”
3/4”
2”
Black Headed Screw
Silver
1 1/4”
115 pcs
14 pcs
16 pcs
5 pcs
1” 7 pcs

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 6
Regular Maintenance & Tips to prolong the life of your shed.
Before/During Assembly:
1.) Paint each face and edge of your plywood floor with a latex exterior paint.
2.) Caulk wall seams if gaps appear.
3.) Caulk around window framing.
4.) Caulk perimeter between floor plywood and bottom wall plate.
5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.
6.) Caulk edge of door threshold.
7.) Optional: Install a Sill Gasket between floor runners and foundation.
8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.
Routine Maintenance:
- Routinely check all fasteners are tight (ex. Door Hinges, Nails)
- Brush off dirt from walls.
- Brush off snow from roof regularily.
- Routinely remove needles and leaves from cedar roof.
Painting/Staining
- Your cedar shed, if left untreated, will weather to a silvery grey colour.
- Painting or staining your structure is highly recommended and will prolong the life of your shed.
- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can
be stained or painted immediately.
- Consult your local paint store for the best paint or stain for cedar.
- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)
1. 2. 3.
4. 5. 6.
7.
Sill Gasket
Floor Joists
Foundation
8.
Floor Plywood
Wall Panel
Dab of caulking
Strip of roofing paper over
apex of roof panels
Floor Runner
Small gap
between bevel
siding and
window trim

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 7
1. Locate Floor Joist and position at center of Floor Section
and flush with framing as illustrated above. Attach with 2 - 2 1/2”
Brown Screws per end. Flip over and lay Floor Section on a
level foundation only. Patio Stones or a Concrete Slab both
make excellent foundations. (See Page 3 for more information
on foundations). Use a level to confirm and shim Floor Joist as
required.
A. Floor Section
Parts
Floor Joist
(1 1/2” x 2 1/2” x 70”) x 1
Floor Section
(35” x 73”) x 1
Hardware
2 1/2” Brown Screws
x 4 total

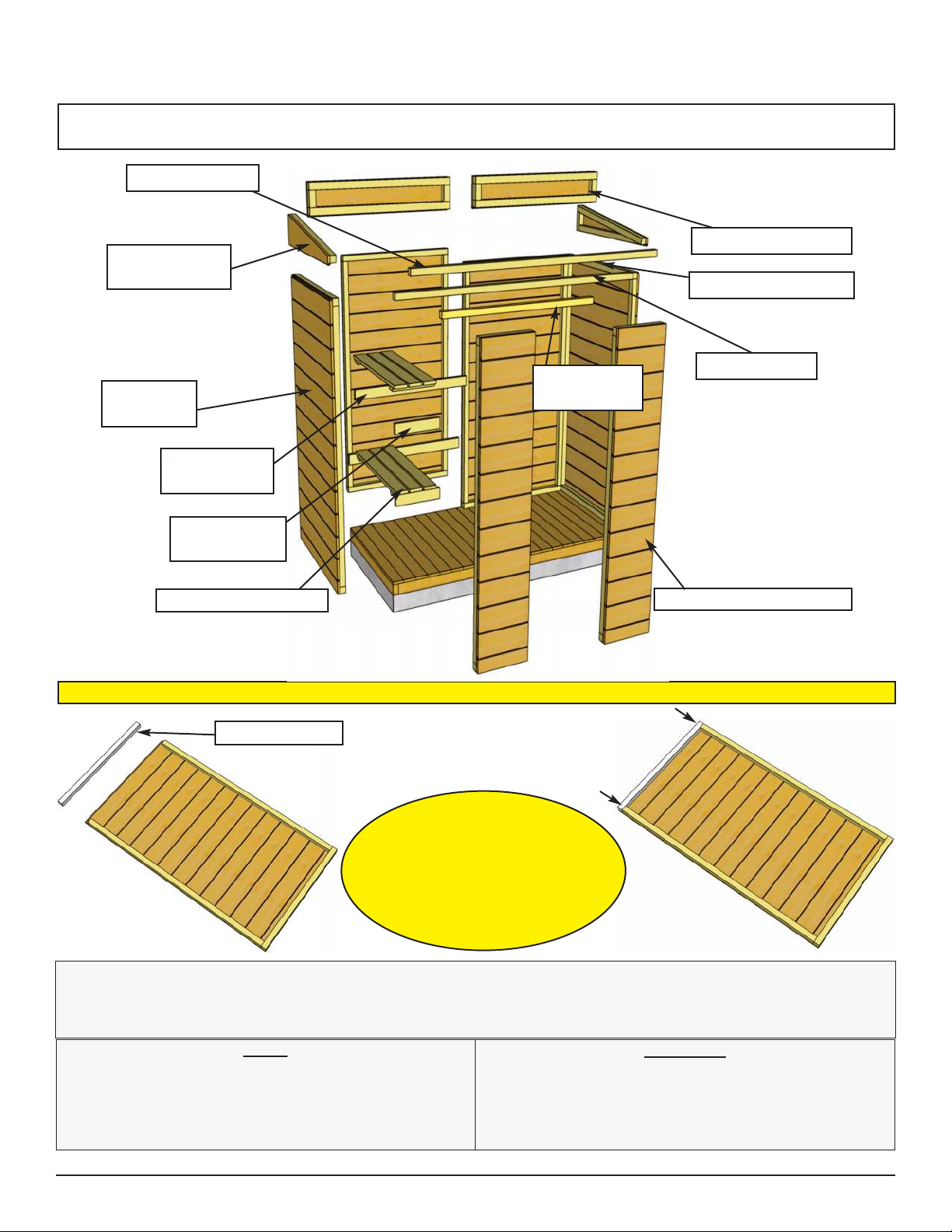

Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to
starting.
Floor Joist
Floor Section

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 8
Due to packaging constraints, top wall plates must be attached prior to erecting walls.
2. For each Rear and Side Wall Panel, carefully lay panel face down. Position and attach a Top Wall
Plate to top of wall studs of each Wall Panel with 2 - 2 1/2” Brown Screws. Position so Plates are
flush with framing.
Parts
Rear/Side Wall Panels
(35” x 63 1/4”) x 4
Top Wall Plates
(1 1/2” x 1 1/2” x 35”) x 4
Hardware
2 1/2” Brown Screws
x 8 total
Top Wall Plate
Important:
Pilot hole ALL 2x2 Wall Studs
with 1/8” drill bit prior to screwing.
This will make it much easier
to attach together.
B. Wall Section
Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to
starting.
Long Shelf
Supports (2)
Wall
Panels (4)
Side Angle
Gables (2)
Short Shelf
Supports (2)
Storage Shelves (2) Front Narrow Walls (2)
Wall Extenders (2)
Front Top Plate
Top Wall Plates (4)
Front Header
Interior Door
Header

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 9

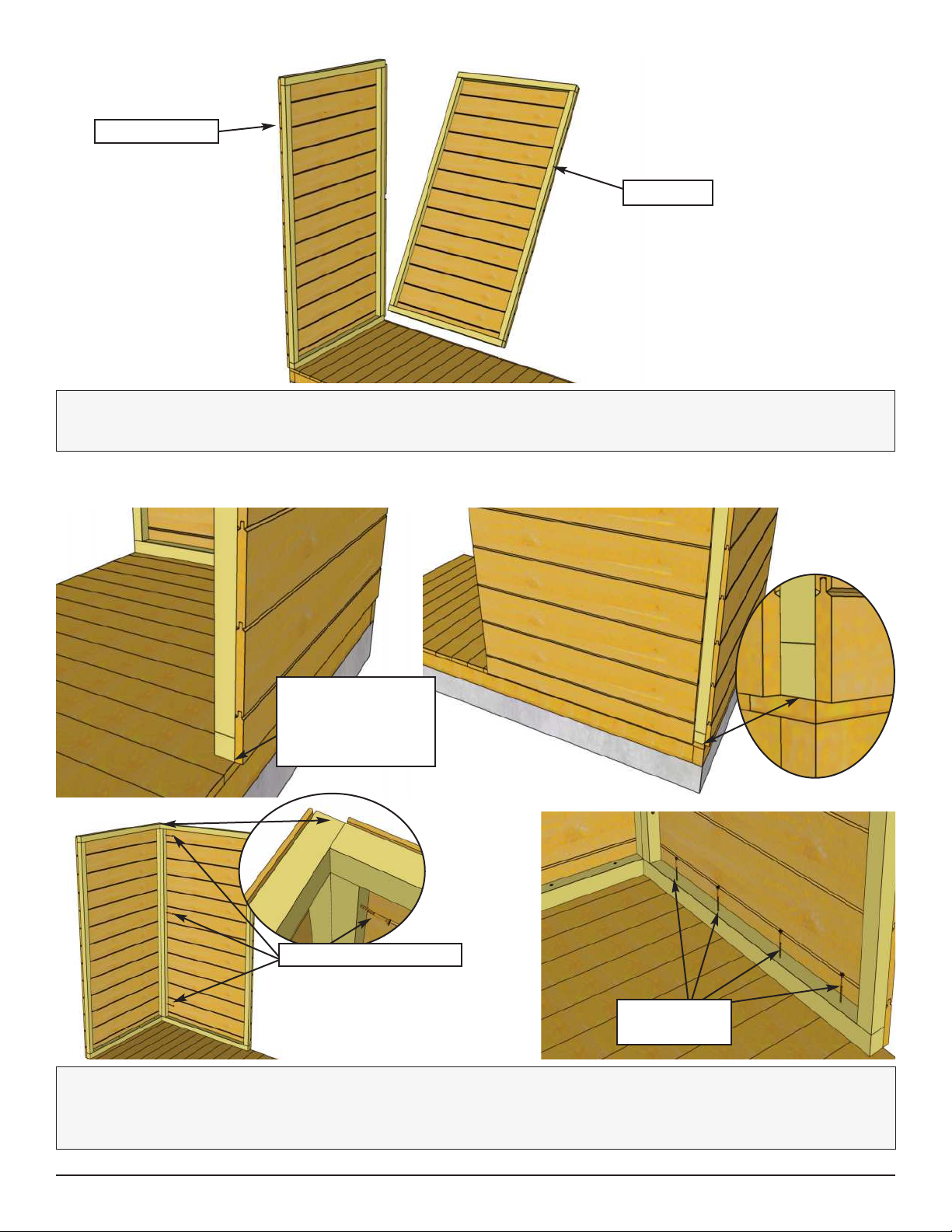

3. With Wall Plates properly attached, orientate completed Walls around the Floor. Be sure to leave
room to work. Front Narrow Walls will be required in this section.
Front
Rear Wall Panels
Front Narrow
Walls
Left Side Wall Panel
Wall frame flush with outside
of Floor on the side. Wall
siding will overhang Floor.
Left Side Wall
4. Starting with Left Side Wall, lift up and position so framing is flush
with Floor at both front and rear of shed. Make sure Wall frame is flush
with outside of Floor on the side. When Wall is positioned correctly,
secure Bottom Wall Plate to Floor with 4 - 2 1/2” Brown Screws.
Rear
Bottom Wall Plate
Before completely
attaching walls to floor
(Steps 6-10), check to
make sure door opening is
45” wide. See Step 15
for illustration.
Hardware (Steps 4 - 8)
2 1/2” Brown Screws
x 25 total
4 - 2 1/2” Brown Screws
Wall frame flush
with outside of
Floor at the front.
Wall frame flush with
outside of Floor at
the rear.
Side Wall Panel
Side Wall Panel
Floor

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 10
Rear Corner
Rear Wall
5. With your helper holding the Side Wall Panel, position a Rear Wall Panel in rear corner.
Important: Align Wall Framing Flush with Floor Framing.
Left Side Wall
Rear Wall Panel
Wall frame flush
with outside Floor.
Wall siding will
overhang Floor.
6. When Side and Rear Walls are aligned in corner correctly, Wall framings will be flush. Attach
Wall framings together with 3 - 2 1/2” Brown Screws. Secure Bottom Wall Plate to Floor with
4 - 2 1/2” Brown Screws.
Left Side Wall
2 1/2” Brown
Screws
2 1/2” Brown Screws

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 11
7. Position second Rear Wall Panel on Floor as per Step 6. Attach Wall frames together at top,
middle and bottom with 3 - 2 1/2” Brown Screws. Secure Bottom Wall Plate to floor with
4 - 2 1/2” Brown Screws. Important: Confirm Siding on Rear Wall Panels are aligned.
Rear Wall
Panel
Expert Advice - If you’re placing the
shed tight up against a fence or wall, you
may consider attaching the Rear Corner
and Center Trim on Rear Wall seam first.
See Steps 36 - 39. Attach both Rear
Walls together, secure Rear Center Trim,
then attach Side Wall Panel.
2 1/2” Brown Screw
Right Side
Wall Panel
8. In the corner, align and attach Right Side Wall framing to Rear Wall framing with
3 - 2 1/2” Brown Screws as per Step 6. Secure Bottom Wall Plate of Side Wall to Floor with
4 - 2 1/2” Brown Screws.
Wall frame flush with
outside of Floor.
2 1/2” Brown Screws
2 1/2” Brown Screws

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 12
9. Locate Front Narrow Walls and
position Wall framing flush with Side Wall
framing in corner. Important: Make sure
Narrow Wall is positioned right side up.
Front Narrow Wall
10. Align Wall framing flush with outside of Floor framing. When correctly positioned, secure
Bottom Wall Plate to Floor with 2 - 2 1/2” Brown Screws. Attach vertical Wall framings together at
top, middle and bottom with 3 - 2 1/2” Brown Screws.
Wall frame flush
with Floor. Siding
will overhang Floor.
Before attaching,
make sure door
opening is 45” wide.
See Step 15.
11. Align and attach the second Front
Narrow Wall Panel as per Step 10.
12. Locate Front Header and place on top of
Front Narrow Wall framings.
Front Header
Parts (Steps 9 - 11)
Front Narrow Wall Panels
(12 1/2” x 61 3/4”) x 2
Hardware (Steps 9 - 11)
2 1/2” Brown Screws
x 10 total
2 1/2” Brown
Screws
Wall Framings Flush
Side Wall

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 13

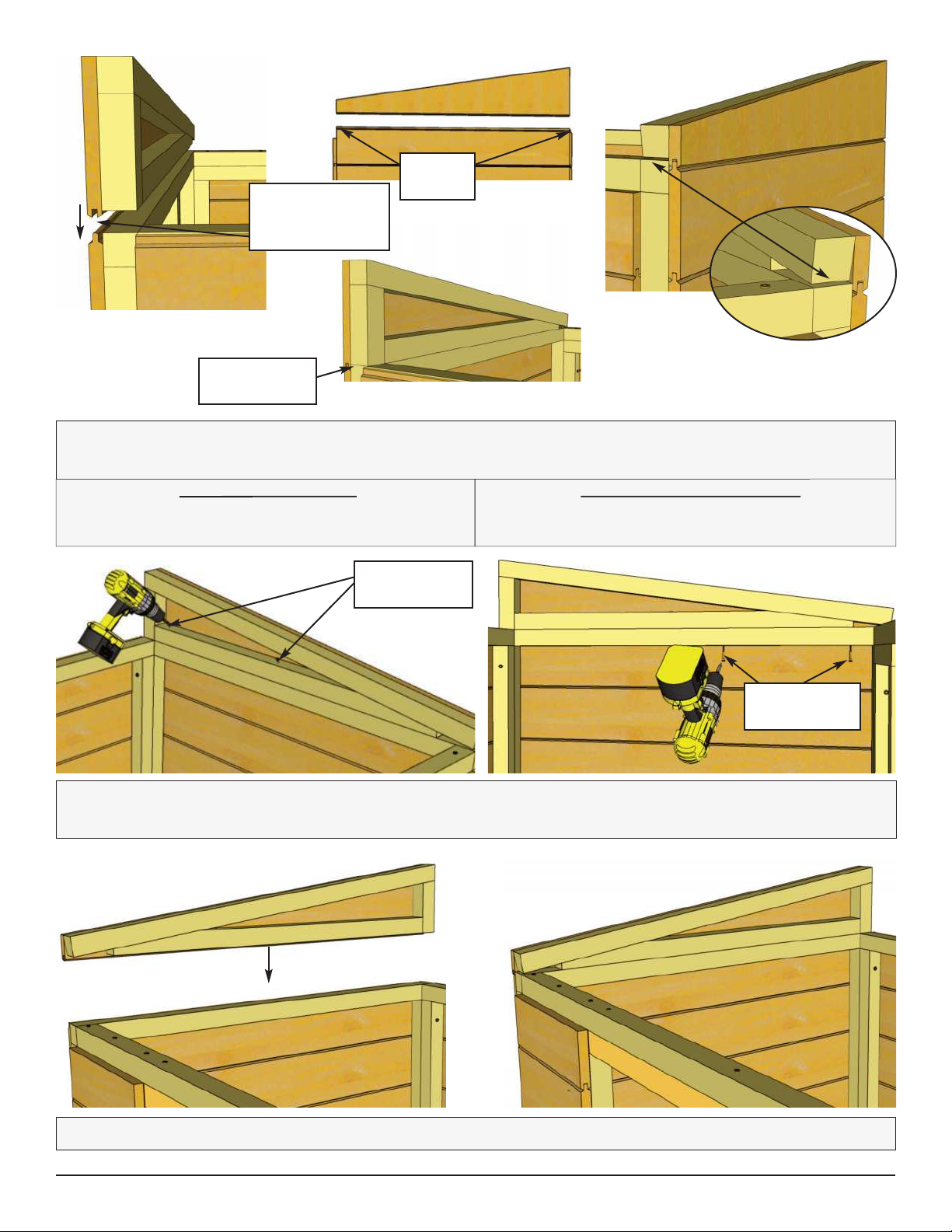

16. Locate both Left/Right Side Angle Gables. Place Right Side Angle Gable on Side Wall Panel
frame. Note: Bottom siding of Gable will overhang and cover siding of Side Wall.
Side Wall Panel
Front
13. With Front Header positioned evenly on Narrow
Wall top plates and flush against Side Wall top framing,
secure using 4 - 2 1/2” Brown Screws screwing down
from the top of Front Header down into the upper
Narrow Wall plates. Have your helper push side walls
against end of Front Header to achieve tight fit if
possible.
Parts
Front Header
(1 1/2” x 1 1/2” x 70”)
Hardware
2 1/2” Brown
Screws
x 4 total
15. When all Walls are attached together,
check door width at top and bottom. Door width
should be 45” wide. If required, loosen Narrow
and Side Wall plate screws, adjust door width
and re-secure. There can be an 1/8” tolerance in
the width but top and bottom width should be the
same.
45”
14. Position Interior Door Header underneath
and flush with Front Header. Attach with 4 - 2 1/2”
Brown Screws. Screw down from the Front
Header into Interior Door Header. Use Clamp to
hold Interior Door Header.
Interior Door
Header
Parts
Interior Door Header
(1 1/2” x 1 1/2” x 44 7/8”)
Hardware
2 1/2” Brown Screws
x 4 total
2 1/2” Brown Screws
Front Header
Narrow Wall
Top Plate
2 1/2” Brown screws

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 14
17. Align Wall framing of Right Side Angle Gable and Side Wall so they are flush at the rear. The
siding for both Walls should also align evenly from front to back.
Siding
lines up.
Wall framings
flush.
Tongue and
groove of siding
will align.
Parts (Steps 17 - 19)
Left/Right Side Angle Gables
(6 1/2” x 35”)
Hardware (Steps 17 - 19)
2 1/2” Brown Screws
x 8 total
18. With Right Side Angle Gable and Side Wall aligned correctly, secure together from the inside with
4 - 2 1/2” Brown Screws.
2 1/2” Brown
Screws
2 1/2” Brown
Screws
19. Complete opposite Left Side Angle Gable positioning and attachment as per Steps 17 & 18.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 15
20. Locate one Wall Extender and place on Real Wall. Siding of Wall Extender will align with siding
of Rear Wall.
21. With Wall framing aligned, attach Wall Extender to both the Side Angle Gable framing and the
Real Wall framing with 5 - 2 1/2” Brown Screws.
Parts (Step 21 - 22)
Wall Extenders
(6 1/4” x 35”) 2 total
Hardware (Step 21 - 22)
2 1/2” Brown Screws
x 12 total
22. Position and secure second Wall Extender as per Steps 20 & 21. Additionally, attach to first Wall
Extender with 2 - 2 1/2” Brown Screws.
Tongue and
groove of siding
will align.

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 16
23. Locate Front Top Plate and place on top of Front Header. With Front Top Plate positioned
evenly and flush against Front Header, secure using 6 - 2 1/2” Brown Screws screwing down from
the top of Front Top Plate down into Front Header.
Parts
Front Top Plate
(1 1/2” x 1 1/2” x 70”)
Hardware
2 1/2” Brown Screws
x 6 total
Front Wall
Top Plate
2 1/2” Brown Screws
24. Storage Shelf positioning is flexible so decide what height configuration suits your needs.
Gather your Storage Shelf Supports. The short Support (12 1/2”) attaches to the Narrow Wall, the
long (35”) to the Rear Wall. Position using a Level, and drill Pilot Holes to prevent ends of
Supports from splitting. Attach first Support using 2 - 1 1/4” Brown Screws. Place Storage Shelf
on attached Support, Level, and mark position of second Support. Pilot Hole and secure second
Support.
Storage Shelf
Rear Wall
Side Wall
25. Place Storage Shelf on top of supports and secure with 4 - 1 1/2” Finishing Nails. Complete
2nd Shelf (if desired) as per Steps 24 & 25.
Storage Shelf Support
Parts (Steps 24 - 25)
Short Storage Shelf Supports
(3/4” x 2 1/2” x 12 1/2”) x 2
Long Storage Shelf Supports
(3/4” x 2 1/2” x 35”) x 2
Storage Shelves
(11 1/2” x 31 7/8”) x 2
Hardware Parts (Steps 24 - 25)
1 1/4” Brown Screws
x 8 total
1 1/2” Finishing Nails
x 8 total

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 17
C. Roof Section
Exploded view of all parts necessary to complete the Roof Section. Identify all parts prior to
starting.
Cedar Shingle Roof Panel
26. Lift up completed Cedar Shingle Roof Panel and place on upper wall framing. At the rear,
align plywood roofing flush with siding of Side Angle Gable at the side and flush with framing of Side
Angle Gable at the rear. At the front, align plywood roofing flush with siding of Side Angle Gable at
the side, and recessed 1/8” back from framing at front.
Rear
Front
1/8” Recess
Plywood roofing flush with
siding of Side Angle Gable and
recessed 1/8” at front.
27. From inside the shed, start securing the Roof by screwing through Front Top Plate into Roof
Panel on an angle with 4 - 2 1/2” Brown Screws. Make sure screw tips do not go completely
through Roof Panel. At the sides, screw from upper framing into Roof Panel. Use 2 - 2 1/2” Brown
Screws per Side Angle Gable. Screw on an angle and make sure screw tips do not go completely
through Roof Panel. At the rear, secure the Roof by attaching the Wall Extenders to Roof Panel on
an angle with 4 - 2 1/2” Brown Screws.
Parts
Cedar Shingle Roof Panel
(38 3/4” x 78 1/4”)
Hardware
2 1/2” Brown Screws x 12 total
2 1/2” Brown Screws
Plywood roofing flush with
siding of Side Angle Gable and
framing at rear.
2 1/2” Brown Screw

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 18
D. Miscellaneous Section
Exploded view of all parts necessary to complete the Skirting, Trim, Fascia and Miscellaneous
Pieces. Identify all parts prior to starting.
28.Check the wall seams for visible gaps prior
to attaching Filler Trim and apply caulk where
needed. Caulking gaps will help prevent moisture
from entering and will help the longevity of your
shed. Caulking not included in kit.
Filler Trims (8)
Vertical Door Frame Trims (2)
Left and Right Doors
with Hardware
Door Flange
Front Wide CornerTrims (2)
Front Side Corner
Trims (2)
Side Fascia Trims (2)
Front Horizontal Trim
Roof Ridge Caps (2)
Rear Center Trim
Upper Rear Horizontal Trim
Rear Wide Corner Trims (2)
Interior Vertical Door Stops (4)
Metal Drip Edge
Front Header Filler Strip
Interior Silver Barrel Bolt with
Plywood Spacer
Door Threshhold
Rear Side Corner Trims (2)
Front Top Plate Filler Strip
Lower Rear Skirting (2)
Lower Front Skirting (2 Short / 1 Long)
Lower Side Skirting (2)

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 19
30. Locate 4 Front Filler Trims. Filler trim will be covered by Corner Trim in Step 36. Attach in
each front corner with 3 - 1 1/2” Finishing Nails per piece.
Parts (Step 30 - 31)
Front/Rear Filler Trims
(5/8” x 1 1/2” x 30”) x 8
Hardware (Step 30 - 31)
1 1/2” Finishing Nails
x 24 total
31. Position and attach Rear Filler Trims in the rear as per Step 30.
Gaps will be
covered.
29. Locate Lower Front Skirting (2 Short and 1 Long). Skirting will hide floor framing. Gaps will be
covered by Wide Trim pieces later. Attach 2 Lower Short Front Skirting pieces with 2 - 1 1/2” Finishing
Nails per piece. Attach Lower Front Long Skirting with 4 - 1 1/2” Finishing Nails. Locate Lower Side
and Rear Skirting and attach with 4 - 1 1/2” Finishing Nails per piece.
Parts
Lower Front Skirting
Short (1/2” x 2 1/2” x 11 1/8”) x 2
Long (1/2” x 2 1/2” x 47 1/4”)
Lower Side Skirting (1/2” x 2 1/2” x 33”) x 2
Lower Rear Skirting (1/2” x 2 1/2” x 35”) x 2
Hardware
1 1/2” Finishing Nails
x 24 total
Front Short Skirting
Side Skirting

Outdoor Living Today www.outdoorlivingtoday.com [e-mail]
Page 20
33. Locate Front Top Plate Filler Strip. Position Filler Strip between Front Header Filler Strip and
Cedar Roof. Evenly space from side to side. Secure with 6 - 1 1/2” Finishing Nails into Front Top
Plate.
Parts
Front Top Plate Filler Strip
(5/8” x 1 1/2” x 69 1/2”)
Hardware
1 1/2” Finishing Nails
x 6 total
Parts
Front Header Filler Strip
(5/8” x 1” x 69 1/2”)
Hardware
1 1/2” Finishing Nails
x 6 total
34. Locate Upper Rear Horizontal Trim and position underneath Roof Panel. Evenly space from
side to side. Secure with 6 - 1 1/2” Finishing Nails into Wall Extenders.
Parts
Upper Rear Horizontal Trim
(1/2” x 2 1/2” x 74 1/4”)
Hardware
1 1/2” Finishing Nails
x 6 total
32. Locate Front Header Filler Strip. Position Front Header Filler Strip above Front Narrow Walls.
Evenly space from side to side. Secure with 6 - 1 1/2” Finishing Nails into Front Header.
