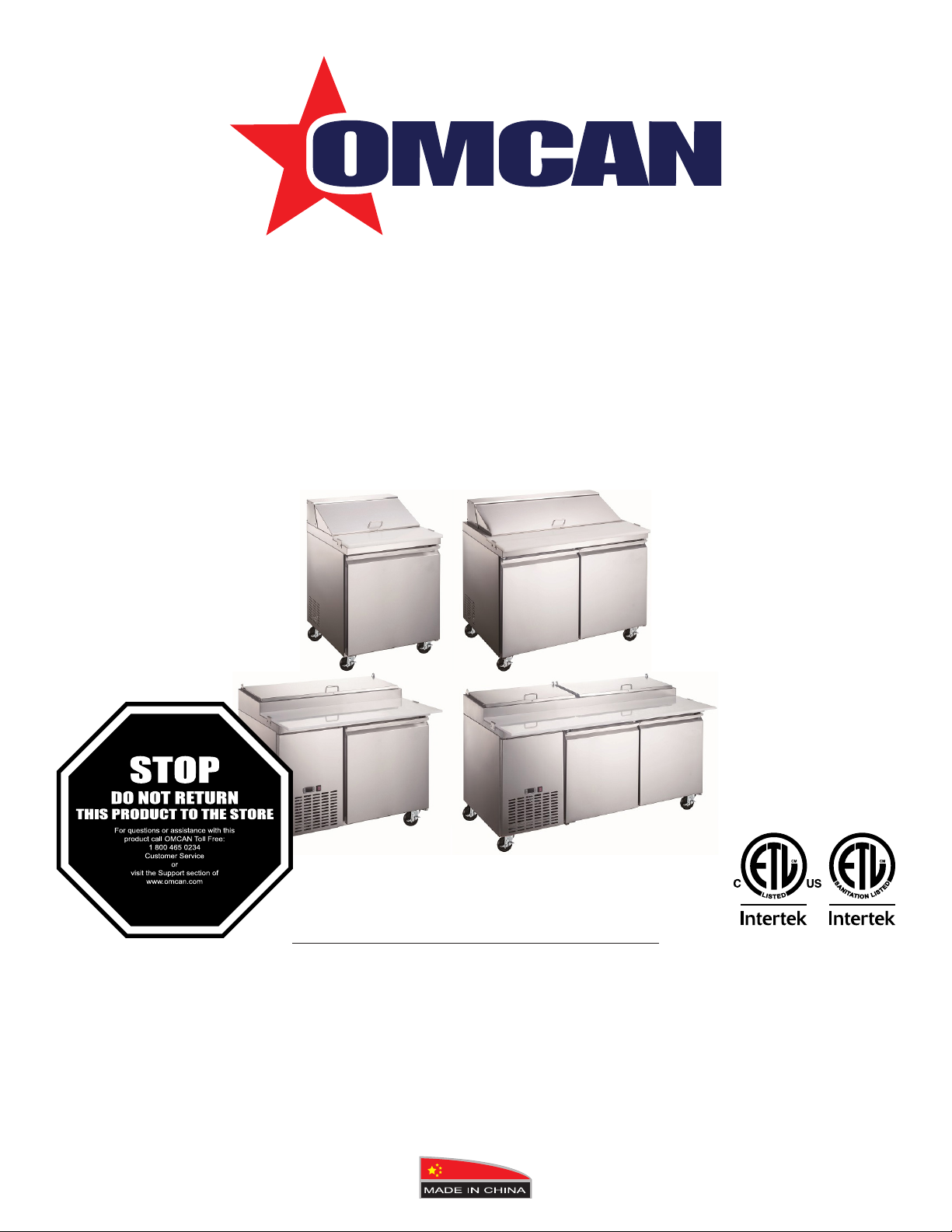

Omcan 0920E-HC User manual

Aurora Refrigerated Prep Units
Models PT-CN-0686E-HC, 0920E-HC, 1194E-HC, 1524E-HC, 1787E-HC, 0711E-HC,
0920E-M-HC, 1194E-H, 1537E-HC, 1787E-M-HC, 1270E-HC, 1829E-HC
Items 59045, 59034, 59046, 59047, 59048, 59049, 59129, 59050, 59051, 59130,
59042, 59043
Instruction Manual
Revised - 12/15/2023
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com

2
Page
-------------------------------------------------------------------------------------------------------------- 3
--------------------------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------------------------- 5 - 7
---------------------------------------------------------------------------------------- 7 - 9
-------------------------------------------------------------------------------------------------------- 9 - 11
--------------------------------------------------------------------------------------------------- 11 - 12
----------------------------------------------------------------------------------------------- 12 - 13
--------------------------------------------------------------------------------------- 14 - 16
--------------------------------------------------------------------------------------------- 17 - 40
---------------------------------------------------------------------------------------- 41 - 52
------------------------------------------------------------------------------------------------------------ 53 - 54
--------------------------------------------------------------------------------------------- 55
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Installation
Maintenance
Troubleshooting

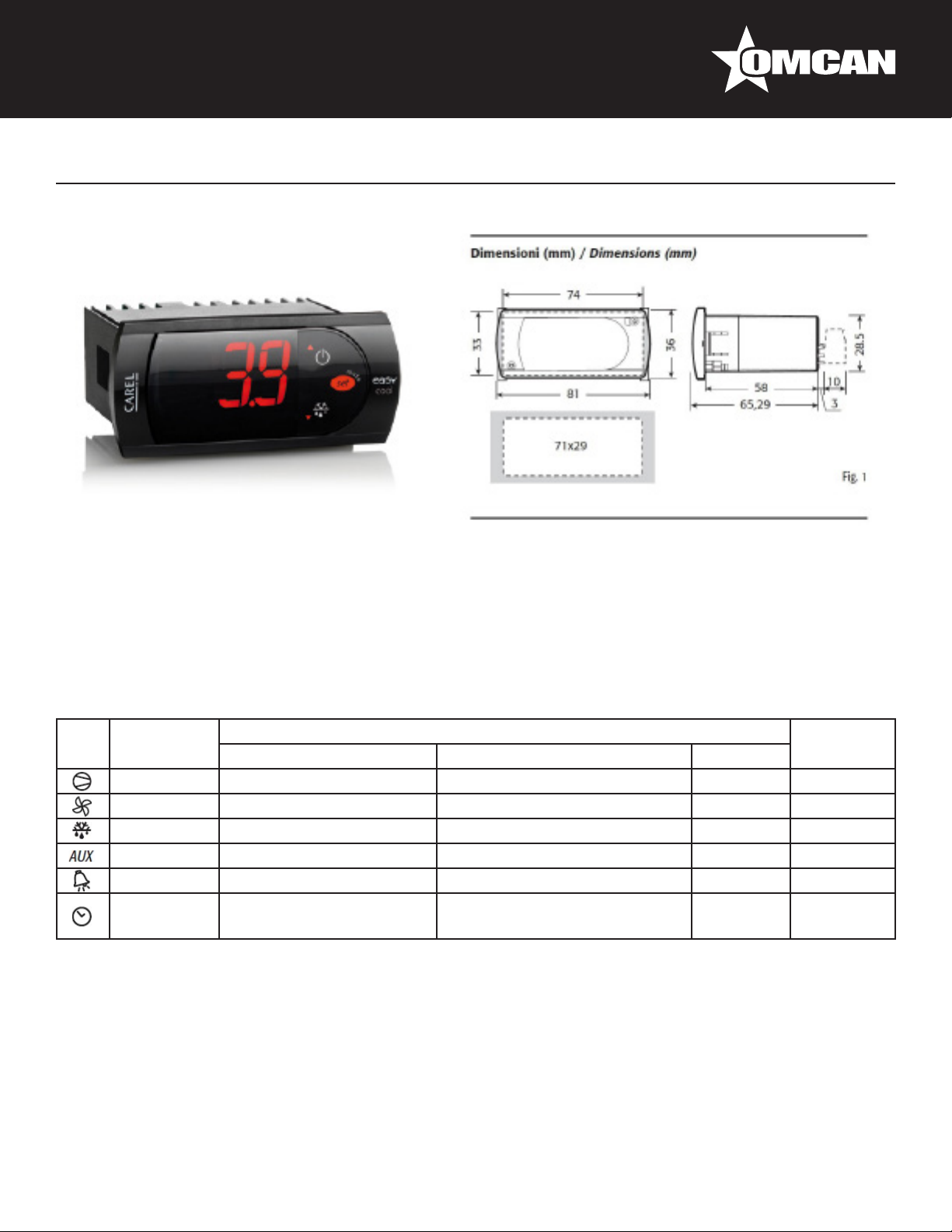

Controller Instructions

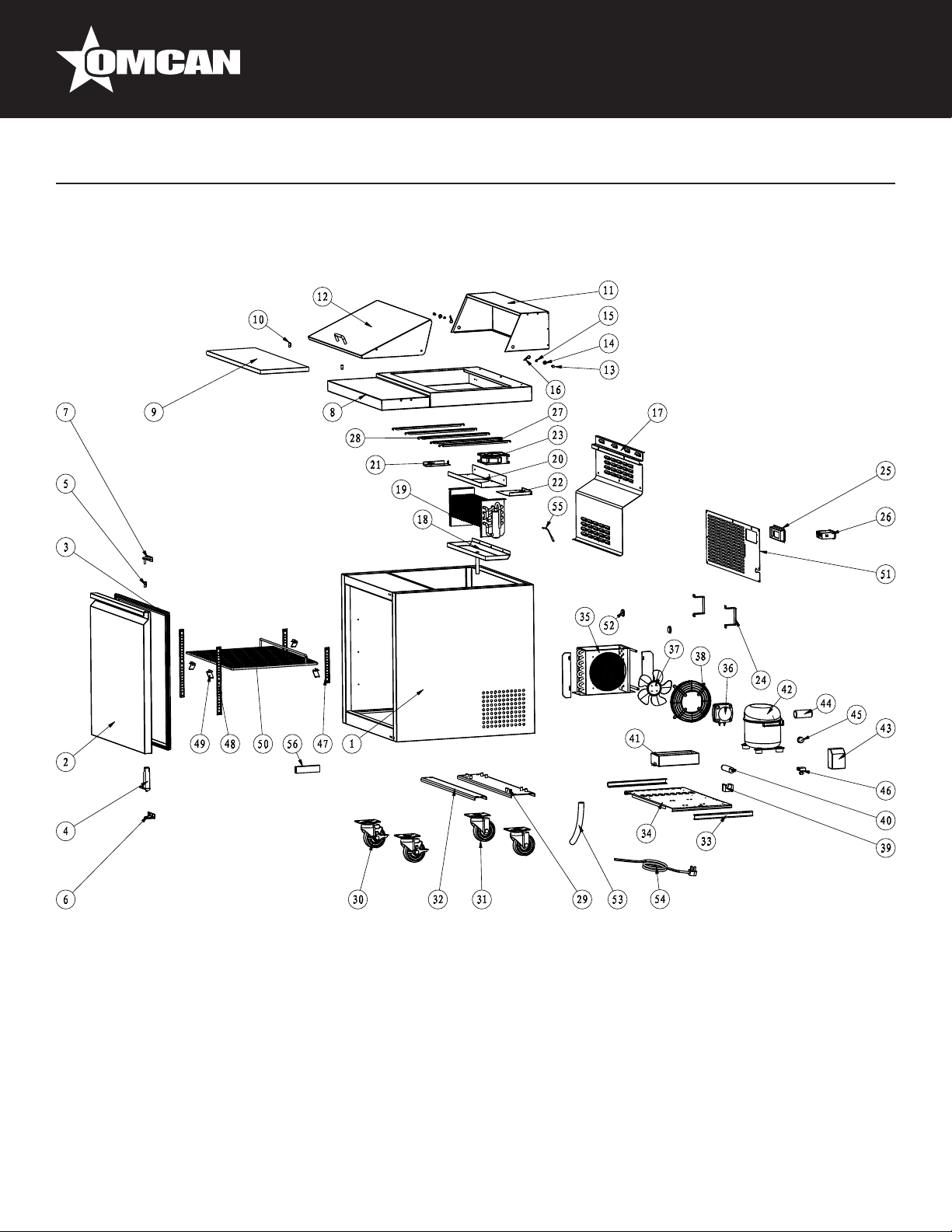

Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model PT-CN-0686E-HC / Model PT-CN-0920E-HC / Model PT-CN-1194E-HC
Model PT-CN-1524E-HC / Model PT-CN-1787E-HC / Model PT-CN-0711E-HC
Model PT-CN-0920E-M-HC / Model PT-CN-1194E-H / Model PT-CN-1537E-HC
Model PT-CN-1787E-M-HC / Model PT-CN-1270E-HC / Model PT-CN-1829E-HC

3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES
DUE TO WATER LEAKS. WARRANTY FOR
WATER LEAKS IS VOID IF THE AMBIENT ROOM
TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE
HUMIDITY, AND THE APPLIANCE DRAIN IS NOT
CONNECTED DIRECTLY TO A FLOOR DRAIN.
OMCAN NO SE HACE RESPONSABLE DE LOS
DAÑOS CAUSADOS POR FUGAS DE AGUA. LA
GARANTÍA POR FUGAS DE AGUA QUEDA ANULADA
SI LA TEMPERATURA AMBIENTE SUPERA LOS 75°F Y
EL 55% DE HUMEDAD RELATIVA, Y EL DESAGÜE DEL
APARATO NO ESTÁ CONECTADO DIRECTAMENTE A
UN DESAGÜE DE PISO.
OMCAN N’EST PAS RESPONSABLE DES DOMMAGES
DUS AUX FUITES D’EAU. LA GARANTIE POUR LES
FUITES D’EAU EST ANNULÉE SI LA TEMPÉRATURE
AMBIANTE DE LA PIÈCE DÉPASSE 75°F ET 55%
D’HUMIDITÉ RELATIVE, ET SI LE DRAIN DE
L’APPAREIL N’EST PAS RACCORDÉ DIRECTEMENT
À UN DRAIN DE PLANCHER.

4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

5
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
Please pay close attention to the safety notices in this section. Disregarding these notices may lead to
serious injury and/or damage to the unit.
ATTENTION
• To minimize shock and re hazards, be sure not to overload outlet. Please designate one outlet for your
unit.

6
Safety and Warranty
• Do not use extension cords.
• Do not put your hands under the unit when the unit is required to be moved.
• When the unit is not in use for a long period of time, please unplug the unit from the outlet.
• After unplugging the unit, wait at least 10 minutes before re-plugging it. Failure to do so could cause
damage to the compressor.
UNPLUG CORD
• To minimize shock and re hazards, please do not plug or unplug the cord with wet hands.
• During maintenance and cleaning, please unplug the unit.
PROPER GROUNDING REQUIRED
• To minimize shock and re hazards, make sure that the unit is properly grounded.
PROHIBITION
• Do not attempt to remove or repair any component unless instructed by factory.
• Make sure that the unit is not resting on or against the electrical cord and plug.
• To minimize personal injury, do not hang on the doors.
• Do not store any ammable and explosive gas or liquids inside the unit.
• Do not attempt to alter or tamper with the electrical cord.
RESIDENTIAL USERS: vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
2 YEARS PARTS AND LABOUR / 5 YEARS PARTS ONLY ON COMPRESSOR
WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without di󰀩culty.

7
Technical Specications
REFRIGERATED PREP TABLES
Model PT-CN-0686E-HC PT-CN-0920E-HC PT-CN-1194E-HC PT-CN-1524E-HC PT-CN-1787E-HC
Temperature Range 0.6 - 4.4°C / 33 - 40°F
Max Ambient Temp
Rating 24°C / 75°F
Power 372W 420W 408W 504W 670W
Refrigerant R290
Isolation Material Cyclopentane
Cooling System Ventilated
Defrosting Automatic
Type of Controller Digital
Self-Closing Door Yes
Current 3.6A 1.2A 4.08A 5.04A 6.7A
Number of Doors 123
Number of Shelves 123
Shelf Material Plastic Coated
Shelf Loading
Capacity 88 lbs. / 39.9 kgs.
Electrical 110-120V / 60Hz / 1
Interior Dimensions 24.2” x 19.8” x 23.5”
615 x 504 x 597mm
33” x 19.8” x 23.5”
837 x 504 x 597mm
43” x 19.8” x 23.5”
1091 x 504 x 597mm
56.5” x 19.8” x 23.5”
1434 x 504 x 597mm
66.6” x 19.8” x 23.5”
1691 x 504 x 597mm
Overall Dimensions 27.5” x 29.5” x 42.3”
698 x 750 x 1075mm
36.2” x 29.5” x 42.3”
920 x 750 x 1075mm
46.8” x 29.5” x 42.3”
1188 x 750 x 1075mm
60.2” x 29.5” x 42.3”
1529 x 750 x 1075mm
70.4” x 29.5” x 42.3”
1787 x 750 x 1075mm
Packaging
Dimensions
32.7” x 34.6” x 45.7”
830 x 880 x 1160mm
41.4” x 34.6” x 45.7”
1052 x 880 x 1160mm
52” x 34.6” x 45.7”
1320 x 880 x 1160mm
65.4” x 34.6” x 45.7”
1660 x 880 x 1160mm
75.6” x 34.6” x 45.7”
1920 x 880 x 1160mm
Net Volume 201 L / 7.1 cu.ft. 258 L / 9.1 cu.ft. 357 L / 12.6 cu.ft. 469 L / 16.6 cu.ft. 553 L / 19.5 cu.ft.
Weight 176.4 lbs. / 80 kgs. 220.5 lbs. / 100 kgs. 253.5 lbs. / 115 kgs. 319.7 lbs. / 145 kgs. 343.9 lbs. / 156 kgs.
Packaging Weight 216.1 lbs. / 98 kgs. 286.6 lbs. / 130 kgs. 304.2 lbs. / 138 kgs. 416.7 lbs. / 189 kgs. 451.9 lbs. / 205 kgs.
Item Number 59045 59034 59046 59047 59048
Safety and Warranty
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

8
Technical Specications
MEGA REFRIGERATED PREP TABLES
Model PT-CN-0711E-HC PT-CN-0920E-M-HC PT-CN-1537E-HC PT-CN-1537E-HC PT-CN-1787E-M-HC
Temperature Range 0.6 - 4.4°C / 33 - 40°F
Max Ambient Temp
Rating 24°C / 75°F
Power 372W 420W 444W 504W 648W
Refrigerant R290
Isolation Material Cyclopentane
Cooling System Ventilated
Defrosting Automatic
Type of Controller Digital
Self-Closing Door YES
Current 3.6A 1.2A 4.56A 5.04A 6.48A
Number of Doors 123
Number of Shelves 123
Shelf Material Plastic Coated
Shelf Loading
Capacity 88 lbs. / 39.9 kgs.
Electrical 110-120V / 60Hz / 1
Interior Dimensions 24.2” x 19.8” x 23.5”
615 x 504 x 597mm
33” x 19.8” x 23.5”
837 x 504 x 597mm
43” x 19.8” x 23.5”
1091 x 504 x 597mm
56.5” x 19.8” x 23.5”
1434 x 504 x 597mm
66.6” x 19.8” x 23.5”
1691 x 504 x 597mm
Overall Dimensions 27.5” x 34” x 45.9”
698 x 864 x 1166mm
36.2” x 34” x 45.9”
920 x 864 x 1166mm
46.8” x 34” x 45.9”
1188 x 864 x 1166mm
60.2” x 34” x 45.9”
1529 x 864 x 1166mm
70.4” x 34” x 45.9”
1787 x 864 x 1166mm
Packaging
Dimensions
32.7” x 39.2” x 49”
830 x 995 x 1245mm
41.4” x 39.2” x 49”
1052 x 995 x 1245mm
52” x 39.2” x 49”
1320 x 995 x 1245mm
65.4” x 39.2” x 49”
1660 x 995 x 1245mm
75.6” x 39.2” x 49”
1920 x 995 x 1245mm
Net Volume 201 L / 7.1 cu.ft. 258 L / 9.1 cu.ft. 357 L / 12.6 cu.ft. 469 L / 16.6 cu.ft. 553 L / 19.5 cu.ft.
Weight 198.4 lbs. / 90 kgs. 242.5 lbs. / 110 kgs. 275.6 lbs. / 125 kgs. 341.7 lbs. / 155 kgs. 374.8 lbs. / 170 kgs.
Packaging Weight 251.3 lbs. / 114 kgs. 308.6 lbs. / 140 kgs. 370.4 lbs. / 168 kgs. 427.7 lbs. / 194 kgs. 577.6 lbs. / 262 kgs.
Item Number 59049 59129 59050 59051 59130

9
Installation
IMPORTANT!!! PLEASE READ BEFORE INSTALLATION
• If the unit has recently been transported. Please let unit stand still for a minimum of 24 hours before
plugging it in.
• Make sure that the unit drops down to desired temperature before loading the unit with product.
• Make sure that there is proper ventilation around the unit in the area where it will operate.
• Make sure all accessories are installed (i.e. shelves, shelf clips, casters) before plugging the unit in.
• Please read through the operation / owner’s manual in its entirety.
Technical Specications
PIZZA REFRIGERATED PREP TABLES
Model PT-CN-1270E-HC PT-CN-1829E-HC
Temperature Range 0.6 - 4.4°C / 33 - 40°F
Max Ambient Temp
Rating 24°C / 75°F
Power 336 W 552 W
Refrigerant R290
Isolation Material Cyclopentane
Cooling System Ventilated
Defrosting Automatic
Type of Controller Digital
Self-Closing Door Yes
Current 3.36A 5.52A
Number of Doors 1 2
Number of Shelves 1 2
Shelf Material Plastic Coated
Shelf Loading
Capacity 88 lbs. / 39.9 kgs.
Electrical 110-120V / 60Hz / 1
Interior Dimensions 22.3” x 23.2” x 22.9”
566 x 590 x 582mm
45” x 27.2” x 22.9”
1143 x 690 x 582mm
Overall Dimensions 44.5” x 31.5” x 39.4”
1131 x 800 x 1002mm
67.3” x 31.5” x 39.4”
1709 x 800 x 1002mm
Packaging
Dimensions
49.8” x 36.6” x 45.9”
1265 x 930 x 1165mm
76” x 36.6” x 45.9”
1930 x 930 x 1165mm
Net Volume 220 L / 7.8 cu.ft. 442 L / 15.6 cu.ft.
Weight 187.4 lbs. / 85 kgs. 244.7 lbs. / 111 kgs.
Packaging Weight 264.6 lbs. / 120 kgs. 354.9 lbs. / 161 kgs.
Item Number 59042 59043

10
Installation
CABINET LOCATION GUIDELINES
• Install the unit on strong and leveled surfaces.
- Unit may make unpleasant noises if surface is uneven.
- Unit may malfunction if surface is uneven.
• Install the unit in an indoor, well-ventilated area.
- Unit performs more e󰀩ciently in a well-ventilated area.
- For best performance, please maintain clearance of 6” on the back of the unit.
- Outdoor use may cause decreased e󰀩ciency and damage to the unit.
• Avoid installation in a high humidity and/or dusty area.
- Humidity could cause unit to rust and decrease e󰀩ciency of the unit.
- Dust collected on condenser coil will cause unit to malfunction. Clean the condenser at least once a
month with a brush or clean cloth.
- Malfunction due to dirty condenser will void warranty.
• Select a location away from heat and moisture-generating equipment.
- High ambient temperature will cause the compressor to overwork, leading to higher energy bills and
gradual breakdown of the unit.
- Malfunction due to high ambient temperature will void warranty.
ELECTRICAL
Please ensure that the required voltage of the compressor is being supplied at all times. Low or high voltage
can detrimentally a󰀨ect the refrigeration unit. All units should be plugged into a grounded and properly-sized
electrical outlet with appropriate overcurrent protection. Please refer to the electrical requirement on the
nameplate of the unit. Please make sure that your unit has its own dedicated outlet. Do not use an extension
cord.
TEMPERATURE CONTROLS
The temperature controls are factory-set to maintain an average temperature of 38°F in refrigeration. To
maintain a di󰀨erent temperature, adjust it on the temperature controller–see manual of temperature controller.
CAUTION
Setting the temperature control to the coldest setting may cause the evaporator coil to freeze and ice up. This
will eventually result in a warmer cabinet temperature.
LOADING PRODUCT
Shelves have been factory-installed for your convenience. Before loading shelves, please be sure that all shelf
clips are completely fastened in their correct locations. It is important that all shelves rest completely level
before stocking your cabinet with product. In order to maintain correct air ow inside the unit, please be sure to
leave two to four (2 to 4) inches of space between the back wall and stored product. Blocking the evaporator
fans will result in a warmer cabinet temperature, and ultimately compressor failure.

11
Maintenance
CLEANING THE CONDENSER COIL
• For e󰀩cient operation, it is important that the condenser surface be kept free of dust, dirt, and lint.
• We recommend cleaning the condenser coil and ns at least once per month.
• Clean with a commercial condenser coil cleaner, available from any kitchen equipment retailer. Brush the
condenser ns from top to bottom, not side to side.
• After cleaning, straighten any bent condenser ns with a n comb.
Installation
DEFROST SYSTEMS
Refrigerator coils are kept below the freezing point (32°F). During compressor down-time, the evaporator fan
continues to circulate air through the evaporator coil. This air circulation raises the coil temperature above the
freezing point, melting any accumulated frost. Run-o󰀨 water is drained into the evaporator pan and evaporated.
Freezer coils are defrosted electrically. Automatic defrost timers are built-in to the refrigeration system and may
not be adjusted. The defrost timers automatically initiate at pre-set intervals and for a pre-determined duration.
PLEASE NOTE: excessive door opening should be avoided in order to maintain cabinet temperature and to
eliminate the possibility of coil freeze-up.
LOADING FOOD PANS
Pizza prep units and sandwich prep units are designed to function with all pans in place, even if some pans are
to be left empty. For maximum food freshness, ll the pans only with an amount that can be used in a specic
usage period. During non-use, please close the insulated lid cover.
REVERSING THE DOORS (OPTIONAL)
Note: this only applies to the single door units.
Only perform these steps with another person present to ensure the door does not fall over.
1. Open the door.
2. Remove the screws from the top panel, then open the top panel.
3. Remove the screws of the bottom louver, then remove the louver.
4. Unscrew all of the screws from the upper hinge.
5. Unscrew all of the screws from the lower hinge and remove the door and hinges.
6. Place the former upper hinge at the bottom of the unit, parallel to where the lower hinge is, do the same
with the former lower hinge except for the top. Screw the hinges into place.
7. Reassemble the door so it is facing the opposite direction.
8. Reassemble the top panel and the lower louver.
9. The door is now reversed.

12
Troubleshooting
Before requesting any service on your unit, please check the following points. Please note that this
guide serve only as a reference for solutions to common problems.
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
Compressor not running. Fuse blown or circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
Power cord unplugged. Plug in power cord.
Thermostat set too high. Set thermostat to lower
temperature.
Cabinet in defrost cycle. Wait for defrost cycle to nish.
Maintenance
CLEANING THE FAN BLADE AND MOTOR
• If necessary, clean the fan blades and motor with a soft cloth, If it is necessary to wash the fan blades,
cover the fan motor to prevent moisture damage.
CLEANING THE INTERIOR OF UNIT
• When cleaning the cabinet interior, use a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the stainless steel
surface.
• Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from the frame of the
door, soak in warm water and soap for thirty (30) minutes, dry with soft cloth, and replace.
• Check door gaskets for proper seal after they are replaced.
• Periodically remove the shelves and pilasters from the unit and clean them with mild soap and warm water.
To remove the pilasters, rst remove the shelves and shelf brackets. Then, simply lift the pilaster up and
out.
WARNING
Disconnect power cord before cleaning any parts of the unit.

13
Troubleshooting
Condensing unit runs for long
periods of time.
Excessive amount of warm product
Placed in cabinet.
Allow adequate time for product to
cool down.
Prolonged door opening or door
ajar.
Ensure doors are closed when not
in use. Avoid opening doors for
long periods of time.
Door gasket(s) not sealing
properly.
Ensure gaskets are snapped in
Completely. Remove gasket and
Wash with soap and water.
Check condition of gasket and
replace if necessary.
Dirty condenser coil. Clean the condenser coil.
Evaporator coil iced over. Unplug unit and allow coil to
defrost. Make sure thermostat is
not set too cold. Ensure that door
gasket(s) are sealing properly.
Cabinet is noisy. Loose part(s). Locate and tighten loose part(s).
Tubing vibration. Ensure tubing is free from contact
with other tubing or components.
Cabinet temperature Is too warm. Thermostat set too warm. Set thermostat to lower
temperature.
Blocking air ow. Re-arrange product to allow for
proper air ow. Make sure there Is
at least four inches of clearance
from evaporator.
Excessive amount of warm product
Placed in cabinet.
Allow adequate time for product to
cool down.
Fuse blown or circuit breaker
tripped.
Replace fuse or reset circuit
breaker.
Dirty condenser coil. Clean the condenser coil.
Prolonged door opening or door
ajar.
Ensure doors are closed when not
in use. Avoid opening doors for
long periods of time.
Evaporator coil iced over. Unplug unit and allow coil to
defrost. Make sure thermostat is
not set too cold. Ensure that door
gasket(s) are sealing properly.
For service call 1-800-465-0234.

14
Controller Instructions
Digital controller model: PJEZ for cooler
Display and functions
During normal operation, the controller displays the value of the probe set using parameter/4 (=1 ambient
probe, default, = 2 second probe, = 3 third probe).In addition, the display has LEDs that indicate the activation
of the control functions (see Table 1), while the 3 buttons can be used to activate/deactivate some of the
functions (see Table 2).
LED’s and Associated Functions (Table 1)
Icon Function Normal Operation Start Up
ON OFF Blink
Compressor On O󰀨 Request ON
Fan On O󰀨 Request ON
Defrost On O󰀨 Request ON
Aux Output On Output O󰀨 - ON
Alarm All No Alarm - ON
Clock RTC tted and enabled, at
least 1 time band set
RTC not tted or disabled, not
even 1 time band set
- ON if RTC
tted

15
Controller Instructions
Table of Functions activated by the buttons - Models S, X, Y, C (Table 2)
Button Normal Operation Start Up
Pressing the Button Alone Pressed Together
Up
ON/OFF
More than 3 sec: toggle ON/
OFF
Start/Stop
continuous cycle
-
Down
Defrost
More than 3 sec: start/stop
defrost
Pressed
together
Start parameter
reset procedure
For 1 sec.
display
rmware
vers. code
Set Mute - 1 sec.: display/set the set
point.
- more than 3 secs.: access
parameter setting menu
(enter password )
- mute audible alarm
(buzzer)
- For 1 sec.
RESET cur-
rent EZY set
Setting the set point (desired temperature)
• Press SET for 1 sec, the set value will start ashing after a few moments.
• Increase or decrease the value using UP or DOWN.
• Press SET to conrm the new value.
Switching the device ON/OFF
Press UP for more than 3 sec. The control and defrost algorithms are now disabled and the Instrument
displays the message “OFF” alternating with the temperature read by the set probe.
Manual defrost
Press for DOWN more than 3 sec (the defrost starts only the temperature conditions are valid).
Continuous cycle
Press UP and DOWN together for more than 3 sec.
Access and setting type F (frequent) and type C (conguration) parameters
1. Press SET for 3 sec (the display will show “PS”).
2. • To access the type F and C parameter menu, enter the password “22” using UP/DOWN, press SET to
conrm.
• To access the F parameter menu only, press SET (without entering the password).
3. Scroll inside the parameter menu using UP/DOWN.

16
Controller Instructions
• To display/set the values of the parameter displayed, press SET, then UP/DOWN and nally SET to
conrm the changes (returning to the parameter menu).
To save all the new values and exit the parameter menu, press SET for 3 s.
To exit the menu without saving the changed values (exit by timeout) do not press any button for at least 60 s.

17
Parts Breakdown
Model PT-CN-0686E-HC 59045

18
Parts Breakdown
Model PT-CN-0686E-HC 59045
Item No. Description Position Item No. Description Position Item No. Description Position
AF068 Cabinet for 59045 1 AL925 Right Clapboard of Evaporator for 59045 20 AB595 Filter Fixer for 59045 39
AL920 Door for 59045 2 AL926 Left Clapboard of Evaporator for 59045 21 AI968 Filter for 59045 40
AB250 Gasket for 59045 3 AL927 Evaporator Cover Support for 59045 22 AF087 Outer Drain Pan for 59045 41
AA955 Left/Right Spring Hinge for 59045 4 AL928 Evaporator Fan Motor for 59045 23 AF088 Compressor for 59045 42
AA388 Axis Cover for 59045 5 AF080 Stand Off Bracket for 59045 24 AL934 Compressor Starting Kit for 59045 43 - 46
AA360 Bottom Left Hinge for 59045 6 AB320 Thermostat Installation Board for 59045 25 AF089 K Strip-2 Holes for 59045 47
AF070 Upper Right Hinge for 59045 7 AL929 Thermostat for 59045 26 AF090 K Strip-3 Holes for 59045 48
AF071 Top Board for 59045 8 AL930 Pan Bracket-15 for 59045 27 26884 K Clip for 59045 49
AF072 Cutting Board for 59045 9 AL931 Pan Bracket-25 for 59045 28 AK197 Middle Shelf for 59045 50
AB253 Fixer for Cutting Board for 59045 10 AF083 Castor Support for 59045 29 AL935 Thermostat Installation Board for 59045 51
AL921 Back Cover for 59045 11 26247 Caster without Brake for 59045 30 AB169 Foaming Hole Cover for 59045 52
AL922 Lid for 59045 12 26246 Caster with Brake for 59045 31 AA133 Drain Hose for 59045 53
AB256 Dowel for 59045 13 AF084 Assembling Panel Support for 59045 32 AA135 Power Cord for 59045 54
AB257 Plastic Bolt for 59045 14 AF085 Compressor Unit Track for 59045 33 AA379 Temperature Probe for 59045 55
AB258 Nut for 59045 15 AF086 Compressor Unit Installation Board for
59045 34 AA596 Thermometer for 59045 56
AB259 Split Pin for 59045 16 AB159 Condenser for 59045 35 AL936 Evaporator Fan Cover for 59045 57
AL923 Evaporator Cover Support for 59045 17 AL932 Condenser Fan Motor for 59045 36 AL937 Back Grill for 59045 58
AF076 Inner Drain Pan for 59045 18 AI391 Blade of Condenser Fan Motor for 59045 37 AL938 Pan Bracket Support for 59045 59
AL924 Evaporator for 59045 19 AL933 Condenser Fan Cover for 59045 38 AL939 Left Compressor Unit Track for 59045 60

19
Parts Breakdown
Model PT-CN-0920E-HC 59034

20
Parts Breakdown
Model PT-CN-0920E-HC 59034
Item No. Description Position Item No. Description Position Item No. Description Position
AO056 Cabinet for 59034 1 AF100 Inner Drain Pan for 59034 22 AI321 Condenser Fan Motor for 59034 42
AP026 Right Door for 59034 2 AL945 Evaporator for 59034 23 AI391 Blade of Condenser Fan Motor for 59034 43
AO058 Gasket for 59034 3, 9 AL925 Right Clapboard of Evaporator for 59034 24 AA207 Condenser Fan Motor Cover for 59034 44
AA955 Left/Right Spring Hinge for 59034 4 AL926 Left Clapboard of Evaporator for 59034 25 AB595 Filter Fixer for 59034 45
AA388 Axis Cover for 59034 5 AL927 Evaporator Cover Support for 59034 26 AB594 Filter D25x160-B for 59034 46
AA360 Bottom Left Hinge for 59034 6 AP029 Evaporator Fan Motor for 59034 27 AF087 Outer Drain Pan for 59034 47
AF070 Upper Right Hinge for 59034 7 AF080 Stand Off Bracket for 59034 28 AI372 Compressor for 59034 48
AP027 Left Door for 59034 8 AB320 Thermostat Installation Board for 59034 29 AI373 Compressor Starting Components for
59034 49 - 52
61468 Left Bottom Hinge for 59034 10 AL929 Thermostat for 59034 30 AF089 K Strip-2 Holes for 59034 53
AB200 Upper Left Hinge for 59034 11 AP030 Pan Bracket Support for 59034 31 AF090 K Strip-3 Holes for 59034 54
AO060 Top Board for 59034 12 AL930 Pan Bracket-15 for 59034 32 26884 K Clip for 59034 55
AO061 Cutting Board for 59034 13 AL931 Pan Bracket-25 for 59034 33 AN875 Shelf for 59034 56
AB253 Fixer for Cutting Board for 59034 14 AO067 Castor Support for 59034 34 AL948 Thermostat Installation Board for 59034 57
AO062 Back Cover for 59034 15 26247 Caster without Brake for 59034 35 AP031 Back Grill for 59034 58
AO063 Lid for 59034 16 26246 Caster with Brake for 59034 36 AB169 Foaming Hole Cover for 59034 59
AB256 Dowel for 59034 17 AO068 Assembling Panel Support for 59034 37 AA133 Drain Hose for 59034 60
AB257 Plastic Bolt for 59034 18 AL939 Left Compressor Unit Track for 59034 38 AA135 Power Cord for 59034 61
AB258 Nut for 59034 19 AF086 Compressor Unit Installation Board for
59034 39 AA379 Temperature Probe for 59034 62
AB259 Split Pin for 59034 20 AF085 Compressor Unit Track for 59034 40 AA596 Thermometer for 59034 63
AP028 Evaporator Cover for 59034 21 AB159 Condenser for 59034 41 AL950 Evaporator Fan Cover for 59034 64
