Omcan RE-CN-0045-HC User manual

Revised - 04/23/2021
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Glass Door Merchandisers
Models RE-CN-0045-HC, 0009-HC, 0014-H, 0023-HC, 0023-H, 0052-HC,
FR-CN-0012-HC, 0790-HC, 1250-HC, 0045-HC
Items 50032, 50033, 50035, 50036, 50037, 50052, 50029, 50030, 50031, 50075
Instruction Manual

2
Page
-------------------------------------------------------------------------------------------- 3
--------------------------------------------------------------------------- 4 - 5
--------------------------------------------------------------------------- 5 - 6
---------------------------------------------------------------------- 7 - 8
-------------------------------------------------------------------------------------------- 9
----------------------------------------------------------------------------------------- 9
----------------------------------------------------------------------------------- 10
--------------------------------------------------------------------- 11 - 15
---------------------------------------------------------------------------- 16 - 33
---------------------------------------------------------------------- 34 - 38
---------------------------------------------------------------------------- 39
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Installation
Maintenance
Troubleshooting
Controller Instructions
Parts Breakdown
Electrical Schematics
Warranty Registration
Model RE-CN-0045-HC / Model RE-CN-0009-HC / Model RE-CN-0014-H
Model RE-CN-0023-HC / Model RE-CN-0023-H / Model RE-CN-0052-HC
Model FR-CN-0790-HC / Model FR-CN-1250-HC / Model FR-CN-0045-HC

3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR
ANY DAMAGES DUE TO WATER LEAKS.
WARRANTY FOR WATER LEAKS IS VOID
IF THE AMBIENT ROOM TEMPERATURE
EXCEEDS 75°F AND 55% RELATIVE HUMIDITY,
AND THE APPLIANCE DRAIN IS NOT
CONNECTED DIRECTLY TO A FLOOR DRAIN.

4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

5
Safety and Warranty
General Information
• To minimize shock and re hazards, be sure not to overload the outlet.
• To minimize electric shock and malfunction, do not spray the unit with water.
• To minimize re hazards, do not use ammable spray products near the unit.
• After unplugging the unit, wait at least 6 minutes before re-plugging it. It may cause compressor failure if
plugged in before 6 minutes waiting period.
• Cautions for cleaning:
- Unplug the power cord before cleaning.
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.

6
Safety and Warranty
- Do not unplug-plug the power cord with wet hands.
- Do not use an abrasive cleaners, solvents or polishing agents on plastic parts. Doing so might cause
cracking or discoloring.
• When it is not in use:
- Unplug the power cord.
- Wipe inside with dry cloth, and you may leave the door slightly open to eliminate moisture and odor.
2 YEARS PARTS AND LABOUR / 5 YEARS PARTS ONLY ON COMPRESSOR
WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

7
Technical Specications
GLASS DOOR COOLERS
Model RE-CN-0045-HC RE-CN-0009-HC RE-CN-0014-H
Temperature Range 0 - 5°C / 33 - 41°F
Max Ambient Temp Rating 32°C / 90°F
Power 1/4 HP 1/5 HP
Electrical 110V / 60Hz / 1 115V / 60Hz / 1
Current 4.3A 2.88A
Refrigerant R290
Cooling System Ventilated
Number of Doors 2 1
Number of Shelves 8 4
Shelf Capacity 90 lbs. / 41 kgs. 55.1 lbs. / 25 kgs. 77 lbs. / 35 kgs.
Exterior Dimensions
(WDH)
53.3” x 32” x 83.8”
1353 x 813 x 2129mm
21.8” x 21.8” x 63”
552 x 552 x 1600mm
25.6” x 22.8” x 79.4”
650 x 579 x 2017mm
Interior Dimensions 50” x 28.5” x 62”
1270 x 724 x 1575mm
19” x 18” x 46”
483 x 457 x 1168mm
22.8” x 19.8” x 55”
579 x 503 x 1397mm
Net Volume 1270 L / 45 cu. ft. 258 L / 9.1 cu.ft. 398 L / 14 cu. ft.
Weight 441 lbs. / 200 kgs. 161 lbs. / 73 kgs. 220 lbs. / 99.8 kgs.
Item Number 50032 50033 50035
Model RE-CN-0023-HC RE-CN-0023-H RE-CN-0052-HC
Temperature Range 0 - 5°C / 33 - 41°F
Max Ambient Temp Rating 32°C / 90°F
Power 1/5 HP 3/4 HP
Electrical 110V / 60Hz / 1
Current 3A 10.7A
Refrigerant R290
Cooling System Ventilated
Number of Doors 1 3
Number of Shelves 4 5 12
Shelf Capacity 90 lbs. / 41 kgs.
Exterior Dimensions
(WDH)
28.3” x 31.9” x 83.6”
719 x 810 x 2123mm
78.3” x 29.9” x 84.6”
1988 x 759 x 2150mm
Interior Dimensions 25.2” x 28.3” x 62.3”
640 x 719 x 1582mm
73.7” x 25.6” x 55.7”
1872 x 650 x 1415mm
Net Volume 648 L / 23 cu. ft. 1501 L / 53 cu. ft.
Weight 320 lbs. / 145.2 kgs. 615 lbs. / 279 kgs.
Item Number 50036 50037 50052

8
Technical Specications
GLASS DOOR FREEZERS
Model FR-CN-0012-HC FR-CN-0790-HC FR-CN-1250-HC
Temperature Range -23 to -18°C / -10 to -0.4°F
Max Ambient Temp Rating 32°C / 90°F
Net Volume 368 L / 13 cu. ft. 648 L / 23 cu. ft. 821 L / 29 cu. ft.
Power 3/4 HP
Electrical 115V / 60Hz / 1 110V / 60Hz / 1
Current 8.8A 9.4A
Refrigerant R290
Cooling System Ventilated
Number of Doors 1 2
Number of Shelves 4 8
Exterior Dimensions
(WDH)
27.2” x 26.2” x 80.3”
691 x 665 x 2040mm
31” x 33” x 87”
790 x 845 x 2210mm
49.2” x 26.2” x 84.6”
1250 x 665 x 2149mm
Interior Dimensions 21.3” x 19.3” x 55”
541 x 490 x 1397mm
25.2” x 28.3” x 62”
640 x 720 x 1575mm
43.3” x 19.3” x 55.1”
1100 x 490 x 1400mm
Weight 374 lbs. / 170 kgs. 506 lbs. / 230 kgs. 397 lbs. / 180.1 kgs.
Item Number 50029 50030 50031
Model FR-CN-0045-HC
Temperature Range -23° to -18°C / -10° to -0.4°F
Max Ambient Temp Rating 32°C / 90°F
Net Volume 1270 L / 45 cu. ft.
Power 1 HP
Electrical 115V / 60Hz / 1
Current 9.2A
Refrigerant R290
Cooling System Ventilated
Number of Doors 2
Number of Shelves 10
Exterior Dimensions
(WDH) 53” x 32” x 79” / 1350 x 810 x 2015mm
Interior Dimensions 47” x 25” x 58” / 1204 x 635 x 1480mm
Weight 573 lbs. / 260 kgs.
Item Number 50075

9
Maintenance
• When loading the unit:
- Be careful not to block the air duct located at the back and the fan on the ceiling of the unit with contents.
- Blocking the air ow may cause decrease in performance.
- For the best performance, maintain at least 4 inches of clearance between the contents and the air duct.
• Set the shelves that come with the unit to t your needs.
• Temperature controller:
- The controller is located at the right, front corner of the ceiling, or on the front bottom panel.
- To adjust temperature please refer to the manual of temperature controller.
• Do not leave the unit door open for long period of time. For the most efcient operation, close the door
immediately after the use.
ICE ACCUMULATION MAY OCCUR IN FREEZERS
• Try to reduce the amount of time the freezer doors remain open to prevent ice accumulation.
• Keep door seals clean to prevent air leakage.
• Scrape off any ice accumulated or try manual defrost mode.
Installation
IMPORTANT!!!PLEASE READ BEFORE INSTALLATION
• The refrigeration system operates most efciently when installed in an area with cool, dry air circulation.
• There must be at least 6 inches of clearance on both sides and the back of the cabinet.
• Select a location away from the heat and moisture generating equipment such as stoves, ovens, etc.
• Avoid direct sun rays.
• Be sure that the oor where you intend to install that unit is strong and level enough to support the total
weight of the unit and its contents.
• To minimize shock and re hazards, be sure that the unit is properly grounded. For your safety and
protection, all units are equipped with a special three-prong grounding plug on the service cord.
• All units are designed for indoor use. Outdoor use may cause signicant damage to the unit.

10
Troubleshooting
SYMPTOMS POSSIBLE CAUSE
Compressor will not start Check if the power cord has been plugged in.
Check for blown fuse.
Poor Performance Move the unit from direct sun light, and avoid
installing heating devices near the unit.
Install the unit in a well ventilated place with minimum
of 6” clearance in the back.
Check the condenser, and clean if heavy dust is
collected.
Check to see if contents are blocking the air duct.
Check to see if refrigerant charge is low.
Make sure the door is completely closed.
No Interior Light Turn off the light switch and turn it on again.
Make sure the light is correctly inserted into the
sockets.
Check the light, and replace it if blown.
Unit Noisy Make sure to install the unit on level surface.
Make sure to maintain the minimum clearance of 6”
from the wall.
Check for the loose parts or mounting.
Make sure the tubing is free from any contact to avoid
tubing rattle.
Condensation on Cabinet and/or Floor Reduce the relatively humidity in the area where the
unit is installed.
Gasket on door or head section is not sealing
properly. Repair or replace gasket as necessary.

11

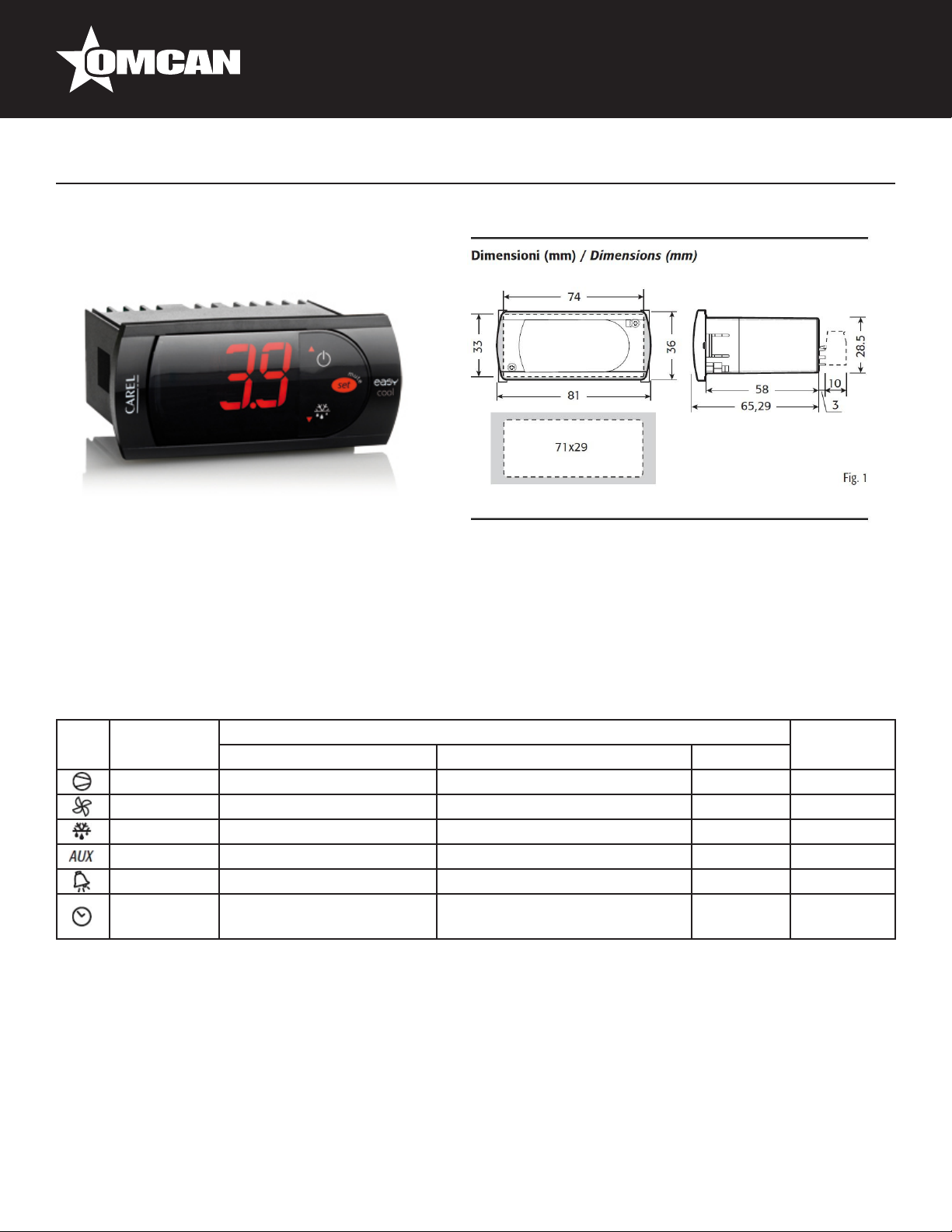

Controller Instructions
Digital controller model: PJEZ for cooler
Display and functions
During normal operation, the controller displays the value of the probe set using parameter/4(=1 ambient
probe, default, = 2 second probe, = 3 third probe).In addition, the display has LEDs that indicate the activation
of the control functions (see Table 1), while the 3 buttons can be used to activate/deactivate some of the
functions(see Table 2).
LED’s and Associated Functions (Table 1)
Icon Function Normal Operation Start Up
ON OFF Blink
Compressor On Off Request ON
Fan On Off Request ON
Defrost On Off Request ON
Aux Output On Output Off - ON
Alarm All No Alarm - ON
Clock RTC tted and enabled, at
least 1 time band set
RTC not tted or disabled, not
even 1 time band set
- ON if RTC
tted

12
Controller Instructions
Table of Functions activated by the buttons - Models S, X, Y, C (Table 2)
Button Normal Operation Start Up
Pressing the Button Alone Pressed Together
Up
ON/OFF
More than 3 sec: toggle ON/
OFF
Start/Stop
continuous cycle
-
Down
Defrost
More than 3 sec: start/stop
defrost
Pressed
together
Start parameter
reset procedure
For 1 sec.
display
rmware
vers. code
Set Mute - 1 sec.: display/set the set
point.
- more than 3 secs.: access
parameter setting menu
(enter password )
- mute audible alarm
(buzzer)
- For 1 sec.
RESET cur-
rent EZY set
Setting the set point (desired temperature)
• press SET for 1 sec, the set value will start ashing after a few moments;
• increase or decrease the value using UP or DOWN;
• press SET to conrm the new value.
Switching the device ON/OFF
Press UP for more than 3 sec. The control and defrost algorithms are now disabled and the Instrument
displays the message “OFF” alternating with the temperature read by the set probe.
Manual defrost
Press for DOWN more than 3 sec (the defrost starts only the temperature conditions are valid).
Continuous cycle
Press UP and DOWN together for more than 3 sec.
Access and setting type F (frequent) and type C (conguration) parameters.
1. Press SET for 3 sec (the display will show “PS”).
2. • To access the type F and C parameter menu, enter the password “22” using UP/DOWN, press SET to
conrm.
• To access the F parameter menu only, press SET (without entering the password).
3. Scroll inside the parameter menu using UP/DOWN.

13
Controller Instructions
• To display/set the values of the parameter displayed, press SET, then UP/DOWN and nally SET to
conrm the changes (returning to the parameter menu).
To save all the new values and exit the parameter menu, press SET for 3 s.
To exit the menu without saving the changed values (exit by timeout) do not press any button for at least 60 s.

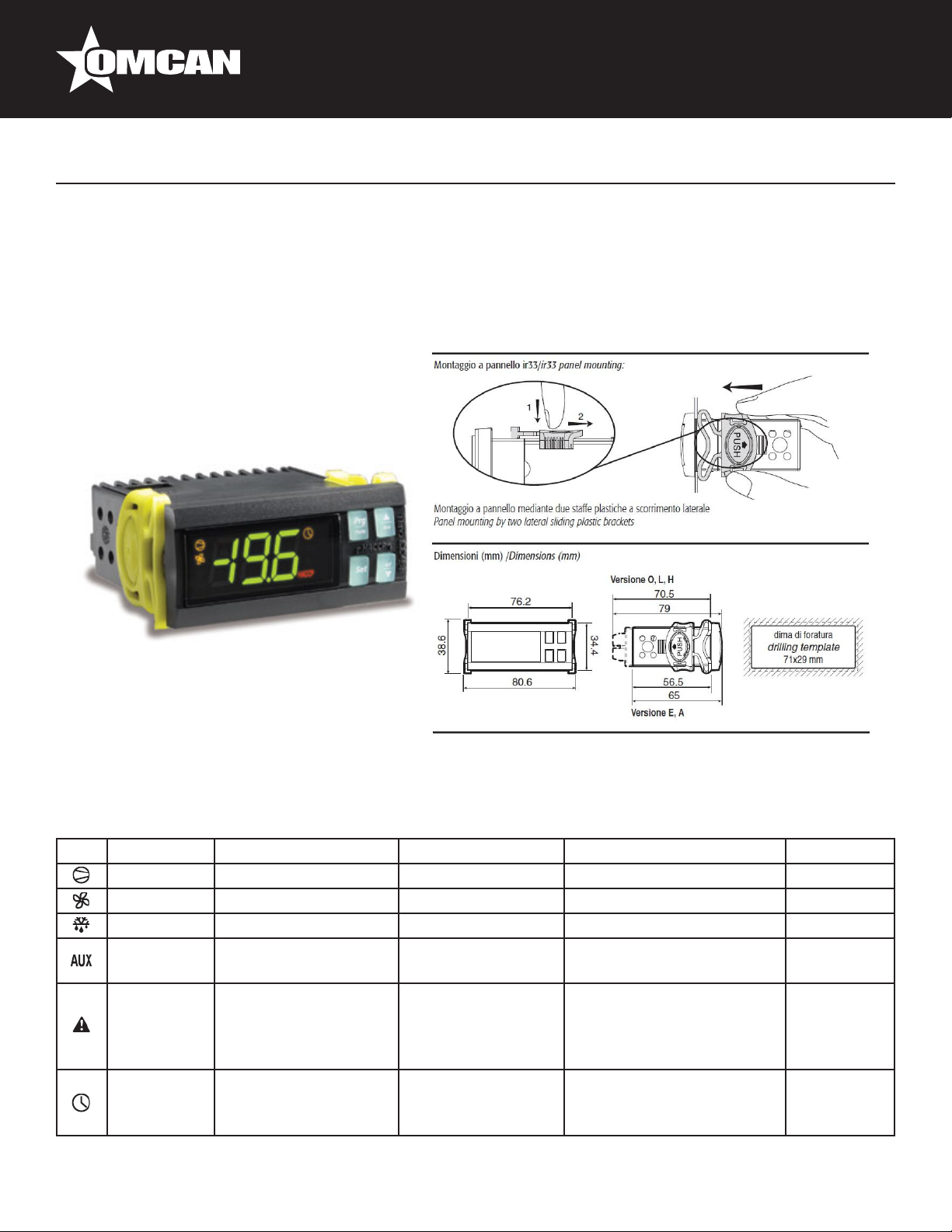

Digital controller model: IR33 for freezer
Signals on the display
The blinking status indicates a request for activation that cannot be implemented until the end of the
Corresponding delay times.
Icon Function ON OFF Blink Startup
Compressor Compressor on Compressor off Request
Fan Fan on Fan off Request
Defrost Defrost in progress Defrost not required Request
Aux Auxiliary Output AUX
active
Auxiliary Output
AUX not active
Anti-sweat heater function
active
Alarm Delayed external
alarm (before the
expiry of the time ‘A7’)
No alarm present Alarms in normal operation
(eg. high/low temp.) or
alarm from ext. digital input
immediate or delayed
Clock At least one timed
defrost has been set
No timed defrost is
present
Clock alarm On if Real-
Time Clock
present

14
Controller Instructions
Light Auxiliary output light
active
Auxiliary output light
not active
Anti-sweat heater function
active
Service No malfunction Malfunction (eg. EEPROM
error or probe fault)
HACCP HACCP function HACCP function
enabled
HACCP alarm (HA and/or
HF) not enabled
Continuous
Cycle
Enabled Not enabled Request
Setting the set point (desired temperature value)
To display or set the set point, proceed as follow:
1. press the “Set” button for more than 1 second to display the set point;
2. increase or decrease the value of the set point, using the “ ” and “ ” respectively, until reaching the
desired value;
3. press the “Set” button again to conrm the new value,
Alarms with manual reset
The alarms with manual reset can be reset by pressing the “ ” and “ ” for more than 5 sec.
Manual defrost
As well as the automatic defrost function, a manual defrost can be enabled, if the temperature conditions allow,
by pressing the “ ” button for more than 5 sec.
Continuous cycle
Pressing the buttons “ ” and “ ” simultaneously for more than 5 seconds enables the continuous cycle
function. During operation in continuous cycle, the compressor continues to operate for the time “cc” and
it stops when it reaches the “cc” time out or the minimum temperature has been reached(AL = minimum
temperature alarm threshold). Continuous cycle setting: “cc” parameter (continuous cycle duration): “cc”=0
never active; “c6” parameter (by passing the alarm after the continuous cycle):”cc” = 0 never active; it avoid or
delays the low temperature alarm after the continuous cycle.
Accessing the conguration parameter (type C)
1. Pressing the “ ” and “Set” buttons at the same time for more than 5 sec, the display will show
“00”(password prompt).
2. Use the “ ” or “ ” buttons to display the number “22” (parameter access password).
3. Conrm by pressing “Set”.
4. The display will show the rst modiable “C” parameter.

15
Controller Instructions
Accessing the conguration parameter (type F)
1. Hold the “ ” button for more than 5 s (if there are active alarms, rst mute the buzzer), the display will
show the rst modiable “F” parameter.
Modifying the parameters
After having displayed the parameter, either type “C” or type “F”, proceed as follows:
1. Use the “ ” or “ ” buttons to scroll the parameters, until reaching the parameter to be modied; when
scrolling the parameters, an icon is shown on the display that represents the category of the parameter.
2. Alternatively, press the “ ” button to display a menu that can be used to quickly access the family of
parameters to be modied.
3. Scrolling the menu using the “ ” and “ ” buttons displays the codes of the various categories of
parameter, accompanied by the corresponding icon on the display(if present).
4. Once having reached the desired category, press “Set” to go directly to the rst parameter in the chosen
category(if no parameter is visible, pressing the “Set” button will have no effect).
5. At this stage, modify the parameters or return to the “Category” menu, using the “ ” button.
6. Press “Set” to display the value associated with the parameter.
7. Increase or decrease the value using the “ ” or “ ” buttons respectively.
8. Press “Set” to temporarily save the new value and return to the display of the parameter.
9. Repeat the operation from point 1 or point 2.
10. If the parameter has sub-parameters, press “Set” to display the rst sub-parameter.
11. Press the “ ” or “ ” button to display all the sub-parameters.
12. Press “Set” to display the associated value.
13. Increase or decrease the value using the “ ” or “ ” button respectively.
14. Press “Set” to temporarily save the new value and return to the display of the sub-parameter code.
15. Press “ ” to return to the display of the parent parameter.
Saving the new values assigned to the parameters
To denitely save the new values of the modied parameters, press the “ ” button for more than 5 seconds,
thus exiting the parameter setting procedure. All the modication made to the parameters temporarily saved in
the RAM, can be cancelled and “normal operation” resumed by not pressing any button for 60 seconds, thus
allowing the parameter setting session to expire due to timeout if the Instrument is switched off before pressing
the “ ” button, all the modications made to the parameters and temporarily saved will be lost.
Mechanical Controller Instructions
OFF: shut the compressor off
Temperature range from 7 (coldest) to 1 (warmest).
CAUTION: Setting the temperature control to the coldest setting may cause the
evaporator coil to freeze and ice up. This will eventually result in a warmer cabinet
temperature.

16

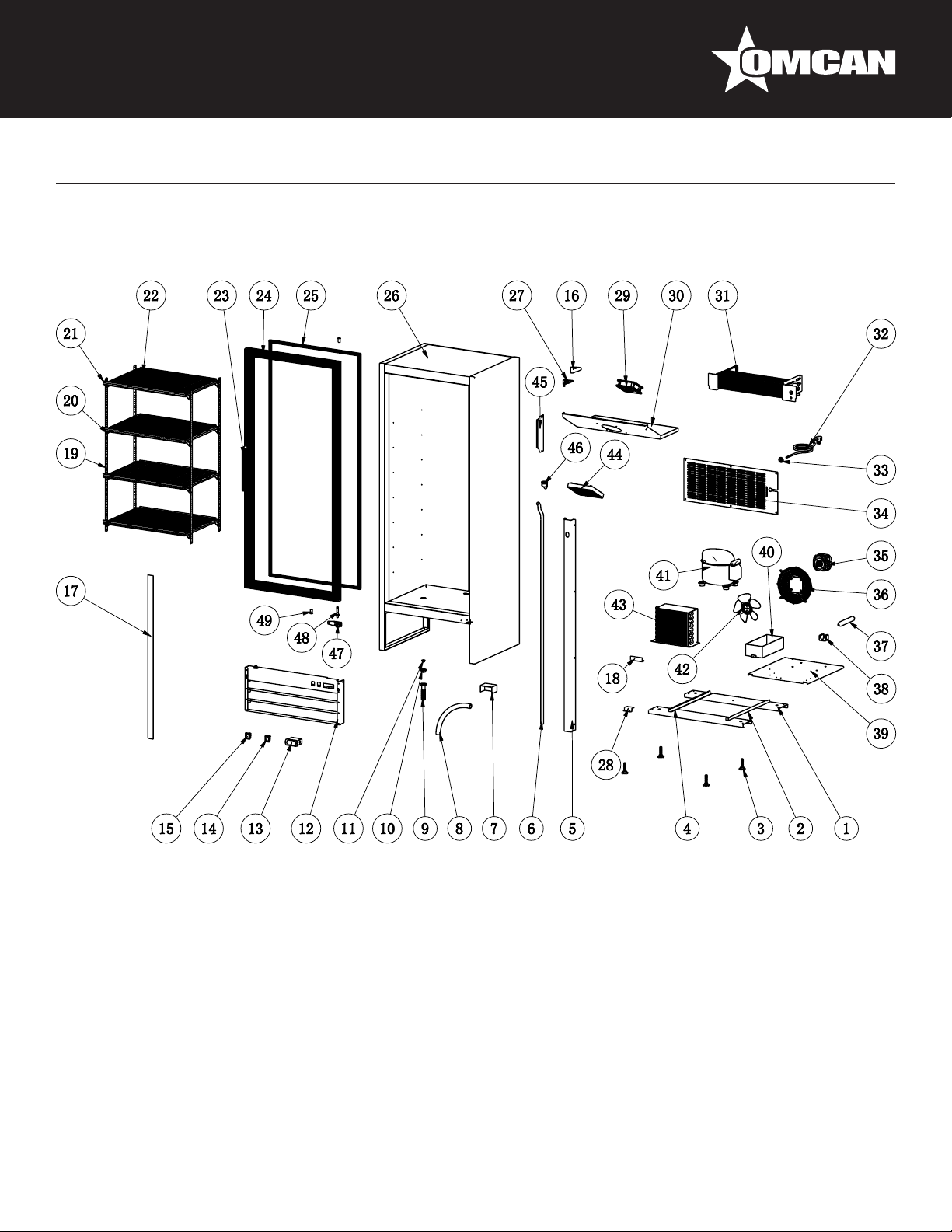

Parts Breakdown
Model RE-CN-0045-HC 50032

17
Item No. Description Position Item No. Description Position Item No. Description Position
AA766 Left Glass Door for 50032 1 AA809 K Strip for 50032 24 AB595 Filter Fixer for 50032 47
AA767 Front Grill Fixer for 50032 2 AA779 Shelf for 50032 25 AB594 Filter for 50032 48
AA703 Power Cord Cover for 50032 3 AA780 Light Plate for 50032 26 AA528 Drain Hose for 50032 49
AE876 Compressor for 50032 5 AA781 Light Box for 50032 27 AA712 Inner Drain Tube Connector for 50032 50
AA247 Condenser Fan Motor for 50032 6 AA722 LED Light for 50032 28 AA796 Upper Cabinet Frame for 50032 51
AA764 Condenser Fan Motor Blade for 50032 7 AA782 LED Light in Light Box for 50032 29 AG050 Bottom Cabinet Frame for 50032 51
AA249 Condenser Fan Motor Cover for 50032 8 AB959 Outer Drain Pan for 50032 30 AA797 Rubber Limited Block for 50032 52
AA770 Condenser for 50032 9 AE892 Left Rail for Installation Board for 50032 31 AA798 Seal Strip for 50032 53
AA362 LED Light Switch for 50032 10 AE893 Installation Board for 50032 32 AG051 Left/Right Cabinet Frame for 50032 54
AA124 Power Switch for 50032 11 AA787 LED Power Supply for 50032 34 AA800 Right Glass Door for 50032 55
AE878 Caster Supporter for 50032 12 AB962 Left Bracket for Evaporator Fan Cover
for 50032 35 AA801 Bigger Wheel for Door for 50032 56
AB974 Handle for Installation Board for 50032 13 AE886 Evaporator Cover for 50032 36 AA802 Smaller Wheel for Door for 50032 57
AB973 Limited Block for Installation Board for
50032 14 AE887 Left End Plate for Evaporator for 50032 37 AG052 Door Track for 50032 58
AE879 Support Rod for 50032 15 AA791 Evaporator for 50032 38 62363 Door Handle for 50032 59
AB109 Thermostat for 50032 16 AA757 Evaporator Fan Motor Bracket for 50032 39 AE891 Air Pipe Protection Board for 50032 60
26247 Caster without Brake for 50032 17 AE888 Right End Plate for Evaporator for 50032 40 AA805 Power Cord for 50032 61
26246 Caster with Brake for 50032 18 AA793 Right Bracket for Evaporator Fan Cover
for 50032 41 AG053 Grill Fixer for 50032 62
AE881 Back Grill for 50032 19 AA794 Power Cord Cover for 50032 42 AA216 Drain Tube for 50032 63
AA214 Thermostat Water Proof Cover for 50032 20 68809 Evaporator Fan Motor EM3020-28-C04 /
110V for 50032 43 AA687 Drain Pipe Cover for 50032 64
AG049 Front Grill for 50032 21 61219 Evaporator Fan Blade V154/22 for 50032 44 AA686 Plastic Drain Pipe with Fixer for 50032 65
AA777 Shelf Tag for 50032 22 AA710 Evaporator Fan Motor Cover for 50032 45
26884 K Clip for 50032 23 AE894 Right Rail for Installation Board for 50032 46
Parts Breakdown
Model RE-CN-0045-HC 50032

18
Parts Breakdown
Model RE-CN-0009-HC 50033

19
Item No. Description Position Item No. Description Position Item No. Description Position
AE895 Castor Supporter for 50033 1 AB974 Handle for Installation Board for 50033 18 AA705 Condenser Fan Motor for 50033 35
AE896 Right Track for Installation Board for
50033 2 AE900 K Strip for 50033 19 AA207 Condenser Fan Motor Cover for 50033 36
AA185 Leveling Feet for 50033 3 26884 K Clip for 50033 20 AB594 Filter for 50033 37
AE897 Left Track for Installation Board for 50033 4 AA693 Shelf Tag for 50033 21 AB595 Filter Fixer for 50033 38
AE898 Back Plate for 50033 5 AA694 Shelf for 50033 22 AE904 Compressor Unit Installation Board
for 50033 39
AA528 Drain Hose for 50033 6 AA695 Glass Door Handle for 50033 23 AE905 Outer Drain Pan for 50033 40
AA214 Thermostat Water Proof Cover for 50033 7 AA696 Glass Door for 50033 24 AE906 Compressor for 50033 41
AA216 Drain Tube for 50033 8 AA697 Glass Door Gasket for 50033 25 AA208 Condenser Fan Blade for 50033 42
AA686 Plastic Drain Pipe with Fixer for 50033 9, 10 AA699 Upper Hinge for 50033 27 AA709 Condenser for 50033 43
AA687 Drain Pipe Cover for 50033 11 AB973 Limited Block for Installation Board for
50033 28 AA710 Evaporator Fan Motor Cover for 50033 44
AE899 Front Grille for 50033 12 AE901 Evaporator Fan Motor for 50033 29 AA711 LED Power Supply for 50033 45
AB109 Thermostat for 50033 13 AE902 Evaporator Cover for 50033 30 AA712 Inner Drain Tube Connector for 50033 46
AA362 LED Light Switch for 50033 14 AA702 Evaporator for 50033 31 AA713 Bottom Hinge for 50033 47
AA124 Power Switch for 50033 15 AA135 Power Cord for 50033 32 AA714 Hinge Axis for 50033 48
AA689 Upper Hinge Cover for 50033 16 AA703 Power Cord Cover for 50033 33 AA715 Axis Cover for 50033 49
AA690 LED Light for 50033 17 AE903 Back Grill for 50033 34
Parts Breakdown
Model RE-CN-0009-HC 50033

20
Parts Breakdown
Model RE-CN-0014-H 50035
