Meat Tenderizer
Item 44507
Instruction Manual

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 6
-------------------------------------------------------------------------------------------- 6
--------------------------------------------------------------------------------------------- 7
----------------------------------------------------------------------------------------- 7
------------------------------------------------------------------------------- 8 - 9
------------------------------------------------------------------------------------------------ 10
---------------------------------------------------------------------------- 11
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Parts Breakdown
Notes
Warranty Registration
Item 44507

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
IMPORTANT SAFEGUARDS
WARNING: READAND FULLY UNDERSTAND ALLINSTRUCTIONS AND WARNINGS PRIOR TO USING
THIS UNIT. YOUR SAFETY IS MOST IMPORTANT! FAILURE TO FOLLOW WITH PROCEDURES AND
SAFEGUARDS MAY RESULT IN SERIOUS INJURY PROPERTY DAMAGE.
1. Be cautious around sharp blades! Wear cut-resistant gloves when handling the blades.

5
Safety and Warranty
2. Never reach into the cuber/tenderizer or the jerky slicer. Doing so could cause serious injury. Always use
the provided tongs.
3. Keep ngers clear of the blades at all times. Failure to do so may result in personal injury. The cutting
blades/blade assembly is very sharp. Wear cut-resistant gloves when handling the blades.
4. Do not press or push meat into the chute with your ngers or any other object. Doing so may cause
personal injury and/or damage to the unit.
5. Never use ngers to scrape food away from the cuber/tenderizer or the jerky slicer while in operation.
Severe injury may result.
6. Do not push tongs or other utensils into the blades.
7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
8. Never use any accessories or parts other than those approved by Omcan. Doing so will void your warranty.
9. Thoroughly clean all parts that will come into contact with food before using the unit. Wash all parts by
hand and dry thoroughly. Wear cut-resistant gloves when handling the blades.
10. Do not attempt to tenderize or slice meat with bones or other hard items. Damage to the machine will
occur.
11. Tie back loose hair and clothing and roll up long sleeves before operating the unit. Remove ties, rings,
watches, bracelets or other jewelry before operating.
12. Do not use the unit while under the inuence of drugs, medications or alcohol.
13. Save these instructions.
6 MONTHS PARTS AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop o󰀨 to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste
and can therefore be disposed of without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

6
Installation

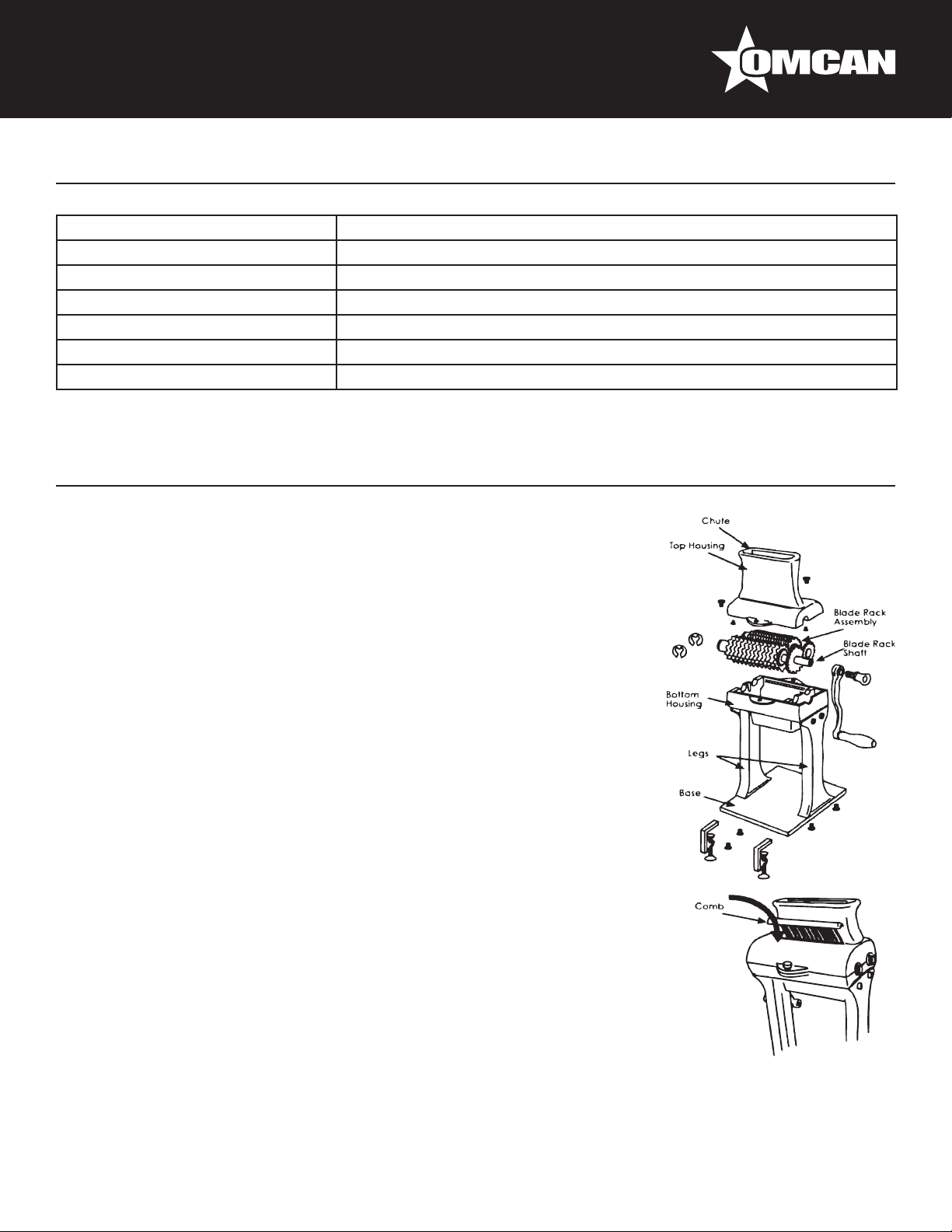

ASSEMBLY INSTRUCTIONS
1. Connect the left and right legs to the base using the provided allen wrench
and screws.
2. Using the allen wrench and screws, attach the left and right legs to the
lower housing.
3. Install the chute to the top housing using and allen wrench and screws.
4. Insert the blade rack assembly into the lower housing, guiding the drive
shaft into the bearing journals. Make sure the teeth of the blade racks
properly mesh together.
5. Position the top housing onto the lower housing and line up the screw
holes.
6. Secure the top housing to the lower housing using the housing
thumbscrews. Do not overtighten.
7. Insert the left comb and right comb into the top housing.
Note: the combs are marked with an “L” or “R” on the upper portion of the
combs. Likewise, the top housing is marked with and “L Comb” and “R
Comb” to aid in installation.
8. Install the handle onto the blade rack shaft. Secure the handle with the
handle thumbscrew.
Technical Specications
Item Number 44507
Description 2-in-1 Manual Meat Tenderizer and Slicer
Mouth Opening 1” x 5” / 26 x 128mm
Weight 10.1 lbs. / 4.6 kgs.
Packaging Weight 11.7 lbs. / 5.3 kgs.
Dimensions 12.4” x 9.4” x 18.2” / 316 x 240 x 463mm
Packaging Dimensions 14.2” x 6.9” x 18” / 360 x 175 x 470mm

7
Maintenance
Operation
DISASSEMBLY AND CLEANING INSTRUCTIONS
1. Keep children at a safe distance from the unit while cleaning.
2. Remove the thumbscrew from the handle, remove the handle.
3. Remove the combs from the top housing by lifting up the combs.
4. Remove the two thumbscrews from the top housing.
5. Remove the top housing.
Warning! This will expose the cutting blades. Take care when handling the blade assembly.
6. Using the provided allen wrench, remove the chute from the top housing.
7. Carefully lift the blade assembly from the lower housing.
8. Disassemble the lower housing from the legs. Disassemble the legs from the base.
9. Wash all parts thoroughly with warm, soapy water. Rinse with clean water. A long bristle brush is
recommended for cleaning the blade assembly. Take extra care when handling the blade assembly.
10. Dry thoroughly before re-assembling.
Note: It is highly suggested to coat all metal parts with a food grade silicone spray to prevent
corrosion.
1. Remove all bones or hard items in the meat before tenderizing or cubing. Damage to the unit may occur if
bones or hard objects are pushed through.
2. Do not cube or tenderize meat that is more than 1” (2.5cm) think. Thicker meat may get lodged in the
blades, which may cause damage to the unit.
3. Insert the meat to be tenderized or cubed into the mouth of the chute until the meat comes in contact with
the blades. Turn the handle in a clockwise motion. This will pull the meat through the blades. Insert only
one piece of meat at a time to prevent jamming.
4. If a piece of meat is too short to reach the blades, use the provided tongs to guide the meat to the blades
Caution! Do not press or push meat into the chute with your ngers or any other object. Doing so
may cause personal injury and/or damage to the unit. Do not push the tongs or other utensils into
the blades.
5. It may be necessary to pass the meat through the cuber/tenderizer several times to obtain desired results.
You may also pass the meat through at di󰀨erent angles to help obtain the desired result.
6. Clean the unit before and after each use.

8
Item 44507

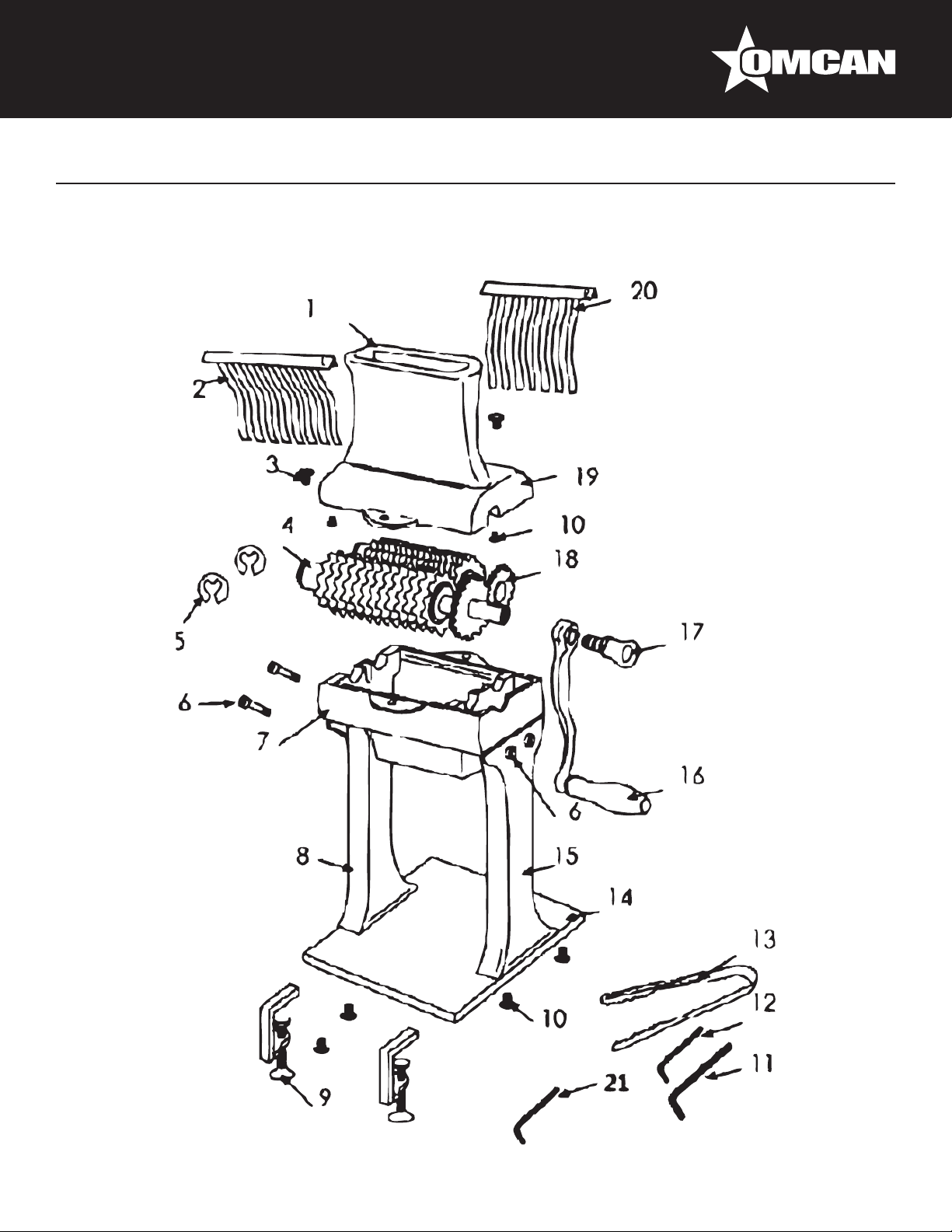

Parts Breakdown

9
Item 44507
Parts Breakdown
Item No. Description Position Item No. Description Position Item No. Description Position
AC156 Chute for 1A-MT113 1 AC163 C-Clamp for 1A-MT113 9 AC170 Handle for 1A-MT113 16
AC157 Stainless Steel Comb for 1A-MT113 2 AC164 Screw for Chute and Base (6pc) for
1A-MT113 10 AC171 Handle Thumbscrews for 1A-MT113 17
AC158 Housing Thumbscrew (2pc) for 1A-
MT113 3 AC165 Allen Wrench for Leg Screws for 1A- MT113 11 AC172 Top Housing for 1A-MT113 19
AC159 Tenderizer Meat Knife Set for 1A-MT113 4-5, 18 AC166 Allen Wrench for Chute and Base Screws
for 1A-MT113 12 AC173 Stainless Steel Comb for 1A-MT113 20
AC160 Screw for Legs (4pc) for 1A-MT113 6 AC167 Stainless Steel Tongs for 1A-MT113 13 AC174 Allen Wrench for Blade Screws for
1A-MT113 21
AC161 Lower Housing for 1A-MT113 7 AC168 Base for 1A-MT113 14
AC162 Leg for 1A-MT113 8 AC169 Leg for 1A-MT113 15

10
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________

11
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
https://omcan.com/warranty-registration/
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour di󰀨usion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
