Omega MAX-E Owner's manual

Specifications subject to change 05/04
FEATURE# DEFAULT LOCK UNLOCK
Feature #1 Selectable Code Override 1 & 0 switch presses (manual program)
Feature #2 Last Door Arming OFF ON OFF
Feature #3 Automatic Rearming OFF ON OFF
Feature #4 Starter Interrupt Circuit ON ON OFF
Feature #5 Automatic Starter Interrupt OFF ON OFF
Feature #6 Ignition Activated Override OFF ON OFF
Feature #7 Doors Lock With Last Door Arming OFF ON OFF
Feature #8 Doors Lock With Automatic Rearming OFF ON OFF
Feature #9 Doors Lock With Ignition ON ON OFF
Feature #10 Ignition OFF Unlock #1 ON ON OFF
Feature #11 Ignition OFF Unlock #2 ON ON OFF
Feature #12 Open Door Bypass To Previous Three Features ON ON OFF
Feature #13 Confirmation Chirps ON ON OFF
Feature #14 Confirmation Chirps In Valet Mode OFF ON OFF
Feature #15 Activated Alarm Cycle 60 Seconds 60 Seconds 30 Seconds
Feature #16 Lights On Upon Disarm ON ON OFF
Feature #17 Disarm Alarm Upon Trunk Release ON ON OFF
Feature #18 Doorlock Pulse Time .8 Second .8 Second 3 Seconds
Feature #19 Double Unlock Pulse OFF ON OFF
Feature #20 Arming Delay 3 Seconds 3 Seconds 45 Seconds
Feature #21 Pulsed Horn / Steady Siren Output Steady Siren Pulsed Horn Steady siren
Feature #22 Horn Confirmation Chirp Volume Medium Loud - all 4 buttons used; 4 chirp levels
Feature #23 Total Closure Lock Output OFF ON OFF
Feature #24 Alarm Functions Bypass OFF ON OFF
Feature #25 Ignition Activated Anti-Carjacking Protection OFF ON OFF
Feature #26 Door Activated Anti-Carjacking Protection OFF ON OFF
Feature #27 Remote Activated Anti-Carjacking Protection OFF ON OFF
Standard Features: The Omega MAX-E has it all! Incredibly fully-
featured vehicle security with remote engine starting convenience. The MAX-E uses a window-mounted standard re-
ceiver module to ensure great operating range, and is also plug-in upgradable for the Echo-2 2-way pager/controller
system. The MAX-E includes Omega’s standard 5 and 8 pin harnesses, primary and secondary remote start harnesses,
LED-CP-2 micro plug Red & Green Status Indicator Light, 22LC plug-in Valet Switch, and Omega’s patented Psycho
Siren. This unit has 4 remote start relays, flashing parking light and dome light relays all built-in, (-) negative doorlock
outputs, including driver door priority option, with basic harness. Now with Manual Transmission Remote Starting and
Turbo Timer features. The MAX-E features patented Easy Valet and Selectable Coded Override operation.
features list continued other side
MAX-E
Security System w/ Remote Starting
ECHO
Compatible!
And, the
MAX-E is
way
2-
Omega part #s
146-07B (black / gray)
146-07G (smoke tint / green glow)
36 Programmable Features

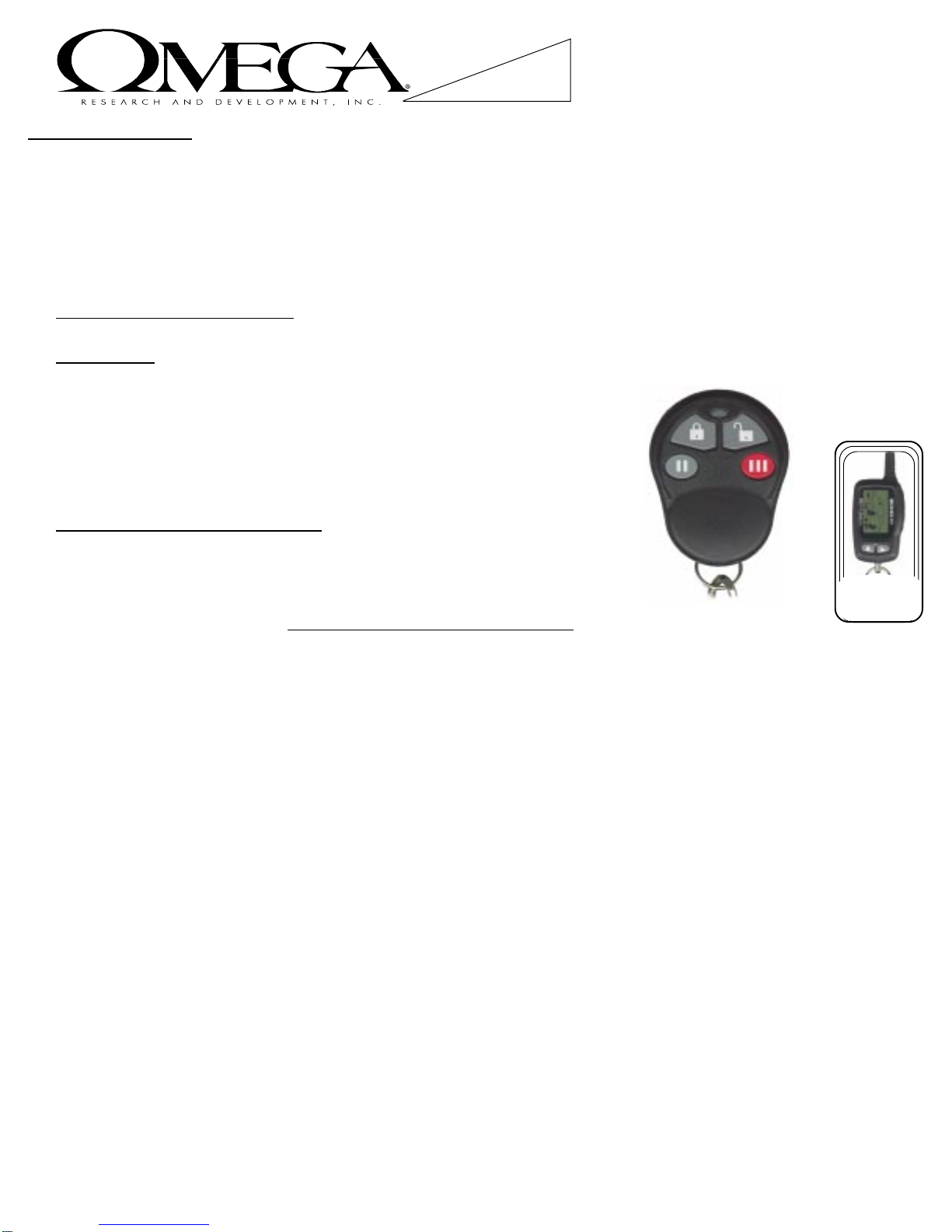

Two Transmitters included: 2 Black 4-Button Transmitters with soft-touch
pictograph buttons. 433 MHz, code-jumping.
Operations: Lock Button - Press and release to Arm/Lock. Press
and hold to activate Remote Panic with locking doors.
Unlock Button - Press and release to Disarm/Unlock. Press and hold
to activate Remote Panic with unlocking the doors.
Remote Starting - Press and hold Lock and Unlock together.
“II” Button - Press and hold to activate trunk release. Press and
release twice to arm/lock - disarm/unlock without confirmation chirps.
“III” - Press and hold to activate remote panic, or change to 3rd Channel.
How to Code the Transmitters: Turn “on” the ignition, then press the
valet switch 5 times and wait for siren confirmation of entry into programming
mode. Press and release the Option transmitter button on each remote to be
coded (one at a time). The system will respond to each with an audible confirmation.

Specifications subject to change REV 05/04
How to Program the Features:
Step #1: Turn off the ignition.
Step #2: Press the valet switch 5 times, wait for audible response, and then select the feature by pressing the valet
button a number of times equal to the feature number.
Step #3: Press the Lock or Unlock transmitter button to configure the feature as desired.
Step #4: Repeat pressing the valet switch to access the next feature, and then again press the Lock or Unlock
button to configure the selected feature.
Smart Trigger: The Smart Trigger utilizes the Domelight Supervision circuit for the alarm’s open door trigger input-
simply program the polarity with the Smart Trigger jumper.
Feature #28 Open Door Warning Upon Arming OFF ON OFF
Feature #29 III Button Operates "Panic" or 3rd Channel Output Panic Panic 3rd Channel
Feature #30 Remote Start Run Time 10 or 20 Minutes 10 Minutes 20 Minutes 10 minutes
Feature #31 Steady / Flashing Lights During Remote Start Steady Steady Flashing
Feature #32 Gasoline or Diesel Engine Gasoline Gasoline Diesel
Feature #33 Extended Starter Cranking Time Minimum- all 4 buttons used; 4 cranking times
Feature #34 “Tach Wire” or “Tachless “ Starter Operation “Tachless” “Tachless” “Tach Wire”
Feature #35 Manual Transmission Remote Starting OFF ON OFF
Feature #36 Turbo Timer OFF ON OFF
Omega MAX-E
Wiring Diagram Overview
10 Amp
10 Amp
MAX-E
Smart Trigger Port
Auxiliary Sensor Port #1
Auxiliary Sensor Port #2
Red/Black:
Brake (+)
Satellite
Relay Ports
Doorlock Port
Yellow/Green:
Factory Disarm
Output
Yellow/Red:
Factory Arm
Output
Gray: (-) Trunk
Release Output
Yellow
White
Green
Red/White & Red
Black
Pink/Black: Start Activation (-)
White: (-) Arm Input
Programming Port
Blue/White:
Safety Input (-)
P
R
N
D
L
Black/Yellow:
Tach Input
?
123
1
2
3
123
Brown: (-) Disarm Input
Pink: (-) 3rd Channel Output (-) Door
Pin Switch
Hood /
Trunk
Switch
Or
Pin
White: (+) Parking Light Output
Blue: (-) Instant
Violet: (+) Door
Green:
(-) Door
Green/Violet: Dome
Light Output - connect to
vehicle’s dome light wire
Black/Red:
To (-) or (+) as needed
Status Light / Valet Switch
Holder Assembly
Status
Light &
Valet Switch may be
mounted separately
OReceiver
Unit
Light
Switch
12345678901
12345678901
12345678901
12345678901
12345678901
12345678901
12345678901
12345678901
Parking Lights
(+) Door
Pin Switch
Yellow: Ignition Input/Output
Red/White: (+) 12 Volts
White: Accessory Output
Red: (+) 12 Volts
Black: (-) Ground
✄
White:
To Starter Red: To
Ignition
Switch
Relay
Green: Starter Output
Starter Orange:
Armed (-) Output
AU-SOCKET
& relay for
starter interrupt
Battery+
30 Amp
30 Amp
Switch
Ignition
Brown: (+)
Siren
Red
wire
Siren Black wire
to Ground
Siren
Siren Output
