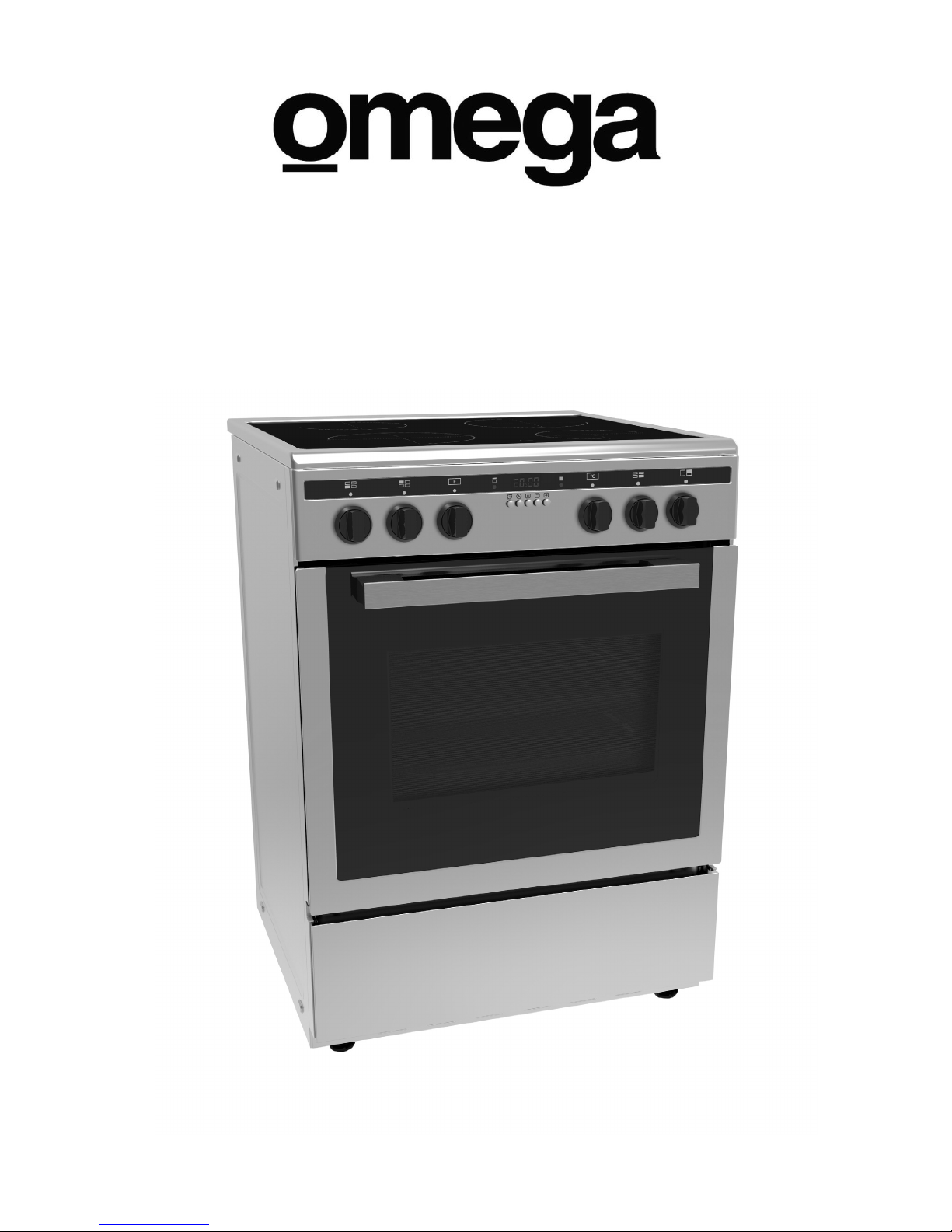

Omega OF694IX User manual

1

Freestanding Electric Oven and Induction Cooktop
Instructions for installation and use
OF694IX
























2
































3

Important Safety Warning
You should find all the instructions you require to ensure a safe installation, use and
maintenance. Always keep this owner manual close to hand since you may need to
refer to it in the future. Young children should be supervised to ensure that they do
not play with the appliance.
After removing the packaging check that the appliance is not damaged. If you have
any doubt do not use the appliance, contact your nearest Service Centre or the
store where you purchased the appliance. Never leave the packaging components
plastic bags foamed polystyrene nails etc within the reach of children since they are
a source of potential danger.
The appliance must be installed only by a qualified person in compliance with the
instructions provided. The manufacturer declines all responsibility for improper
installation which may harm persons and animals and damage property.
The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervised or instruction concerning use of
the appliance by a responsible person for their safety.
The electrical safety of this appliance can only be guaranteed if the cooker is
correctly and efficiently earthed, in compliance with current regulations on
electrical safety. Always ensure that the earthing is efficient if you have any
doubts call in a qualified electrician to check the system. The manufacturer
declines all responsibility for damage resulting from a system which has not
been earthed.
Check that the electrical capacity of the system and sockets will support the
maximum power of the hob, as indicated on the rating label if you have any doubts
call in a qualified technician. If the supply cord is damaged, it must be replaced by
the manufacture or its service agent or a similarly qualified person in order to avoid a
hazard.
When the cooker is first used an odour may be emitted, this will cease after a period
of use. When first using the cooker, ensure that the room is well ventilated and that
persons who may be sensitive to the odour avoid any fumes. It is suggested that
any pets be removed from the room until the smell has ceased. This odour is due to
temporary finish on the oven liners and elements and also any moisture absorbed by
the insulation.
Ensure that the appliance is switched off before maintenance. Ensure the main
switch and all the knobs are in the OFF position.
The openings and slots used for ventilation and dispersion of heat on the rear and
below the control panel must never be covered.

4

The user must not replace the supply cable of this appliance. Always call an after-
sales servicing centre authorised by the seller in the case of cable damage or
replacement.
This appliance must be used for the purpose for which it was expressly designed.
Any other use is considered to be improper and consequently dangerous. The
manufacturer declines all responsibility for damage resulting from improper and
irresponsible use.
A number of fundamental rules must be followed when using electrical appliances
The following are of particular importance do not touch the appliance when your
hands or feet are wet do not use the appliance barefooted. Never allow the Mains
Cable to be stretched, pulled or damaged if the Cooker is moved for cleaning etc.
Do not use the cooker if the Mains Cable is damaged, consults a qualified
electrician. Do not allow the cooker to be used unsupervised by children or persons
unfamiliar with it.
Always switch off the electrical supply to the cooker and allow it to cool down before
carrying out any cleaning operations etc.
To avoid accidental spillage do not use cookware with uneven or deformed bottoms
on the burners or on the electric plate. Special care should be taken when using chip
pans etc. in order to avoid splashing or spillage of hot oil. They should not be used
unattended since overheated oil may boil over and could also ignite.
Parts of this appliance, cooking surfaces, retain heat for considerable periods after
switching off. Care should therefore be taken when touching these areas before they
have completely cooled down.
Never use flammable liquids such as alcohol or gasoline, etc. near the appliance
when it is in use.
Danger of fire: do not store items on the cooker surfaces.
Keep the supply cord away from the hot parts when using small electric appliances
near the hob,
Make sure the knobs are in its OFF position when the appliance is not in use.
If you use the power cord for single phase (220-240V), the minimum cross-sectional
area is 4mm2 (3G4mm2). For three phases (380-415V), the minimum cross sectional
area is 2.5mm2（5G2.5mm2）
When the appliance is in use the heating elements and some parts of the oven door
become extremely hot. Make sure you don’t touch them and keep children well
away.

5

Installation
The following instructions should be read by a qualified technician to ensure that the
appliance is installed regulated and technically serviced correctly in compliance with
current regulations.
The hob should never be installed in proximity of a door access. People opening and
closing the door could come into contact with pots or pans cooking on the hob.
This unit may be installed and used only in permanently ventilated rooms. The
appliance must not be installed behind a decorative door in order to avoid
overheating.
Be careful when unpacking and installing the appliance sharp edges might cause
accidents
The oven is heavy and care must be taken when moving it ensure that all packing
both inside and outside the cooker has been removed before the oven is used.
Unpack the oven from the carton check and make sure it has not been damaged in
any way. If you have any doubts do not use it contact the service centre or where
you purchase the oven.

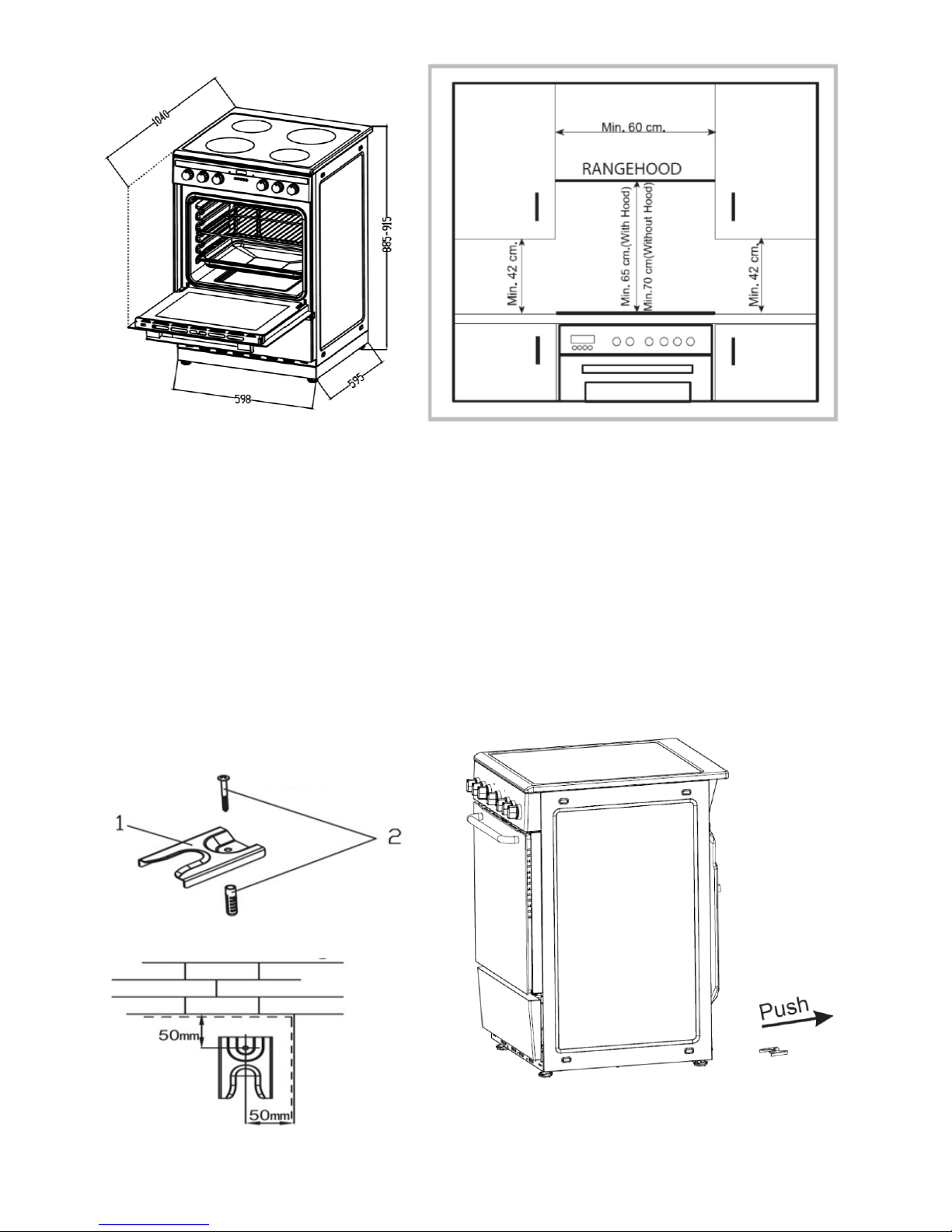

The cooker is designed to fit between kitchen cabinets (min 600mm apart). The
space either side need only be sufficient to allow withdrawal of the cooker for
servicing. It can be used with cabinet one side or both as well as in a corner setting.
It can also be used free- standing.
The appliances can be installed next to furniture units which are no taller than the top
of the cooker hobs. If the cooker is placed touching walls or sides of neighbouring
cabinets, these must be capable of withstanding a temperature rise of 50°C above
room temperature For a correct installation of the cooker the following precautions
must be followed:
The cooker may be located in a kitchen.
Kitchen cabinets installed next to the cooker that are taller than the top of the cooker
hobs must be situated at least 20cm from the edge of the hobs
The wall in contact with the back of the cooker must be of flameproof material.
Range hoods must be installed at least 650mm above the appliance. Any wall
cabinets directly above the appliance must be at least 700mm above the hobs.








6

The feet are packed inside the oven cavity. Fix by angling the cooker slightly
and screwing into the 4 corners of the base panel. Adjust the cooker to the
appropriate height, then fit the cooker into place. The cooker should be level
and stable when installed, otherwise adjust the height of the appropriate foot.
To stop the cooker from being accidentally toppled over, an anti-tilt bracket must be
fitted.
First take the anti-tilt bracket, screw and plastic plug (as per figure 1). Fix the anti-tilt
bracket to the floor 50mm in from the rear wall and 50mm from the side wall or
cabinet (as per figure 2). Push the appliance into position so that the appropriate
foot slides into the bracket (as per figure 3), fixing it in place so the appliance cannot
tilt away from either wall.
Figure 1
Figure 2
Figure 3

7

Electrical connection
WARNING -THIS APPLIANCE MUST BE EARTHED.
Power supply voltage and frequency: 220-240V /380-415 3N, 50/60Hz. The electric
cooker without a power supply cable. The cooker is designed to operate on an
electricity supply which conforms to the electrical data shown on the Rating label.
For New Zealand: If this cooking range is to be connected to a new or upgraded
electrical installation, then it must be connected by a supply cord fitted with:
- An appropriate rated plug that is compatible with the socket-outlet fitted to the
final sub-circuit in the fixed wiring that supplies this cooker.
- An appropriate rated installation male connector that is compatible with the
installed female connector fitted to the final sub-circuit in the fixed wiring that
supplies the cooker.
The following installation procedure must be carried out by a qualified electrician. For
the installation of the feeding cable carry out the following operations:
Open the terminal board by inserting a screwdriver into the side tabs of the power
cord cover. Use the screwdriver as a lever by pushing it down to open the cover as
below: Connection of the electricity follows the diagram as printed in the surface of
power cord cover.
Fasten the supply cable in place with the clamp and close the cover of the terminal
board.
When used properly your appliance is
completely safe but as with any electrical
product there are certain precautions that
must be observed:
The electrical connection must be
accessible after installation. If the electrical
supply is restricted, means of all-pole disconnection must be accessible and
incorporated in the fixed wiring in accordance with the wiring rules.
If the electrical supply cord is damaged, either when being installed or after
installation, it must be replaced by the manufacturer or similarly qualified persons in
order to prevent a safety hazard.
This appliance is not intended to be operated by means of an external timer or
separate remote control system.

8

PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR
APPLIANCE.
1. Turn controls to the off position when you have finished cooking and when not
in use.
2. Stand back when opening an oven door to allow any build-up of steam or heat
to disperse.
3. Use dry good quality oven gloves when removing items from the oven grill.
4. Place pans centrally over the hotplate making sure handles are kept away from
the edge of the hob and cannot become heated by other hotplate pans.
5. Take care to avoid heat steam burns when operating the controls. Turn off the
electricity supply before cleaning and allow the appliance to cool.
6. Make sure the shelves are in the correct position before switching on the oven.
7. Take care when removing items from the grill when the lower oven is on as the
contents will be hot.
8. Keep the appliance clean as a build-up of grease or fat from cooking can cause
a fire.
9. Follow the basic principles of food handling and hygiene to prevent the
possibility of bacterial growth.
10. Keep ventilation slots clear of obstructions. Refer servicing to a qualified
appliance service engineer. During use the appliance becomes hot. Care should
be taken to avoid touching the heating elements inside the oven. WARNING –
Accessible parts will become hot when in use. Young children should be kept
away.
11. Never line the interior of the oven with foil as this may cause the appliance to
overheat. Never leave children unsupervised where a cooking appliance is
installed as all surfaces will be hot during and after its use. Do not allow children
or those who are not familiar with the appliance to use it without supervision.
Never allow anyone to sit or stand on any part of the appliance.
12. Never store items above the appliance that children may attempt to reach.
Never leave anything on the hob surface when unattended and not in use.
Never remove the oven shelves whilst the oven is hot.
13. Never heat up unopened food containers as pressure can build up causing the
container to burst.
14. Never store chemicals in or on the appliance or in cabinets immediately above
or next to the appliance.
15. Never place flammable or plastic items on or near the hob.
16. Never fill a frying pan more than full of oil or use a lid.
17. Never use the appliance as a room heater.
18. Never dry any items on either hob or oven doors.
19. Never install the appliance next to curtains or other soft furnishings.
20. Do not use a steam cleaner to clean this appliance.
21. During use the appliance becomes hot. Care should be taken to avoid touching
heating elements inside the oven.

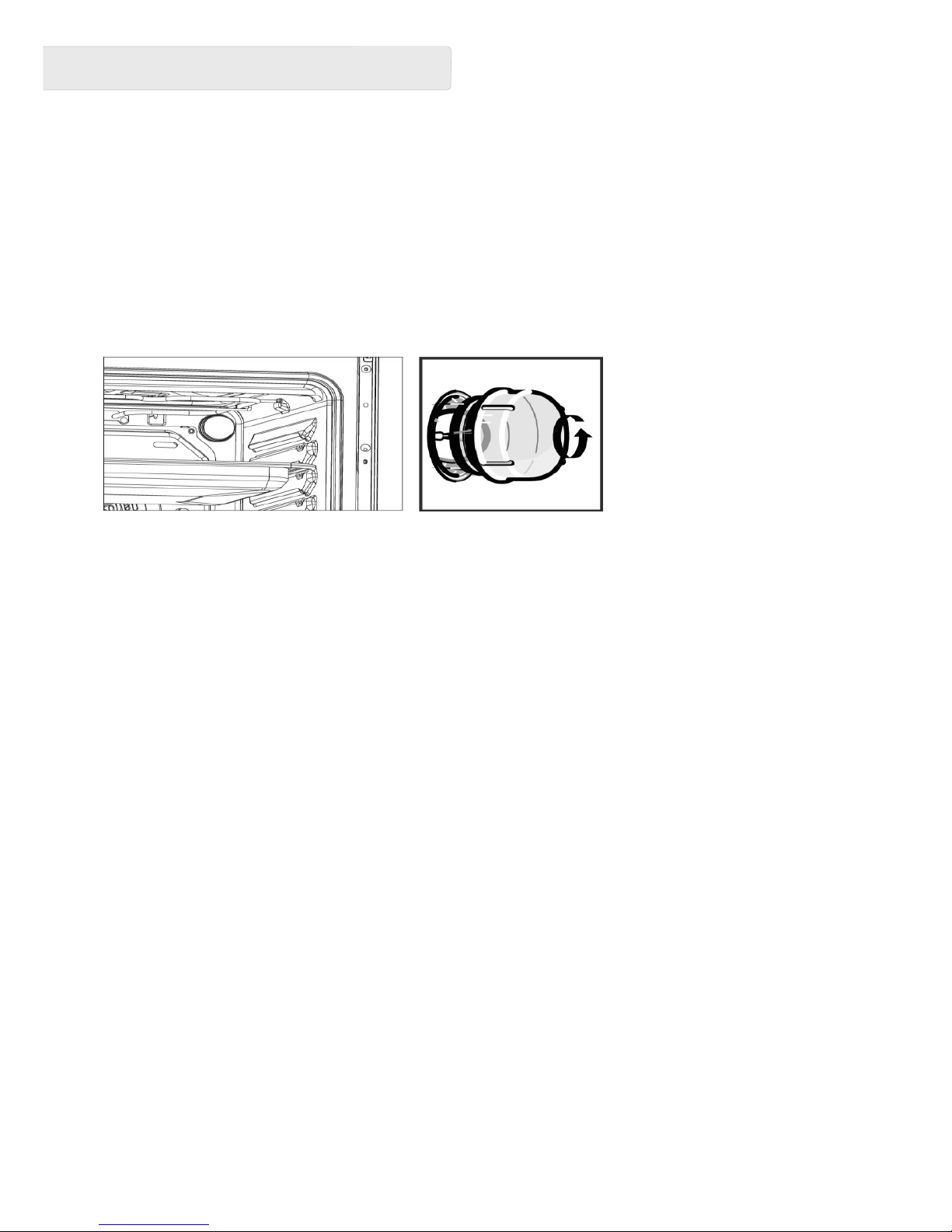

22. WARNING: Ensure the appliance is switched off before replacing the lamp to
avoid the possibility of electric shock.

9

23. In the event of a chip pan fire or any other pan fire TURN OFF THE COOKER
APPLIANCE AT THE WALL SWITCH AND COVER THE PAN WITH A FIRE
BLANKET, this will smother the flames and extinguish the fire. LEAVE THE PAN
TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT.
Injuries are often caused by picking up a hot pan and rushing outside with it.
24. DO NOT LEAVE UNATTENDED WHILE COOKING.
25. SAFETY ADVICE IN CASE OF a PAN FIRE NEVER USE a FIRE EXTINGUISHER
TO PUT OUT a PAN FIRE as the force of the extinguisher is likely to tip the pan
over.
26. Never use water to extinguish oil or fat fires.
27. WARNING: If the surface of the cooktop is cracked, switch off the appliance to
avoid the possibility of an electrical shock.
28. Metallic objects such as knives, forks, spoons and lids should not be placed on
the hotplate since they can get hot.
29. Young children should be supervised to ensure they do not play with the
appliance.
30. This appliance should not be installed behind a decorative door in order to avoid
overheating.
Please read all instructions before using this appliance. This book contains valuable
information about operation, care and service. Keep this booklet in a safe place for
future reference. Should the appliance be sold or transferred to another owner, or
should you move house and leave the appliance, always ensure that the booklet is
supplied with the appliance in order that new owner can be acquainted with the
functioning of the appliance and relevant warnings.
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY, PLEASE READ
THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE to maintain
the EFFICIENCY and SAFETY of this appliance, we recommend:
Call only the Service Centre authorised by the store where you purchased the
cooker. Always use original Spare Parts.
This appliance is intended for non-professional use within the home.
Before using the appliance, read the instructions in this owner’s manual carefully.








10


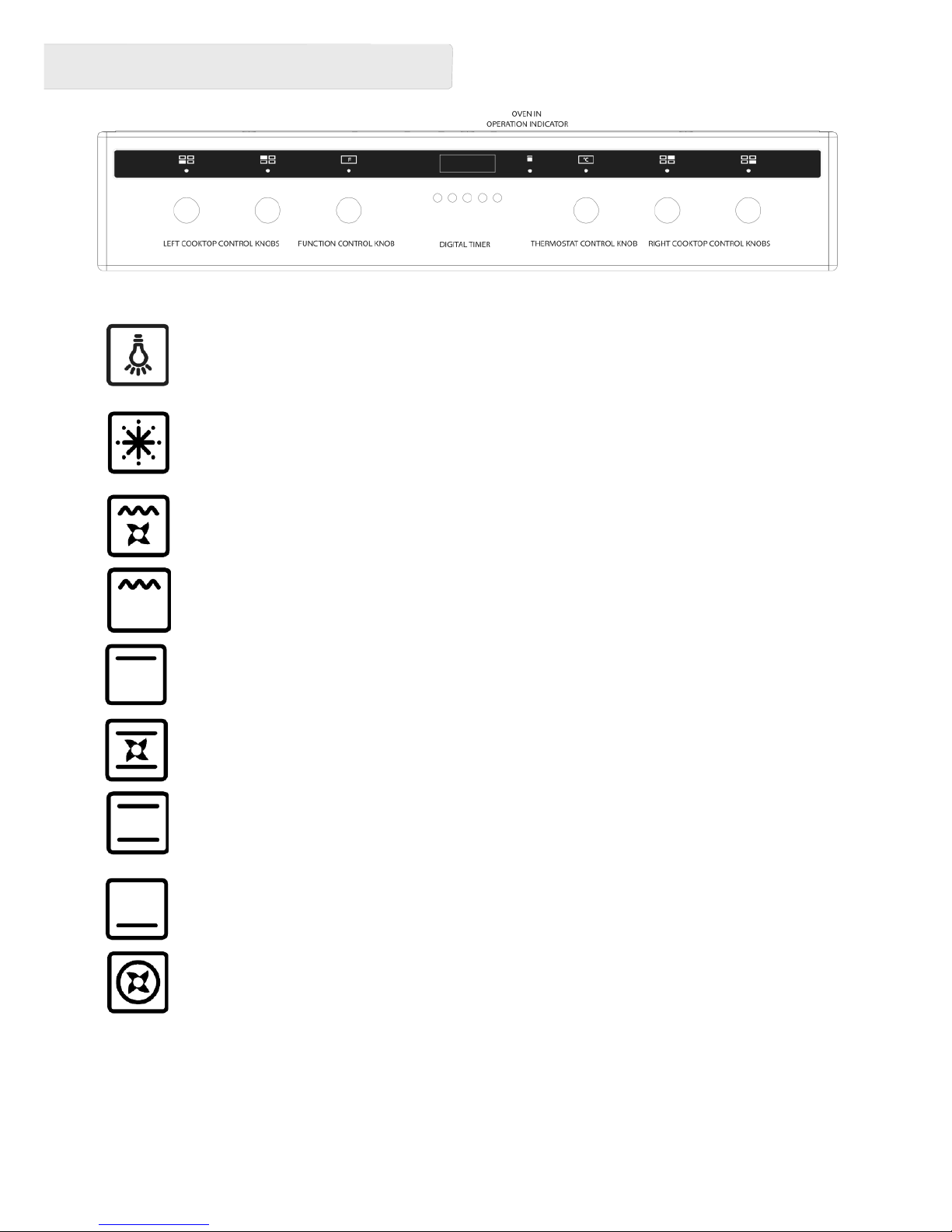

Oven Functions
Oven Lamp: Enables the user to observe the progress of cooking without
opening the door. The Oven lamp will be activated for all cooking functions.
Defrost: The rear fan will run blowing air over the food inside the oven. No
heat is generated.
Double Grill and Fan: Both the top element and grill element will run with air
being circulated by the rear fan.
Double Grilling: The grill element and top element are running.
Top heat: The top element of the cooker runs providing gentle heat.
Fan Assist: Conventional cooking with air being circulated by the rear fan.
Conventional cooking: The top and bottom work together to provide
convectional cooking.
Bottom heat: A concealed element in the bottom of the oven provides a
more concentrated heat to the base of food.
Fan Forced: The rear element runs with the being circulated by the rear fan,
for a more even heating.
Note: All control knob decals are printed on the bezels at the base of the control
knobs.
Note: When cooking without using the timer, the timer must be set to manual mode.
Please read the section on using the digital timer.

11

Oven Control
The Thermostat Control knob can only be rotated clockwise from the OFF position.
Set the appliance to Manual Mode, or set a timer function. Turn oven Function
Control knob to select the cooking function required. Then turn oven temperature
control clockwise to the required oven temperature setting.
The red Oven In Operation indicator will immediately illuminate and will automatically
go off when oven temperature reaches the temperature setting. Once the oven has
heated up, the food can be placed in the oven. Both settings can be adjusted at any
time during the cooking process.
Turn all control knobs to off once cooking has finished.
The digital timer has 5 buttons:
Setting the current time
Before operating the oven for the first time, or after a power failure, the digital display
will flash (as well as the symbol “A”), which means the current time must be set. With
all control knobs off, press the End of Cooking button and Cooking Duration button
together, and while they are being held down, adjust the time using the Decrease
button and Increase buttons. This will adjust the current time in increments of 1
minute. Once the correct time is set, release all buttons.
Note: For timer functions, the function can be disabled by adjusting the time to zero,
or pressing the Decrease button and Increase button at the same time.
Timer
button
Cooking
Duration
button
End of
Cooking
button
Decrease
button
Increase
button

12

Operating the oven in Manual Mode
With the oven function and cooking temperature set, press the End of Cooking
button and Cooking Duration button together. This will start the oven running. Once
the food has been cooked, turn all control knobs to off.
Buzzer
With no timer functions operating, press the Decrease button to cycle through the 3
buzzer volumes. To deactivate a buzzer at the end of a timer function, press any of
the 3 buttons to the left. If not, the buzzer will run for 7 minutes before deactivating
automatically.
Timer
A timer can be set up on the Digital Timer as a reminder for some future task. Press
the Timer button to show the current timer value 0.00 and the Timer symbol will start
to flash on the digital display. While it is flashing, adjust the time using the Decrease
button and Increase button (in minute increments). Once the correct value is
reached, do not press any buttons for 5 seconds and the value will lock in. The
Timer will now start to count down. When the allotted time runs out, the buzzer will
sound. Note that this does not affect any oven functions.
The current Timer value can be seen (for 5 seconds) by pressing the Timer button
once, and adjusted using the Decrease button and Increase button (as above).
Semi-automatic cooking
Semi-automatic cooking is when the cooking function is started manually and the
cooking duration is set with the Digital Timer. Set the Cooking function and
temperature, and allow the oven to pre-heat (~10 minutes). Place the food in the
oven. Press the Cooking Duration button once; the current cooking duration (0.00)
will be displayed and the Cooking Duration icon will flash. While it is flashing, adjust
the time using the Decrease button and Increase button (in minute increments).
Once the correct value is reached, do not press any buttons for 5 seconds and the
value will lock in. The oven will continue to cook, with the Cooking Duration icon and
“A” lit and current time shown until the cooking duration is met, at which point the
oven will stop and the buzzer will sound. Turn the Oven Function control knob and
Thermostat control knob to off and deactivate the buzzer.
The values can be adjusted at any time by pressing the Cooking Duration button
once and adjusting as above.

13

Automatic cooking
Automatic cooking is when both the start and end cooking times are set.
Note: This does not allow for a pre-heat time.
Note: Take care that the delayed start will not affect the quality of the food inside the
oven.
First set up the cooking duration as per the Semi-automatic cooking (without pre-
heating the oven). Before the duration time is set, press the End of Cooking button.
The display will show the current time + the cooking duration. Adjust this end time
with the Decrease button and Increase button. Once the correct value is reached, do
not press any buttons for 5 seconds and the values will lock in. The oven will turn off
and the display will show the current time and “A”. Place the food in the oven now.
When the start time is reached, the oven will turn on, with the Cooking Duration icon
will be lit. The Oven will cook for the set duration until the end time is reached, at
which point the oven will stop and the buzzer will sound. Turn the Oven Function
control knob and Thermostat control knob to off and deactivate the buzzer.
It is not possible to make adjustments easily to this function, and is easier to reset
and start again. To view the remaining time to the start time and the cooking end
time, press the Cooking Duration button and End of Cooking button in quick
succession.

14

Induction Cooktop
Note: The control knob decals
are printed on the bezels at the
base of each control knob.
The cooktop inductive cooking
zones are each controlled by a
control knob on the front panel
(either side of the oven control
knobs). Each cooking zone is
represented by a filled in
rectangle on the decal just above
the control knob.
LO : Heat maintenance
position.
MED : Heating in low temperature position.
HI : Cooking, frying and boiling position.
Position the control knob so the indicator is pointing upwards (off). Rotate the
control knob clockwise to increase the power delivered from the cooking zone.
Rotate the control knob anti-clockwise to reduce the power delivered from the
cooking zone. There are 9 power levels for each cooking zone.
To use a cooking zone, place a correctly sized utensil (it should be the same size or
slightly smaller than the decal on the glass) centrally on the cooking zone and adjust
the power level with the control knob. The power level will be displayed at the front
centre of the glass panel. If the utensil is made from incorrect material, too small or
not centred, the display will show a “U”.
When a cooking zone is turned off, the residual heat indicator (H) turns on. This will
turn off after the glass above the cooking zone cools down. Do not touch the glass
around the cooking zones during or after cooking until the residual heat indicator
turns off, as the glass may remain hot for some time.
Only use pots and pans with flat base and designed for use with induction cookops.
Always centre the pans on the cooking zones.

15

Deep-frying safety requirements:
 Use a deep pan, large enough to completely cover the appropriate heating
area.
 Never fill the pan more than one-third full of oil.
 Never leave oil unattended during the heating or cooking period.
 Never try to fry too much food at a time, especially frozen food. This only
lowers the temperature of the oil and results in greasy food.
 Always dry food thoroughly before frying and lower it slowly into the hot oil.
 Frozen foods in particular will cause frothing and spitting, if added to quickly.
 Keep the outside of the pan clean and free from streaks of oil or fat.
Never: Use gauze, metal pan diffusers, asbestos mats and stands e.g. Wok stands -
they can overheat. Use utensils with skirts or rims e.g. buckets and some kettles.
Use badly dented or distorted pans. Drag or slide utensils along the glass cooktop
surface.
Ensure pan handles are positioned safely and away from heat sources. Always lift
pans, do not drag. Always use pan lids except when frying. Deal with spillages
immediately but with care.
DO NOT:
 Use the cooktop as a worktop surface as damage may occur to the glass.
 Leave any utensils, food or combustible items on the cooktop when it is not in
use.
 Place aluminium or plastic foil or plastic containers on the cooktop. We
recommend not placing large preserving pans or fish kettles across two
heating areas.
 Use glass ceramic utensils.











16

Cleaning the appliance
Before each cleaning disconnect the cooker from the electricity. To assure the long
life of the appliance, it shall be thoroughly cleaned frequently.
Wait until the oven has cooled before removing the wire shelves wash them
separately in warm soapy water and dry thoroughly.
Wash the interior of the oven with hot soapy water and wipe down with a damp
cloth.
Leave the door open until the interior has dried before replacing the wire shelves.
Clean the oven after each use especially after roasting or grilling this will prevent spilt
or splattered food debris burning and becoming difficult to remove.
Do not use abrasive pads to clean the interior of the oven as this may remove the
enamel, which will affect the efficiency of your oven.
Do not use harsh, abrasive cleaners or sharp metal scrapers to clean the oven door
glass or the cooktop since they can scratch the surface which may result shattering
of the glass.
You should regularly wipe over the control panel oven door and oven sides using a
soft cloth and mild liquid detergent as spilt liquids may damage the enamel.
Wash enamelled or chrome plated parts of the oven with warm soapy water or with
nonabrasive detergents. Never use abrasive pads to clean enamelled, chromed or
stainless steel surfaces.
When using commercially available stainless steel cleaning products avoid cleaning
any lettering or symbols, as they can become damaged.
The oven comes with catalytic panels for easier cleaning. They are coated in a
special, micro-porous catalytic enamel which oxidises and gradually vaporises
splashes of grease and oil at cooking temperatures above 200° C .If the oven is not
clean after cooking fatty foods, operate the empty oven for 60mins (max.) at
maximum temperature on function fan forced or fan assist.
Never wash or clean self-cleaning panels with abrasive, acid, or alkaline products.
Dust any residue off the cold panels every month or so to keep them working at
maximum efficiency.
To remove the wire side shelves, use a screwdriver to remove the bottom positioning
screw and rotate out of the holes in the oven sides. To replace, repeat process in
reverse.
To remove the catalytic panels (on both sides), first remove the wire side shelves.
Use a screwdriver to remove the positioning screw at the bottom of the catalytic
panel and rotate up out of the top positioning brackets. Replace by repeating the
process in reverse.

17

Troubleshooting
If the oven does not operate:
 The oven may be off at your switched outlet.
 The timer may not be set to the manual function or have the timer set to
function.
If the interior lighting lamp does not light:
 The lamp may be defective. If defective, you can change it following the
instructions within this manual.
If the catalytic panels stop working:
 Over time the catalytic panels become less effective. Replace.
Cooking (if lower or upper part does not cook equally):
 Control the shelf locations, cooking period and heat values according to the
manual.
Unit smoking when first used:
 This is a result of protective oils being removed and is to be expected with a
first use.
Condensation build-up on the oven door:
 Clean off with dry soft cloth.
Inductive cooktop error codes:
 F3-F8 – Temperature sensor failure – contact Service Centre.
 F9-FE – IGBT temperature sensor failure – contact Service Centre.
 E1-E2 – Abnormal input Voltage – check power supply.
 E3-E4 – Abnormal internal temperatures – check utensil positions.
 E5-E6 – High temperature within cooking zone – allow to cool and restart.
If you still have any problems with your product, please call your Authorised Service
Centre.

18

Oven Lamp Replacement
Switch off and disconnect the power from the oven. Ensure that the internal parts
have cooled down before touching them.
Remove the lamp cover by turning it counter clockwise note it may be stiff remove
the bulb by turning it counter clockwise.
Insert the new bulb, which should be 300 C resistant (E14, AC220V-240V, 25W). For
replacement bulbs contact your local service centre. Re fit the cover.
If in any doubt, consult a qualified electrician for help.
WARNING – Ensure the appliance is switched off before relacing the lamp to avoid
the possibility or electric shock and the appliance is fully cold, before removing the
lamp lens. The appliance must be electrically isolated before any maintenance can
be performed.















19

Voltage and Frequency of Power Supply:
Refer to rating label
HOTPLATE RATING
160mm induction x 2 (RR, LF) 1500W each
180mm induction x 2 (RF, LR) 2000W each
OVEN RATING
Top element 950W
Bottom element 1100W
Grilling element 2000W
Rear turbo element 2000W
Fan motor 33W
Lamp 25W
Capacity 65L
The appliance is supplied with one wire shelf and one oven tray. Each shelf and tray
comes with a built-in safety feature to help minimise them being accidentally pulled
fully out. This comes in the way as a “step”, positioned at the rear of the shelf or tray.
There are 7 shelf positions (including the telescopic rails).
To fit them into the oven, push the shelf or tray part way into the oven at an angle,
then fully insert. To remove, repeat the process in reverse.
The oven comes with one set of fixed position telescopic rails (second position from
the bottom). Telescopic rails allow you to extend the oven tray further out of the oven
cavity for ease of handling. To use, extend the rails out fully and place the baking
dish on the rails with the rear edge touching the back stops of the rails and the front
edge allocated by the rail pins. Push fully in to cook and fully out to access the
baking dish. Do not exert excess pressure on the telescopic rails when extended.











20


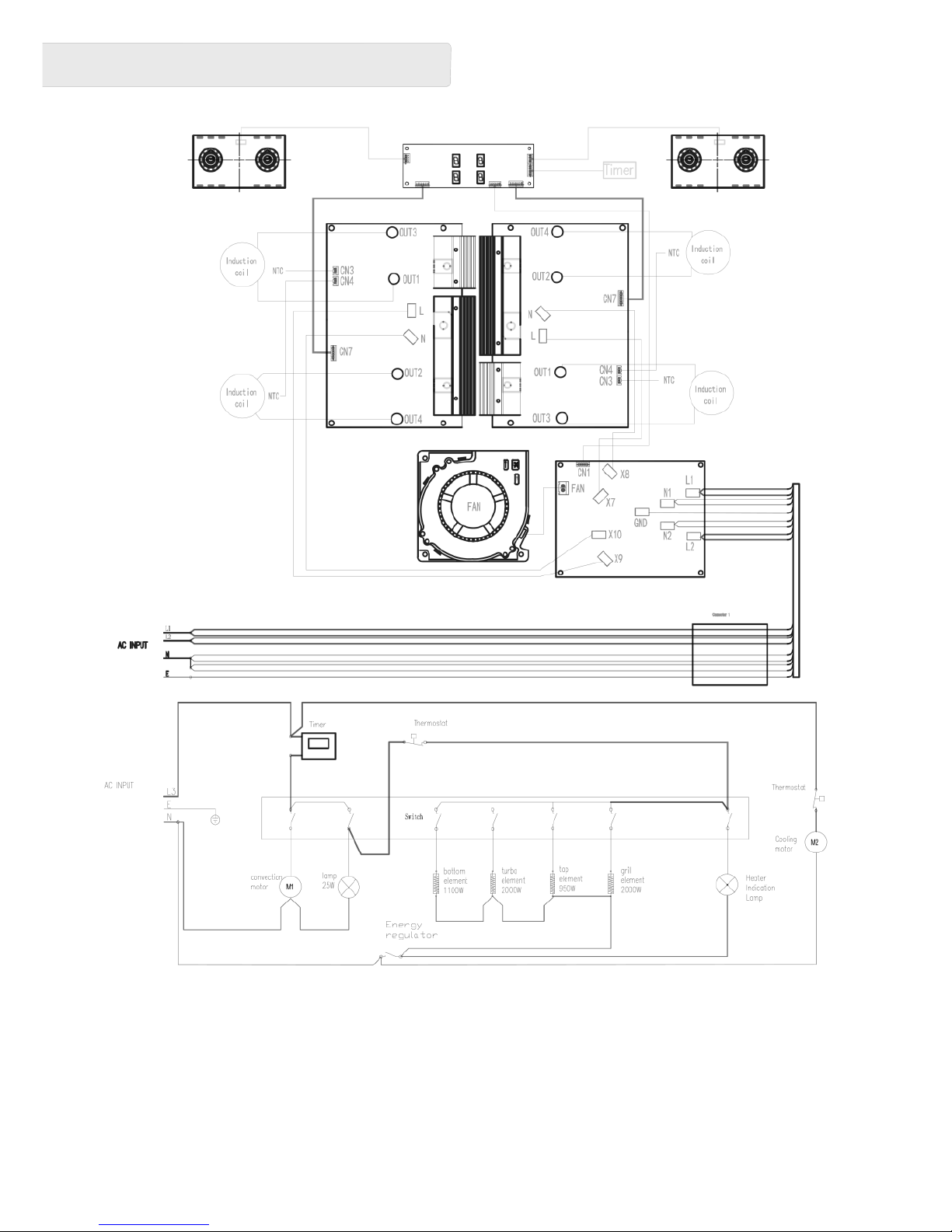

Wiring diagram























