Omega BLADE Series User manual

NOTICE: The manufacturer will accept no responsibility for any electrical damage resulting from
improper installation of this product, be that either damage to the vehicle itself or to the installed
device. This device must be installed by a certified technician. This guide has been written for
properly trained technicians; a certain level of skill & knowledge is therefore assumed. Please
reviewtheInstallation Guide carefullybefore beginning any work.
!
The brand names and logos found in this guide are property of their respective owners. Automotive Data Solutions Inc. © 2015
U.S. PATENT NO. 8,856,780
Automotive Data Solutions Inc.
INSTALL GUIDE
OL-BLADE-AL(DL)-GM4-EN
AvAiLABLE fOr: OL-BLADE-AL
GM4
Rev. Date: July 14, 2015
Doc. No.: ##22406##
20150714
Alarms & Remote Start

U.S. Patent No. 8,856,780
INSTALL TYPE SELECTION
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS DATA/MUX ACCESSORY CTRL DATA/MUX STARTER CTRL ARM OEM ALARM DISARM OEM ALARM DOOR LOCK DOOR UNLOCK PRIORITY UNLOCK TRUNK/HATCH RELEASE RAP SHUTDOWN CTRL
CHEVROLET
Classic* 04-05 2 • • • • • • • •
Colorado 04-08 3 • • • • • • • •
Colorado 09-12 4 • • • • • • • •
Equinox 05-06 2 • • • • • • • •
Malibu 97-03 2 • • • • • • • •
GMC
Canyon 04-08 3 • • • • • • • •
Canyon 09-12 4 • • • • • • • •
HUMMER
H3 06-08 3 • • • • • • • •
H3 09 4 • • • • • • • •
ISUZU
I-280 05-06 3 • • • • • • • •
I-290 07-08 3 • • • • • • • •
I-290 09 4 • • • • • • • •
I-350 05-06 3 • • • • • • • •
I-370 07-08 3 • • • • • • • •
I-370 09 4 • • • • • • • •
OLDSMOBILE
Cutlass 97-99 2 • • • • • • • •
PONTIAC
Torrent 06 2 • • • • • • • •
SATURN
Ion 03-07 1 • • • • • • •
L series 00-05 2 • • • • • • • •
Vue 02-07 2 • • • • • • • •
*Same model generation as the 97-03 Malibu.
Page 2 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##

U.S. Patent No. 8,856,780
TYPE 1 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
SATURN
Ion 03-07
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Passlock ~ ~ 06 pin 05 White ~ Ignition switch ~
Accessory ~ ~ 06 pin 04 Brown (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 DkBlue (+) Ignition switch ~
Page 3 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##

U.S. Patent No. 8,856,780
TYPE 1 - WIRING DIAGRAM
161514131211109
87654321
123456 45
2
BROWN/RED (NC)BROWN/RED (NC)
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW - PASSLOCK
YELLOW - PASSLOCK
BROWN/YELLOW (NC)
BROWN/YELLOW (NC)
ORANGE/BLACK (NC)ORANGE/BLACK (NC)
ORANGE/WHITE (NC)
ORANGE/WHITE (NC)
ORANGE - DATA (J1850)
ORANGE - DATA (J1850)
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)
BLUE/YELLOW (NC)
GREEN/RED (NC)
GREEN/RED (NC)
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
PINK - ACCESSORY (+) INPUT
PINK - ACCESSORY (+) INPUT
WHITE/BLACK - PASSLOCK CONNECTOR SIDE
WHITE/BLACK - PASSLOCK CONNECTOR SIDE
WHITE/RED - PASSLOCK VEHICLE SIDE
WHITE/RED - PASSLOCK VEHICLE SIDE
WHITE (NC)
WHITE (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
DATA
PASSLOCK
ACCESSORY (+)
REMOTE STARTER NOTE
STANDARD 12 VOLT, IGNITION AND ACCESSORY,
STILL REQUIRED FROM THE REMOTE STARTER.
MULTIPLEX CIRCUIT IS CONTROLLED FROM
MODULE USING DATA, THEREFORE NO ADDITIONAL
RELAYS OR RESISTORS REQUIRED.
OBDII CONNECTOR LOCATED
UNDER DRIVER SIDE DASH
MAIN IGNITION HARNESS CONNECTOR
LOCATED AT IGNITION SWITCH
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 4 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##

U.S. Patent No. 8,856,780
TYPE 2 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
CHEVROLET
Classic 04-05
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Ground ~ ~ ~ ~ Black (-) Ignition switch ~
Passlock (1 to 4 Volts) ~ ~ ~ ~ Yellow (+) Ignition switch ~
Keysense ~ ~ ~ ~ LtGreen (-) Ignition switch ~
Equinox 05-06
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Ground ~ ~ ~ ~ Black (-) Ignition switch ~
Passlock (1 to 4 Volts) ~ ~ ~ ~ Yellow (+) Ignition switch ~
Keysense ~ ~ ~ ~ LtGreen (-) Ignition switch ~
Malibu 97-03
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Ground ~ ~ ~ ~ Black (-) Ignition switch ~
Passlock (1 to 4 Volts) ~ ~ ~ ~ Yellow (+) Ignition switch ~
Keysense ~ ~ ~ ~ LtGreen (-) Ignition switch ~
OLDS
Cutlass 97-99
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Ground ~ ~ ~ ~ Black (-) Ignition switch ~
Passlock (1 to 4 Volts) ~ ~ ~ ~ Yellow (+) Ignition switch ~
Keysense ~ ~ ~ ~ LtGreen (-) Ignition switch ~
PONTIAC
Torrent 06
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Ground ~ ~ ~ ~ Black (-) Ignition switch ~
Passlock (1 to 4 Volts) ~ ~ ~ ~ Yellow (+) Ignition switch ~
Keysense ~ ~ ~ ~ LtGreen (-) Ignition switch ~
SATURN
L series 00-05
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Ground ~ ~ ~ ~ Black (-) Ignition switch ~
Passlock (1 to 4 Volts) ~ ~ ~ ~ Yellow (+) Ignition switch ~
Keysense ~ ~ ~ ~ LtGreen (-) Ignition switch ~
Vue 02-07
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Ground ~ ~ ~ ~ Black (-) Ignition switch ~
Passlock (1 to 4 Volts) ~ ~ ~ ~ Yellow (+) Ignition switch ~
Keysense ~ ~ ~ ~ LtGreen (-) Ignition switch ~
Page 5 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##

U.S. Patent No. 8,856,780
TYPE 2 - WIRING DIAGRAM
161514131211109
87654321 2
PASSLOCK 2
BROWN/RED (NC)BROWN/RED (NC)
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW - PASSLOCK
YELLOW - PASSLOCK
BROWN/YELLOW (NC)
BROWN/YELLOW (NC)
ORANGE/BLACK (NC)
ORANGE/BLACK (NC)
ORANGE/WHITE - RAP SHUTDOWN (-)
ORANGE/WHITE - RAP SHUTDOWN (-)
ORANGE - DATA (J1850)
ORANGE - DATA (J1850)
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW - KEYSENSE (-) OUTPUT
BLUE/YELLOW - KEYSENSE (-) OUTPUT
GREEN/RED (NC)
GREEN/RED (NC)
BLACK (NC)
BLACK (NC)
GRAY/RED (NC)
GRAY/RED (NC)
PINK - IGNITION (+) INPUT
WHITE/BLACK (NC)
WHITE/BLACK (NC)
WHITE/RED (NC)
WHITE/RED (NC)
WHITE (NC)
WHITE (NC)
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
NOTE
STANDARD 12 VOLT, IGNITION AND ACCESSORY,
STILL REQUIRED FROM THE REMOTE STARTER.
MULTIPLEX CIRCUIT IS CONTROLLED FROM
MODULE USING DATA, THEREFORE NO ADDITIONAL
RELAYS OR RESISTORS REQUIRED.
DATA
KEYSENSE (-)
(1 TO 4 VOLTS)
GROUND
TO WAKE UP BCM AND TURN OFF THE
RADIO AFTER REMOTE START SEQUENCE,
CONNECT RAP SHUTDOWN TO DRIVER
DOOR PIN. THE DRIVER DOOR PIN WIRE
IS GRAY/BLACK AND IS LOCATED
IN DRIVER’S KICK PANEL.
CONNECT KEYSENSE ONLY FOR THE FOLLOWING MODELS:
CHEVROLET EQUINOX, PONTIAC TORRENT, SATURN VUE
OBDII CONNECTOR LOCATED
UNDER DRIVER SIDE DASH
REMOTE STARTER
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 6 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##

U.S. Patent No. 8,856,780
TYPE 3 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
CHEVROLET
Colorado 04-08
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Dome Light ~ Green 14 pin 11 Purple (-) Behind head light switch ~
Door Pin ~ ~ ~ ~ Gray/Black (-) Driver kick panel ~
Passlock ~ ~ 06 pin 04 White/Blue or White ~ Ignition switch ~
Accessory ~ ~ 06 pin 01 White/Red (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 White/Green (+) Ignition switch ~
IPC Reference ~ ~ 06 pin 05 White/Yellow ~ Ignition switch ~
GMC
Canyon 04-08
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Dome Light ~ Green 14 pin 11 Purple (-) Behind head light switch ~
Door Pin ~ ~ ~ ~ Gray/Black (-) Driver kick panel ~
Passlock ~ ~ 06 pin 04 White/Blue or White ~ Ignition switch ~
Accessory ~ ~ 06 pin 01 White/Red (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 White/Green (+) Ignition switch ~
IPC Reference ~ ~ 06 pin 05 White/Yellow ~ Ignition switch ~
HUMMER
H3 06-08
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Dome Light ~ Green 14 pin 11 Purple (-) Behind head light switch ~
Door Pin ~ ~ ~ ~ Gray/Black (-) Driver kick panel ~
Passlock ~ ~ 06 pin 04 White/Blue or White ~ Ignition switch ~
Accessory ~ ~ 06 pin 01 White/Red (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 White/Green (+) Ignition switch ~
IPC Reference ~ ~ 06 pin 05 White/Yellow ~ Ignition switch ~
ISUZU
I-280 /
I-350 05-06
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Dome Light ~ Green 14 pin 11 Purple (-) Behind head light switch ~
Door Pin ~ ~ ~ ~ Gray/Black (-) Driver kick panel ~
Passlock ~ ~ 06 pin 04 White/Blue or White ~ Ignition switch ~
Accessory ~ ~ 06 pin 01 White/Red (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 White/Green (+) Ignition switch ~
IPC Reference ~ ~ 06 pin 05 White/Yellow ~ Ignition switch ~
I-290 /
I-370 07-08
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Dome Light ~ Green 14 pin 11 Purple (-) Behind head light switch ~
Door Pin ~ ~ ~ ~ Gray/Black (-) Driver kick panel ~
Passlock ~ ~ 06 pin 04 White/Blue or White ~ Ignition switch ~
Accessory ~ ~ 06 pin 01 White/Red (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 White/Green (+) Ignition switch ~
IPC Reference ~ ~ 06 pin 05 White/Yellow ~ Ignition switch ~
Page 7 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##

U.S. Patent No. 8,856,780

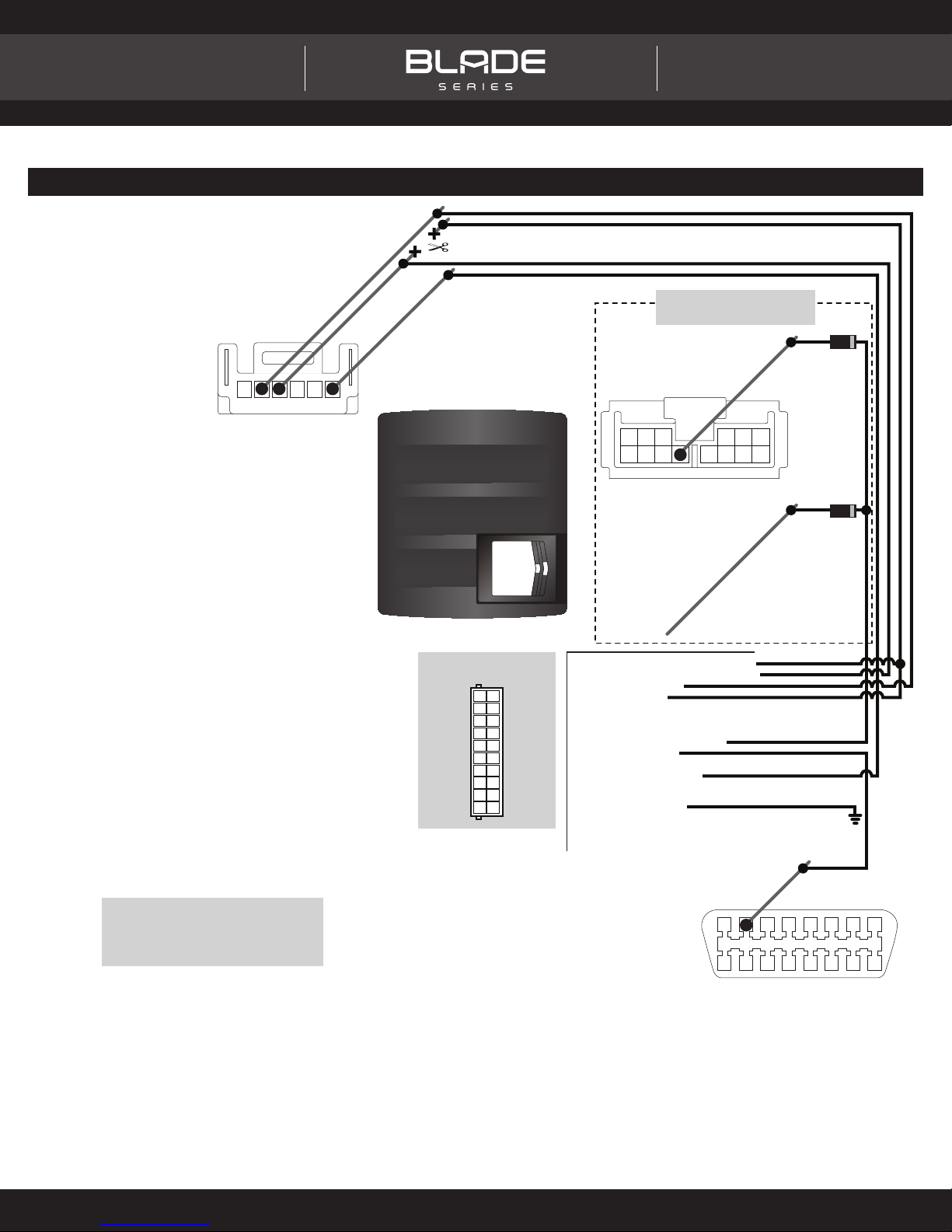

TYPE 3 - WIRING DIAGRAM
445566
778899
112233
10101111121213131414
161514131211109
87654321
123456 145
2
11
1N4001
DIODE
1N4001
DIODE
BLACK (NC)BLACK (NC)
ORANGE/WHITE - DOME/DOORS (-)
ORANGE/WHITE - DOME/DOORS (-)
REMOTE STARTER
DATA
DOME LIGHT (-)
DRIVER DOOR PIN (-)
PASSLOCK
IPC
ACCESSORY (+)
MAIN IGNITION HARNESS CONNECTOR
LOCATED AT IGNITION SWITCH
BROWN/RED (NC)
BROWN/RED (NC)
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW - PASSLOCK
YELLOW - PASSLOCK
BROWN/YELLOW (NC)
BROWN/YELLOW (NC)
ORANGE/BLACK (NC)ORANGE/BLACK (NC)
ORANGE - DATA (J1850)
ORANGE - DATA (J1850)
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)BLUE/YELLOW (NC)
GREEN/RED (NC)GREEN/RED (NC)
GRAY/RED - GROUND (-) INPUT
PINK - ACCESSORY (+) INPUT
PINK - ACCESSORY (+) INPUT
WHITE/BLACK - PASSLOCK VEHICLE SIDE
WHITE/BLACK - PASSLOCK VEHICLE SIDE
WHITE/RED - PASSLOCK CONNECTOR SIDE
WHITE/RED - PASSLOCK CONNECTOR SIDE
WHITE - IPC REFERENCE
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
NOTE
STANDARD 12 VOLT, IGNITION AND ACCESSORY,
STILL REQUIRED FROM THE REMOTE STARTER.
MULTIPLEX CIRCUIT IS CONTROLLED FROM
MODULE USING DATA, THEREFORE NO ADDITIONAL
RELAYS OR RESISTORS REQUIRED.
MANDATORY CONNECTIONS
FAILURE TO COMPLY MAY RESULT IN
PRODUCT MALFUNCTION
OBDII CONNECTOR LOCATED
UNDER DRIVER SIDE DASH
HEADLIGHT CONNECTOR
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 8 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##

U.S. Patent No. 8,856,780
TYPE 4 - WIRE CROSS REFERENCE CHART
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
CHEVROLET
Colorado 09-12
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Dome Light ~ Green 14 pin 11 Purple (-) Behind head light switch ~
Door Pin ~ ~ ~ ~ Gray/Black (-) Driver kick panel ~
Passlock ~ ~ 06 pin 04 White/Blue or White ~ Ignition switch ~
Accessory ~ ~ 06 pin 01 White/Red (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 White/Green (+) Ignition switch ~
IPC Reference ~ ~ 06 pin 05 White/Yellow ~ Ignition switch ~
GMC
Canyon 09-12
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Dome Light ~ Green 14 pin 11 Purple (-) Behind head light switch ~
Door Pin ~ ~ ~ ~ Gray/Black (-) Driver kick panel ~
Passlock ~ ~ 06 pin 04 White/Blue or White ~ Ignition switch ~
Accessory ~ ~ 06 pin 01 White/Red (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 White/Green (+) Ignition switch ~
IPC Reference ~ ~ 06 pin 05 White/Yellow ~ Ignition switch ~
HUMMER
H3 09
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Dome Light ~ Green 14 pin 11 Purple (-) Behind head light switch ~
Door Pin ~ ~ ~ ~ Gray/Black (-) Driver kick panel ~
Passlock ~ ~ 06 pin 04 White/Blue or White ~ Ignition switch ~
Accessory ~ ~ 06 pin 01 White/Red (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 White/Green (+) Ignition switch ~
IPC Reference ~ ~ 06 pin 05 White/Yellow ~ Ignition switch ~
ISUZU
I-290 09
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Dome Light ~ Green 14 pin 11 Purple (-) Behind head light switch ~
Door Pin ~ ~ ~ ~ Gray/Black (-) Driver kick panel ~
Passlock ~ ~ 06 pin 04 White/Blue or White ~ Ignition switch ~
Accessory ~ ~ 06 pin 01 White/Red (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 White/Green (+) Ignition switch ~
IPC Reference ~ ~ 06 pin 05 White/Yellow ~ Ignition switch ~
I-370 09
Data ~ ~ 16 pin 02 Purple (DATA) OBDII connector ~
Dome Light ~ Green 14 pin 11 Purple (-) Behind head light switch ~
Door Pin ~ ~ ~ ~ Gray/Black (-) Driver kick panel ~
Passlock ~ ~ 06 pin 04 White/Blue or White ~ Ignition switch ~
Accessory ~ ~ 06 pin 01 White/Red (+) Ignition switch ~
Ignition ~ ~ 06 pin 03 White/Green (+) Ignition switch ~
IPC Reference ~ ~ 06 pin 05 White/Yellow ~ Ignition switch ~
Page 9 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##

U.S. Patent No. 8,856,780
TYPE 4 - WIRING DIAGRAM
161514131211109
87654321
123456 145
2
445566
778899
112233
10101111121213131414 11
1N4001
DIODE
1N4001
DIODE
GREEN/RED - GROUND (-)GREEN/RED - GROUND (-)
BLACK (NC)
BLACK (NC)
ORANGE/WHITE - DOME/DOORS (-)
ORANGE/WHITE - DOME/DOORS (-)
REMOTE STARTER
BROWN/RED (NC)BROWN/RED (NC)
BLUE/RED (NC)
BLUE/RED (NC)
YELLOW - PASSLOCK
YELLOW - PASSLOCK
BROWN/YELLOW (NC)
BROWN/YELLOW (NC)
ORANGE/BLACK (NC)ORANGE/BLACK (NC)
ORANGE - DATA (J1850)
ORANGE - DATA (J1850)
PINK/BLACK (NC)
PINK/BLACK (NC)
BLUE/YELLOW (NC)BLUE/YELLOW (NC)
GRAY/RED (NC)
GRAY/RED (NC)
PINK - ACCESSORY (+) INPUT
PINK - ACCESSORY (+) INPUT
WHITE/BLACK - PASSLOCK VEHICLE SIDE
WHITE/BLACK - PASSLOCK VEHICLE SIDE
WHITE/RED - PASSLOCK CONNECTOR SIDE
WHITE/RED - PASSLOCK CONNECTOR SIDE
WHITE - IPC REFERENCE
GRAY/YELLOW (NC)
GRAY/YELLOW (NC)
DATA
PASSLOCK
IPC
ACCESSORY (+)
MAIN IGNITION HARNESS CONNECTOR
LOCATED AT IGNITION SWITCH
NOTE
STANDARD 12 VOLT, IGNITION AND ACCESSORY,
STILL REQUIRED FROM THE REMOTE STARTER.
MULTIPLEX CIRCUIT IS CONTROLLED FROM
MODULE USING DATA, THEREFORE NO ADDITIONAL
RELAYS OR RESISTORS REQUIRED.
OBDII CONNECTOR LOCATED
UNDER DRIVER SIDE DASH
DOME LIGHT (-)
DRIVER DOOR PIN (-)
MANDATORY CONNECTIONS
FAILURE TO COMPLY MAY RESULT IN
PRODUCT MALFUNCTION
HEADLIGHT CONNECTOR
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
GRAY/RED GRAY/YELLOW
BLUE/YELLOW
YELLOWGREEN/RED
BLUE/RED
NO WIREORANGE
ORANGE/WHITEORANGE/BLACK
BROWN/YELLOWBROWN/RED
BLACKNO WIRE
PINKPINK/BLACK
NO WIREWHITE
WHITE/BLACKWHITE/RED
*BLADE CONNECTOR
EXACT PIN-OUT
Page 10 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##

U.S. Patent No. 8,856,780
CARTRIDGE INSTALLATION
1Slide cartridge into unit. Notice
button under LED. 2Ready for Module Programming Procedure.
TYPE 1, 3 & 4 - MODULE PROGRAMMING PROCEDURE
7Turn key to OFF position.
OFF
5Turn key to Start position and
Hold for 3 seconds.
START
2Insert key into ignition.
Wait 3 seconds.
4Turn key to ON position.
Wait 3 seconds.
ON
3Turn key to Accessory position.
Wait 3 seconds.
ACC
1Close driver door.
Re-open driver door to wake up
data bus.
8Module Programming
Procedure completed.
6Release key from Start position
and return to ON position.
Wait, LED will turn solid BLUE
for 2 seconds.
ON
TYPE 2 - MODULE PROGRAMMING PROCEDURE
6Module Programming
Procedure completed.
5Turn key to OFF position.
OFF
2Insert key into ignition.
3Turn key to START position.
START
1Close driver door.
Re-open driver door to wake up
data bus.
4Wait, LED will turn solid BLUE
for 2 seconds.
(If after 15 seconds the LED did
not turn solid BLUE, press on
the programming button once.)
Page 11 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##

U.S. Patent No. 8,856,780
BLADE-AL PAGE 1-1
LED STATUS
DIAGNOSTICS
DURING PROGRAMMING DURING REMOTE START WITH IGNITION OFF
Flashing RED Missing/wrong information from
fi rmware or vehicle Incorrectly programmed Incorrectly programmed or connected
Solid RED Waiting for more vehicle information Incorrectly programmed Not programmed waiting for more
vehicle information
Flashing BLUE Additional steps required to complete
programming
Correctly programmed and
operational
False ground when running status
from remote starter
Solid BLUE then OFF Correctly programmed Reset in progress Reset in progress
OFF No activity or already programmed Invalid ground when running status
from remote starter
At rest and ready for a remote start
sequence
MODULE DIAGNOSTICS
FACTORY RESET PROCEDURE
5RECONNECT all connectors.
Repeat programming procedure.
!Failure to follow procedure may result with a DTC or a
CHECK ENGINE error message.
1DISCONNECT cartridge from
remote starter.
2PRESS AND HOLD programming
button while re-connecting
cartridge to remote starter.
3LED will fl ash red. Immediately
RELEASE programming button.
4LED will turn solid red for 2
seconds.
RESET COMPLETED.
IDENTIFY VEHICLE YEAR
1 Locate the Vehicle Identifi cation Number (VIN), identify the 10th
character then match it to its corresponding year.
4 Y 1 N53 A 5 T A L 8 D 5 R 0 X
Æ
A1980 L1990 Y2000 A2010
B1981 M1991 12001 B2011
C1982 N1992 22002 C2012
D1983 P1993 32003 D2013
E1984 R1994 42004 E2014
F1985 S1995 52005 F2015
G1986 T1996 62006 G2016
H1987 V1997 72007 H2017
J1988 W1998 82008 J2018
K1989 X1999 92009 K2019
Æ
XX-XX PAGE X-X
NOTICE
This product is protected by one or more of the following patents: U.S. LETTERS PATENT NO. 5,719,551; 6,011,460; 6,243,004; 6,249,216; 6,275,147; 6,297,731; 6,346,876; 6,392,534; 6,529,124; 6,696,927; 6,756,885; 6,756,886; 6,771,167; 6,812,829; 6,924,750;
7,010,402; 7,031,826; 7,046,126; 7,061,137; 7,068,153; 7,015,830; 7,205,679; 7,224,083; 7,369,936; 7,378,945; 7,489,233; 7,501,937; CANADIAN PATENT NO. 2,320,248; 2,415,023; 2,426,670; 2,414,991; 2,415,011; 2,415,027; 2,415,038; 2,415,041; 2,502,893; 2,451,490;
2,452,296; 2,451,487; EUROPEAN PATENT NO. 1,053,128; DE 69807-941T2; U.S. 20020145535; 20060129282; 20060129284; 20040017284; 20080030316; 20090079552; EP1500565; 1538038; 1538037;
PATENT PAGE X-X
Page 12 of 12 OL-BLADE-AL(DL)-GM4-EN 20150714
INSTALL GUIDE
Automotive Data Solutions Inc. © 2015
ALL IN ONE
General Motors
Doc. No.: ##22406##
