Omega Omegalink OL-RS-FO1 User manual

REVISION DATE
20160224
DOCUMENT NUMBER
NOTICE The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
U.S. Patent No. 8,856,780
INSTALL GUIDE
OEMFORSFO1BOLRSFO1EN
HARDWARE
OLRSFO1
ACCESSORIES
OLLOADER REQUIRED
FIRMWARE
OEMFORSFO1BOLRSFO1
Automotive Data Solutions Inc. © 2016
26841
Alarms & Remote Start

U.S. Patent No. 8,856,780
VEHICLE LIST - 1 OF 1
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS 3X LOCK START/STANDALONE MOD. DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM POWER LIFTGATE TRUNK/HATCH RELEASE RAP SHUTDOWN CTRL HOOD STATUS (W/OEM SW) DOOR STATUS BRAKE PEDAL STATUS TACHOMETER STATUS GLOW PLUGS STATUS PARKING LIGHT CTRL
FORD
Edge STD key AT 11-14 1 • • • • • • • • • • • • •
Explorer STD key AT 11-15 1 • • • • • • • • • • • • •
F-150 STD key AT 11-14 2 • • • • • • • • • • • •
F-Super Duty STD key AT 11-16 2 • • • • • • • • • • • • •
Fiesta STD key AT 14-16 3 • • • • • • • • • • • • •
Flex STD key AT 13-15 2 • • • • • • • • • • • • •
Taurus STD key AT 13-15 2 • • • • • • • • • • • • •
LINCOLN
MKX STD key AT 11-12 1 • • • • • • • • • • • • •
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 2 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
BOX CONTENTS - 1 OF 1
MS1MS1
MS2MS2
VS2VS2
VS1VS1
VS4VS4
VS3VS3
3
6
4
1
2
5
C
B
A
F
G
E
D
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
7
9
3
10
8
11
12
6
4
1
2
5
2
1
3
7
9
3
10
8
6
4
12
5
2
1
3
4
2
1
3
4

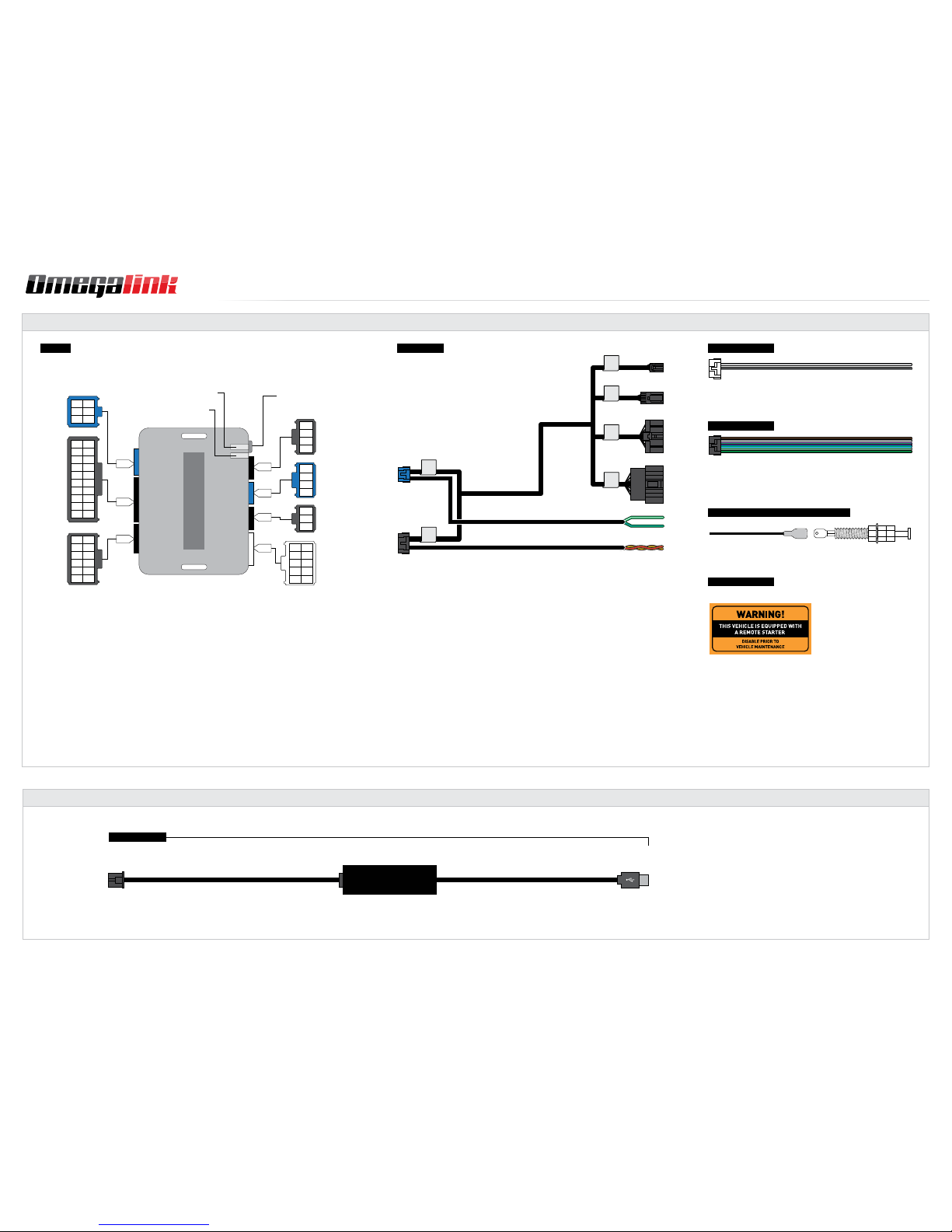

BOX CONTENTS
T-HARNESS 1
AFTERMARKET HOOD SWITCH AND CABLE
WARNING STICKER
10 PIN CONNECTOR
12 PIN CONNECTOR
BLUE
PROGRAMMING
BUTTON
LED 2
LED 1
MODULE
BLACK
BLACK
BLACK
RF PORT/
WEBLINK PORT
BLACK
BLUE
TELEMATIC
PORT
WHITE
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
WEBLINK PORT
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 3 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
F
C
D
E
H
A
B
G

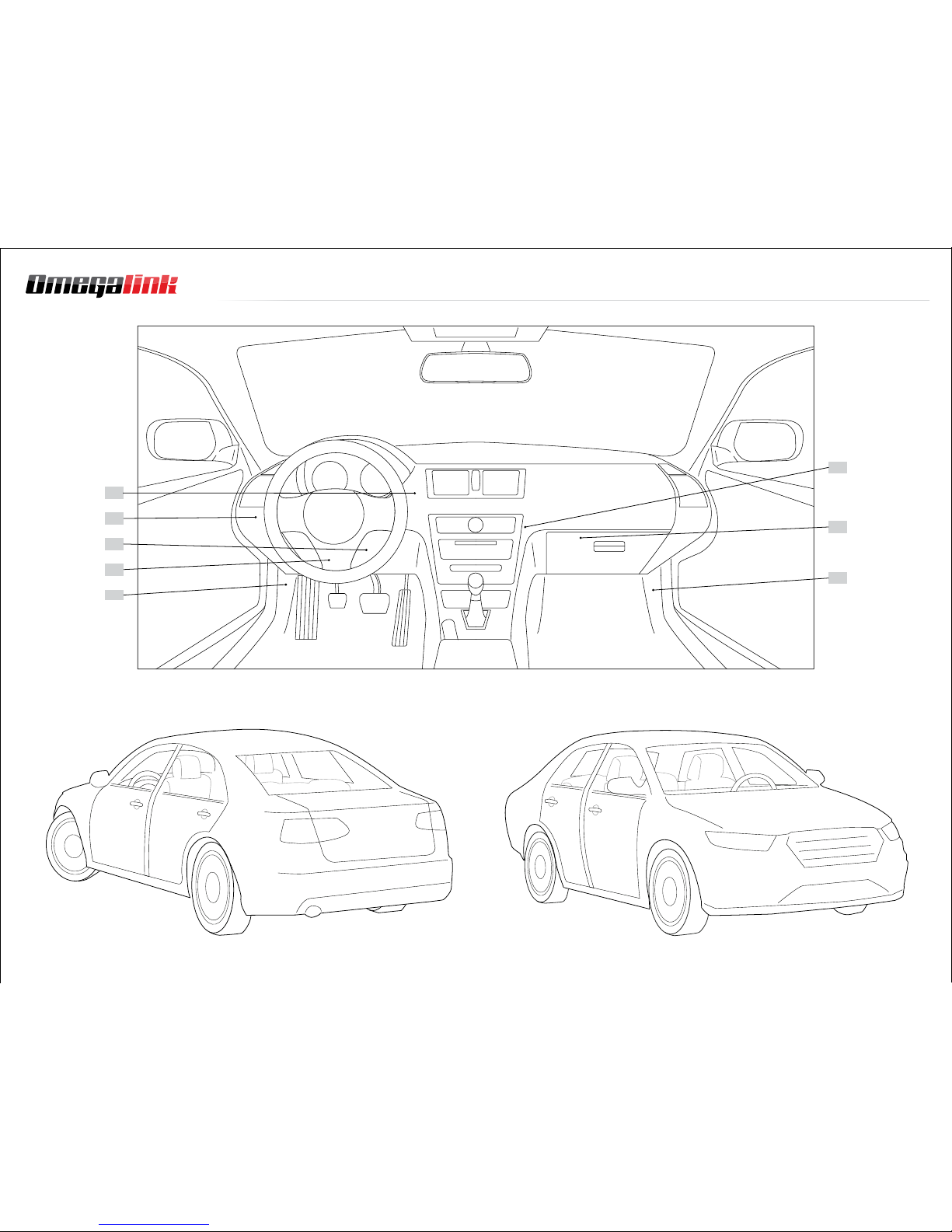

COMPONENT LOCATOR - 1 OF 1
INTERIOR VIEW
DRIVER SIDE VIEW PASSENGER SIDE VIEW
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 4 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
TYPE 1 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
FORD
Edge
STD key AT 11-14
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, driver side dash H
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, driver side dash H
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, driver side dash H
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, driver side dash H
Trunk Release C2269 Black 06 pin 06 Gray/Yellow (-) At liftgate switch in glovebox D
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, driver side dash H
Explorer
STD key AT 11-15
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, driver side dash H
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, driver side dash H
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, driver side dash H
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, driver side dash H
Trunk Release C2114 Black 08 pin 07 Gray/Yellow (-) At liftgate switch on driver side dash A
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, driver side dash H
LINCOLN
MKX
STD key AT 11-12
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, driver side dash H
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, driver side dash H
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, driver side dash H
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, driver side dash H
Trunk Release C2269 Black 06 pin 06 Gray/Yellow (-) At liftgate switch in glovebox D
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, driver side dash H
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 5 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
10
1111
12 13 14 15 16
1 2
33 45678
9
86
30
87
87A
85
MS1MS1
MS2MS2
A
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
3
6
4
1
2
5
C
7
9
3
10
8
11
12
6
4
1
2
5
10 AMPS
VS2VS2
VS1VS1
VS4VS4
VS3VS3
C2280B
C2280E
C2280C
10111213
14151617181920212223242526
272829303132
33343536373839
123456789
40414243444546474849505152
10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25 26
12345678 9
10
12345
67 8 9
C
B
A
F
G
E
D
CANL - 11
CANH - 03
OBDII
BROWN/RED
BROWN/YELLOW
GREEN/WHITE
GREEN/PURPLE
DRIVER DOOR PIN (OPEN) - 09
LOCK (-) - 06
12V (+)
PARKING LIGHT (+) - 06
HORN (-) - 33
UNLOCK (-) - 08
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
03 EMPTY
04 EMPTY
05 EMPTY
07 EMPTY
09 EMPTY
10 EMPTY
06 PURPLE/GREEN - LOCK (-) OUTPUT
08 BLUE/GREEN - TRUNK (-) OUTPUT
11 GRAY/GREEN - HORN (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
OPTIONAL
* SEE NEXT PAGE FOR WIRE CONNECTION

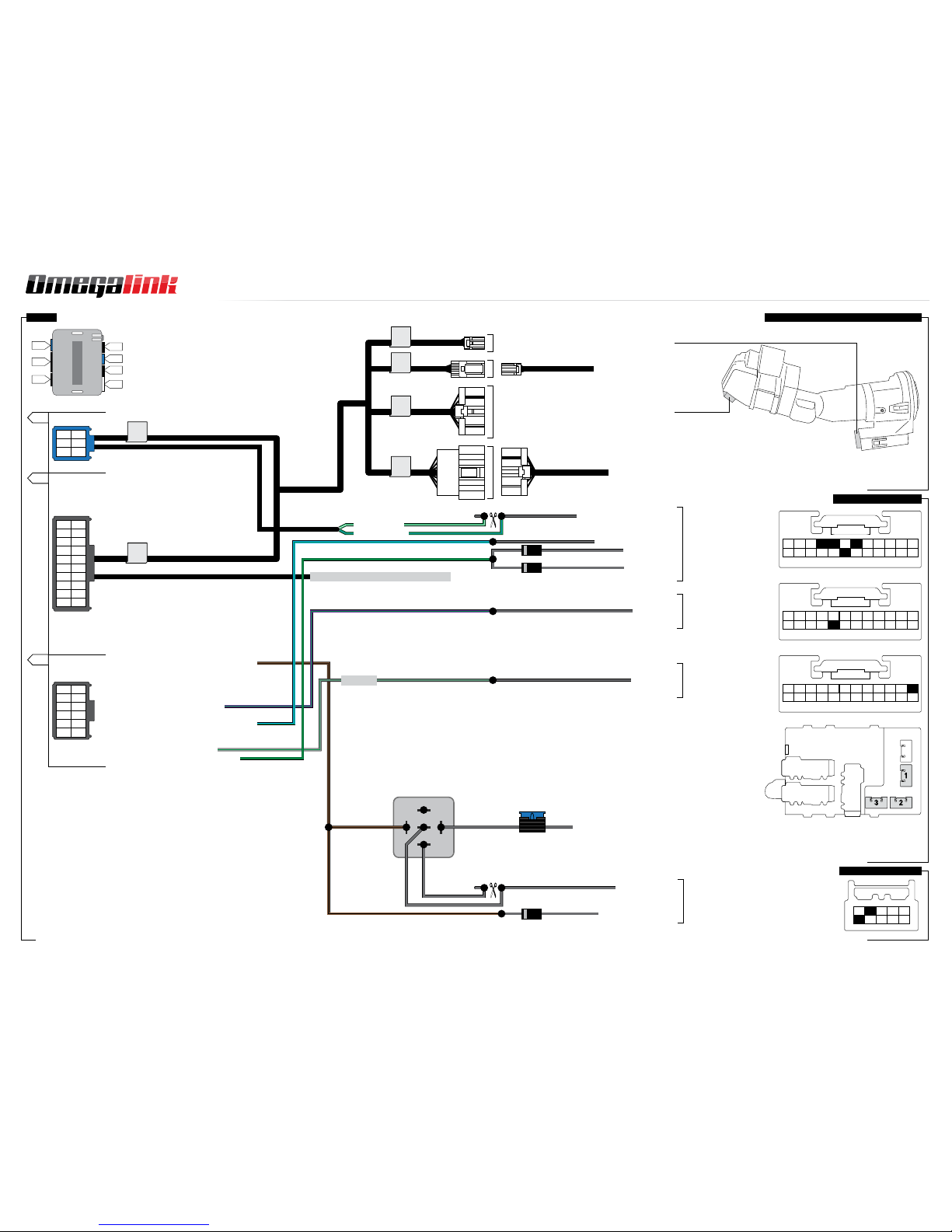

TYPE 1 - WIRING DIAGRAM - 1 OF 2
BCM (DRIVER SIDE DASH)BCM (DRIVER SIDE DASH)
MODULE
IMMOBILIZER CONNECTOR
IGNITION CONNECTOR
IGNITION HARNESS
IMMOBILIZER HARNESS
C2280E
GRAY
C2280C
BLACK
C2280B
BLACK
IGNITION SWITCH (UNDER STEERING COLUMN)
TELEMATIC PORT
RF PORT/WEBLINK PORT
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 6 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
C
7
9
3
10
8
11
12
6
4
1
2
5
12345678
D
7
9
3
10
8
6
4
1
2
5
123
4 5 6
C
B
A
F
G
E
D
TRUNK RELEASE (-)
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
03 EMPTY
04 EMPTY
05 EMPTY
07 EMPTY
09 EMPTY
10 EMPTY
06 PURPLE/GREEN - LOCK (-) OUTPUT
08 BLUE/GREEN - TRUNK (-) OUTPUT
11 GRAY/GREEN - HORN (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
* SEE PREVIOUS PAGE FOR WIRE CONNECTION
* SEE PREVIOUS PAGE FOR WIRE CONNECTION
* SEE PREVIOUS PAGE FOR
WIRE CONNECTION
OR
LIFTGATE SWITCH
LIFTGATE SWITCH
C2269 - BLACK
C2114 - BLACK

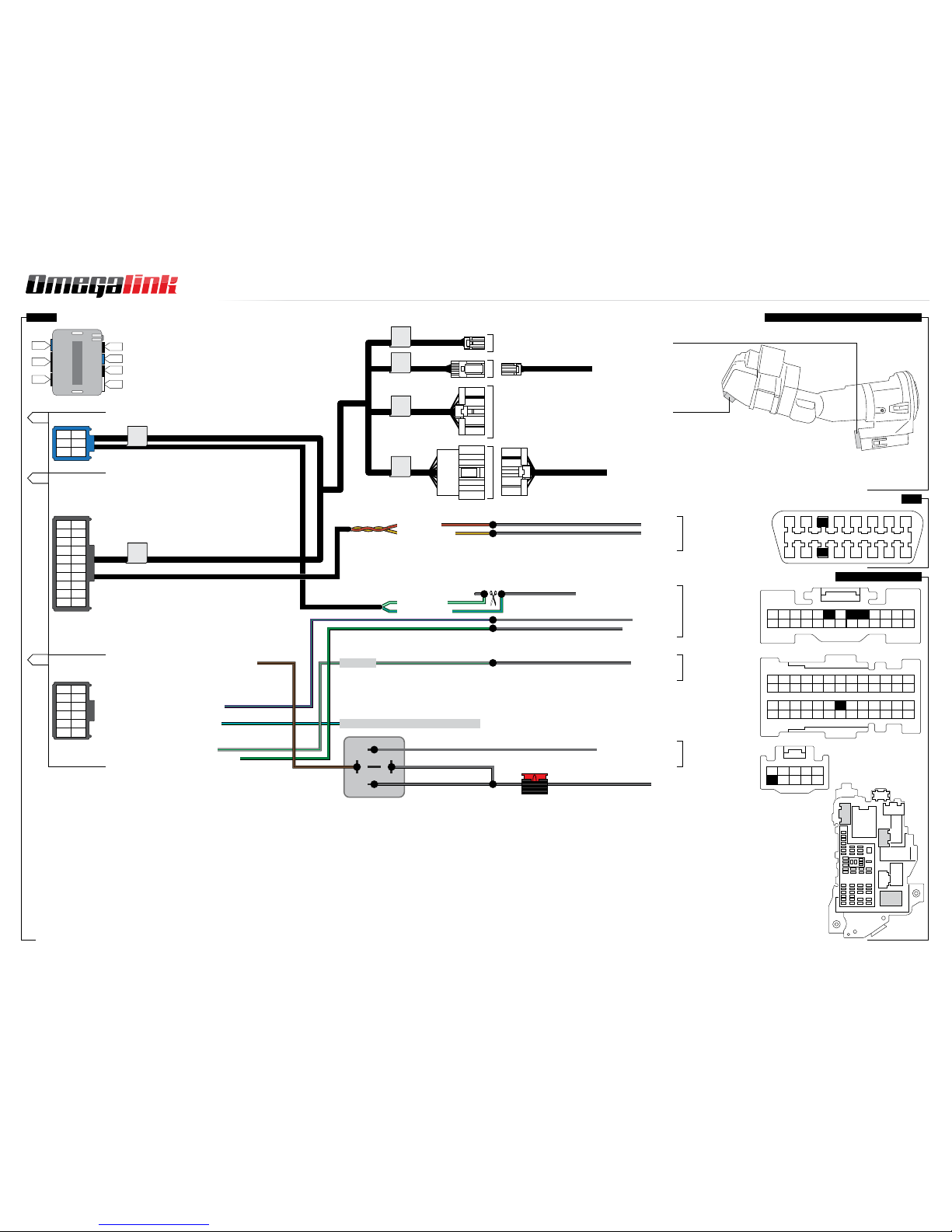

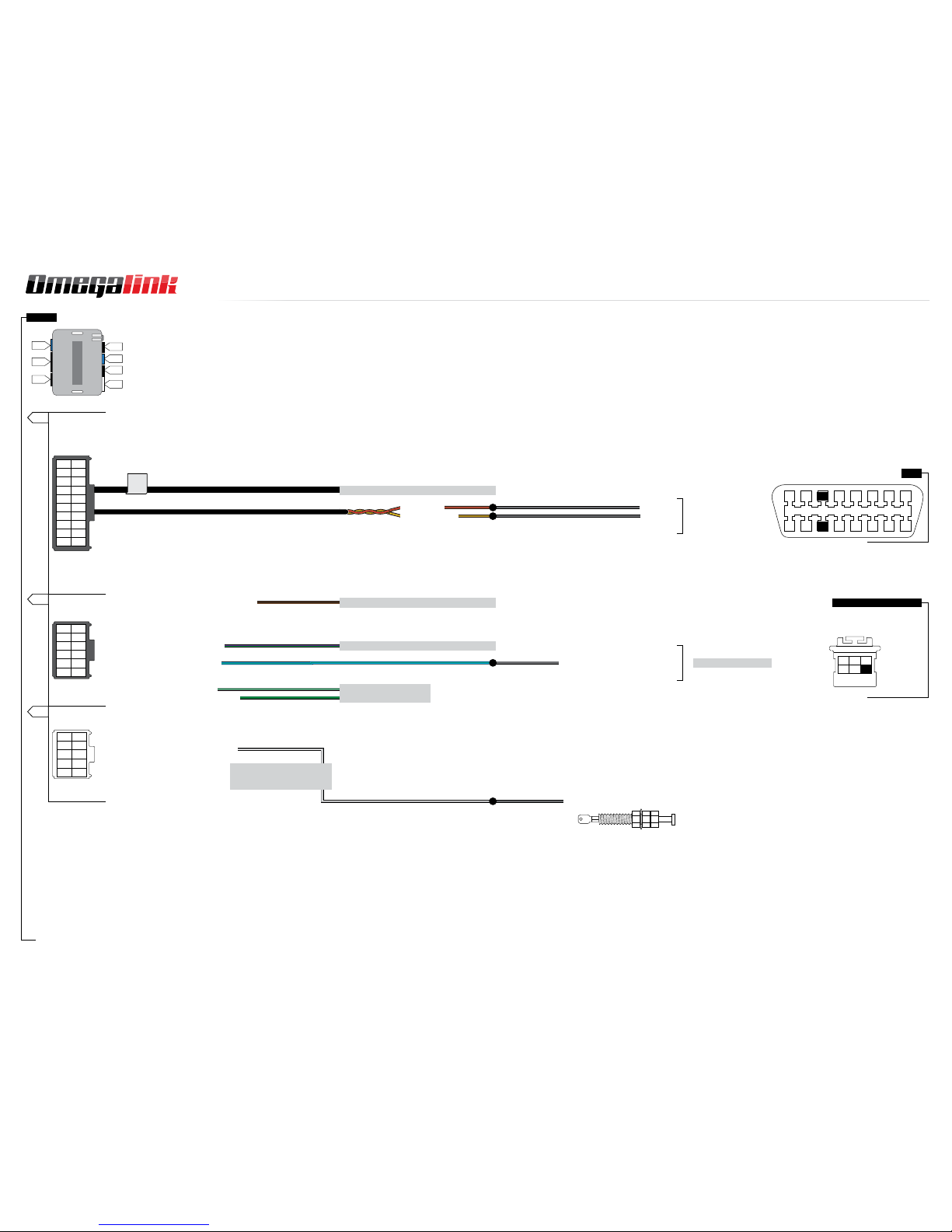

TYPE 1 - WIRING DIAGRAM - 2 OF 2
MODULE
REFER TO WIRE CHART
04 GRAY/WHITE - HOOD STATUS (-) INPUT
AFTERMARKET HOOD SWITCH (-)
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
TELEMATIC PORT
RF PORT/WEBLINK PORT
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 7 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
TYPE 2 - WIRE CHART - 1 OF 2
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
FORD
F-150
STD key AT 11-14
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, passenger side dash E
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, passenger side dash* E
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, passenger side dash* E
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, passenger side dash* E
Trunk Release ~ ~ ~ ~ ~ ~ ~ ~
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, passenger side dash E
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
F-Super Duty
STD key AT 11-16
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, passenger side dash E
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, passenger side dash* E
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, passenger side dash* E
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, passenger side dash* E
Trunk Release ~ ~ ~ ~ ~ ~ ~ ~
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, passenger side dash E
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
Flex
STD key AT 13-15
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, driver side dash B
Driver Door Pin C2280C Black 26 pin 09 Purple (OPEN) BCM, driver side dash B
Lock C2280C Black 26 pin 06 Blue (-) BCM, driver side dash B
Unlock C2280C Black 26 pin 08 Yellow (-) BCM, driver side dash B
Trunk Release C2269 Black 06 pin 06 Gray (-) At liftgate switch on driver side dash A
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, driver side dash B
Auto Light C205 Gray 10 pin 04 Purple/Green (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
* Wire also found in driver door harness.
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 8 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
TYPE 2 - WIRE CHART - 2 OF 2
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
FORD
Taurus
STD key AT 13-15
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector G
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector G
Horn C2280B Black 52 pin 33 Purple/Green (-) BCM, driver side dash B
Driver Door Pin C2280C Black 26 pin 09 Green/Purple (OPEN) BCM, driver side dash B
Lock C2280C Black 26 pin 06 Blue/Green (-) BCM, driver side dash B
Unlock C2280C Black 26 pin 08 Yellow/Purple (-) BCM, driver side dash B
Trunk Release C2269 Black 06 pin 06 Brown (-) At trunk release switch on center console C
Parking Light C2280E Gray 10 pin 06 Yellow/Blue (+) BCM, driver side dash B
Auto Light C205 Gray 10 pin 04 Purple/Green or Purple (OPEN) Headlight switch A
Light Off C205 Gray 10 pin 06 White/Purple or White (-) Headlight switch A
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 9 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
86
30
87A
87
85 86
30
87
87A
85
VS2VS2
VS1VS1
VS4VS4
VS3VS3
86
30
87
87A
85
MS1MS1
MS2MS2
A
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
3
6
4
1
2
5
C
7
9
3
10
8
11
12
6
4
1
2
5
10
12345
67 8 9
C2280B
C2280E
C2280C
10111213
14151617181920212223242526
272829303132
33343536373839
123456789
40414243444546474849505152
10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25 26
12345678 9
10
12345
67 8 9
1N4001
DIODE
10 AMPS
10 AMPS
C
B
A
F
G
E
D
IMMOBILIZER CONNECTOR
IGNITION CONNECTOR
IGNITION HARNESS
IMMOBILIZER HARNESS
IGNITION SWITCH (UNDER STEERING COLUMN)
PARKING LIGHT (+) - 06
DRIVER DOOR PIN (OPEN) - 09
12V (+)
PARKING LIGHT (+) - 06
HORN (-) - 33
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
03 EMPTY
04 EMPTY
05 EMPTY
07 EMPTY
09 EMPTY
10 EMPTY
06 PURPLE/GREEN - LOCK (-) OUTPUT
08 BLUE/GREEN - TRUNK (-) OUTPUT
11 GRAY/GREEN - HORN (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
OPTIONAL
OR
WITHOUT
AUTO LIGHT
WITH
AUTO LIGHT
TYPE 2 - WIRING DIAGRAM - 1 OF 2
PARKING LIGHT SWITCH
MODULE
GREEN/WHITE
GREEN/PURPLE
LOCK (-) - 06
UNLOCK (-) - 08
C205
GRAY
* SEE NEXT PAGE FOR WIRE CONNECTION
* SEE NEXT PAGE FOR WIRE CONNECTION
BCM (DRIVER SIDE DASH)
BCM (DRIVER SIDE DASH)
C2280E
GRAY
C2280C
BLACK
C2280B
BLACK
LIGHT OFF (-) - 06
AUTO LIGHT (OPEN) - 04
12V (+)
TELEMATIC PORT
RF PORT/WEBLINK PORT
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 10 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
MS1MS1
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
10 11 12 13 14 15 16
1 2 345678
9
C
7
9
3
10
8
11
12
6
4
1
2
5
D
7
9
3
10
8
6
4
1
2
5
123
4 5 6
C
B
A
F
G
E
D
CANL - 11
CANH - 03
BROWN/RED
BROWN/YELLOW
OBDII
TYPE 2 - WIRING DIAGRAM - 2 OF 2
TRUNK/LIFTGATE RELEASE (-) - 06
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
03 EMPTY
04 EMPTY
05 EMPTY
07 EMPTY
09 EMPTY
10 EMPTY
06 PURPLE/GREEN - LOCK (-) OUTPUT
08 BLUE/GREEN - TRUNK (-) OUTPUT
11 GRAY/GREEN - HORN (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
* SEE PREVIOUS PAGE FOR WIRE CONNECTION
* SEE PREVIOUS PAGE FOR WIRE CONNECTION
* SEE PREVIOUS PAGE FOR WIRE CONNECTION
* SEE PREVIOUS PAGE FOR
WIRE CONNECTION
REFER TO WIRE CHART
TRUNK/LIFTGATE SWITCH
TRUNK/LIFTGATE SWITCH
C2269 - BLACK
MODULE
03 GRAY/BLACK (NC)
04 GRAY/WHITE - HOOD STATUS (-) INPUT
AFTERMARKET HOOD SWITCH (-)
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
TELEMATIC PORT
RF PORT/WEBLINK PORT
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 11 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
TYPE 3 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
FORD
Fiesta
STD key
AT
14-16
CanH C251 Black 16 pin 03 Gray/Orange (DATA) OBDII connector B
CanL C251 Black 16 pin 11 Purple/Orange (DATA) OBDII connector B
Driver Door Pin C2280G Gray 24 pin 19 Green/Purple (OPEN) BCM, behind glove box D
Horn C2280E Green 24 pin 01 Brown (-) BCM, behind glove box D
Light OFF C205 Gray 10 pin 06 White/Purple (-) Headlight switch A
Lock C2280F White 24 pin 20 Brown/White (-) BCM, behind glove box D
Parking Light C205 Gray 10 pin 02 Yellow/Blue (-) Headlight switch A
Trunk Release C2280G Gray 24 pin 06 Green/White (-) BCM, behind glove box D
Unlock C2280G Gray 24 pin 08 Blue/Brown (-) BCM, behind glove box D
Disarm C2280G Gray 24 pin 09 Purple/Brown (-) BCM, behind glove box D
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 12 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
86
30
87A
87
85
VS2VS2
VS1VS1
VS4VS4
VS3VS3
MS1MS1
MS2MS2
A
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
3
6
4
1
2
5
C
7
9
3
10
8
11
12
6
4
1
2
5
10
12345
67 8 9
1N4001
DIODE
1N4001
DIODE
1 AMP
1
3 2
101112
13
141516171819
2021222324
123456789
101112
13
1415161718192021222324
123456789
101112
13
1415161718
192021222324
12345
6789
1N4001
DIODE
C
B
A
F
G
E
D
IMMOBILIZER CONNECTOR
IGNITION CONNECTOR
IGNITION HARNESS
IMMOBILIZER HARNESS
IGNITION SWITCH (UNDER STEERING COLUMN)
PARKING LIGHT (-) - 02
DISARM (-) - 09
UNLOCK (-) - 08
DRIVER DOOR PIN (OPEN) - 19
HORN (-) - 01
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 GRAY (NC)
03 EMPTY
04 EMPTY
05 EMPTY
07 EMPTY
09 EMPTY
10 EMPTY
06 PURPLE/GREEN - LOCK (-) OUTPUT
08 BLUE/GREEN - TRUNK/LIFTGATE (-) OUTPUT
11 GRAY/GREEN - HORN (-) OUTPUT
12 DKGREEN/GREEN - UNLOCK (-) OUTPUT
OPTIONAL
TYPE 3 - WIRING DIAGRAM - 1 OF 2
PARKING LIGHT SWITCH
MODULE
GREEN/WHITE
GREEN/PURPLE
LOCK (-) - 20
C205
GRAY
* SEE NEXT PAGE FOR WIRE CONNECTION
BCM (BEHIND GLOVE BOX)
BCM (BEHIND GLOVE BOX)
3
(C2280E)
GREEN
1
(C2280G)
GRAY
2
(C2280F)
WHITE
LIGHT OFF (-) - 06
12V (+)
TRUNK RELEASE (-) - 06
TELEMATIC PORT
RF PORT/WEBLINK PORT
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 13 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
MS1MS1
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
10 11 12 13 14 15 16
1 2 345678
9
D
7
9
3
10
8
6
4
1
2
5
C
B
A
F
G
E
D
CANL - 11
CANH - 03
BROWN/RED
BROWN/YELLOW
OBDII
TYPE 3 - WIRING DIAGRAM - 2 OF 2
* SEE PREVIOUS PAGE FOR WIRE CONNECTION
MODULE
04 GRAY/WHITE - HOOD STATUS (-) INPUT
AFTERMARKET HOOD SWITCH (-)
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
TELEMATIC PORT
RF PORT/WEBLINK PORT
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 14 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
>>
01
OFF
ACC ON
START
02
OFF
ACC ON
START
03
04
OFF
ACC ON
START
05
OFF
ACC ON
START
06
OFF
ACC ON
START
07
OFF
ACC ON
START
08
09
10
OFF
ACC ON
START
11
OFF
ACC ON
START
12
OFF
ACC ON
START
13
14
15
OFF
ACC ON
START
16
>>
MODULE PROGRAMMING PROCEDURE (2 KEYS) - 1 OF 2
NOTE: To complete this procedure, both OEM
keys are required.
Insert key 1 into ignition.
Turn key 1 to ON position. LED will turn solid
RED.
Wait, LED will flash GREEN. (This may take up
to 30 seconds)
Turn key 1 to OFF position.
Remove key 1.
Insert key 1 into ignition.
Turn key 1 to ON position.
If LED turns solid GREEN for 2 seconds:
Module Programming Procedure completed.
If LED turns solid RED, proceed with following
step.
TIME RESTRICTION. Complete steps 08 to 10
within 4 seconds after LED turns OFF.
Remove key 1.
Insert key 2 into ignition.
Turn key 2 to ON position.
Wait, LED will turn solid RED then will turn
OFF.
TIME RESTRICTION. Complete steps 13 and 14
within 4 seconds after LED turns OFF.
Remove key 2.
Press and release programming button.
If the LED begins to flash RED, you are using a
cloned key or used the same key twice.
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 15 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
17
18
MODULE PROGRAMMING PROCEDURE (2 KEYS) - 2 OF 2
Wait, LED will turn solid RED then will turn
solid GREEN.
Module Programming Procedure completed.
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 16 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
>>
01
02
ENGINE
START
STOP
OFF ACC ON START
ON
03
04
ENGINE
START
STOP
OFF ACC ON STARTOFF
05
>>
VALET MODE PROGRAMMING PROCEDURE - 1 OF 1
NOTE: In Valet Mode, the Remote starter is not
functional. Keyless entry, Lock and Unlock will
remain functional. See RF kit user manual for
alternate valet mode programming.
Time restriction. Complete next step within 7
seconds.
Cycle ignition ON five times [5x OFF/ON]
rapidly.
Wait, LED 1 will turn solid RED for 2 seconds.
Set ignition to OFF position.
Valet Mode Programming Procedure
completed.
To exit valet mode: repeat steps 1 to 5.
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 17 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
>>
>>
>>
01
ENGINE
START
STOP
OFF ACC ON STARTOFF
02
03 [X]
04
05 [Y]
06
07 [Z]
08 [Z]
09
10
11 [Y]
12
13
14
>>
MODULE NAVIGATION PROCEDURE - 1 OF 1
It is mandatory to exit the Module Navigation
at the end of this procedure. Failure to exit the
Module Navigation will drain vehicle battery.
To exit the Module Navigation at any time:
Follow STEP 13.
Module must be programmed to the vehicle.
Use the Module Navigation Chart on the next
page.
Set ignition to OFF position.
TO ACCESS THE MENUS: Press and hold
programming button until LED 1 turns solid
GREEN.
IN THE MENUS: Press the programming
button as many times as the menu number
indicates. LED 1 will flash GREEN an equal
amount of times continuously.
TO ACCESS THE OPTIONS: Press and hold
programming button until LED 1 turns solid
RED.
IN THE OPTIONS: Press the programming
button as many times as the option number
indicates. LED 1 will flash RED an equal
amount of times continuously.
TO ACCESS THE SETTINGS: Press and hold
programming button until LED 1 turns solid
GREEN.
LED 1 will flash GREEN as many times as
the current (or default) setting number,
continuously.
IN THE SETTINGS: Press the programming
button as many times as necessary to access
your setting. LED 1 will flash GREEN an equal
amount of times continuously.
To return to the MENUS: exit the Module
Navigation and redo the Module Navigation
Procedure.
To save and return to the OPTIONS: Press and
hold programming button until LED 1 turns
solid RED.
LED 1 will flash RED as many times as the
current option number continuously.
Configure every other setting and proceed to
step 13.
MANDATORY: EXIT MODULE NAVIGATION.
Press and hold programming button for 7
seconds. LED 1 will flash RED rapidly. Release
programming button. LED 1 will turn OFF.
Module navigation completed.
Failure to exit the Module Navigation will drain
vehicle battery.
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 18 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
MODULE NAVIGATION CHART - 1 OF 2
MODULE NAVIGATION CHART:
NOTES
[X] MENUS [Y] OPTIONS [Z] SETTINGS
I Default settings are listed in bold.
01 CONFIGURATION
01 DISARM/UNLOCK BEFORE START 01 OFF
II Make sure the option is covered on the vehicle before
attempting to change the setting.
02 ON
02 RELOCK AFTER START 01 OFF
02 ON
03 RELOCK AFTER SHUTDOWN 01 OFF
02 ON
04 FORCE UNLOCK ALL ON FIRST PRESS 01 OFF
02 ON
05 TAKEOVER 01 ENABLE
02 DISABLE*
06 N/A 01 N/A
07 FACTORY KEYLESS RS SEQUENCE
01 DISABLE
02 N/A
03 LOCK + UNLOCK + LOCK
04 LOCK + LOCK + LOCK
08 MODULE RUN TIME
01 03 MIN
02 05 MIN
03 10 MIN
04 15 MIN
05 25 MIN
06 30 MIN
07 35 MIN
08 15 MIN
09 WAIT TO START DELAY
01 02 SEC
02 05 SEC
03 08 SEC
04 10 SEC
05 15 SEC
06 20 SEC
07 25 SEC
08 30 SEC
10 N/A 01 N/A
11 N/A 01 N/A
12 N/A 01 N/A
13 N/A 01 N/A
*Vehicle will shutdown when a door is opened.
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 19 OF 24
• 20160224
DOC.: #26841

U.S. Patent No. 8,856,780
MODULE NAVIGATION CHART - 2 OF 2
MODULE NAVIGATION CHART:
NOTES
[X] MENUS [Y] OPTIONS [Z] SETTINGS
01 CONFIGURATION
14 HORN EVENT TRIGGER
01 DOUBLE LOCK
02 LOCK + UNLOCK
03 LOCK + UNLOCK + START
04 DOUBLE LOCK + START
15 HORN CHIRPS WIDTH
01 30 mSEC
02 15 mSec
03 60 mSec
02-07 Technical Support only 01 N/A 01 N/A
*Vehicle will shutdown when a door is opened.
Automotive Data Solutions Inc. © 2016 OEMFORSFO1BOLRSFO1EN
PAGE 20 OF 24
• 20160224
DOC.: #26841
