Omega Omegalink OL-MDB-ALL User manual

REVISION DATE
20160811
DOCUMENT NUMBER
NOTICE The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
U.S. Patent No. 8,856,780
INSTALL GUIDE
OEMALRSCH7OLMDBALLEN
HARDWARE
OLMDBALL
ACCESSORIES
OLLOADER REQUIRED
FIRMWARE
OEMALRSCH7OLMDBALL
Automotive Data Solutions Inc. © 2016
29319
Alarms & Remote Start

U.S. Patent No. 8,856,780
VEHICLE LIST - 1 OF 1
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS 3X LOCK START/STANDALONE MOD. PRIORITY UNLOCK DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM TRUNK/HATCH RELEASE DOOR STATUS OUTPUT TRUNK STATUS OUTPUT HOOD STATUS OUTPUT* BRAKE PEDAL STATUS OUTPUT TACHOMETER OUTPUT RAP SHUTDOWN CTRL GLOW PLUGS STATUS E-BRAKE OUTPUT SECURE TAKEOVER
CHRYSLER
300 PTS AT 11-16 2 • • • • • • • • • • • • • • •
DODGE
Challenger PTS AT 15-16 6 • • • • • • • • • • • • • • •
Charger PTS AT 11-16 6 • • • • • • • • • • • • • • •
Durango PTS AT 14-16 5 • • • • • • • • • • • • • •
Journey PTS AT 11-16 1 • • • • • • • • • • • • • •
JEEP
Grand Cherokee PTS AT 14-16 4 • • • • • • • • • • • • • • •
Grand Cherokee Diesel PTS AT 14-16 4 • • • • • • • • • • • • • • •
RAM
1500 PTS AT 13-16 3 • • • • • • • • • • • • • •
1500 Diesel PTS AT 13-16 3 • • • • • • • • • • • • • • •
2500 PTS AT 13-16 3 • • • • • • • • • • • • • •
2500 Diesel PTS AT 13-16 3 • • • • • • • • • • • • • • •
3500 PTS AT 13-16 3 • • • • • • • • • • • • • •
3500 Diesel PTS AT 13-16 3 • • • • • • • • • • • • • • •
* Available only if vehicle is equipped with factory hood switch.
NOTE
I WARNING: All vehicle doors must be
closed and locked prior to remote start
sequence.
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 2 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 3 OF 26
• 20160811

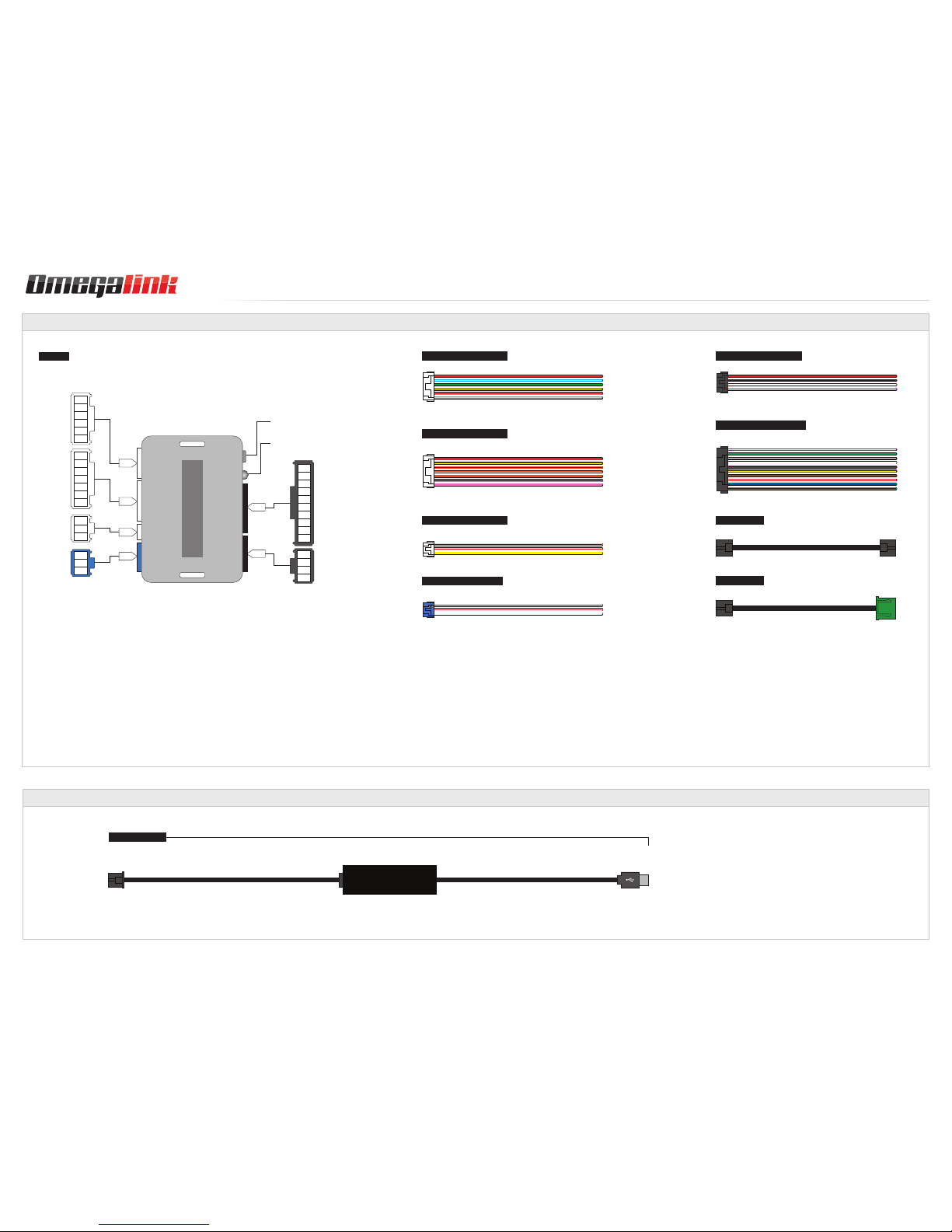

BOX CONTENTS - 1 OF 1
2
1
3
3
4
2
1
7
6
9
5
4
3
2
1
10
8
4
5
2
6
7
1
3
4
5
2
6
1
3
D
C
B
A
F
E
2
1
3
PROGRAMMING
BUTTON
LED 1
BLACK
DATA PORT
(WEBLINK, RF, TELEMATIC)
BLUE
WHITE
WHITE
WHITE
BLACK
6 PIN WHITE CONNECTOR
7 PIN WHITE CONNECTOR
MODULE 4 PIN BLACK CONNECTOR
10 PIN BLACK CONNECTOR
DATA CABLE 1
DATA CABLE 2
3 PIN WHITE CONNECTOR
3 PIN BLUE CONNECTOR
BOX CONTENTS
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
DATA PORT
DOC.: #29319

U.S. Patent No. 8,856,780
F
E
G
I
H
A
D
C
B

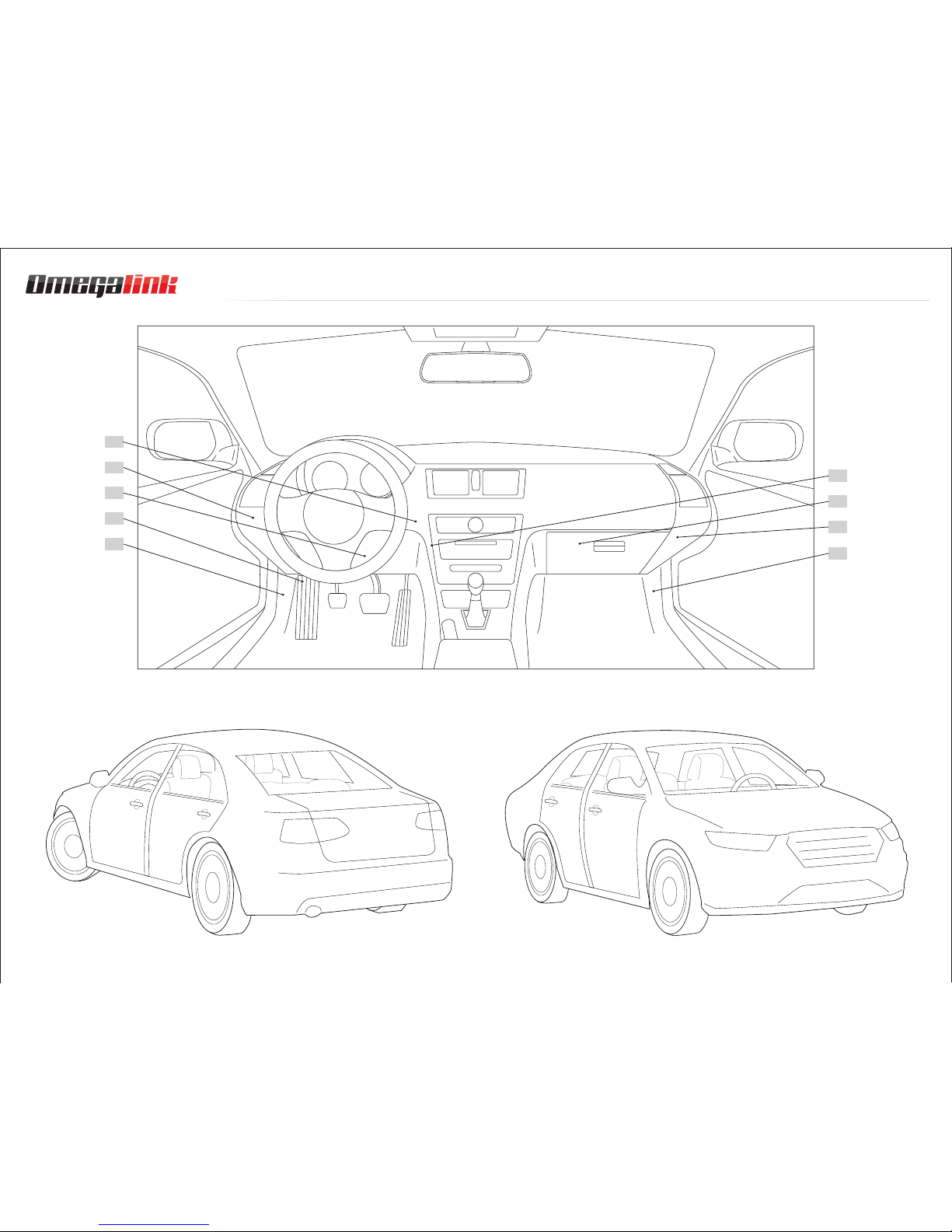

COMPONENT LOCATOR - 1 OF 1
INTERIOR VIEW
DRIVER SIDE VIEW PASSENGER SIDE VIEW
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 4 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
TYPE 1 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
DODGE
Journey
PTS
AT
11-16
12V ~ Black 06 pin 06 Red (+) Push button F
Ground ~ Black 06 pin 03 Black (-) Push button F
Ignition ~ ~ ~ ~ Pink/White (+) Driver kick panel B
PTS ~ Black 06 pin 04 Purple/Blue (+) Push button F
IMO LIN ~ Black 06 pin 05 White/Green (DATA) Push button F
CanH ~ Black 16 pin 06 Gray/White (DATA) OBDII connector ~
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector ~
Parking light ~ Black 06 pin 03 White/Brown (MUX) Parking light switch A
Rap shutdown C6 White 48 pin 25 Purple (-) BCM behind glove box G
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box G
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 5 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
A1
12
34
5
6
OBDII
C1
C6
B
10 11 12 13 14 15 16
1234567 8
9
12
3456
2 1
5 4 3 7 69 812 11 10
14 13
16 15 19 18 1721 2023 2224
2 15 437 69 8
12 11
10
14 1316 1519 18 1721 2023 2224
40 39
33
42 41
35 3437 36 26 2538 28 2730 29
43
32 31
45 4447 4648
C1
C6
A
B
C
D
F
2
1
3
4
2
1
3
2
1
3
5
6
7
8
9
10
2
1
3
4
5
6
7
2
1
3
4
5
6
F
A
B
C
DE DATA
E
2
1
3
4
2
1
3
4
7.5 A

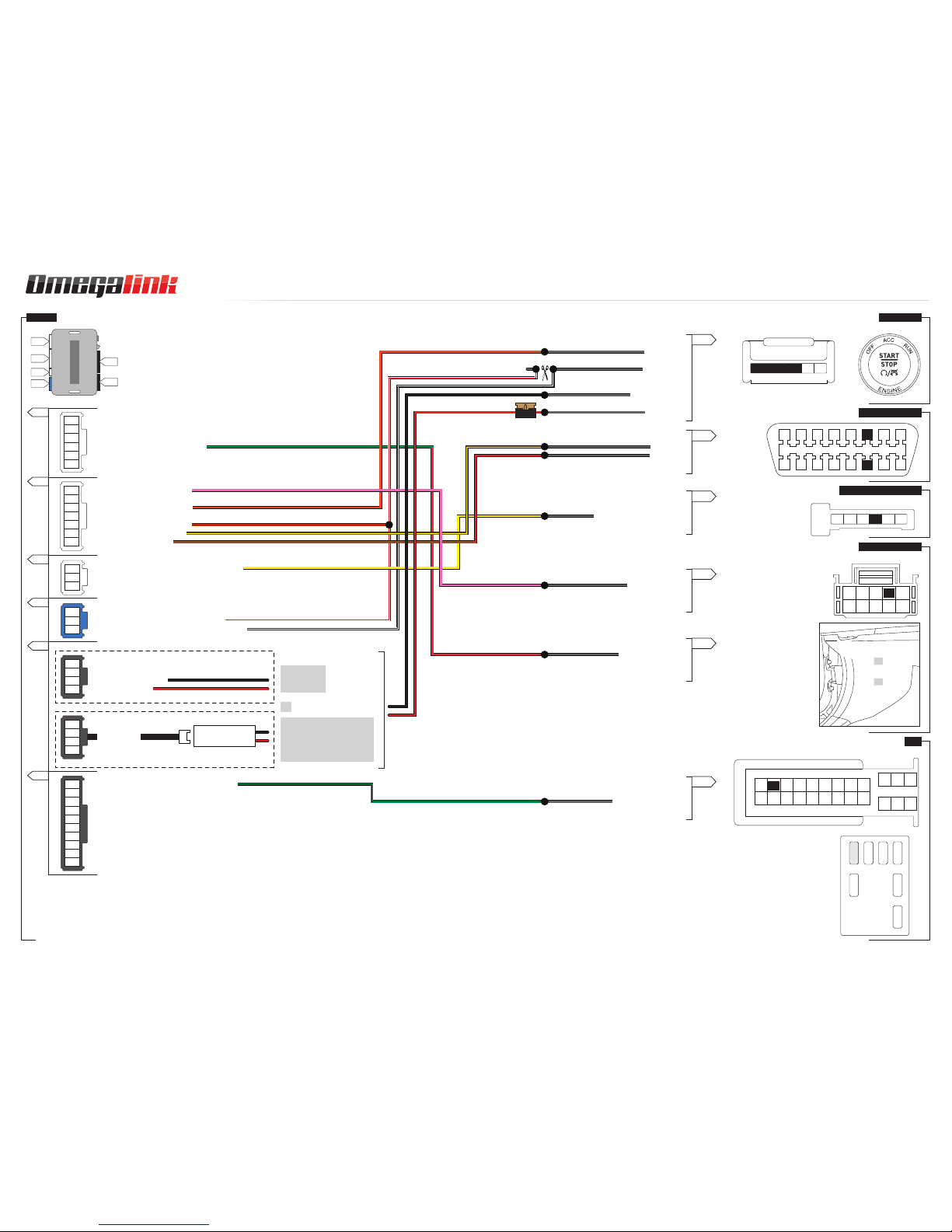

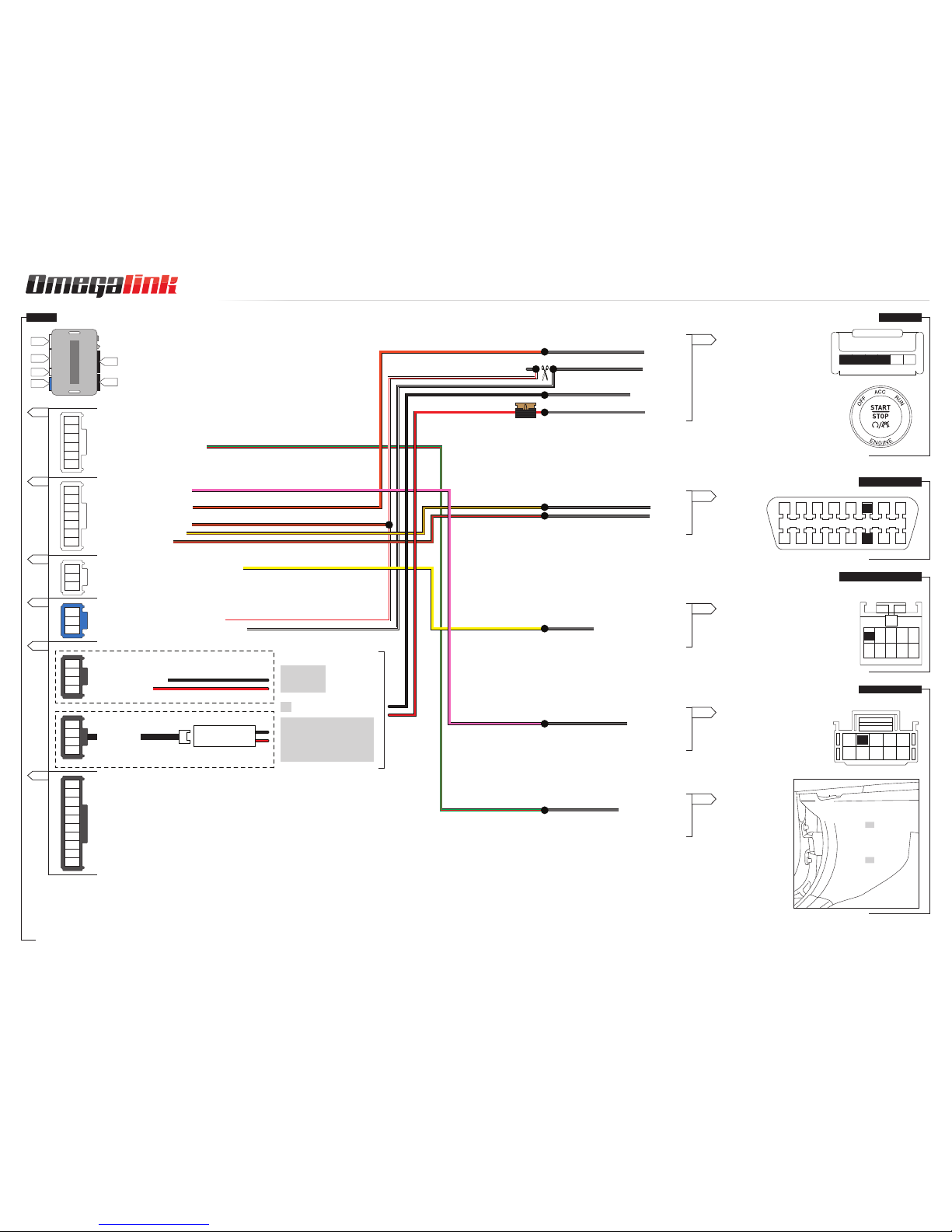

TYPE 1 - WIRING DIAGRAM - 1 OF 1
GRAY/YELLOW (NC)01 GRAY/YELLOW (NC)
02 GRAY/RED (NC)
GREEN/YELLOW (NC)03 GREEN/YELLOW (NC)
04 GREEN/RED - RAP SHUTDOWN
05 BLUE/YELLOW (NC)
06 BLUE/RED (NC)
PINK - IGNITION (+) INPUT
01 PINK - IGNITION (+) INPUT
PINK/BLACK (NC)
02 PINK/BLACK (NC)
- PTS (+) OUTPUT03 ORANGE - PTS (+) OUTPUT
05 ORANGE/BLACK - IMO LIN
BROWN/YELLOW - CANL06 BROWN/YELLOW - CANL
01 WHITE (NC)
BROWN/RED - CANH
07 BROWN/RED - CANH
(NC)
04 ORANGE/WHITE (NC)
IMO LIN - 05
IGNITION (+)
01 GREEN/BLACK- HOOD STATUS (-) INPUT
03 RED/WHITE (NC)
02 BLUE/BLACK (NC)
04 BROWN (NC)
06 PURPLE/BLACK (NC)
05 PURPLE/YELLOW (NC)
WHITE
07 WHITE (NC)
08 BLACK/WHITE (NC)
10 PURPLE/WHITE (NC)
09 GREEN (NC)
02 YELLOW/RED (NC)
03 YELLOW/BLACK (NC)
01 YELLOW - PARKING LIGHT (MUX) OUTPUT
CANL - 14
PARKING LIGHT (MUX) - 03
HOOD STATUS (-) - 11
RAP SHUTDOWN (-) - 25
CANH - 06
PTS SWITCH
OBDII CONNECTOR
PARKING LIGHT SWITCHPARKING LIGHT SWITCH
BLACK
WHITE
BLACK
BCM
HARNESS IN
RUNNING BOARD
DRIVER SIDE
PTS (+) - 04
03 WHITE/BLACK - LIN CUT CONNECTOR SIDE
02 WHITE/RED - LIN CUT VEHICLE SIDE
MODULE
DATA CABLE
OR
02 WHITE (NC)
03 BLACK - GROUND
04 RED - 12V (+)
01 BLUE/WHITE (NC)
WITHOUT A
COMPATIBLE
ACCESSORY
WITH A COMPATIBLE
ACCESSORY.
IMPORTANT: SEE THE
COMPATIBLE ACCESSORIES
PAGE FOR DETAILS.
COMPATIBLE
ACCESSORY
12V (+) - 06
GROUND (-) - 03
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 6 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
TYPE 2 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
CHRYSLER
300
PTS
AT
11-16
12V ~ Black 06 pin 06 Red (+) Push button F
Ground ~ Black 06 pin 03 Black (-) Push button F
Ignition ~ ~ ~ ~ Pink/White (+) Passenger kick panel H
PTS ~ Black 06 pin 04 Purple/Blue (+) Push button F
IMO LIN ~ Black 06 pin 05 White/Green (DATA) Push button F
CanH ~ Black 16 pin 06 Gray/White (DATA) OBDII connector ~
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector ~
Parking light ~ Black 06 pin 03 White/Brown (MUX) Parking light switch A
Rap shutdown C6 White 48 pin 25 Purple (-) BCM behind glove box G
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box G
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 7 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
A1
12
34
5
6
OBDII
C1
C6
B
10 11 12 13 14 15 16
1234567 8
9
12
3456
2 1
5 4 3 7 69 812 11 10
14 13
16 15 19 18 1721 2023 2224
2 15 437 69 8
12 11
10
14 1316 1519 18 1721 2023 2224
40 39
33
42 41
35 3437 36 26 2538 28 2730 29
43
32 31
45 4447 4648
C1
C6
A
B
C
D
F
2
1
3
4
2
1
3
2
1
3
5
6
7
8
9
10
2
1
3
4
5
6
7
2
1
3
4
5
6
F
A
B
C
DE DATA
E
2
1
3
4
2
1
3
4
7.5 A

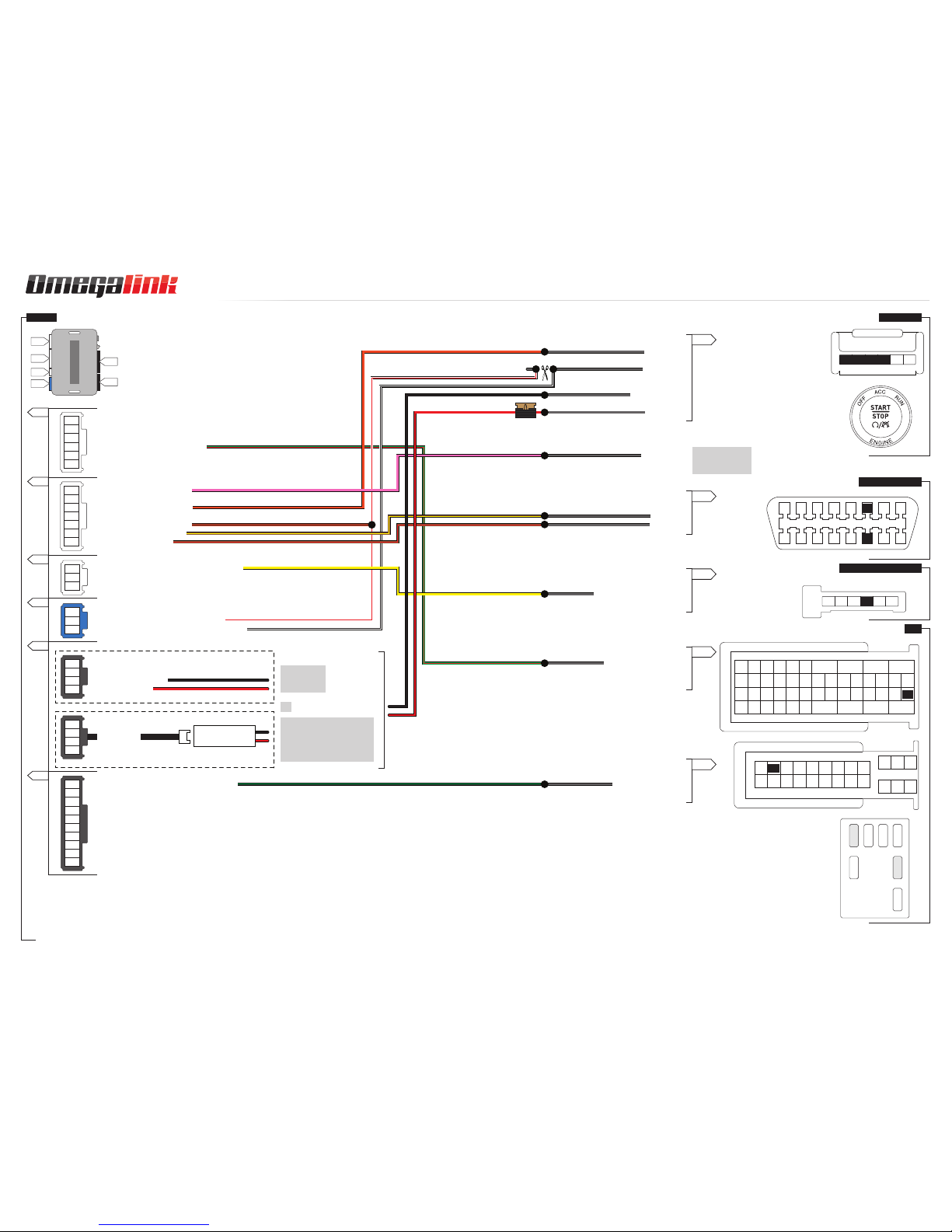

TYPE 2 - WIRING DIAGRAM - 1 OF 1
GRAY/YELLOW (NC)01 GRAY/YELLOW (NC)
02 GRAY/RED (NC)
GREEN/YELLOW (NC)03 GREEN/YELLOW (NC)
04 GREEN/RED - RAP SHUTDOWN
05 BLUE/YELLOW (NC)
06 BLUE/RED (NC)
PINK - IGNITION (+) INPUT
01 PINK - IGNITION (+) INPUT
PINK/BLACK (NC)
02 PINK/BLACK (NC)
- PTS (+) OUTPUT03 ORANGE - PTS (+) OUTPUT
05 ORANGE/BLACK - IMO LIN
BROWN/YELLOW - CANL06 BROWN/YELLOW - CANL
01 WHITE (NC)
BROWN/RED - CANH
07 BROWN/RED - CANH
(NC)
04 ORANGE/WHITE (NC)
IMO LIN - 05
IGNITION (+)
01 GREEN/BLACK- HOOD STATUS (-) INPUT
03 RED/WHITE (NC)
02 BLUE/BLACK (NC)
04 BROWN (NC)
06 PURPLE/BLACK (NC)
05 PURPLE/YELLOW (NC)
WHITE
07 WHITE (NC)
08 BLACK/WHITE (NC)
10 PURPLE/WHITE (NC)
09 GREEN (NC)
02 YELLOW/RED (NC)
03 YELLOW/BLACK (NC)
01 YELLOW - PARKING LIGHT (MUX) OUTPUT
CANL - 14
PARKING LIGHT (MUX) - 03
HOOD STATUS (-) - 11
RAP SHUTDOWN (-) - 25
CANH - 06
PTS SWITCH
OBDII CONNECTOR
PARKING LIGHT SWITCHPARKING LIGHT SWITCH
BLACK
WHITE
BLACK
BCM
HARNESS IN
RUNNING BOARD
DRIVER SIDE
PTS (+) - 04
03 WHITE/BLACK - LIN CUT CONNECTOR SIDE
02 WHITE/RED - LIN CUT VEHICLE SIDE
MODULE
DATA CABLE
OR
02 WHITE (NC)
03 BLACK - GROUND
04 RED - 12V (+)
01 BLUE/WHITE (NC)
WITHOUT A
COMPATIBLE
ACCESSORY
WITH A COMPATIBLE
ACCESSORY.
IMPORTANT: SEE THE
COMPATIBLE ACCESSORIES
PAGE FOR DETAILS.
COMPATIBLE
ACCESSORY
12V (+) - 06
GROUND (-) - 03
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 8 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
TYPE 3 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
RAM
1500/
1500 Diesel
PTS
AT
13-16
12V D2664A Black 06 pin 06 Red (+) Ignition connector F
Ground D2664A Black 06 pin 03 Black (-) Ignition connector F
PTS D2664A Black 06 pin 04 Purple/Brown (+) Ignition connector F
Ignition ~ Gray 04 or 10 pin 02 or 10 Pink/Green (+) Trailer pack connector, right of steering ~
Imo Lin D2664A Black 06 pin 05 White/Green (DATA) Ignition connector F
CanH D7405A Black 16 pin 06 Gray/White (DATA) OBDII connector ~
CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector ~
Parking Light D2242A Black 10 pin 01 White/Brown (MUX) Parking light switch A
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
2500/
2500 Diesel
PTS
AT
13-16
12V D2664A Black 06 pin 06 Red (+) Ignition connector F
Ground D2664A Black 06 pin 03 Black (-) Ignition connector F
PTS D2664A Black 06 pin 04 Purple/Brown (+) Ignition connector F
Ignition ~ Gray 04 or 10 pin 02 or 10 Pink/Green (+) Trailer pack connector, right of steering ~
Imo Lin D2664A Black 06 pin 05 White/Green (DATA) Ignition connector F
CanH D7405A Black 16 pin 06 Gray/White (DATA) OBDII connector ~
CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector ~
Parking Light D2242A Black 10 pin 01 White/Brown (MUX) Parking light switch A
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
3500/
3500 Diesel
PTS
AT
13-16
12V D2664A Black 06 pin 06 Red (+) Ignition connector F
Ground D2664A Black 06 pin 03 Black (-) Ignition connector F
PTS D2664A Black 06 pin 04 Purple/Brown (+) Ignition connector F
Ignition ~ Gray 04 or 10 pin 02 or 10 Pink/Green (+) Trailer pack connector, right of steering ~
Imo Lin D2664A Black 06 pin 05 White/Green (DATA) Ignition connector F
CanH D7405A Black 16 pin 06 Gray/White (DATA) OBDII connector ~
CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector ~
Parking Light D2242A Black 10 pin 01 White/Brown (MUX) Parking light switch A
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 9 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
11 2
33 44
12345
6 7 8 9 10
A
12
34
5
6
OBDII
D
C
B
10 11 12 13 14 15 16
1234567 8
9
A
B
C
D
F
2
1
3
4
2
1
3
2
1
3
5
6
7
8
9
10
2
1
3
4
5
6
7
2
1
3
4
5
6
F
A
B
C
DE DATA
E
2
1
3
4
2
1
3
4
7.5 A
1
6
2
7
3
8
4
9
5
10
PARKING LIGHT SWITCH
PARKING LIGHT SWITCH
OR
TRAILER PACK CONNECTOR
TRAILER PACK CONNECTOR
BLACK
GRAYGRAY
DRIVER KICK PANEL
HARNESS
TYPE 3 - WIRING DIAGRAM - 1 OF 1
GRAY/YELLOW (NC)01 GRAY/YELLOW (NC)
02 GRAY/RED (NC)
GREEN/YELLOW (NC)03 GREEN/YELLOW (NC)
04 GREEN/RED - RAP SHUTDOWN
05 BLUE/YELLOW (NC)
06 BLUE/RED (NC)
PINK - IGNITION (+) INPUT
01 PINK - IGNITION (+) INPUT
PINK/BLACK (NC)
02 PINK/BLACK (NC)
- PTS (+) OUTPUT03 ORANGE - PTS (+) OUTPUT
05 ORANGE/BLACK - IMO LIN
BROWN/YELLOW - CANL06 BROWN/YELLOW - CANL
01 WHITE (NC)
BROWN/RED - CANH
07 BROWN/RED - CANH
(NC)
04 ORANGE/WHITE (NC)
IMO LIN - 05
IGNITION (+) - 02 OR 10
01 GREEN/BLACK (NC)
03 RED/WHITE (NC)
02 BLUE/BLACK (NC)
04 BROWN (NC)
06 PURPLE/BLACK (NC)
05 PURPLE/YELLOW (NC)
WHITE
07 WHITE (NC)
08 BLACK/WHITE (NC)
10 PURPLE/WHITE (NC)
09 GREEN (NC)
02 YELLOW/RED (NC)
03 YELLOW/BLACK (NC)
01 YELLOW - PARKING LIGHT (MUX) OUTPUT
CANL - 14
PARKING LIGHT (MUX) - 01
RAP SHUTDOWN (-)
CANH - 06
PTS SWITCH
OBDII CONNECTOR
PTS (+) - 04
03 WHITE/BLACK - LIN CUT CONNECTOR SIDE
02 WHITE/RED - LIN CUT VEHICLE SIDE
MODULE
DATA CABLE
OR
02 WHITE (NC)
03 BLACK - GROUND
04 RED - 12V (+)
01 BLUE/WHITE (NC)
WITHOUT A
COMPATIBLE
ACCESSORY
WITH A COMPATIBLE
ACCESSORY.
IMPORTANT: SEE THE
COMPATIBLE ACCESSORIES
PAGE FOR DETAILS.
COMPATIBLE
ACCESSORY
12V (+) - 06
GROUND (-) - 03
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 10 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
TYPE 4 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
JEEP
Grand
Cherokee/
Grand
Cherokee Diesel
PTS
AT
14-16
12V D2664A Black 06 pin 06 Red (+) Push button F
Ground D2664A Black 06 pin 03 Black (-) Push button F
Ignition ~ Gray 10 pin 02 Red/Green (+) Driver kick panel B
PTS D2664A Black 06 pin 04 Purple/Green (+) Push button F
Imo Lin D2664A Black 06 pin 05 White/Green (DATA) Push button F
CanH D7405A Black 16 pin 06 Gray/White (DATA) OBDII connector C
CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector C
Parking Light D2442A Black 10 pin 01 White/Green (MUX) Parking light switch A
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 11 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
12345
6 7 8 9 10
A
12
34
5
6
OBDII
D
B
C
10 11 12 13 14 15 16
1234567 8
9
11 2
66 77
33 44
88 99
55
1010
C
D
A
B
C
D
F
2
1
3
4
2
1
3
2
1
3
5
6
7
8
9
10
2
1
3
4
5
6
7
2
1
3
4
5
6
F
A
B
C
DE DATA
E
2
1
3
4
2
1
3
4
7.5 A
PARKING LIGHT SWITCHPARKING LIGHT SWITCH
BLACK
DRIVER KICK PANEL
HARNESS
TYPE 4 - WIRING DIAGRAM - 1 OF 1
GRAY/YELLOW (NC)01 GRAY/YELLOW (NC)
02 GRAY/RED (NC)
GREEN/YELLOW (NC)03 GREEN/YELLOW (NC)
04 GREEN/RED - RAP SHUTDOWN
05 BLUE/YELLOW (NC)
06 BLUE/RED (NC)
PINK - IGNITION (+) INPUT01 PINK - IGNITION (+) INPUT
PINK/BLACK (NC)
02 PINK/BLACK (NC)
- PTS (+) OUTPUT03 ORANGE - PTS (+) OUTPUT
05 ORANGE/BLACK - IMO LIN
BROWN/YELLOW - CANL06 BROWN/YELLOW - CANL
01 WHITE (NC)
BROWN/RED - CANH
07 BROWN/RED - CANH
(NC)
04 ORANGE/WHITE (NC)
IMO LIN - 05
IGNITION (+) - 02
01 GREEN/BLACK (NC)
03 RED/WHITE (NC)
02 BLUE/BLACK (NC)
04 BROWN (NC)
06 PURPLE/BLACK (NC)
05 PURPLE/YELLOW (NC)
WHITE
07 WHITE (NC)
08 BLACK/WHITE (NC)
10 PURPLE/WHITE (NC)
09 GREEN (NC)
02 YELLOW/RED (NC)
03 YELLOW/BLACK (NC)
01 YELLOW - PARKING LIGHT (MUX) OUTPUT
CANL - 14
PARKING LIGHT (MUX) - 01
RAP SHUTDOWN (-)
CANH - 06
PTS SWITCH
OBDII CONNECTOR
PTS (+) - 04
GRAY
03 WHITE/BLACK - LIN CUT CONNECTOR SIDE
02 WHITE/RED - LIN CUT VEHICLE SIDE
MODULE
DATA CABLE
OR
02 WHITE (NC)
03 BLACK - GROUND
04 RED - 12V (+)
01 BLUE/WHITE (NC)
WITHOUT A
COMPATIBLE
ACCESSORY
WITH A COMPATIBLE
ACCESSORY.
IMPORTANT: SEE THE
COMPATIBLE ACCESSORIES
PAGE FOR DETAILS.
COMPATIBLE
ACCESSORY
12V (+) - 06
GROUND (-) - 03
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 12 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
TYPE 5 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POL ARITY MODULE LOCATION COMPONENT LOCATOR
DODGE
Durango
PTS
AT
14-16
12V ~ Black 06 pin 06 Red (+) Push button F
Ground ~ Black 06 pin 03 Black (-) Push button F
Ignition ~ Gray 10 pin 02 Red/Green (+) Driver kick panel B
PTS ~ Black 06 pin 04 Purple/Green (+) Push button F
Imo Lin ~ Black 06 pin 05 White/Green (DATA) Push button F
CanH ~ Black 16 pin 06 Gray/White (DATA) OBDII connector C
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector C
Parking Light ~ Black 06 pin 03 White/Green or White/Brown (MUX) Parking light switch A
Rap Shutdown ~ ~ ~ ~ Purple (-) Driver kick panel harness B
Hood Status ~ Black 24 pin 11 Purple/LtBlue (-) BCM above passenger kick panel I
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 13 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
A
12
34
5
6
OBDII
D
B
C
10 11 12 13 14 15 16
1234567 8
9
11
2
6677
3344
8899
55
1010
C
D
A
B
C
D
F
2
1
3
4
2
1
3
2
1
3
5
6
7
8
9
10
2
1
3
4
5
6
7
2
1
3
4
5
6
F
A
B
C
DE DATA
E
2
1
3
4
2
1
3
4
7.5 A
12
3456
C1 2 1
5 4 3 7 69 812 11 10
14 13
16 15 19 18 1721 2023 2224
C1
PARKING LIGHT SWITCH
PARKING LIGHT SWITCH
BLACK
DRIVER KICK PANEL
HARNESS
TYPE 5 - WIRING DIAGRAM - 1 OF 1
GRAY/YELLOW (NC)01 GRAY/YELLOW (NC)
02 GRAY/RED (NC)
GREEN/YELLOW (NC)03 GREEN/YELLOW (NC)
04 GREEN/RED - RAP SHUTDOWN
05 BLUE/YELLOW (NC)
06 BLUE/RED (NC)
PINK - IGNITION (+) INPUT01 PINK - IGNITION (+) INPUT
PINK/BLACK (NC)
02 PINK/BLACK (NC)
- PTS (+) OUTPUT03 ORANGE - PTS (+) OUTPUT
05 ORANGE/BLACK - IMO LIN
BROWN/YELLOW - CANL06 BROWN/YELLOW - CANL
01 WHITE (NC)
BROWN/RED - CANH
07 BROWN/RED - CANH
(NC)
04 ORANGE/WHITE (NC)
IMO LIN - 05
IGNITION (+) - 02
03 RED/WHITE (NC)
02 BLUE/BLACK (NC)
04 BROWN (NC)
06 PURPLE/BLACK (NC)
05 PURPLE/YELLOW (NC)
WHITE
07 WHITE (NC)
08 BLACK/WHITE (NC)
10 PURPLE/WHITE (NC)
09 GREEN (NC)
02 YELLOW/RED (NC)
03 YELLOW/BLACK (NC)
01 YELLOW - PARKING LIGHT (MUX) OUTPUT
CANL - 14
PARKING LIGHT (MUX) - 03
RAP SHUTDOWN (-)
CANH - 06
PTS SWITCH
OBDII CONNECTOR
PTS (+) - 04
GRAY
03 WHITE/BLACK - LIN CUT CONNECTOR SIDE
02 WHITE/RED - LIN CUT VEHICLE SIDE
MODULE
DATA CABLE
OR
02 WHITE (NC)
03 BLACK - GROUND
04 RED - 12V (+)
01 BLUE/WHITE (NC)
WITHOUT A
COMPATIBLE
ACCESSORY
WITH A COMPATIBLE
ACCESSORY.
IMPORTANT: SEE THE
COMPATIBLE ACCESSORIES
PAGE FOR DETAILS.
COMPATIBLE
ACCESSORY
12V (+) - 06
GROUND (-) - 03
01 GREEN/BLACK- HOOD STATUS (-) INPUT
HOOD STATUS (-) - 11
BLACK
BCM
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 14 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
TYPE 6 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
DODGE
Challenger
PTS
AT
15-16
12V ~ Black 06 pin 06 Red/LtGreen (+) Push button F
Ground ~ Black 06 pin 03 Black (-) Push button F
Ignition ~ ~ ~ ~ Pink/White (+) Passenger kick panel H
PTS ~ Black 06 pin 04 Purple/Blue (+) Push button F
IMO LIN ~ Black 06 pin 05 White/Green (DATA) Push button F
CanH ~ Black 16 pin 06 Gray/White (DATA) OBDII connector ~
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector ~
Parking light ~ Black 06 pin 03 White/Brown (MUX) Parking light switch A
Rap shutdown C6 White 48 pin 09 Purple (-) BCM behind glove box I
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box I
Charger
PTS
AT
11-16
12V ~ Black 06 pin 06 Red (+) Push button F
Ground ~ Black 06 pin 03 Black (-) Push button F
Ignition ~ ~ ~ ~ Pink/White (+) Passenger kick panel H
PTS ~ Black 06 pin 04 Purple/Blue (+) Push button F
IMO LIN ~ Black 06 pin 05 White/Green (DATA) Push button F
CanH ~ Black 16 pin 06 Gray/White (DATA) OBDII connector ~
CanL ~ Black 16 pin 14 Yellow (DATA) OBDII connector ~
Parking light ~ Black 06 pin 03 White/Brown (MUX) Parking light switch A
Rap shutdown C6 White 48 pin 09 Purple (-) BCM behind glove box G
Hood status C1 Black 24 pin 11 Purple/LtBlue (-) BCM behind glove box G
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 15 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
A1
12
34
5
6
OBDII
C1
C6
B
10 11 12 13 14 15 16
1234567 8
9
12
3456
2 1
5 4 3 7 69 812 11 10
14 13
16 15 19 18 1721 2023 2224
2 15 437 698
12 11
10
14 1316 1519 18 1721 2023 2224
40 39
33
42 41
35 3437 36 26 2538 28 2730 29
43
32 31
45 4447 4648
C1
C6
A
B
C
D
F
2
1
3
4
2
1
3
2
1
3
5
6
7
8
9
10
2
1
3
4
5
6
7
2
1
3
4
5
6
F
A
B
C
DE DATA
E
2
1
3
4
2
1
3
4
7.5 A
TYPE 6 - WIRING DIAGRAM - 1 OF 1
GRAY/YELLOW (NC)01 GRAY/YELLOW (NC)
02 GRAY/RED (NC)
GREEN/YELLOW (NC)03 GREEN/YELLOW (NC)
04 GREEN/RED - RAP SHUTDOWN
05 BLUE/YELLOW (NC)
06 BLUE/RED (NC)
PINK - IGNITION (+) INPUT
01 PINK - IGNITION (+) INPUT
PINK/BLACK (NC)
02 PINK/BLACK (NC)
- PTS (+) OUTPUT03 ORANGE - PTS (+) OUTPUT
05 ORANGE/BLACK - IMO LIN
BROWN/YELLOW - CANL06 BROWN/YELLOW - CANL
01 WHITE (NC)
BROWN/RED - CANH
07 BROWN/RED - CANH
(NC)
04 ORANGE/WHITE (NC)
IMO LIN - 05
IGNITION (+)
01 GREEN/BLACK- HOOD STATUS (-) INPUT
03 RED/WHITE (NC)
02 BLUE/BLACK (NC)
04 BROWN (NC)
06 PURPLE/BLACK (NC)
05 PURPLE/YELLOW (NC)
WHITE
07 WHITE (NC)
08 BLACK/WHITE (NC)
10 PURPLE/WHITE (NC)
09 GREEN (NC)
02 YELLOW/RED (NC)
03 YELLOW/BLACK (NC)
01 YELLOW - PARKING LIGHT (MUX) OUTPUT
CANL - 14
PARKING LIGHT (MUX) - 03
HOOD STATUS (-) - 11
RAP SHUTDOWN (-) - 09
CANH - 06
PTS SWITCH
OBDII CONNECTOR
PARKING LIGHT SWITCHPARKING LIGHT SWITCH
BLACK
WHITE
BLACK
BCM
HARNESS IN
RUNNING BOARD
DRIVER SIDE
PTS (+) - 04
03 WHITE/BLACK - LIN CUT CONNECTOR SIDE
02 WHITE/RED - LIN CUT VEHICLE SIDE
MODULE
DATA CABLE
OR
02 WHITE (NC)
03 BLACK - GROUND
04 RED - 12V (+)
01 BLUE/WHITE (NC)
WITHOUT A
COMPATIBLE
ACCESSORY
WITH A COMPATIBLE
ACCESSORY.
IMPORTANT: SEE THE
COMPATIBLE ACCESSORIES
PAGE FOR DETAILS.
COMPATIBLE
ACCESSORY
12V (+) - 06
GROUND (-) - 03
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 16 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
01
02
03
04
05
06
ENGINE
START
STOP
STOP ACC ON START
ON
07
08
ENGINE
START
STOP
STOP ACC ON START
STOP
09
ENGINE
START
STOP
STOP ACC ON START
ON
10
11
ENGINE
START
STOP
STOP ACC ON START
STOP
12
13
14
15
16
17
18

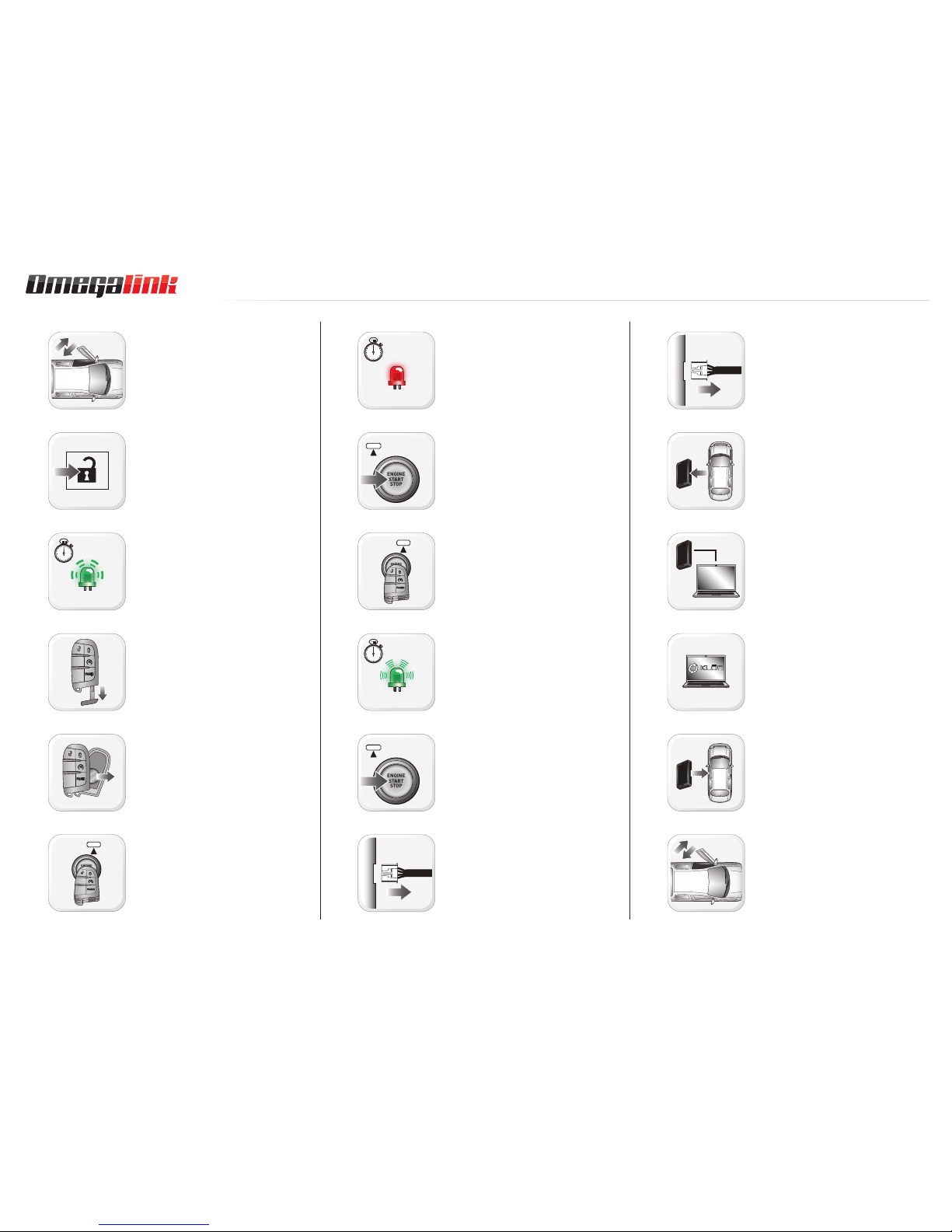

MODULE PROGRAMMING PROCEDURE - 1 OF 2
Close driver door. Re-open driver door to wake
up data bus.
Press Unlock on keyfob 1.
Wait, LED will flash GREEN once [1x].
Remove valet key from keyfob 1.
Remove batteries from keyfob 1.
Push start button twice [2x] with keyfob 1 to
ON position. (No battery)
Wait, LED will turn solid RED.
Push start button once [1x] to OFF position.
Push start button twice [2x] with keyfob 1 to
ON position. (No battery)
Wait, if LED flashes GREEN rapidly, proceed to
step 11. If LED turns solid RED, repeat steps
8 to 10.
Push start button once [1x] to OFF position.
Disconnect all connectors from module except
the BLACK 20-PIN connector.
Disconnect the BLACK 20-PIN connector.
Remove module from vehicle.
Connect module to computer.
Proceed with extended programming.
Connect module to vehicle.
Close driver door. Re-open driver door to wake
up data bus.
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 17 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
19
ENGINE
START
STOP
STOP ACC ON START
ON
20
21
ENGINE
START
STOP
STOP ACC ON START
STOP
22
23

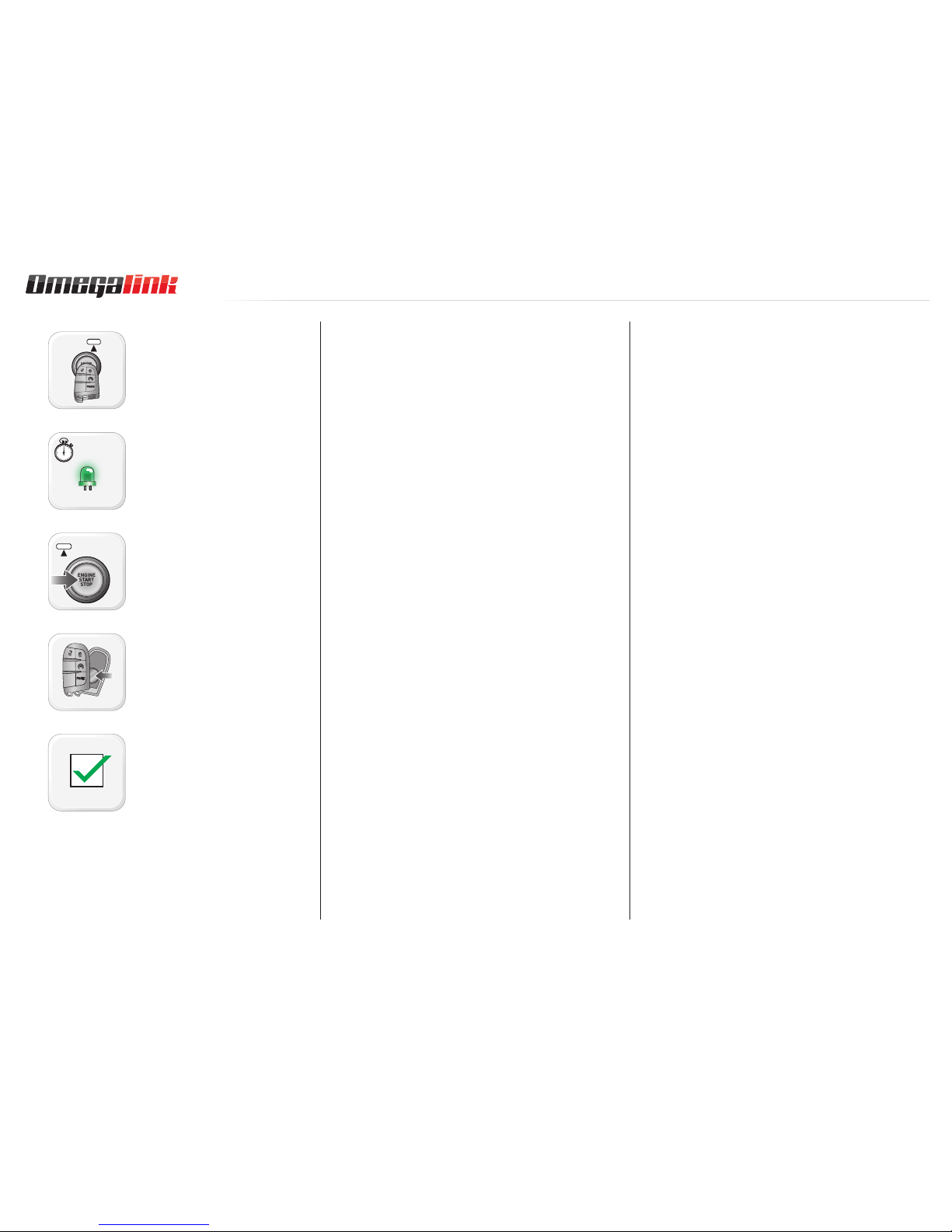

MODULE PROGRAMMING PROCEDURE - 2 OF 2
Push start button twice [2x] with keyfob 1 to
ON position. (No battery)
Wait, LED will turn solid GREEN for 2 seconds.
Push start button once [1x] to OFF position.
Insert battery in keyfob 1.
Module Programming Procedure completed.
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 18 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
>>
01
02
ENGINE
START
STOP
OFF ACC ON START
ON
03
04
ENGINE
START
STOP
OFF ACC ON STARTOFF
05
>>

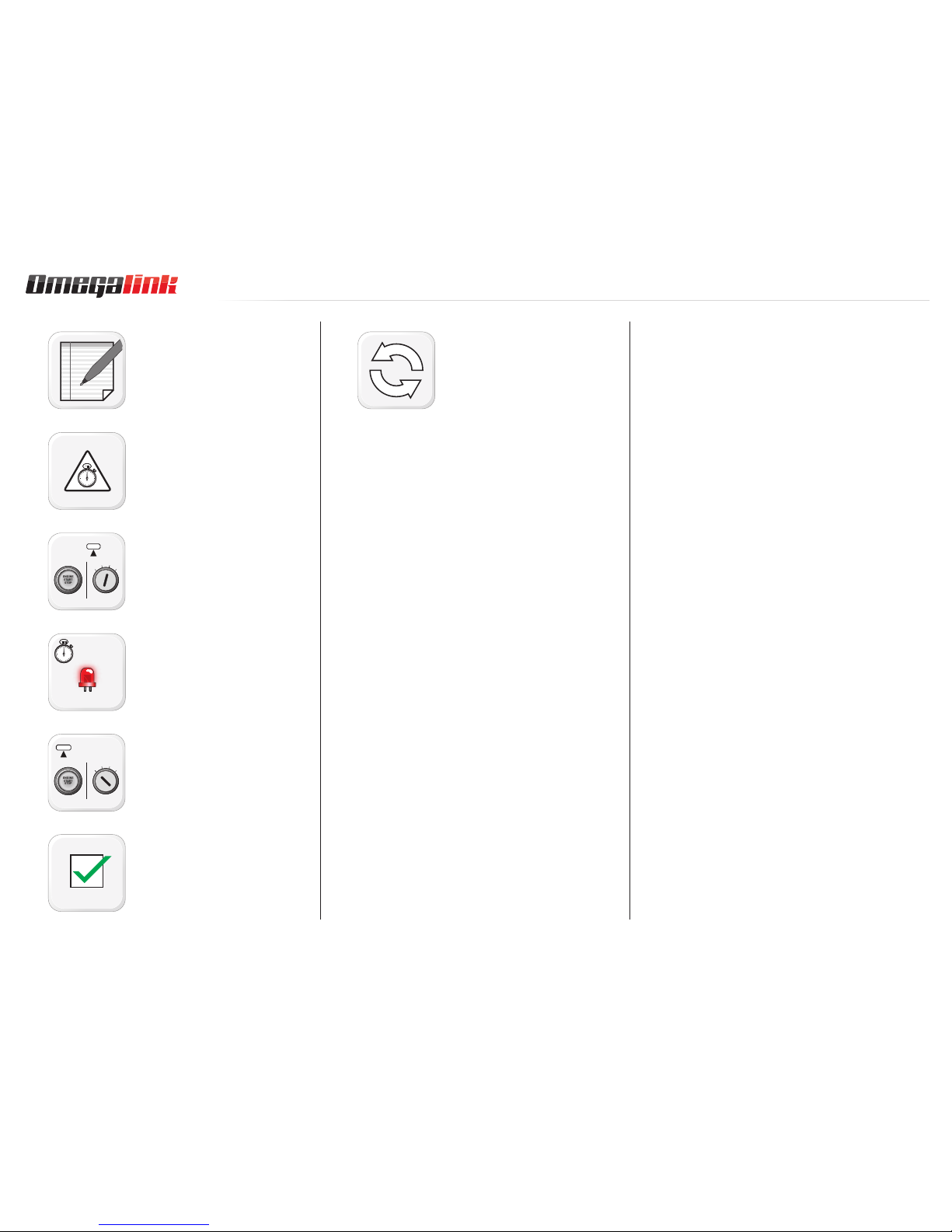

VALET MODE PROGRAMMING PROCEDURE - 1 OF 1
NOTE: In Valet Mode, the Remote starter is not
functional. Keyless entry, Lock and Unlock will
remain functional. See RF kit user manual for
alternate valet mode programming.
Time restriction. Complete next step within 7
seconds.
Cycle ignition ON five times [5x OFF/ON]
rapidly.
Wait, LED 1 will turn solid RED for 2 seconds.
Set ignition to OFF position.
Valet Mode Programming Procedure
completed.
To exit valet mode: repeat steps 1 to 5.
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 19 OF 26
• 20160811
DOC.: #29319

U.S. Patent No. 8,856,780
>>
>>
>>
01
ENGINE
START
STOP
OFF ACC ON STARTOFF
02
03 [X]
04
05 [Y]
06
07 [Z]
08 [Z]
09
10
11 [Y]
12
13
14
>>

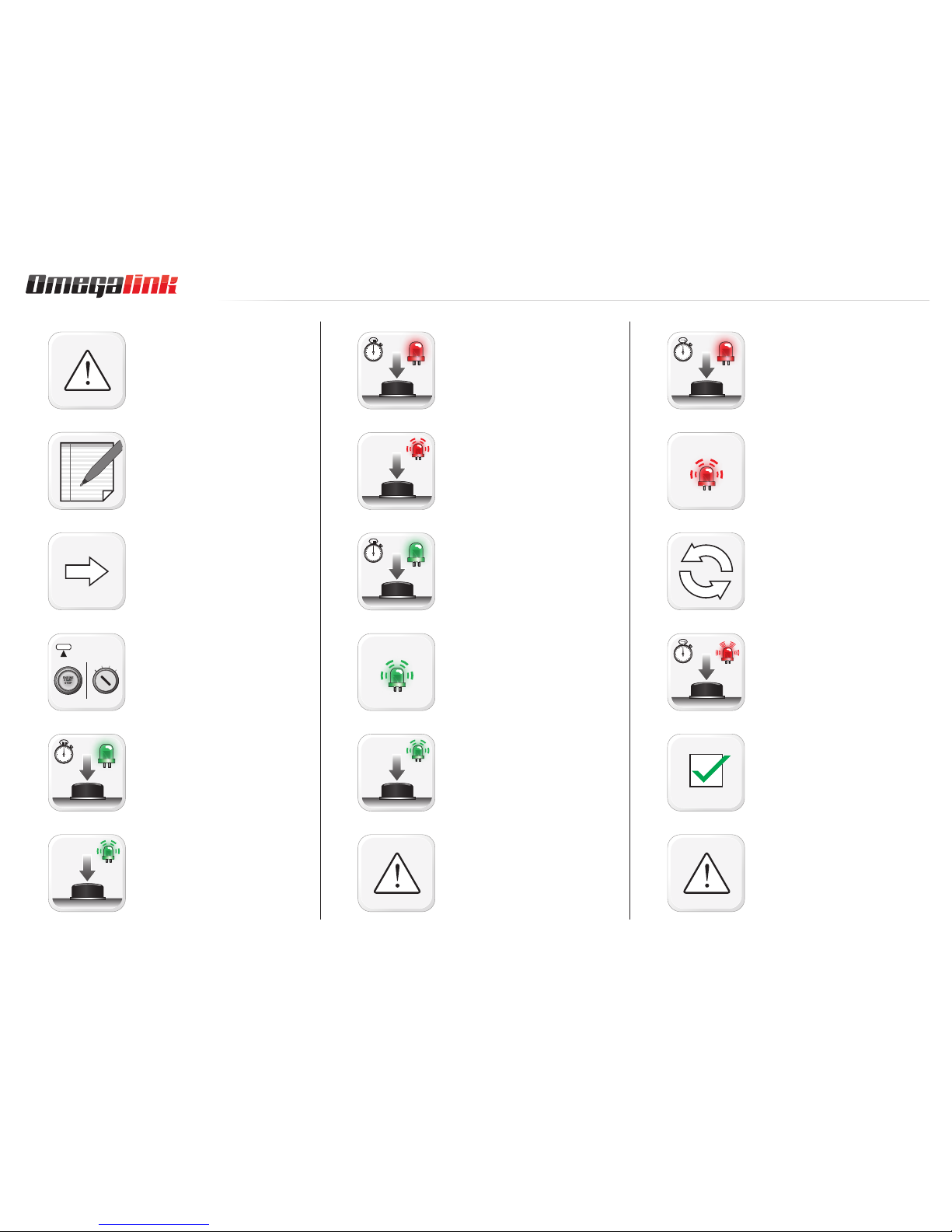

MODULE NAVIGATION PROCEDURE - 1 OF 1
It is mandatory to exit the Module Navigation
at the end of this procedure. Failure to exit the
Module Navigation will drain vehicle battery.
To exit the Module Navigation at any time:
Follow STEP 13.
Module must be programmed to the vehicle.
Use the Module Navigation Chart on the next
page.
Set ignition to OFF position.
TO ACCESS THE MENUS: Press and hold
programming button until LED 1 turns solid
GREEN.
IN THE MENUS: Press the programming
button as many times as the menu number
indicates. LED 1 will flash GREEN an equal
amount of times continuously.
TO ACCESS THE OPTIONS: Press and hold
programming button until LED 1 turns solid
RED.
IN THE OPTIONS: Press the programming
button as many times as the option number
indicates. LED 1 will flash RED an equal
amount of times continuously.
TO ACCESS THE SETTINGS: Press and hold
programming button until LED 1 turns solid
GREEN.
LED 1 will flash GREEN as many times as
the current (or default) setting number,
continuously.
IN THE SETTINGS: Press the programming
button as many times as necessary to access
your setting. LED 1 will flash GREEN an equal
amount of times continuously.
To return to the MENUS: exit the Module
Navigation and redo the Module Navigation
Procedure.
To save and return to the OPTIONS: Press and
hold programming button until LED 1 turns
solid RED.
LED 1 will flash RED as many times as the
current option number continuously.
Configure every other setting and proceed to
step 13.
MANDATORY: EXIT MODULE NAVIGATION.
Press and hold programming button for 7
seconds. LED 1 will flash RED rapidly. Release
programming button. LED 1 will turn OFF.
Module navigation completed.
Failure to exit the Module Navigation will drain
vehicle battery.
Automotive Data Solutions Inc. © 2016 OEMALRSCH7OLMDBALLEN
PAGE 20 OF 26
• 20160811
DOC.: #29319
