Omer 700.32 NOSAG Guide

Dati tecnici Donnèes techniques Dados tècnicos
Technical data Datos tècnicos Technischengegevens
Technische daten Tekniske data
Misure impiegabili mm Mesures utilisable mm Medidas que se podem utilizar mm
Usable lenghts mm Medidas que se pueden amplear mm Te gebruiken engtes in mm
Gebrauchliche Längen mm Brugbare laengder i mm
Capacità caricatore n° punti Capacitè chargeur n° de points Capacitade carregador n° pontos
Magazine capacity No. of fasteners Capacidad cargador n° puntos Capaciteit magazijn in aantal spijkers
Magazinkapazität Nägel Kapacitet af magasin antal klemmme
Pressione d’esercizio Pression de fonctionnement Pressao de trabalho
Working pressure Presiòn de trabajo Werkdruk
Betriebsdruck Arbejds tryk bar
Consumo aria litri/colpo Consommation air litre/coup Consumo ar litro/golpe
Air consumption litres/shot Consumo aire-litros/golpe Luchtverbruik liter/schot
Luftverbrauch Liter/Schlag Luftforbrug liter/skud
Peso kg Poids kg Peso kg
Weight kg Peso kg Gewicht in kg
Gewicht kg Vaegt kg
Dimensioni (AxBxH) mm Dimension mm Dimencoes mm
Dimensions mm Dimensiones mm Afmetingen in mm
Große mm Dimensioner mm
ISO 11201 ISO 11201 ISO 11201
Pressione sonora in pos. operatore Pression acoustique près de l’opérateur Intensidade sonora perto do operador
Sound pressure at the workstation Presiòn sonora en posición encargado Geluidssterkte op de werkplek
Lärmintensität am Arbeitsplatz Lydstyrke påoperatorposten
ISO 3744 ISO 3744 ISO 3744
Potenza sonora emessa Puissance acoustique émise Potência sonora emitida
Emitted sound power Potencia sonora emitida Uitgestraalde geluidssterkte
Ausgestrahlte Lärmintensität Udsendt lydstryrke
ISO 5349-86 ISO 5349-86 ISO 5349-86
Valore medio ponderato di vibrazione Valeur moyenne pondèrèe de vibration Valor medio ponderado de vibracao
sull’impugnatura max.33 colpi mesurèe sur la poignèe max.33 coups medida no punho max.33 golpes
Weighted mean value of vibration Valor medio ponderado de vibracion Gewogen gemiddelde vibratiewaarde
on the grip max.33 shots medida en la empunadura max.33 golp max.33 schot
Mitteler Vibrationswert, am Griff Middelvaerdi af vibrationer pa
gemessen max.33 Schäge handtaget max.33 skud
Via Foresto 42 - 31058 SUSEGANA TV ITALY Tel.[phone] Fax [phone] E-mail: [e-mail] http://www.omer.it
omers.p.a.
Manuale d’uso, manutezione e parti di ricambio Parte 2
Use, maintenance and spare parts manual Part 2
Gebrauchsanweisung, Instandhaltungsrichtlinien und Ersatzteile Teil 2
Manuel d’utilisation, entretien et pièces de rechange Partie 2
Brugsanvisning, vedligeholdelse og reservedelslite Del 2
Manual de uso, mantenimiento y repuestos Part 2
Manual de utiliza o, manuten o e partes sobresselentes Parte 2
Handleiding voor gebruik, onderhoud en reservedelslite Deel 2
çã çã
Guarnizioni- O-Rings - Dichtungen- Joints- Empaquetadura de anillo- Lasticakia - Kit deo-rings - O-ringen - Pakninger
20÷32
100
5÷7,5 bar
70÷105 psi
1,00
1,80
280x77x245
86,1 dB(A)
94,9 dB(A)
2
2,6 m/s
700.32 NOSAG
1718330_70032NOSAG_1 270505 DVM
Egceiridio crhshV, sunthrhshV kai antallaktikwn 2° MeroV
Tecnika carakthristika
Diastaseis se mm
Dvnatothta gemistera, svndeteres
Piesh leitovrgias atm.
Katanalosh aera l/xtvphma
Baros kg
Dvnatothta gemistera , svndeteres
Akoustikh piesh sth qesh ceiristou
Akoustikh iscu
Mesos oros metrhshs kradasmon
sth xeirolabh max.33 xtvphma
TupoV karfiou
cod. 1718330
00.77.1
00.06
00.14
00.16
00.12
28.72
00.05
00.08
00.11
00.45
01.33
28.71
01.45
01.51
01.56
02.42
02.48
02.65
00.07
Tipo di punto
Type of fastener
Befestigungselement
Type d’agrafe
Tipo de punto
Tipo de ponto
Type nietjes
Tilspændingstype
700
1,40x1,60
20 3/4“
32 1-1/4“
Crown: 7/16“
Thickness: 0.055"
Width: 0.063"
Gauge: 16
8,3

02.42
30.71
22.70.73
91.73.73
32.72.1
00.45
81.73.73
78.72
74.71
91.80
05.14
09.15
05.20
05.40
09.15
00.08
25.72
25.71
00.14
39.72
26.71
21.72
00.07
28.71
39.71
51.72
00.05
53.70
91.72
54.71 50.71
00.05
00.14
00.16
55.70
04.00
77.74
04.35
02.48
17.27
00.14
17.14
cod. 1718330 Indice di modifica
Upgrade number
28.72
22.72
92.71
01.33
01.56
01.45
44.71
90.72
40.71
39.11
00.12
51.70.1
00.12
00.06
00.08
53.71.1
00.11
91.71
51.71
00.14
81.75
07.40
07.18
30.71
22.70.73

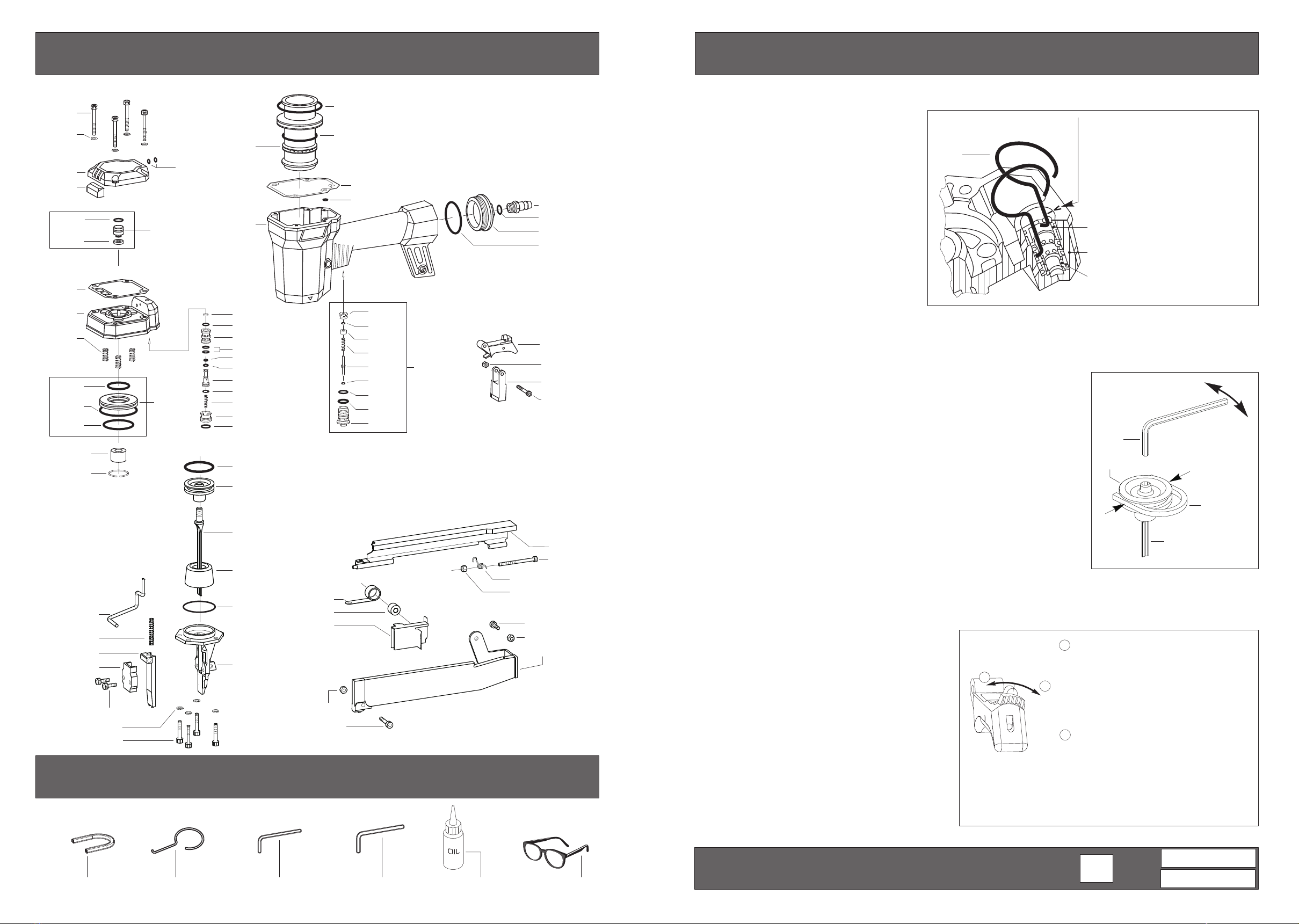

Parti di ricambio - Spare parts - Ersatzteile - Pièces de rechange - Piezas de repuesto
Antallaktika - Partes sobresselentes - Tabel te raadplegen - ReservedeleAntallaktika
Parti di ricambio - Spare parts - Ersatzteile - Pièces de rechange - Piezas de repuesto
Antallaktika - Partes sobresselentes - Tabel te raadplegen - ReservedeleAntallaktika
Dotaziomi - Equipment - Ausrüstung - Équeipements - Equipamiento - Parecomena
Equipamento - Uitrusting - Udstyr
Parecomena
D0107.4007.18 07.19 07.30 D02
05.00
05.25
93.73
71.70.73
76.44
64.71
04.50
90.71
04.00
05.14
05.00
51.73.73
1718330_700032NOSAG_1 270505
700.32 NOSAG
Cod. Descrizione Description
00.05 O-Ring O-Ring
00.06 O-Ring O-Ring
00.07 O-Ring O-Ring
00.08 O-Ring O-Ring
00.11 O-Ring O-Ring
00.12 O-Ring O-Ring
00.14 O-Ring O-Ring
00.16 O-Ring O-Ring
00.45 O-Ring O-Ring
01.33 O-Ring O-Ring
01.45 O-Ring O-Ring
01.51 O-Ring O-Ring
01.56 O-Ring O-Ring
02.42 O-Ring O-Ring
02.48 O-Ring O-Ring
02.65 O-Ring O-Ring
04.00 Dado Nut
04.35 Vite Screw
04.50 Vite Screw
05.00 Dado Nut
05.14 Vite Screw
05.20 Vite Screw
05.25 Vite Screw
05.40 Vite Screw
07.18 Chiave pistone Piston wrench
07.19 Estrattore Extractor
07.30 Chiave esagonale Hex. bar wrench
07.40 Chiave esagonale Hex. bar wrench
09.15 Rondella Washer
17.14 Raccordo ¼" Air plug ¼"
17.27 Tappo Inlet cap
21.72 Corpo (specificare il colore) Body (to specify the colour)
22.72 Testa Head
25.71 Silenziatore Silencer
25.72 Deflettore scarico Exhaust deflector
26.71 Cilindro Cylinder
28.71 Guarnizione testa Head gasket
28.72 Guarnizione testa Head gasket
30.71 Pistone Piston
32.72.1 Ammortizzatore Bumper
39.11 Guarnizione servovalvola Servo valve gasket
39.71 Valvola scarico completa Exhaust valve assembled
39.72 Guarnizione valvola scarico Exhaust valve gasket
40.71 Valvola completa Valve assembled
44.71 Ammortizzatore sup. Upper bumper
50.71 Pulsante completo Trigger valve assembled
51.70.1 Cilindro servovalvola Servo valve cylinder
51.71 Boccola servovalvola Servo valve bushing
51.72 Premistoppa Stuffing box
53.70 Distanziale Spacer
53.71.1 Pistone servovalvola Servo valve piston
54.71 Pulsante Trigger valve
55.70 Raccordo Trigger valve bush
64.71 Carter Hold down
74.71 Guida testina Nose plate guide
76.44 Rullo molla Roller
77.74 Guida sicura Safety guide
78.72 Sicura Safety
81.75 Grilletto comando completo Trigger assembled
90.71 Molla Spring
90.72 Molla Spring
91.71 Molla Spring
91.72 Molla Spring
91.80 Molla Spring
92.71 Molla Spring
93.73 Molla Spring
22.70.73 Battente Driver
51.73.73 Caricatore Magazine
71.70.73 Spingipunto Pusher
81.73.73 Controtestina Nose
91.73.73 Testina Nose plate
D01 Boccetta olio Oiler
D02 Occhiali protettivi Protective goggles
1
51.71
51.70.1
22.72
07.19
Nel montaggio far coincidere le tacche
During the assembling aline the marks
Bei der Montage die Kerben in Übereinstimmung bringen
Faire coÏncider les encoches pour le montage
En la fase de montaje, cuidar que las muescas coincidan
Sto montarisma na sumpiptoun oi deikteV
Na montagem, fazer com que as referências coincidam
Zorg er bij de montage voor dat de kerven samenvallen
Ved montering skal hakkene passe sammen
2Posizione per sparo a "martello"
Bumping action position
Hammerschlagposition
Position pour décharge continue
Posición golpe de retenci n
Lamaki sth qesh gia karfwma san sfuri
Posi
ó
ção para disparo do martelo
Hammerslagstand
Position ved hammerstød
1Posizione per sparo a colpo singolo
Single shot position
Einzelschußposition
Position pour décharge d’un seul coup
Posición de un solo golpe
Lamaki sth qesh gia karfwma me ena-ena ctuphma
Posi ó disparo
Schietstand voor enkel scot
Position ved engangsskud
ção para um s
1
2
02.65
01.51
1020284
