Omer 500.38 B Guide

Caricamento-Loading
Caratteristiche-Features
Via Foresto 42 - 31058 SUSEGANA TV ITALY Tel.[phone] Fax [phone] E-mail: [e-mail] http://www.omer.it
omers.p.a.
Manuale d’uso, manutezione e parti di ricambio Parte 2
Use, maintenance and spare parts manual Part 2
Gebrauchsanweisung, Instandhaltungsrichtlinien und Ersatzteile Teil 2
Manuel d’utilisation, entretien et pièces de rechange Partie 2
Brugsanvisning, vedligeholdelse og reservedelslite Del 2
Manual de uso, mantenimiento y repuestos Part 2
Manual de utiliza o, manuten o e partes sobresselentes Parte 2
Handleiding voor gebruik, onderhoud en reservedelslite Deel 2
çã çã
Egceiridio crhshV, sunthrhshV kai antallaktikwn 2° MeroV
Tecnika carakthristika
Diastaseis se mm
Dvnatothta gemistera, svndeteres
Piesh leitovrgias atm.
Katanalosh aera l/xtvphma
Baros kg
Dvnatothta gemistera , svndeteres
Akoustikh piesh sth qesh ceiristou
cod. 1417930
15÷40
105
5÷7,5 bar
70÷105 psi
0,54
1,50
234x58x245
LpA,1s
(Rif.20µPa)
83,1 dB(A)
LWA,1s
(rif.1pW)
92,9 dB(A)
Sequential ah,w
2
6,4 m/s
Bump ah,w
2
6,06 m/s
1417930_50038B_1 210103
TupoV karfiou
Tipo di punto
Type of fastener
Befestigungselement
Type d’agrafe
Tipo de punto
Tipo de ponto
Type nietjes
Tilspændingstype
500.38 B
Dati tecnici Donnèes techniques Dados tècnicos
Technical data Datos tècnicos Technischengegevens
Technische daten Tekniske data
Misure impiegabili mm Mesures utilisable mm Medidas que se podem utilizar mm
Usable lenghts mm Medidas que se pueden amplear mm Te gebruiken engtes in mm
Gebrauchliche Längen mm Brugbare laengder i mm
Capacità caricatore n° punti Capacitè chargeur n° de points Capacitade carregador n° pontos
Magazine capacity No. of fasteners Capacidad cargador n° puntos Capaciteit magazijn in aantal spijkers
Magazinkapazität Nägel Kapacitet af magasin antal klemmme
Pressione d’esercizio Pression de fonctionnement Pressao de trabalho
Working pressure Presiòn de trabajo Werkdruk
Betriebsdruck Arbejds tryk bar
Consumo aria litri/colpo Consommation air litre/coup Consumo ar litro/golpe
Air consumption litres/shot Consumo aire-litros/golpe Luchtverbruik liter/schot
Luftverbrauch Liter/Schlag Luftforbrug liter/skud
Peso kg Poids kg Peso kg
Weight kg Peso kg Gewicht in kg
Gewicht kg Vaegt kg
Dimensioni (AxBxH) mm Dimension mm Dimencoes mm
Dimensions mm Dimensiones mm Afmetingen in mm
Große mm Dimensioner mm
EN 12549 :1999 ISO 11201 :1995
Pressione sonora in pos. operatore Pression acoustique près de l’opérateur Intensidade sonora perto do operador
Sound pressure at the workstation Presiòn sonora en posición encargado Geluidssterkte op de werkplek
Lärmintensität am Arbeitsplatz Lydstyrke påoperatorposten
EN 12549 :1999 ISO 3744 :1994
Potenza sonora emessa Puissance acoustique émise Potência sonora emitida
Emitted sound power Potencia sonora emitida Uitgestraalde geluidssterkte
Ausgestrahlte Lärmintensität Udsendt lydstryrke
EN 28662 :1992 ISO 5349 :1986 ISO 8662 -11
Valore medio ponderato di vibrazione Valeur moyenne pondèrèe de vibration Valor medio ponderado de vibracao
sull’impugnatura mesurèe sur la poignèe medida no punho
Weighted mean value of vibration Valor medio ponderado de vibracion Gewogen gemiddelde vibratiewaarde
on the grip medida en la empunadura
Mitteler Vibrationswert, am Griff Middelvaerdi af vibrationer pa
Gemessen handtaget

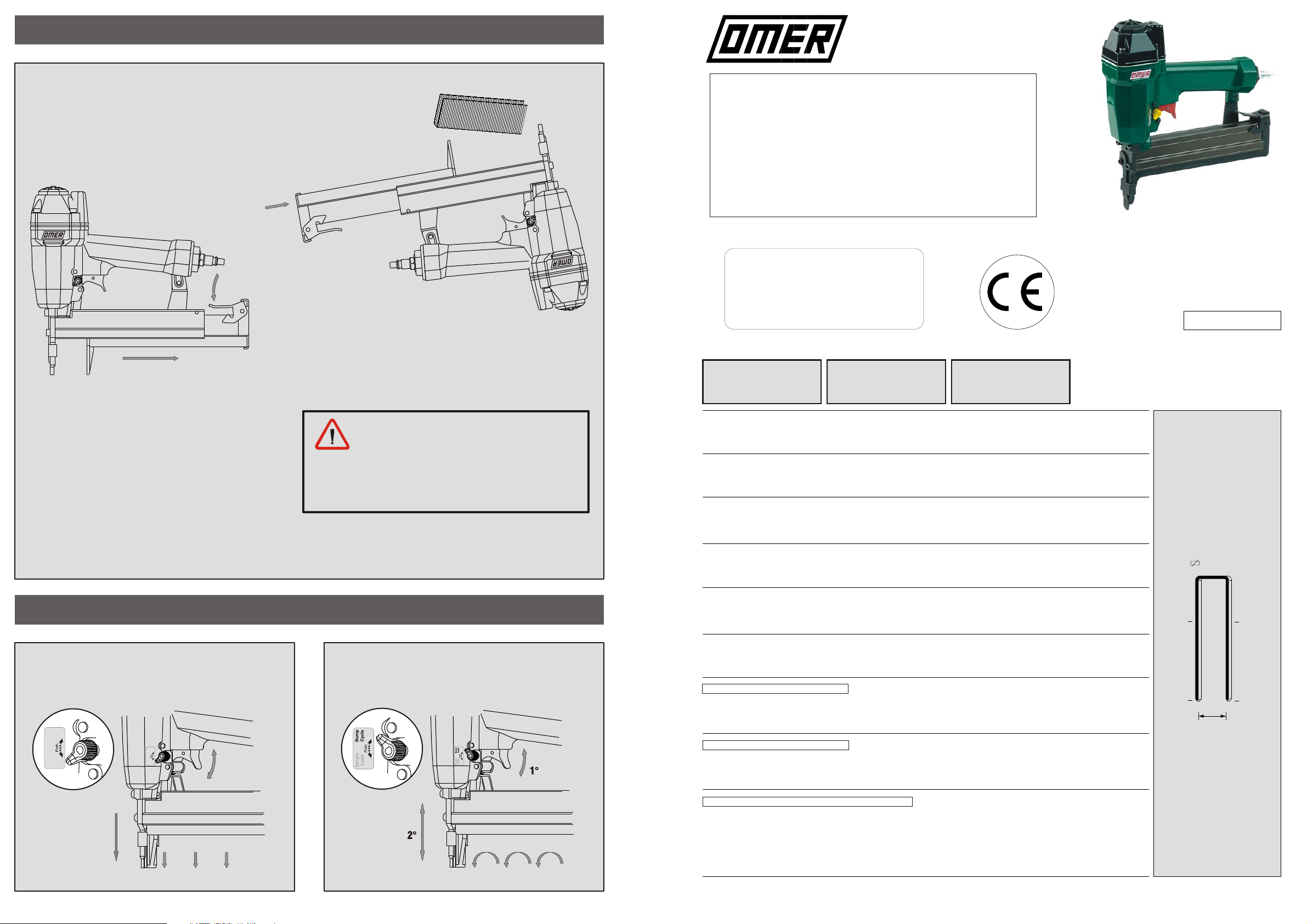

Caricamento da sotto
Bottom load magazine
Colpo martello
Bump fire
Colpo singolo
Sequential fire
1°
2°
Syngle
Cycle
Bump
Cycle
Syngle
Cycle
Bump
Cycle
-Premere il grilletto chiusura
Press the magazine latch
-Arretrare il carrello
Pull the slider
-Capovolgere la graffatrice
Turn the tool up side down
-Inserire le graffe
Load the magazine with staples
-Chiudere il carrello
Shut the slider
Non azionare MAI il grilletto comando o la sicura a
contatto durante il caricamento della graffatrice.
NEVER pull the trigger or the contact safety while loading
magazine.
500
8,8
40 1-9/16"
15 58“
1,00x1,25
Crown: .530" (17/32")
Gauge: 18
Akoustikh iscu
Mesos oros metrhshs kradasmon
sth xeirolabh

cod. 1417930 Indice di modifica
Upgrade number
1417930_50038B_1 210104
500.38 B 1
Cod. Descrizione Description
00.08 O-Ring O-Ring
00.10 O-Ring O-Ring
00.12 O-Ring O-Ring
00.14 O-Ring O-Ring
00.15 O-Ring O-Ring
00.18 O-Ring O-Ring
00.19 O-Ring O-Ring
00.45 O-Ring O-Ring
01.37 O-Ring O-Ring
01.38 O-Ring O-Ring
01.40 O-Ring O-Ring
01.43 O-Ring O-Ring
01.49 O-Ring O-Ring
02.30 O-Ring O-Ring
05.10 Vite Screw
05.10.1 Vite Screw
05.14 Vite Screw
05.20 Vite Screw
05.25 Vite Screw
05.30 Vite Screw
07.30 Chiave esagonale Hex. bar wrench
07.40 Chiave esagonale Hex. bar wrench
09.02 Anello elastico Elastic ring
09.15 Rondella Washer
09.18 Anello elastico Elastic ring
10.55 O-Ring O-Ring
17.10 Raccordo ¼” Air plug ¼”
17.28 Tappo Inlet cap
21.45 Corpo Body
22.42 Testa Head
25.40 Deflettore Exhaust deflector
25.41 Silenziatore Silencer
26.42 Cilindro Cylinder
28.40 Guarnizione testa Head gasket
32.41 Ammortizzatore Bumper
39.40 Guarnizione scarico Exhaust seal
40.41 Valvola completa Valve ass’y
43.11 Rondella Washer
44.40 Guarnizione Gasket
45.40 Anello valvola Ring
50.41 Pulsante completo Trigger valve ass’y
51.41 Boccola pulsante Trigger valve housing
53.41 Pistone servovalvola Valve piston
54.41 Pulsante Trigger valve
55.41 Raccordo pulsante Bush
71.41 Reggicaricatore Support
75.45 Sicura Safety
76.05 Perno Pin
76.46 Perno molla Pin
77.44 Guida sicura Safety guide
80.43 Grilletto chiusura Trigger
81.40 Grilletto comando Trigger
90.07 Molla Spring
91.02 Molla Spring
91.73 Molla Spring
92.01X Molla Spring
93.40 Molla Spring
23.40.79 Battente Driver
51.40.79 Caricatore Magazine
61.43.79 Carrello Slider
71.40.79 Spingipunto Pusher
81.40.79 Controtestina Nose
91.43.79 Testina Nose plate
D01 Boccetta olio Oiler
Parti di ricambio - Spare parts - Ersatzteile - Pièces de rechange - Piezas de repuesto
Antallaktika - Partes sobresselentes - Tabel te raadplegen - ReservedeleAntallaktika
Parti di ricambio - Spare parts - Ersatzteile - Pièces de rechange - Piezas de repuesto
Antallaktika - Partes sobresselentes - Tabel te raadplegen - ReservedeleAntallaktika
Dotaziomi - Equipment - Ausrüstung - Équeipements - Equipamiento - Parecomena
Equipamento - Uitrusting - Udstyr
Parecomena
05.30
09.15
05.10.1
43.11
25.40
25.41
22.42
39.40
92.01X
00.14
40.41
01.37
01.43
45.40
00.45
28.40
09.02
61.43.79
44.40
02.30
23.43.79
26.42
01.49
01.38
32.41
01.40
17.28
00.14
17.10
00.12
51.41
00.18
91.73
00.08
53.41
00.10
00.15
10.55
54.41
10.55
55.41
09.18
50.41
21.45
77.44
76.05
81.40
SERIAL NUMBER
MATRICOLA
MATRICULE
MATRICULA
UPGRADE NUMBER
INDICE DI MODIFICA
NIVEAU DE MODIFICATION
INDICADOR DE MODIFICA
07.40 D0107.30
76.05
76.46
90.07
09.02
05.20
91.43.79
05.25
81.40.79
75.45
91.02
93.40
71.40.79
80.43
00.19
05.14
71.41
05.10
51.40.79
28.40
00.10
10.55
00.08
00.12
00.14
00.15
02.30
00.45
01.38
Guarnizioni-O-Rings -Dichtungen - Joints - Empaquetadurade anillo- Lasticakia - Kitde o-rings- O-ringen - Pakninger
01.37
00.74.1
