Omer HR23 L Guide

Manuale d’uso, manutezione
e parti di ricambio Parte 2
Use, maintenance
and spare parts manual Part.2
192HR23LA1_HR23L_121110 IV
A1
Indice di modifica
Upgrade number
cod. 192HR23LA1
HR23 L
omer s.p.a.
Via Foresto, 42 - 31058 SUSEGANA (TV) ITALY Tel. [phone] Fax [phone] e-mail: [e-mail] www.omer.it
Misure impiegabili mm (inch)
Usable lenghts mm (inch)
Capacità caricatore n° punti
Magazine capacity No. of fasteners
Pressione d’esercizio bar (psi)
Working pressure bar (psi)
Consumo aria litri/colpo a 6 bar
Air consumption litres/shot at 6 bar
Peso kg
Weight kg
Dimensioni (AxBxH) mm
Dimensions mm
EN 12549:1999 ISO 11201:1995
Pressione sonora in posizione operatore
Max A-Weighted pressure level at operator’s position
EN 12549:1999 ISO 3744:1994
Potenza sonora emessa
Max A-Weighted sound power level
ISO 8662-11:1999
Vibrazione
Vibration
23
( 7/8”)
130
5÷7
(70÷100)
1,50
1,48
198x91x362
84 dBA
94 dBA
2
< 2,5 m/s
Note - Notes
®
Tipo di punto
Type of fastener
Dimensione naso
Nose dimension
HR23
Gauge: 15
1,80
23
56 mm
7,9 ÷ 10,7

Ref. No. Part No. Description

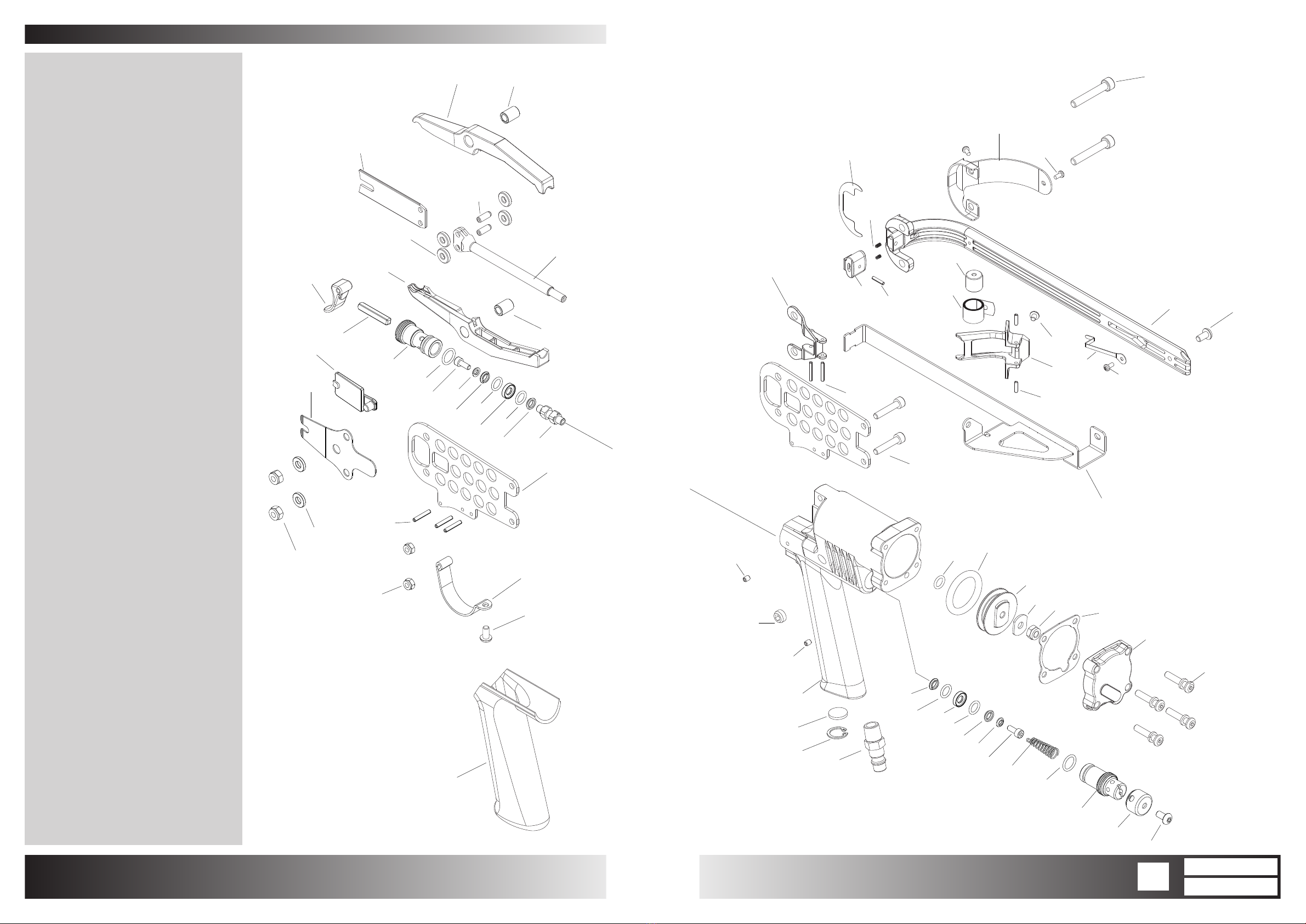

Parti di ricambio - Spare parts Indice di modifica
Upgrade number
HR23 L Cod. 192HR23LA1
902175
A1
023
022
025
024
018
021
026
511
503
011
020
523
028
029
027
019
014
012
013
015
016
017
515
514
513
039
525
526
510
004
509
508
507
002
003
037
503
521
036
033
517
518
519
034
031
032
520
035
001
502
038 524
030
501
007
008
009
010
504
505
506
503
005
006
510
013
506
009
505
504
008
009 506
010 506
009
001 2HR23M-A001 Cap
002 2HR23M-A002 Packing
003 2HR23M-A003 Piston
004 2HR23M-A004 Body
005 2HR23M-A005 Deflector
006 2HR23M-A006 Seat Rear Valve
007 2HR23M-A007 Spring
008 2HR23M-A008 Washer
009 2HR23M-A009 Support, O-Ring End
010 2HR23M-A010 Spring
011 2HR23M-A011 Trigger
012 2HR23M-A012 Guard, Trigger
013 2HR23M-A013 Bushing
014 2HR23L-A014 Latch
015 2HR23M-A015 Side Plate
016 2HR23L-A016 Spring Latch
017 2HR23M-A017 Washer
018 2HR23M-A018 Stem, Throttle
019 2HR23M-A019 Seat, Front Valve
020 2HR23M-A020 Spacer
021 2HR23L-A021 Jaw, Lower
022 2HR23L-A022 Jaw, Upper
023 2HR23L-A023 Blade
024 2HR23M-A024 Pin
025 2HR23M-A025 Roller
026 2HR23M-A026 Piston Rod
027 2HR23M-A027 Shoe Magazine
028 2HR23M-A028 Shim
029 2HR23M-A029 Spring
030 2HR23M-A030 Guard
031 2HR23M-A031 Roller
032 2HR23M-A032 Spring
033 2HR23M-A033 Bracket
034 2HR23M-A034 Pusher
035 2HR23M-A035 Magazine Body
036 2HR23M-A036 Clip
037 2HR23M-A037 Rail
038 2HR23M-A038 Washer
039 2HR23M-A039 Grip
501 2HR23M-A501 Hex. Soc. Hd. Cap Screw
502 2HR23M-A502 O-Ring
503 2HR23M-A503 Hex. Soc. Hd. Cap Screw
504 2HR23M-A504 O-Ring
505 2HR23M-A505 Hex. Soc. Hd. Bolt
506 2HR23M-A506 O-Ring
507 2HR23M-A507 Air Plug
508 2HR23M-A508 C-Ring
509 2HR23M-A509 Silencer
510 2HR23M-A510 Hex. Soc. HdLess Bolt
511 2HR23M-A511 Hex. Soc. HdLess Bolt
513 2HR23M-A513 Spring Pin
514 2HR23M-A514 Lock Nut
515 2HR23M-A515 Lock Nut
516 2HR23M-A516 Hex. Soc. Hd. Bolt
517 2HR23M-A517 Spring Pin
518 2HR23M-A518 Hex. Soc. Hd. Cap Screw
519 2HR23M-A519 Spring Pin
520 2HR23M-A520 Hex. Soc. Hd. Cap Screw
521 2HR23M-A521 Hex. Soc. Hd. Cap Screw
523 2HR23M-A523 Hex. Soc. Hd. Bolt
524 2HR23M-A524 Lock Nut
525 2HR23M-A525 O-Ring
526 2HR23M-A526 Spring Pin
516
