Omnia LEVEL Smart Deadbolt with Plate User manual

OMNIA
+LEVEL
Smart Deadbolt with Plate (Stainless Steel)
Instructions/Template for Single Cylinder
Tools Needed:
Doors Prepared with 21/8” Cutout
1- No.1 and No.2 Phillips screwdrivers
2- Measuring device
3- Flathead screwdriver
4- Pliers or hacksaw
5- Metal file
800-310-7960 /www.OMNIAindustries.com
Parts Enclosed:
A- Tailpiece Cylinder with Studs
B- Cylinder Collar
C- Exterior Backplate
D- Mounting Plate for Cylinder
E- 2 – 2” Cylinder Mounting
Screws
F- Inside Backplate
G- 2 – 13/4” Mounting Screws
for Inside Backplate
H- Level Strike
I- 2 – 11/2” Mounting Screws
for Level Strike
J- Level Battery Cap
K- CR2 Battery
L- Level Deadbolt
M- Level Deadbolt Housing
N- Hub of Level Bolt
O- Tubular Latch
P- Tubular Latch Faceplate
Q- Tubular Latch Strike
R- Tubular Latch Dust Box
S- 2 – 1” Mounting Screws for
Tubular Latch Faceplate
T- Spindle (Tear drop groove
positioned towards set screw)
U - 2 Levers
V- 2 – 1” Mounting Screws for
Level Deadbolt Faceplate
W- 2 – 1” Mounting Screws for
Tubular Latch Strike
X- 2 – Set Screws
N
Adjust backset on Lfor door, 23/8”
(S) or 23/4”(L). Insert Lthrough
edge of door deadbolt hole and
fasten to door with Vwood
screws. Insert Minto 21/8” bore
and fit Ninto M.
1
Slide Athrough
B and Cand
then insert end of
tailpiece into hub
of M.Test fit length
of tailpiece into F
on other side of
door to determine
where to trim the
tailpiece.
4
Trim the appropriate amount of length from tailpiece
using either a hacksaw or break with a pair of pliers.
The tailpiece may need to be filed down to assure proper
movement of the Level bolt when used electronically.
(May work manually, but not electronically. Tailpiece
may be too long.) Remove studs on cylinder, if required.
5
O+L-DBw/PlateSS 0522
I n lower hole on door edge, install latch and faceplate
and insert spindle through latch hub (Not Shown).
Follow latchset instruction sheet provided separately.
While Mis inside of 21/8” bore, attach Lto M
using screw already assembled to body of M.
3
LM
M
2
MN
(L)
V
V
L
(S)
B
A
M
C
B
A
C
M
F
G
X
A
B
C
G
F
T
I
N
H
JK
L
P
O
M
U
G
U
S
R
W
QV
V
X
X
E
E
D
Slide Athrough Band Cand then
slide tailpiece through hub of M
and large hole of D. The lever attached
to the backplate needs to slide onto
the spindle in hole below. From interior
side, insert the two Escrews through
Dand Mand tighten into A. Attach
Fso that the tailpiece slides into the
turnpiece and the spindle below slides
into the lever attached to the backplate.
Fasten at both ends of backplate using
Gscrews. On both sides of door, secure
levers with set screw X.
6
E
E
D

for a 23
/
4
”backset (L)
for a 23
/
8
”backset (S)
800-310-7960 /www.OMNIAindustries.com O+L-DBw/PlateSS 0522
Test proper orientation of deadbolt, electronically. First test the operation with the door
in the open position, and then test the deadbolt in the closed position. When closed,
always test from the inside of the door (in order to prevent getting locked out).
W
H
QR
I
Insert battery Kinto deadbolt Land thread
the correct Jcover for backset onto deadbolt.
7
8
Testing
KL
J
In the upper
hole of door
frame, attach
Hwith I
screws and
in the lower
hole, insert
Rand then
secure Q
over that
with W
screws.

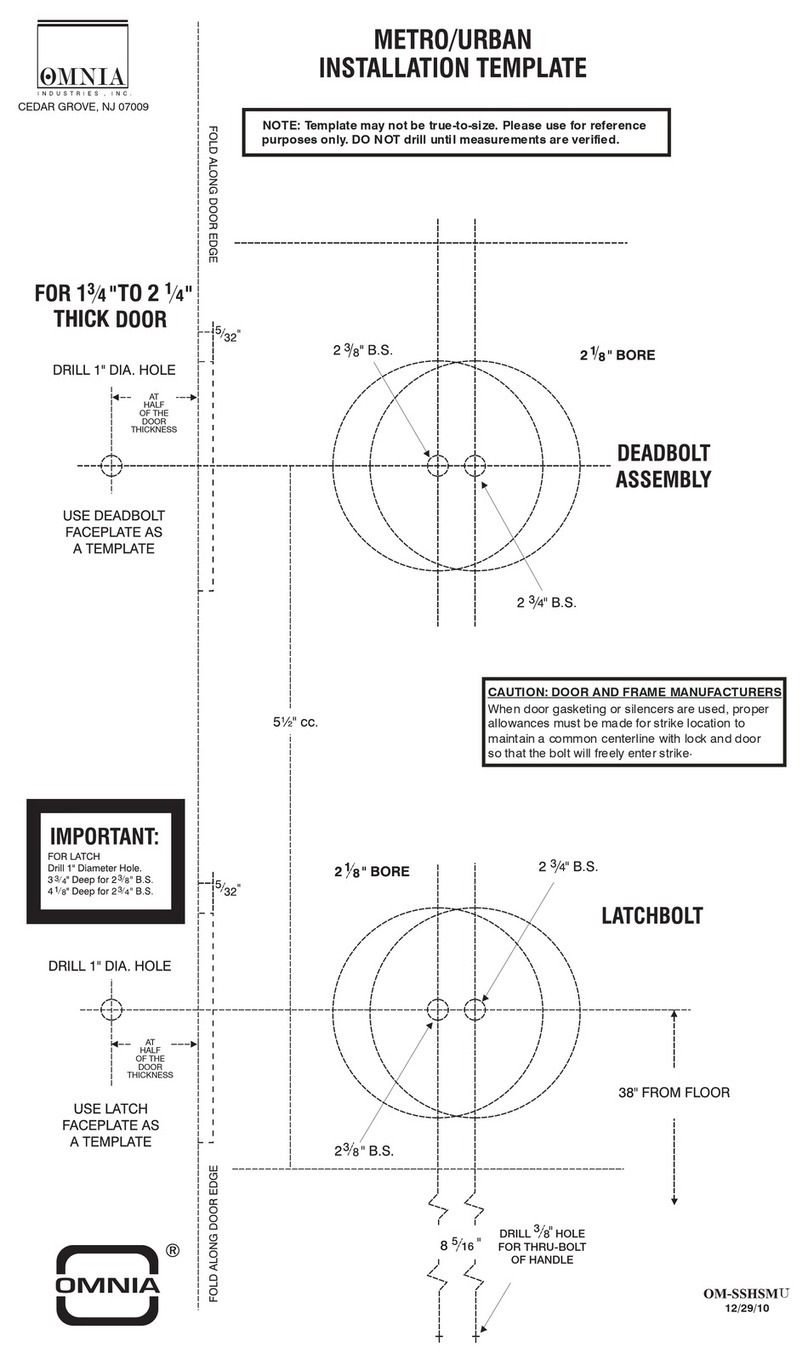

DRILL
1
/ 2 "DIA. FOR D11000
& D12000 THRU-BOLTED
BACKPLATES ONLY
21/4"
15/8"
23/8"B.S.
23/8"B.S.
5/32
"
51/2"CC.
5/32"
7/8
"
23/4"B.S.
23/4"B.S.
93/8"
21/8"BORE
7/8"
38"FROM FLOOR
DRILL 1/2"DIA. FOR D11000
& D12000 THRU-BOLTED
BACKPLATES ONLY
DRILL 1" DIA. HOLE
DRILL 1" DIA. HOLE
USE DEADBOLT
FACEPLATE AS
A TEMPLATE
USE LATCH
FACEPLATE AS
A TEMPLATE
FOLD ALONG DOOR EDGE
FOLD ALONG DOOR EDGE
CAUTION: DOOR AND FRAME MANUFACTURERS
When door gasketing or silencers are used, proper
allowances must be made for strike location to maintain
a common centerline with lock and door so that the
bolt will freely enter strike.
CAUTION: DOOR AND FRAME MANUFACTURERS
When door gasketing or silencers are used, proper
allowances must be made for strike location to maintain
a common centerline with lock and door so that the
bolt will freely enter strike.
DEADBOLT
ASSEMBLY
NOTE: Template is not true to size.
Please use for reference purposes only.
DO NOT drill until measurements are verified.
5
1
/ 2 " C.C . DEADBOLT
INSTALLATION TEMPLATE
LATCHBOLT
FOR LEVER OR KNOB
FOR 1
3
/ 4 " DOOR
21/8 " BORE
IMPORTANT:
FOR LATCH
Drill 1" Diameter Hole.
33/4"Deep for 23/8"B.S.
4
1/8"Deep for 23/4"B.S.
Congratulations - Your installation is now complete! If you have any trouble,
please call OMNIA at the number listed below. We thank you for your purchase.
