Omnicharge Op2fa001 User manual

User Manual

Omni Ultimate

www.omnicharge.co

2

POWER YOUR NEXT ADVENTURE

For more information visit our support page at www.omnicharge.co

3

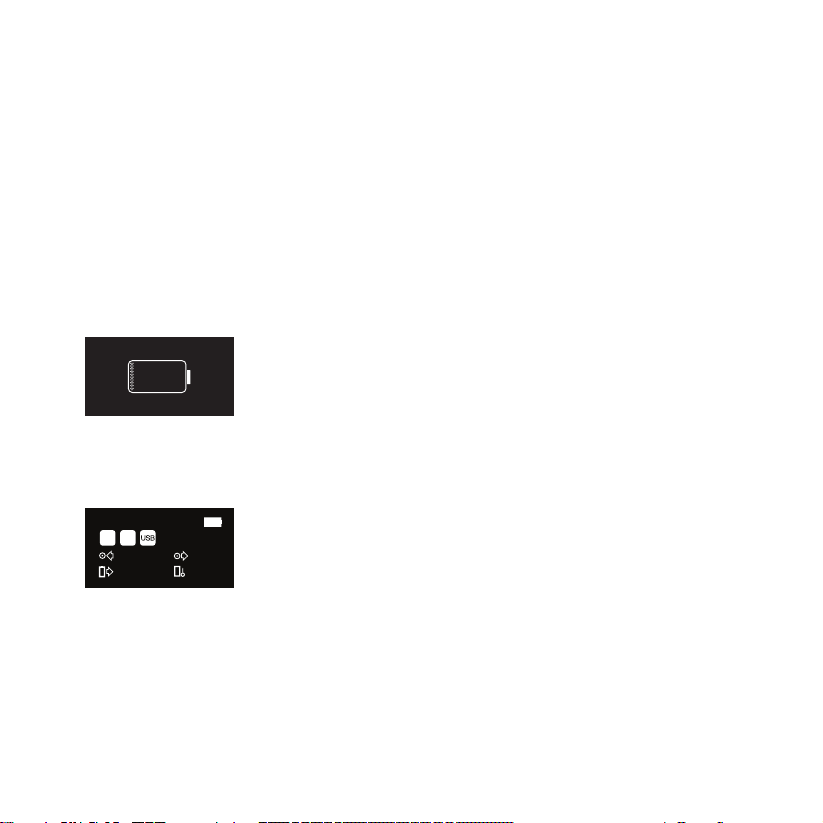

BEFORE USING

Calibrate the battery

1. Fully discharge Omnicharge until the screen turns off. Press the Power Button and you

should see an empty battery icon on the screen.

It's easy to do. Follow these steps:

To make sure the battery reading is correct, please calibrate the Omnicharge battery when

you first receive the product and periodically in the future.

2. Fully charge your Omnicharge to 100% to finish the calibration.

.............................................................................................................................................................................................................................

0.00 V

20.3 °C

100%

C

0.50 W

0.00 W

AC

Note: The Omnicharge battery needs to be recharged at least every 6 months to avoid over

depletion. Failure to do so can cause the battery to malfunction and is not covered by

warranty.

4

PORTS AND BUTTONS

1. Power and Menu Button

2. AC Outlet Button/Move Up

3. DC Outlet Button/ Move Down

4. AC Outlet

5. DC Input Port

6. USB-A Ports

7. USB-C Input / Output Port

8. DC Output Port

.............................................................................................................................................................................................................................

........................

3

1

2

4

5

6

7

8

EU Model

5

BUTTON FUNCTIONS

SCREEN

OLED screen with real time metrics

MAIN CONTROLS

MENU CONTROLS

• Long press to power on

• Quick press to turn screen display on/off

• On/Off AC outlet

• DC out settings

• Double press to enter the menu

• Quick press to select

• Move Up

• Move Down

.............................................................................................................................................................................................................................

24.3°C

100%

0.93 W

0.00 W

6

43

52

1

0.00 V

AC DCC

1. Status Icons

2. Total Input Wattage

3. Total Output Wattage from the Battery

4. Battery Temperature

5. USB-C/Barrel DC Output Voltage

6. Battery Percentage Remaining

6

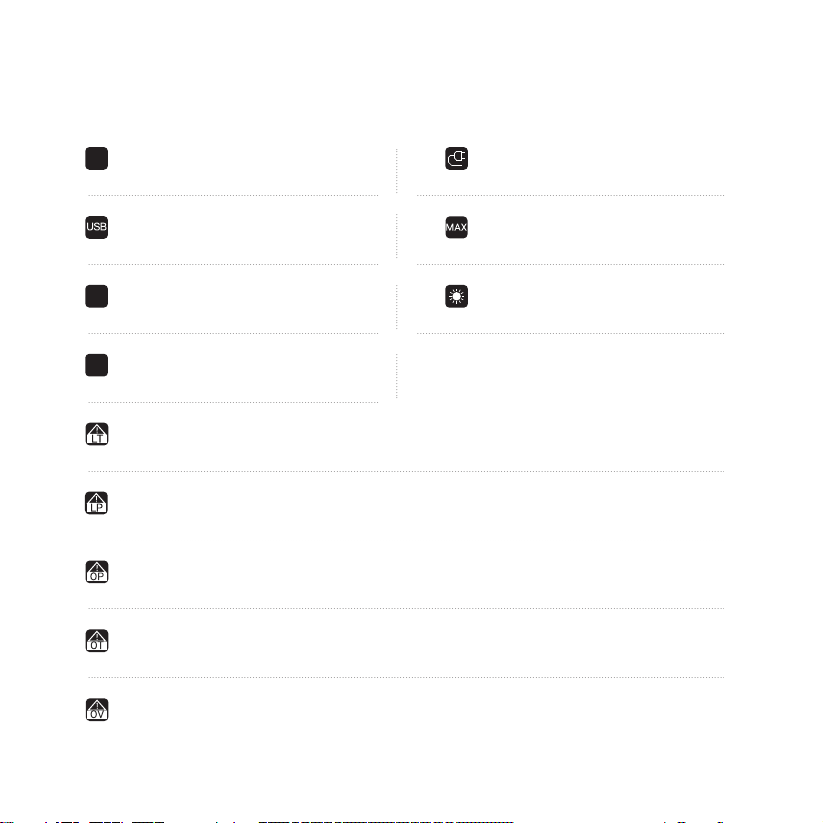

SCREEN ICONS

DC ADJUSTABLE DC OUTPUT

Adjustable 5V-60V DC output is activated.

AC AC OUTPUT

AC outlet is activated.

CUSB-C OUTPUT

60W USB-C output is activated.

USB OUTPUT

USB ports are turned on.

CHARGING INPUT

Your Omnicharge is being charged.

OPTIMAL CHARGING

Charging at maximum power.

SOLAR CHARGING

Charging from solar power.

.....................................................................................................

.............................................................................................................................................................................................................................

LOW TEMPERATURE PROTECTION

Battery's temperature is too low and the charging circuit is shut off.

OVERPOWER PROTECTION

Device is drawing too much power. Omnicharge will limit or cut off the output power.

OVERHEATING PROTECTION

Battery temperature is too high. Omnicharge will limit or cut off its input and output power.

OVERVOLTAGE PROTECTION

Barrel input voltage exceeds the 32V limit. Input charging circuit is shut off.

LOW POWER PROTECTION (ONLY DURING PASS-THROUGH)

Occurs when outgoing power is higher than incoming power and battery is empty. Omnicharge will cut off

the outgoing power until a sufficient battery level has been reached.

................

...........................................................................................................

.....................................................................................................

................

...........................................................................................................

.....................................................................................................

................

...........................................................................................................

.....................................................................................................

................

7

2. USB

Choose whether your USB-A ports are on or off when you turn on your Omnicharge. The default setting is on.

3. SCREEN OFF TIMER

Set the screen auto shut-off time here. The default setting is 5 min.

1. DC OUT

Turn on DC output and set the voltage and amperage.

.............................................................................................................................................................................................................................

Confirm 25.0V = 7.5A?

Incorrect setting may

harm your device.

Yes No

25.0V = 7.5A

16.5V = 8.0A

15.0V = 8.0A

12.0V = 8.0A

2.

DEFAULT ON

DEFAULT OFF

3.

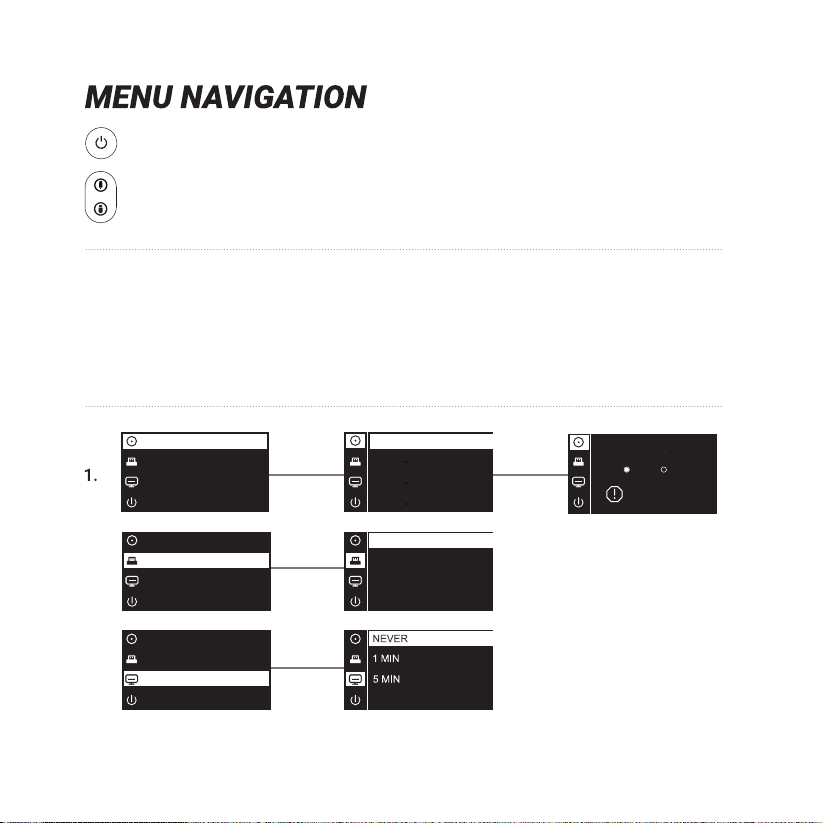

While the screen is on double press the power button to enter the menu

When in the menu, navigate up and down using the buttons on the right of

the screen. Use the power button to enter the selected menu item.

USB

SCREEN OFF

DC OUT

AUTO SHUT DOWN

USB

SCREEN OFF

DC OUT

AUTO SHUT DOWN

USB

SCREEN OFF

DC OUT

AUTO SHUT DOWN

8

6. TEMPERATURE

Choose whether your temperature is displayed in celcius or fahrenheit

7. BUTTON LIGHT

Choose whether the button lights are on or off. The default setting is on.

8. ABOUT

Find the model name, capacity, firmware version, and serial number information here.

5. AUTO SHUT DOWN

Set the power auto shut-off time here. The default setting is 5 min.

.............................................................................................................................................................................................................................

TEMPERATURE

BUTTON LIGHT

ABOUT

5.

AUTO SHUT DOWN

5 MIN

1 MIN

NEVER

BUTTON LIGHT

ABOUT

6. TEMPERATURE ˚F

˚C

AUTO SHUT DOWN

DEFAULT ON

DEFAULT OFF

TEMPERATURE

AUTO SHUT DOWN

ABOUT

7.

BUTTON LIGHT

TEMPERATURE

8.

EXIT

ABOUT

Model:

Cap:

Ver:

S/N:

Omni Ultimate

142Wh

4.2.0B/1.3.2A

2ADF070109

9

Power any device

Laptop TV Drone DSLR Projector And more

Max output power: 120W

US/JP EU

AC OUTLET

1. Quick press AC Output Button to turn the AC outlet on/off

2. The AC icon should appear on the screen

0.00 W

20.3 °C

100%

2.07 W

AC

0.00 W

AC 120V/230V AC output

.............................................................................................................................................................................................................................

Note: Due to the high power pure sinewave AC output, you might

experience some electrical interference on the USB-A and USB-C

ports when simultaneously outputting from the AC outlet.

10

5V - 60V with 0.1V/A Accuracy, up to 8A (150W max)

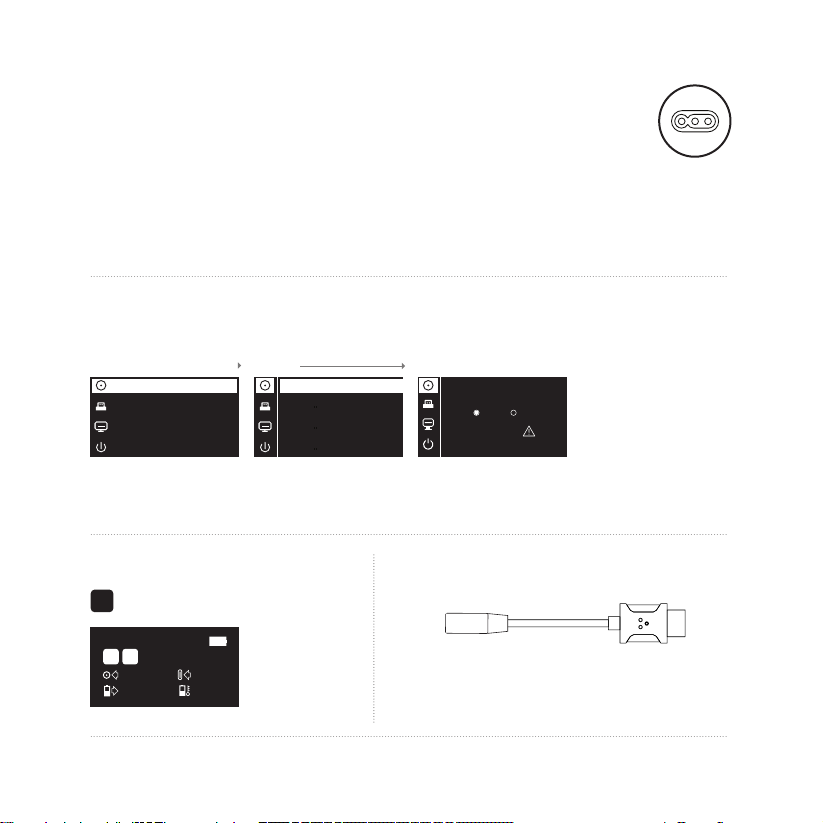

DC OUTPUT

Set the voltage and amperage through the menu

(You can also click the DC Output Button to jump to Step 2)

SCREEN OFF

AUTO SHUT DOWN

DC OUT

USB

.............................................................................................................................................................................................................................

DC icon will appear on the screen

DC Adjustable DC output

Power your device through the DC port (MR30)

To make the Omni Ultimate compatible with

our older 5.5 x 2.1mm barrel cables, we have

included an DC output barrel adapter.

Step 2

OUT 59.3V = 2.5A?

Incorrect setting

may harm your device.

Yes No

Step 2 Step 2

Omnicharge keeps 4 voltage presets. You can press and hold the power button while

selecting a preset to customize the voltage and amperage.

0.00 W

28.2 °C

100%

3.05 W

USB DC

59.03 W

25.0V = 7.5A

16.5V = 8.0A

15.0V = 8.0A

12.0V = 8.0A

Warning: Before using DC Output make sure you know the correct voltage for your laptop.

Using the wrong voltage can damage your device.

The DC output feature can directly charge your laptop without needing your laptop charger.

Note: For more information visit our support page at www.omnicharge.co/support

11

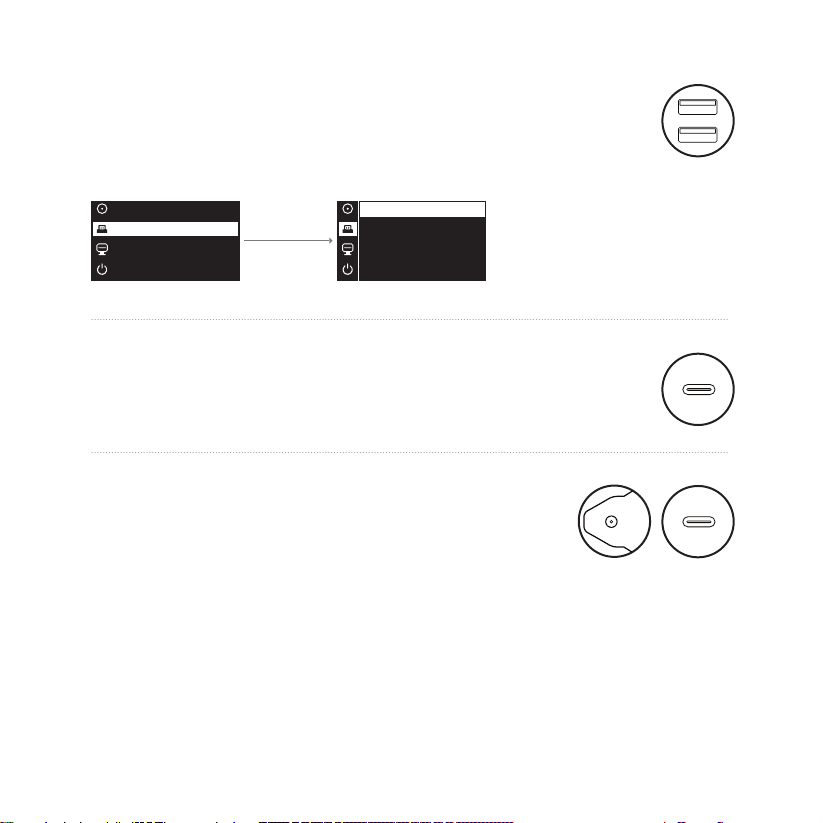

USB-A PORTS

1. Choose whether the USB output is on or off when you turn on your Omnicharge

DEFAULT ON

DEFAULT OFF

.............................................................................................................................................................................................................................

5V/3A, 9V/2A, 12V/1.5A QC3.0 compatible

5V, 9V, 12V, 15V, 20V, up to 3A 60W max

USB-C INPUT/OUTPUT PORT

.............................................................................................................................................................................................................................

Charging from the Wall

Use the included AC wall charger, or other power adapters like your laptop charger to

recharge your Omnicharge.

Note: Make sure the output voltage of your adapter falls within 5V - 32V range.

The Omni Ultimate can accept 5.5 x 2.5 mm barrel plugs.

THE OMNICHARGE CAN BE

RECHARGED IN A VARIETY OF WAYS

DC Input 5-32V, 4.5A max, 90W max

USB-C Input 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, 60W max

DC OUT

SCREEN OFF

AUTO SHUT DOWN

USB

DC OUT

SCREEN OFF

AUTO SHUT DOWN

USB

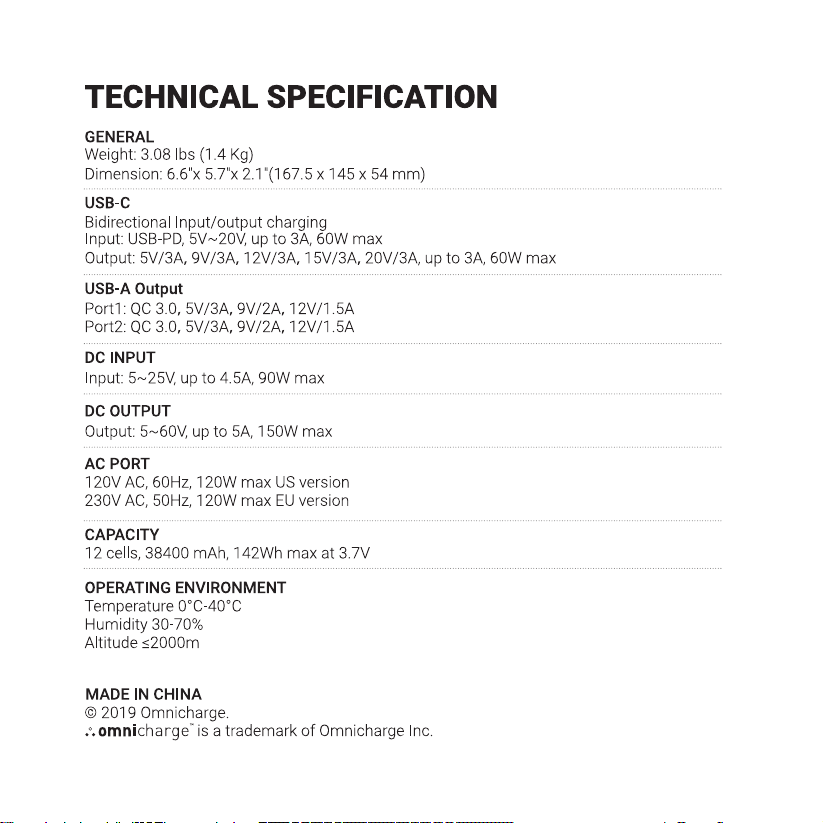

12

https://www.facebook.com/omnicharge

https://www.instagram.com/omnicharge

https://www.youtube.com/c/omnicharge

https://twitter.com/omni_charge

All Omnicharge products have gone through quality inspection. If you find your Omnicharge

or any Omnicharge accessory is experiencing or demonstrating any abnormal behavior,

immediately stop all product use and contact us at [email protected].

CUSTOMER SUPPORT

.................................................................................................................................................................................................................................................................

is a trademark of Omnicharge Inc. v.1.01
