SPS -48V Slimline Power Shelf
Models: J2007003L002 – alpha suxes per Slimline Power System Brochure
QUICK START GUIDE
Battery CB - some models
No vertical spacing is required, allow a minimum 2 inch clearance at back of shelf for rectier airow.
Refer to Slimline Power System Brochure for details and accessories.
• Wire cutters and strippers • Torque wrench - 0-65 in-lb
(0-10 Nm) • Screwdrivers - Philips #1 and #2, Flat small
• Cable crimpers • Sockets - 5/16”, 7/16, etc.
Tools required:
Step 2 – Connect Chassis Ground and DC Reference (CO) Ground
Lug Landings: #10 double-hole on 5/8-inch center (lugs not provided)
Some applications may rely on frame mounting screws for chassis ground, omitting the chassis ground wire.
Some applications may use the Chassis Ground strap, using a single wire for both chassis ground and DC reference
ground.
Minimum 10 AWG wire is recommended.
Torque 10-32 screws to 30 in-lb (3.4 Nm) - 5/16” socket.
Step 1 – Mount Shelf
1. Reposition mounting ears as required - 1 screw each.
Torque to 25 in-lb (2.8 Nm) - Phillips screwdriver.
2. Attach shelf to the frame using a minimum of four screws (two on each side) - 12-24 (provided).
Torque to 35 in-lb (4 Nm) - 5/16” socket.

Page 2
© 2023 OmniOn Power Inc. All rights reserved. SPS Shelf L002_QSG Rev. 5.1
Step 3 – Connect AC Input
Connect AC cords - 1 or 2 C13 cords
Secure cord with the furnished AC retention clamps.
Danger: If blunt cut cords are used ensure AC power is OFF and use appropriate lock-out tag-out procedures before
continuing with ac connections. Follow all local and national wiring rules when connecting to ac mains.
CAUTION: Route AC cables to avoid contact with sharp or rough surfaces that may damage insulation and cause a
short circuit.
Step 4 – Connect DC Output and Baeries
CAUTION:Verify battery voltage and polarity with a voltmeter before proceeding.
Note:RETURN must be externally connected to DC Reference (CO) ground.
DC Outputs
12 AWG Max Strip 0.35” (9 mm)
15 A Max GMT style Fuse
Torque to 4 in-lb (0.45 Nm)
Battery
connections
Strip 0.6” (15 mm)
Push wire in fully
8 AWG Max
Use at screw
driver to open
clamp
OS Alarm - some
models
Insert wire, tighten
screw
10 AWG max
Chassis Ground strap
Furnished with shelf
DC Reference (CO) Ground
Chassis Ground options
AC Retention Clamp
Furnished with shelf

Page 3
© 2023 OmniOn Power Inc. All rights reserved. SPS Shelf L002_QSG Rev. 5.1

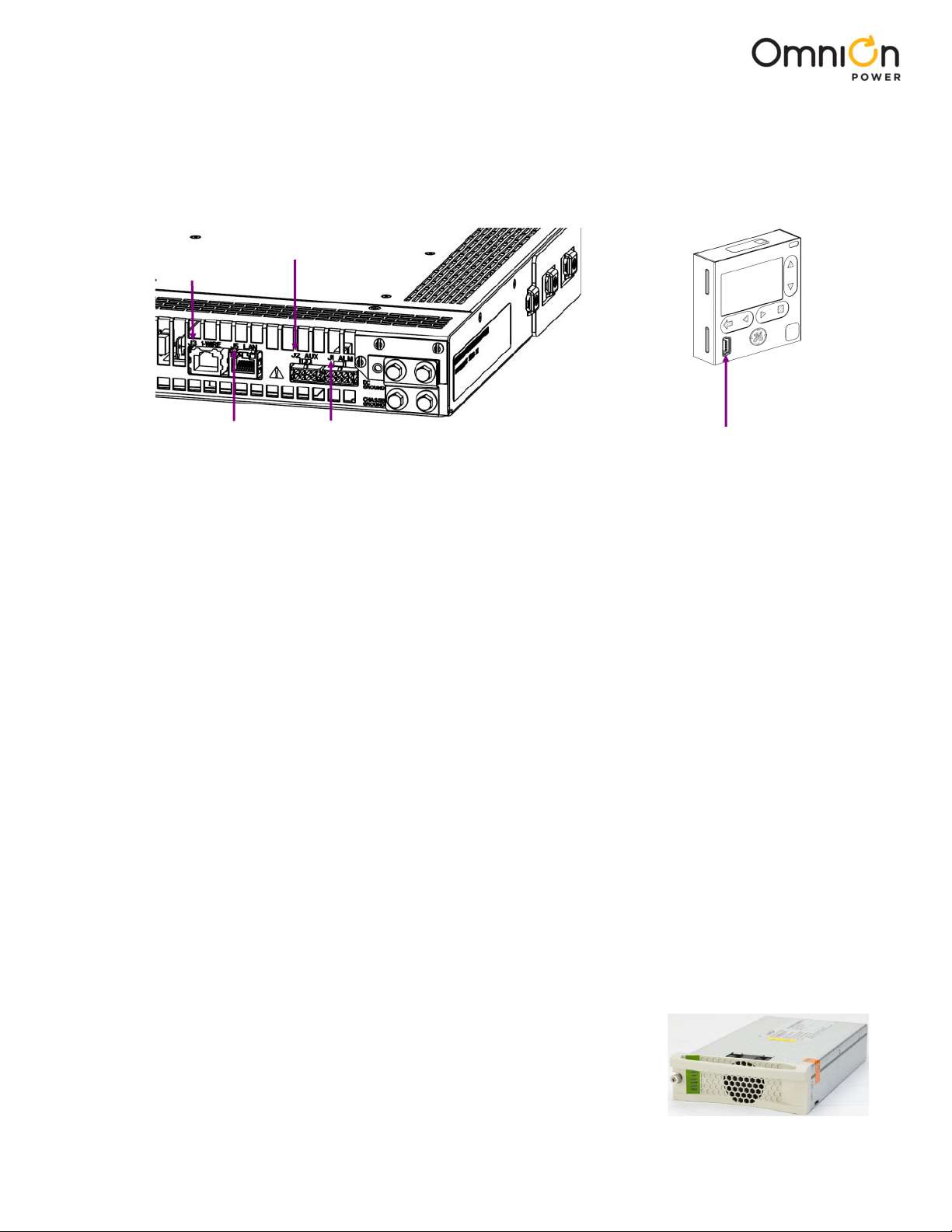

Step 5 – Connect Open String Alarm – Some Models - Oponal
Connect OS Alarm as directed in site installation instructions.
J2 Alarm inputs
J1 Alarm outputs
J5 LAN Port
J3 1-Wire Battery
Temp Monitor
USB Craft Port
Signal Connections
Step 6 – Set Jumpers – LAN Port and Relay per Galaxy Pulsar Edge Controller Quick Start
Guide
Step 7 – Install Controller per Galaxy Pulsar Edge Controller Quick Start Guide
Step 8 – Install Signal and Communicaons Cables
Connectors are on rear.
1. J1-2Alarms and Inputs - Connect to office alarms and signals.
See Information: Alarm Connections for Details
2. J5 LAN - Connect to Ethernet network.
Step 9 – Install 1-Wire Baery Temp and Voltage Monitor per Galaxy Pulsar Edge Controller
Quick Start Guide – Oponal
1. Connect 1-Wire Battery Temp and Voltage Monitor to J3.
Step 10 – Install Recers
Firmly push the rectier into the rectier slot.
Tighten the thumb screw until the rectier is seated.
NOTE: When installing a rectier in a powered system the RUN LED on the
rectier will blink until communication with the controller is
established.

Page 4
© 2023 OmniOn Power Inc. All rights reserved. SPS Shelf L002_QSG Rev. 5.1
Step 11 – Inial Start Up
Verify that all AC, DC and Alarm connections are complete and secure. Turn on AC input breakers. If there are no
alarms, make required adjustments to the default settings on the controller for this installation.
Step 12 – Congure Controller per Galaxy Pulsar Edge Controller
Quick Start Guide
Verify and edit controller basic configuration parameters per site engineering instructions.
Information: Rectier Options
Rectiers
single phase, hot-pluggable,
fan-cooled
Input Output
Recommended
AC Breaker
Vac A2 - C13
AC Cords 1 - C13 AC Cord Float Vdc WA1
150027894 EP0500-UTEZ: 540W 100-120 6.5 10A 20A 48-58 540 10
CC109165602 EP1000-UTEZ: 1000W 100-120 12 15A 48-58 1000 20
200-240 610A 15A 48-58 1000 20
CC109165610 EP1600-UTEZ: 1600W 100-120 15 20A 48-58 1200 24
200-240 7.5 10A 20A 48-58 1600 32
1Output Current at 54.5V. Outputs are power limited, not current limited.
Information: Alarm Connections
See the Slimline Power System Brochure for details.
Alarm connections are on the rear of the shelf - J1 is Alarm Outputs and J2 is Alarm Inputs.
Change alarm descriptions via LAN port (Web pages) or Craft port (EasyView2) when required.
Connector J1 – Controller Variants J2 – All Controllers
Pin
Controller
Color 0I5R_D – 5 3C3R – 3 Alarm 9C0R_USB – 9 Inputs Color All
1BK Output: R3 = Rtn Input: PBT/TR Input: Door Open YInput: SPD
Fail
2BR Output: R2 = Rtn Input: Hi Ext. Temp. Input: Surge Protect Fail S--
3ROutput: R1 = Rtn Output: R1 = Rtn Input: Door 2 Open OInput: AUX
MAJ
4OOutput: PMN Rtn Output: PMN Rtn Input: Ext DC Gail Major VInput: Air
Cond. Fail
5YOutput: PMJ Rtn Output: PMJ Rtn Input: Ext DC Fail Minor WInput: Door
Open
6GOutput: R3 = ACF Input: RTNS Input: Returns BL -48V
7BL Output: R2 = RFA Input: Cust. Alrm 1 Input: Retrieve Generator BR -48V
8VOutput: R1 = BD Output: R1 = BD Input: Battery Fail BK -48V
9SOutput: PMN Output: PMN Input: Air Conditioner Fail
10 WOutput: PMJ Output: PMJ Input: External Fan Fail

Page 5
© 2023 OmniOn Power Inc. All rights reserved. SPS Shelf L002_QSG Rev. 5.1
Specicaons and Applicaon
• Specications and ordering information are in the Slimline Power System Brochure available at
www.omnionpower.com
• External Surge Protective Devices (SPDs) - are required on all AC inputs.
Equipment Safety is Approved in IEC 60664-1 Installation Category II environments.
• Equipment and subassembly ports:
1. are suitable for connection to intra-building or unexposed wiring or cabling;
2. can be connected to shielded intra-building cabling grounded at both ends.
• Grounding / Bonding Network – Connect to an Isolated Ground Plane (Isolated Bonding Network) or an
Integrated Ground Plane
(Mesh-Bonding Network or Common Bonding Network).
• Installation Environment - Install in Network Telecommunication Facilities, OSP, or where NEC applies.
• Battery return may be either Isolated DC return (DC-I) or Common DC return (DC-C).
Reference Documents
These documents are available at www.omnionpower.com
Document Title
850035894 Galaxy Pulsar Edge Quick Start Guide
CC848815341 Pulsar Edge Controller Family Product Manual
Slimline Power System Brochure

Page 6
© 2023 OmniOn Power Inc. All rights reserved. SPS Shelf L002_QSG Rev. 5.1
Safety Statements
• Do not install this equipment over combustible surfaces.
• Rules and Regulations - Follow all national and local rules and regulations when making field connections.
• Compression Connectors
• US or Canada installations - use Listed/Certified compression connectors to terminate Listed/Certified field-wire
conductors.
• All installations - apply the appropriate connector to the correct size conductor as specified by the connector
manufacturer, using only the connector manufacturer’s recommended or approved tooling for that connector.
• Electrical Connection Securing: Torque to the values specified on labels or in the product documentation.
• Cable Dress - dress to avoid damage to the conductors and undue stress on the connectors.
• Circuit Breakers and Fuses
• Use only those specified in the equipment ordering guide.
• Size as required by the National Electric Code (NEC) and/or local codes.
Safety Tested Limits - Refer to the equipment ratings to assure current does not exceed:
Continuous Load (List 1) - 60% of protector rating
Maximum Load (List 2 - typically end of discharge) - 80% of protector rating
• GMT Style Fuses - Use only fuses provided with safety caps.
• Field-wired Conductors - Follow all National Electric Code (NEC) and local rules and regulations.
• Insulation rating: 90ºC minimum; 105ºC (minimum) if internal to enclosed equipment cabinets.
• Size AC eld-wired conductors with 75ºC ampacity (NEC) equal to or greater than their panel board circuit
breaker rating.
• AC and DC input disconnect/protection - Provide accessible devices to remove input power in an emergency.
• Alarm Signals - Provide external current limiting protection. Rating 60V, 0.5A unless otherwise noted.
• Grounding - Connect the equipment chassis directly to ground. In enclosed equipment cabinets connect to the
cabinet AC service ground bus. In huts, vaults, and central offices connect to the system bonding network.
