Omnitron Systems Technology OmniConverter GPoE+/SX User manual

OmniConverter™
GPoE+/SX
User Manual
38 Tesla, Irvine, CA 92618 USA
Phone: [phone]; Fax: [phone]
General and Copyright Notice
This publication is protected by U.S. and international copyright laws. All rights reserved. The whole or any part
of this publication may not be reproduced, stored in a retrieval system, translated, transcribed, or transmitted,
in any form, or by any means, manual, electric, electronic, electromagnetic, mechanical, chemical, optical or
otherwise, without prior explicit written permission of Omnitron Systems Technology, Inc.
The following trademarks are owned by Omnitron Systems Technology, Inc.: FlexPointTM, FlexSwitchTM,
HybridNID®, iConverter®, miConverterTM, NetOutlook®, OmniLightTM, OmniConverterTM, Omnitron Systems
Technology, Inc.TM, OSTTM and the Omnitron logo.
All other company or product names may be trademarks of their respective owners.
The information contained in this publication is subject to change without notice. Omnitron Systems Technology,
Inc. is not responsible for any inadvertent errors.
Warranty
This product is warranted to the original purchaser (Buyer) against defects in material and workmanship for
a period of two (2) years from the date of shipment. A LIFETIME warranty may be obtained by the original
purchaser by registering this product at www.omnitron-systems.com/support within ninety (90) days from the
date of shipment. During the warranty period, Omnitron will, at its option, repair or replace a product which is
proven to be defective with the same product or with a product with at least the same functionality.
For warranty service, the product must be sent to an Omnitron designated facility, at Buyer’s expense. Omnitron
will pay the shipping charge to return the product to Buyer’s designated US address using Omnitron’s standard
shipping method.
Limitation of Warranty
The foregoing warranty shall not apply to defects resulting from improper or inadequate use and/or maintenance
of the equipment by Buyer, Buyer-supplied equipment, Buyer-supplied interfacing, unauthorized modications or
tampering with equipment (including removal of equipment cover by personnel not specically authorized and
certied by Omnitron), or misuse, or operating outside the environmental specication of the product (including
but not limited to voltage, ambient temperature, radiation, unusual dust, etc.), or improper site preparation or
maintenance.
No other warranty is expressed or implied. Omnitron specifically disclaims the implied warranties of
merchantability and tness for any particular purpose.
The remedies provided herein are the Buyer’s sole and exclusive remedies. Omnitron shall not be liable for any
direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any legal theory.
Environmental Notices
The equipment covered by this manual must be disposed of or recycled in accordance with the Waste Electrical
and Electronic Equipment Directive (WEEE Directive) of the European Community directive 2012/19/EU on waste
electrical and electronic equipment (WEEE) which, together with the RoHS Directive 2011/65/EU, for electrical
and electronic equipment sold in the EU after July 1, 2006. Such disposal must follow national legislation for IT
and Telecommunication equipment in accordance with the WEEE directive: (a) Do not dispose waste equipment
with unsorted municipal and household waste. (b) Collect equipment waste separately. (c) Return equipment
using collection method agreed with Omnitron.
The equipment is marked with the WEEE symbol shown to indicate that it must be collected separately from
other types of waste. In case of small items the symbol may be printed only on the packaging or in the user
manual. If you have questions regarding the correct disposal of equipment go to www.omniton-systems.com/
support or e-mail to Omnitron at [email protected].
Page 2

OmniConverter GPoE+/SX
User Manual
Product Overview
The OmniConverter GPoE+/SX is a multi-port media converter that converts
10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X ber, and supports
Power-over-Ethernet (PoE and PoE+). OmniConverter GPoE+/SX media converters
provide network distance extension with ber cabling, and function as PoE injectors
providing power to four Powered Device (PDs) over standard UTP cables that carry
Ethernet data.
OmniConveter GPoE+/SX
Equipment that provides DC power over twisted-pair cable is known as Power
Sourcing Equipment (PSE). Equipment that is powered over twisted-pair cable is
known as a Powered Device (PD).
The GPoE+/SX is a PSE that provides up to 34.20W PoE+ (IEEE 802.3at) per RJ-45
port and supports frame sizes up to 10,240 bytes.
Installation Procedure
1) Congure DIP-switches
2) Apply AC Power
3) Apply DC Power
4) Connect Cables
5) Verify Operation
1) Congure DIP-switches
DIP-switches are located on the side of the OmniConverter GPoE+/SX. The
DIP-switches are used to congure ports and PoE/PSE options.
Page 3

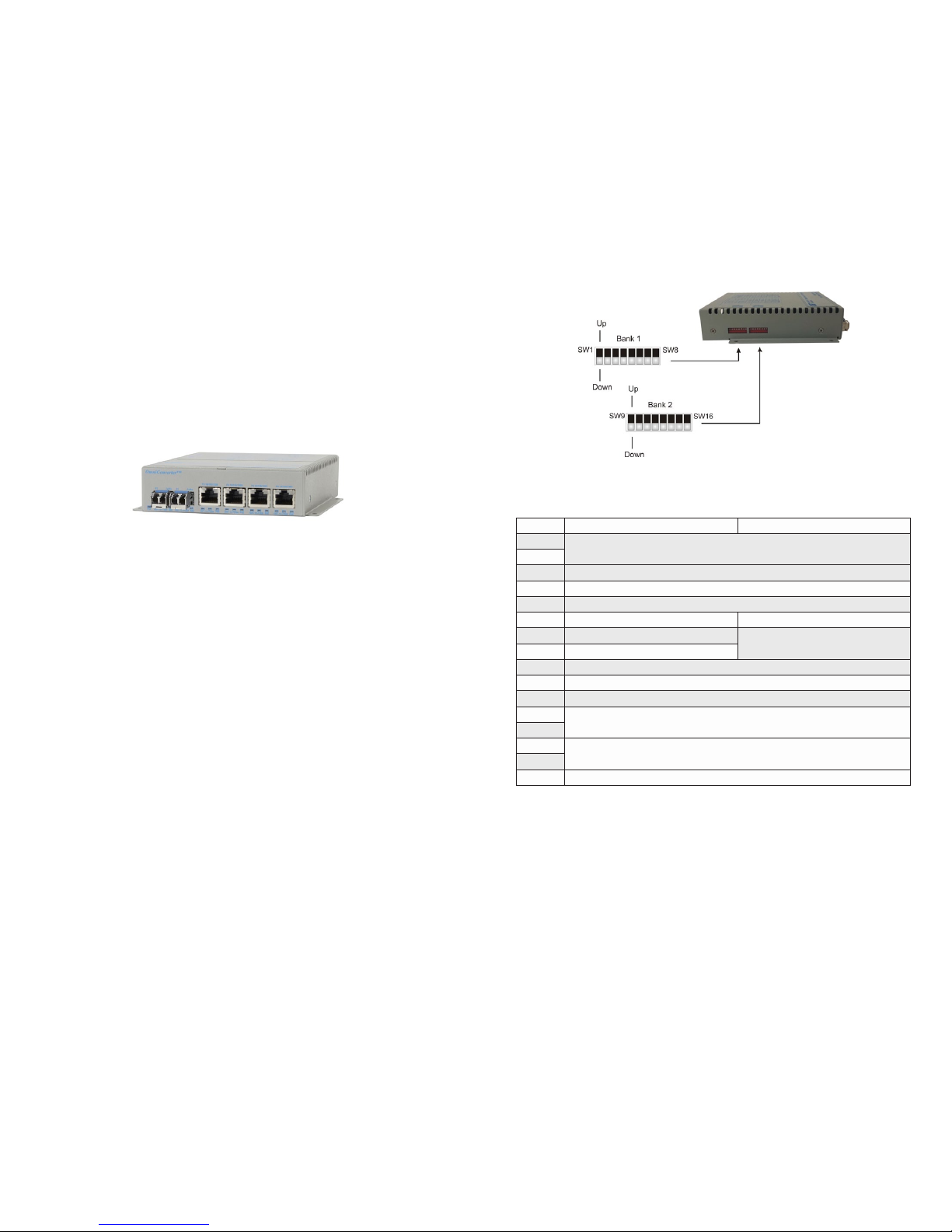

DIP-switch Bank Locations
The table below provides a description of each DIP-switch position and function.
Switch 1 Fiber, 4 UTP 2 Fiber, 4 UTP
1Mode Of Operation
2
3 MAC Learning
4 Pause Capability
5 Port 1 Speed (SFP models only)
6 Reserved Port 2 Speed (Dual SFP models only)
7 Reserved Fiber Mode of Operation
8 Reserved
9 First RJ-45 Port: Auto Negotiation/Manual
10 First RJ-45 Port: Speed
11 First RJ-45 Port: Duplex
12 First RJ-45 Port: PoE
13
14 Second RJ-45 Port: PoE
15
16 POE Reset
DIP-switch Denitions
SW1 and SW2: Mode of Operation
The OmniConverter supports four modes of operation; Switch, Directed Switch,
MUX and MUX LP
Modes are described with MAC learning enabled. When MAC learning is disabled,
unicast packets are forwarded to all ports.
Page 4

SW1 SW2 Function
DOWN DOWN Switch Mode (factory default)
DOWN UP Directed Switch Mode
UP DOWN MUX Mode
UP UP MUX/LP Mode
Modes of Operation
When congured for Switch Mode, the unit operates as a standard layer 2 switch.
Data ow will follow MAC address mapping.
When congured for Directed Switch Mode, trafc from Ports 2 - 6 or Ports 2 - 5
(depending on the model) is only forwarded to the ber uplink Port 1, preventing
the broadcast trafc from ooding other network ports. Incoming trafc from Port
1 follows MAC address mapping.
Directed Switch Mode
When a model with two ber ports is congured for Direct Switch Mode and
Redundant Mode (per DIP-switches 7 and 8), trafc is forwarded to both the primary
and secondary ports. The secondary port will block all trafc while the primary port
is active. When the primary port goes down, the secondary port will be active and
all trafc will be forwarded out the port.
Directed Switch Mode with Redundant Mode
MUX Mode requires an OmniConverter GPoE+/SX on both ends of the ber link
(operates in pairs).
Page 5

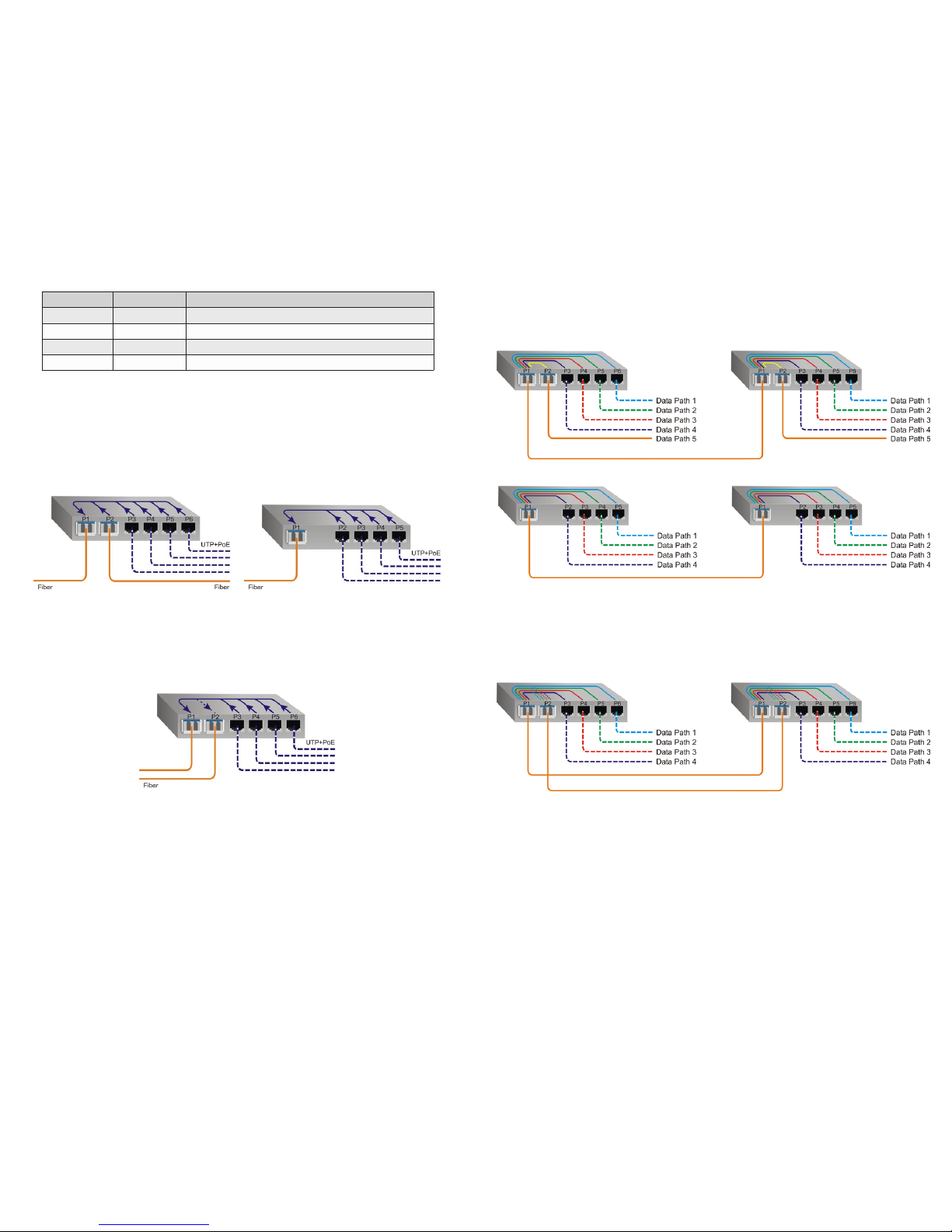

When congured for MUX Mode, the OmniConverter GPoE+/SX tunnels trafc
coming in on one GPoE+/SX to the corresponding port on the other GPoE+/SX.
So data trafc from the RJ-45 ports on one GPoE+/SX is routed to the matching
RJ-45 ports on the other GPoE+/SX.
MUX Mode with Two Fiber Ports
MUX Mode with One Fiber Port
When a model with two ber ports is congured for MUX Mode and Redundant Mode
(per DIP-switches 7 and 8), trafc is forwarded to both the primary and secondary
ports. The secondary port will block all trafc while the primary port is active. When
the primary port goes down, the secondary port will be active and all trafc will be
forwarded out the port.
MUX Mode with Redundant Mode
When congured MUX/LP Mode, Link Propagate is added to the MUX Mode
functionality. The loss of link on the ber port (P1) will cause the link to drop on all
copper ports (P3 through P6) and the second ber port (P2).
When a model with two ber ports is congured for MUX/LP Mode and Redundant
Mode, the loss of link on both ber port (P1 and P2) will cause the link to drop on
all copper ports (P3 through P6).
SW3: MAC Learning - “On/Off”
Page 6

When this DIP-switch is in the “On” position (factory default), all ports on the unit
will learn the source MAC address of each received packet and store the address
so packets destined for the stored addresses can be forwarded to the appropriate
interface on the unit. When the DIP-switch is in the “Off” position, learning is turned
off and all received unicast packets are forwarded to all ports.
SW4: Pause - “Off/On”
In auto-negotiation mode, setting the DIP-switch to the Down “Off” position (factory
default) allows the unit to advertise no Pause capability on all ports. In auto-
negotiation mode, setting this DIP-switch to the Up “On” position allows the unit
to advertise Symmetrical and Asymmetrical Pause capability and all ports. In the
manual mode, this DIP-switch determines the Pause behavior.
SW5: Port 1 Speed - “Auto/100”
SW5 is valid on models with SFP ports.
The OmniConverter supports 1000BASE-X and 100BASE-X SFPs. This
DIP-switch is used to congure the OmniConverter for the speed of the installed
SFPs. Setting this DIP-switch to the Down “Auto” position (factory default)
automatically congures the ber port to the correct speed matching the installed
transceiver. Setting this DIP-switch to the Up “100” position enables the ber port
to accept 100BASE-X SFPs.
When an RJ-45 transceiver is installed in a SFP receptacle or for xed ber models,
setting this DIP-switch to Up “100” position enables the port to operate at 100Mbps.
SW6: Port 2 Speed - “Auto/100”
SW6 is valid on models with two SFP ports.
The OmniConverter supports 1000BASE-X and 100BASE-X SFPs. This
DIP-switch is used to congure the OmniConverter for the speed of the installed
SFPs. Setting this DIP-switch to the Down “Auto” position (factory default)
automatically congures the ber port to the correct speed matching the installed
transceiver. Setting this DIP-switch to the Up “100” position enables the ber port
to accept 100BASE-X SFPs.
When an RJ-45 transceiver is installed in a SFP receptacle or for xed ber models,
setting this DIP-switch to Up “100” position enables the port to operate at 100Mbps.
SW7 and SW8: Fiber Mode of Operation
SW7 and SW8 are valid on models with two ber ports.
Modes are described with MAC learning enabled. All modes of operation using
MAC address mapping with send data to all ports when MAC learning is disabled.
Page 7
SW7 SW8 Function
DOWN DOWN Switch Mode (factory default)
DOWN UP Dual Device Mode
UP DOWN Redundant Mode - no return to primary (Port 1)
UP UP Redundant Mode - return to primary (Port 1)
Fiber Mode of Operation
When congured for Switch Mode (factory default), the unit operates as a standard
layer 2 switch. Data ow will follow MAC address mapping.
Dual Device Mode is only supported on OmniConverter GPoE+/SX with two ber
ports.
When congured for Dual Device Mode, the OmniConverter is congured as two
independent media converters. P1 is associated with P3 and P4 as illustrated with
the blue lines and P2 is associated with P5 and P6 as illustrated with the red lines.
Data ow will follow MAC address mapping.
Dual Device Mode

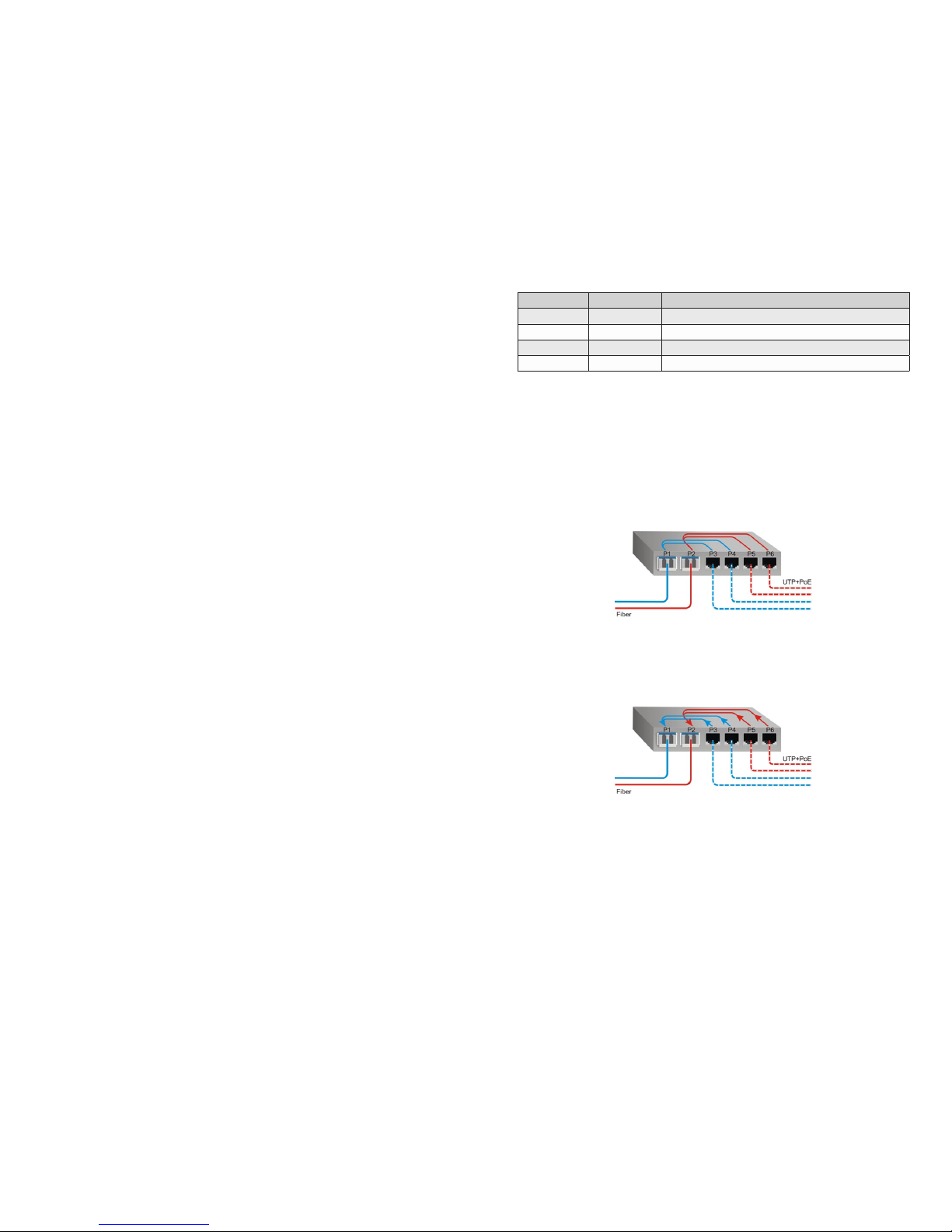

When congured for Dual Device Mode and Directed Switch Mode, the trafc from
Ports 3 and 4 is only forwarded to Port 1 and Ports 5 and 6 are only forwarded to
Port 2. This prevents broadcast trafc from ooding other network ports. Incoming
trafc from Port 1 and Port 2 follows MAC address mapping.
Dual Device with Directed Switch Mode
When congured for Dual Device Mode and MUX Mode, the GPoE+/SX is congured
as two independent media converters. Since MUX Mode is also enabled, the
GPoE+/SX operates with another GPoE+/SX and tunnels trafc coming in on one
GPoE+/SX to the corresponding port on the other GPoE+/SX. So data trafc from
the RJ-45 ports on one GPoE+/SX is routed to the matching RJ-45 ports on the
other GPoE+/SX.
Page 8

Dual Device with MUX Mode
Redundant Mode is only supported on OmniConverter GPoE+/SX with two ber
ports.
When congured for Redundant Mode ‘no return to primary’, the ber ports operate
as redundant links. A fault on the primary ber port (Port 1), will cause a fail over to
the secondary ber port (Port 2) within 50msec. Port 1 will become the secondary
port once the port has been restored.
Fiber Redundancy
When congured for Redundant Mode ‘return to primary’, a fault on the primary
ber port (Port 1), will cause a fail over to the secondary ber port (Port 2) within
50msec. Once the fault on Port 1 the unit will return to the primary ber port (Port
1) after the ber link has been restored for 6 seconds.
SW9, SW10 and SW11: First RJ-45 Port Conguration
SW9
AN/Man
SW10
100/10
SW11
FDX/HDX RJ-45 Mode of Operation
AN 10 or 100 FDX or HDX
The RJ-45 port is set to auto-negotiation with the following modes
advertised: 1000FDX, 1000HDX, 100FDX, 100HDX, 10FDX,
10HDX
MAN 100 FDX The RJ-45 port is set to manual negotiation and is forced to 100FDX.
MAN 100 HDX The RJ-45 port is set to manual negotiation and is forced to
100HDX.
MAN 10 FDX The RJ-45 port is set to manual negotiation and is forced to 10FDX.
MAN 10 HDX The RJ-45 port is set to manual negotiation and is forced to 10HDX.
Page 9
First RJ-45 Port Conguration Matrix
SW12: First RJ-45 Port PoE - “On/Off”
The OmniConverter automatically detects the attached PD and provides the
equipment with the necessary power.
This DIP-switch controls the power sourcing function for the rst RJ-45 port (the
rst RJ-45 port is closest to the ber port). When this DIP-switch in the Down “On”
position (factory default), the power sourcing function is enabled. When the DIP-
switch is in the Up “Off” position, the power sourcing function is disabled.
First and Second RJ-45 Port Designations
SW13: First RJ-45 Port Forced PoE Power - “Norm/Force”
The unit will automatically detect, classify and power the attached PD. When this
DIP-switch is in the Down “Norm” position (factory default), the unit will automatically
detect, classify and power the attached PD with up to 34.2 watts per port.
When detection and classication can not be performed (because of non-standard
equipment), the unit can be congured to supply the required power by setting this
DIP-switch to the Up “Force” position. The unit will supply up to 34.2 watts of power
depending on the connected PD.
SW14: Second RJ-45 Port PoE/PSE Power - “On/Off”
The OmniConverter automatically detects the attached PD and provides the
equipment with the necessary power.
This DIP-switch controls the power sourcing function for the second RJ-45 port.
When this DIP-switch in the Down “On” position (factory default), the power sourcing
function is enabled. When the DIP-switch is in the Up “Off” position, the power
sourcing function is disabled.
SW15: Second RJ-45 Port Forced PoE Power - “Norm/Force”
The unit will automatically detect, classify and power the attached PD. When this
DIP-switch is in the Down “Norm” position (factory default), the unit will automatically
detect, classify and power the attached PD with up to 34.2 watts per port.
When detection and classication can not be performed (because of non-standard
equipment), the unit can be congured to supply the required power by setting this
DIP-switch to the Up “Force” position. The unit will supply up to 34.2 watts of power
depending on the connected PD.
SW16: PSE Reset - “Off/P1 Lk Loss”
The OmniConverter can be congured to disable (reset) the PoE output power for 2
Page 10

seconds after a loss of receive link on any ber port. This feature is typically used
to allow a PD to re-initialize after a failure on the incoming ber.
When this DIP-switch is in the Down “Off” position (factory default), PoE output
power does not reset on ber link loss. When this DIP-switch is in the Up “P1 Lk
Loss” position, the unit will disable PoE output power for 2 seconds following a loss
of receive link on any ber port.
When Redundant Mode is enabled, the loss of ber link on one ber port will not
cause the PD to be re-initialized even though the PSE Reset is enabled. The PD
will be re-initialized on a loss of receive link on both ber ports.
When Dual Device Mode is enabled, the loss of ber link will re-initialize the PDs
associated with the that ber port. Port 3 and 4 will drop PSE power when a loss
of receive link on Port 1 is detected. Port 5 and 6 will drop PSE power when a loss
of receive link on Port 2 is detected.
2) Apply AC Power
To power the unit using the AC/DC adapter, connect the AC/DC adapter to the
AC outlet. Route the power cord through the provided strain relief for additional
support. Then connect the barrel plug at the end of the wire on the AC/DC adapter
to the 2.1mm DC barrel connector (center-positive) on the unit. Conrm that the
unit has powered up properly by checking the Power LED located on the front of
the installed unit.
Installation of the equipment should be such that the air ow in the front, back, side
and top vents of the chassis are not compromised or restricted.
If the installation requires NEBS grounding, secure the grounding wire to the ground
lug. See the gure below for the location of the grounding lug.
Rear View with AC Power Connector
Rear View with AC Power Connector - Extended Temp
Page 11
NEVER ATTEMPT TO OPEN THE CHASSIS OR
SERVICE THE POWER SUPPLY. OPENING THE
CHASSIS MAY CAUSE SERIOUS INJURYOR DEATH.
THERE ARE NO USER REPLACEABLE OR
SERVICEABLE PARTS IN THIS UNIT.
WARNING!!!
3) Apply DC Power
Power source should be available within 5 ft. of the chassis. The over current
protection for connection with centralized DC shall be provided in the building
installation, and shall be a UL listed circuit breaker rated 20 Amps, and installed
per the National Electrical Code, ANSI/NFPA-70.
This equipment requires 46 to 57VDC @ 2.72 Amp max rated power. For PoE+, this
equipment requires 52 to 57VDC (see Specication table). Appropriate overloading
protection should be provided on the DC power source outlets utilized.
WARNING: OnlyaDC power source that complies with
safety extra low voltage (SELV) requirements can be
connected to the DC-input power supply.
WARNING REGARDING EARTHING GROUND:
o
o
o
o
This equipment shall be connected to the DC supply
system earthing electrode conductor or to a bonding
jumper from an earthing terminal bar or bus to which the
DC supply system earthing electrode is connected.
This equipment shall be located in the same immediate
area (such as adjacent cabinets) as any other equipment
that has a connection between the earthed conductor of
the same DC supply circuit and the earthing conductor,
and also the point of earthing of the DC system. The DC
system shall not be earthed elsewhere.
The DC supply source is to be located within the same
premises as this equipment.
There shall be no switching or disconnecting devices in
the earthed circuit conductor between the DC source and
the earthing electrode conductor.
Locate the DC circuit breaker of the external power source, and switch the circuit
breaker to the OFF position.
Prepare a power cable using a three conductor insulated wire (not supplied) with a
14 AWG gauge minimum. Cut the power cable to the length required.
Strip approximately 3/8 of an inch of insulation from the power cable wires.
Route the power cables through the provided strain relief for additional support.
Page 12

Connect the power cables to the OmniConverter by fastening the stripped ends to
the DC power connector.
WARNING: Note the wire colors used in making the positive, negative and ground
connections. Use the same color assignment for the connection at the circuit breaker.
Connect the power wires to the circuit breaker and switch the circuit breaker ON.
If any units are installed, their Power LED should indicate the presence of power.
Installation of the equipment should be such that the air ow in the front, back, side
and top vents of the chassis are not compromised or restricted.
If the installation requires NEBS grounding, secure the grounding wire to the ground
lug. See the gure below for the location of the grounding lug.
Rear View with DC Power Connector
NEVER ATTEMPT TO OPEN THE CHASSIS OR
SERVICE THE POWER SUPPLY. OPENING THE
CHASSIS MAY CAUSE SERIOUS INJURYOR DEATH.
THERE ARE NO USER REPLACEABLE OR
SERVICEABLE PARTS IN THIS UNIT.
WARNING!!!
4) Connect Cables
a. When using the SFP model, insert the SFP Fiber transceiver into the SFP
receptacle on the front of the unit (see the SFP Data Sheet 091-17000-001 for
Page 13
supported Gigabit and Fast Ethernet transceivers).
NOTE: The release latch of the SFP Fiber transceiver must be in the closed
(up) position before insertion.
b. Connect an appropriate multimode or single-mode ber cable to the ber port on
the front of the unit. It is important to ensure that the transmit (TX) is attached to
the receive side of the device at the other end and the receive (RX) is attached
to the transmit side. When using single-ber (SF) models, the TX wavelength
must match the RX wavelength at the other end and the RX wavelength must
match the TX wavelength at the other end.
c. Connect the Ethernet 10/100/1000 UTP port via a Category 5 or better cable
to an external 10BASE-T, 100BASE-TX or 1000BASE-T Ethernet device.
RJ-45 Pinout Alternative B
1
2
3
4 Vport Positive
5 Vport Positive
6
7 Vport Negative
8 Vport Negative
Voltage Polarity for PoE Options
5) Verify Operation
Verify the OmniConverter is operational by viewing the LED indicators.
Power
LED Indicators
Legend Indicator Description
Pwr
OFF Unit not powered
Green - ON Unit powered
Amber - ON Over temperature condition
Power LED Indicators
Page 14

Page 15
Fiber Ports
LED Indicators - SFP Models
Legend Indicator Description
100
OFF No link
Green - ON Port linked at 100Mbps
Green - Blinking at 10Hz Port data activity at 100Mbps
Green - Blinking at 1Hz Port linked at 100Mbps and in redundant standby mode
Amber - Blinking at 1Hz Port linked at 100Mbps and receiving Far End Fault Indicator
(FEFI)
1000
OFF No link
Green - ON Port linked at 1000Mbps
Green - Blinking at 10Hz Port data activity at 1000Mbps
Green - Blinking at 1Hz Port linked at 1000Mbps and in redundant standby mode
Amber - Blinking at 1Hz Port linked at 1000Mbps and receiving AN Remote Fault
10
(100+1000)
OFF No link
Green - ON Port linked at 10Mbps
Green - Blinking at 10Hz Port data activity at 10Mbps
Green - Blinking at 1Hz Port linked at 10Mbps and in redundant standby mode
Stat
OFF Transceiver does not support digital diagnostics or no
transceiver (SFP) is installed
Green - ON Transceiver (SFP) supports digital diagnostics and no alarm is
detected
Amber - ON Transceiver (SFP) supports digital diagnostics and alarms are
present
Fiber LED Indicator - SFP Models
Fiber Ports
LED Indicators - Fixed Fiber Models
Legend Indicator Description
1000
OFF No link
Green - ON Port linked at 1000Mbps
Green - Blinking at 10Hz Port data activity at 1000Mbps
Green - Blinking at 1Hz Port linked at 1000Mbps and in redundant standby mode
Amber - Blinking at 1Hz Port linked at 1000Mbps and receiving AN Remote Fault
Fiber LED Indicators - Fixed Fiber Models
RJ-45 Ports
LED Indicators
Legend Indicator Description
100
OFF No link
Green - ON Port linked at 100Mbps
Green - Blinking at 10Hz Port data activity at 100Mbps
Amber -ON Port linked at 100Mbps Half-duplex
Amber - Blinking (10Hz) Port data activity at 100Mbps Half-duplex
1000
OFF No link
Green - ON Port linked at 1000Mbps
Green - Blinking at 10Hz Port data activity at 1000Mbps
Amber -ON Port linked at 1000Mbps Half-duplex
Amber - Blinking (10Hz) Port data activity at 1000Mbps Half-duplex
10
(100+1000)
OFF No link
Green - ON Port linked at 10Mbps
Green - Blinking at 10Hz Port data activity at 10Mbps
Amber -ON Port linked at 10Mbps Half-duplex
Amber - Blinking (10Hz) Port data activity at 10Mbps Half-duplex
PSE
Green - ON Port PSE is active
Amber - ON Port PSE error/inactive
Amber - Blinking at 1Hz Port PSE inactive due to resistance too low (< 15k ohms) or
short circuit detected
Amber - Blinking at 10Hz Port PSE inactive due to resistance to high (33k to 500k ohms)
OFF Port PSE inactive
RJ-45 LED Indicators
Page 16

Specications
Description
OmniConverter GPoE+/SX
10/100/1000BASE-T to 1000BASE-X
Fiber Media Converter with PoE+
Standard Compliances
IEEE 802.3,
IEEE 802.3af (15.40 watts max),
IEEE 802.3at (34.20 watts max)
PoE Supported Modes IEEE Alternate B (Alt B)
Regulatory Compliances* UL, CE, FCC Class A
Frame Size Up to 10,240 bytes
Port Types
Copper:
Fiber:
10/100/1000BASE-T (RJ-45)
100BASE-X (SFP)
1000BASE-X (ST, SC, LC, SFP)
Cable Types
Copper:
Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher
Multimode: 50/125, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements 100 - 240VAC/50 - 60Hz
1.43A @ 120VAC (typical)
DC Power Requirements
+/-46 to +/-57VDC1;
2.72A @ 48VDC
3 Pin Terminal (isolated)
Dimensions W: 5.0” x D: 6.0” x H 1.375”
L: 127 mm x B: 152.4 mm x H: 34.9 mm
Weight w/o Adapter:
w/ Adapter:
1.1 lb.; 498.9 grams
1.6 lbs.; 725.7 grams
Temperature Commercial:
Extended:
0 to 50°C
-40 to 75°C (-20°C AC cold start)
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hours) AC Adapter: 78,000
DC: 345,000
Warranty Lifetime warranty with 24/7/365 free
Technical Support
1A minimum of 52VDC is required to guarantee 25.5 watts at 100 meters on Cat 5 or better cable.
* Pending
Page 17
Customer Support Information
If you encounter problems while installing this product, contact Omnitron Technical
Support:
Phone: [phone]
Fax: [phone]
Address: Omnitron Systems Technology, Inc.
38 Tesla
Irvine, CA 92618, USA
Email: [email protected]
URL: www.omnitron-systems.com
040-09440-001A 1/17
Page 18
