Omron IntelliSense HEM-773AC User manual

IntelliSense™
Automatic Blood Pressure Monitor
with Easy Wrap Cuff
Model HEM-773AC
INSTRUCTION MANUAL
R

2
TABLE OF CONTENTS
Introduction..................................................................................................3
Notes on Safety............................................................................................4
Know Your Unit ...........................................................................................5
Quick Reference Guide................................................................................6
Initial Set-Up
Battery Installation/Replacement.........................................................7
How to Set Time and Date...................................................................8
How to Use the AC Adapter ................................................................9
Correct Usage
How to Apply the Arm Cuff ........................................................10, 11
How to Take a Reading................................................................12, 13
How to Use the Memory Function ....................................................14
Troubleshooting .........................................................................................15
Caution.......................................................................................................16
Care and Maintenance ...............................................................................17
Warranty.....................................................................................................18
Specifications .............................................................................................19

3
INTRODUCTION
Thank you for purchasing the Omron IntelliSense™ Automatic Blood
Pressure Monitor with Easy Wrap Cuff, HEM-773AC. Although
your blood pressure fluctuates throughout the day, no self-adjustment
is necessary as the monitor intelligently adjusts to your changing
conditions. The IntelliSense™ monitor uses fuzzy logic intelligence
to sense both your systolic and diastolic blood pressure values, and the
result is personalized inflation with every reading. Arm discomfort and
misreading due to improper cuff inflation are virtually eliminated.
Your new OMRON monitor uses the oscillometric method of blood
pressure measurement. This means the monitor detects your blood’s
movement through your brachial artery and converts the movements into
a digital reading. At the press of a button, the monitor automatically fills
the cuff with air, starts deflation, then displays your systolic, diastolic,
and pulse readings on an extra large display panel.
Please read this instruction manual thoroughly before using
this unit. For specific information on your own blood pressure,
CONTACT YOUR PHYSICIAN.
NOTE:
This device is a digital monitor intended for the use in measuring
blood pressure and pulse rate in adult population with the arm
circumference ranging from 9 inches to 17 inches (from 23 cm to 43 cm).

4
NOTES ON SAFETY
• The warning signs and the sample icons shown here are listed for you to use the product safely and correctly
as well as to prevent the risk and the damage to you and others from happening.
• The icons and meanings are as follow.
Warning sign Contents
Indicates matters in which bodily harm or material damage* may arise as a result
of incorrect handling.
Caution
The battery liquid may leak and damage the main unit. Please observe the following points.
• When you are not going to use the unit for a long period of time (approximately three
months or more), take out the batteries.
• Replace the worn batteries with new ones immediately.
• Do not use worn and new batteries together.
• Do not insert the batteries with their polarities in wrong direction.
Do not force to bend the arm cuff or the air tube excessively.
When removing the air tube, pull at the plug.
Do not apply strong shock or drop the main unit.
Do not inflate the arm cuff without it being wrapped on the arm.
* Material damage refers to a wide range of damage involving your house, household goods,
domestic animals, and pets.
Self-diagnosis of measured results and treatment are dangerous. Please follow the
instructions of your doctor.
Caution
Do not use the unit on infants or persons who cannot express one’s intention.
Do not use the unit for any purpose other than measuring blood pressure.
Do not use a cellular phone near the unit. Improper operation may result.
Do not disassemble, repair, or remodel the main unit or the arm cuff
of the blood pressure monitor.

5
KNOW YOUR UNIT
Air Tube
Green Mark
Air Plug
(Connects to Air Jack)
Main Unit:
Components:
Arm Cuff
(Applicable arm
cuff for Adults
9 to 17 in.)
Cover
AC Adapter Jack
Release Button of Cover
START Button
Pulse Rate
User Indicator
(A or B)
Date/Time Display
Heart Symbol
Memory Call Button
Systolic Blood Pressure
ON/OFF Button
Set Button
Adjust Button
User Selector
Diastolic Blood Pressure
Air Jack
Cuff Storage Container
AC Adapter

6
QUICK REFERENCE GUIDE
1. Avoid eating, smoking, and exercising for at least 30 minutes before
taking a measurement.
2. Remove tight-fitting clothing from your upper left arm.
3. Sit in a chair with your feet flat on the floor and place your left
arm on a table so that the cuff is at the same level as your heart.

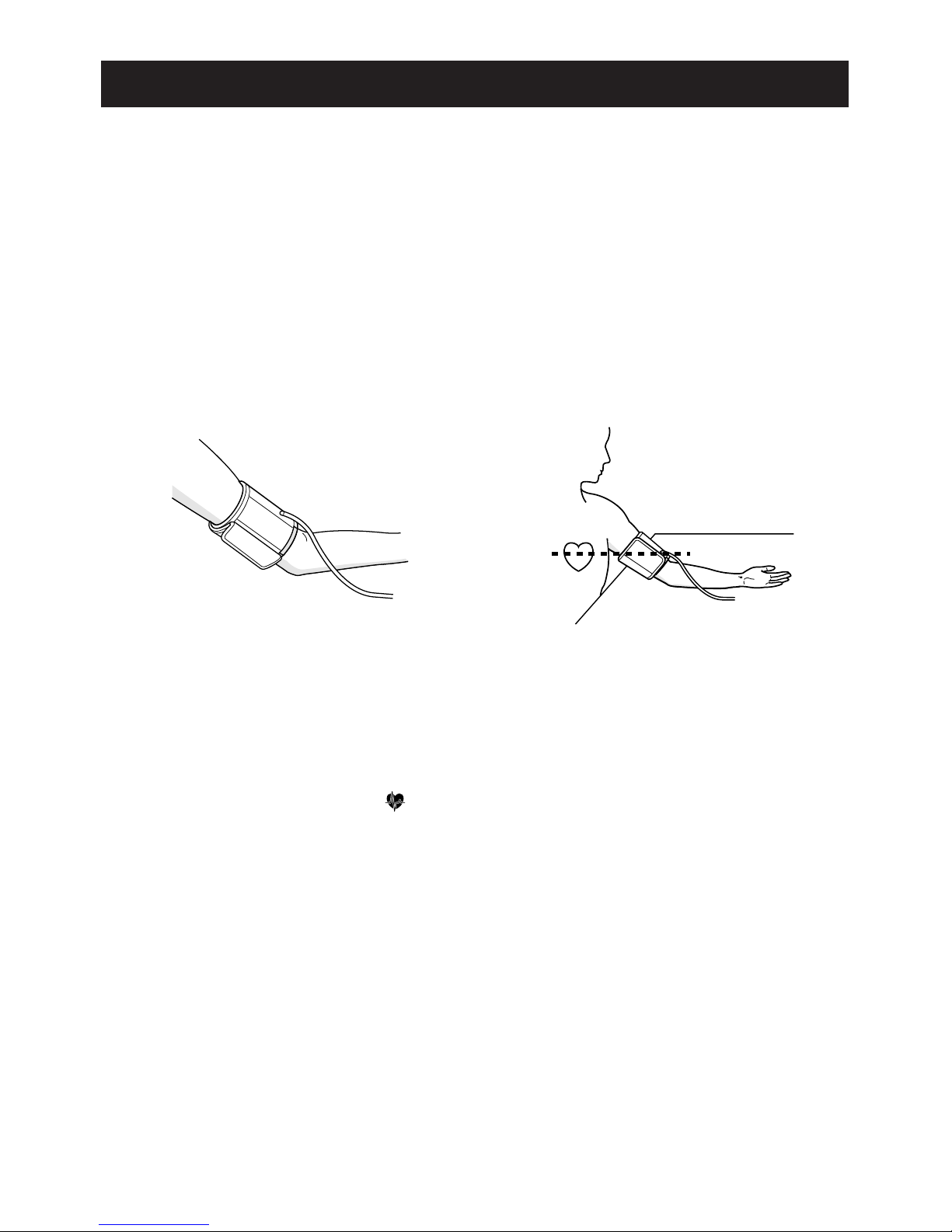

4. Wrap the arm cuff around your upper left arm, making sure that
the bottom edge of the cuff is approximately 1/2'' to 1'' above the elbow.
5. Pull the end of the cuff so that the entire cuff is evenly tightened
around your arm, and the Green Marker on the cuff is above
the brachial artery.
6. Press the ON/OFF button.
7. After the Heart Symbol ( ) appears on the digital panel, press the
START button, and remain still until the measurement is complete.
8. When measurement is complete, the monitor displays your blood
pressure and pulse rate, and automatically deflates the cuff.
9. Wait 2-3 minutes before taking another blood pressure measurement.
You may require more rest time between readings depending
on your individual physiological characteristics.

7
BATTERY INSTALLATION/REPLACEMENT
1. Slide the battery cover off
in the direction of the arrow.
2. Install or replace 4 “AA” size
batteries so the + (positive)
and – (negative) polarities
match the polarities of the
battery compartment as indicated.
3. Replace the battery cover.
NOTES:
If the Low Battery
Indicator ( ) appears
on the display, replace
all four batteries.
Long-life alkaline
batteries are recommended.
Remove the batteries if the monitor will not be used for
an extended period of time.
If the batteries remain removed longer than 30 seconds,
the set date and time will be deleted.

8
HOW TO SET TIME AND DATE
1. When the batteries are installed, the
display will show 12:00 a.m.
2. Press and hold the SET button.
The year digits (2002) will flash.
3. Press the ADJUST button to advance
the digit(s) one at a time.
If you hold down the ADJUST button,
the digits will advance rapidly.
4. Press SET button when desired number
is on the display to lock setting.
5. Repeat Step 3-4 for month and date.
6. Repeat Step 3-4 for hour and minutes.
ADJUST SET
DATE/TIME SET

9
HOW TO USE THE AC ADAPTER
To avoid potential damage to the monitor, use only the exclusive Omron
AC adapter (HEM-ADPT1).
To connect the AC adapter
1. Insert the AC adapter plug into the AC Adapter jack on the
right side of the main unit.
2. Plug in the AC adapter into a 120V AC outlet (50 - 60 cycles).
To remove the AC adapter
disconnect the adapter plug
from the AC outlet first and
then disconnect the cord from
the monitor’s jack.
NOTE:
The monitor is designed not
to draw power from the
batteries when the AC
adapter is in use.

10

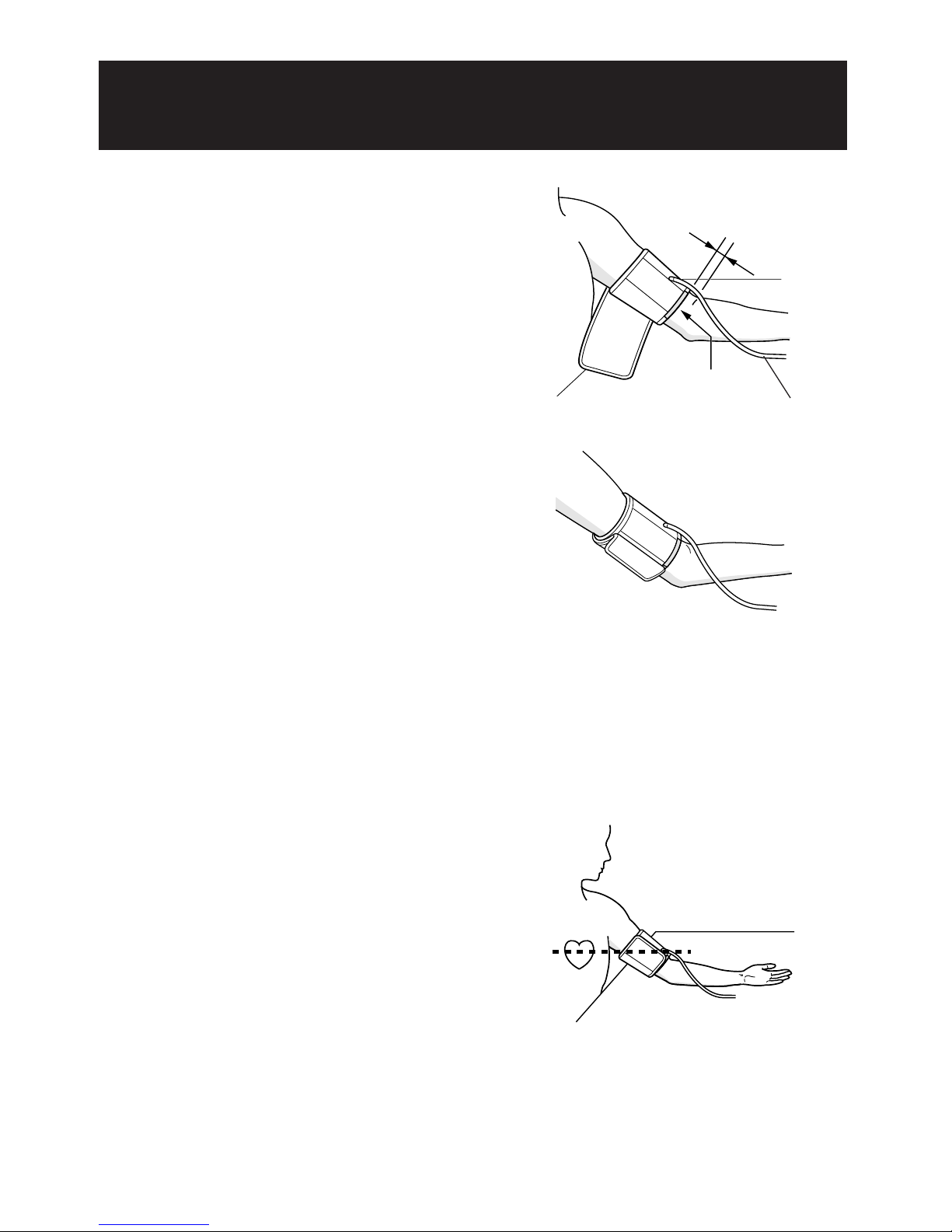

HOW TO APPLY THE
ARM CUFF
1. Check if the air plug is securely
inserted in the main unit.
2. Remove tight-fitting clothing
from your upper arm.
3. Sit in a chair with your feet flat
on the floor and place your arm
on a table so that the cuff will
be at same level as your heart.
4. Hold the cloth velcro on the cuff
with your other hand.
5. Turn the palm of your hand upward.
Apply the cuff on your upper arm.
Cloth fastener
when wrapping
on your left arm
