Omron HEM-432C Series User manual

Manual Inflation
Blood Pressure Monitor
Model HEM-432C
INSTRUCTION MANUAL
ESPAÑOL
ENGLISH
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 1

Before Using the Monitor
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Before Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Operating Instructions
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Unit Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Applying the Arm Cuff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Using the Memory Function
•Averaging Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
• Measurement Values . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Care and Maintenance
Care and Maintenance .................................18

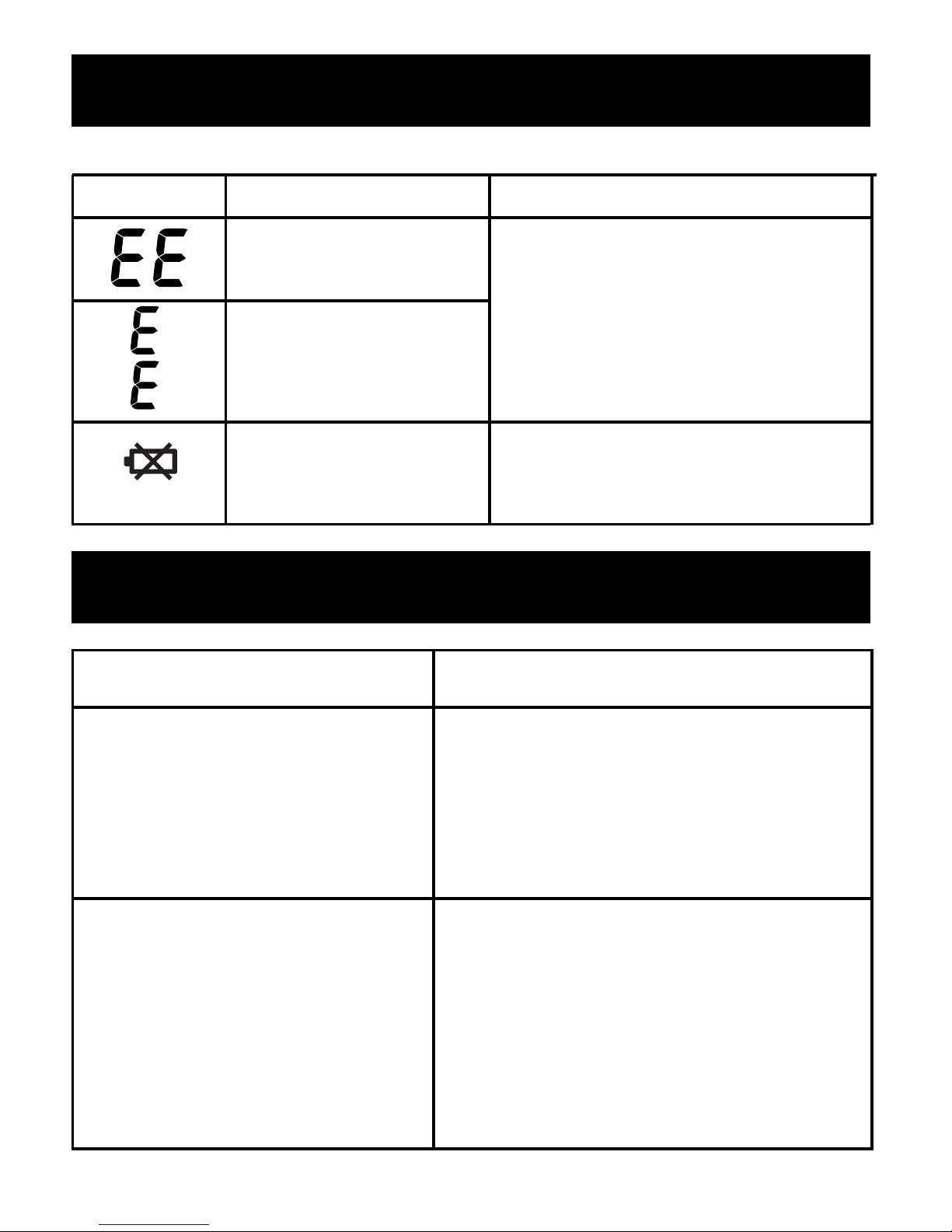

Error Indicators and Troubleshooting Tips . . . . . . . . . . . . . . . . .19
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
CONTENTS
2
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 2

Thank you for purchasing the Omron®HEM-432C Manual Inflation
Blood Pressure Monitor
INTRODUCTION
3
Fill in for future reference.
DATE PURCHASED: __________________
SERIAL NUMBER: ____________________
Staple your purchase receipt here
Your new digital blood pressure monitor uses the oscillometric method
of blood pressure measurement. This means the monitor detects your
blood’s movement through your brachial artery and converts the
movements into a digital reading. An oscillometric monitor does not
need a stethoscope so the monitor is simple to use.
The HEM-432C comes with the following components:
•Monitor • Standard Cuff (9''-13'' arm circumference)
• Inflation Bulb
• Instruction Manual in English and Spanish
The HEM-432C Manual Inflation Blood Pressure Monitor is intended
for home use.
SAVE THESE INSTRUCTIONS
Before Using the Monitor
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 3

To assure the correct use of the product basic safety measures should
always be followed including the precautions listed below:
þRead all information in the instruction book and any other literature
included in the box before using the unit.
þContact your physician for specific information about your blood
pressure. Follow the instructions of your healthcare provider.
þOperate the unit only as intended. Do not use for any other purpose.
þThe unit is intended for use in measuring blood pressure and pulse
rate in adult patient population. Do not use on infants.
þDo not use a cellular phone near the unit. It may result in operational
failure.
þChanges or modifications not approved by the manufacturer will void
the user warranty. Do not disassemble or attempt to repair the unit or
components.
IMPORTANT SAFETY NOTES
4
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 4

BEFORE TAKING A MEASUREMENT
5
To ensure a reliable reading follow these recommendations:
1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for
30 minutes before taking a measurement. Rest for at least 15 minutes
before taking the measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. Measurements should be taken in a quiet place.
4. Remove tight-fitting clothing from your left arm.
5. Sit in a chair with your feet flat on the floor. Rest your left arm on a
table so that the cuff is at the same level as your heart.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your
physician. A single measurement does not provide an accurate
indication of your true blood pressure. You need to take and record
several readings over a period of time. Try to measure your blood
pressure at the same time each day for consistency.
8. Wait 2-3 minutes between measurements. The wait time allows the
arteries to return to the condition prior to taking the blood pressure
measurement. You may need to increase the wait time depending on
your individual physiological characteristics.
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 5

6
KNOW YOUR UNIT
Cuff Air Plug
Main Unit:
Battery Compartment
ON/OFF Button
MEMORY Button
Date/Time
Setting Button
Display
Components:
Air Tube
Operating Instructions
Bulb Air Plug
Air Release Button
Air Tube
Arm Cuff
Inflation Bulb
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 6

7
Diastolic Blood Pressure
Systolic Blood Pressure
Memory Symbol
Pulse Display
Date/Time Display
Low Battery Symbol
Average Value Symbol
Heartbeat Symbol
Deflation Symbol
UNIT DISPLAY
Reinflation Symbol
e
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 7

BATTERY INSTALLATION
1. Press the sindicator on the
battery cover and slide the cover
off in the direction of the arrow.
2. Install 4 “AAA” size batteries so
the + (positive) and - (negative)
polarities match the polarities of
the battery compartment as indicated.
3. Replace the battery cover.
BATTERY REPLACEMENT
Low Battery Indicator
When the Low Battery Symbol appears on the display screen remove
all the batteries. Replace with four new batteries at the same time.
When the Low Battery Symbol blinks a brief period of usage remains.
Long life alkaline batteries are recommended.
NOTES:
•Measurement values stored in the memory will not be deleted
during battery replacement.
• After replacing the batteries, reset the date and time.
Refer to page 9, Setting the Date and Time.
•Dispose of batteries according to applicable local regulations.
8
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 8

Set the monitor to the current date and time before taking a measurement
for the first time. If the correct date and time is not set, the measurement
values stored in the memory and the average value will not be correct.
The Blood Pressure Monitor automatically stores up to 30
measurement values. The monitor also calculates an average reading
based on the three most recent measurements taken within 10 minutes
of the last reading.
NOTES:
•If only two readings are stored in the memory for the 10-minute
period, the average is based on the two readings.
• If one reading is stored in the memory for the 10-minute period,
this reading is displayed as the average.

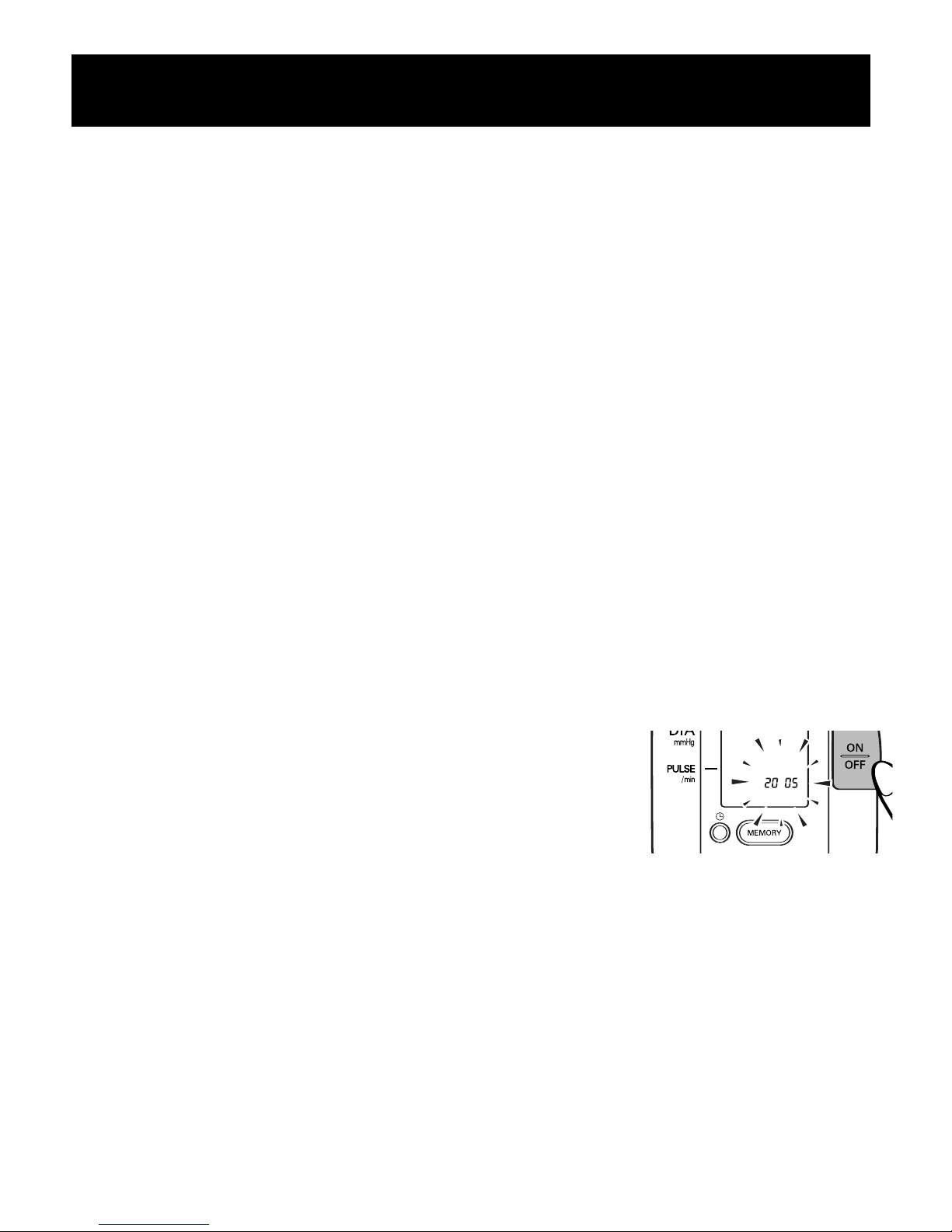

1. TO START THE SETTING
Press the ON/OFF button.
The year flashes on the display.
SETTING THE DATE AND TIME
9
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 9

SETTING THE DATE AND TIME
10
2. SETTING THE YEAR
The year can be set between 2005 and 2030.
When the display reaches 2030, it will return
to 2005.
Press the MEMORY button to
advance by increments of one year.
Press the Date/Time Setting button to
set the current year.
The month flashes on the display.
NOTE:
•Press and hold the MEMORY button to
advance the date and time values faster.
3. SETTING THE MONTH
Press the MEMORY button to advance by increments of one month.
Press the Date/Time Setting button to set the
current month.
The day flashes on the display.
4. SETTING THE DAY
Press the MEMORY button to advance by increments of one day.
Press the Date/Time Setting button to set the
current day.
The hour flashes on the display.
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 10

SETTING THE DATE AND TIME
11
5. SETTING THE HOUR
The time is set using AM or PM.
Press the MEMORY button to advance by increments of one hour.
Press the Date/Time Setting button to set the current hour.
The minutes flash on the display.
6. SETTING THE MINUTE
Press the MEMORY button to advance by increments of one minute.
Press the Date/Time Setting button to set the current minute.
The unit is ready for measurement.
TO CHANGE THE DATE/TIME
1. Press the ON/OFF button.
2. Press the Date/Time Setting button.
3. When completed press the ON/OFF button to turn unit off.
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 11

APPLYING THE ARM CUFF
12
1. Connect the air tube of the arm cuff and the inflation bulb to
their air jacks.
2. Remove tight-fitting clothing from your upper arm.
3. Sit in a chair with your feet flat on the floor. Place your arm on a
table so the cuff is level with your heart.
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 12

13
APPLYING THE ARM CUFF
4. Apply the cuff to your left upper arm so the blue arrow is centered
on the inside of your arm and aligned with your middle finger.
The air tube runs down the inside of your arm. The bottom of the
cuff should be approximately 1/2" above your elbow.
5. Wrap the cuff firmly in place around your arm using the closure strip.
APPLYING THE CUFF ON THE RIGHT ARM
Apply the cuff to your right upper arm so the blue arrow and the air
tube runs along the inside of your arm. The bottom of your cuff should
be approximately 1/2" above your elbow.
NOTE: Be careful not to rest your arm on the air tube.
This will restrict the flow of air to the cuff.
1/2 inch (1 - 2 cm)
Air Tube
Arrow
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 13

1. Press the ON/OFF button
All display symbols appear on the screen.
NOTE: When the monitor completes the necessary preparations
before measurement, the Heartbeat Symbol ( ) appears
next to the zero. Wait for the Heartbeat Symbol ( )
before taking a measurement.
2. Begin inflating the cuff by rapidly squeezing the inflation bulb until
you have reached approximately 30-40 mmHg higher than your
normal systolic reading. If your normal systolic blood pressure is
unknown, inflate the cuff to 180 mmHg.
NOTES:
•Donot inflate the arm cuff more than necessary. The current
time continues to be displayed while the cuff is being inflated.
• Do not inflate higher than 299 mmHg.
3. When the desired pressure has been achieved, release the
inflation bulb.
TAKING A MEASUREMENT
14
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 14

TAKING A MEASUREMENT
15
4. Inflation stops and the measurement is started.
As the cuff deflates, decreasing
numbers appear on the display. The
Heartbeat Symbol ( ) flashes at
every heartbeat.
NOTE: If the re-inflation symbol ( )
appears, squeeze the inflation
bulb to re-inflate the arm cuff.
5. When the Deflation Symbol ( ) appears on the display, press the
Air Release Button to release the air left in the cuff.
6. The measurement is complete, the Heartbeat Symbol ( ) stops
flashing and your blood pressure and pulse rate are displayed.
7. Press the ON/OFF button to turn the monitor off.
NOTE: The monitor will automatically turn off after five minutes.
Systolic Blood
Pressure
Diastolic Blood
Pressure
Pulse Display
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 15

USING THE MEMORY FUNCTION
16
Every time you complete a measurement the monitor stores the blood
pressure and pulse rate in the memory. The Blood Pressure Monitor
automatically stores up to 30 measurement values. When 30 sets of
measurement values are stored in the memory, the oldest record is
deleted to save the most recent measurement values.
AVERAGING FUNCTION
The monitor also calculates an average reading based on the values of
the three most recent measurements that were taken within 10 minutes
of the most recent reading.
NOTES:
•If only two readings are stored in the memory for the 10-minute
period, the average is based on the two readings.
• If one reading is stored in the memory for the 10-minute period,
this reading is displayed as the average.
If the date and time is not set, the measurement values and the average
value will not be stored in the memory correctly.
TO DISPLAY THE AVERAGE VALUE
Average Value Symbol
1. Press the ON/OFF button to turn the power on.
2. Press the MEMORY button.
The average value symbol will display on the screen with the
average reading.
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 16

USING THE MEMORY FUNCTION
TO DISPLAY THE MEASUREMENT VALUES
The date and time is alternately displayed with the measurement values.
1. Press the MEMORY button while the Average Value Symbol ( )
is displayed. The most recent measurement values will be displayed.
NOTES:
•Press the button repeatedly to display the next values.
• Press and hold the button to display the values faster.
2. Press the ON/OFF button to turn the power off.
TO DELETE ALL VALUES STORED IN THE MEMORY
You cannot partially delete records stored in the memory. All records
will be deleted.
1. Press the ON/OFF button
2. Press and hold the MEMORY button and the ON/OFF button
simultaneously for more than 2 seconds.
17
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 17

CARE AND MAINTENANCE
18
To keep your digital blood pressure monitor in the best condition and
protect the unit from damage follow the directions listed below:
Do not forcefully bend the arm cuff or air tube. Do not fold tightly.
Clean the monitor with a soft dry cloth. Do not use any abrasive or
volatile cleaners. Do not attempt to clean the cuff. Never immerse the
monitor or any components in water.
Store the monitor in a safe and dry location. Do not subject the monitor
to extreme hot or cold temperatures, humidity and direct sunlight.
Avoid subjecting the monitor to strong shocks, such as dropping the unit
on the floor.
Remove the batteries if the unit will not be used for three months or
longer. Always replace all the batteries with new ones at the same time.
Use the unit consistent with the instruction provided in this manual.
Use only authorized parts and accessories.
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 18

ERROR INDICATORS
19
Cuff under-inflated. Remove the arm cuff. Read,
“Taking a Measurement” on
page 14.
Wait 2-3 minutes. Take another
measurement.
Replace the four batteries. Refer
to page 8 for battery installation.
Batteries are worn.
SYMBOL CAUSE CORRECTION
Cuff over-inflated.
TROUBLESHOOTING TIPS
PROBLEM CAUSES AND SOLUTIONS
No power.
No display appears on the unit.
Replace worn batteries.
Check the battery installation
for proper placement of the
battery polarities.
Measurement values appear
too high or too low.
Blood pressure varies constantly.
Many factors including stress, time
of day, how you wrap the cuff, may
affect your blood pressure.
Review the sections “Before Taking
a Measurement” and “Taking a
Measurement.”
Blinking or Steady
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 19

FCC STATEMENT
20
NOTE:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only)
This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. The product generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If the product does cause harmful
interference to radio or television reception, which can be determined by turning the
product on and off, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the product and the receiver.
• Connect the product into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for Canada only)
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus as set out in the interference-causing equipment standard entitled
“Digital Apparatus”, ICES-003 of the Canadian Department of Communications
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
FINAL.HEM-432CN2-IM 2/23/10 10:56 AM Page 20
