INTRODUCTION
Thank you for purchasing the Omron Automatic Blood Pressure Monitor
and Print-Out with IntelliSenseTM, T9P. Although your blood pressure
fluctuates throughout the day, no self-adjustment is necessary
as the monitor intelligently adjusts to your changing conditions. The
IntelliSenseTM monitor uses fuzzy logic intelligence to sense both your
systolic and diastolic blood pressure values, and the result is personalized
inflation with every reading. Arm discomfort and misreading due to
improper cuff inflation are virtually eliminated.
Your new OMRON monitor uses the oscillometric method of blood
pressure measurement. This means the monitor detects your blood’s
movement through your brachial artery and converts the movements into
a digital reading. At the push of a button, the monitor automatically fills
the cuff with air, starts deflation, then displays your systolic, diastolic,
and pulse readings on an extra large display panel.
Please read this instruction manual thoroughly before using
this unit. For specific information on your own blood pressure,
CONTACT YOUR DOCTOR.
T9P new (6) 7/17/02 6:05 PM Page 3

TITLE
4
TITLE
NOTES ON SAFETY
[The warning signs and the sample icons shown here are listed for you to use the product safely and correctly
as well as to prevent the risk and the damage to you and others from happening.
[The icons and meanings are as follow.
Warning sign Contents
Indicates matters in which bodily harm or material damage* may arise as a result
of incorrect handling.
Caution
The icon indicates prohibitions (what you cannot do).
Matters involving actual prohibitions are indicated by text or pictures in or near .
The icon indicates something compulsory (always follow). Matters involving actual
compulsory actions are indicated by text or pictures in or near . The left icon refers
to general compulsion .
The battery liquid may leak and damage the main unit. Please observe the following points.
[When you are not going to use the unit for a long period of time (approximately three
months or more), take out the batteries.
[Replace the worn batteries with new ones immediately.
[Do not use worn and new batteries together.
[Do not insert the batteries with their polarities in wrong direction.
Do not force to bend the arm cuff or the air tube excessively.
When removing the air tube, pull at the connector.
Do not apply strong shock or drop the main unit.
Do not inflate the arm cuff without it being wrapped on the arm.
* Material damage refers to a wide range of damage involving your house, household goods,
domestic animals, and pets.
Examples of signs
Self-diagnosis of measured results and treatment are dangerous. Please follow
the instructions of your doctor.
Caution
Do not use the unit on infants or persons who cannot express one’s intention.
Do not use the unit for any purpose other than measuring blood pressure.
Do not use a cellular phone near the unit.
Improper operation may result.
Do not disassemble, repair, or remodel the main unit or the arm cuff
of the blood pressure monitor.
T9P new (10) 8/6/02 2:31 PM Page 4

TITLE
5
TITLE

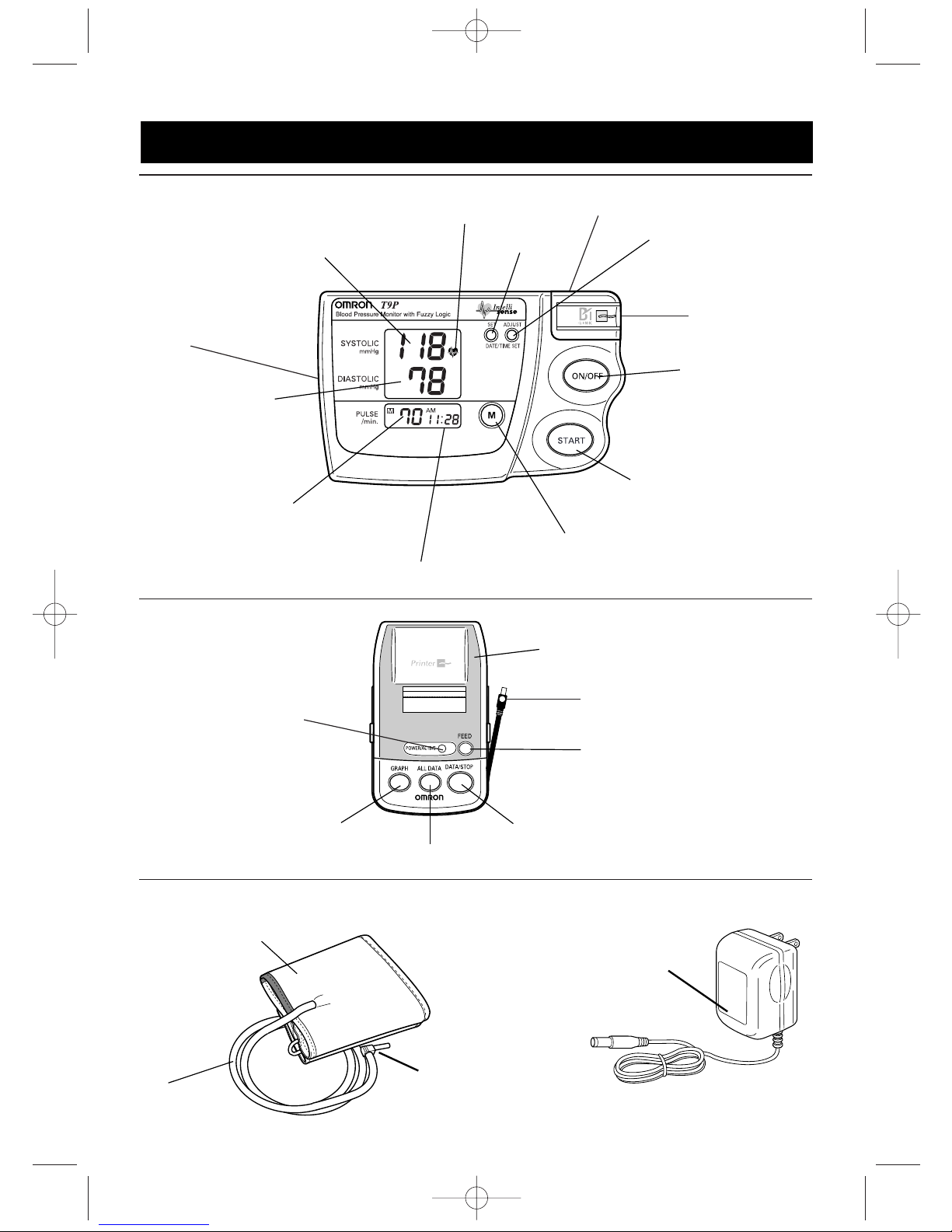

KNOW YOUR UNIT
START Button
Paper Feed
Pulse Rate
Arm Cuff
Print Graph
Date/Time Display
Heart Symbol
Air Tube
Memory Call Button
Systolic Blood Pressure
ON/OFF Button
AC Adapter
Set Date/Time Adjust Date/Time
Diastolic Blood Pressure
Print All Data
Print Current Data/Stop Printing
Printer Cover
Air Plug
(Connects to Air Jack)
Main Unit:
Printer-Unit:
Accessories:
AC Adapter Jack
Printer Jack
Cuff Jack
Printer Cable Plug
Power/Operation
Light
(Applicable arm
cuff for Adults
22 to 32 cm.)
(not a standard accessory)
T9P new (6) 7/17/02 6:05 PM Page 5

TITLE
6
TITLE
QUICK REFERENCE GUIDE
1. Avoid eating, smoking, and exercising for at least 30 minutes before
taking a measurement.
2. Remove tight-fitting clothing from your upper arm.
3. Sit in a chair with your feet flat on the floor and place your arm
on a table so that the cuff is at the same level as your heart.
4. Put your arm through the cuff loop making sure that the bottom edge
of the cuff is approximately 1-2 cm above the elbow and that
the Green Marker on the cuff is above brachial artery.
5. Pull the end of the cuff so that the entire cuff is evenly tightened
around your arm and press the hook material firmly against the pile
side of the cuff.
6. Press the ON/OFF button.
7. After the Heart Symbol ( ) appears on the digital panel, press the Start
button, and remain still until the measurement is complete.
8. When measurement is complete, the monitor displays your blood
pressure and pulse rate, and automatically deflates the cuff.
9. Wait 2-3 minutes before taking another blood pressure measurement.
You may require more rest time between readings depending
on your individual physiological characteristics.
1-2 cm
Green Marker
T9P new (6) 7/17/02 6:05 PM Page 6

TITLE
7
BATTERY INSTALLATION/REPLACEMENT
1. Slide the battery cover off
in the direction of the arrow.
2. Install or replace 4 "AA"
size batteries so the +
(positive) and –(negative)
polarities match the polarities
of the battery compartment
as indicated.
3. Replace the battery cover.
Notes:
If the Low Battery Indicator
( ) appears on the display,
replace all four batteries.
Long-life alkaline batteries
are recommended.
Remove the batteries if the
monitor will not be used for
an extended period of time.
Main Unit: Printer Unit:
T9P new (6) 7/17/02 6:23 PM Page 7

TITLE
8
HOW TO SET TIME AND DATE
1. When the batteries are installed, the
display will show 12:00a.m.
2. Press and hold the “SET”button. The
year digits (2001) will flash.
3. Press the “ADJUST”button to
advance the digit(s) one at a time.
If you hold down the ADJUST
button, the digits will advance rapidly.
4. Press “SET”button when desired
number is on the display to lock setting.
5. Repeat Step 3-4 for month and date.
6. Repeat Step 3-4 for hour and
minutes.
T9P new (6) 7/17/02 6:05 PM Page 8

TITLE
9
HOW TO USE THE
OPTIONAL AC ADAPTER
To avoid potential damage to the monitor, use only the optional
AC adapter specified by Omron distributor.
To connect the AC adapter

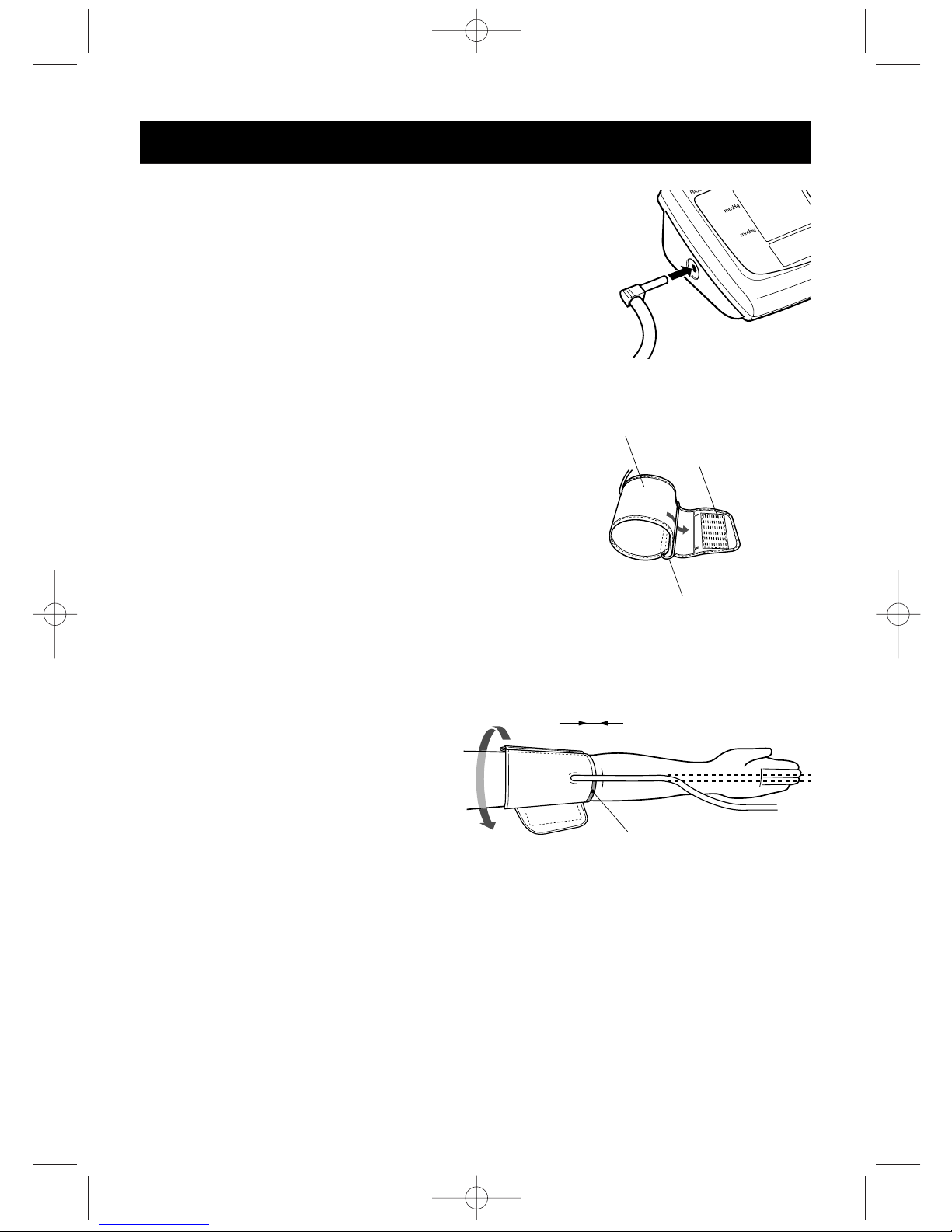

1. Insert the AC adapter plug into the AC Adapter jack on the back of
the main unit.
2. Plug in the AC adapter into the appropriate AC outlet.
To remove the AC adapter
To remove the AC adapter,
disconnect the adapter plug
from the AC outlet first and
then disconnect the cord from
the monitor’s jack.
NOTE: The monitor is designed not
to draw power from the
batteries when the AC
adapter is in use.
12
T9P new (6) 7/17/02 6:05 PM Page 9

TITLE
10
TITLE
HOW TO APPLY THE ARM CUFF
1. If the cuff is assembled correctly, the
hook material will be on the outside of
the cuff loop and the metal D-ring will
not touch your skin.
2. If the cuff is not assembled, pass
the end of the cuff furthest from
the tubing through the metal D-ring
to form a loop. The smooth cloth
should be on the inside of the cuff loop.
3. Sit in a chair with your feet flat on the
floor and place your arm on a table
so that the cuff is at the same level
as your heart.
4. Put your arm through the cuff
loop. The bottom of the cuff should
be approximately 1-2 cm
above the elbow. The Green
Marker on the cuff should lie
over the brachial artery on the
inside of the arm. Tube
should run down center of
arm approximately even
with middle finger.
SYSTOLIC
DIASTOLIC
PULSE/min
Pile Side Material
Sewn Hook Material
D-Ring
Bottom Edge 1-2 cm
Green Marker
Cuff Tube
T9P new (6) 7/22/02 9:47 AM Page 10

TITLE
11
TITLE
HOW TO APPLY THE ARM CUFF
5. Pull the cuff so that the top and
bottom edges are tightened
evenly around your arm.
6. When the cuff is positioned
correctly, press the sewn hook
material FIRMLY against the
pile side of the cuff.
7. Make certain the cuff fits
snugly around your arm.
The cuff should make
good contact with
your skin.
You should be able
to fit your index finger
between the cuff and your
arm easily, so you can pull
the cuff off and on.
8. Relax your arm and turn your
palm upward.
9. Be sure there are no kinks
in the air tubing.
You can also measure blood
pressure on your right arm.
Wrap the arm cuff as shown in
the Figure.
1. Place the air tube below the
elbow.
2. Place the mark cloth inside the
elbow joint of your right arm.
TITLE
HOW TO APPLY THE ARM CUFF
Mark cloth
Air tube
T9P new (6) 7/17/02 6:05 PM Page 11

TITLE
12
TITLE
HOW TO TAKE A READING
1. Press the ON/OFF button.
a) All display symbols appear for approximately
one second.
b) When the monitor becomes ready to measure,
the Heart Symbol appears on the display.
2. Press the START button and remain still.
As the cuff begins to inflate, the monitor automatically
determines your ideal inflation level. Because this
monitor detects the pulse even during inflation, do not
move your arm and remain still until the entire
measurement completes.
3. Inflation stops automatically
and measurement is started.
As the cuff slowly deflates, decreasing
numbers appear on the display and the Heart Symbol
( ) flashes at every heartbeat. In rare circumstances,
a higher inflation may be necessary. In those cases,
the monitor reinflates the cuff up to 30 mmHg higher
than initial inflation and restarts the measurement.
4. When the measurement is complete,
the arm cuff completely deflates and
your blood pressure and pulse rate
are displayed.
NOTE: The monitor automatically stores blood pressure
and pulse rate into the memory.
5. Press the ON/OFF button to turn the
monitor off.
NOTE: If you forget to turn the monitor off, it will
automatically shut itself off after five minutes.
Inflation Deflation
T9P new (6) 7/17/02 6:05 PM Page 12

TITLE
13
TITLE
HOW TO TAKE A READING
START
Continue to press button
[If your systolic pressure is known to
be more than 220 mmHg, push and
hold the START button until the
monitor inflates 30 to 40 mmHg
higher than your suspected systolic
pressure.
NOTE: Do not apply more
pressure than necessary.
The monitor will not inflate
above 300 mmHg.
[If you want to stop the measurement,
push the ON/OFF button. The monitor
will stop inflating and start deflating
rapidly, then the monitor will turn off.
Instructions for special conditions:
T9P new (6) 7/17/02 6:05 PM Page 13

TITLE
14
TITLE

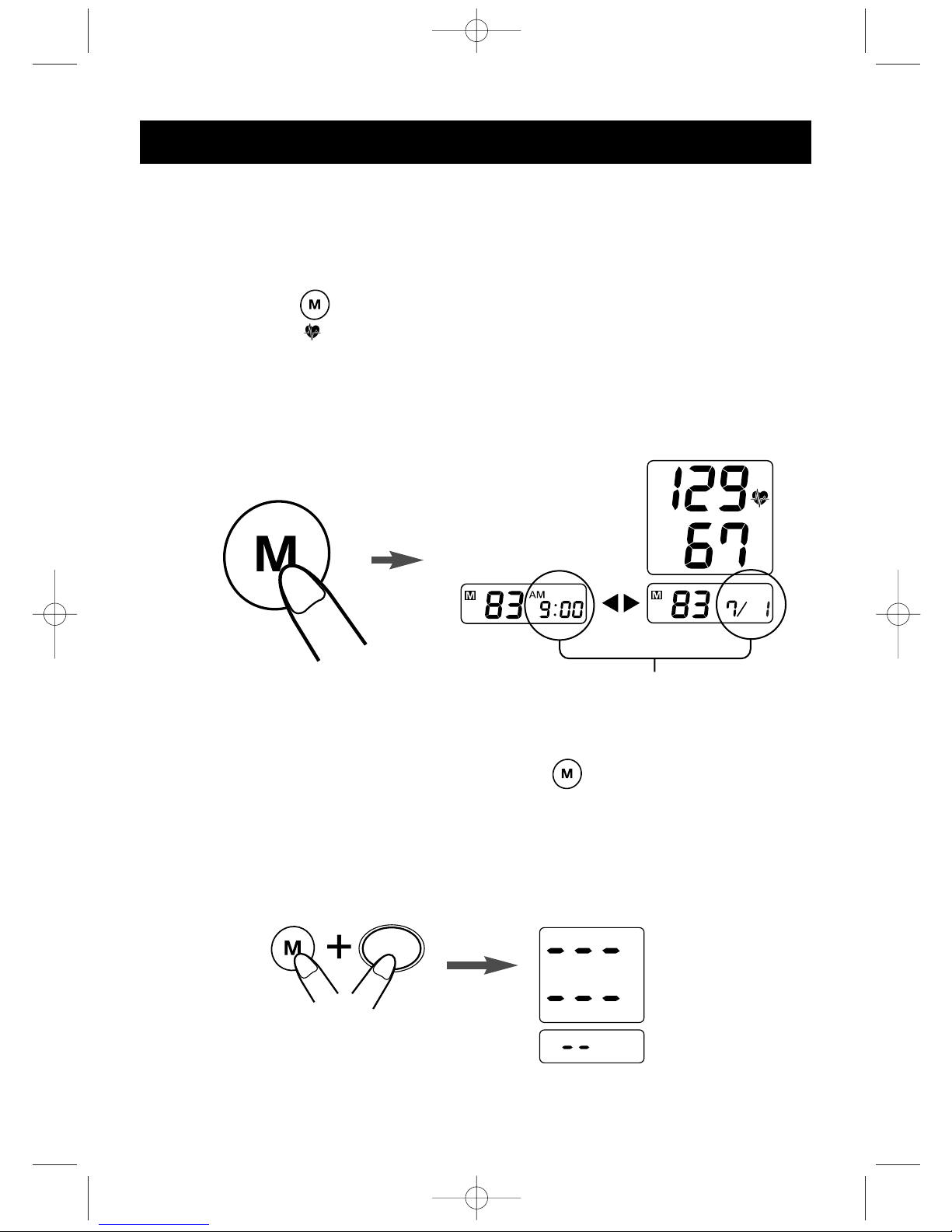

HOW TO USE THE MEMORY FUNCTION
This monitor has a memory capable of storing twenty-eight (28) sets of readings.
Every time you complete the measurement, the monitor automatically
stores blood pressure and pulse rate.
[Push the button to recall stored readings while the Heart
Symbol ( ) is displayed.
[When twenty-eight (28) sets of readings are stored in memory, the
oldest set will be deleted to store a new set.
START
Press these two buttons
at the same time.
[Date and Time of stored readings will be alternately displayed.
[To delete stored readings, press the button and the
Start button simultaneously, then all the readings will be deleted.
NOTE: You cannot delete the stored readings partially.
alternately displayed
T9P new (6) 7/22/02 9:46 AM Page 14

TITLE
15

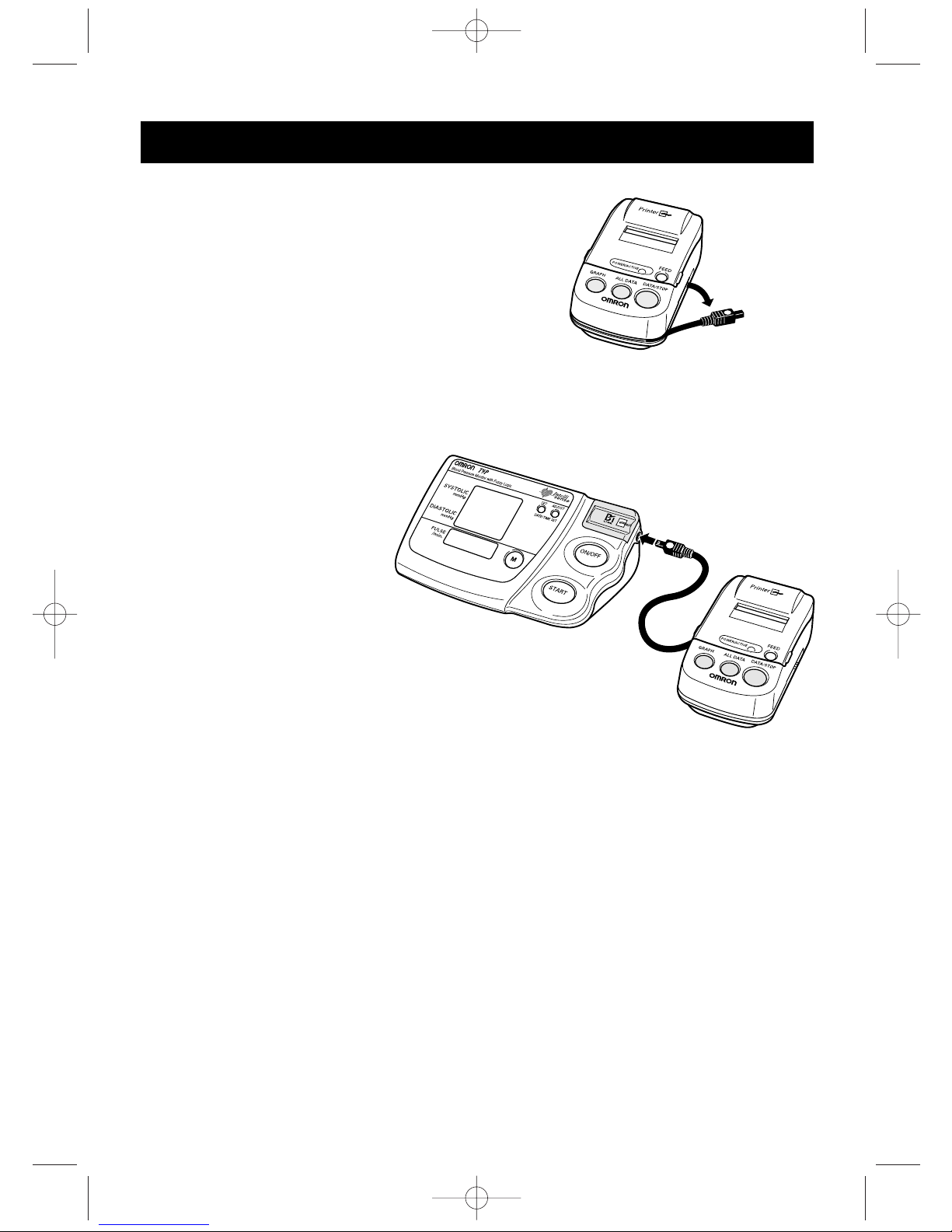

HOW TO CONNECT PRINTER UNIT
1. Remove printer cable plug from
around printer unit.
2. Connect printer cable plug cord to the
main unit. Arrow (8) on printer cable
plug should face down
to main unit.
T9P new (6) 7/17/02 6:05 PM Page 15

TITLE
16
HOW TO LOAD PRINTER PAPER
1. Open printer cover in the direction
indicated by the arrow symbol and
remove paper roll from the main unit.
2. Peel off the glued edge of the printing
paper included with the unit, and cut
the first 10 cm with a pair of scissors.
3. Press the PAPER FEED button while
inserting the edge of the printing paper
into the paper feeding slot. When the
edge of the paper protrudes sufficiently,
release the PAPER FEED button.
4. Close the plastic printer cover. Make
certain that the paper sticks out from
the top when the cover is replaced.
5. Thermal sensitive paper is supplied
with the unit. Use only thermal paper
of similar size (width approx. 38mm)
and roll diameter (not to exceed
approx. 26mm). These rolls of paper
(model number HEM - PAPER -
759P) can be ordered from OMRON
distributors.
10 cm
T9P new (6) 7/17/02 6:05 PM Page 16

TITLE
17
HOW TO USE THE PRINTER-UNIT
The T9P has the ability to print all the readings stored in memory.
NOTE:
[Make sure printer-unit is connected to main unit (see How to
Connect Printer-Unit)
[Do not use printer-unit without loading printer paper (see How
to Load Printer Paper). Improper use will decrease operation life
cycle of printer-unit.
[Main unit does NOT have to be ON to operate printer-unit.
[Printer-unit will automatically shut OFF when printing is
completed.
[If you need to stop printing during printing process, press
“DATA/STOP”button.
1. Press “DATA/STOP”to print measurement of
most recent reading.
The numeric print-out will look like the
following example:
7/9 6:36 AM
SYS
111mmHg
DIA 67mmHg
PULSE 77/min
Month/Date
Systolic Reading
Diastolic Reading
Pulse Reading
Time
2. Press “ALL DATA”button to print a numerical
list and average of all stored readings (stores a
maximum of 28 readings).
T9P new (6) 7/17/02 6:05 PM Page 17

TITLE
18
HOW TO USE THE PRINTER-UNIT
The numerical print-out will list all stored readings (maximum of 28
readings) starting with the most recent reading to last stored reading:
3-6 mmHg /min
D. T. SYS DIA PUL
20 15 113 75 67
23 11 117 69 64
1 15 113 71 63
3 14 110 67 66
5 7 112 66 64
15 7 110 61 64
20 12 106 66 65
3 12 110 65 64
10 12 108 61 67
12 14 111 56 62
14 7 107 64 64
21 15 111 64 64
22 12 121 62 66
4 6 112 64 63
*AV. 112 65 65
Date
Time/Hour
Systolic Reading
Column
Diastolic Reading
Column Pulse Reading
Column
Last reading stored
Average of all
stored readings
[Month(s)
The month or months will be printed.
Example: If the blood pressure reading was stored between months
March-June, then the printout will indicate “3-6”.
[Date
Only the day’s date (1-31) will be printed.
Example: If the blood pressure reading was stored on June 1st, then the
printout will indicate 1 under the “D”column.
[Time/Hour
Only the hour (24 hour format) will be printed.
Example: if the blood pressure reading was stored at 3:00 PM, then
the printout will indicate 15 under the “T”column.
Note: If Time and Date was not initially set up before taking blood pressure measurement
(see How to Set Time and Date) on printer-unit, the numerical value will not appear on
print-out for month, time/hour and date.)
Month(s)
Most recent reading
T9P new (6) 7/17/02 6:05 PM Page 18

TITLE
19
HOW TO USE THE PRINTER-UNIT
3. Press “GRAPH”button to print a graph
of all stored readings (stores a maximum
of 28 readings).
50 100 150 200
mmHg
3-6
Diastolic Reading Systolic Reading
Average systolic
reading of stored
measurements
Average diastolic
reading of stored
measurements
Last reading stored
Month(s)
If reading is lower
than 50 mmHg or
higher than 200
mmHg, (; or :)
will appear.
Most recent reading
T9P new (6) 7/17/02 6:05 PM Page 19

TITLE
20
TITLE
If you continue to have difficulty obtaining a reading, contact your nearest OMRON
representative or dealer.
Error Indicator Cause Correction
Cuff under-inflated.
Movement during
measurement.
Cuff over-inflated
(more than 300 mmHg).
Battery voltage
is excessively low.
Turn monitor off, wait 2-3 minutes
and take another measurement.
Repeat steps listed under "How to
Take a Reading." If "EE" is
displayed again, take another
measurement by pressing and
holding the START button as shown
on instruction page 13 under "How
to Take a Reading", instructions
for special conditions.
Your cuff maybe wrapped too
tightly around your arm.
Turn the monitor off, carefully
read and repeat steps listed
under "How to Take a Reading."
Replace all four "AA" batteries
with new batteries.
Problem caused by abnormal
memory function.
Contact your nearest OMRON
representative or dealer.
Main Unit:
TROUBLESHOOTING
T9P new (8) 7/29/02 11:30 AM Page 20
