Onbon BX-Y04 User manual

USER MANUAL
BX-Y04 Media Player
Version: V1.2Release date: 2020.05.21

www.onbonbx.com 第2 页
Statement
Any companies or privates cannot copy, transcribe or translate part or whole
content of this file without our written permission. And cannot use it on any
business or benefit filed with any forms.
The specifications and information which are mentioned on the file is for
reference only, if there’s update, we will not inform you. This file is only for
guidance, and all information will not be for any promises.

www.onbonbx.com 第3 页
CATALOG
Brief Introduction........................................................................................................................................4
Overview.................................................................................................................................................4
Interface Specification...............................................................................................................................5
Hardware Connecting Sketch Map........................................................................................................6
Using Steps ....................................................................................................................................................7
Add Screen.............................................................................................................................................7
IP Configuration.................................................................................................................................10
Set Screen Parameters .....................................................................................................................11
WIFI configuration ............................................................................................................................14
Scan Configuration ...........................................................................................................................17
Connect Configuration ....................................................................................................................26
Server Configuration................................................................................................................................32
Set server IP information................................................................................................................32
WEB Server Communication..........................................................................................................35
Steps for Making Program.....................................................................................................................40
Add Image/text..................................................................................................................................41
Finish Making Program ...................................................................................................................42
Display program.................................................................................................................................43
Sensor Display ....................................................................................................................................43

www.onbonbx.com 第4 页
Brief Introduction
Thanks for ordering LED control card. The design of the control card is according to the
international and industrial standard, but if the operations are incorrect, it will probably
bring you personal injury and financial harm. As to avoid these and win more from your
equipment, please obey the specifications of this file.
Overview
BX-Y04, on-board four hub75 ports, one card for one screen, it’s used on all kinds of
small size full color screen and cluster controlling; Support LAN (100M Ethernet port), USB or
WIFI communication modes; Support 3D picture and text displaying stunt; Support displaying
by U disk directly or uploading to controller; Support group controlling, or programs group
sending; Support updating online.
BX-Y04, on-board brightness sensor, temperature sensor, temp-humid sensor ports.
Support IR controller, users can select playing program, adjust brightness, volume, test screen
and so on; Support Mobile APP, very convenient for users to release and manage programs;
Support many areas, including graphic&text, subtitle, video, lunar, clock, timing, temperature,
humidity, announcement, weather broadcasting; Support database area, can be used on
high-speed train, hospital, bank which need announce and update data in real time.

www.onbonbx.com 第5 页
Interface Specification
Interface specification
1
Power supply
5V power supply port, DC voltage input, support 3.3V-6V
wide working voltage
2
100M
100M Ethernet port
3
Antenna
Connect with WIFI antenna
4
USB port
USB port, send programs by U disk
5
AUDIO
Audio output
6
PROG
Switch button for programs
7
TEST
Testing button
8
75 port
75 port（JK1, JK2, JK3, JK4）
9
IR
Infrared remote controller port
10
LIGHT
brightness sensor port
11
HUMI/TEMP
temperature/temp&humid sensor port

www.onbonbx.com 第6 页
Hardware Connecting Sketch Map
Row cable
LAN cable
LAN cable
LED Screen
Computer
Router
BX-Y04 controller

www.onbonbx.com 第7 页
Using Steps
This user manual is just for fast understanding, if you want to know more functions, please
check our User Manual for LedshowYQ 2018.
Add Screen
1. Open “LedshowYQ 2018”, click “setup”, select “set screen parameters”, as below.
Input password “168”, enter into “set screen parameters”, click ,enter into
“add screen”, as below.
Picture 1

www.onbonbx.com 第8 页
Picture 2
2. Click behind “online card list”, then select the controller which is online, screen
will be added in, click “add”as to finish this setting, as below:

www.onbonbx.com 第9 页
Picture 3
Choose “add all screen”, as to add screen for all online controller, as below:
Picture 4

www.onbonbx.com 第10 页
IP Configuration
Step 1
Click “controller IP configuration”in “setup”, as below:
Picture 5
Step 2
Input password “168”, click “OK”, as below:
Step 3
Users can see all online controllers in “online card list”, click the controller you need to
do IP modification, and then select IP obtain method, click “set”button, as below:

www.onbonbx.com 第11 页
Set Screen Parameters
Step 1
Click “set screen parameters”in “setup”, as below:

www.onbonbx.com 第12 页
Step 2
Input password 168, and click OK, as below:
Step 3
Set width and height pixels according to LED screen size, as below:

www.onbonbx.com 第13 页
Step 4
Click “set parameters”, as below:

www.onbonbx.com 第14 页
WIFI configuration
There are two WIFI modes for Y series controller: AP mode and STA mode. (If there no
wireless card, please prepare one USB wireless card.)

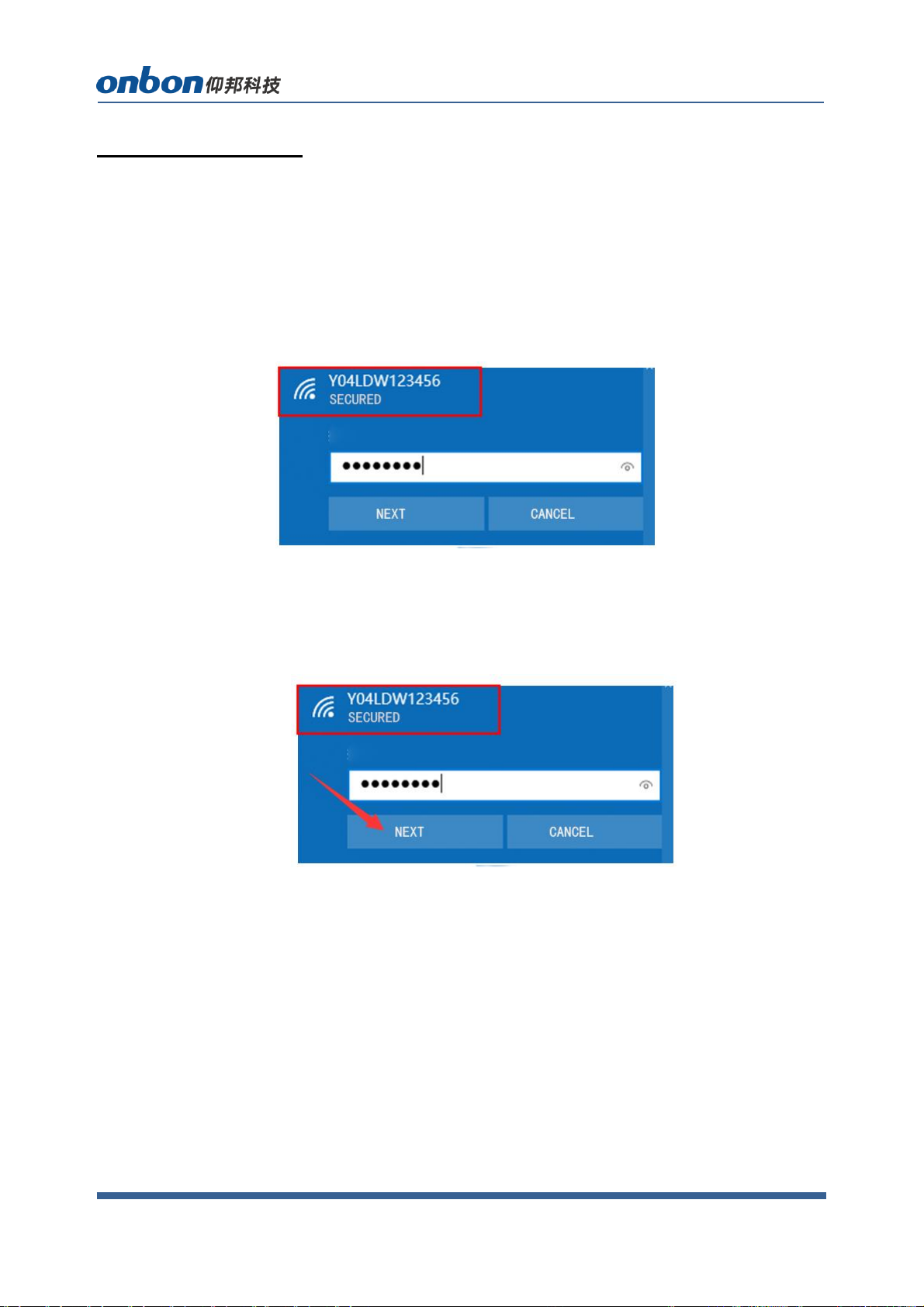

1. AP mode (controller is hotspot, as to connect controller’s WIFI by PC)
Step 1
Open network connection on PC, the hotspot name of controller is the barcode of
controller, as below:
Step 2
Input passwords, initial password of controller is last 8 digits of barcode, then click
“next”, your PC will connect with controller wifi, as below:
Step 3
Open LedshowYQ 2018, you can operate normally.
Step 4
Users can modify WIFI name and passwords. “setup”--“WIFI configuration”--
passwords “168”-- select “AP WiFi”, input new WIFI name and passwords -- click “set”, it
will be modified successfully. (name cannot be set as Chinese, passwords support numbers,
characters, 8-12 digits.)
If users do not want to use controller WIFI, you can close it.

www.onbonbx.com 第15 页
2. STA mode( controller connect with outside WIFI network)
Step 1
Selet “Wifi”icon—click “refresh”button—choose the WIFI name you want—input
WIFI passwords—select “obtain IP address automatically”or input IP method
manually—click “connect”button, then you can connect with this WIFI.

www.onbonbx.com 第16 页
Step 2
After connect successfully, plug off LAN cable of controller. And PC joins up same wireless
router, by LAN cable or WIFI. Then, LedshowYQ 2018 software can communicate with
controller normally.

www.onbonbx.com 第17 页
Scan Configuration
Click “scan configuration”in “set scan parameters”, as below. Users can set “module
parameters”, “receiver card load”, “performance settings”, “Gamma”, “white balance
adjustment”, “smart scan”.
1. Write Scan Method
1) Firstly, click “scan configuration”—click “select modules”, as below:

www.onbonbx.com 第18 页
2) Select module on “module brand/scan list ”and “module list”-- click “OK”, click
“lock specified receiver card”on “connection configuration”.
Note: Support download configuration file from Cloud. If the module is saved
configuration file, users can click “Synchronize module list from network”.

www.onbonbx.com 第19 页

www.onbonbx.com 第20 页
◆Full color module: There are several scan mode: scan 32/16/8/4/2 and static. Usually
indoor single and dual color is scan 16, indoor full color is scan 8, outdoor single and dual
color is scan 4, outdoor full color is static.
◆Color channel: R-G-B, R-B-G, G-R-B, G-B-R, B-R-G, B-G-R.
◆Data polarity: positive and negative.
◆OE polarity: low or high.
◆Module cascade direction: connection direction of receiving card, from right to left, from
left to right, from up to bottom, from bottom to up.
◆Driver chip: default is general chip, users can click “select driver chip”on “select
module”, as to choose the correct chip.
2. Smart Scan Configuration
If users do not know the scan mode of module, you can find out by Smart Scan.
Step 1
Click “smart scan”, enter into “smart setup wizard-1”.
◆Screen type: full color, single/dual color.
◆Module width: according to your LED module.
◆Driver chip: default is general chip, or select by yourself.
◆Row decode mode: no decode, 138, 74HC595, RT5958, SM5266P, 9739 anode, 9736
anode, 9737 anode, 9735 anode, ICND2018, usually choose 138.
◆Empty points: If you are using empty points screen, you need to input the empty points.
◆Module cascade direction: connection direction of receiving card, from right to left, from
left to right, from up to bottom, from bottom to up.
After setting, click “next step”.
