Onkyo TX-8260 User manual

TX-8260
NETWORK STEREO RECEIVER
Instruction Manual
Mode d’emploi
Manual de instrucciones
En
F
r
Es
SN29403233_TX-8260_En.book 1 ページ ２０１７年７月１３日 木曜日 午後７時５１分

2
Before Start
Table of Contents
Before Start
What's in the box .....................................................3
Part Names
Part Names ............................................................. 4
Install
Step1: Connect the Speakers .................................8

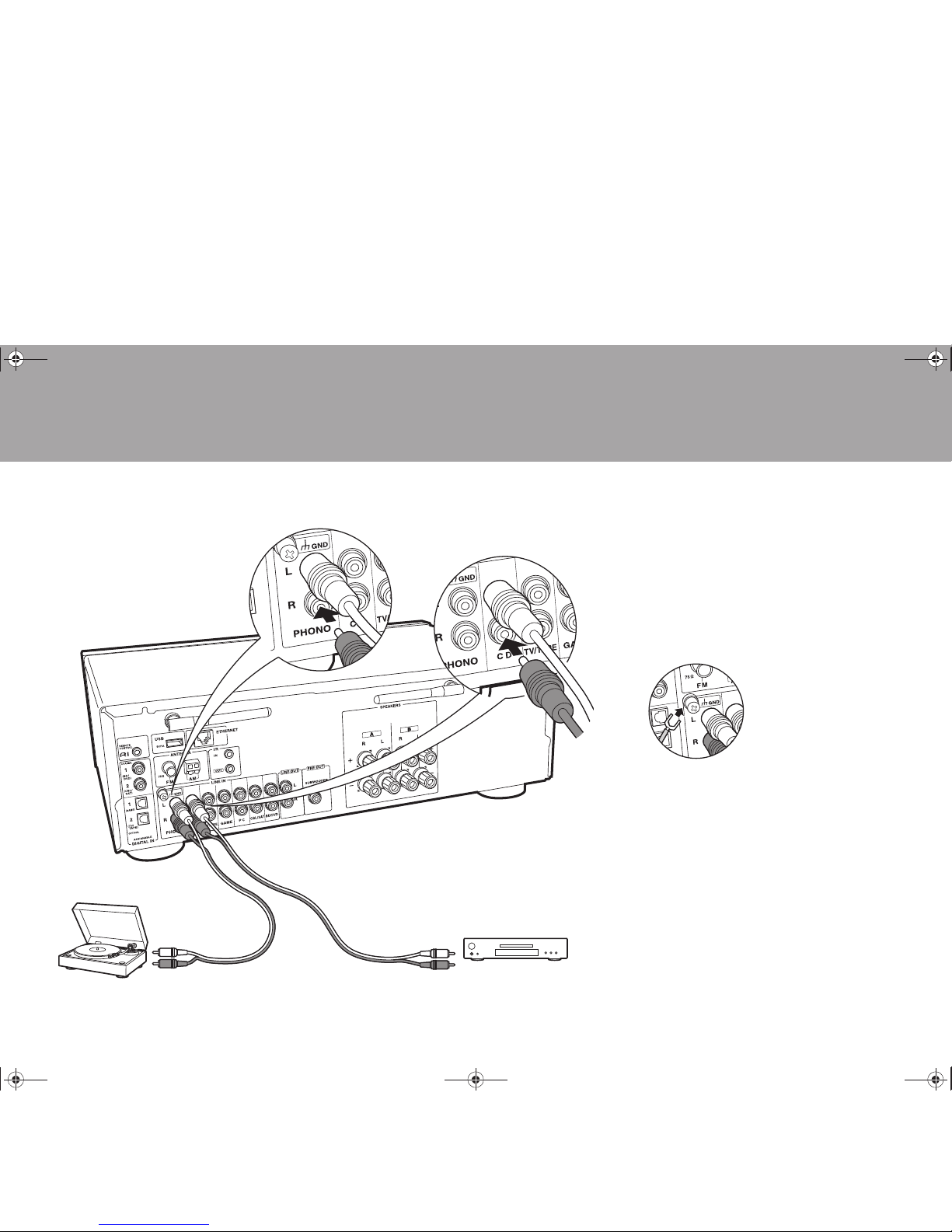

Step2: Connect an external device .........................9
Step3: Multi-zone Connection ............................... 11
Step4: Connect Other Cables ............................... 12
Initial Setup
Initial Setup with Auto Start-up Wizard ..................13

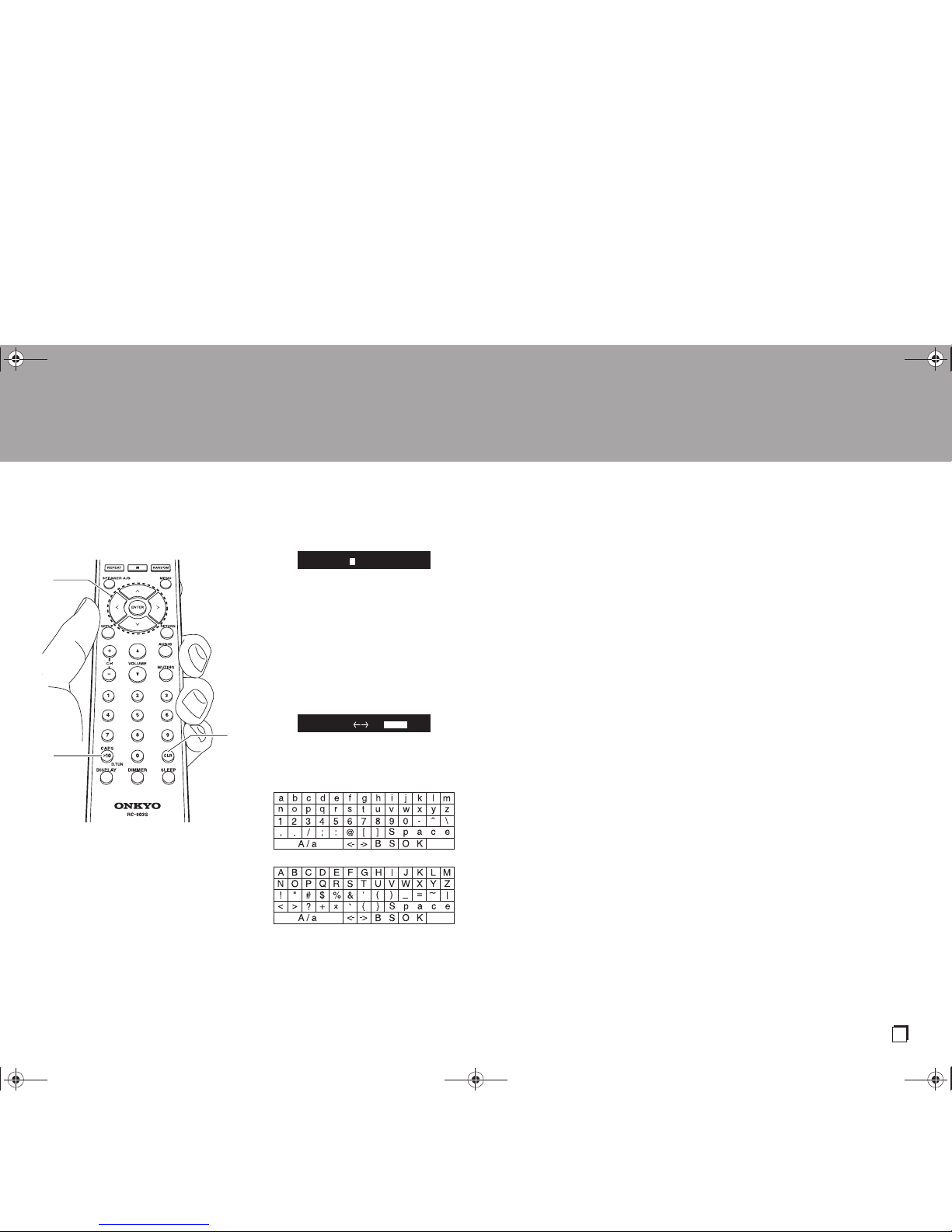

Entering text .......................................................... 15
Playback

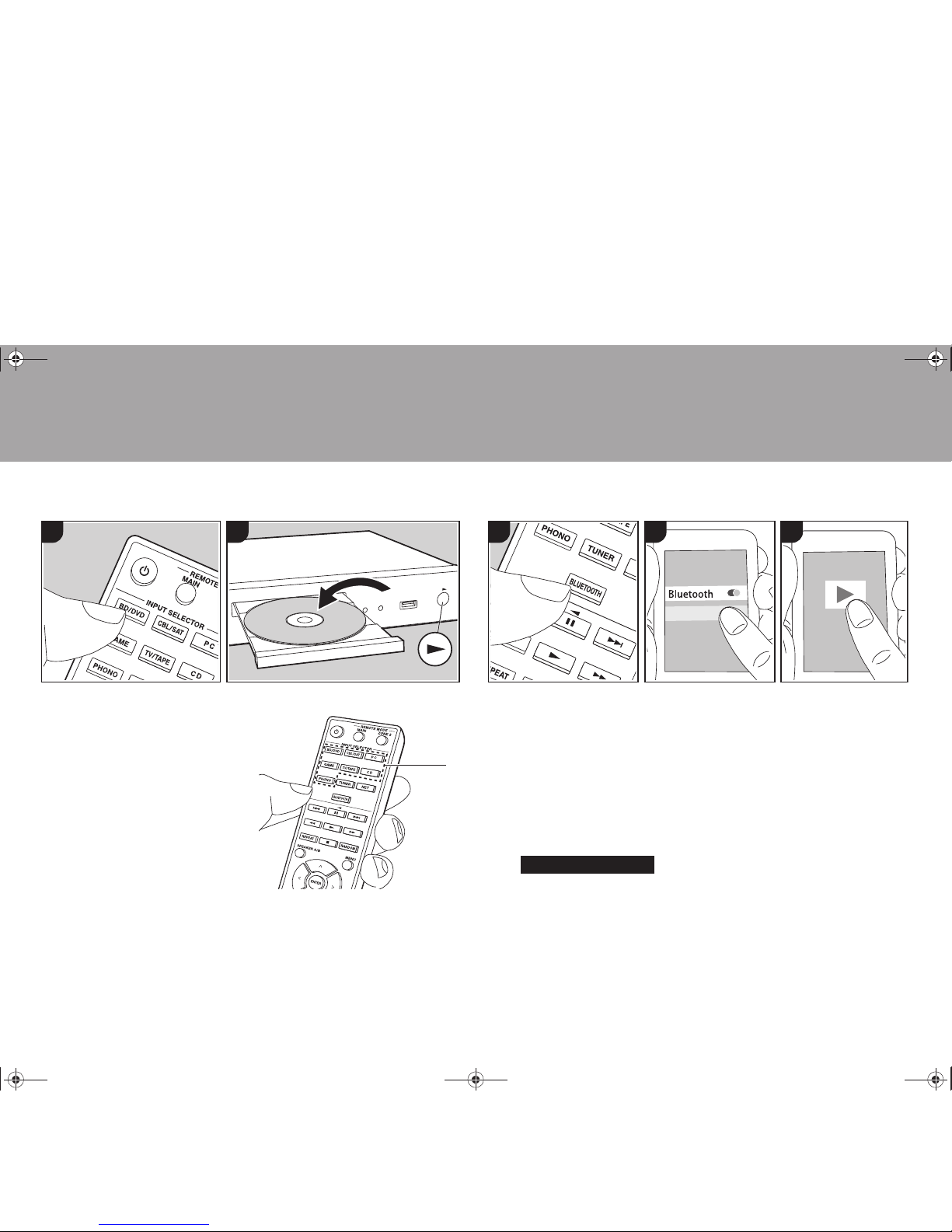

Playing audio from a connected device ................16
BLUETOOTH
®
Playback ......................................16
Internet Radio ....................................................... 17
Spotify ................................................................... 18

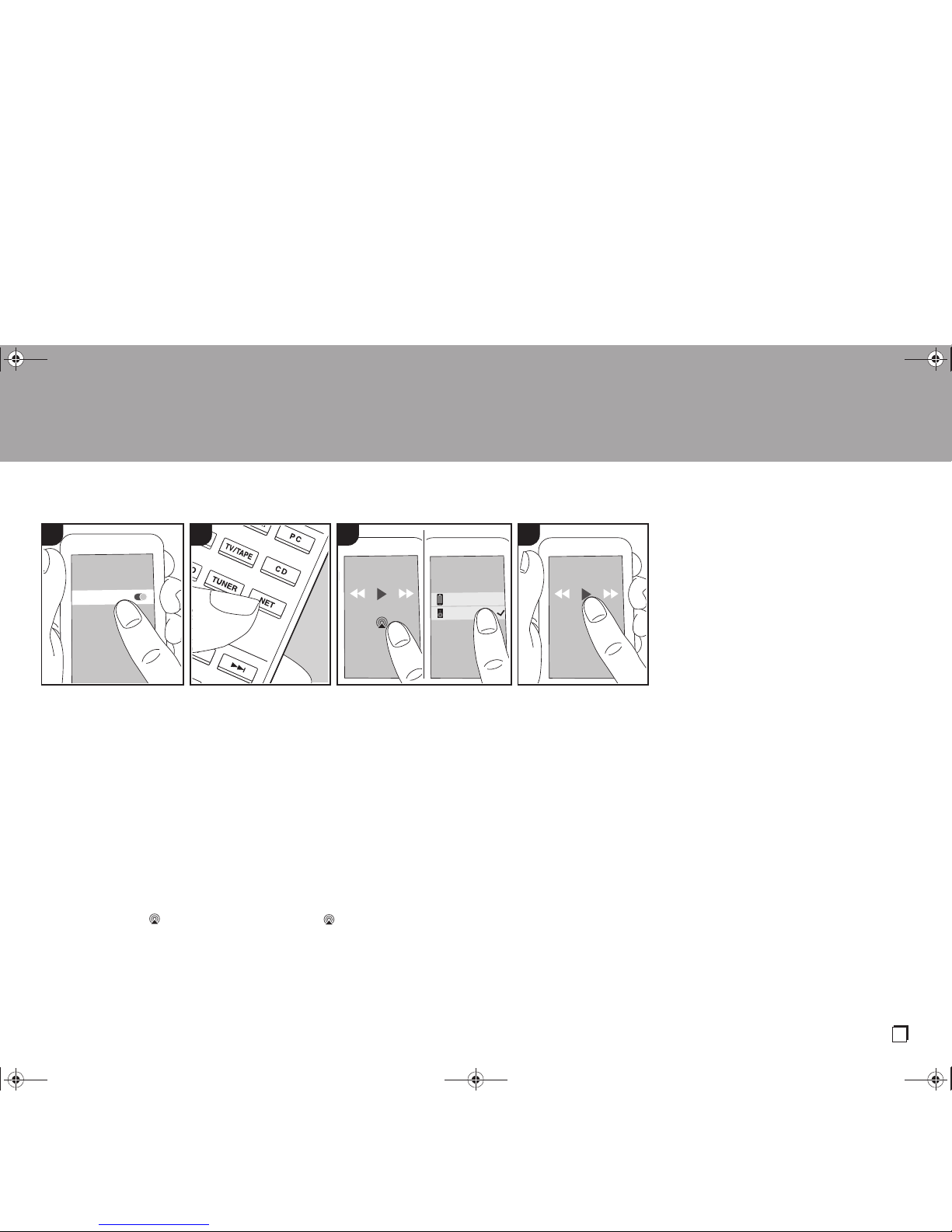

AirPlay
®
.................................................................19

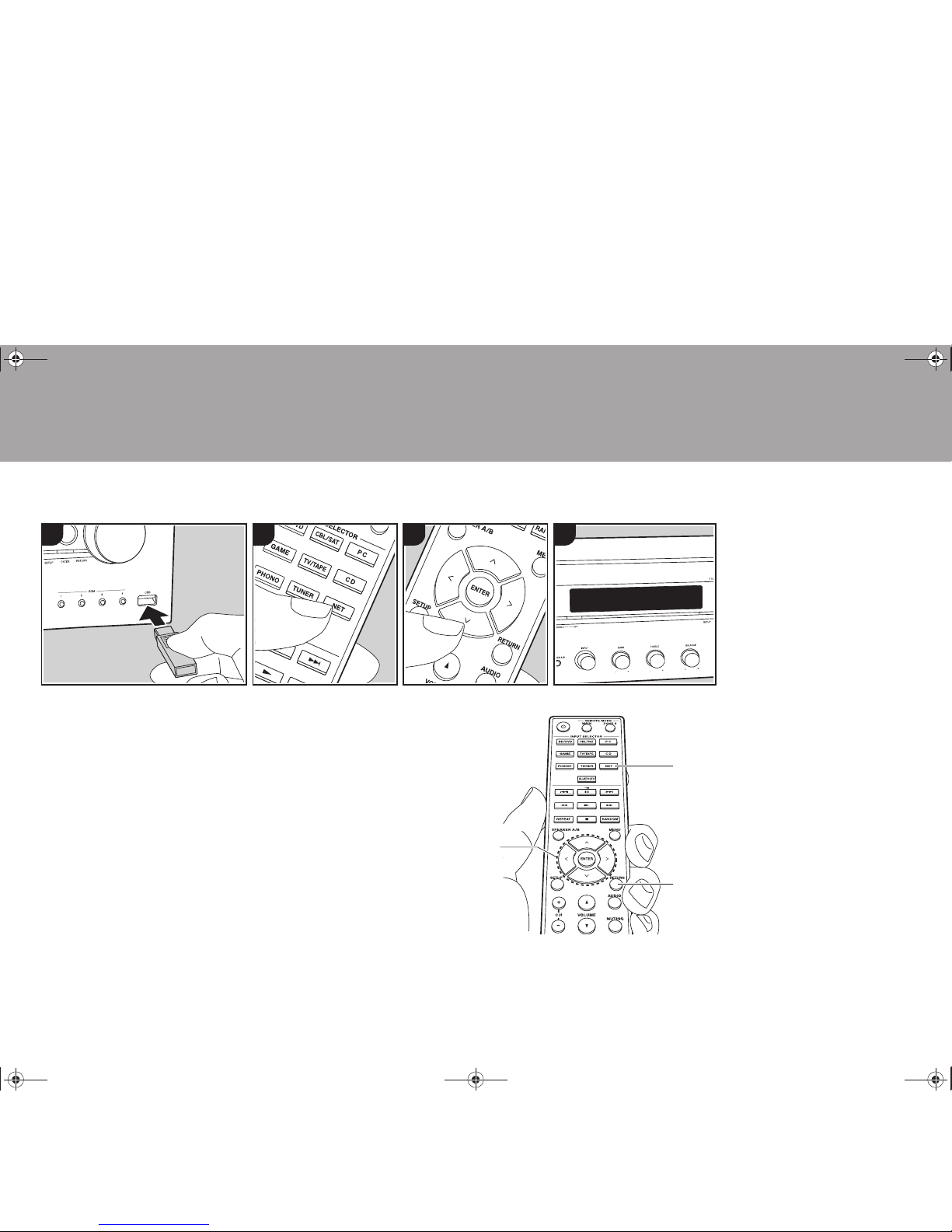

USB Storage Device .............................................20

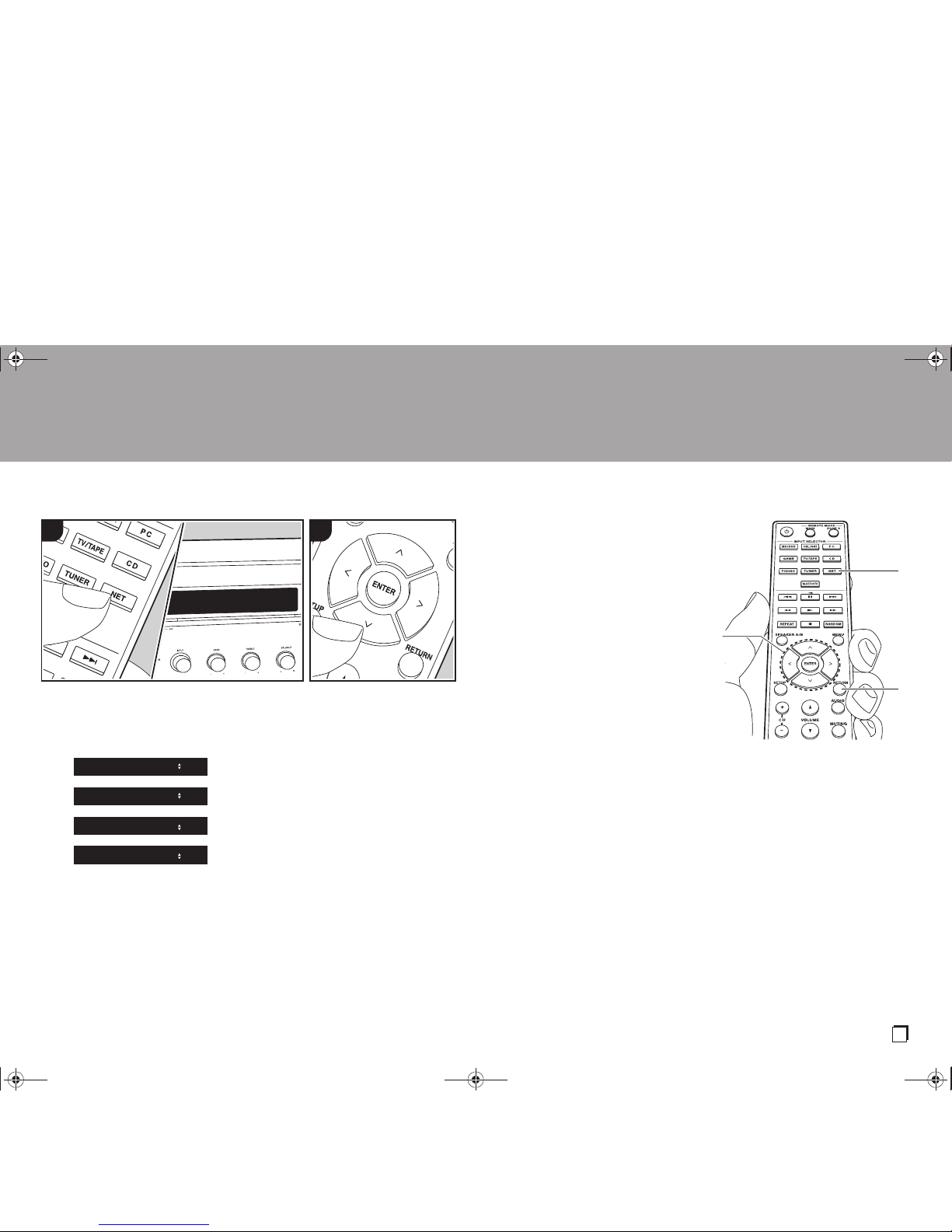

Listening to the AM/FM Radio ...............................22
Registering a station .............................................24
Music Server ......................................................... 25
Multi-zone ............................................................. 27
AUDIO Menu ......................................................... 29
Supplementary information
Supplementary information for player functions .... 30
Advanced Setup
Setup Menu ........................................................... 31
Web Setup ............................................................ 36
Firmware Update ..................................................37
Others
Troubleshooting .................................................... 39
General Specifications ..........................................43
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
SN29403233_TX-8260_En.book 2 ページ ２０１７年７月１３日 木曜日 午後７時５１分

3
En
What's in the box
1. Main unit (1)
2. Remote controller (RC-903S) (1), batteries (AAA/R03)
(2)
3. FM indoor antenna (1)
4. AM indoor antenna (1)
≥Instruction Manual (This document)
0Connect speakers with 4 ≠ to 16 ≠ impedance. Note that
when connecting to both SPEAKERS A and B terminals,
connect speakers with 8 ≠ to 16 ≠ impedance to both A
and B.
0The power cord must be connected only after all other
cable connections are completed.
0We will not accept responsibility for damage arising from
the connection of equipment manufactured by other
companies.
0Functionality may be introduced by firmware updates
and service providers may cease services, meaning that
some network services and content may become
unavailable in the future. Furthermore, available services
may vary depending on your area of residence.
0Details on the firmware update will be posted on our
website, etc.
0Specifications and appearance are subject to change
without prior notice.
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
32
4
1
SN29403233_TX-8260_En.book 3 ページ ２０１７年７月１３日 木曜日 午後７時５１分

4
Par t Name s
Part Names
Front Panel
1. ÍON/STANDBY button
2. MENU button: Used to display the menu.
MEMORY button: Used to register AM/FM radio stations.
3. Play (1)/Pause (;) button,TUNING MODE button:
0Used for play operations when playing Music Server or USB.
0Switches tuning to an AM/FM station between automatic tuning and manual tuning
4. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features
such as NET Stby are enabled that continue to work when this unit is in standby.
5. Remote control sensor: Receives signals from the remote controller.
0The signal range of the remote controller is within about 16y/5 m, at an angle of 20° on
the perpendicular axis and 30° to either side.
6. ZONE 2 button: Controls the multi-zone function (P27).
7. OFF button: Switches the multi-zone function off (P27).
8. Display (P5)
9. SETUP button: You can show advanced setting items on the display to provide you with
an even better experience (P31).
10. Cursors (D / C / B / A), ENTER button: Select the item with the cursors and press
ENTER to confirm. Use them to tune to stations when using TUNER.
11. RETURN button: Returns the display to the previous state during setting.
12. VOLUME
13. PHONES jack: Connect stereo headphones with a standard plug (Ø1/4"/6.3 mm
diameter).
14. DIMMER button: You can adjust the brightness of the display in three steps. It cannot be
turned off completely.
15. SPEAKER A/B button: Select the terminals to output audio from between SPEAKERS A/B.
16. INPUT dial: Switches the input to be played. Turn the control to switch the source in the
> Before Start >PartNames > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
       
 
  
SN29403233_TX-8260_En.book 4 ページ ２０１７年７月１３日 木曜日 午後７時５１分

5
> Before Start >PartNames > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
En
following order;
BD/DVD#CBL/SAT#PC#GAME#
TVTAPE#CD#PHONO#AM#FM#NET#
BLUETOOTH
17. BASS dial: Adjusts the bass.
18. TREBLE dial: Adjusts the treble.
19. BALANCE dial: Adjusts the balance of the sounds
output from the left and right speakers.
20. BGM 1/2/3/4 buttons: Preset your favorite AM/FM radio
stations (P24).
21. USB jack: A USB storage device is connected so that
music files stored in it can be played. You can also
supply power (maximum 5 V/0.5 A) to USB devices
with a USB cable.
0When connecting a HDD that requires more than 5
V/0.5 A, connect to the USB port (maximum 5 V/1 A)
on the rear of the unit.
Display
1. The currently selected speaker system lights.
2. Lights in the following conditions.
Ë: When headphones are connected
Z2: ZONE 2 is on.
: When connected via BLUETOOTH
: When connected by Wi-Fi
NET: When "NET" is selected with the input selector and the unit is
connected to the network. It will flash if the connection to the network is
not correct.
USB: When "NET" is selected with the input selector and the unit is
connected by USB and the USB device is selected. Flashes if the USB
is not properly connected.
DIGITAL: Digital signals are input and the digital input selector is
selected.
3. Lights according to the type of input digital audio signals.
4. Lights in the following conditions.
TUNED: Receiving AM/FM radio
FM ST: Receiving FM stereo.
SLEEP: Sleep timer has been set.
AUTO STBY: Auto Stby (P32) has been set.
5. Flashes when muting is on.
6. Speaker/Channel display: Displays the output channel of the speakers.
7. This may light when performing operations with the "NET" input
selector.
8. Displays various information of the input signals.



SN29403233_TX-8260_En.book 5 ページ ２０１７年７月１３日 木曜日 午後７時５１分

6
Rear Panel
1. DIGITAL IN OPTICAL/COAXIAL jacks: Input digital audio signals from an external device
with a digital optical cable or digital coaxial cable.
2. REMOTE CONTROL jack: An Onkyo product with RI jack can be connected and
synchronized with this unit (P10).
3. USB jack: A USB storage device is connected so that music files stored in it can be
played. You can also supply power (maximum 5 V/1 A) to USB devices with a USB cable.
4. ETHERNET jack: Connect to the network with an Ethernet cable.
5. Wireless antenna: Raise for Wi-Fi connection or when using a BLUETOOTH wireless
technology enabled device. Adjust their angles according to the connection status.
6. IR IN/OUT terminals: Connected to the multi-room remote control kit. Special devices or
cables are necessary. For more information about preparation, contact the specialized
stores.
7. Power cord
8. GND jack: The ground wire of the turntable is connected.
9. FM 75≠/AM ANTENNA jacks: Connect the supplied FM indoor antenna and AM indoor
antenna.
10. LINE IN jacks: Input audio signals from an external device with an analog audio cable.
11. LINE OUT jacks: Connect a recording device, such as a cassette tape deck. Connect to
the LINE IN jacks on the recording device using analog audio cable.
12. SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable.
13. ZONE 2 PRE OUT jacks: Output audio signals with an analog audio cable to a pre-main
amplifier or power amplifier in a separate room (ZONE 2) (P27).
14. SPEAKERS jacks: Connect speakers with speaker cables. You can connect a set of left
and right speakers to each of the A/B terminals. (This unit is banana plug ready)
> Before Start >PartNames > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
180°
90°


  






SN29403233_TX-8260_En.book 6 ページ ２０１７年７月１３日 木曜日 午後７時５１分

7
En

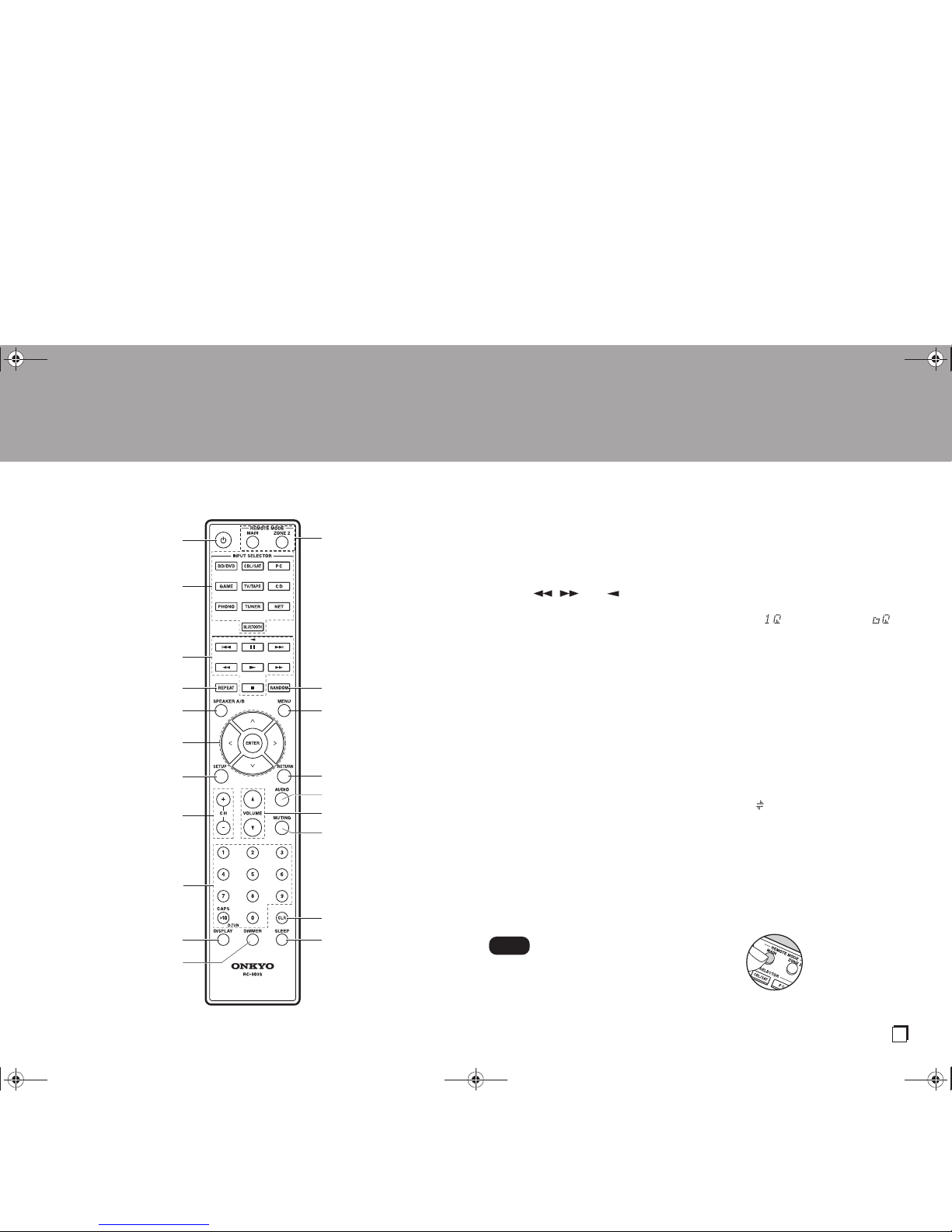

Remote Controller
1. ÍON/STANDBY button
2. INPUT SELECTOR buttons: Switches the input to be played.
3. Play buttons: Used to control play of a Music Server or device connected via USB, or of
RI connected devices.
0The , , and buttons can only be used when playing RI connected devices.
4. REPEAT button: Used for repeat play operations when playing Music Server or USB.
Each time you press the button, the mode switches from (1-track repeat) to
(folder repeat).
5. SPEAKER A/B button: Select the terminals to output audio from between SPEAKERS A/B.
6. Cursors (Up / Down / Left / Right), ENTER button: Select the item with the cursors and
press ENTER to confirm.
7. SETUP button: You can show advanced setting items on the display to provide you with
an even better experience (P31).
8. CH (i/j) buttons: Used to select AM/FM radio stations.
9. Numbered buttons
10. DISPLAY button: Switches the information on the display. You can display information
such as the input source, volume, and input format when pressed repeatedly during play.
11. DIMMER button: You can adjust the brightness of the display in three steps. It cannot be
turned off completely.
12. REMOTE MODE MAIN/ZONE 2 buttons: Controls the multi-zone function (P27).
13. RANDOM button: Used for random play operations when playing Music Server or USB.
Random turns on or off each time you press the button .
14. MENU button: Used to display the menu.
15. RETURN button: Returns the display to the previous state during setting.
16. AUDIO button: Use for setting "Bass", "Treble", etc. (P29).
17. VOLUME
18. MUTING button: Temporarily mutes audio. Press again to cancel muting.
19. CLR button: Deletes all characters you have entered when entering text. (P15)
20. SLEEP button: Set the sleep timer. Press the button repeatedly to select the time. When
the time set (30, 60, or 90 minutes) has elapsed, the unit switches to standby. If SLEEP
button is pressed after setting, the time remaining until sleep is displayed.
> Before Start >PartNames > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others




















* When the remote controller isn't working:
The remote controller may have switched to the
mode for controlling ZONE 2. Press REMOTE
MODE MAIN to switch to the mode to control the
main room.
Tips
SN29403233_TX-8260_En.book 7 ページ ２０１７年７月１３日 木曜日 午後７時５１分

8
Insta ll
Step1: Connect the Speakers
You can connect two systems, Speaker A and Speaker B,
as the Speaker System. When connecting only one set,
connect to the SPEAKERS A terminals. With one set, use
speakers with 4 ≠ to 16 ≠ impedance. Note that when
connecting to both SPEAKERS A and B terminals, connect
speakers with 8 ≠ to 16 ≠ impedance to both A and B.
Connect the speaker cable so the wires do not protrude
from the speaker jacks. If the exposed wires of the
speakers touch the rear panel or the + and - wires touch
each other, the protection circuit will be activated.
(*)You can also connect a subwoofer with a built-in
amplifier to the SUBWOOFER PRE OUT jack to boost
bass playback even more. Use a subwoofer cable for
connection. When only Speaker B is outputting audio,
there will be no audio output from the powered
subwoofer.
> Before Start > Part Names >Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
a
a
Speaker B
Speaker A
1/2˝
(12 mm)
*
Left
Right Left
Right
a Speaker Cable
Setup
0When connected as a Speaker B System, you
can output the same audio as Speaker A System
by switching with A/B/A+B. Press SPEAKER A/B
on the remote control to switch. The selection
changes in the order SPEAKER A, SPEAKER B,
SPEAKER A+B with each press.
0If any of the connected speakers have an
impedance of 4 ≠ or more to less than 6 ≠, or
when speaker systems are connected to both of
the SPEAKERS A/B terminal, after completing
Initial Setup, you need to make some settings in
the Setup menu. Press SETUP on the remote
controller, and set "3. Hardware" - "SpImpedance"
to "4≠". (P32)
SN29403233_TX-8260_En.book 8 ページ ２０１７年７月１３日 木曜日 午後７時５１分

9
En
Step2: Connect an external device
1. DIGITAL IN connection
Connect an external device with a digital optical cable or
digital coaxial cable. Note that this unit is equipped with an
"Opt1Wkup feature" so that when play starts on an external
device connected to the OPTICAL 1 (GAME) terminal, this
unit comes on and the INPUT SELECTOR automatically
changes. (P33)
0The default setting for "Opt1Wkup feature" is "Off". To
enable this function, please press SETUP on the remote
controller, and set "3. Hardware" - "Opt1Wkup". (P33)
0The Opt1Wkup feature does not work when the unit is in
the mode for controlling ZONE 2 (P27).
0Only PCM audio is supported for input through the
DIGITAL IN OPTICAL/COAXIAL jacks. Set the audio
output on the external device to output PCM.
> Before Start > Part Names >Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
GAME
b
a
BD/DVD
a Digital Optical Cable, b Digital Coaxial Cable
SN29403233_TX-8260_En.book 9 ページ ２０１７年７月１３日 木曜日 午後７時５１分

10
2. LINE IN connection
Connect an external device with an analog audio cable. You
can connect a turntable that has an MM-type cartridge to
the PHONO jack.
0If the turntable has a built-in audio equalizer, connect it to
an LINE IN jack other than the PHONO jack. Also, if the
turntable uses an MC type cartridge, install an audio
equalizer compatible with the MC type cartridge between
the unit and the turntable, then connect to any LINE IN
jack other than the PHONO jack.
If the turntable has a ground wire,
connect it to the GND terminal.
0 By connecting an Onkyo component with RI jack to the unit
by using an RI cable and an analog audio cable, you can
link the unit’s power and input selection and enable
operation with this unit’s remote controller. For details, refer
to the instruction manual of the component with the RI jack.
0Part of the function may not operate even if it is
connected via RI depending on the equipment.
0The RI linking features may not work when the unit is
in the mode for controlling ZONE 2.
0When connecting an RI dock, you must rename the
input selectors on the unit to make the system link
work. Select the GAME input selector to display
"GAME" on the main unit display. Then press and hold
RETURN on the main unit for 3 seconds to switch the
display to "DOCK".
> Before Start > Part Names >Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
CD
a
Turntable
a Analog Audio Cable
SN29403233_TX-8260_En.book 10 ページ ２０１７年７月１３日 木曜日 午後７時５１分
