User’s Manual
AVFX-100TR
www.opticis.com
Optical VGA/Audio/RS-232
Extender
Manual Contents
__________________________________________
Manual Contents 1-0
Welcome, Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
RS-232 Baud rate and AUTO Installation 1-6
Troubleshooting, Maintenance, Technical Support 1-7
Product Specifications 1-8
Warranty Information 1-9
Pictorials
Figure 1 –Overall Digital Video/Audio and Serial I/O
Optical Extender 1-1
Figure 2 –Connection of VGA, AUDIO, RS232 Cable
to Transmitter Module 1-2
Figure 3 –Connection of Receiver Module 1-3
Figure 4 –Connection of Two (2) Duplex LC Optical
Fibers 1-4
Figure 5 –Connection of AC/DC Power Adaptor 1-5
1- 0 Manual Contents

Welcome!
Congratulations on your purchase of the AVFX-100-TR, Analog Video/Audio and
Serial I/O optical extender. This manual contains information that will assist you
in installing and operating the product.
Product Description
AVFX-100-TR offers integrated extension of Analog video, audio and RS-232
interface up to 2km (6,560feet) over single-mode or 300m (985feet, 50m) over
multi-mode. It maintains video signals up to UXGA (1600x1200) at 60Hz refresh
rate for PC. It is compatible with full DDC2B. RS232 serial interface offers
device-to-device and device-to-controller connections to build up control system
for A/V integration.
It is designed to multiplex and de-multiplex Analog video, analog audio DDC
command interface, HDCP and serial protocol so as to be linked over 4 LC
fibers. It gives benefits of all-glass fiber transmission medium, data security, long
distance extension up to 2km, easy plug-and-go installation and no RFI/EMI
effects. In addition, a non-trivial feature is that both of Single and Multimode
optical fibers are applicable.
Shipping Group of AVFX-100-TR Analog Video/Audio and RS232 optical extender
Tx and Rx boxes: One Transmitter module & One Receiver module.
AC/DC power adapter: Two (2) +5V/3A units
User’s Manual
Option: Duplex LC Patch Cord (single mode or multi-mode glass fiber).

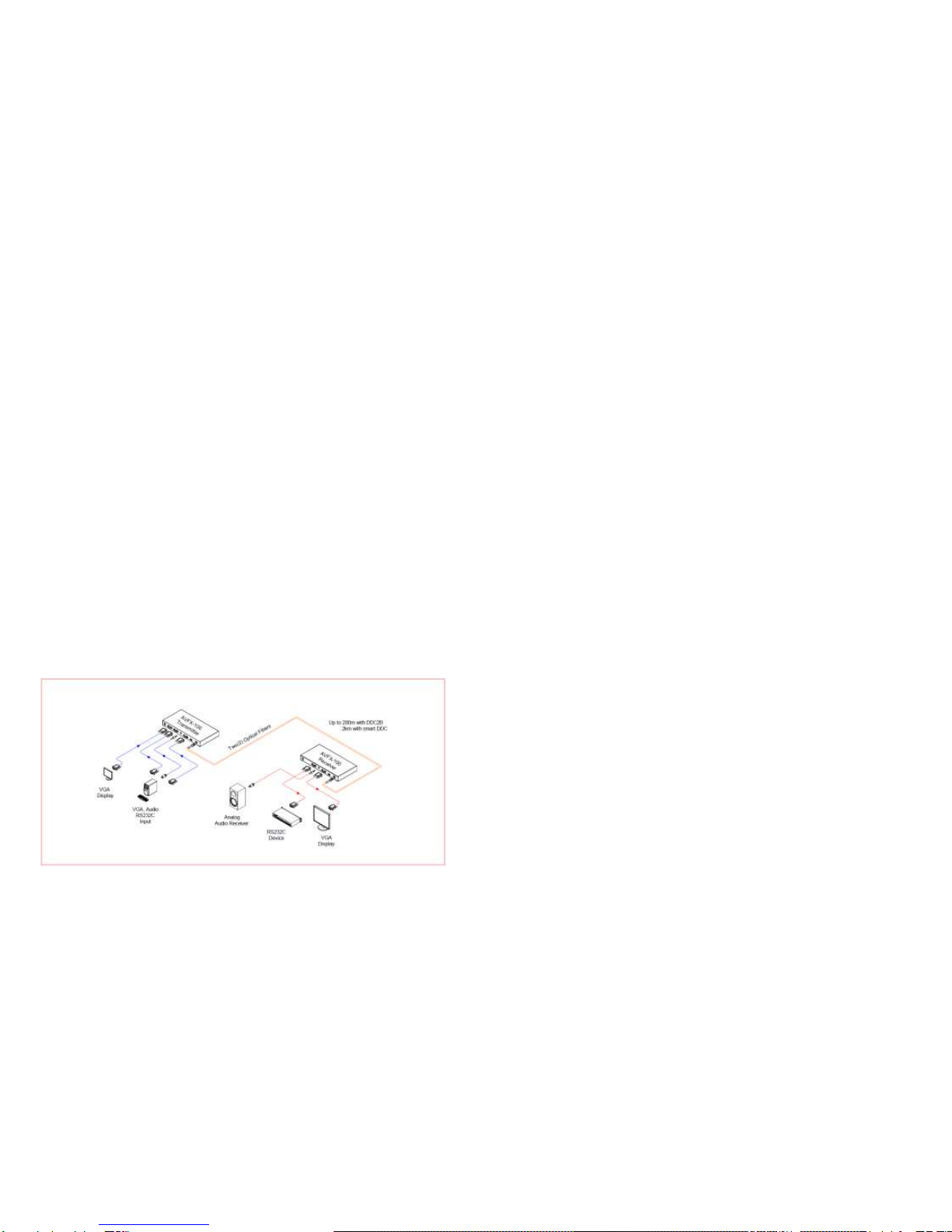

Figure 1 –Overall Digital Video/Audio and Serial I/O Optical Extender
1-1 Welcome, Product Description
System Requirements for Setup
Hardware requirements
You have a graphic controller card with a DVI port in your
Windows/Mac (Mac is option), or SUN system. It should support
the maximum graphic resolution feature of the display to be
connected.
In case of using a computer, no special memory size, CPU
speed and chipsets are required.
Proper initial trial of the entire platform with its application using
a short length copper cable is recommended prior to install with
the optical link.
Software requirements
No special needs, if the DVI graphic controller and display
peripheral are operational with the platform’s OS and
application.
AC/DC Power Adapter Technical Advisory
The power of AVFX-100-TR is designed to supply to each module of
Transmitter and Receiver modules by plugging to each of the power
plugs.
1-2 System Requirements for Setup

Installation
Important: Please use the installation procedure below. Improper or no
operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents of the shipping group.
Step 2
With system power turned off, connect the Transmitter module to the VGA D-
sub of PC or other video source equipment by a VGA copper cable. If
necessary, connect the RS232 cable plugs to each D-sub 9-pin connector on
PC and Transmitter module. Also if you use a Local monitor, connect HD-15
VGA connector.
Step 3
Connect the Transmitter module to the audio source equipment by audio
cables such as Stereo Phone Jack.

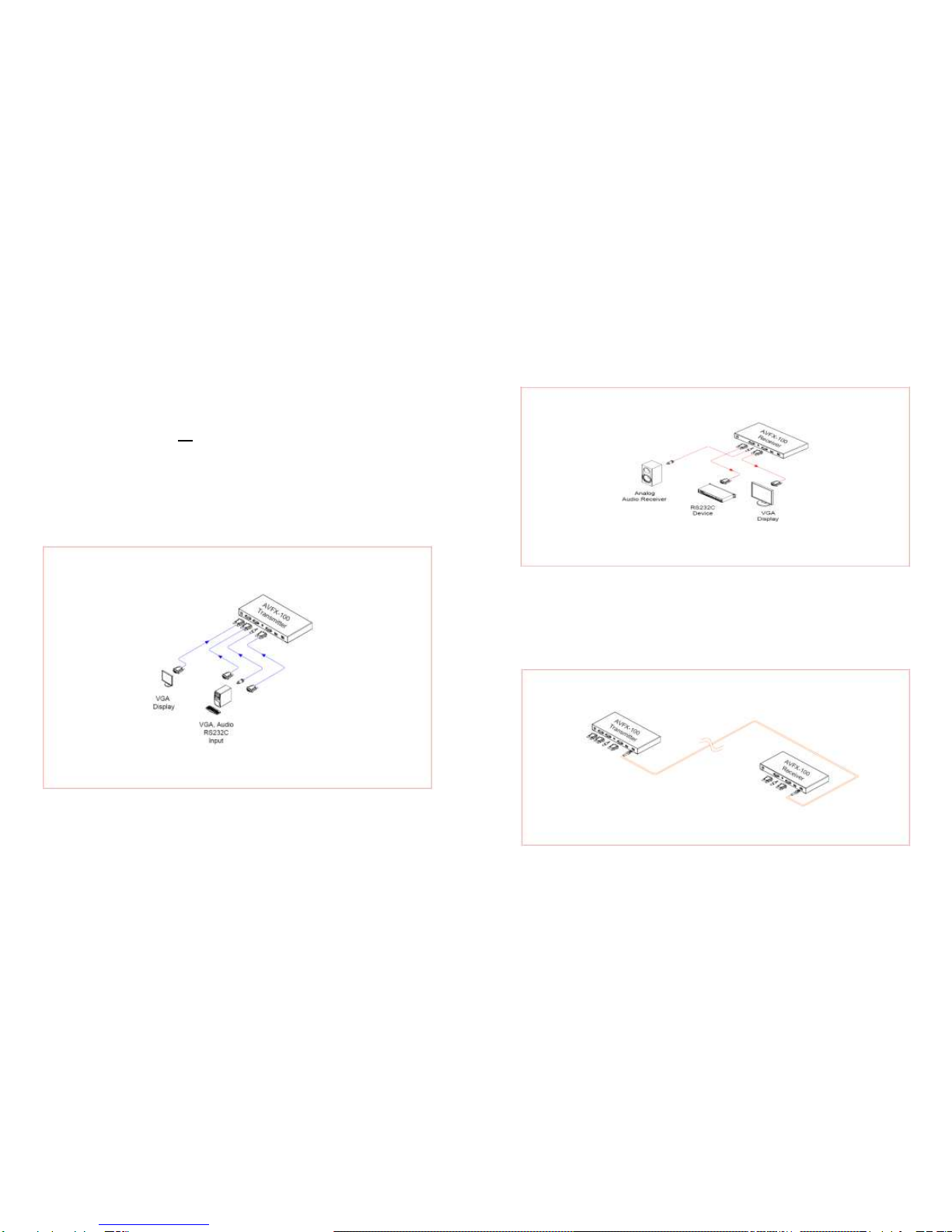

Figure 2 –Connection of VGA, AUDIO, RS232 Cable to Transmitter Module
1-3 Installation
Step 4
In the same way as above, connect the Receiver module to the display by
VGA copper cable and to the audio output equipments such as media
receiver or speaker by audio cable. The RS232 devices near the display can
be connected by RS232 copper cable also.
Figure 3 –Connection of Receiver Module
Step 5
Remove dust covers and connect two (2) duplex LC fibers to LC receptacles
of the Transmitter and Receiver modules, as shown in Fig. 4. Carefully ensure
the duplex LC connector is fully engaged.
Figure 4 –Connection of Two (2) Duplex LC Optical Fibers
1-4 Installation (continued)

Notice: Please DO NOT look directly into the LC receptacles of Uplink
module, while they are powered on, although they are regulated strictly
enough to operate under the Laser Class 1, classified by CDRH/FDA for eye
safety.
Step 6
Connect an AC/DC power adapter to both Transmitter and Receiver modules
as your availability of AC outlets. You can find power indication LED lit on in
the both modules.
Figure 5 –Connection of AC/DC Power Adapter
Step 7
PowerpON the PC and display or connected RS-232 devices. Ensure
“POWER”, “VIDEO”and “AUDIO”indication LED lit ON, representing secure
connection of LC duplex fibers and all kinds of cables. If the cables are
connected incorrectly, the LINK ERR LED lit on.
Tip 1: If any status LED is not ON normally after all installation as guided in
the above, we recommend you to push “RESET”button while all connections
are set and the Transmitter and Receiver modules are powered in.
Tip 2: Avoid “hot plugging” the Uplink as this is not recommended practice
with live digital voltages.
1-5 Installation
RS-232 Baud rate and AUTO Installation
The Tx,Rx Baud rate is installed with switch 1,2,3.(switch 4 is only Auto function)
Setting “1”
Setting “0”
1
2
3
4
[Baud rate switch diagram] - Black is the switch’s position
Baud rate
Switch setting
1
2
3
4
9600
0
0
0
0
14400
1
0
0
0
19200
0
1
0
0
38400
1
1
0
0
57600
0
0
1
0
115200
1
0
1
0
128000
0
1
1
0
256000
1
1
1
0
AUTO mode
none
none
none
1
*Auto mode: If you want to use this function, please set the switch as above, and
then push the “AUTO”button on the Tx. It can help refine display quality.
We recommend you push the button when you finish the set up.
1-6 RS-232 Baud rate and AUTO Installation

Product Specifications
AVFX-100-TR Analog Video/Audio and Serial I/O Optical Extender
Compliance with VGA standard: supports using fiber-optic
communication links and DDC2B.
Extension limit: 2km (6,560feet) over two (2) single-mode fibers
300m (986feet) over two (2) single-mode fibers
Audio: Stereo Phone Jack
RS232C: supports D-sub 9 Pin connectors for RS232C.
Fiber-optic Connection: The transmitter and receiver boxes of
AVFX-100-TR have two (2) duplex LC receptacles connected to two
(2) duplex Single Mode or Multi Mode optical patch cords.
Mechanical specifications of Transmitter and Receiver boxes
Dimensions: 220mm / 140mm / 40mm (W/H/D)
Weight: 460 10.0 gram for each of Transmitter and Receiver.
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: - 10°C to 85°C
Humidity: 5% to 85%
AC/DC Power Adapter
Power Output: +5V, 3.0 A SMPS DC-power Adapter
Cord DC Jack: Core is 5 V and outer cylinder is GND.
Support Resolution
Pixel Format
Refresh Rate Pixel Format Refresh Rate
800x600 56.0 1280x768 85.0
800x600 60.0 1280x800 60.0
800x600 72.0 1280x960 60.0
800x600 75.0 1280x960 85.0
800x600 85.0 1280x1024 60.0
1024x768 60.0 1280x1024 75.0
1024x768 70.0 1280x1024 85.0
1024x768 75.0 1360x768 60.0
1024x768 85.0 1400x1050 60.0
1152x864 75.0 1400x1050 75.0
1280x768 60.0 1440x900 60.0
1280x768 75.0 1600x1200 60.0
1-8 Product Specifications
Troubleshooting
The display displays only black screen.
Check that all AC and DC plugs and jacks used by external power
supplies (both Opticis and others) are firmly connected.
Ensure that power LED lit ON.
Ensure that the Transmitter and Receiver modules connected
correctly to the PC and display, respectively.
Check if the PC and display are powered on and properly booted.
Reset the AVFX-100-TR using Reset button on Uplink and Downlink
modules.

Re-boot up the system after reconnecting the LC optical fibers.
Screen is distorted or displays noises.
Check if the graphic resolution is properly set. Go to the display
properties and tap the settings.
Reset the AVFX-100 using Reset button on Transmitter and Receiver
modules.
Push “AUTO” button
※For more details, please see the 1-6 chapter.
Reset the system.
Power down, disconnect and reconnect the LC optical fiber or DC
power adaptors, and power up.
Maintenance
No special maintenance is required for this product. Ensure that this product
is stored or used in a benign environment free from liquid or dirt
contamination.
There are no user serviceable parts. Refer all service and repair issues to
Opticis or its authorized distributor.
Technical Support and Service
For commercial or general product support, contact your reseller. For
technical service, contact Opticis by email techsup[email protected] or visit its
website at www.opticis.com.
1-7 Troubleshooting, Maintenance, Technical Support

© 2012 Opticis. All Rights Reserved
Revision 1.0
Opticis Locations
Opticis Co., Ltd.
#304 Byucksan Technopia
434-6 Sangdaewon-Dong, Chungwon-Ku
Sungnam City, Kyungki-Do
462-120, South Korea
Tel: [phone]
Fax: [phone]
For order support, please contact your Distributor or Reseller.
For technical support, check with the Opticis web site www.opticis.com or
contact [e-mail]
Warranty Information
1 (One) Year Warranty
Opticis warrants this Digital Video/Audio and Serial I/O Optical Extender to be
free from defects in workmanship and materials, under normal use and
service, for a period of one (1) year from the date of purchase from Opticis or
its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part,
deliver to customer an equivalent product or part to replace the defective item,
or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the
reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or
memory data of customer contained in, stored on, or integrated with any
products returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the product in the
application for which said product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
1-9 Warranty Information
