Opticon MDI-2300 Quick setup guide

Auto Focus 2D Scan Engine
MDI-2300
This document provides instructions for installing
the MSI-2300 camera module and the MDI-2300
decoder board. Integration Guide

MDI-2300
Integration Guide
2
All information subject to change without notice.
Document History
Model Number: MDI-2300 Specification Number: TS10033
Edition: 3rd Original Spec Number: TS10032
Date: 2011-12-15
Copyright 2010 Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any
electronic or machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE
PRODUCT.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to the device
purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the
warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and
workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective
in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused
by modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned
under warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any
direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and
software, even if Opticon has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should you need
to transport your scanner or send it for service. Damage caused by improper packaging during shipment is not
covered by the warranty.
Trademarks
Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd.,
12-17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. TEL [phone]; FAX +81-(0) 48-
446-1184
SUPPORT
USA Europe
Phone: [phone]
Email: [e-mail] Email: [email protected]
Web: www.opticonusa.com Web: www.opticon.com

MDI-2300
Integration Guide
3
Revision History
Specification No. : SS10031
Product name : MDI-2300
Edition Date Page Section Description of Changes
1st 2010/08/10 - - Initial release
2nd 2010/11/01 13 7.3. FPC Added the description ‘Do not bend
here’ to the drawing.
3rd 2011/12/15 8 4. EMC measures Section added

MDI-2300
Integration Guide
4
Contents
1. Introduction .................................................................................................................................5
2. Exit Window Material and Placement........................................................................................5
3. Installation ...................................................................................................................................8
4. EMC measures.............................................................................................................................8
5. Cable Specifications ...................................................................................................................9
5.1. Connection between Camera Module and Decoder Board..................................................9
5.2. Connection between Decoder Board and Host System.....................................................10
6. Handling Requirements............................................................................................................11
7. Mechanical Drawings................................................................................................................12
7.1. Camera Module .................................................................................................................12
7.2. Decoder Board...................................................................................................................13
7.3. FPC....................................................................................................................................13

MDI-2300
Integration Guide
5
1. Introduction
The MDI-2300 CMOS two-dimensional scan engine consists of MSI-2300 camera module
(hereafter called “camera module”) and a decoder board developed specifically for the MDI-2300
(hereafter called “decoder board”). This guide provides instructions for installing the camera
module and the decoder board.
2. Exit Window Material and Placement
zFor the best optical quality, use an acrylic material (cast or extruded) for the exit window.
zSelect a high-quality achromatic acrylic material with a smooth, flat surface and no scratches
or dents.
zThe acrylic material should be 1 mm thick and have an anti-reflective (AR) coating applied to
both sides of the exit window.
zIt is recommended to apply an anti-scratch coating to the surface of the exit window to
protect it from scratches during operation.
zHard coated acrylic plates are readily available. Such a coating greatly enhances anti-
scratch properties without degrading the optical characteristics of the acrylic material.
zTo protect the exit window from dust, stains, and scratches during assembly, a protective
sheet was attached. This should be removed before operation.
zAfter removing the protective sheet, use an ion-blower or other method to remove any dust
that may have been attracted by static electricity.
Recommended acrylic material:
Nitto Jushi Kogyo Co., Ltd. “Clarex Precision Thin Sheet”
MITSUBISHI RAYON CO., LTD. “Acrylite”

MDI-2300
Integration Guide
6

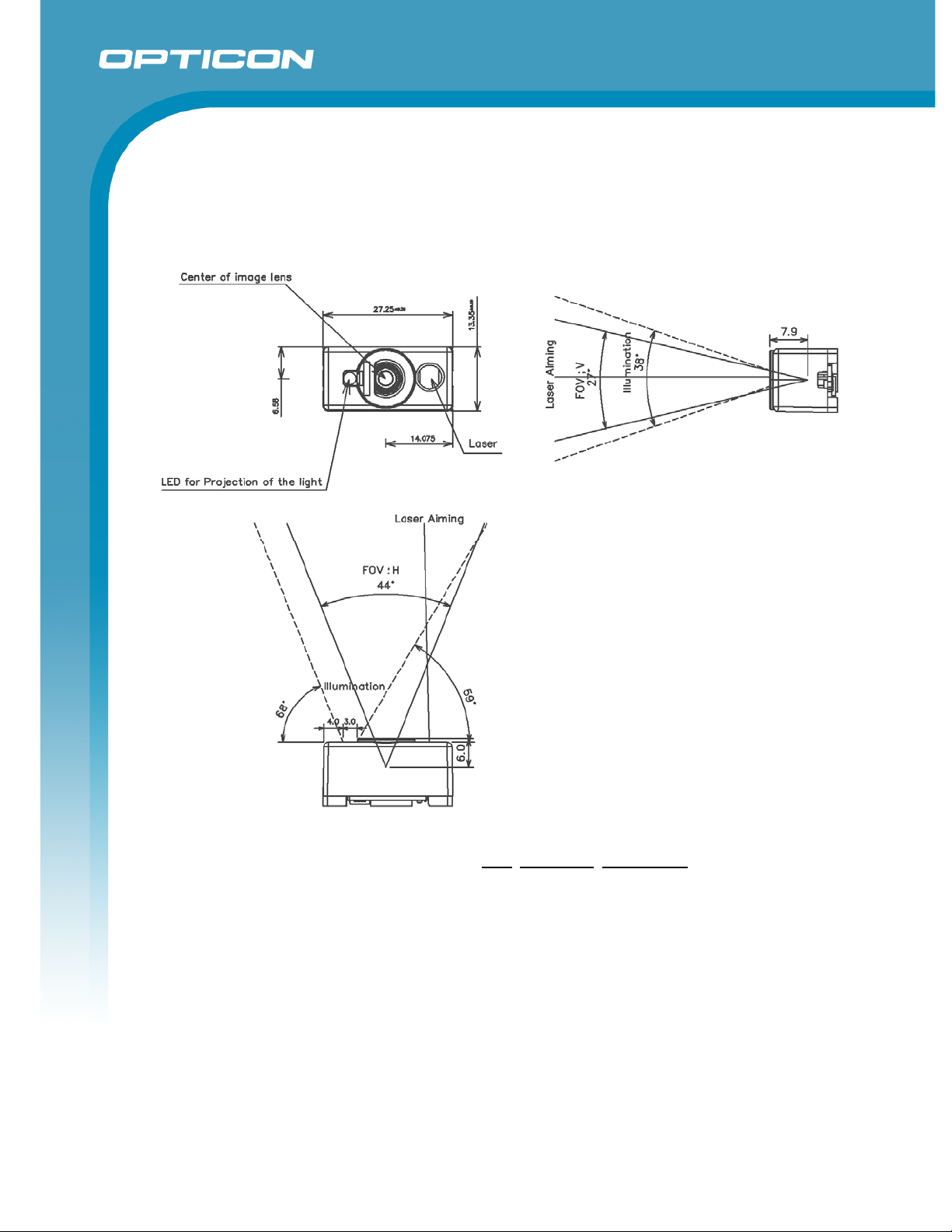

zThe exit window must be positioned to accommodate limitations of distance and inclination.
Design the layout within the range specified in the following diagram and associated table.
L [mm] 1.6 2 3 4 5 6 7 9 12
Θcw [deg] >6° >9.5° >20° >25° >25° >30° >30° >25° >25°
θccw [deg] >6° >9.5° >20° >25° >25° >30° >30° >25° >25°
* When installing the exit window most closely to the scan engine, take the following range
including the tolerance.
Ｌ=1.6, θcw and θccw ＜6°(deg)
* The Maximum exit window inclination is up to 40 degrees in both directions, θcw and θccw.
Image eclipse caused by insufficient exit window size, and LED illumination entering the central
part due to improper angle-settings should be checked in the design phase. The check can be
done by acquiring images from the camera module.

MDI-2300
Integration Guide
7
zWindow size and optical path clearance:
With respect to the optical path depicted below, provide an exit window with sufficient
clearance.
Install the window with sufficient clearance for FOV, Illumination, Laser Aiming.

MDI-2300
Integration Guide
8
3. Installation
zWhen installing a camera module, use the crew holes on the bottom surface.
zDo not screw down further than the specified depth.
zWhen installing a camera module, only the bottom surface of the camera module should be
attached to a chassis for installation.
zKeep enough clearance to avoid damage to the camera module in case the host device is
dropped and damaged.
zShock / impact resistance of the camera module to the acceleration applied via the bottom
surface is guaranteed. In case of direct shock, the camera module will almost certainly be
damaged since it consists of precise optical elements.
zUse the mounting hole with screw clamp to install the decoder board.
zThe size of the screw head must not exceed the diameter of the mounting land (φ3.8).
Installation conditions - camera module side:
Recommended screw : M2x0.4 (depth max 2.7)
Tightening torque : 12N_cm or less
Do not screw down further than 3.3mm from the mounting surface of the camera module.
Installation conditions - decoder board side:
Recommended screw : M2 (Do not use a countersunk screw)
Tightening torque : 12N_cm or less
4. EMC measures
From a regulatory point of view this device is considered to be a component. Therefore
requirements of EMC directive 89/336/EEC do not apply. To the end product in which this
module will be incorporated this directive is however applicable.
In order to achieve compliance to EN 55022 (class B ITE equipment) following measured are
recommended for integration:
zApply a metal chassis as ground plane to mount-on both the camera module and the
decoder board.
zApply two ferrite cores on the flat-cable between camera module and decoder board (see
picture below).
Recommended type ferrite cores: Murata FSSA101005RNN00S

MDI-2300
Integration Guide
9
5. Cable Specifications
5.1. Connection between Camera Module and Decoder Board
Recommended Connector
Camera module side : HIROSE FH29B-34S-0.2SHW(05)
Decoder board side : HIROSE FH35-33S-0.3SH
Note: These drawings are subject to change. For details, please obtain the most recent
drawings from the connector manufacturer (Hirose).
Camera module side
Decoder board side

MDI-2300
Integration Guide
10
5.2. Connection between Decoder Board and Host System
Recommended connector : HIROSE FH19SC-17S-0.5SH (17-pin)
Recommended cable length : 70mm (max)

MDI-2300
Integration Guide
11
6. Handling Requirements
¾Use anti-static measures such as a grounding strap before handling the scan engine in order
to avoid damage to the electronic components from electrostatic discharge.
¾Hold the scan engine only by the metal case. Do not touch the circuit board or the front side
of the scan engine when handling it.
¾Do not touch the electronic components or the terminals on the circuit board.
¾Installation in a clean environment is recommended in order to protect the imaging lens from
dust.
¾Operators should wear gloves to avoid contaminating the optical elements.
¾Do not drop the MDI-2300.

MDI-2300
Integration Guide
12

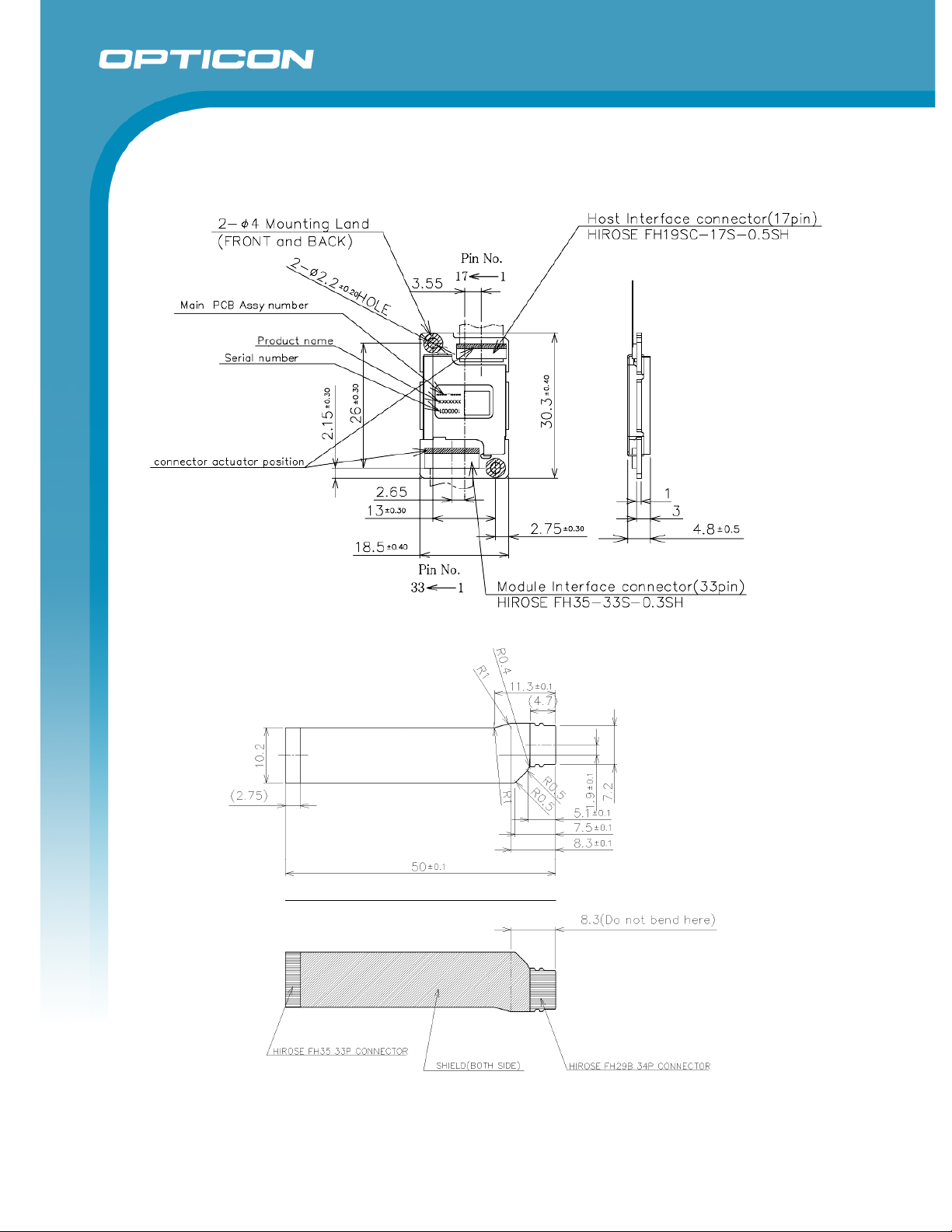

7. Mechanical Drawings
7.1. Camera Module

MDI-2300
Integration Guide
13
7.2. Decoder Board
7.3. FPC
