Epson B813112 Operating manual

Using Optional Equipment Page 53
Using the Auto Document Feeder
The auto document feeder (part number B813112)
automatically loads multi-page documents into your scanner.
It is particularly useful for OCR (optical character recognition)
scanning or for creating an image database. To use the ADF
with your OCR software, you must install EPSON TWAIN Pro.
Follow the steps in these sections to install and use the ADF:
◗Unpacking the Auto Document Feeder
◗Installing the Auto Document Feeder
◗Loading Paper in the Auto Document Feeder
◗Fixing Paper Jams in the Auto Document Feeder
◗Adjusting the Scanning Position of the Auto Document
Feeder

Using Optional Equipment Page 54
Unpacking the Auto Document Feeder
Make sure that the following items are included in the ADF
box. Contact your EPSON dealer if anything is missing or
damaged.
stopper screwdriver
installation screws
paper out support knobs

Using Optional Equipment Page 55
Installing the Auto Document Feeder
Before installing the ADF, be aware that:
◗The ADF is heavy, so you may need to have someone
help you lift it.
◗The ADF is large, so clear a wide space around the
scanner before unpacking and installing it.
Follow the steps below to install the ADF on your scanner:
1Make sure your scanner is turned off and unplug the
scanner’s power and interface cables.
2Remove your scanner’s document cover by grasping it
beside the hinges and lifting it straight up.

Using Optional Equipment Page 56

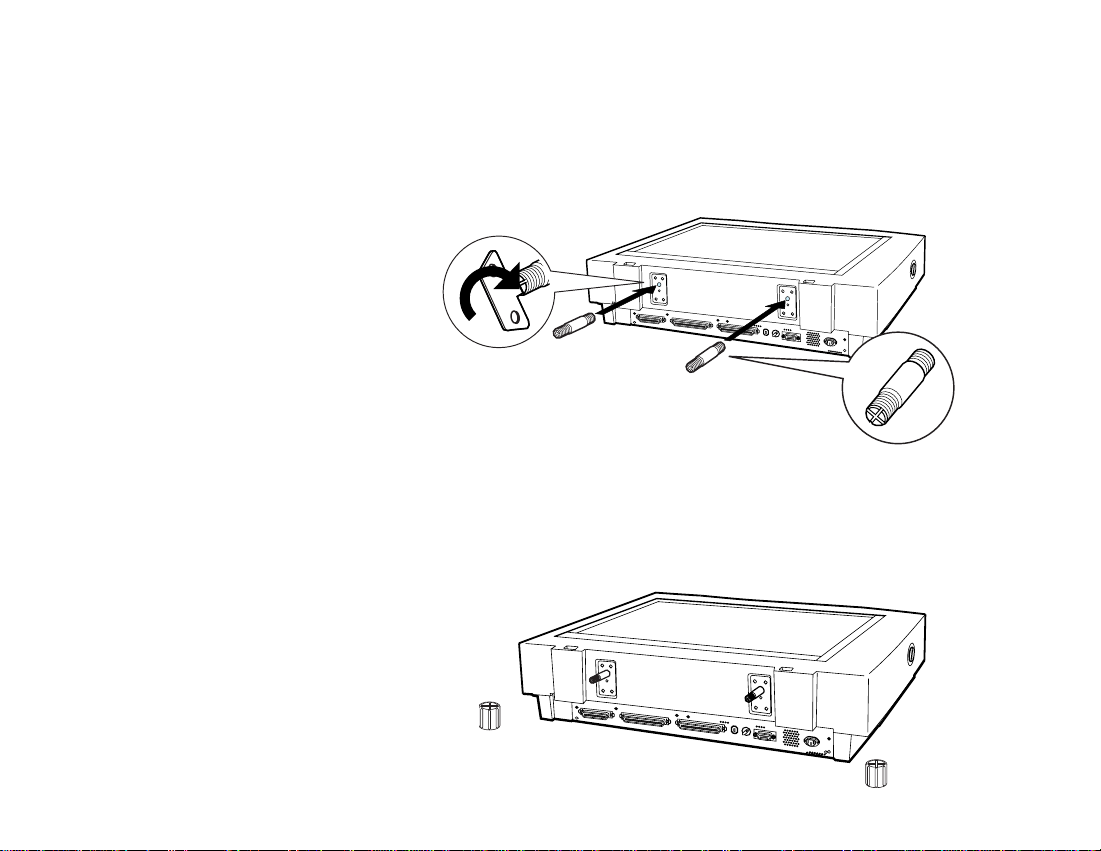

3Insert the installation screws that came with the ADF into
the holes in the back of the scanner and secure them with
the enclosed screwdriver, as shown below.
4Place the two knobs included with the ADF beside the
scanner.

Using Optional Equipment Page 57

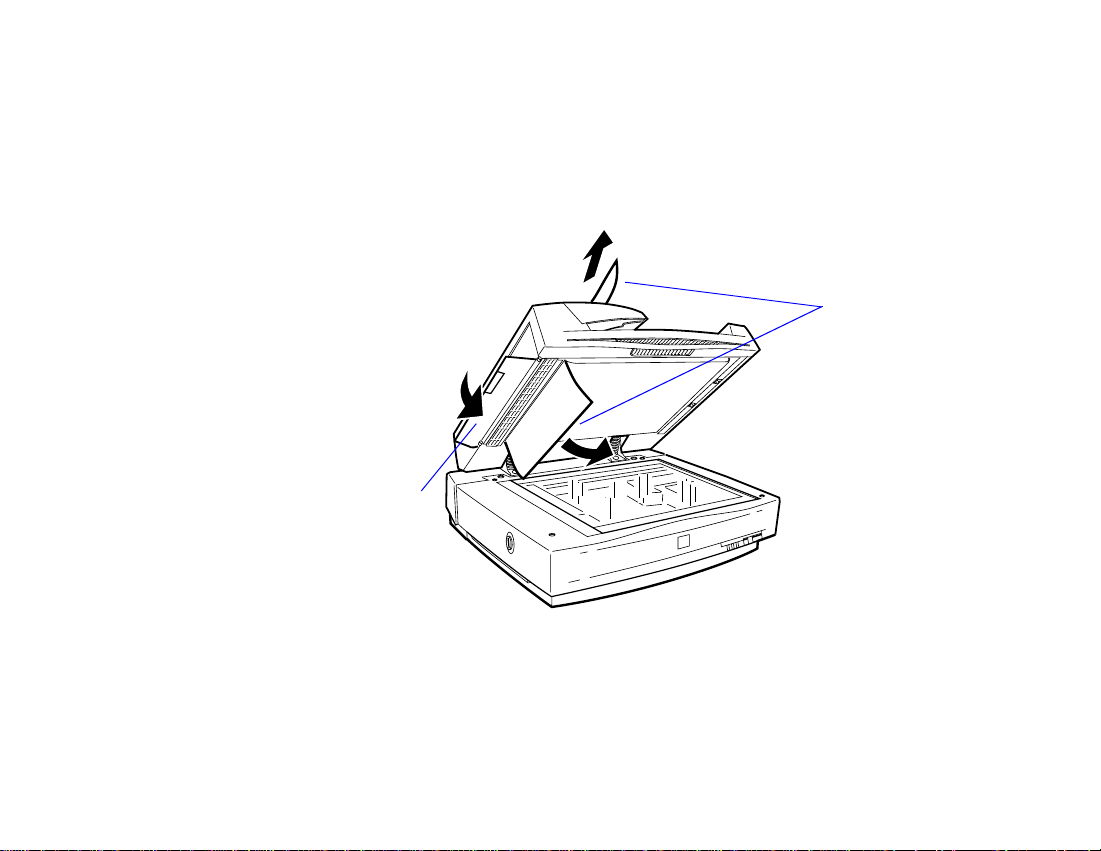

5Place the ADF on the scanner, lining up the screws with
the holes as shown.
Warning:
The ADF is heavy, so
you may need to have
someone help you
lift it.

Using Optional Equipment Page 58
6Twist the knobs onto the ends of the screws and tighten
them using the enclosed screwdriver.

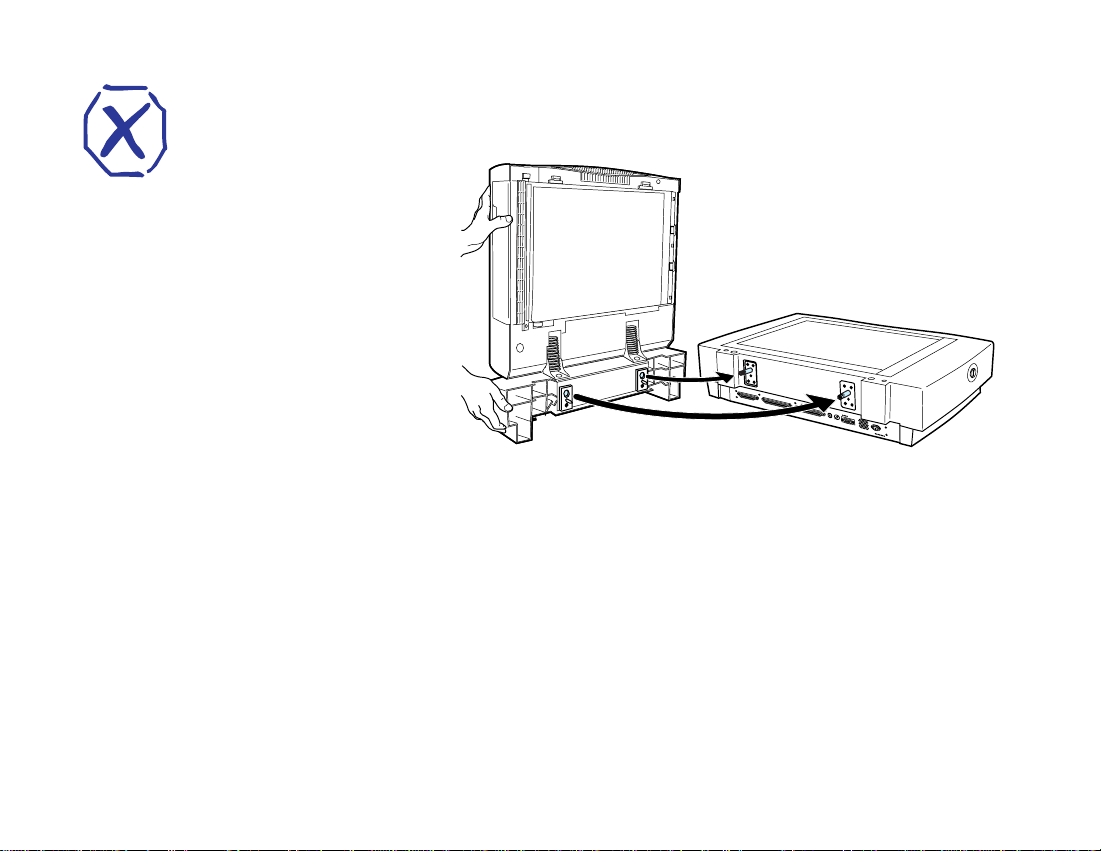

7Attach the ADF’s connector to the scanner’s option
interface. Secure the connection by tightening the
connector screws.

Using Optional Equipment Page 59

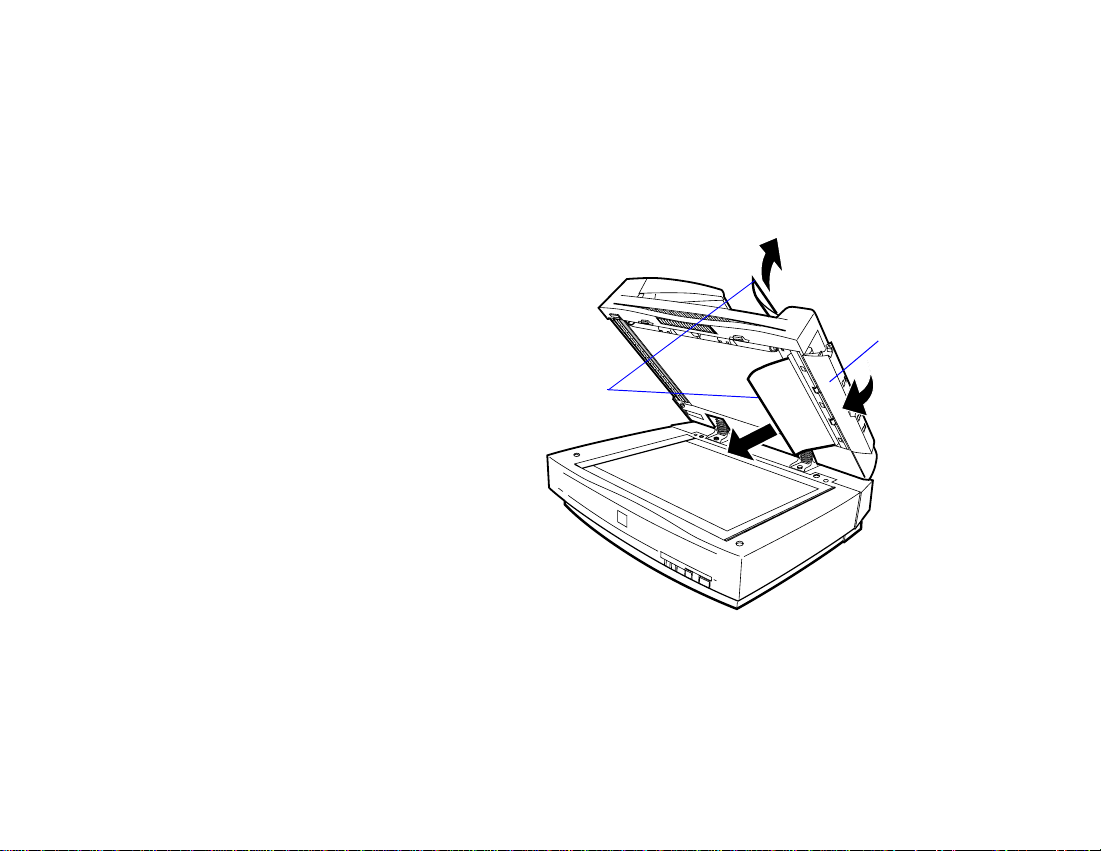

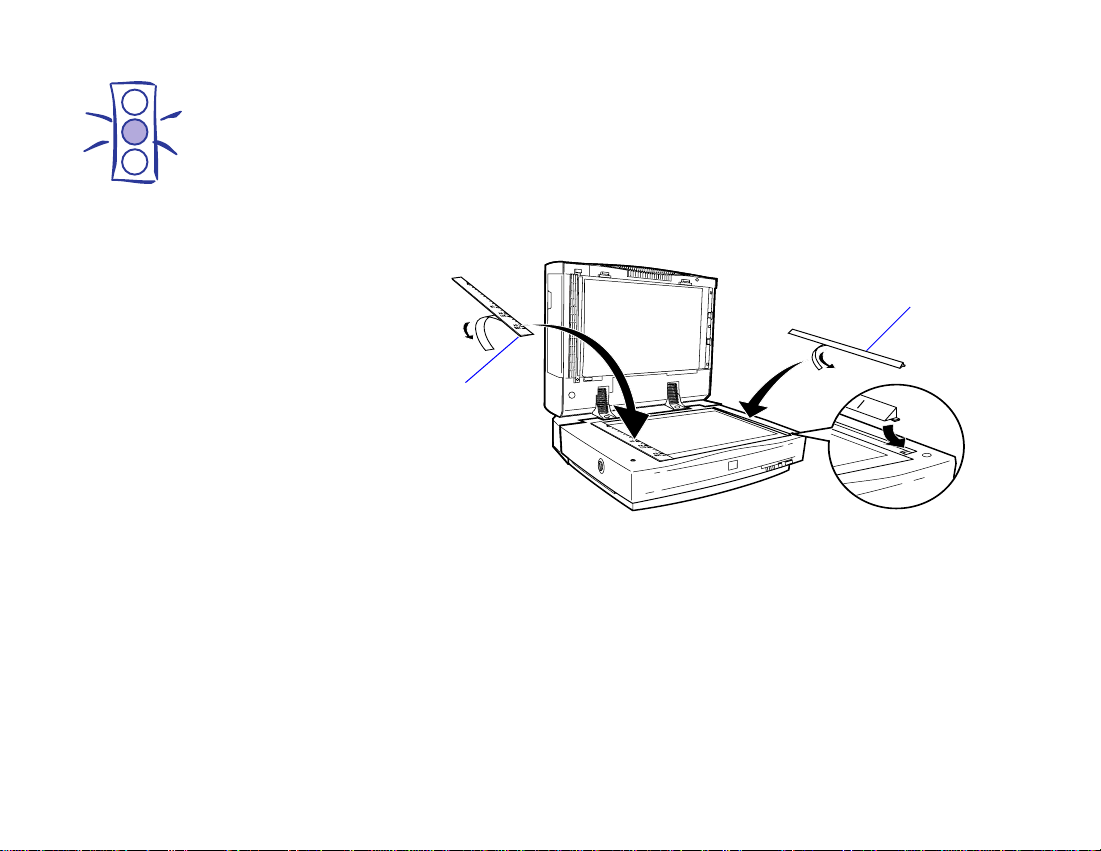

8Peel off the backing from the stopper and from the paper
out support provided with the ADF. Then attach the
stopper and paper out support to the scanner as shown.
Insert the tabs on the paper out support into the slots at
the right end of the document table.
9Close the ADF.
10 Reattach all the scanner cables and turn on the scanner.
Caution:
If the ADF misfeeds,
first make sure the
stopper and paper
out support are in
place and correctly
installed.
paper out
support
stopper

Using Optional Equipment Page 60
Loading Paper in the Auto Document Feeder
The ADF can hold up to 30 sheets of the following paper
sizes, based on a paper weight of 17 lb and a thickness of 0.2
inch (6.0 mm) or less:
See Specifications for complete paper requirements.
Before loading the ADF, make sure the document:
◗Has no wet ink on it.
◗Has no holes and is not ripped or wrinkled.
◗Has no staples or other objects attached that may damage
the feeder.
◗Has no folds.
◗Is not a multipart form.
◗Is not bound.
Paper size Direction
A3, Ledger, B4, Legal, A4, Letter, B5, A5,
5.5 ×5.8-inch (140 ×148 mm) Portrait
A4, Letter, B5, A5 Landscape
Caution:
Do not feed
photographic sheets
or valuable original
artwork into the ADF;
misfeedingmayresult
inaccidentalwrinkling
or damage to your
original.

Using Optional Equipment Page 61
◗Has no carbon coating.
◗Has no cut-out areas.
Follow the steps below to load paper in the ADF:

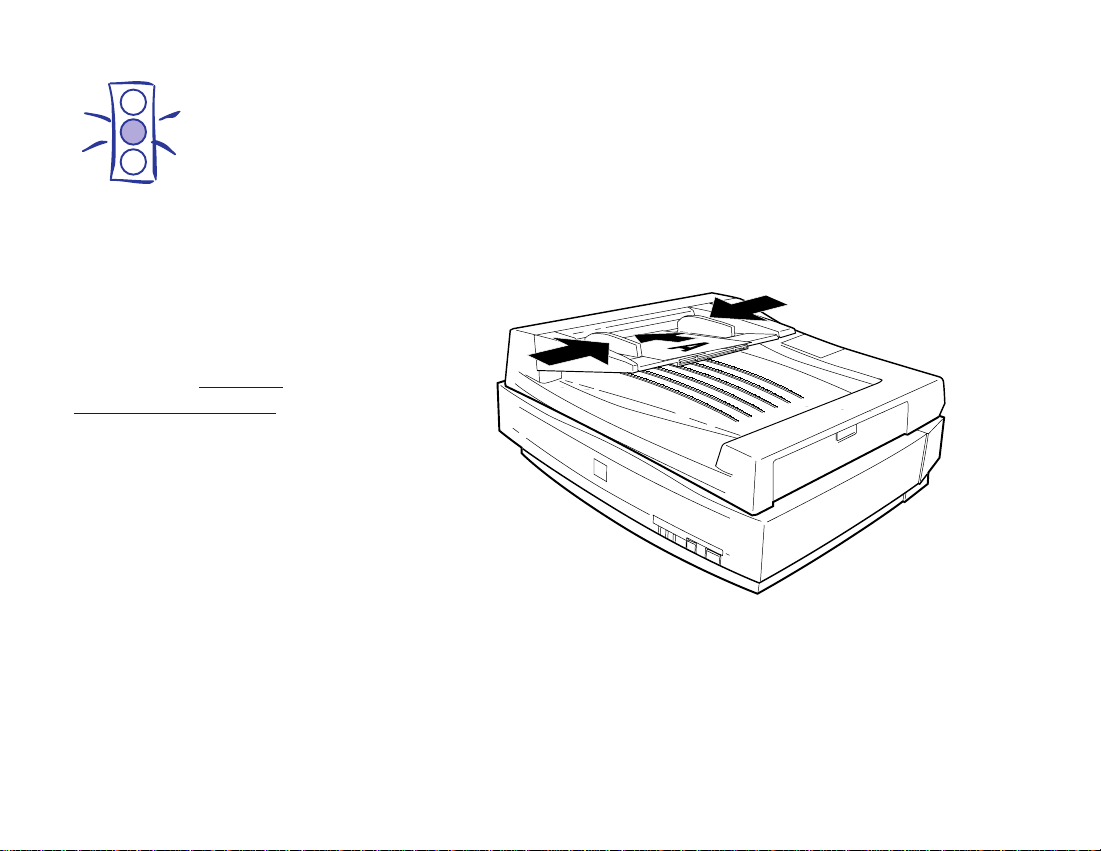

1Slide the edge guides all the way out.
2Arrange your stack of originals face up, with the page you
want to scan first on the bottom. Insert the paper stack into
the ADF until it meets resistance.
If your document is in portrait orientation (top and bottom
edges are shorter than the side edges), insert the
document bottom edge first.
Note:
Youcanautomatically
scan both sides of a
document using the
ADF-double sided
setting in EPSON
TWAIN Pro. See the
software’s online
user’s guide for
instructions.

Using Optional Equipment Page 62
If your document is in landscape orientation (top and
bottom edges are longer than the side edges), insert the
document left edge first.
If your documents are large, pull out the paper support.
3Slide the edge guides to the edges of your paper.
4Follow the steps in your software’s user’s guide to scan
your document.
Caution:
When scanning
high-quality color or
halftone documents,
it is best to open
the ADF and scan
documents as
described in Loading
documents manually.
Don’t open the ADF
while scanning. You’ll
get an option error
and possibly a paper
feeding error.
Always close the
ADF before scanning
or using the feeder.
