Optoma TX635-3D User manual

Optoma’s TX/TW635-3D projectors
bring together the features
and functionality users need to
create compelling and powerful
presentations. These 3D-PC ready
projectors deliver an impressive
3500 ANSI lumens brightness and
10,000:1 contrast ratio. Broad
input/output options, which include
HDMI, VGA, USB and more, deliver
ultimate exibility for users, while
RJ45 and RS-232 ports support
control and management of the
projectors from a remote location.
CONNECTIVITY (May require optional accessories)
PRESENTATION-READY PERFECTION
DIGITAL
CAMERAS
CAMCORDERS
GAME
CONSOLES
TABLETS
SMART
PHONES
COMPUTERS SET TOP BOXES
BLU-RAY/DVD PLAYERS
USB WIRELESS SD CARD
BATTERY
PACK
microSD
MULTIMEDIA PROJECTORS
TX635-3D / TW635-3D
Share everything, from lessons to
presentations, and deliver superior
text and images — 3500 ANSI lumens
bright and 10,000:1 contrast ratio
Easily display closed-caption
content with the built-in decoder
Streamline administration with
network control and management
via RS-232 or RJ45 ports
Create a rich, engaging and vivid
viewing experience with
3D capabilities

MULTIMEDIA PROJECTORS — TX635-3D, TW635-3D
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology TX– Single 0.55” DC3 DMD DLP
TW– Single 0.65” DC3 DMD DLP
Native Resolution TX– XGA (1024 x 768)
TW– WXGA (1280 x 800)
Brightness 3500 ANSI lumens
Contrast Ratio 10,000:1 (full on/full off)
Displayable Colors 1.07 Billion
Lamp Life and Type* 6000/5000/3000 hours (Eco+/Eco/Normal)
240W
Projection Method Front, rear, upright, inverted
Keystone +/- 40 Vertical
Uniformity > 85%
Aspect Ratio: TX– 4:3 Native; 16:9 and 16:10 compatible
TW– 16:10 Native; 4:3 and 16:9 compatible
Throw Ratio TX– 1.6 - 1.92
TW– 1.28 - 1.536
Projection Distance 3.92’ to 32.8’
Image Size (Diagonal) TX– 30” to 307”
TW– 36.3” to 362”
Projection Lens F= 2.4 to 2.66, f=18.2 to 21.8mm,
1.2X manual focus
Offset TX–115%
TW– 112%
Audio 10-Watt speaker
Noise Level 28dB/30dB
Remote Control IR remote mouse with laser
Operating Temperature 41° to 113°F (5° to 45°C)
Power Supply AC input 100-240V, 50-60Hz,
auto-switching
Power Consumption 328W Max (normal), 247W (eco),
<0.5W (standby)
COMPATIBILITY SPECIFICATIONS
Computer Compatibility UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA resized, VESA, PC and
Macintosh compatible
Video Input Compatibility NTSC, PAL, SECAM, SDTV (480i),
EDTV (480p), HDTV (720p, 1080i/p)
3D Compatibility** 720p, XGA, SVGA
120Hz frame sequential
Closed Captioning Supported
Vertical Scan Rate 24 to 85 Hz, 120Hz
Horizontal Scan Rate 15.3 to 91.1 KHz
User Controls Complete on-screen menu
I/O Connection Ports HDMI 1.3, two VGA-in, VGA-out, composite
video, two Audio-in, Audio-out, Mic-in, RS-
232, USB Type B for mouse, USB Type A
for wireless or thumb drive, RJ45, mini-USB
Type B for display
Loop Through (Audio, VGA) Monitor: D-Sub 15-pin VGA output
Audio stereo mini-jack output (functional
in both normal and standby modes)
PHYSICAL SPECIFICATIONS
Security Kensington® lock port, security bar and
keypad lock
Weight 4.4 lbs
Dimensions (W x D x H) 11.3" x 3.0" x 8.6"
*Lamp life is dependent upon many factors, including lamp mode, display mode,
usage, environmental conditions and more. Lamp brightness can decrease over time.
**3D source, 3D content & 3D glasses are required for 3D viewing.
Warranty
Three-year Optoma Express Replacement Service, One-year on lamp
What Comes in the Box
AC power cord, VGA to VGA cable, remote control, batteries for remote
control, carrying case, lens cap, CD-ROM users manual, quick start card and
warranty card
Optional Accessories
Ceiling mount, mini USB WiFi dongle, HDMI cable, VGA to component cable,
DLP Link 3D glasses, RS-232 cable and Optoma screens
Part Numbers
Lamp: BL-FP240B Remote: BR-5039L Case: BK-4023
UPC
TX635-3D: 796435 41 786 4
TW635-3D: 796435 41 785 7
www.OptomaUSA.com

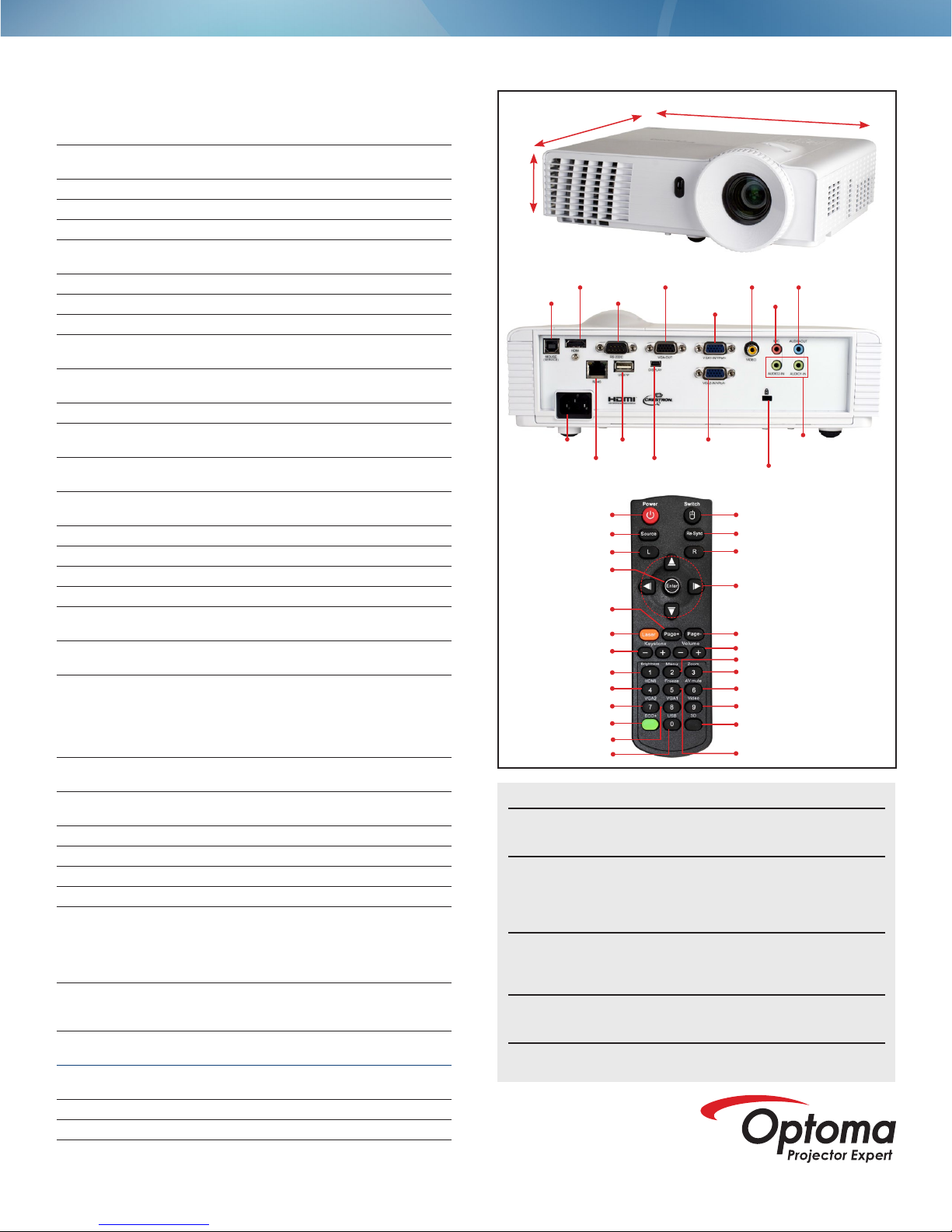

HDMI VGA-out
Mini-USB-B Kensington
Lock Port
RJ45
USBPower VGA2-in/
YPbPr
Audio1-in
Audio2-in
MIC
RS-232CUSB-B VGA1-in/
YPbPr
Video Audio-out
11.3”
3”
8.6”
Power/standby
Re-Sync
Switch
Enter
Right click
Four directional select keys
for mouse emulation
Page down
Menu
Volume
3D
AV mute
Zoom
Video
Freeze
Left click
Source
Page up
Laser
Keystone correction
Brightness
HDMI
VGA2
ECO+
VGA1
USB
Copyright © 2012 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of
Texas Instruments. All other trademarks are the property of their respective owners.
All specications subject to change at any time.
