Orbit MAX 2B User manual

1
Catalogue
Catalogue---------------------------------------------------------------------1
Warning-------------------------------------------------------------------- 1
Assembling steps -----------------------------------------------------2-14
Exploded view ---------------------------------------------------------- 15
Parts list --------------------------------------------------------------16-17
Daily Maintenance------------------------------------------------------------------18
Warning
1. Before exercise, please check to make sure all bolts are tightened and handlebar welds are intact.
2. Wear appropriate footwear during work out. Do not flip the handlebars during exercise.
3. When weight stack, suspender or other parts are caught, ask another person’s help to avoid the
sudden drop of weight stack.
4. Do not distort the cable when you adjust its length (tightness). After using for a period of time, you
should check if cable skin has worn out or the cable is badly stretched, contact the serviceman to
repair or replace as soon as you find problems.
5. Do not drop weight stacks all of a sudden to avoid damage and injury. You should always lower the
weight stacks slowly.
6. Do not insert hand and other parts of the body between/under weight stacks and other moving parts
to avoid injury.
7. Children under 16 should exercise under adult’s guidance.
8. People have special conditions (for example, aged or diseased) should always consult your physician
before starting exercise.

2
Assembling steps
1. Remove all parts out of boxes and place around area of installation! Place bolt packs in front of the area where
you want the gym.

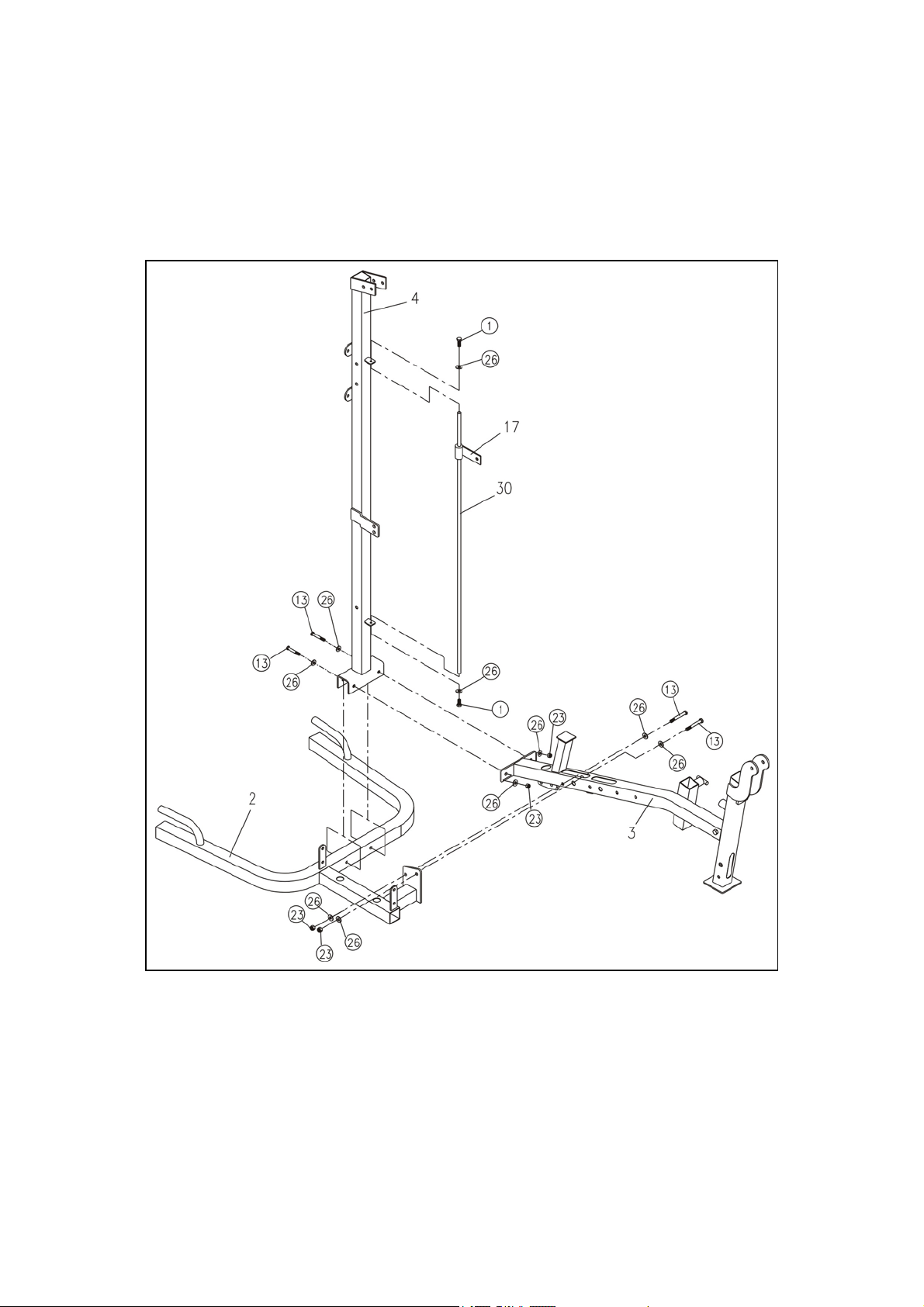

2. Place part (2) in desired position, then connect part (3) with part (4) using bolts (M10x75mm)(13), washers (26)
and locknuts (23). Slide pulley limiting board (17) through the leaderII (30), connecting to vertical tube (4) with hex
bolts (M6x20mm).

3
3. Connect backrest tube (5) to seat tube (3) with bolts (M10x75mm)(13) , washers (26) and locknuts (23).
Connect tube (1) to backrest tube (5) and vertical tube (4) with (M10x75mm)(13) , washers (26) and locknuts (23).

4

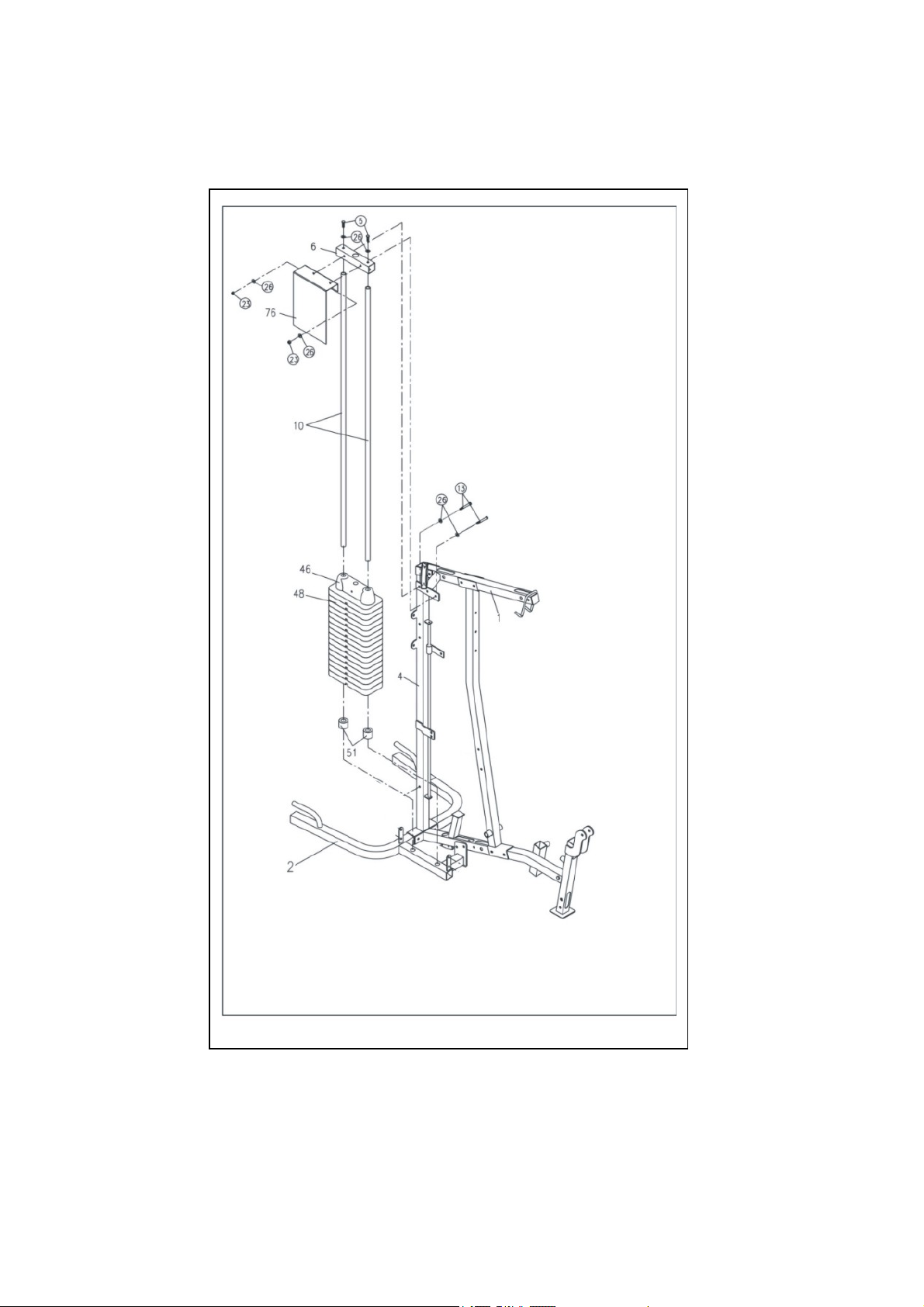

4. Insert leaders (10) into the oriented holes on the bottom of the curl base tube (2), in turn, slide cover
bumpers (51), rubber weight stack (48) and plastic top plate (46). Mount leader top tube(6) to the
leader (10) by washers (26) and bolts (M10x20mm)(5). Connect exercise chart flip (76), leader top
tube (6) and Lab pull down top tube (1) with bolts (M10x75mm)(13), washers (26) and locknuts
(23).

5

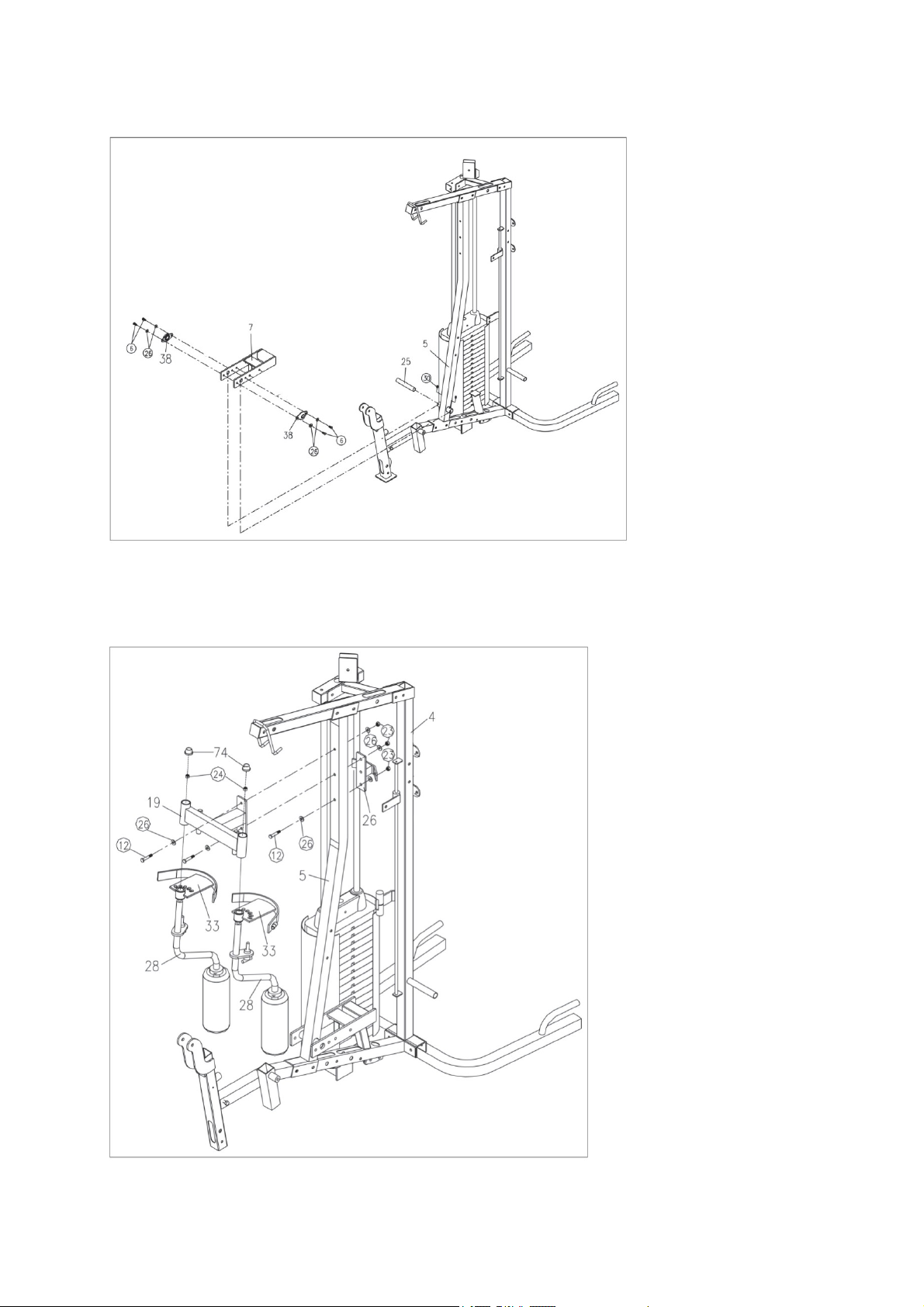

5. Connect backrest tube (5) and chest-extension rotating frame (7) through the rotating bearing (25), tighten with
Allen bolt (30). Secure bearing bases (38), washers (26) and bolts (M10x25mm)(6).
6. Connect the chest-extension frame (19), backrest tube (5) and pulley fixing frame (26) with bolts
(M10x75mm)(12), washers (26) and locknuts (23). Fit chest-extension arm (28), chest-extension adjusting board
(33) to chest-extension frame (19) with locknut (24) and powder metallurgy cover (74).

6

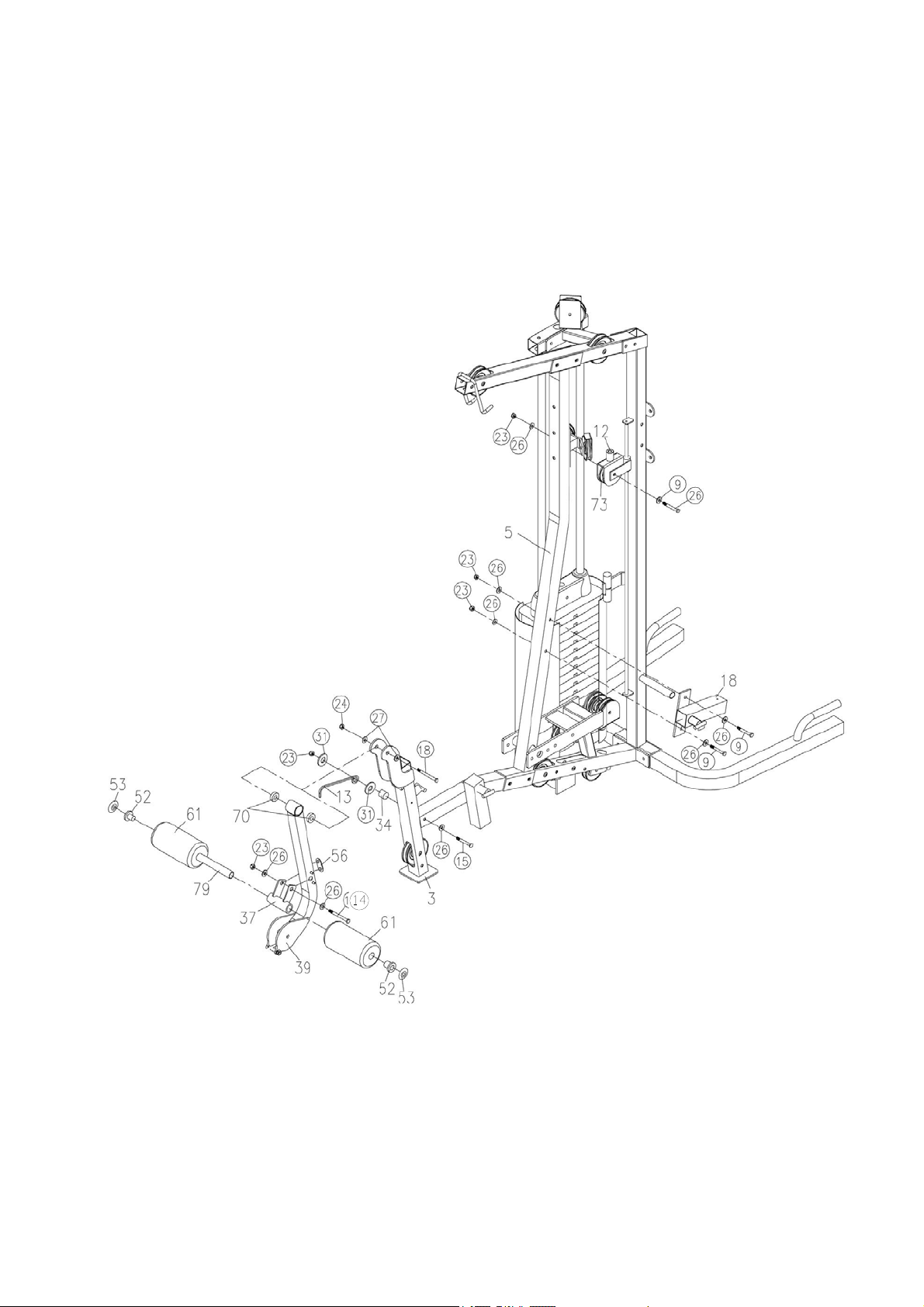

7. Attach oriented hook (13) and steel spacer (34) to seat tube (3) with bolt (M10x90mm)(15), washer (26),
washers (31) and locknut (23). Attach rubber cushion (56) to the back of leg-kicking frame (39).
Connect seat tube (3) and leg-kicking frame (39) with bearings (70), bolt (M10x80mm)(14), washers (27) and
locknut (24). Attach leg-extension connecting cover (37) to leg-kicking frame (39) with bolt (M12x80mm)(18),
washers (26) and locknut (23). Slide tube (79) through the leg-extension connecting cover (37), slide the
bolsters (61) onto both end of the tube, block with leg-kicking sofa hole covers (52) and plastic end caps (53).
Attach backrest adjusting bushing (18) to backrest tube (5) with bolt (M10x50mm)(9), washers (26) and locknut
(23). Connect narrow single pulley fork (12), pulley (73) and pulley limiting board (17) with bolt (M10x50mm)
(9), washers (26) and locknut (23).

7
8.Attach chest-extension handlebars (8R&L) to the chest-extension rotating frame (7), which was already attached
to backrest tube (5) in step 4, with washers (26) and bolt (M10x30mm)(7). Slide crossed bearing covers (29) to the
chest-extension handlebars (8R&L), tighten with nut canopy (58). Connect pulling bar (27R&L) and crossed
bearing cover (29) through limiting bushing (31), bolt (M12x120mm)(19), washer (27) and locknut (24).

8
9. Attach handlebar tube (11) to the parallel bar with washer (25) and bolt (M10x20mm)(5). Attach parallel par (20)
to the vertical tube (4) with bolts (M10x75mm)(13), washers (26) and locknuts (23).
Attach arm cushion (44) to the parallel bar (20) with washers (25) and bolts (M8x70mm)(8).
Connect backrest cushion (41) and backrest adjusting tube (24) with washers (25) and bolts (M8x30mm)(2),
then insert backrest adjusting tube (24) into backrest adjusting bushing (18), and lock it with pop pin (68).
Connect seat adjusting tube (35) and seat cushion (42) with washers (25) and bolts (M8x30mm)(2), then insert
seat adjusting tube (35) into the side bushing on seat tube (3), and lock it with pop pin (68).
Slide tube (79) through the leg-kicking adjusting tube (36), slide the bolsters (61) onto both end of the tube,
lock with leg-kicking sofa hole covers (52) and plastic end caps (53). Insert leg-kicking adjusting tube (36) into
the front bushing on seat tube (3), lock it with pop pin (68).

9
10. Attach shrouds (9) to the curl base tube (2) with washers (M8)(25) and bolts (M8x30mm)(3). Attach handlebar tube
(11) to the vertical tube (4) with washer (M8)(25) and bolt (M10x20mm)(2).

10

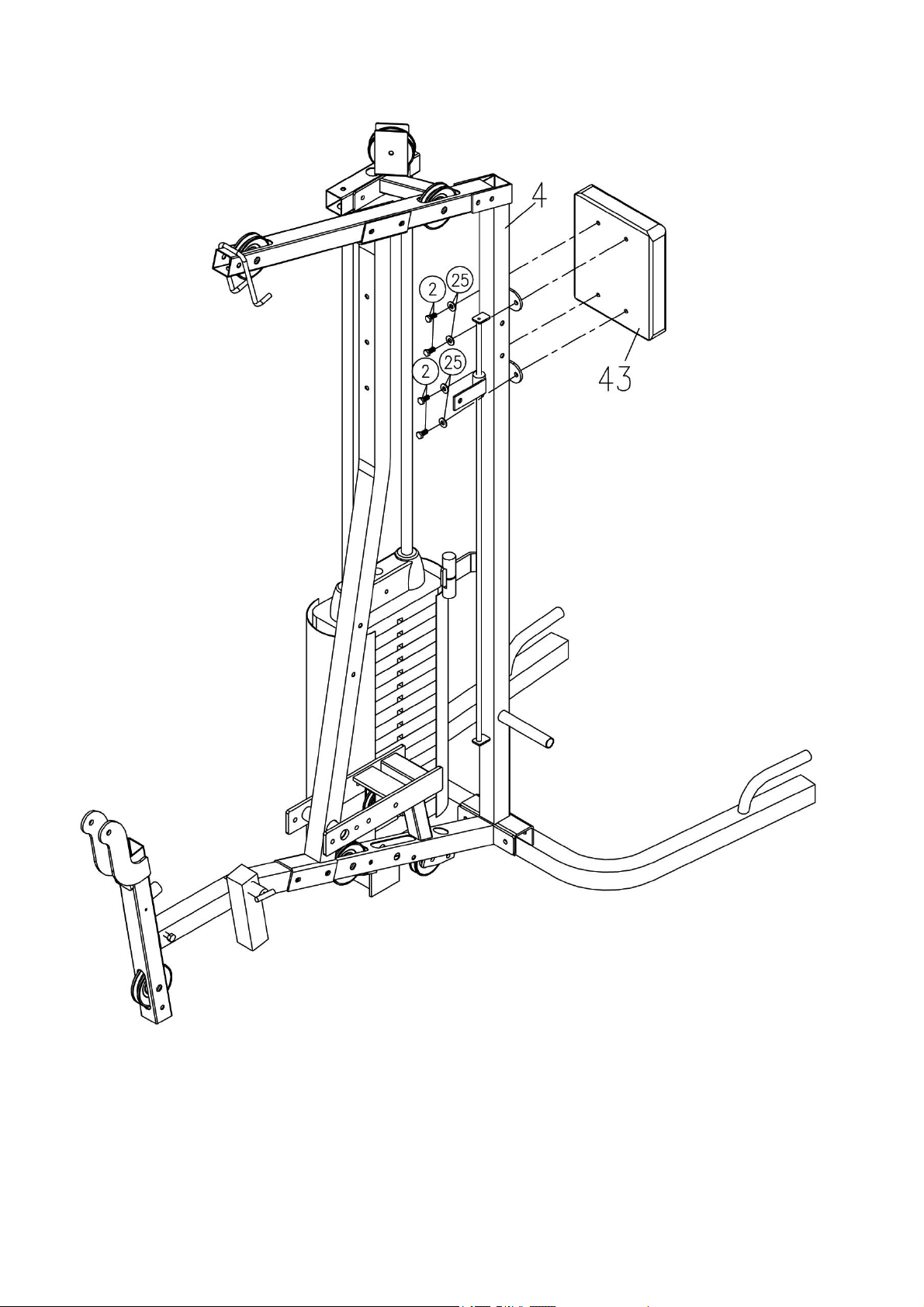

11. Attach backrest cushion (43) to the vertical tube (4) with washers (25) and bolts (M8x20mm)(2).

11
12.Wire circling way:
Cables to be installed in order cable (67) first, cable (63) second, cable (64) third, cable (66) fourth and cable (65)
last. View following 5 pages for figure diagrams.

12
The 1ST wire: (refer to the following illustration)

13
The 2nd wire: (refer to the following illustration)
The 3rd wire: (refer to the following illustration)

14
The 4th wire: (refer to the following illustration)

15
The 5th wire: (refer to the following illustration)

16

17

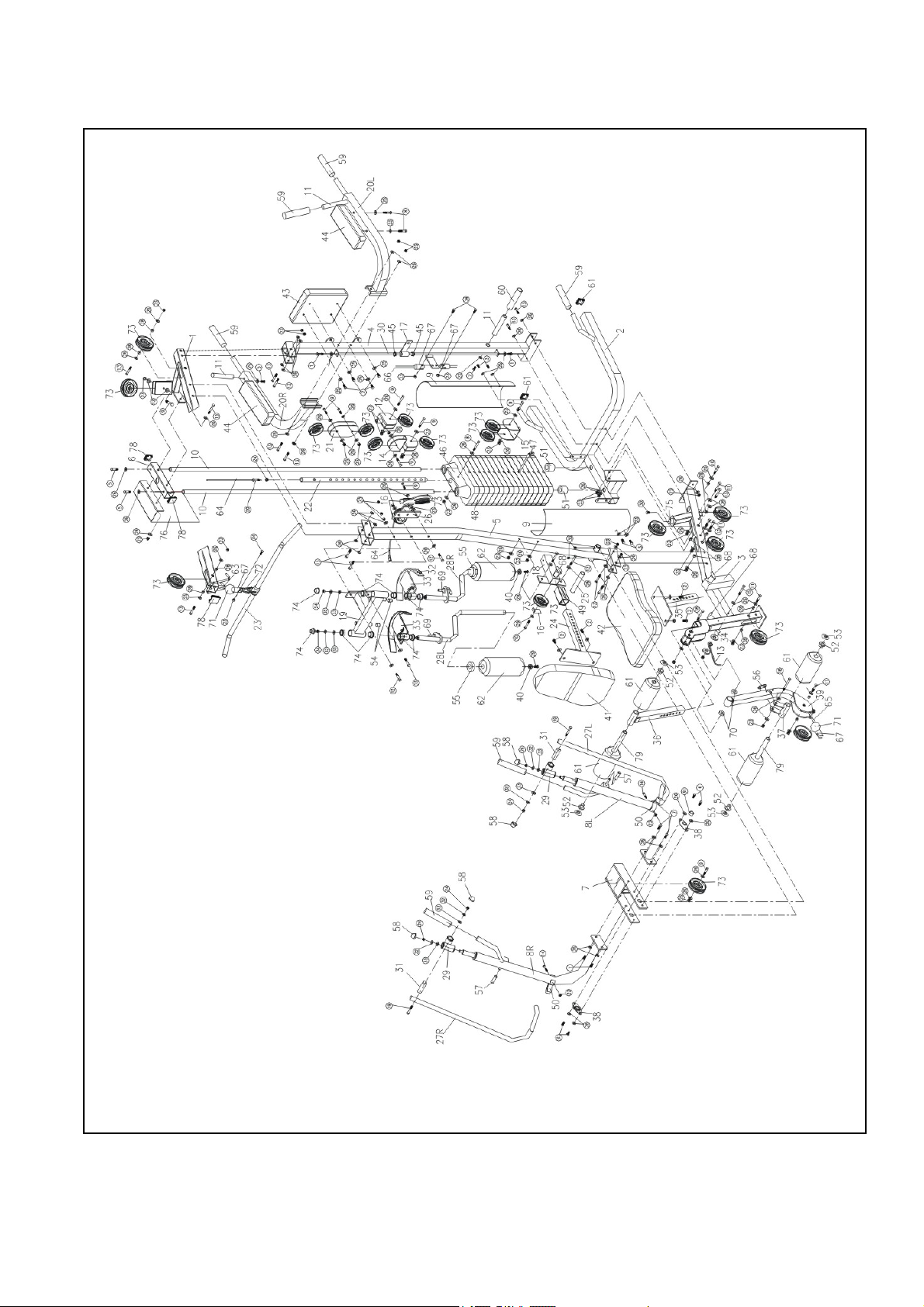

EXPLODED VIEW

18

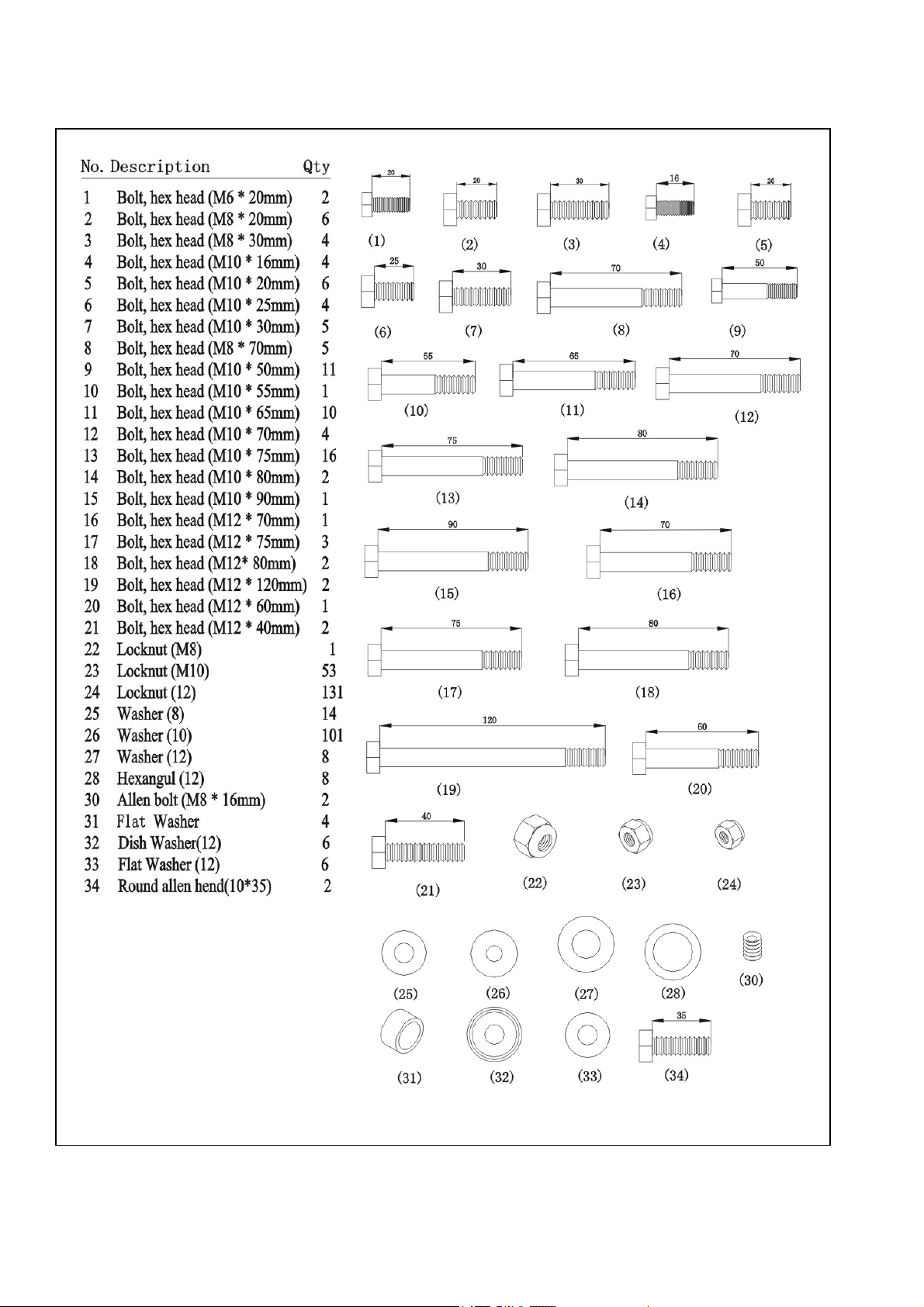

Parts List I

19
Parts List II

20
Parts List III
