91P LOW-PROFILE 3/8”-PITCH
CHAMFER CHISEL
™
CHAIN
Oregon
®
91P chain features top-performing Chamfer Chisel™ cutters and a notched bumper
drive link for low-kickback performance, good chip flow, and a smooth cutting action. The twin
corners of the cutters on 91P chain deliver superior performance on the many popular saws
which use low-profile 3/8”-pitch chain. 91P chain also features four-way symmetrical tie straps
which simplifies the joining of chain loops.
FEATURES
BENEFITS
FEATURES BENEFITS
91P F&B A107038 AA 0903
.050”
•
Twin-cornered
•
Fast, efficient cutting
Chamfer Chisel
™
•
Excellent stay-sharp
cutters
•
Ramped depth gauge, and
•
Low kickback
ramped bumper drive links
•
Smooth cutting action
•
Bumper drive links are notched
•
Better chip flow, less clogging
(Patent pending)
•
Unique appearance, easy identification
•
A promotable, innovative new feature
•
Four-way symmetrical tie straps
•
Easy joining of chain loops
•
Fewer repair parts to inventory
•
Fool-proof, there’s no way to position
a 91P tie strap incorrectly
•
Same cutter as on other
•
Easy maintenance
Oregon
®
91 chains
•
Sharpens the same as other 91 chains
•
Low-profile design
•
Complements the effects of
kickback-reducing features
•
A smaller volume of chain material
is pulled through the kerf
Oregon
®
91P chain is
a blue-label chain; it
meets the low-kick-
back performance
requirements of ANSI
B175.1 (US), and
CSA Z62 (Canada)
91P is intended for use with electric
saws and smaller gasoline-powered
saws up to 2.5 cu. in. (41cc)
Use 91P with bars up to 18” (46cm)
3/8”
low profile
• Ramp-shaped Bumper
Depth Gauges
• Notched Bumper
Drive Links
Occasional Users
Homeowners,
campers and hunters
CHAIN PITCH AND GAUGE
KICKBACK – ANSI CLASSIFICATION
RECOMMENDED TYPES OF USE
RECOMMENDED SAW SIZES
RECOMMENDED BAR LENGTHS
KICKBACK-REDUCING FEATURES
PITCH
GAUGE
.
Visit the world’s #1 source for information on chainsaw cutting attachments: www.oregonchain.com
®
Choose Oregon
, because every cut counts
®
, because every cut counts
®
Choose Oregon , because every cut counts
91P is a standard-sequence chain
CUTTER SEQUENCE
Oregon
®
91P
chain features
twin-cornered
Chamfer Chisel
™
cutters
.
Commercial Users
Arborists, orchardists,
farmers, landscapers,
and utility workers
91P LOW-PROFILE 3/8”-PITCH
CHAMFER CHISEL™ CHAIN

PART NO.
DESCRIPTION, TYPES OF USE
91VG
Low-kickback Chamfer Chisel™ chain for cutting clean wood with electric and small gasoline chainsaws up to 2.5 cu. in. (41cc)
91VS
A professional Chamfer Chisel™ chain for experienced users of small chainsaws who prefer a low-profile 3/8”-pitch chain.
M91VS
A specialized version of 91VS with extra-heavy-duty chrome plating to cut effectively in extremely dirty, abrasive conditions.
What’s the difference between a 3/8”-pitch chain,
and a low-profile 3/8”-pitch chain?

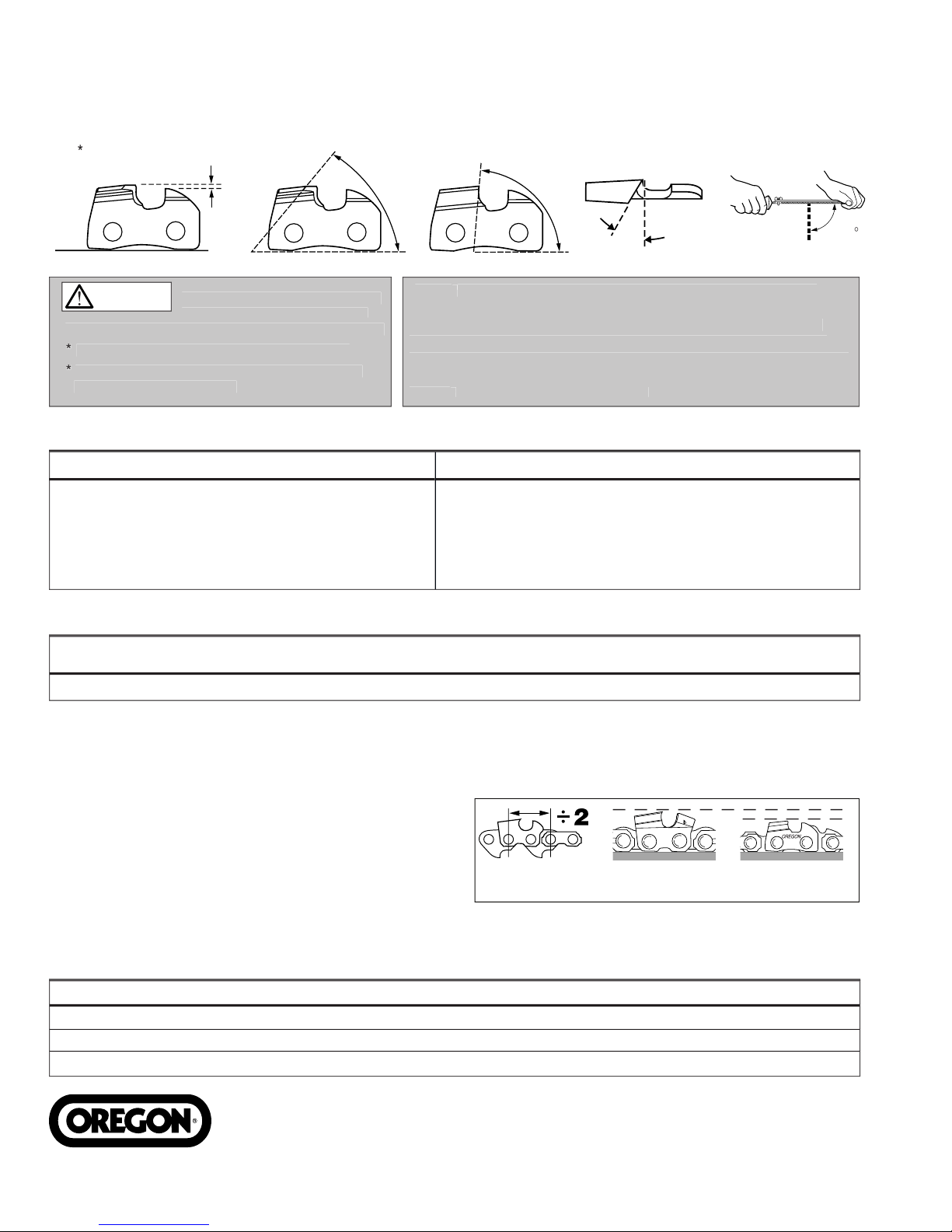

Filing instructions, Oregon
®
91P chain
Other Oregon
®
low-profile 3/8”-pitch (91) cutting chains
FILE SIZE: Use a 5/32” round file and file guide.
TOP-PLATE
TOP-PLATE
DEPTH-GAUGE SETTING:
CUTTING ANGLE:
SIDE-PLATE ANGLE:
FILING ANGLE:
FILE-GUIDE ANGLE:
*
See warning and note below
91P Chain maintenance tools
91P Chain replacement parts
NOTE: Individual parts packages contain 25 pieces.
LEFT-HAND
RIGHT-HAND
PRESET
NOTCHED BUMPER
CHAIN TYPE
CUTTER
CUTTER
TIE STRAP
TIE STRAP
DRIVE LINK
DRIVE LINK
91P
P111807
P111808
P111616
P112320
P28298
P111822
.025”
Heel
down
85°
30°
90
°
50°
Oregon
®
91P meets the reduced-kickback requirements of ANSI B175.1 when
tested on a representative sample of chainsaws. This chain significantly reduces
the risk of chainsaw kickback while maintaining high cutting performance. ALL
CUTTING CHAIN CAN KICK BACK, WHICH MAY RESULT IN SEVERE INJURY TO
THE SAW OPERATOR OR BYSTANDERS. Users should be cautioned to operate their
saw safely, and to read and follow all warnings in their saw operator’s manual and
Oregon
®
91P chain-maintenance instructions.
Failure to follow filing instructions can
increase the level of kickback which
can result in severe injury to the saw operator or bystanders.
*
Do not exceed the depth-gauge setting shown above
*
Always file depth gauges back to their original rounded
or ramped shape after lowering
For more information on these and other Oregon
®
products, contact your authorized Oregon
®
distributor, or:
OREGON CUTTING SYSTEMS DIVISION, BLOUNT, INC.
PO Box 22127 • Portland, OR, U.S.A. 97269-2127
Phone: [phone] Fax: [phone] http://www.oregonchain.com
IN CANADA: OREGON DISTRIBUTION LTD.
505 Edinburgh Rd. N. • Guelph, Ontario, Canada N1H 6L4
Phone: [phone] Fax: [phone] http://www.oregonchain.ca
Printed in USA PFS 91P A107038 AA 0903
WARNING
Because every
cut counts
Standard 3/8”-pitch chains are full-size professional-type chains intended for
use on medium to large gasoline-powered saws, 3.0 to 6.0 cu. in. (50-100cc).
Low-profile 3/8” chains have the same pitch, but there are differences in the
drive sprockets and bar-nose sprockets used with low-profile chains. Standard
3/8” chains and low-profile 3/8” chains are NOT interchangeable. The phrase
“low profile” refers to the height, measured from the bar’s rail to the top of the
cutter. On low-profile chains, the height is less than on standard chains. Low-
profile 3/8”-pitch chains are intended for use on electric saws, and small gasoline-powered saws up to 2.5 cubic inches (41cc).
DESCRIPTION
PACK
PART NUMBER
DESCRIPTION
PACK
PART NUMBER
Assembled File Guide, 5/32”
Each
37534
1/8” Thick Grinding Wheels (3.2mm):
Round Files, 5/32”
12-pack
70504
Full-size, 5 3/4” dia.
5-pack
OR534-18
2-pack
40459
(For use with 511A grinders)
Each
OR534-18A
Depth-gauge Tool
10-pack
22290
Mini Grinder Wheels, 4 1/8” dia.
5-pack
OR4125-18
Flat File
12-pack
12211
(For use with 108181 mini grinders)
Each
OR4125-18A
DEFINITION
3/8”-PITCH CHAIN (72V)
LOW-PROFILE 3/8”-
OF PITCH
STANDARD PROFILE
PITCH CHAIN (91P)
