RADIO-CONTROLLED PROJECTION
CLOCK WITH DIGITAL TUNING
AM/FM RADIO
MODEL NO.: RRM968P/RRM968PU
INSTRUCTION MANUAL
INTRODUCTION
Congratulations on your purchasing the Radio-controlled projection
Clock with digital tuning AM/FM radio RRM968P/RRM968PU.
The unit is a multi-functional radio-controlled clock. The RRM968P
- the Central Europe model - is designed to automatically synchronize
its current time and date when brought within an approximate
1500km radius of the radio signal generated from Frankfurt,
Germany (DCF77). The RRM968PU - the UK model - will do the
same when brought within range of the radio signal MSF-60
generated from Rugby, England.
This unit featured with a projection function that allows the user to
display either (1) the Current Time with Indoor Temperature or (2)
the pre-set Alarm time with Indoor Temperature on the ceiling, wall
orotherflatsurface. In addition, theAlarmstatuswill also be projected,
which is indicated by theAlarm-on icon. The image projected is in a
deep red color which is easily seen in the dark.
This unit also comes with an digital tuning PLL (Phase Lock Loop)
AM/FM radio with 16 user-preset stations (8 forAM and 8 for FM
radio). A Radio Sleep-Timer (auto-off) function is also included.
Other favourable features include EL back-light, indoor temperature
display, hourly-chime function, and user-selectable daily beep alarm
with 8-minute snooze function or Wake-up-to-RadioAlarm.
KEY CONFIGURATION & FEATURES
FRONT VIEW

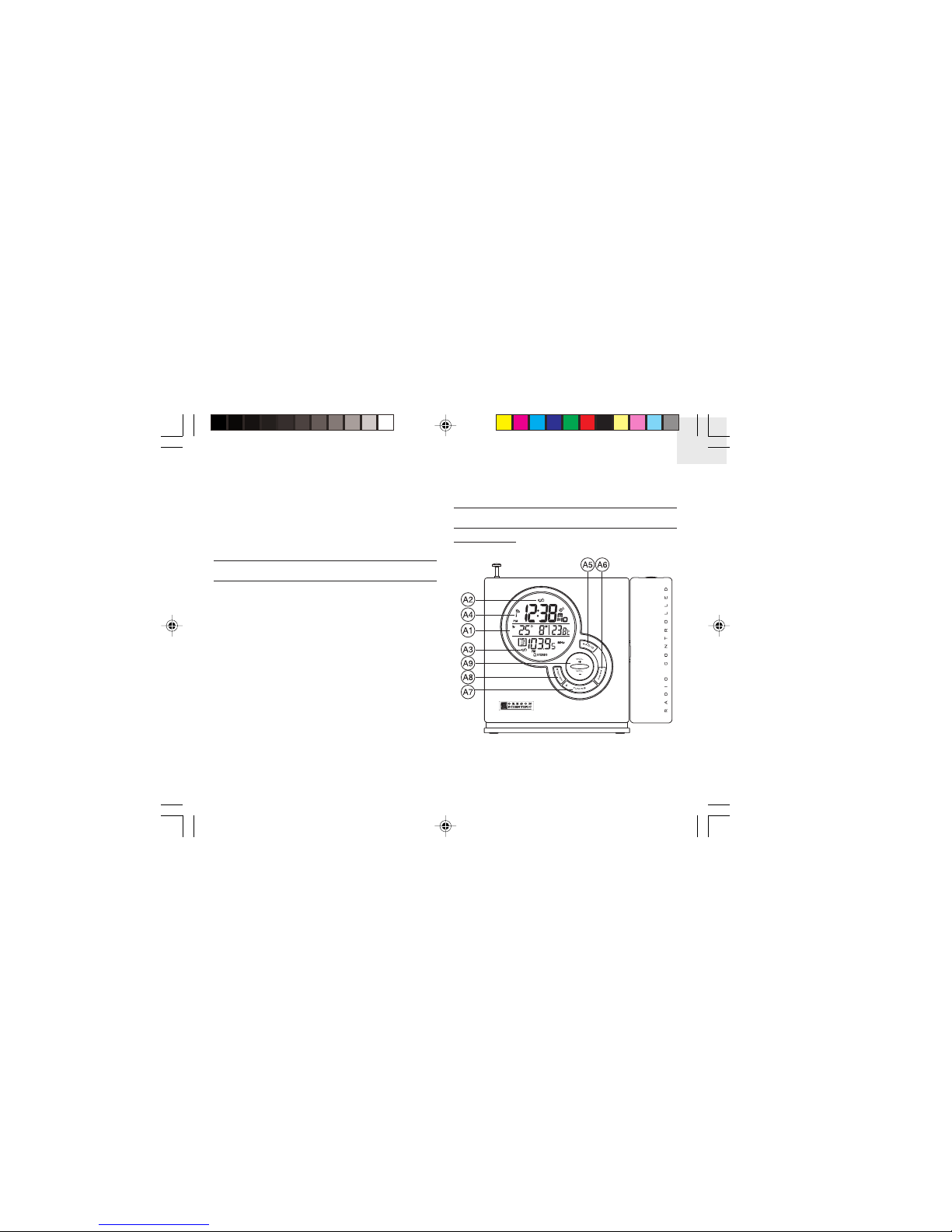

A1. 3-Line LCD Display
- Displays the time, date, indoor temperature and radio function
RRM968PM_EN_R0 7/7/04, 11:01 AM1

2
GB
A2. [ ] Battery-low indicator
- Displays when battery power of clock is low
A3. [ ] Battery-low indicator
- Displays when battery power of radio is low
A4. [ ] Radio-reception icon
- Indicates the strength of the reception of clock radio signal
A5. [RADIO] BUTTON
- Press to turn on or off the radio function
A6. [AM/FM] BUTTON
- Press to change between AM or FM radio band (when Radio
is On)
A7. [+ TUNING -] BUTTONS
- Press to increase/ decrease the frequency setting
(when Radio is On)
- Press and hold for 2 seconds to trigger radio auto-search
function (when Radio is On)
A8. [STATION] BUTTON
- Press to switch among the 8 preset stations in the respective
AM or FM radio band (when Radio is On)
- Press and hold for 2 seconds to enter the preset radio station
setting mode (when Radio is On)
A9. [VOL + &VOL -] BUTTONS
- Press to increase / decrease the volume
(when Radio is On)
- Press to increase/ decrease the values in setting modes
- Press and hold for 2 seconds to activate/ deactivate the auto-
reception of RF clock radio signal (When Radio is Off)
TOP VIEW

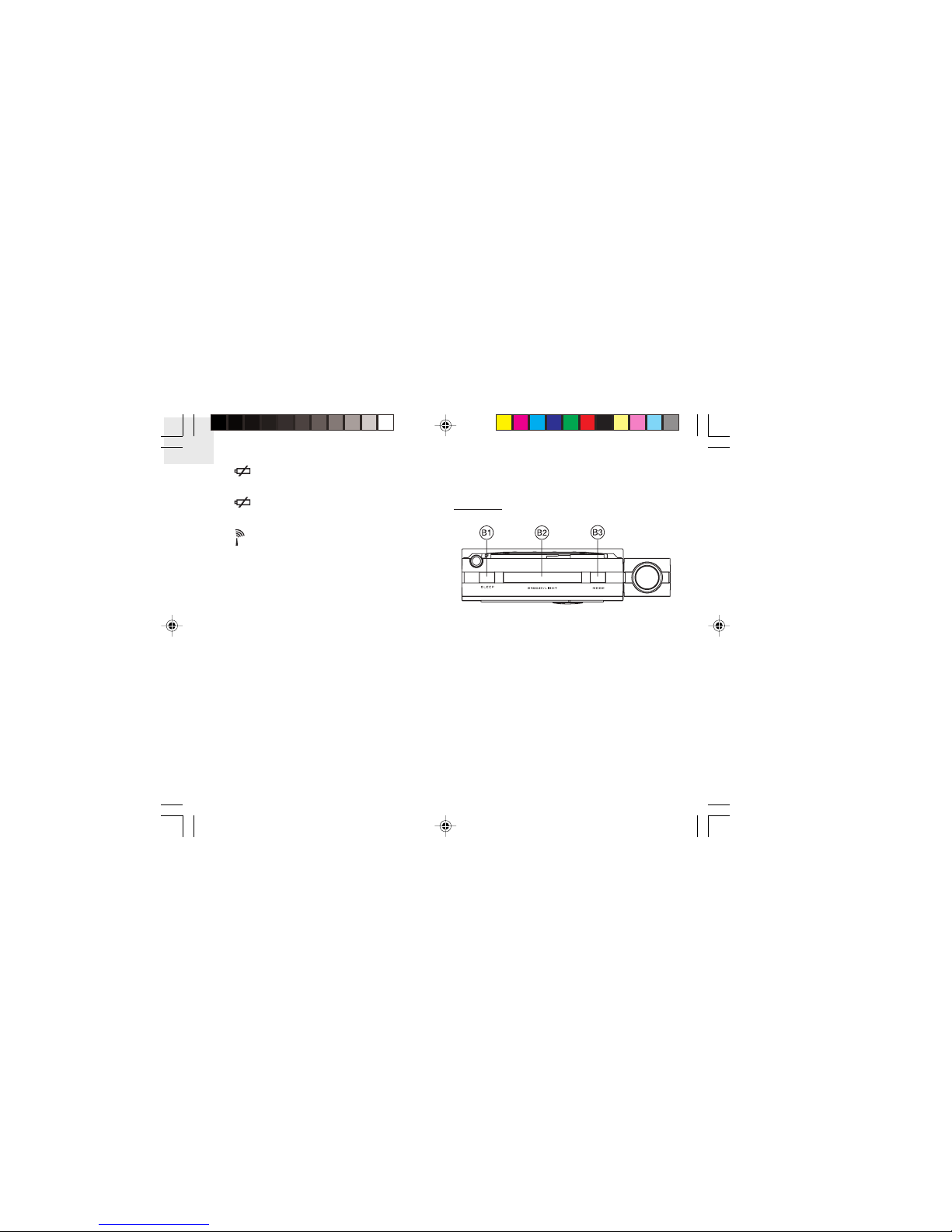

B1. [SLEEP] BUTTON
- Press to turn on the radio and activate the Sleep Timer function
- Press again to select the time period for the sleep-timer
(auto-off) feature: 15, 30, 60, 90 or 120 minutes
B2. [SNOOZE/ LIGHT] BUTTON
- Press to turn on the EL backlight and projection for 5 seconds
- Press to change the projected image when projection is On
- Press to stop the alarm sound and activate the 8-minute
Snooze function (for Beep alarm only)
B3. [MODE] BUTTON
- Press to toggle among the calendar clock display modes
- Press and hold for 2 seconds to enter the clock setting mode
RRM968PM_EN_R0 7/7/04, 11:01 AM2

3
GB

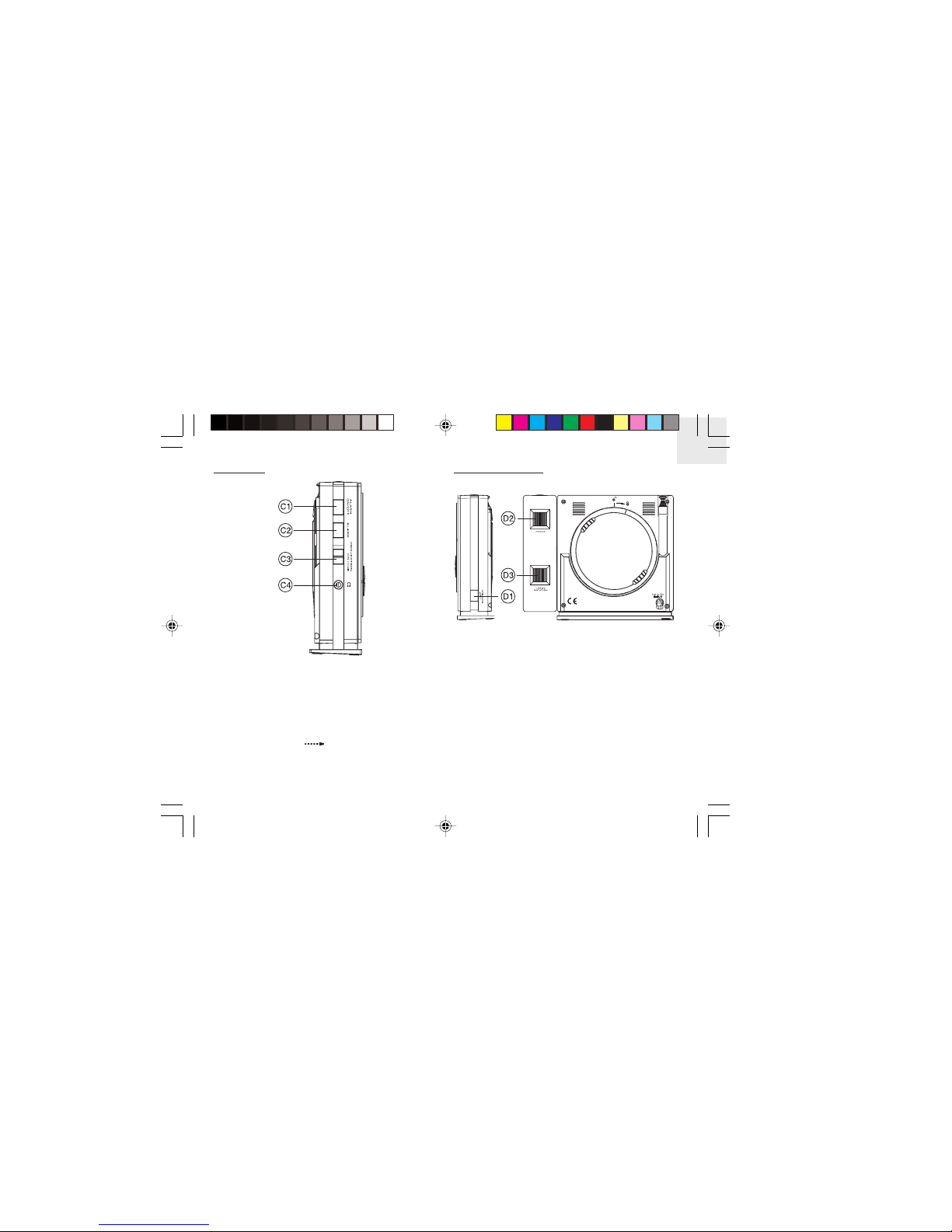

SIDE VIEW
C1. [ALARM ON/OFF] BUTTON
- Press to turn on/off the alarm function
C2. [ALARM] BUTTON
- Press to display the alarm function
- Press and hold for 2 seconds to enter the alarm-time setting mode
C3. [PROJECTION ON ] BUTTON
- Slide to enable/disable continuous projection
(when Adapter is connected)
C4. HEADPHONE JACK
PROJECTION UNIT
D1. [180º ROTATION] BUTTON
- Press to flip the projected image horizontally
D2. [FOCUS] KNOB
- Rotate to adjust the focus of projection
D3. [IMAGE ROTATION] KNOB
- Rotate to change the image 90º to the left or right
RRM968PM_EN_R0 7/7/04, 11:01 AM3

4
GB
BACK VIEW
E1. BATTERY COMPARTMENT
- Accommodates 4 pieces of UM-3 or AA 1.5V batteries (2
pieces for clock function and 2 pieces for radio function)
E2. EXTENDABLEANTENNA
- External antenna for FM radio
E3. [RESET] BUTTON
- Press to return all settings to default values
E4. 4.5 V DC JACK WITH RUBBER COVER
- For AC power adapter installation
BATTERY INSTALLATION
This unit can be operated by batteries or AC power alone as well as
both together.
Using Battery
RRM968PM_EN_R0 7/7/04, 11:01 AM4

5
GB
Battery Installation:
1. Remove the battery compartment door by rotating it to the
direction of “ ” as shown
2. Insert four pieces of UM-3 or AA 1.5V batteries in accordance
to the polarities.
3. Press [RESET].
4. Replace the battery compartment door by rotating it back onto
the unit by following the direction of “ ”.
When the battery power level is low, the respective low battery
indicator [ ] will light up. Replace the batteries or connect it
with AC power adapter.
Please note if onlyAC adapter is connected and no battery is installed,
low battery indicator [ ] for clock will also light up.
Using AC Power
FEATURES
Section I — Radio-Controlled Calendar
Clock
ABOUT RADIO RECEPTION
After battery installation, the unit will automatically synchronize
its time and date with the radio signal when it is within reception
range of the signal.

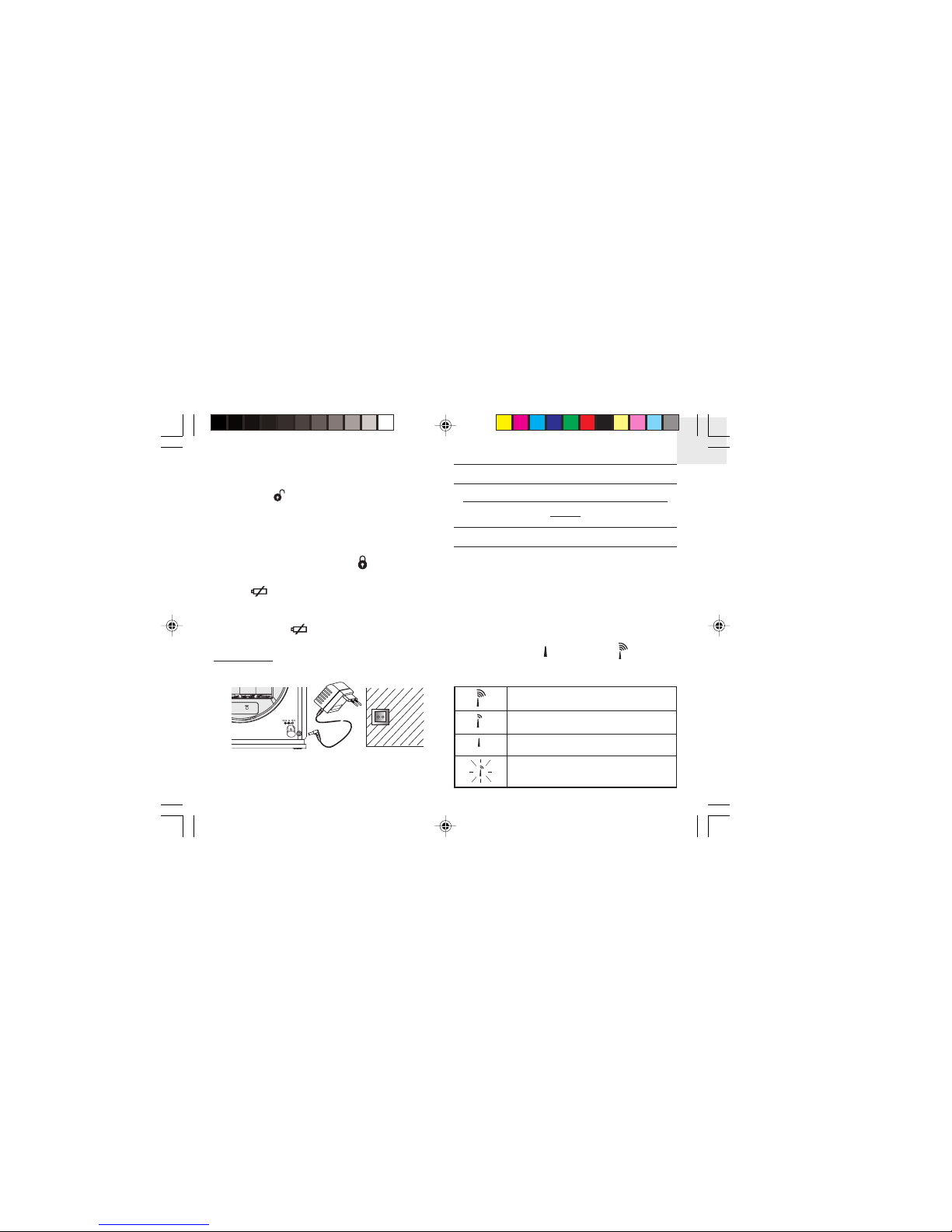

When the unit is receiving radio signal, the reception icon will start
to blink. The reception icon will show either strong or weak reception
depending on the strength of the radio signal.A complete reception
generally takes about two to ten minutes.
When the reception is complete the reception icon will stop blinking. The
reception icon will show as “ ”for no reception or “ ” for successful
reception.
The antenna icon indicates the quality of reception.
STRONG
WEAK
NO RECEPTION
IN PROGRESS
RRM968PM_EN_R0 7/7/04, 11:01 AM5

6
GB
For best reception, place the unit away from other equipment that emit
radio frequency or microwave signals such as TVs, radios, PCs or
microwave ovens. Other causes for signal interference include electrical
power transmission tower and/or steel reinforced concrete construction.
HOW TO ENABLE OR DISABLEAUTO-
RECEPTION
To disable the automatic reception of radio signal, press and hold
[VOL -]for 2 seconds. The reception icon will disappear and the
unit will stop receiving the radio signal.
To activate the signal reception again, press and hold [VOL +]for 2
seconds. The reception icon will appear again and start blinking to
indicate auto reception of radio signal.

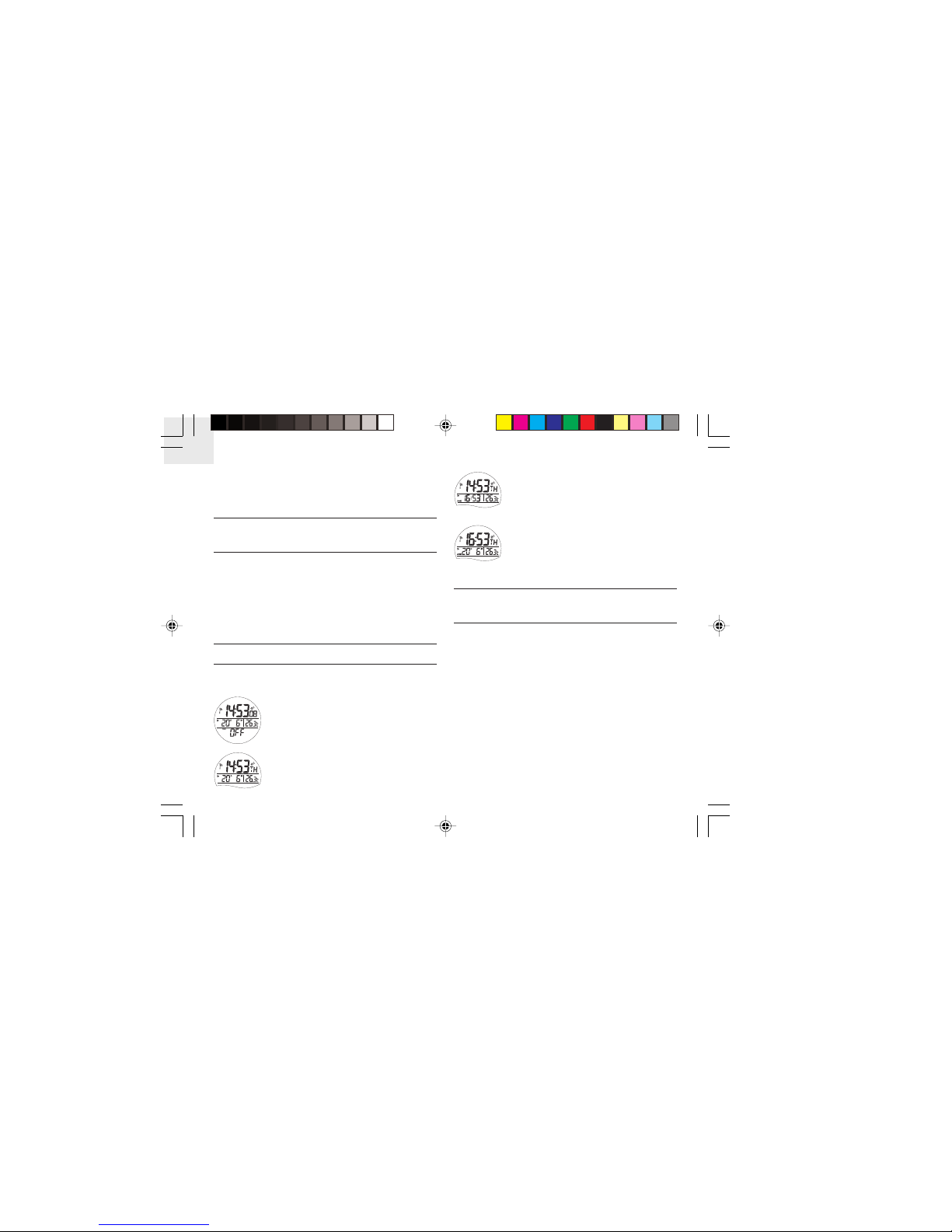

DISPLAY MODES SELECTION
Press [MODE] in the normal display mode to scroll through the
calendar clock display modes:
1. Clock with Second
---------------------------
Calendar/Indoor Temperature
2. Clock with Weekday
---------------------------------------------
Calendar/Indoor Temperature
3. Clock with Weekday
----------------------------------------------------------
-Clock (2nd Zone-time)/Indoor Temperature
4. Clock with Weekday(2nd Zone-time)
----------------------------------------------------------
Calendar (2nd Zone-time)/Indoor Temperature
SETTING THE CLOCK AND
CALENDAR MANUALLY
When the automatic radio reception is disabled, the main unit can
be set manually. Set the Clock and Calendar by following the
procedures below:
1. Press and hold [MODE] for 2 seconds. The 2nd Zone-time hour
offset will start flashing.
2. Enter the hour-offset by using [VOL +] or [VOL -]. Press
[MODE] to confirm the entry.
3. Follow the same procedures to set the 12/24-format, hour, minutes,
year, “mm:dd” or “dd:mm” calendar display format, month, day,
display languages and hourly chime on/off mode.
4. Press [MODE] to save the changes and exit the setting mode. If
changes are made after the minute adjustment, the value of
seconds will be reset and start from zero.
5. For the day-of-week you can select among 5 languages —English
RRM968PM_EN_R0 7/7/04, 11:01 AM6

7
GB
(E), French (F), German (D), Italian (I) and Spanish (S).
DISPLAYINGAND SETTING THE
ALARM
This unit is equipped with a daily alarm. To view the preset alarm
time, press [ALARM].
To set the corresponding alarm time, follow the instructions below:
1. Press and hold [ALARM] for 2 seconds in alarm display mode.
The hours will blink.
2. Enter the hour by using [VOL +] or [VOL -]. Press [ALARM]
to confirm the entry.
3. The Minutes will then blink.
4. Enter the minutes by using [VOL +] or [VOL -]. Press
[ALARM] to confirm the entry.
5. The beep alarm [ ] or radio alarm icon [ ] will blink.
6. Select the alarm-sounding mode by using [VOL +] or [VOL -].
In Beep alarm mode, a 2-minute crescendo alarm will be turned
on when the alarm time is up. In Radio alarm mode, when alarm
time is up, the radio will be turned on and remained on for 2
hours unless it is manually deactivated. Press [ALARM] to
confirm the entry.
7. If Radio alarm mode is being chosen, the radio will be
automatically turned on and the Radio Station Number will flash.
Select the radio station by using [STATION]. Please note that
in this RadioAlarm mode, manual tuning cannot be used to set
the station. Press [ALARM] to confirm the entry.
8. The Volume will then flash. Again, select the radio volume by
Day-of-the-week Affichage du jour Wochentaganzeige
Giorno della settimana Día de la semana Dia de Semana
Monday
Tuesday Wednesday Thursday Friday Saturday Sunday
Lundi Mardi
Mercredi Jeudi Vendredi Samedi Dimanche
Montag Dienstag Mittwoch Donnerstag Freitag Samstag Sonntag
Lunedí Martedí Mercoledí Glovedí Venerdí Sabato Domenica
Lunes Martes Miércoles Jueves Viernes Sábado Domingo
Segunda Terça Quarta Quinta Sexta Sábado Domingo
Language
Langues
Sprache
Lingue
Idiomas
Lingua
English
Anglais
Englisch
Inglese
Inglés
Inglês
French
Français
Französisch
Francese
Francés
Francês
German
Allemand
Deutsch
Tedesco
Alemán
Alemão
Italian
Italian
Italienisch
Italiano
Italiano
Italíano
Spanish
Espagnol
Spanisch
Spagnolo
Español
Espanhol
RRM968PM_EN_R0 7/7/04, 11:01 AM7

8
GB
using [VOL +] or [VOL -]. Press [ALARM] to confirm the
entry and exit the setting mode. Press [RADIO] to turn off the
radio.
When the pre-set time arrives, beep sound / radio will be turned on.
Press any key to stop the beep sound. The EL backlight and projection
will also activate for 5 seconds.
To enable/disable the alarm, press [ALARM ON/OFF ] when the
main unit is in Alarm display mode
When [SNOOZE/LIGHT] is pressed to stop the alarm sound (only
when Beep Alarm mode is selected), the unit will re-alarm again
after 8 minutes. To disable the snooze function, press [ALARM]
or [ALARM ON/OFF ] or press and hold [SNOOZE/LIGHT] for
3 seconds when alarm goes off.
Please note that when Radio is on while Beep Alarm goes off at the
same time, the Radio will be temporarily stopped until the Beep
Alarm has been turned off.
NOTE ON RADIO ALARM
When the RadioAlarm is turned on, the Radio will be turned on for
2 hours. You can intervene by setting the time period for the Sleep
function by pressing [SLEEP] or simply turn off the radio at any
time.
HOURLY CHIME FUNCTION
When the hourly chime function is on, the indication “ ” will
be displayed and a beep sound will be given out at the beginning of
each hour. You can activate or deactivate this function by setting
this in the clock and calendar setting mode (please refer to Section
“SETTING THE CLOCKAND CALENDAR MANUALLY”).
Section II - Digitally-tuned PLLAM/FM
Radio
HOW TO USE THE RADIO
Before you start - All radio functions can only be operated when
Radio is powered on.
To turn on the radio press [RADIO]. The radio will be turned on at
the last preset radio station and volume.
To change the radio frequency, press [AM/FM] to select the radio
band. Then use [+TUNING -] to locate the desired radio frequency.
Press once and the value will advance by 1 step. Press and hold for
2 seconds to enter the Radio Channel auto-search function.
To change the volume, use [VOL +] or [VOL -] to increase or
decrease the volume.There are a total of 16 (0-15) - steps.
To toggle among the programmed stations, press [STATION].
To turn off the radio, press [ RADIO ].
AUTO-SEARCH FUNCTION
The unit is equipped with an Auto-Search function and can
automatically search for the next clear channel. To activate this
function, press and hold [+TUNING -] for 2 seconds and
automatically the value of the frequency will keep increasing or
RRM968PM_EN_R0 7/7/04, 11:01 AM8

9
GB
decreasing until a clear channel is found. Once this function is
activated, you can release and stop pressing the button.
HOW TO PROGRAM A PRESET
STATION
This unit allows you to program up to 8 FM and 8AM radio stations
in the memory. To do so:
1. First press [AM/FM] to select the AM or FM frequency.
2. Select a station number by pressing [STATION].
3. Locate the desired radio frequency by using [+TUNING -].
4. Press and hold [STATION] for 2 seconds to confirm and exit
the setting mode.
HOW TO USE THE SLEEP (AUTO-OFF)
FUNCTION
With this Sleep function, the radio will be automatically switched
off after a pre-set period of time.
1. To set the sleep function, press [SLEEP]. “0 min” will be
displayed.
2. Press [SLEEP] again to select the period of time (120, 90, 60,
30 or 15 minutes)(when the function is activated the “Sleep”
icon will flash).
3. Wait for about 5 seconds and the sleep function will be activated
automatically.
Section III — Indoor Thermometer
DISPLAY OF INDOOR TEMPERATURE
Once batteries are installed into the main unit, it will start to detect
the indoor temperature and the data will be displayed. The
temperature shown is in degree Celsius (°C). The unit is capable of
measuring temperature within the -5°C and +50°C range. If the
temperature goes above or below that, “HHH” or “LLL” will be
displayed correspondingly.
Section IV — Projection

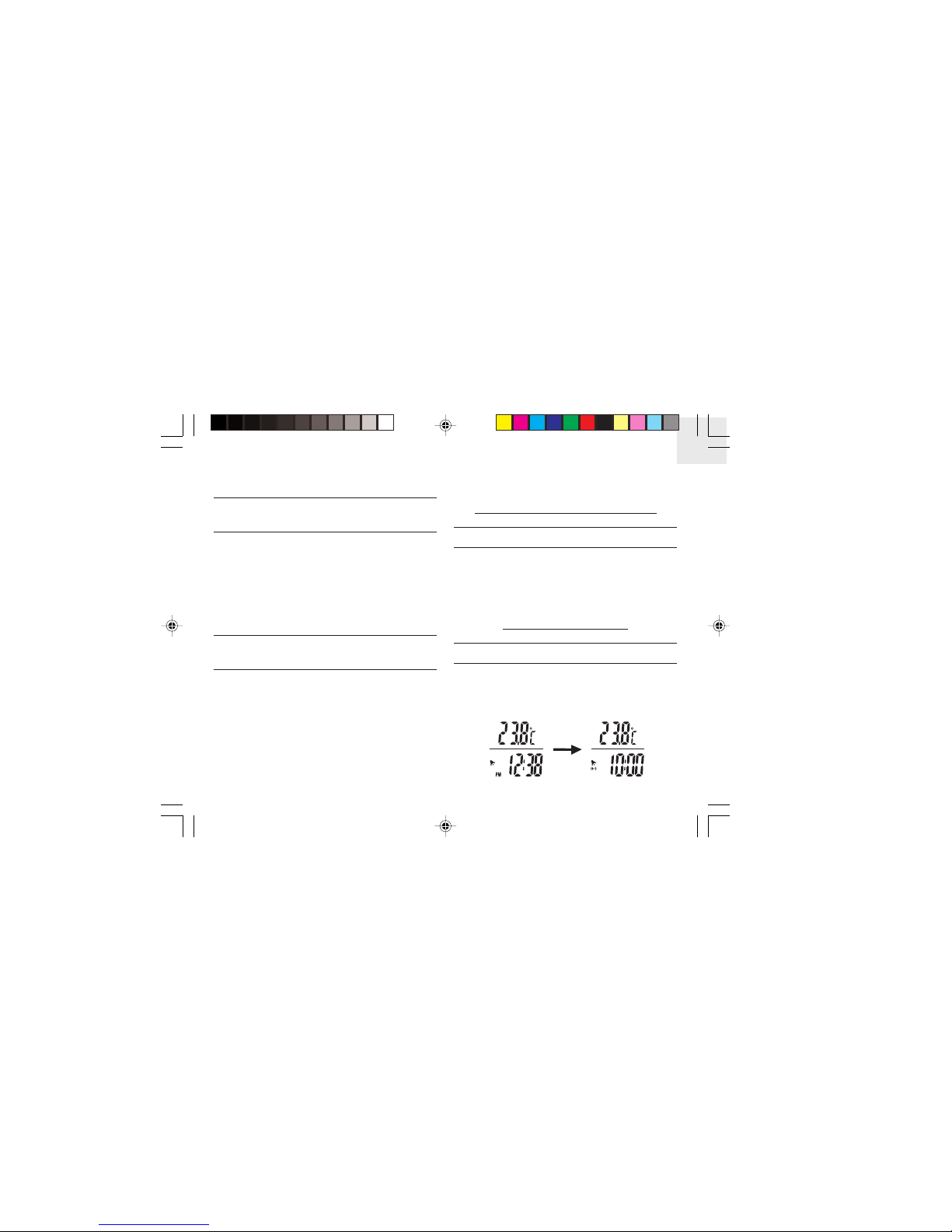

HOW TO USE THE PROJECTION
The projection makes it easier for you to read the current time or
alarm time with alarm status and indoor temperature at night. To
use the feature,
1. Press [SNOOZE/LIGHT] to turn on the projection for 5
seconds. The current time with alarm status and indoor
temperature will be projected onto the surface the lens is facing.
RRM968PM_EN_R0 7/7/04, 11:01 AM9

10
GB
2. To change to view the preset alarm time instead of the current
time, press [SNOOZE/LIGHT] again when projection is on.
3. Adjust the projected image as below.
For continuous projection, you must connect it with power adapter.
When the power adapter is connected to the unit, the projection
will be activated and remain so by sliding on the[PROJECTION
ON ]switch.
To deactivate the feature, slide the switch back to its off position.
To increase the life-time of the projection LED, it is suggested to
slide the [ PROJECTION ON ] switch to the “off” position
during daytime.
Section V — Others
BACKLIGHT
To turn on the EL backlight of the LCD Display, press [SNOOZE/
LIGHT] to turn it on for 5 seconds.
HOW TO RESET THE UNIT
Press [RESET] to reset the settings when the unit is malfunctioning
When [RESET] is pressed, all settings will return to the default
values and memory records will be erased.
PRECAUTIONS
This unit is engineered to give you years of satisfactory service if
you handle it carefully. Here are a few precautions.
1. Do not immerse the unit in water. If you spill liquid over it, dry
it immediately with a soft, lint-free cloth.
2. Do not clean the unit with any liquid containing alcohol,
detergent, abrasive or corrosive materials. They may scratch the
plastic parts and corrode the electronic circuit.
3. Do not subject the unit to excessive force, shock, dust,
temperature or humidity, which may result in malfunction,
shorter electronic life span, damaged battery and distorted parts.
Projector Features
Feature Effect Instructions
Adjustable
Projection
Flips an image to
maintain an upright
position
Rotates the
projection 180°
Tilt swivel projection
housing to alter the
direction of projection
FOCUS
Knob Focuses
projection Rotate Dial D2 to focus projection
ROTATION
KNOB
Dial D3 rotates
projection Rotation of projection allows user to place
clock in convenient
180°
ROTATION
BUTTON
Button D1
horizontally flips
the projection
180°
RRM968PM_EN_R0 7/7/04, 11:01 AM10

11
GB
4. Do not tamper with the unit’s internal components. Doing so will
invalidate thewarranty onthe unitand maycause unnecessarydamage.
The unit contains no user-serviceable parts.
5. Only use fresh batteries as specified in the user’s instructions.
Do not mix new and old batteries as the old ones may leak.
6. Always read the user’s instructions thoroughly before operating
the unit.
To maintain good performances, do not use the units in places which
are extremely hot, cold, dusty or humid. In particular, keep the
units away from:
- High Humidity areas (e.g., bathroom)
- Extreme hot areas (e.g., near a heater)
- Areas exposed to direct sunlight
Note on Listening with the headphones
A headphone jack is provided so that you can listen to the radio by
plugging a headphone into the jack. Remember to listen at a
moderate volume to avoid hearing damage.
SPECIFICATIONS
Radio-controlled Calendar Clock
Display format : 12- or 24-hour
Calendar : Month/Day/Second or Month/
Day/Day - of - Week
Day of Week in 5 languages:
English/ French/ German/ Italian
and Spanish
Alarm : Daily alarm in the following modes:
(i) Crescendo Beep Alarm with
8-minute Snooze function; or
(ii) Radio Alarm
Digital - tuning Radio
AM band Frequency : 531 – 1602 kHz
(Step frequency: 9KHz)
FM band Frequency : 87.5 – 108.0 MHz
(Step frequency: 0.05MHz)
Station : 8 memories for AM/ 8 memories
for FM
Digital Volume : 16 - step (0-15)
Temperature Measurement
Main Unit
Indoor Temperature
Measuring Range : -5°C to +50°C (+23°F to +122°F)
Temperature Resolution : 0.1°C (0.2°F)
Power : - 4 pcs of AA or “UM-3”
1.5 V batteries
- 4.5 V AC Adapter
(for continuous projection)
Weight : 379g (without battery)
Dimensions : 153 x 126 x 40mm ( L x W x H )
Note on Battery : Batteries included (if any) are for
demonstration purpose only. For
optimal daily-usage, application
of new alkaline batteries are
recommended.
RRM968PM_EN_R0 7/7/04, 11:01 AM11

12
GB
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn more about
Oregon Scientific products such as digital cameras; MP3 players;
children's electronic learning products and games; projection clocks;
health and fitness gear; weather stations; and digital and conference
phones. The website also includes contact information for our cus-
tomer care department in case you need to reach us, as well as fre-
quently asked questions and customer downloads.
We hope you will find all the information you need on our website,
however if you'd like to contact the Oregon Scientific Customer
Care department directly, please visit www2.oregonscientific.com/
service/support or call 949-608-2848 in the US. For international
enquiries, please visit www2.oregonscientific.com/about/interna-
tional/default.asp.
EC-DECLARATION OF CONFORMITY
This product complies with the essential requirements of Article 3
of the R&TTE 1999 / 5 / EC Directive, if used as intended and the
following standards have been applied:
Safety of information technology equipment
(Article 3.1.a of the R&TTE Directive)
Applied Standard EN 60950: 2000
Electromagnetic compatibility
(Article 3.1.b of the R&TTE Directive)
Applied Standards EN 301 489-3: 2002
Additional information:
The product herewith complies with the requirements of the Low
Voltage Directive 73 / 23 / EC, the EMC Directive 89 / 336 / EC and
carries the CE marking accordingly.
Carmelo Cubito
Agrate Brianza (MI) / Italy January 2004
EC Mandatory of Manufacturer
COUNTRIES RTTEAPPROVAL COMPLIED
All EC countries, Switzerland
and Norway CH
N
RRM968PM_EN_R0 7/7/04, 11:01 AM12

13
GB
TROUBLESHOOTING GUIDE - RRM968P/ RRM968PU
Trouble Possible Cause Remedy
Reception icon “Antenna” is not shown Auto-reception of clock radio signal has been
disabled Enable this function by following the instructions in the User’s Manual
Displayed Temperature data is different from other
measuring instruments (1) The measurement method is different
(2) The area under evaluation is different or being
influenced by climate
(1) Use the same instruments with
consideration of the tolerance of readings
(1) Place the 2 instruments very closely for a
time period (no less then 30 minutes),
avoiding direct light and air movements
- Clock time is not correctly set; and/or
- Reception icon “Antenna” displays as “No
reception”
The clock radio signal is not received because:
- Electromagnetic interference exist, or the Main
Unit is located within reinforced concrete wall or
shadowed area location
- Orientation of placement is not at optimum
position for reception of clock radio signal
- LocatetheMainUnitfarfromPC,mobilephone
etc and re-locate it near the window sill. Wait at
least 24 hours (note: during night-time signal is
less attenuate particularly after raining)
- The clock radio signal is searched at 1:00,
2:00, 3:00, 9:00, 15:00, 21:00 every day
automatically
- To force the signal reception please refer to
instructions in the User’s manual
The projection LED does not go on whenAC/DC
adapter is installed Projection-On button is slid to the Off-position Slide the Projection-On button to the On- position
The unit is reset when SNOOZE button is pressed Batteries are being discharged Replace with new batteries
Warning:
- For other cases not listed in the above, feel free to contact our help line
- Do not dissemble the unit. This will void the warranty
RRM968PM_EN_R0 7/7/04, 11:01 AM13
