+ECO Solar Weather Clock
Model: BAR332ES / BAR332ESA /
BAR332ESU
USER MANUAL
CONTENTS
Earth Friendly................................................................... 2
Overview........................................................................... 2
Front View ...................................................................... 2
Top View ........................................................................ 3
Bottom View ................................................................... 3
Solar Panel..................................................................... 4
Remote Sensor .............................................................. 4
Getting Started................................................................. 4
Solar Panel..................................................................... 4
Backup Power ................................................................ 6
Remote Sensor................................................................. 6
Clock and Calendar ......................................................... 7
Clock Reception ............................................................. 7
Manually Set Clock......................................................... 7
Alarm................................................................................. 8
Temperature ..................................................................... 8
Weather forecast.............................................................. 8
Backlight........................................................................... 9
Reset ................................................................................. 9
Specications................................................................... 9
Precautions ...................................................................... 9
About Oregon Scientific................................................ 10
EU-Declaration of Conformity....................................... 10
FCC Statement ............................................................... 10

EN
2
EARTH FRIENDLY
The +ECO line embodies our commitment to environmental
concerns. Aware of threats facing the world we live in,
Oregon Scientic™ has combined technological know-how,
practicality and style to create this line of environmentally
friendly products. These products provide practical solutions
while enabling you and us to fulll our environmental
responsibility.
Simply detach the solar panel and face it directly towards
the sun for a few hours to receive the amount of energy
necessary to power the device.
Together we can improve the world we live in.
OVERVIEW
FRONT VIEW
1
10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
1. : Remote sensor reception indicator and outdoor
channel selected
2. Outdoor temperature
3. Indoor temperature
4. Weather forecast

EN
3
5. : Clock signal reception indicator
6. : Alarm time is displayed
7. : Daily alarm is On
8. AM / PM
9. Rechargeable battery status LED indicator
10. : Outdoor remote sensor battery low
11. : Main unit back-up batteries low / no battery
12. : AC adaptor connected
13. : Rechargeable battery is low / solar panel detached
14. : Rechargeable battery level indicator
15. : Time zone offset
16. Calendar / Clock with weekday / seconds
TOP VIEW
1 2 3 4 5 6
1. SNOOZE: Activate snooze alarm / backlight
2. / : Increase / decrease value of the setting;
activate / deactivate clock reception signal
3. : Change display; set clock
4. : Toggle between outdoor temperature channels
(1-3); initiate auto-toggle
5. : View alarm status; set alarm
6. : Activate / deactivate alarm function
BOTTOM VIEW
1 2 3
1. SEARCH: Initiate sensor search
2. RESET: Reset unit to default settings
3. °C / °F: Select temperature unit

EN
4

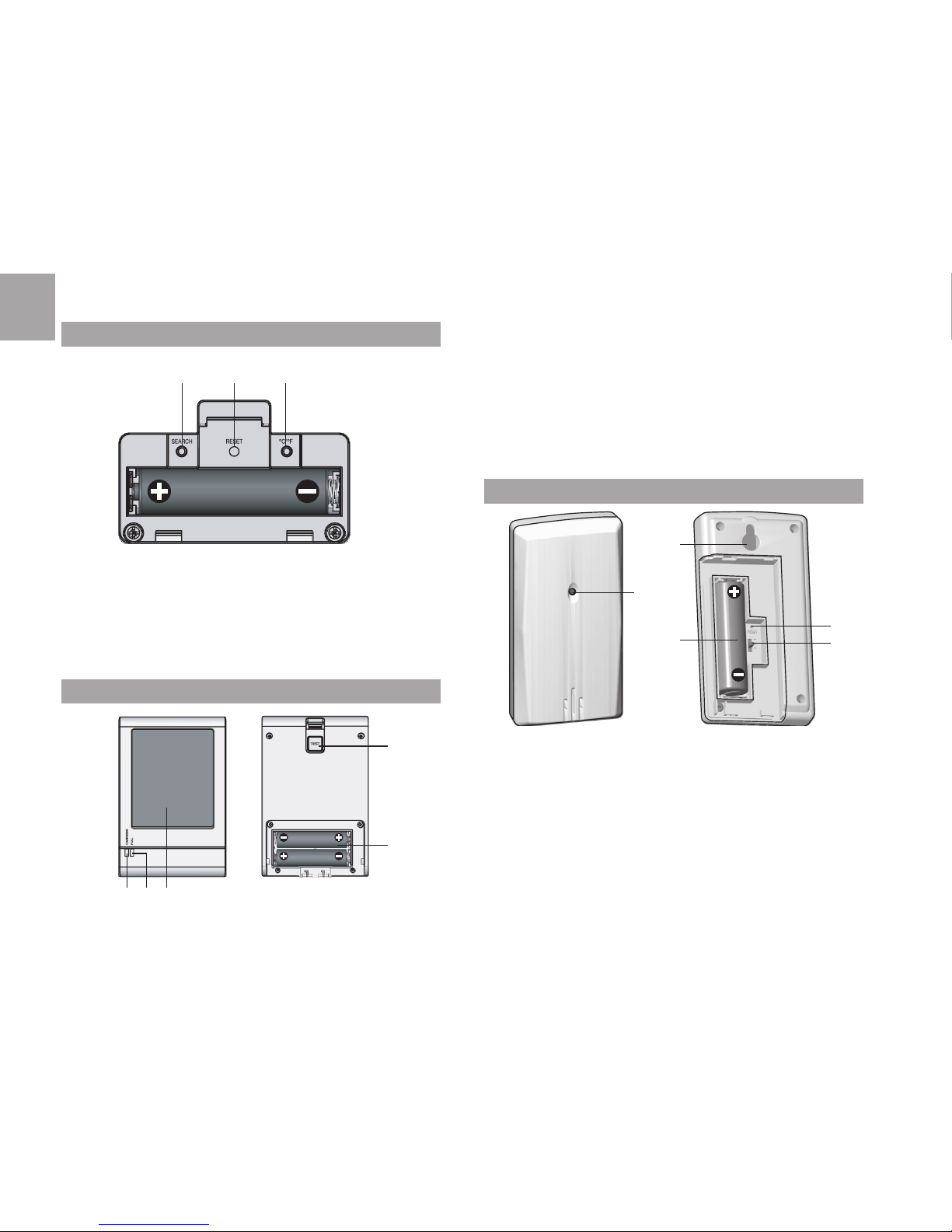

SOLAR PANEL
1 2 3
4
5
1. CHARGING: charging in process
2. FULL: batteries fully charged (when TEST is pressed)
3. Solar panel
4. TEST establish if battery is full
5. Battery compartment
REMOTE SENSOR
1
2
3
4
5
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET: Reset unit to default settings
5. CHANNEL switch

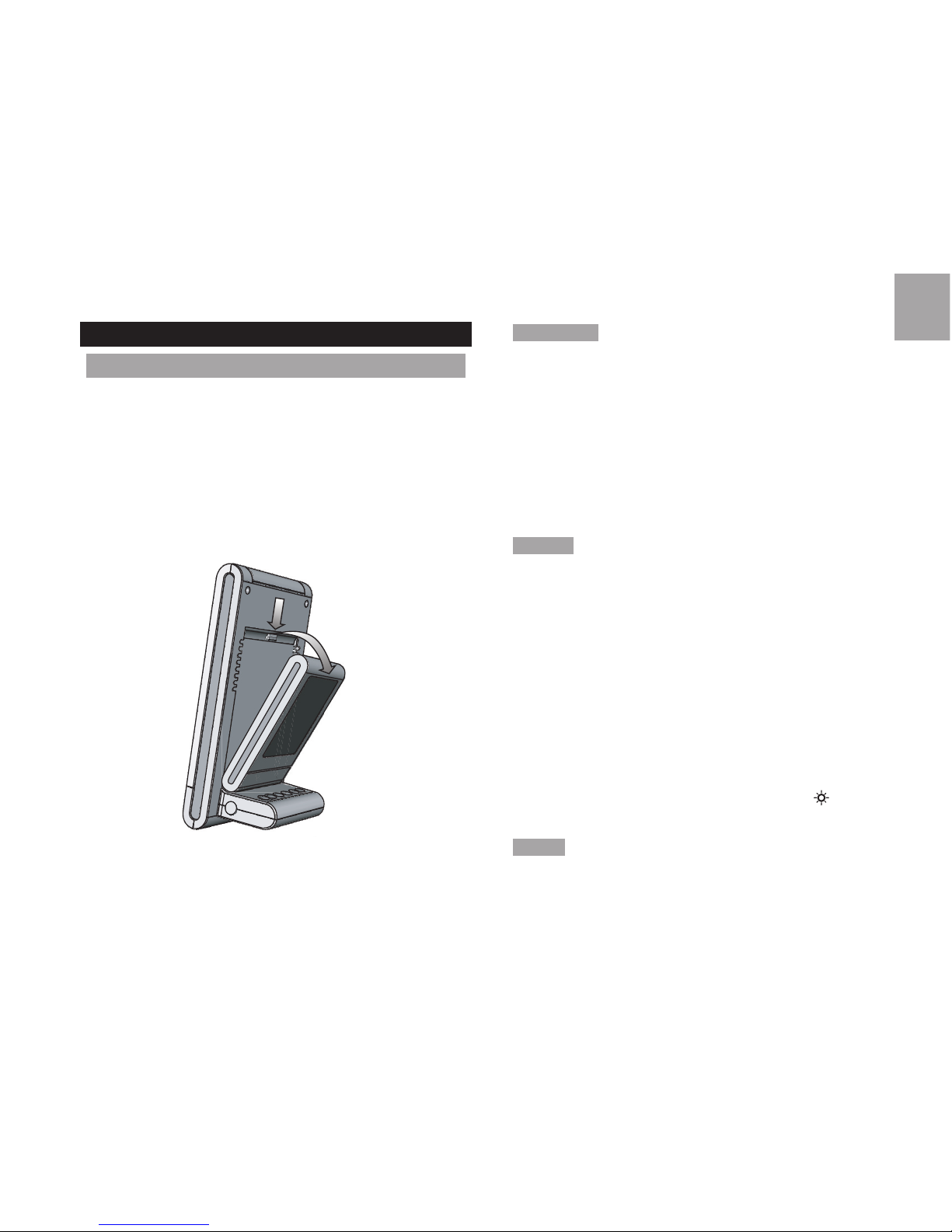

GETTING STARTED
SOLAR PANEL
This product uses two AAA rechargeable batteries which
should be charged via the solar panel. For the batteries’
rst charge, it is strongly advised to charge it for at least
12 hours.

EN
5
To charge the battery:
1. Detach solar panel by exerting downward pressure and
pulling at a 45° angle (approx.) away from main unit.
2. Insert 2 AAA rechargeable batteries in battery
compartment located at the back of the solar panel.
IMPORTANT Place ONLY NiMH type rechargeable
batteries in the solar panel battery compartment. Do not
charge non-rechargeable batteries.
3. Expose the solar panel directly to sunlight for
approximately 5-6 hours to charge the battery. The
(red) CHARGING LED on solar panel will light up
indicating there is sunlight and unit is charging.
TIP Press and hold TEST located at the back of the solar
panel. (Green) FULL LED indicates batteries have been fully
charged.
4. Align holes with protruding plastic. Push solar panel
towards main unit and snap into place.
5-6 hours of battery charging will normally provide power to
operate unit for 2 months.
When the rechargeable battery is nearly at or when solar
panel has been detached, the (green) LED indicator on the
main unit and will ash.
TIPS
• For best results when charging the battery, place the
solar panel directly with view to sunlight.
• Direct solar panel as follows:
Solar panel facing: if you reside in the:
North Southern Hemisphere
South Northern Hemisphere
• Do not scratch the solar panel’s surface or wipe it with
strong detergent.
• Do not expose the solar panel to rain, snow or
moisture.
• The duration of the rechargeable battery’s charging or
operating time is determined by either the intensity of
sunlight or the position of the solar panel towards the
sun.
• Do not overcharge the batteries.

EN
6
BACKUP POWER
1 piece AAA battery
In the case when the rechargeable battery is at or nearly
at or when the solar panel has been detached, the AAA
battery can act as backup power supply for the main unit.
1. Remove the battery compartment located at the base
of the unit.
2. Insert the battery, matching the polarity.
3. Press RESET after each battery change.
NOTE When the rechargeable battery power is exhausted
or when the solar panel has been detached, the backlight
function will be disabled and the performance of the radio
controlled clock may be affected.
Power adaptor (not included)
The adaptor powers the unit and can also be used for
charging the rechargeable battery. When connected to the
main unit, will be displayed.
NOTE The main unit and adaptor should not be exposed to
wet conditions. No objects lled with liquid, such as vases,
should be placed on the main unit and adaptor.
REMOTE SENSOR
This product can work with up to 3 sensors at any one time
to capture temperature readings in various locations.
To set up the remote sensor:
1. Slide open the battery compartment.
2. Slide channel switch to select a channel (1, 2, 3).
Ensure you use a different channel for each sensor.
3. Insert the battery, matching the polarities.
4. Press RESET after each battery change.
5. Close the battery compartment.
6. Press and hold SEARCH for 2 seconds to initiate a
sensor search.
NOTE Use alkaline batteries for longer usage and
consumer grade lithium batteries in temperatures below
freezing.
The remote sensor reception icon will show the following
status:
ICONS MEANING
Main unit is searching
for sensor(s)
A sensor channel has
been found
No sensor found
TIP Ideal placements for the sensor would be in any
location on the exterior of the home at a height of not more
than 1.5 m (5 ft) and which can shield it from direct sunlight
or wet conditions for an accurate reading.

EN
7
1.5 m (5 ft)
CLOCK AND CALENDAR
CLOCK RECEPTION
This product is designed to synchronize its clock
automatically with a clock signal.
BAR332ES: EU: DCF-77 signal: within 1500 km (932 miles)
of Frankfurt, Germany.
BAR332ESU: UK: MSF-60 signal: within 1500 km (932
miles) of Anthorn, England.
BAR332ESA: WWVB-60 signal: within 3200km (2000
miles) of Fort Collins Colorado.
To enable / disable clock signal reception:
Press and hold to enable or to disable clock signal
reception.
NOTE Reception takes 2-10 minutes. If the signal is weak,
it can take up to 24 hours to get a valid signal. If signal
reception is unsuccessful, place your unit next to a window,
press and hold to force another signal search.

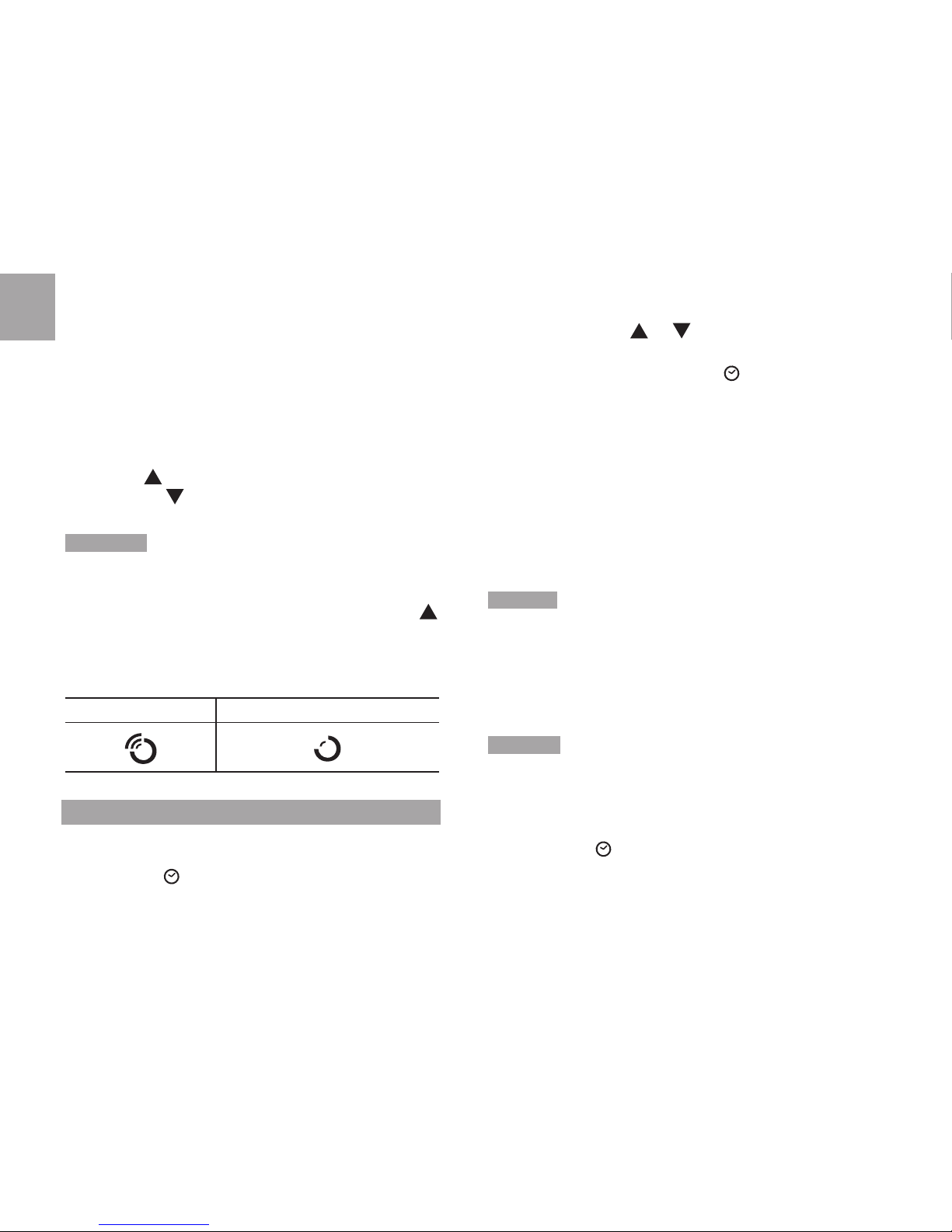

Clock signal reception indicator:
STRONG SIGNAL WEAK / NO SIGNAL
MANUALLY SET CLOCK
To set the clock manually, disable the clock signal reception
rst.
1. Press and hold .
2. Press / to change the settings.
3. Press to conrm.

EN
8
The settings order is: time zone, 12/24 hr format, hour,
minute, year, calendar mode (month – day / day – month),
month, day and language.
BAR332ES / BAR332ESU: Time zone offset sets the clock
+/- 23 hours from the received clock signal time. If you have
deactivated the clock signal reception, do not set a value
for time zone.
NOTE If you enter +1 in the time offset setting, this will
give you your local time plus one hour. If you are in the US
(BAR332ESA) set the clock to:
PA for Pacic time MO for Mountain time
CE for Central time EA for Eastern time
NOTE The language options are English (E), German (D),
French (F), Italian (I), Spanish (S) and Russian (R).
To select clock display:
Press to toggle between clock with seconds, clock with
weekday and calendar.
ALARM
To set the alarm:
1. Press and hold to enter alarm setting.
2. Press / to set hour / minute.
3. Press to conrm.
indicates alarm is ON.
To activate / deactivate alarm:
Press .
To silence the alarm:
• Press SNOOZE to silence it for 8 minutes
OR
• Press any key to turn the alarm off and activate it again
after 24 hours.
To display alarm:
Press .
TEMPERATURE
To toggle temperature unit:
Press °C / °F.
To toggle between each outdoor sensor’s readings:
• Press repeatedly
OR
• Press and hold for 2 seconds to initiate auto toggle
of outdoor channels.
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of weather
forecast within a 30-50 km (19-31 mile) radius.

EN
9
Sunny
Partially cloudy
Cloudy
Rainy
Snowy
BACKLIGHT
Press SNOOZE to activate backlight for 3 seconds.
RESET
Press RESET to return to the default settings.
SPECIFICATIONS
MAIN UNIT
TYPE DESCRIPTION
L x W x H 158 x 87 x 55mm (6.2 x 3.4 x 2.2 in)
Weight 280 g (9.88 oz) without battery
Signal frequency 433 MHz
Power
2 x UM-4 (AAA) rechargeable
batteries;
6V AC adaptor (not included)
1 x UM-4 (AAA) battery (for backup)
REMOTE SENSOR (THN132N)
L x W x H 96 x 50 x 22mm
(3.78 x 1.97 x 0.87 in)
Weight 62 g (2.22 ounces) without battery
Transmission range 30 m (98ft) unobstructed
Temperature range -20°C to 60°C (-4°F to 140°F)
Power 1 x UM-3 (AA) 1.5 V battery
PRECAUTIONS
• Do not subject the unit to excessive force, shock, dust,
temperature or humidity
• Do not cover the ventilation holes with any items such
as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid over
it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components. This
invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.

EN
10
• Images shown in this manual may differ from the actual
display.
• When disposing of this product, ensure it is collected
separately for special treatment.
• Placement of this product on certain types of wood
may result in damage to its nish for which Oregon
Scientic will not be responsible. Consult the furniture
manufacturer's care instructions for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the battery
compartment before rst use.
NOTE The technical specications for this product and the
contents of the user manual are subject to change without
notice.
NOTE Features and accessories will not be available in all
countries. For more information, please contact your local
retailer.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientic.com) to learn more
about Oregon Scientic products. If you’re in the US and
would like to contact our Customer Care department directly,
please visit:
www2.oregonscientic.com/service/support.asp
For international inquiries, please visit:
www2.oregonscientic.com/about/international.asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientic, declares that this +ECO
Solar Weather Clock (model: BAR332ES / BAR332ESU/
BAR332ESA) is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC. A copy of the signed and dated Declaration of
Conformity is available on request via our Oregon Scientic
Customer Service.
COUNTRIES RTTE APPROVED COMPLIED
All EU countries, Switzerland CH
and Norway N
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.
