Oregon Scientific RM336PES User manual

User Manual
+ECO Solar Projection Clock
Model: RM336PES / RM336PESA / RM336PESU
P/N: 300102498-00001-10 REV1
1/72

P/N: 300102498-00001-10 REV1
2/72

EN
1
+ECO Solar Projection Clock
Model: RM336PES / RM336PESA /
RM336PESU
USER MANUAL
CONTENTS
Earth Friendly................................................................... 2
Overview........................................................................... 2
Front View ...................................................................... 2
Top View......................................................................... 2
Bottom View ................................................................... 3
Solar Panel..................................................................... 3
Getting Started................................................................. 3
Solar Panel..................................................................... 3
Backup Power ................................................................ 4
Clock and Calendar ......................................................... 5
Clock Reception ............................................................. 5
Manually Set Clock......................................................... 5
Alarm................................................................................. 5
Projection ......................................................................... 6
Sleep projection timer................................................... 6
Backlight........................................................................... 6
Reset ................................................................................. 7
Specications................................................................... 7
Precautions ...................................................................... 7
About Oregon Scientic.................................................. 7
EU-Declaration of Conformity......................................... 8
FCC Statement ................................................................. 8
P/N: 300102498-00001-10 REV1
3/72

EN
2
EARTH FRIENDLY
The +ECO line embodies our commitment to environmental
concerns. Aware of threats facing the world we live in,
Oregon Scientic™ has combined technological know-how,
practicality and style to create this line of environmentally
friendly products. These products provide practical solutions
while enabling you and us to fulll our environmental
responsibility.
Simply detach the solar panel and face it directly towards
the sun for a few hours to receive the amount of energy
necessary to power the device.
Together we can improve the world we live in.

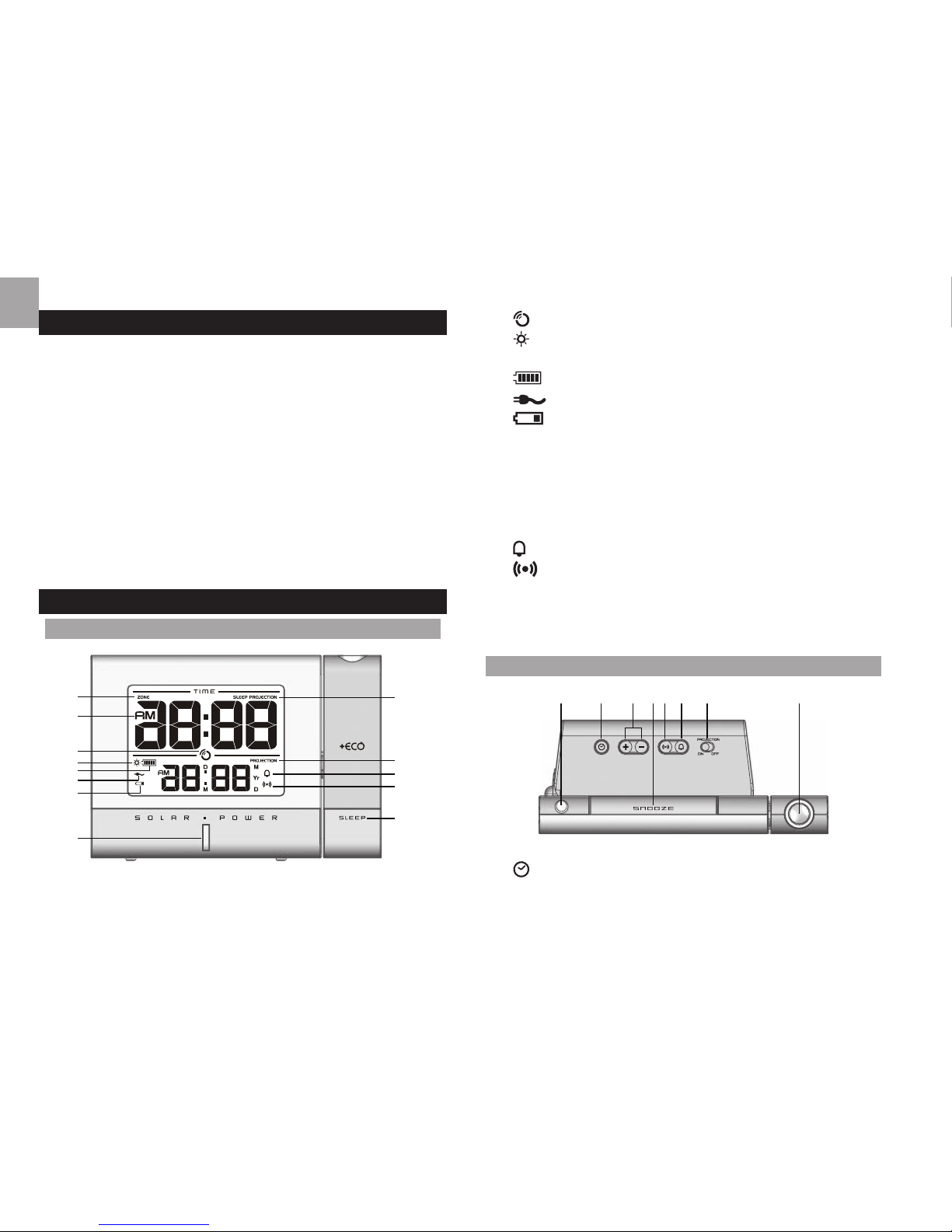

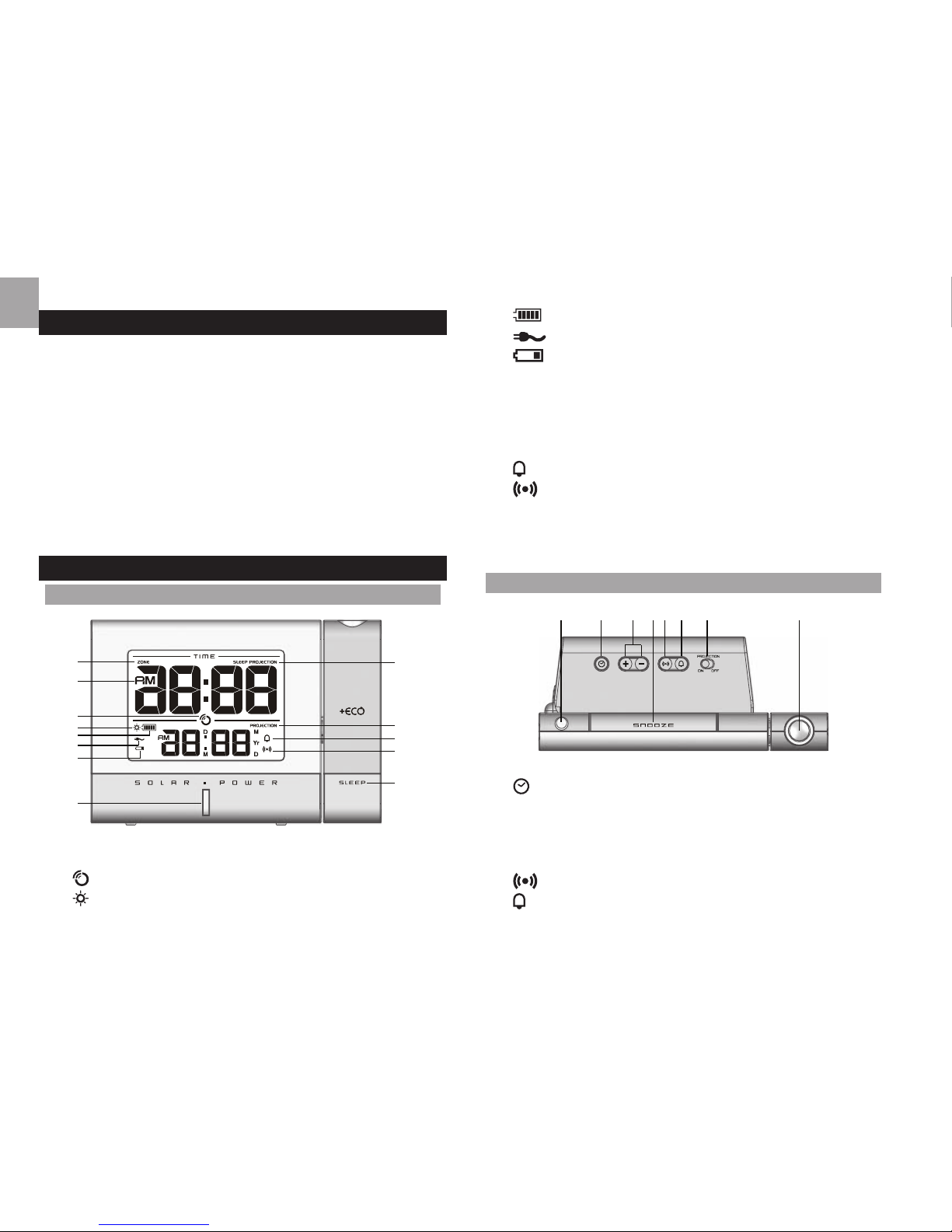

OVERVIEW
FRONT VIEW
19
10
11
12
13
2
8
3
4
5
6
7
1. ZONE : time zone offset
2. AM/PM
3. : clock signal reception indicator
4. : rechargeable battery is low / solar panel detachedrechargeable battery is low / solar panel detached
5. : rechargeable battery level indicator: rechargeable battery level indicator
6. : AC adapter connected
7. : outdoor remote sensor battery low / main unit
back-up batteries low / no battery
8. Rechargeable battery status LED indicator
9. SLEEP PROJECTION: sleep projection function is ON
10. PROJECTION: appears when selecting alarm projection
option (ON/OFF)
11. : daily alarm is ON
12. : alarm time is displayed
13. SLEEP : enable continuous projection; activate
projection sleep timer; adjust timer settings (0, 15, 30,
45, 60 minutes)
TOP VIEW
1 4 82 5 63 7
1. Light sensor
2. : toggle display (calendar / alarm time) ; set clock
3. + / - : increase / decrease value of the setting; activate /
deactivate clock reception signal
4. SNOOZE: activate snooze alarm; turn on backlight /
projector; ip projected image 180˚
5. : view alarm status; set alarm: view alarm status; set alarm
6. : activate / deactivate alarm function
P/N: 300102498-00001-10 REV1
4/72

EN
3
7. PROJECTION ON·OFF: enable / disable continuous
projection
8. Projector

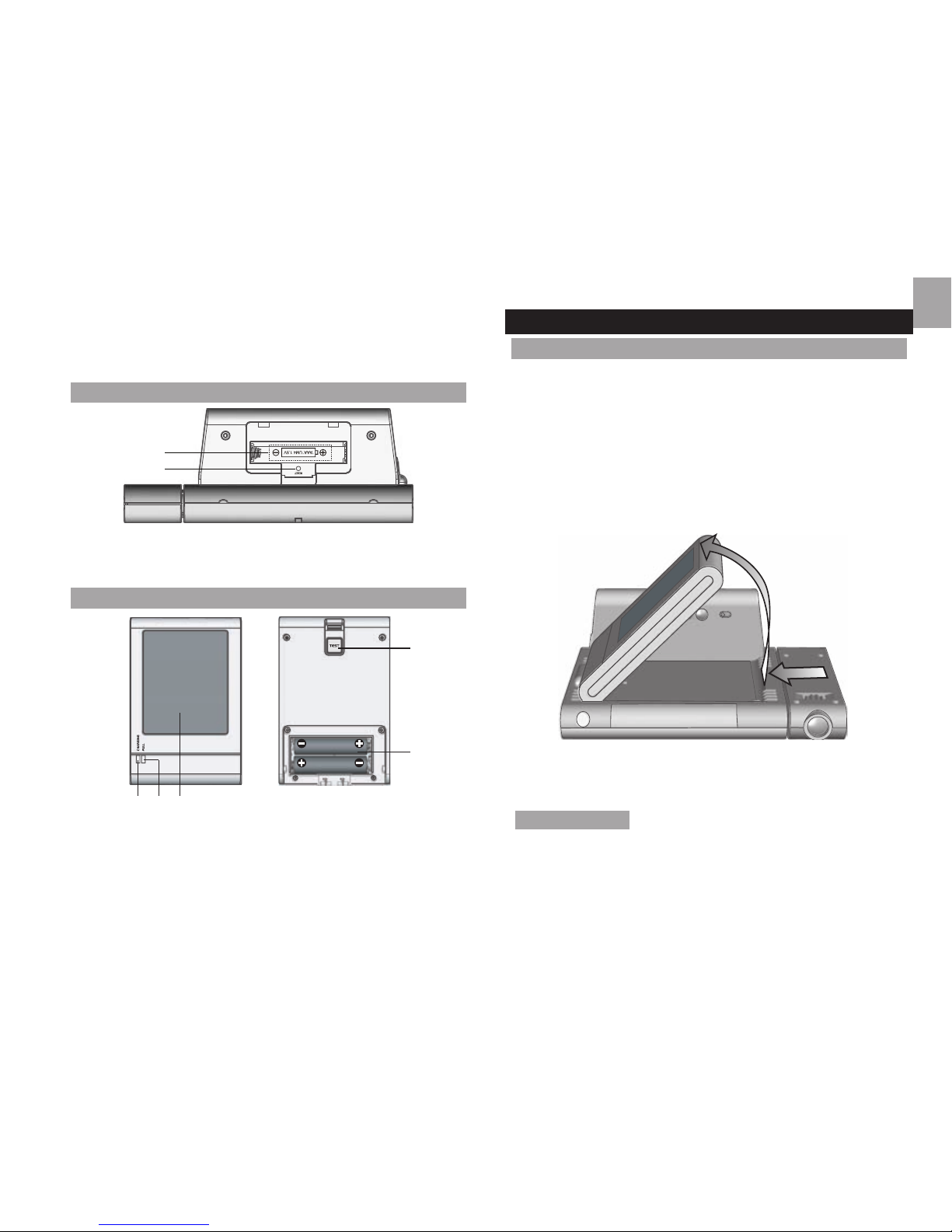

BOTTOM VIEW
1
2
1. Battery compartment
2. RESET: reset unit to default settings
SOLAR PANEL
4
5
1 2 3
1. CHARGING: charging in process
2. FULL: batteries fully charged (when TEST is pressed)
3. Solar panel
4. TEST: establish if battery is full
5. Battery compartment
GETTING STARTED
SOLAR PANEL
This product uses two AAA rechargeable batteries which
should be charged via the solar panel. For the batteries’
rst charge, it is strongly advised to charge it for at least
12 hours.
To charge the battery:
1. Detach solar panel by placing ngers between the solar
panel and main unit. Push sideways and lift away from
main unit.
2. Insert 2 AAA rechargeable batteries in battery
compartment located at the back of the solar panel.
IMPORTANT Place ONLY NiMH type rechargeable
batteries in the solar panel battery compartment. Do not
charge non-rechargeable batteries.
3. Expose the solar panel directly to sunlight for
approximately 5-6 hours to charge the battery. The (red)
P/N: 300102498-00001-10 REV1
5/72

EN
4
CHARGING LED on solar panel will light up indicating
there is sunlight and unit is charging.
TIP Press and hold TEST located at the back of the solar
panel. (Green) FULL LED indicates batteries have been fully
charged.
4. Align holes with protruding plastic. Push solar panel
towards main unit and snap into place.
5-6 hours of battery charging will normally provide power to
operate unit for 2 months (without using projection feature)
or 1 week (using sleep and alarm projection feature daily).
When the rechargeable battery is nearly at or when solar
panel has been detached, the (green) LED indicator on the
main unit and will ash.
TIPS
• For best results when charging the battery, place the
solar panel directly with view to sunlight.
• Direct solar panel as follows:
Solar panel facing: if you reside in the:
North Southern Hemisphere
South Northern Hemisphere
• Do not scratch the solar panel’s surface or wipe it with
strong detergent.
• Do not expose the solar panel to rain, snow or
moisture.
• The duration of the rechargeable battery’s charging or
operating time is determined by either the intensity of
sunlight or the position of the solar panel towards the
sun.
• Do not overcharge the batteries.
BACKUP POWER
1 piece AAA battery
In the case when the rechargeable battery is at or nearly
at or when the solar panel has been detached, the AAA
battery can act as backup power supply for the main unit.
1. Remove the battery compartment located at the base of
the unit.
2. Insert the battery, matching the polarities.
3. Press RESET after each battery change.
NOTE When the rechargeable battery power is exhausted
or when the solar panel has been detached, the backlight and
projection functions will be disabled and the performance of
the radio controlled clock may be affected.
Power adapter (not included)
The adapter powers the unit and can also be used for
charging the rechargeable battery. When connected to the
main unit, will be displayed and projection feature can
reach its maximum brightness.
Plug AC/DC adapter into socket. Make sure the adapter is
not obstructed and is easily accessible to the unit.
To completely disconnect from power, the adapter should be
disconnected from the main unit.
NOTE The main unit and adapter should not be exposed to
wet conditions. No objects lled with liquid, such as vases,
should be placed on the main unit and adaptor.
P/N: 300102498-00001-10 REV1
6/72

EN
5
CLOCK AND CALENDAR
CLOCK RECEPTION
This product is designed to synchronize its clock
automatically with a clock signal.
RM336PES: EU: DCF-77 signal: within 1500 km (932 miles)
of Frankfurt, Germany.
RM336PESU: UK: MSF-60 signal: within 1500 km (932
miles) of Anthorn, England.
RM336PESA: US: WWVB-60 signal: within 3200km (2000
miles) of Fort Collins Colorado.
To enable / disable clock signal reception:
Press and hold +to enable or -to disable clock signal
reception.
NOTE Reception takes 2-10 minutes. If the signal is weak,
it can take up to 24 hours to get a valid signal. If signal
reception is unsuccessful, place your unit next to a window,
press and hold +to force another signal search.
Clock signal reception indicator:
STRONG SIGNAL WEAK / NO SIGNAL
MANUALLY SET CLOCK
To set the clock manually, disable the clock signal reception
rst.
1. Press and hold .
2. Press + / - to change the settings.
3. Press to conrm.
The settings order is: time zone, 12/24 hr format, hour,
minute, year, calendar format (month – day / day – month),
month and day.
NOTE Time zone offset sets the clock +/- 23 hours from
the received clock signal time. If you have deactivated the
clock signal reception, do not set a value for time zone.
NOTE If you enter +1 in the time offset setting, this will
give you your local time plus one hour. If you are in the US
(RM336PESA) set the clock to:
0 for Pacic time +1 for Mountain time
+2 for Central time +3 for Eastern time
To toggle displays:
Press to toggle between alarm time and calendar.
ALARM
To set the alarm:
1. Press and hold to enter alarm setting.
2. Press + / - to set hour, minute, projection ON/OFF.to set hour, minute, projection ON/OFF.
3. Press to conrm.
indicates alarm is ON.
TIP When the alarm setting option of PROJECTION ON
has been selected, the projection feature will be activated
15 minutes before the set alarm time and will remain on until
the alarm is turned off.
P/N: 300102498-00001-10 REV1
7/72

EN
6
To activate / deactivate alarm:
Press .
To silence the alarm:
• Press SNOOZE to silence it for 8 minutes (the projection
will also remain on during this time)
OR
• Press any key to turn the alarm off and activate it again
after 24 hours.
To display alarm:
Press .
PROJECTION
The continuous projection feature operates under the
following circumstances:
• If adapter is connected
- PROJECTION switch is in ON position
• If no adapter connected
- Sleep timer activated
- Alarm projection selected
To activate continuous projection:
• Slide PROJECTION switch to ON (when adapter is
connected).
NOTE To conserve energy, the installed light sensor inside
the unit will disable the continuous projection feature when it
detects a certain level of brightness in the surroundings.
To project image momentarily:
• Press SNOOZE.
To deactivate continuous projection:
• Slide PROJECTION switch to OFF.
To ip projected image by 180˚:
• While image is projected, press SNOOZE.
To focus image:
• Turn focus wheel.
To display image vertically:
• Rotate projection head
SLEEP PROJECTION TIMER
To activate sleep projection timer:
• Press SLEEP.
To select duration:
• Press SLEEP repeatedly.
NOTE If the adapter is connected and PROJECTION
switch is in ON position, the projection will remain on despite
sleep timer having reached “0”.
BACKLIGHT
To activate backlight momentarily:
• Press SNOOZE.
P/N: 300102498-00001-10 REV1
8/72

EN
7
RESET
Press RESET to return to the default settings.
SPECIFICATIONS
TYPE DESCRIPTION
L x W x H 145 x 55 x 102 mm (5.7 x 2.2 x 4 in)
Weight 274 g (9.66 oz) without battery
Signal frequency 433 MHz
Power
2 x UM-4 (AAA) rechargeable
batteries;
5V AC adaptor (not included)
1 x UM-4 (AAA) battery (for backup)
PRECAUTIONS
• Do not subject the unit to excessive force, shock, dust,
temperature or humidity
• Do not cover the ventilation holes with any items such as
newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid over
it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components. This
invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.
• Images shown in this manual may differ from the actual
display.
• When disposing of this product, ensure it is collected
separately for special treatment.
• Placement of this product on certain types of wood
may result in damage to its nish for which Oregon
Scientic will not be responsible. Consult the furniture
manufacturer's care instructions for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the battery
compartment before rst use.
NOTE The technical specications for this product and the
contents of the user manual are subject to change without
notice.
NOTE Features and accessories will not be available in all
countries. For more information, please contact your local
retailer.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientic.com) to learn more
about Oregon Scientic products. If you’re in the US and
would like to contact our Customer Care department directly,
please visit:
www2.oregonscientic.com/service/support.asp
For international inquiries, please visit:
www2.oregonscientic.com/about/international.asp
P/N: 300102498-00001-10 REV1
9/72

EN
8
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientic, declares that this +ECO Solar
Projection Clock (model: RM336PES / RM336PESA
/ RM336PESU) is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC. A copy of the signed and dated Declaration of
Conformity is available on request via our Oregon Scientic
Customer Service.
COUNTRIES RTTE APPROVED COMPLIED
All EU countries, Switzerland CH
and Norway N
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.
WARNING Changes or modications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact
for support or sales. Please visit our website at www2.
oregonscientic.com/service for all enquiries.
We
Name: Oregon Scientic, Inc.
Address: 19861 SW 95th Ave.,Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
P/N: 300102498-00001-10 REV1
10/72
