Oregon Scientific EW91 User manual

Indoor/OutdoorThermometer
withIceAlert
Model:EW91
USER MANUAL
C8311A(DCF MSF)
Size: 148 x 105(mm)

CONTENTS
Brief Introduction ............................................2
Overview ..........................................................2
Receiver .....................................................2
LCD Display ................................................3
Sensor ........................................................3
Reception of Sensor Signal ............................4
Operating the Temperature station ...................4
Operating the Sensor ....................................4
Using the Backlight Function .........................5
Switching Between °C & °F Temperature Formats .... 5
Viewing the Min. & Max. Temperature Records ..5
Using ICE Alert Function ............................5
Battery Replacement ......................................5
Placement of Main Unit And Sensor .................6
Precautions ................................................6
Specifications ................................................7
About Oregon Scientific .................................8
EU-Declaration of Conformity.......................8
FCC Statement ..............................................8
Declaration of Conformity ..............................9
Indoor / Outdoor Thermometer
with Ice Alert
Model: EW91
USERMANUAL
1
EN

BRIEFINTRODUCTION
Thank you for your purchase of this Wireless Indoor
and Outdoor Thermometer. Please read these
instructions carefully and keep the manual well for
future reference.
The receiver unit has a clear display that shows the
indoor temperature, the maximum & minimum
temperature records in the past 24 hours as well as
the outdoor temperature measured and transmitted
from the remote sensors. It is able to receive and
display readings from up to 3 remote sensors.
The 433 MHz technology means no wire installation
is required and you can place the sensors within
30m (100ft) from the main (indoor) unit.
OVERVIEW

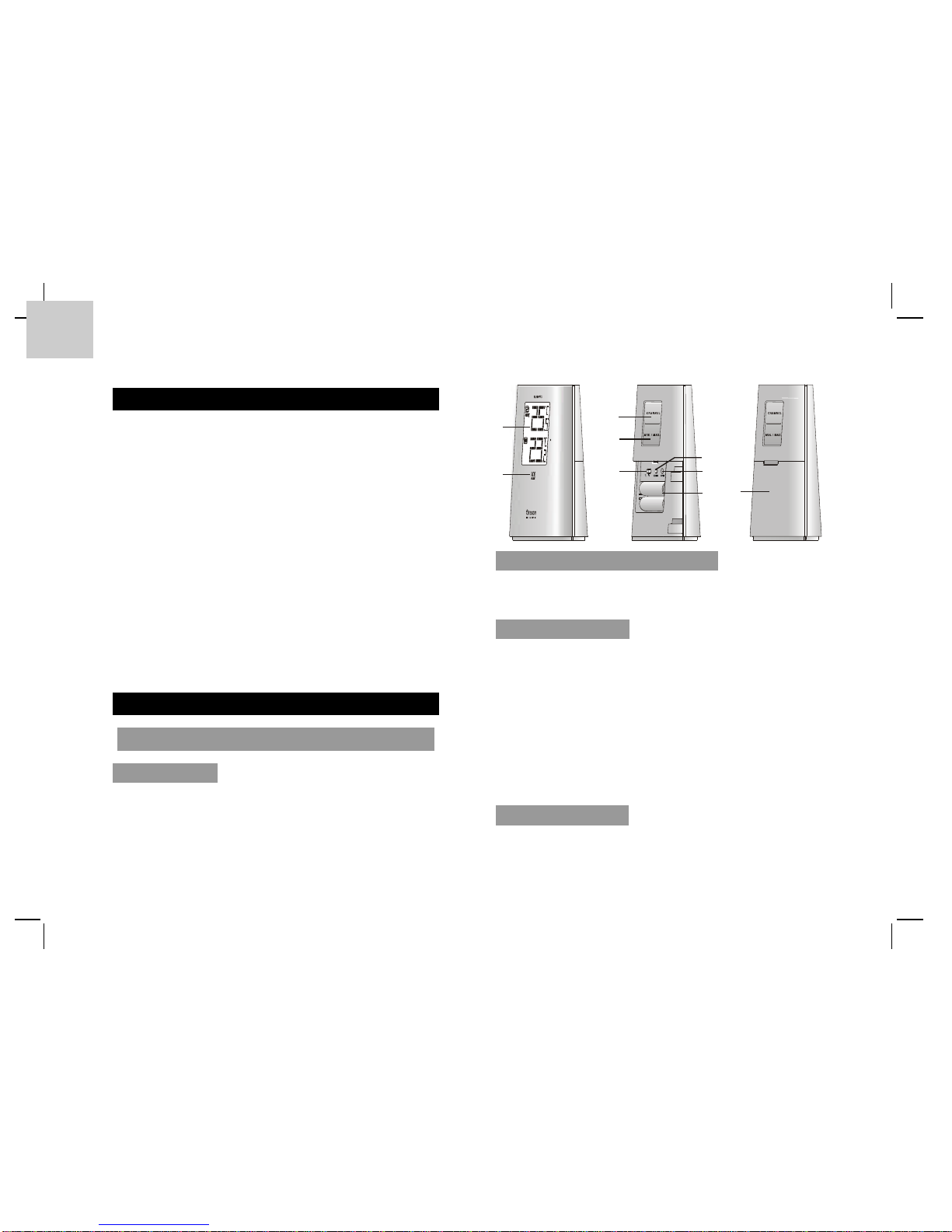

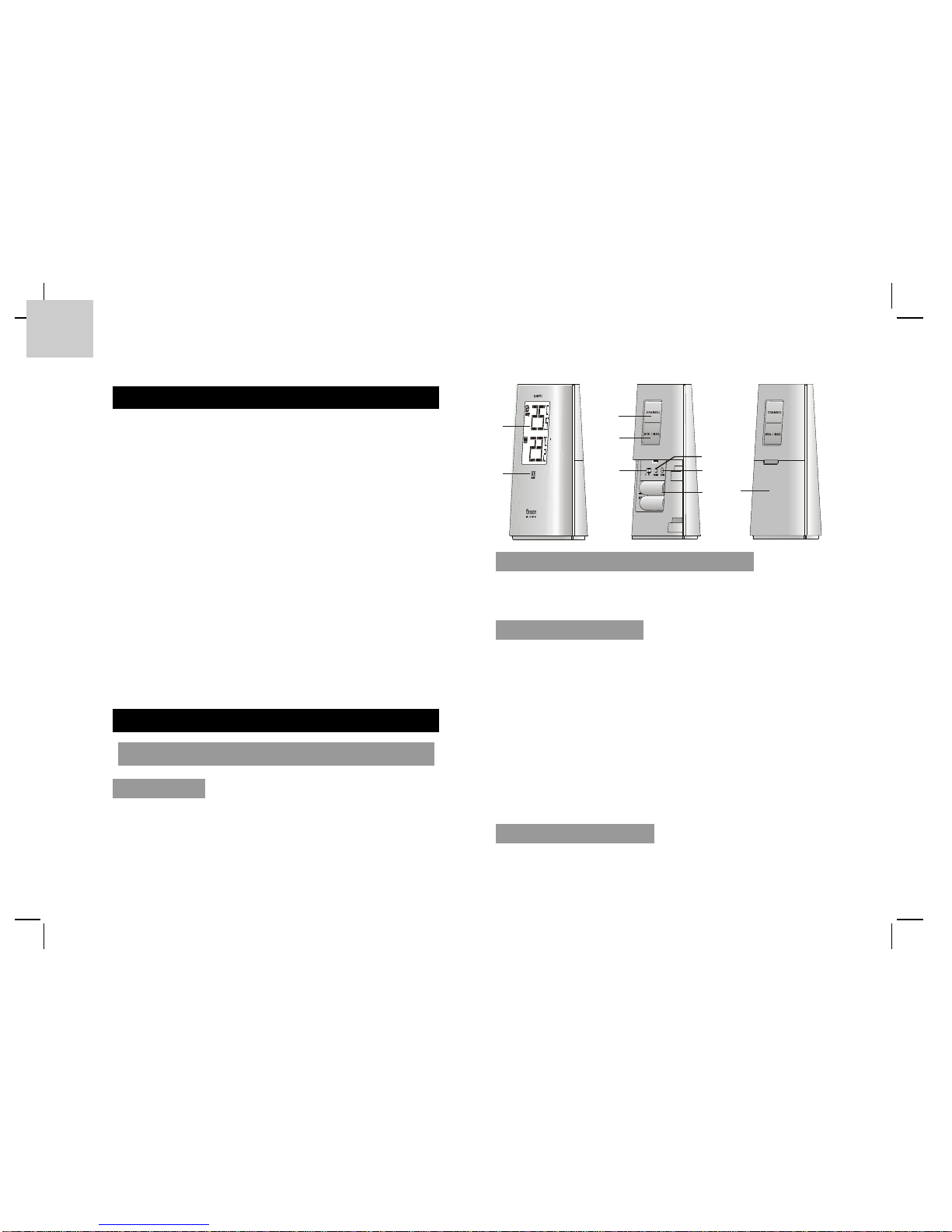

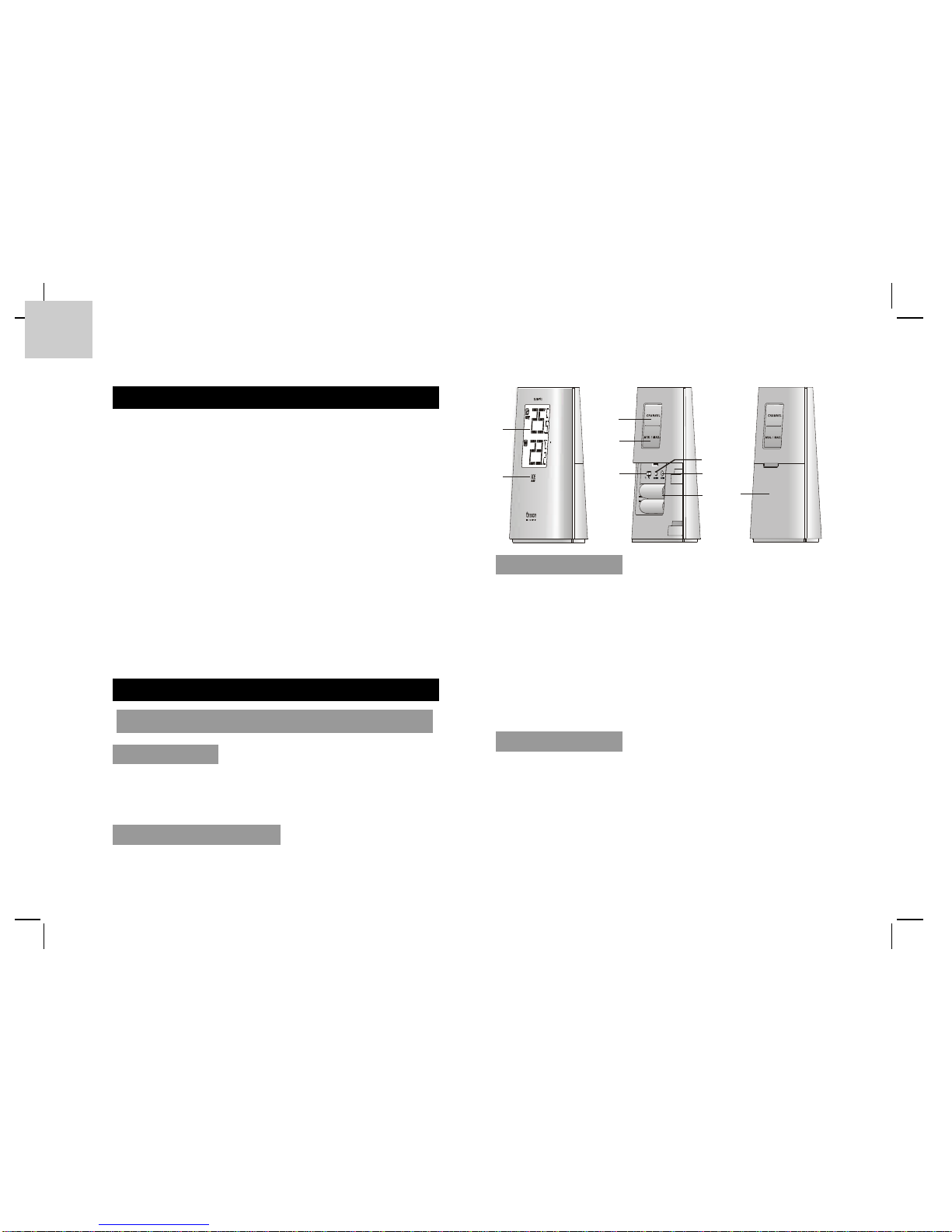

RECEIVER
1.LCD display:
• Displays the outdoor and indoor temperature
records, the current channel and the low
battery indicator.
2.Ice Alert indicator light:
• Flashes when the outdoor temperature is
between -2.0°C (28°F) and 3.0°C (37°F).
3.CHANNEL key:
• Press it once to turn on the backlight and at
the same time to switch among channel 1, 2
and 3.
• Press it once to turn on the backlight for 5
seconds, and then press and hold it for 2
seconds to view the channels automatically.
• When the channels are being shown
automatically, press it to exit the automatic
display mode.
4.MIN./MAX. key:
• Press it once to turn on the backlight and at
the same time to show the minimum
temperaturerecordsinthepast24hours,press
it again to show the maximum temperature
records in the past 24 hours.
• Press and hold it for 3 seconds to delete the
minimum and maximum temperature records.
2
9
1
2
3
4
6
5
7
8
EN

5.°C/°F slide switch:
• Slideit toswitchbetweenCelsiusandFahrenheit.
6.SENSOR key:
• Press it once to search a sensor.
• During the reception period, press and hold it
for 3 seconds to stop the reception.
7.RESET key:
• Press it to return all values to default values.
• In case of malfunction, the unit may be required
to reset.
8.BATTERY COMPARTMENT:
• Accommodates 2 AAA size batteries.
9.BATTERY DOOR
LCD DISPLAY
1. Signal indicator
2. Channel
3. Outdoor temperature
4. Low battery indicator
5. Min and Max temperature
6. °C & °F
7. Indoor temperature
SENSOR
1.LED indicator:
• Flashes when the remote unit transmits a reading.
2.Wall-mounting holder:
•Supports the sensor on the wall.
3.RESET key:
•Press it to restart the sensor and return all
values to default values.
4.CHANNEL slide switch:
•Assign the sensor to channel 1, 2 or 3.
5.BATTERY COMPARTMENT:
•Accommodates 2 AAA size batteries.
6.BATTERY DOOR
3
3
7
2
1
4
5
6
1
2
34
5
6
EN

4

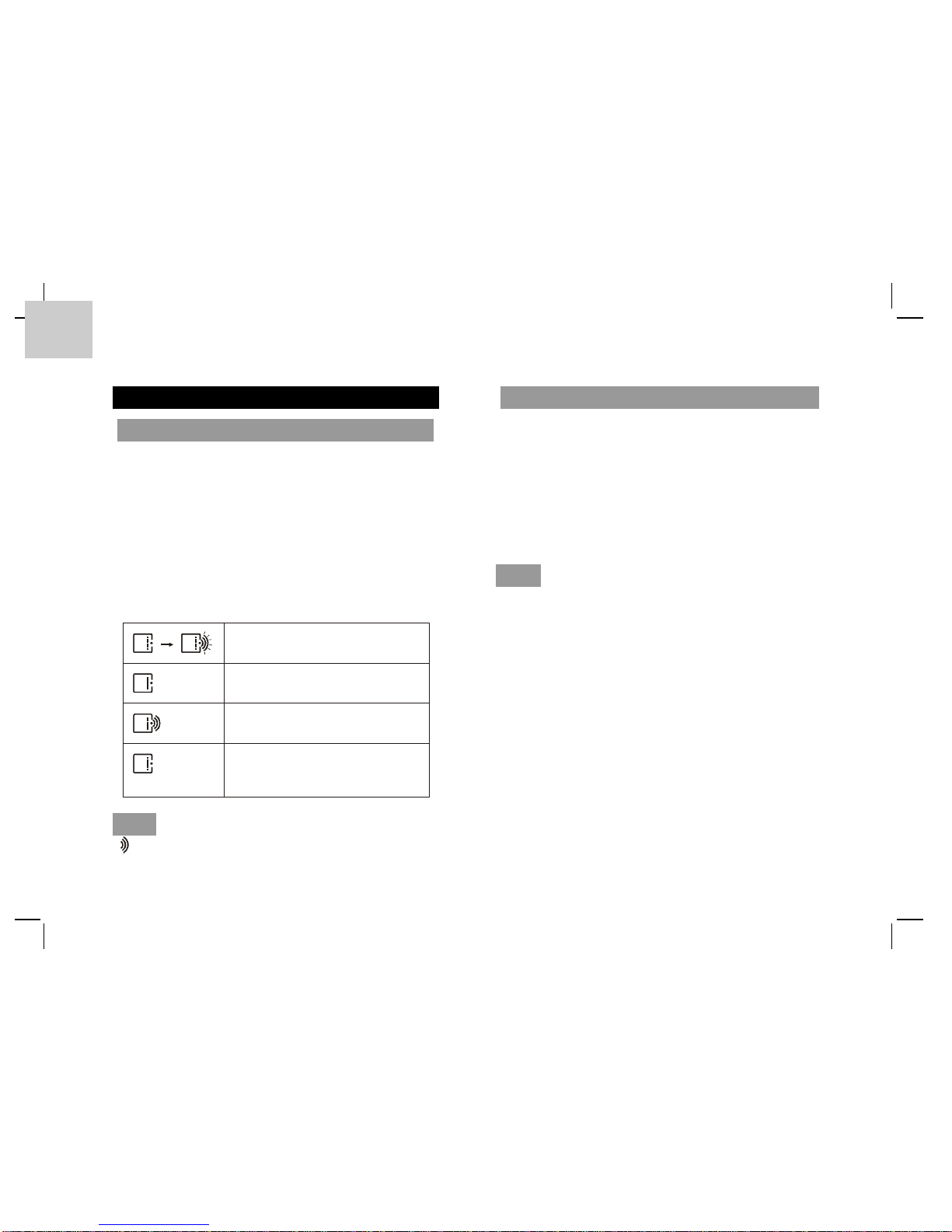

RECEPTION OF SENSOR SIGNAL
OPERATING THETEMPERATURETATION
1. Remove the battery door and insert 2 new
AAA size batteries as per the polarity
information marked on the battery
compartment.
2. Press “RESET” key.
3. Slide “°C/°F” switch to select between °C and
°F.
4. Slide the battery door back on.
5. Press “CHANNEL” key to select the desired
channel.
Note When the sensor signal is received, the icon
“” will be displayed on the LCD.
OPERATING THE SENSOR
1. Remove the battery door and slide the
“CHANNEL” switch to CH 1.(When using
additional sensors, make sure each sensor is
assigned a different CHANNEL number.)
2. Insert 2 new AAA size batteries, matching
polarities(+/-).
3. Press “RESET” key.
4. Slide the battery door back on.
Note
Tip the transmission range may vary depending on
many factors. You may need to experiment with
various locations to get the best results.
Standard Alkaline batteries contain significant
amounts of water. Because of this they will freeze
in low temperatures of approximately -12°C (10°F).
Disposable Lithium batteries have a much lower
threshold for temperature with an estimated freezing
range of below -30°C (-22°F).
Wireless ranges can be impacted by a variety of
factors such as extremely cold temperatures. Extreme
cold may temporarily reduce the effective range
between the sensor and the base station. If the unit’s
Main unit is searching for the sensor(s)
(the icon will be flashing)
The sensor(s) cannot be found
Sensor 1 has been found
(the icon will be displayed,
but won't flash)
The sensor(s) cannot be found after
operating the main unit for 60 minutes
and “--”
(Outdoor
temperature
Area)
EN

5
performance fails due to low temperature, the unit will
resume proper functioning as the temperature rises to
withinthenormaltemperature range(i.e.nopermanent
damagewilloccurtothe unit due tolowtemperatures).
USING THE BACKLIGHT FUNCTION
In normal mode, press “CHANNEL” or “MIN./MAX.”
key once to activate the backlight for 5 seconds.
SWITCHING BETWEEN ºC & ºF
TEMPERATURE FORMATS
Slide “ºC/ºF” switch to select between Celsius and
Fahrenheit.

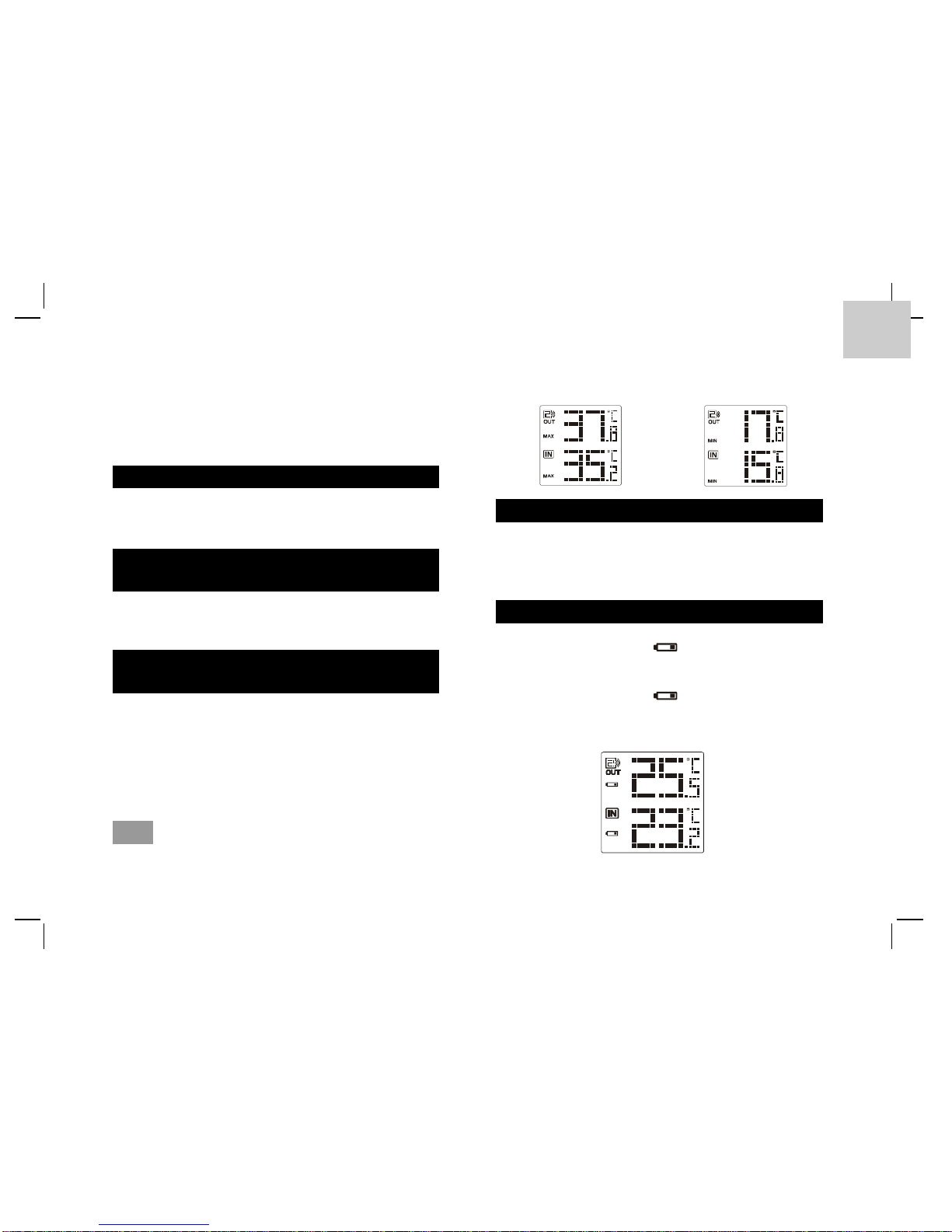

VIEWINGTHE MIN. & MAX.TEMPERATURE
RECORDS
1. In normal mode, press “MIN./MAX.” key once
to show the minimum indoor & outdoor
temperature records in the past 24 hours.
2. Press ittwice to showthemaximumtemperature
records.
3. Press it again to exit.
Note Press and hold it for 3 seconds to delete the
minimum and maximum temperature records.
USING ICE ALERT FUNCTION
If the outdoor temperature range is -2.0ºC ~ 3.0ºC
(28ºF ~ 37ºF), the Ice Alert indicator light will be
turned on and flash.
BATTERY REPLACEMENT
If the low battery icon “” turns on next to the
outdoor temperature reading, replace the sensor’s
battery with 2 AAA batteries.
If the low battery icon “” turns on next to the
indoor temperature reading, replace the sensor’s
battery with 2 AA batteries.
MAX.temperature records
MIN.temperature records
Low battery indicator
EN

Note Attention! Please dispose of the used unit or
batteries in an ecologically safe manner.
PLACEMENT OF MAIN UNIT AND SENSOR
For the sensor, place the screw on the desired wall
and hang the sensor by the recessed hole in the
back of it or simply place it on the desktop.
For the main unit, you can just place it on the table
by itself.
6
PRECAUTIONS
This product is engineered to give you years of
satisfactory service if you handle it carefully. Here
are a few precautions:
•Do not cover the ventilation holes. Make sure
items that are nearby such as newspapers,
tablecloths, curtains etc cannot accidentally
cover the ventilation holes.
•Do not subject the unit to excessive force,
shock, dust, temperature or humidity, which
may result in malfunction, shorter electronic
life span, damaged battery and distorted parts.
•Placement of this product on wood surfaces
with certain types of ûnishes, such as clear
varnish, may result in damage to the ûnish.
Consult the furniture manufacturer’s care
instructions for direction as to the types of
objects that may safely be placed on the
wood surface. Oregon Scientiûc shall not be
responsible for any damage to wood surfaces
from contact with this product.
•Do not immerse the unit in water. If you spill
liquid over it, dry it immediately with a soft,
lint-free cloth.
•Do not clean the unit with abrasive or corrosive
materials.
EN

•Do not tamper with the unit’s internal
components. Doing so will invalidate the
warranty on the unit and may cause
unnecessary damage. The unit contains no
user-serviceable parts.
•Only use fresh batteries as speciûed in the
user’s instructions. Do not mix new and old
batteries.
•Due to printing limitations, the displays shown
in this manual may differ from the actual
display.
•The contents of this manual may not be
reproduced without the permission of the
manufacturer.
•Do not dispose this product as unsorted
municipal waste. Collection of such waste
separately for special treatment is necessary.
Note
The technical speciûcations for this product and the
contents of the user manual are subject to change
without notice.
SPECIFICATIONS
DESCRIPTION
70 x 30 x 109 mm
(2.76 x 1.18 x 4.29 in)
433 MHz
-5°C to 50°C (23)°F to 122°F
0.1°C (0.2)°F
3°C to -2°C
(37)°F to 28°F
2 x AA 1.5V batteries
58 x 23 x 100 mm
(2.28 x 0.9 x 3.94 in)
433 MHz
-20°C to 60°C (-4)°F to 140°F
2 x AAA 1.5V batteries
3
TYPE
MAIN UNIT
L x W x H
Signal frequency
Temperature
range
Temperature
resolution
Ice alert
temperature range
Power
REMOTE UNIT (EW-99)
L x W x H
Signal frequency
Temperature range
Power
Number of channel
Transmission range 30 m (98 ft) unobstructed
Weight
Weight
111g
52g
7
EN

8
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about Oregon Scientific products such as digi-
talcameras;MP3players;children’s electronic learing
products and games; projection clocks; health and
fitness gear; weather stations; and digital and con-
ference phones. The website also includes contact
information for our Customer Care department in
case you need to reach us, as well as frequently
asked questions and customer downloads.
We hope you will find all the information you need
on our website, however if you’re in the US and
would like to contact the Oregon Scientific Customer
Care department directly, please visit:
http://www2.oregonscientific.com/service/default.asp
OR
Call1-800-853-8883.
For international inquiries, please visit:
www2.oregonscientific.com/about/international.asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that the Indoor /
Outdoor Thermometer (Model EW91) is in compli-
ance with the essential requirements and other rel-
evant provisions of Directive 1999/5/EC.
A copy of the signed and dated Declaration of
Conformity is available on request via our Oregon
Scientific Customer Service.
COUNTRIES RTTE APPROVAL COMPLIED
ALL EU countries, Switzerland CH
and Norway N
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) This device must accept any interference
received, including interference that may cause
undesired operation.
WARNING Changes or modifications not expressly
approved by the party responsible for complance could
void the user’s authority to operate the equipment.
EN

9
NOTE This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protectionagainst
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increasetheseparationbetweentheequipment
and receiver.
•Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio /
TV technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as
contact for support or sales. Please call our
customer service number (listed on our website at
www.oregonscientific.com or on the warranty card
for this product) for all inquiries instead.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th AVe., Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
Declare that the product
Product No.: EW91
Product Name: Indoor /Outdoor Thermometer
with Ice Alert
Manufacturer: IPM Concepts Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1,41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful
interference.
2) This device must accept any interference
received, including interference that may
cause undesired operation.
EN
