Oregon Scientific EW92 User manual

Indoor/OutdoorThermometer
withRadio-ControlledAlarmClockandIceAlert
Model:EW92
USER MANUAL
C8312A(DCF MSF)
Size: 148 x 105(mm)

EN
1
CONTENTS
Brief Introduction ............................................2
Overview .........................................................2
Receiver ....................................................2
LCD Display ...............................................4
Sensor .......................................................4
Reception of Sensor Signal ...........................4
Operating the Main Unit .................................4
Operating the Sensor ..................................5
Reception of Radio Controlled Time Signal ....6
Signal Reception Indicator ............................6
Time and Calendar Manual Setting ...................6
Alarm Time Setting .........................................7
Using Alarm Function ....................................7
To Silence the Alarm .......................................8
Reading Indoor & Outdoor Temperature Records ..8
Viewing the Min. & Max. Temperature Records ...8
Using Ice Alert Function ................................8
Battery Replacement .....................................9
Placement of Main Unit And Sensor .................9
Indoor / Outdoor Thermometer with
Radio-ControlledAlarmClockandIceAlert
Model: EW92
USERMANUAL
Precautions ..............................................10
Specifications ..........................................11
About Oregon Scientific ........................11
Eu-Declaration of Conformity ............12
FCC statement ............................................12
Declaration of Conformity .................12

EN
BRIEFINTRODUCTION
Thank you for your purchase of this Indoor / Outdoor
Thermometer. Please read these instructions
carefully and keep the manual well for future
reference.
The receiver unit has a clear and easy-to-read
display that shows the indoor temperature, time,
the maximum & minimum temperature records in
the past 24 hours as well as the outdoor temperature
measured and transmitted from the remote sensors.
It is able to receive and display readings from up to
3 remote sensors.
The 433 MHz technology means no wire installation is
required and you can place the sensors anywhere you
like within 30m (100ft) from the main (indoor) unit.
This product is designed to synchronize its date and
time automatically once it is within range of the
signal from the atomic clock in Germany/England.
OVERVIEW
RECEIVER
1.SNOOZE/LIGHT key:
•In normal time mode, press it once to turn on
the backlight for 5 seconds.
•Press it to silence the current alarm when it is
goingandenterthe snoozemode for8 minutes.
2.LCD display:
•Displays outdoor & indoor temperature, time
and date.
3.Ice Alert indicator light:
•Flashes when the outdoor temperature is
between -2.0°C (28 °F) and 3.0°C (37 °F).
4.+/CHANNEL key:
•Press it once to switch among Channel 1, 2
and 3.
2
10
9
1
2
3
4
5
6
7
811
14
15
12
13

EN
•Press and hold it for 2 seconds to view the
channels automatically. Press it again to exit
the automatic display mode.
•In time setting mode, press it to increase the
setting values.
5.SET CLOCK key:
•In normal time mode, press it once to enter
the normal time setting mode.
•In normal time setting mode, press it to step
the setting items. Press and hold it to exit the
setting mode in any step.
6.-/MIN.MAX. key:
•Press it to show the minimum and maximum
temperature records in the past 24 hours.
•Press and hold it for 3 seconds to delete the
minimum and maximum temperature records.
•In time setting mode, press it to decrease the
setting values.
7.SENSOR key:
•Press it once to search a sensor.
•During the reception period, press and hold it
for 3 seconds to stop the reception.
8.°C/°F slide switch:
•SlideittoswitchbetweenCelsiusandFahrenheit.
9.ALARM ON/OFF key:
•Press it once to turn on the backlight and
display the alarm time for 5 seconds.
•Press it again to turn on/off the alarm.
10.SET ALARM key:
•Press it once to turn on the backlight for 5
seconds, and at the same time to enter the
alarm time setting mode.
•In alarm time setting mode, press it to step
the setting items.
11.RESET key:
•Press it to return all values to default values.
•In case of malfunction, the unit may be
required to reset.
12.RCC key:
•In normal time mode, press it once to receive
the RC signal for reception testing.
•During the reception period, press and hold it
for 8 seconds to stop the reception.
13.UK/EU slide switch:
•Slide it to select the country version between
EU (Germany) and UK (England).
14.BATTERYCOMPARTMENT:
•Accommodates 2 AA size batteries.
3

EN
4
15.BATTERY DOOR

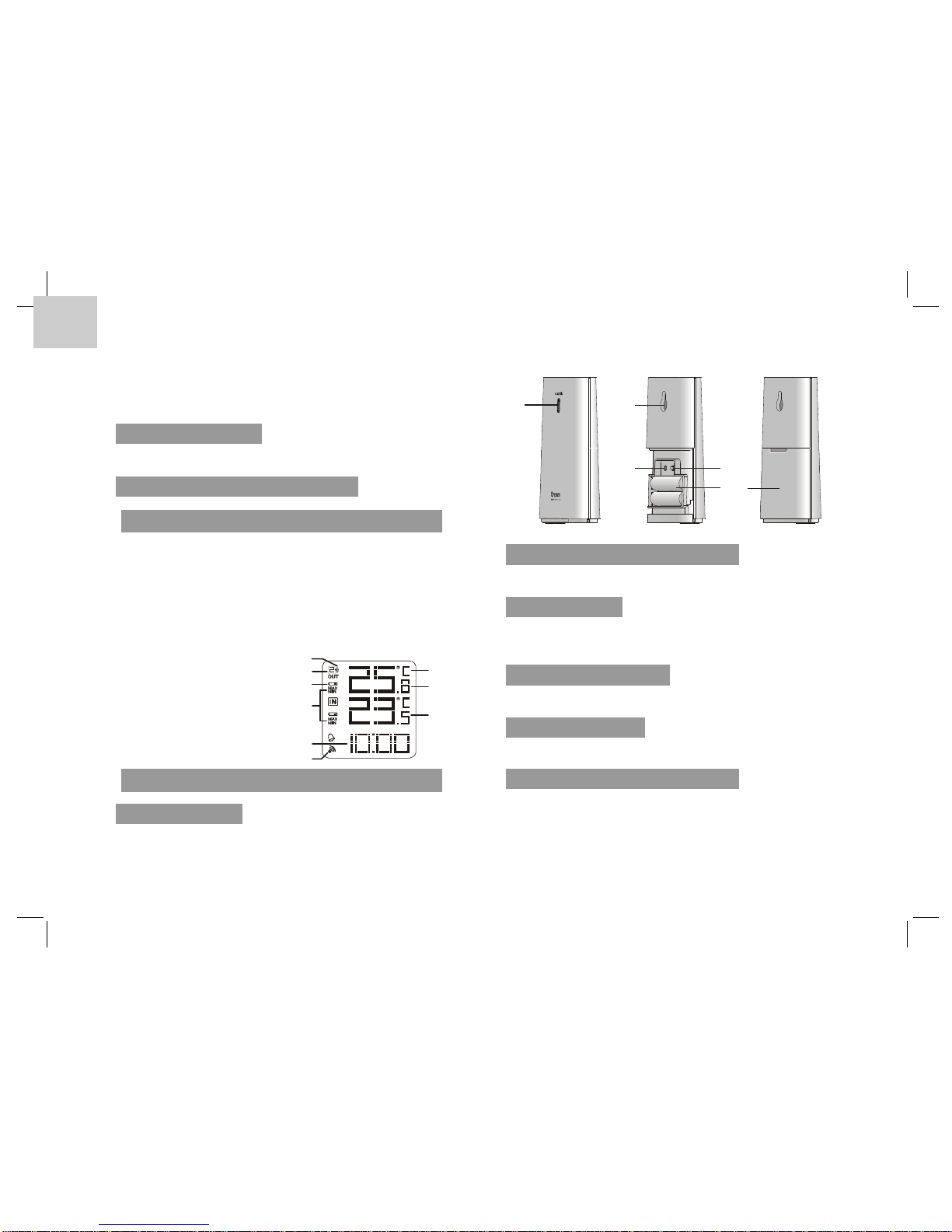

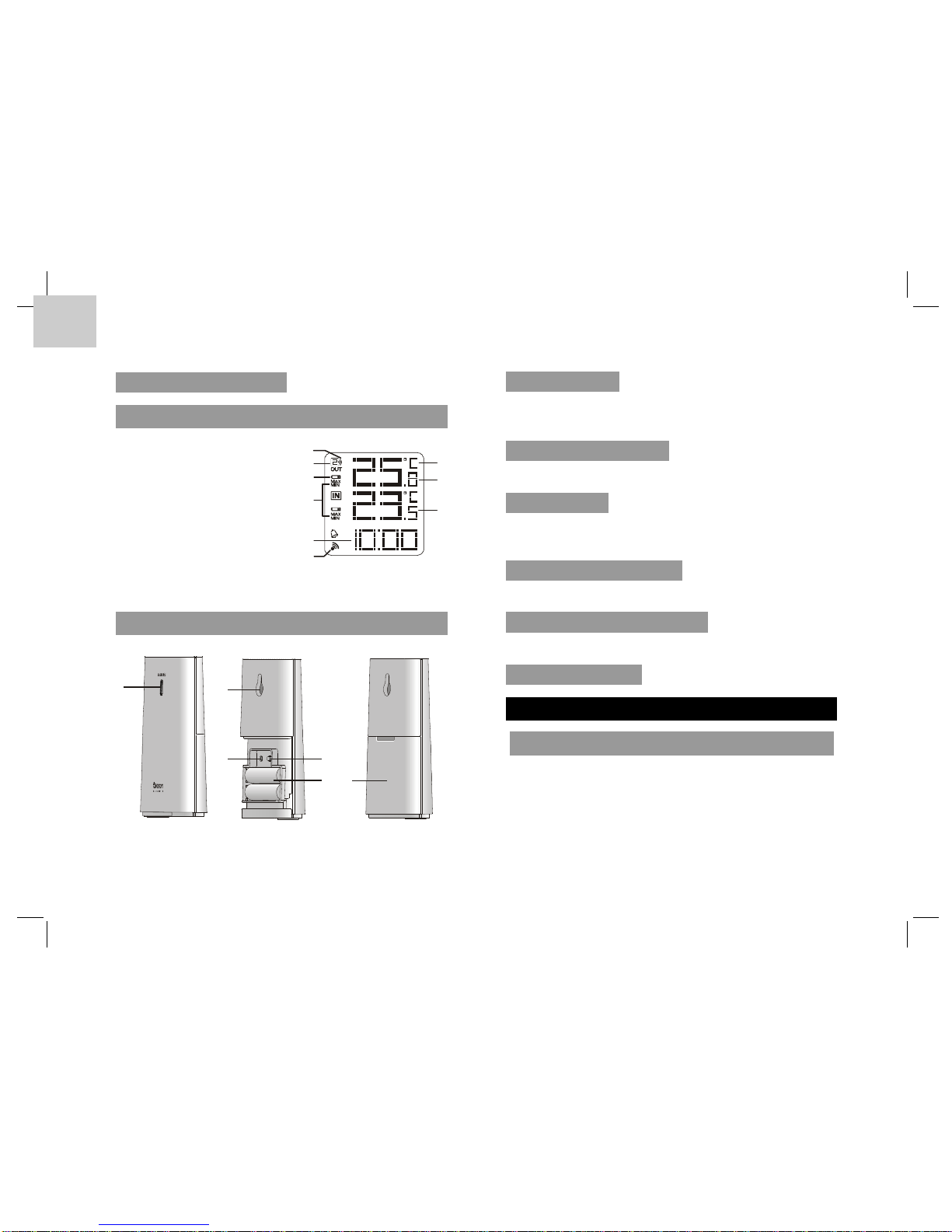

LCD DISPLAY
1. Sensor signal
2. Channel
3. Low battery indicator
4. Min.&Max.temperature
5. Time
6. Signal reception indicator
7. °C & °F
8. Outdoor temperature
9. Indoor temperature
SENSOR
1.LED indicator:
•Flashes when the remote unit transmits a
reading.
2.Wall-mounting holder:
•Supports the sensor on the wall.
3.RESET key:
• Press it to restart the sensor and return all
values to default values.
4.CHANNEL slide switch:
•Assign the sensor to channel 1, 2 or 3.
5.BATTERY COMPARTMENT:
•Accommodates 2 AAA size batteries.
6.BATTERY DOOR
RECEPTION OF SENSOR SIGNAL
OPERATING THE MAIN UNIT
1. Remove the battery door and slide “UK/EU”
switch to select the desired country version.
2. Insert 2 new AA size batteries as per the polarity
informationmarkedonthebatterycompartment.
3. Press “RESET” key to restart the clock.
1
4
6
3
2
9
8
5
7
1
2
34
5
6

EN
4. Slide “°C/°F” switch to select between Celsius
and Fahrenheit.
5. Replace the battery door.
6. Press “+/CHANNEL” key to select the desired
channel.
Note When the sensor signal is received, the icon
“ ” will be displayed on the LCD.
OPERATING THE SENSOR
1. Remove the battery door and slide
“CHANNEL” switch to synchronize the channel
with receiver.
2. Insert 2 new AAA size batteries as per the
polarity information marked on the battery
compartment.
5
3. Press “RESET” key to restart the clock.
4. Replace the battery door.
Note
The transmission range may vary depending on
many factors. You may need to experiment with
various locations to get the best results.
Standard Alkaline batteries contain significant
amounts of water. Because of this they will freeze
in low temperatures of approximately -12°C (10°F).
Disposable Lithium batteries have a much lower
threshold for temperature with an estimated
freezing range of below -30°C (-22°F).
Wireless ranges can be impacted by a variety of
factors such as extremely cold temperatures.
Extreme cold may temporarily reduce the effective
range between the sensor and the base station. If
the unit’s performance fails due to low temperature,
the unit will resume proper functioning as the
temperature rises to within the normal temperature
range (i.e. no permanent damage will occur to the
unit due to low temperatures).
Main unit is searching for the sensor(s)
(the icon will be flashing)
The sensor(s) cannot be found
Sensor 1 has been found
(the icon will be displayed,
but won't flash)
The sensor(s) cannot be found after
operating the main unit for 60 minutes
and “--”
(Outdoor
temperature
Area)

6
RECEPTION OF RADIO CONTROLLED
TIME SIGNAL
The time and calendar are radio-controlled. The
current time and calendar are automatically
synchronized with time signal transmitted from
Germany/England.
When used for the first time (after inserting batteries
or pressing “RESET” key), and then after 5 minutes,
the clock will start to receive the time signal. The
signalreceptionindicator will beflashingfor 7 minutes.

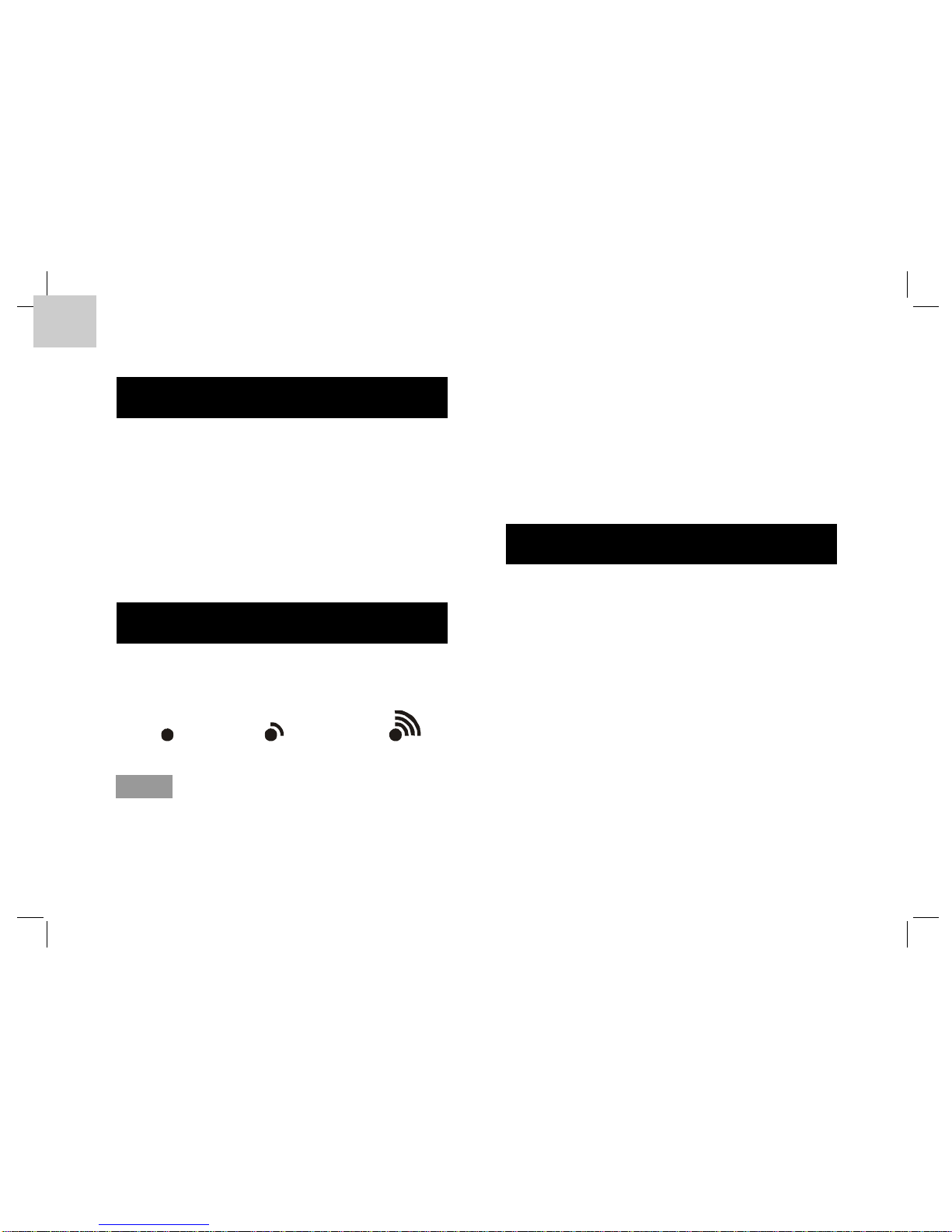

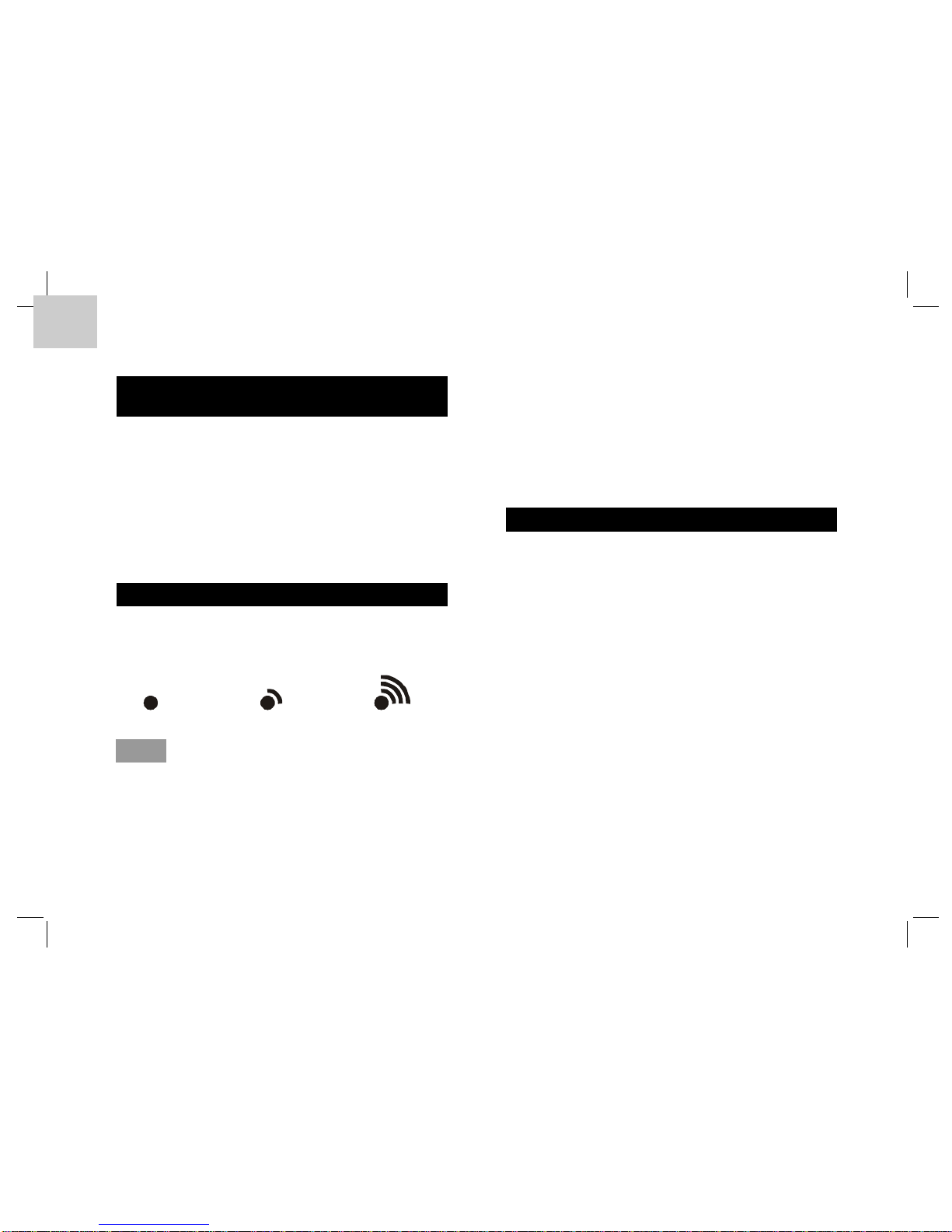

SIGNAL RECEPTION INDICATOR
The wave segment flashing means time signals are
being received. The signal quality could be classified
into 3 types:
Note
1. The unit will automatically search for the time
signal at 2:00 (3:00 or 4:00 is also available if
the signal is not received at 2:00), 8:00, 14:00
and 20:00 each day.
2. Always place the unit away from interfering
sources such as TV set, computer, etc.
3. Avoid placing the unit on or next to metal
plates.
4. Closed area such as airport, basement, tower
block or factory is not recommended.
5. Do not start reception in moving articles such
as vehicles or trains.
TIME AND CALENDAR MANUAL SETTING
If you are out of reach of the Radio Controlled
sensor or if the reception is not reachable, the time
and calendar can be set manually. As soon as the
signal of sensor is received again, the clock will
automatically synchronize with the exact time and
calendar.
1. In normal time mode, press “SET CLOCK”
key once to enter the time setting mode.
2. Press “+/CHANNEL” or “-/MIN.MAX.” key to
change the settings.
3. Press “SET CLOCK” to confirm. The setting
order is: 12/24-hr format, time, +/-23 hours
time difference, year, day/month format,
date.
4. Press “SET CLOCK” key to save and exit the
setting mode.
No signal Weak signal
Excellent signal
EN

7
Note
1. During the setting period, press and hold “+/
CHANNEL” or “-/MIN.MAX.” key to speed up
the change of settings.
2. Through “+/-23 hours time difference” setting,
the precise time of another area will be shown.
ALARM TIME SETTING
1. In normal time mode, press “SET ALARM”
key once to enter the alarm time setting
mode.
2. Press “+/CHANNEL” or “-/MIN.MAX.” key to
set hour/minute.
3. Press “SET ALARM” key to save and exit the
setting mode. “” indicates alarm is ON.
Note
1. Thealarmwill beautomaticallyturned onwhen
you set the alarm time.
2. During the alarm time setting period, press
and hold “+/CHANNEL” or “-/MIN.MAX.” key
to speed up the change of settings.
USING ALARM FUNCTION
1. Set the alarm time as the above section.
2. Innormaltime mode,press“ALARMON/OFF”
key once to display the current alarm time.
3. Press it again to turn alarm ON/OFF.
Normal time mode
Alarm time setting mode

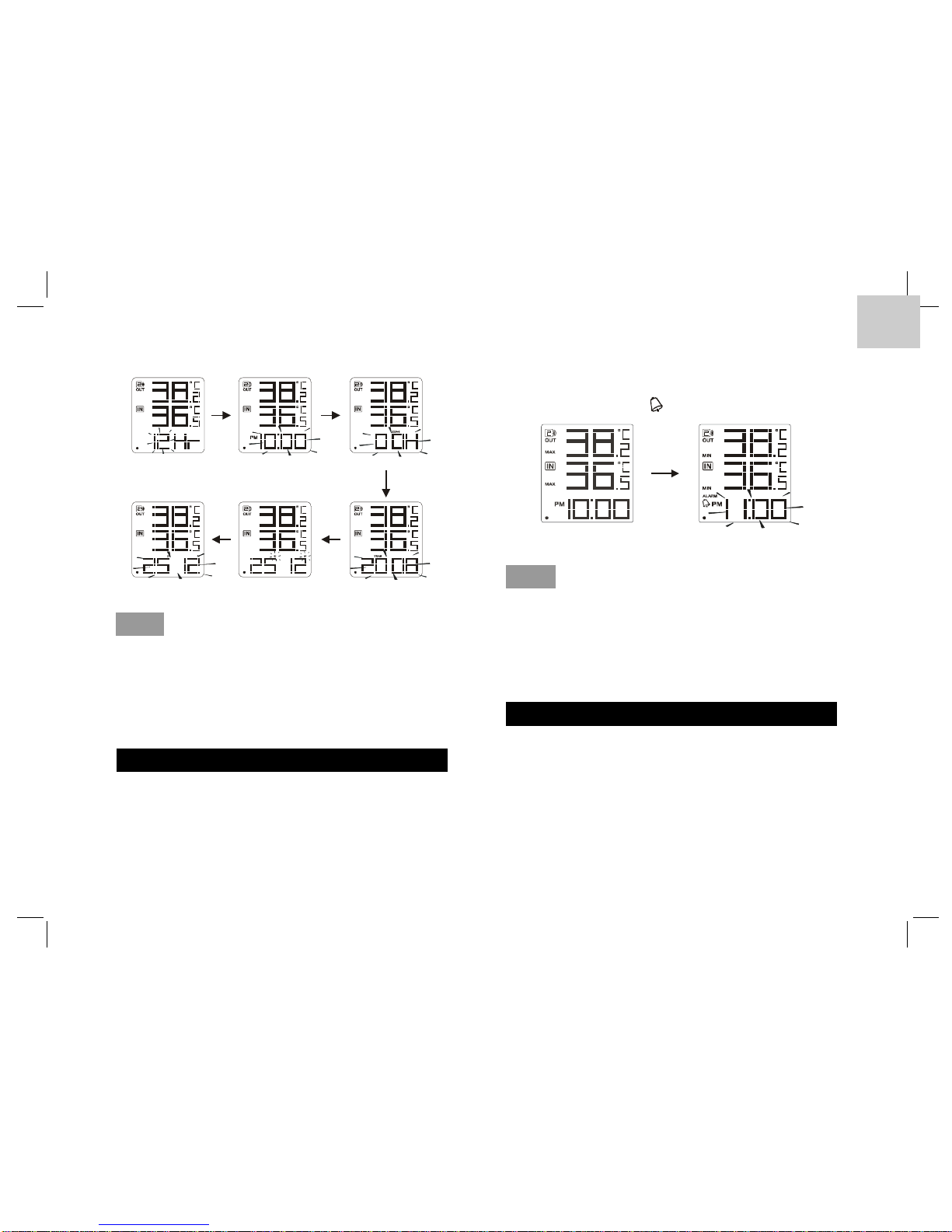

12/24 Hr setting Time setting
Time difference setting
Year settingMD/DM settingMonth-Date setting
EN

TO SILENCE THE ALARM
1. Press “SNOOZE/LIGHT” to silence the alarm
for 8 minutes. The “ ” will be flashing.
2. Press “ALARM ON/OFF” key to turn the alarm
off and activate it again after 24 hours.
3. If no key is pressed within 120 seconds, the
alarm will be turned off and be activated
again after 24 hours.
READING INDOOR & OUTDOOR
TEMPERATURE RECORDS
Slide “ºC/ºF” switch to select between Celsius and
Fahrenheit.
Note
1. If no signals are received or the transmission
is interfered, “--” will appear on the display.
2. Relocate the clock or sensor in other positions
to try out where your clock receives the
signals best. After several trials in vain,
please reset the clock thoroughly.

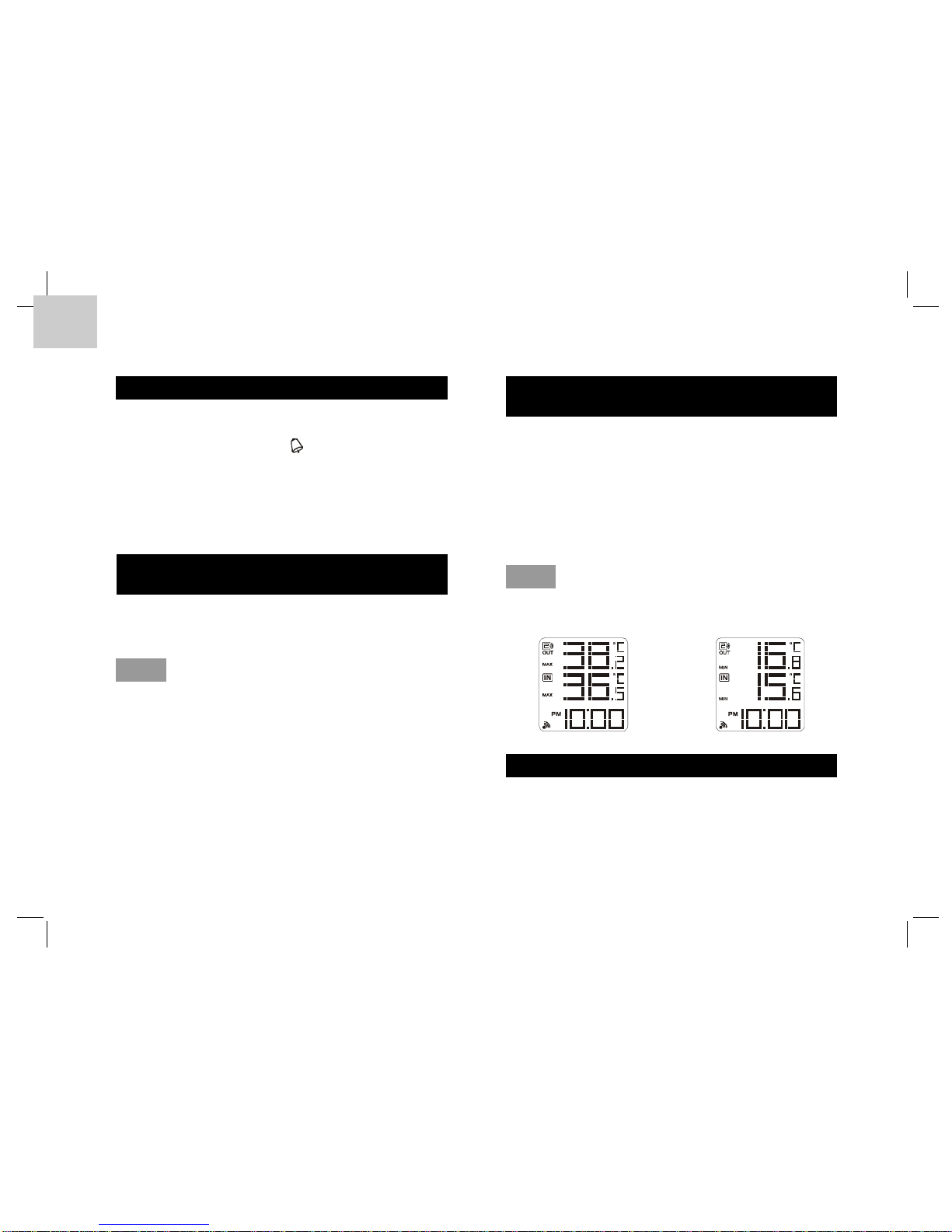

MAX.temperature records
MIN.temperature records
VIEWINGTHEMIN. &MAX.TEMPERATURE
RECORDS
1. Innormalmode, press “-/MIN./MAX.” key once
to show the minimum indoor & outdoor
temperature records in the past 24 hours.
2. Press it twice to show the maximum
temperature records.
3. Press it once again to exit.
Note Press and hold it for 3 seconds to delete
the minimum and maximum temperature records.
USING ICE ALERT FUNCTION
If the outdoor temperature range is -2.0ºC ~ 3.0ºC
(28.4ºF ~ 37.4ºF), the ice alert indicator light will be
turned on and flash.
8
EN

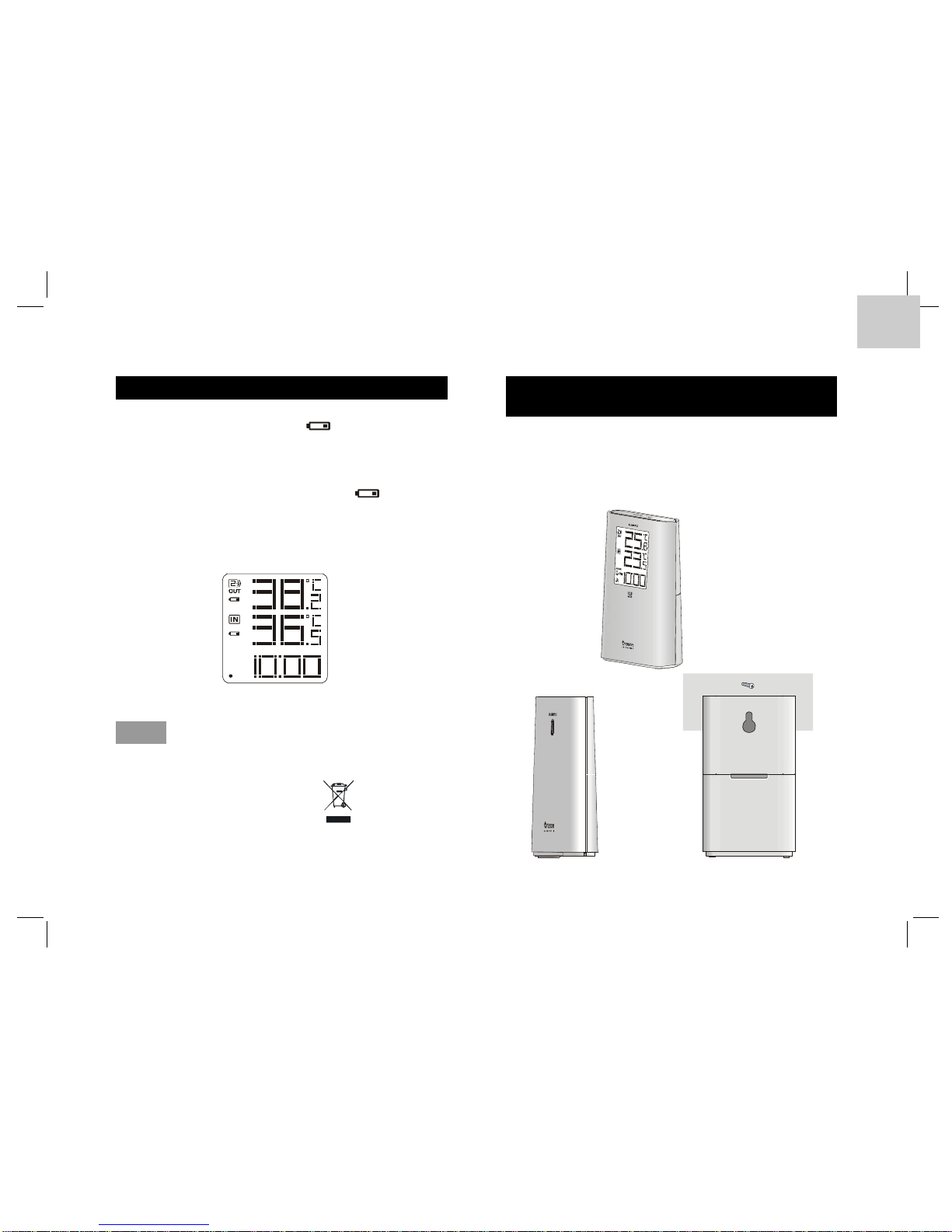

BATTERY REPLACEMENT
If the low battery indicator “” displays beside
the outdoor temperature, it means that the battery
power of sensor is not enough, and you should
replace with 2 AAA size batteries at once.
While if the low battery indicator “” displays
beside the indoor temperature, it indicates that you
should replace batteries of the main unit with 2 new
AA size batteries.
Note
Attention!Pleasedispose of theusedunit orbatteries
in an ecologically safe manner.
9
EN
Low battery indicator
PLACEMENT OF MAIN UNIT AND
SENSOR
For the sensor, place the screw on the desired wall
and hang the sensor by the recessed hole in the
back of it or simply place it on the desktop.
For the main unit, you can just place it on the table
by itself.
