Oreka O2 User manual

Bicycle trainer
OWNER’S MANUAL
Thank you for buying our product.
In order to make sure that your bicycle is in optimal condition, please read the manual
carefully before using. It will help you to learn more details about the points of using and
maintenance, and various cautions about safety riding, which will create more enjoyments
and values of riding.
If there is any questions about how to use bicycle trainer, please visit our website, or
contact us via e-mail or telephone. We will sincerely provide you with comprehensive
service.
Our company reserves the right to change the product design, specification, and
improve the product quality.
Please keep this manual properly after reading

1
Contents
1. Overview Drawing......................................................... ¡Error! Marcador no definido.
2. Precautions:..................................................................................................................2
3. Safety instruction for use ..............................................................................................3
4. Assembly instructions...................................................................................................5
4.1. Details of parts...................................................................................................5
4.2. Parts package ....................................................................................................5
4.3. Unfolding/folding of rear support........................................................................6
4.3.1. Unfolding .................................................................................................6
4.3.2. Folding ....................................................................................................6
4.4. Assembly steps of handrail ................................................................................7

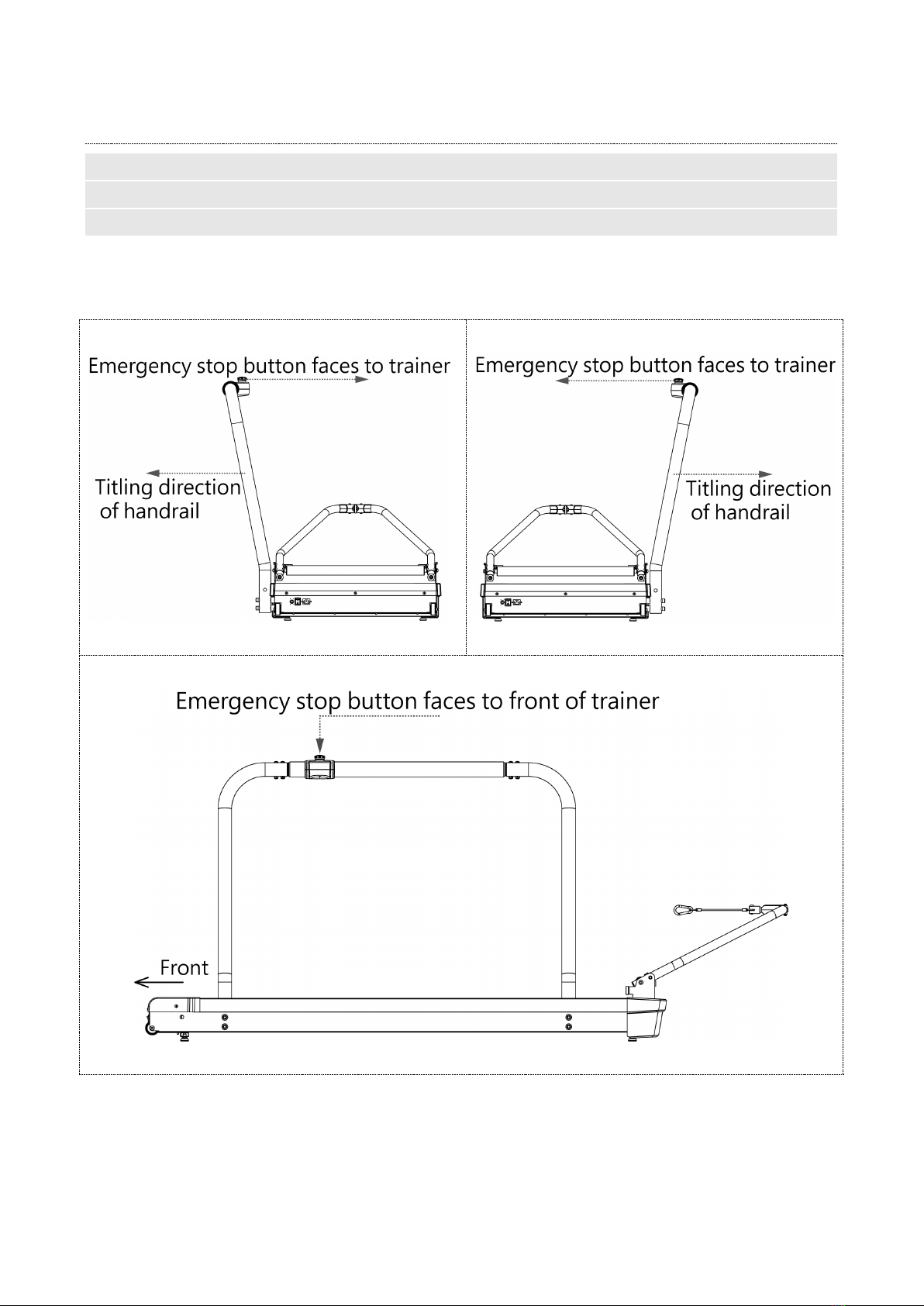

5. Precautions of handrail installation .............................................................................10

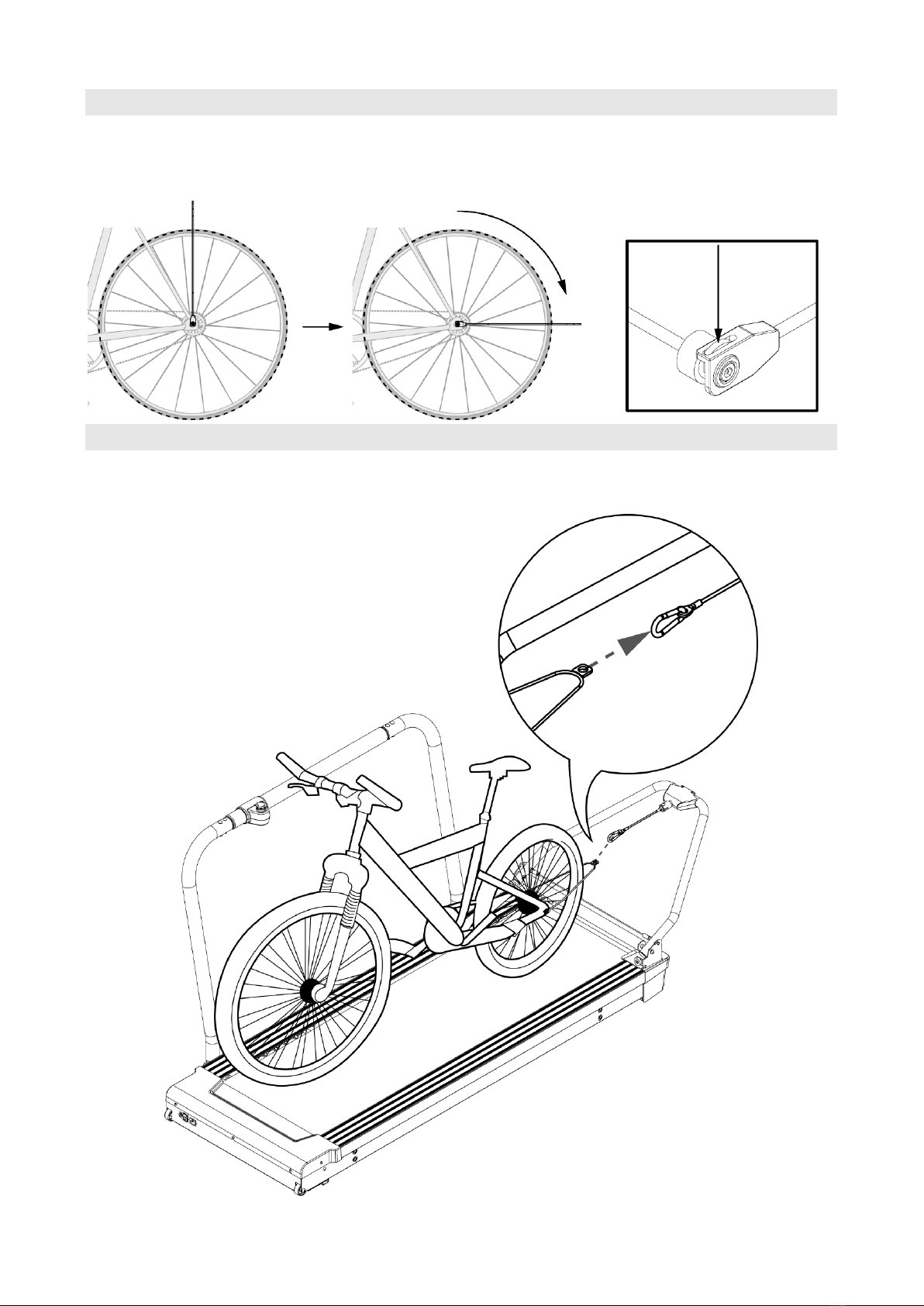

6. Install the bicycle on the trainer .................................................................................. 11
7. Precautions for use.....................................................................................................13
8. Adjustment of running belt ..........................................................................................15

2

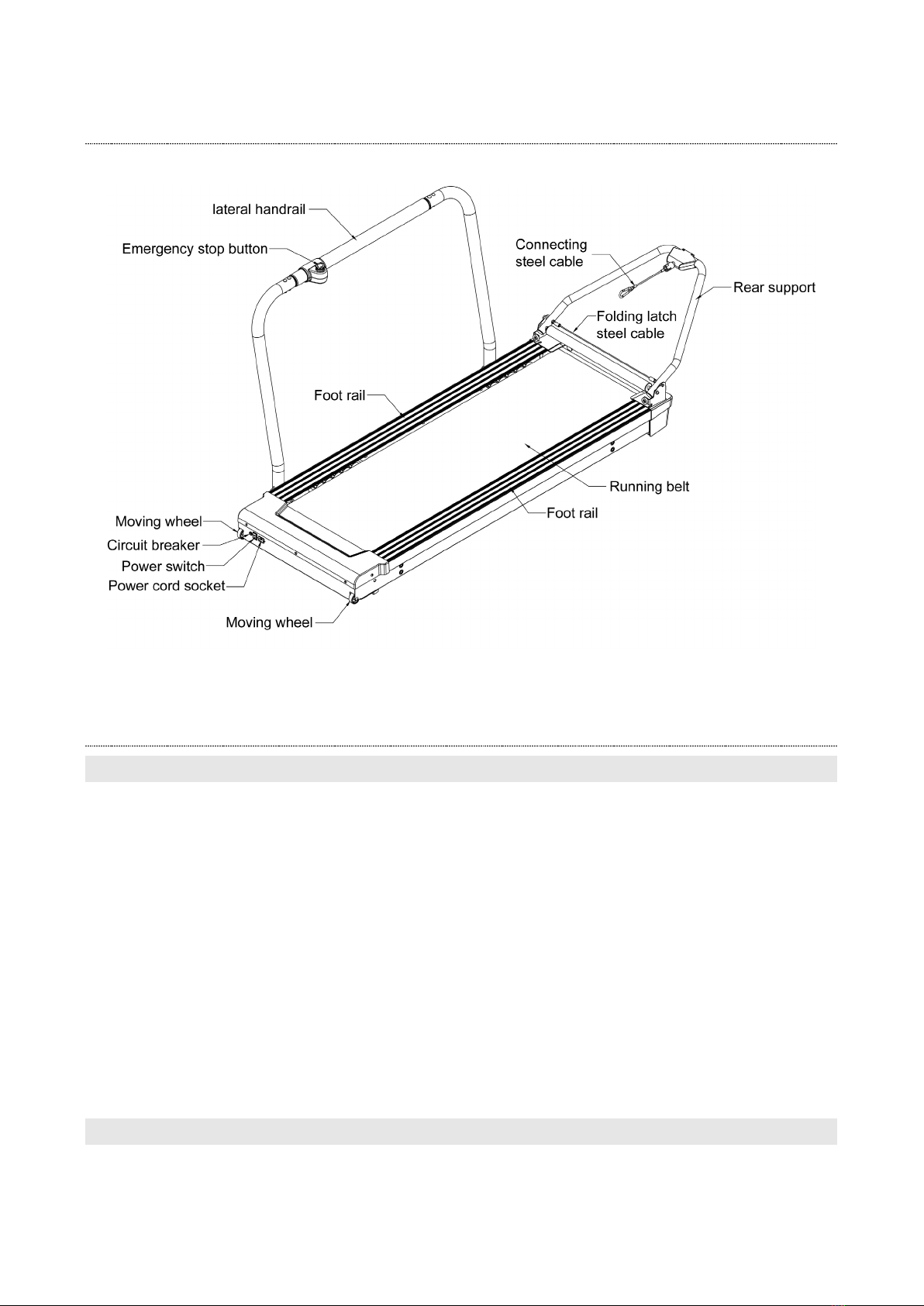

1. Overview Drawing
2. Precautions:
For your safety, please read carefully and follow the indications:
1. Please do not attempt to dismantle or modify the product.
2. In order to avoid danger, please hold the handlebars firmly and do not stand on the
bicycle or engage in tricks or stunts when riding the bicycle.
3. Children and pets shall be kept away from trainer in use. Please place it properly
when not in use to avoid misuse by children.
4. Make sure to prevent objects from falling into the mechanism to avoid damage.
5. Before each training session, please make sure the four (4) foot pads are in contact
with the ground and the trainer is stable.
6. Please keep 1 m of empty space around the trainer at least.
7. Before each operation, please make sure that dedicated quick release set is
installed on your bicycle, the fixed arm is fitted with bilateral end covers of quick
release set correctly, and hooked up to steel cable indeed.
The points of caring and keeping
1. Clean the trainer and lubricate related accessories, and keep the trainer from any
corrosive substances such as salt.

3
2. Do not grind, drill or score a mark on the surface of the trainer. A big scratch, hole or
nick will lead to cracks.
3. Please place the trainer indoors, keep dry to avoid moist and damage.
Adjust the bicycle
Please adjust a proper height of seat pad and handlebar, and the angle of handlebar and so
on according to your riding preferences.
Familiar with bicycle trainer:
The trainer is designed to give the users a simulated feeling of riding a bicycle on the road.
Please sit on it slowly at the beginning and try to pedal slowly to be familiar with it. Please
try to shift all speeds to make sure the gear can be shifted correctly.
The bicycle trainer can simulate the road of uphill and flat road to practice sprinting. The
user does not have an idling feeling due to fast rotational speed.
In the swing, please follow the body swing margin. Do not deliberately and
dramatically swing in order to avoid danger.
Suggestions:
1. Please do not improperly use or overuse, otherwise it may lead to injury.
2. Please stop immediately and take a rest if you are uncomfortable or experience
something strange with normal operation.
3. It is proposed to use the trainer in the well ventilated areas or use ventilator to avoid
overheating.
3. Safety instruction for use
When you use this product, please abide by the following basic precautions:
Please read the instruction carefully before using this product.
Danger-please carefully operate this product to avoid electric shock:
After using this product and before cleaning it, please remember to unplug this product from
the power socket.
Warning-to reduce the risk of scald, fire, electric shock or any physical injuries:
1 When this product is plugged, please note the state to avoid danger at any time.
Please unplug the product from power socket when not in use or when you are wearing
or taking off clothes and articles,
2 When children, patients, and the disabled people are using or close to this product,
please be sure to look after them to avoid danger.
3 Please be sure to follow the contents in instructions to operate and use this product.
Please do not arbitrarily assemble any additional products without approval of
manufacturing company and dealers to prevent danger.
4 If it is found that electric wire and plug of the product are damaged or operates
abnormally, or water flows into the trainer, please do not continuously operate and use

4
this product. Please send it to service center of manufacturing company and dealers for
inspection and maintenance.
5 When you move this product, please do not take power cord or other electric wire as
the handle.
6 Keep the electric wire away from high temperature surface or floor.
7 Please do not drop or insert any objects into the mechanism of this product.
8 Please do not operate and use this product outdoor.
9 Please do not operate and use this product in the space of aerosol (such as insecticide)
or thin air.
10 Before turning off this product, please adjust all switches to OFF position, and then
remove plug from the socket.
11 When using this product, please connect the product to a proper ground socket.
12 If power cord is damaged, it shall be repaired or replaced by the manufacturer or
service agent or professional maintenance personnel to avoid accidents.
13 This product is not applicable to people who have physical defects, mental illness or
lack experience and knowledge (including children), unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for
their safety. The children shall be supervised and ensured to keep away from the
trainer.
14 Incorrect or excessive training may cause injuries for health.
15 The equipment shall be installed on stable base or flat place.
16 The area (2,000*1,000 mm) behind the trainer is a safety area.
17 The maximum user’s weight is 115KG.
18 The safety level of the equipment can be maintained only if it is inspected regularly for
damage and abrasion of the trainer.
19 Any of adjustment devices that can influence users’ exercise shall not be dismantled
from the trainer.

5
4. Assembly instructions
4.1. Details of parts
4.2. Parts package
ITEM Description Qty
A Umbrella head cross self-tapping screw Ø3x12 1
B Umbrella head cross self-tapping screw Ø4x15 1
C Umbrella head cross screw M6xP1.0x10 2
D carriage bolts M8xP1.25x60 (thread length 25
mm) 4
E Nylon nut M8xP1.25 4
F Hex socket cap screws M10xP1.5x85 4
G Strain relief bushing 6P-4 2
H
L type hex wrench 5x28x75mm (there is a hole in
the center) 1
I Open spanner 13mm 1
J Hex wrench + cross screws 5x36x120mm 1
K L type hex wrench 8x36x98mm 1
L L type hex wrench 10x65x120mm 1
M Power Cord 1
Vertical tube B of handrail
Horizontal tube of
handrail
Frame
Dedicated
quick release set
Fixed arm for quick
release set of bike
Vertical tube A of handrail
Emergency stop button
Lower cover of emergency stop button
Upper cover of emergency stop
button

6

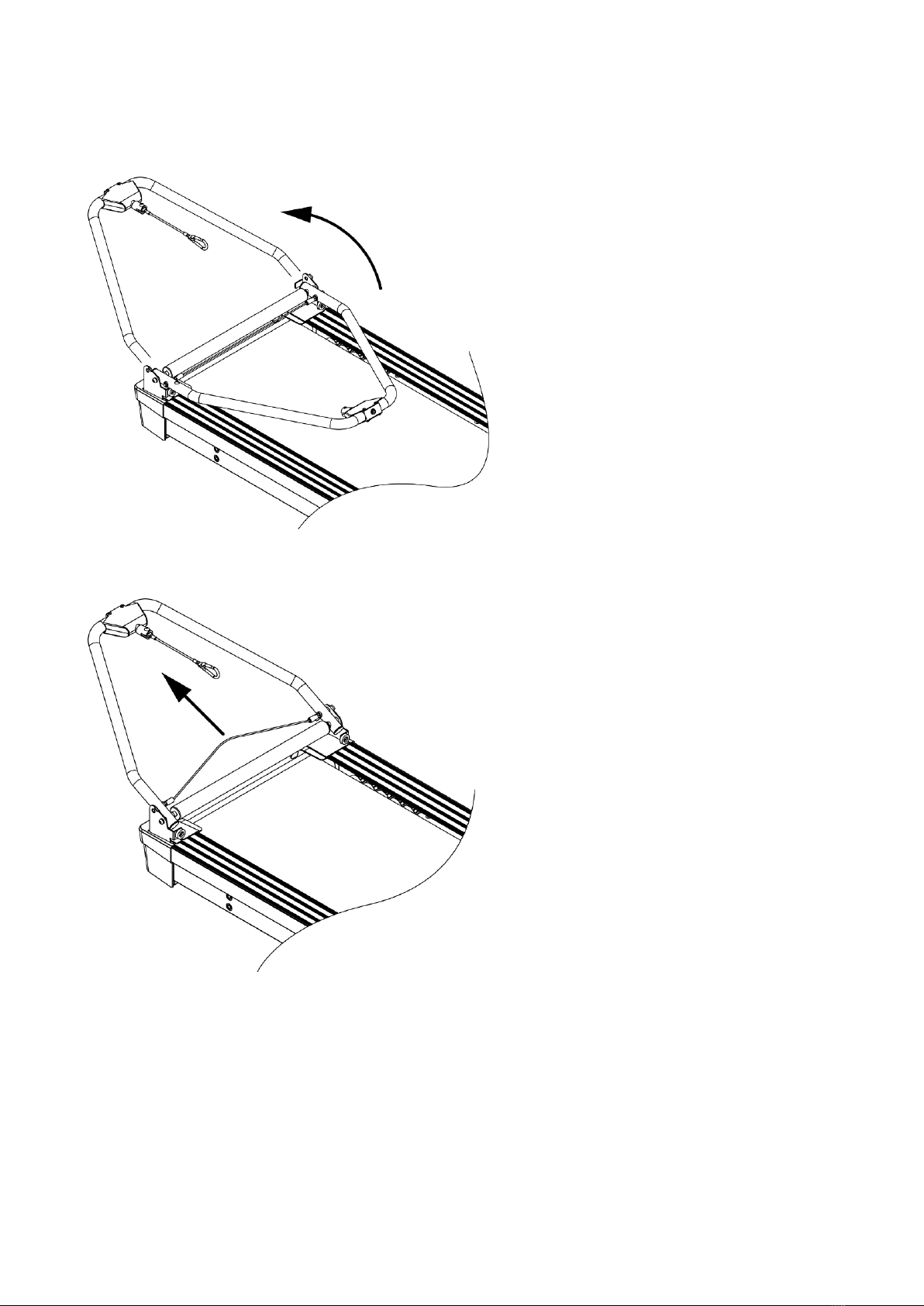

4.3. Unfolding/folding of rear support
4.3.1. Unfolding
Rear support is rotated upwards until the latch automatically locates in fixed hole.
4.3.2. Folding
Pull steel cable upwards and loosen the fixed latch.

7
4.4. Assembly steps of handrail
Step1.
1 Emergency stop button is fixed in horizontal tube of the handrail with C screws. The
wire threads from the notch on the both sides of cylindrical hole of screws below and is
pulled to the front end of horizontal tube.
2 Upper and lower covers of emergency stop button are fixed with A and B screws. When
screw column of lower cover is inserted into the hole of horizontal tube, please do not
squeeze wire.
Step2.
After wire of safety button is tied together with the tie which is enclosed in vertical tube of
the handrail, please pull out from the lower hole of vertical tube. Next, vertical tube A and
vertical tube B of handrail are put into horizontal tube of handrail. Finally, the screws D are
put into the upper and nylon nut E is tightened (totally tighting is not necessary until handrail
tubes will not be loose.)

8

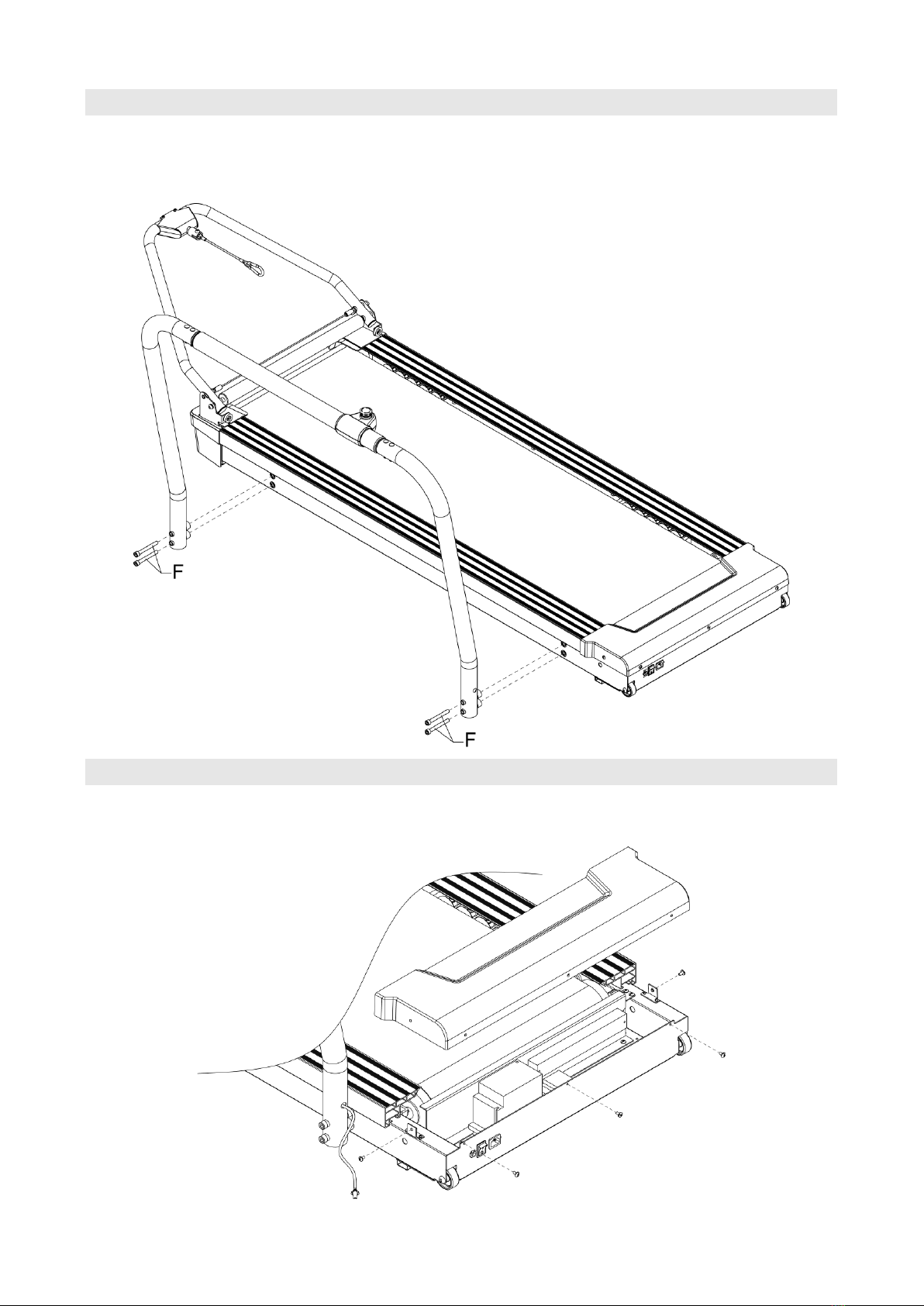

Step 3.
Handrails are fixed on frame with screws F.
※Each screw is screwed into screw hole about 5~10 mm, and then each screw and nylon
nuts below the vertical tube are tightened one by one.※
Step 4.
Screws of upper cover for electric components are loosed and then removed from the
frame.

9

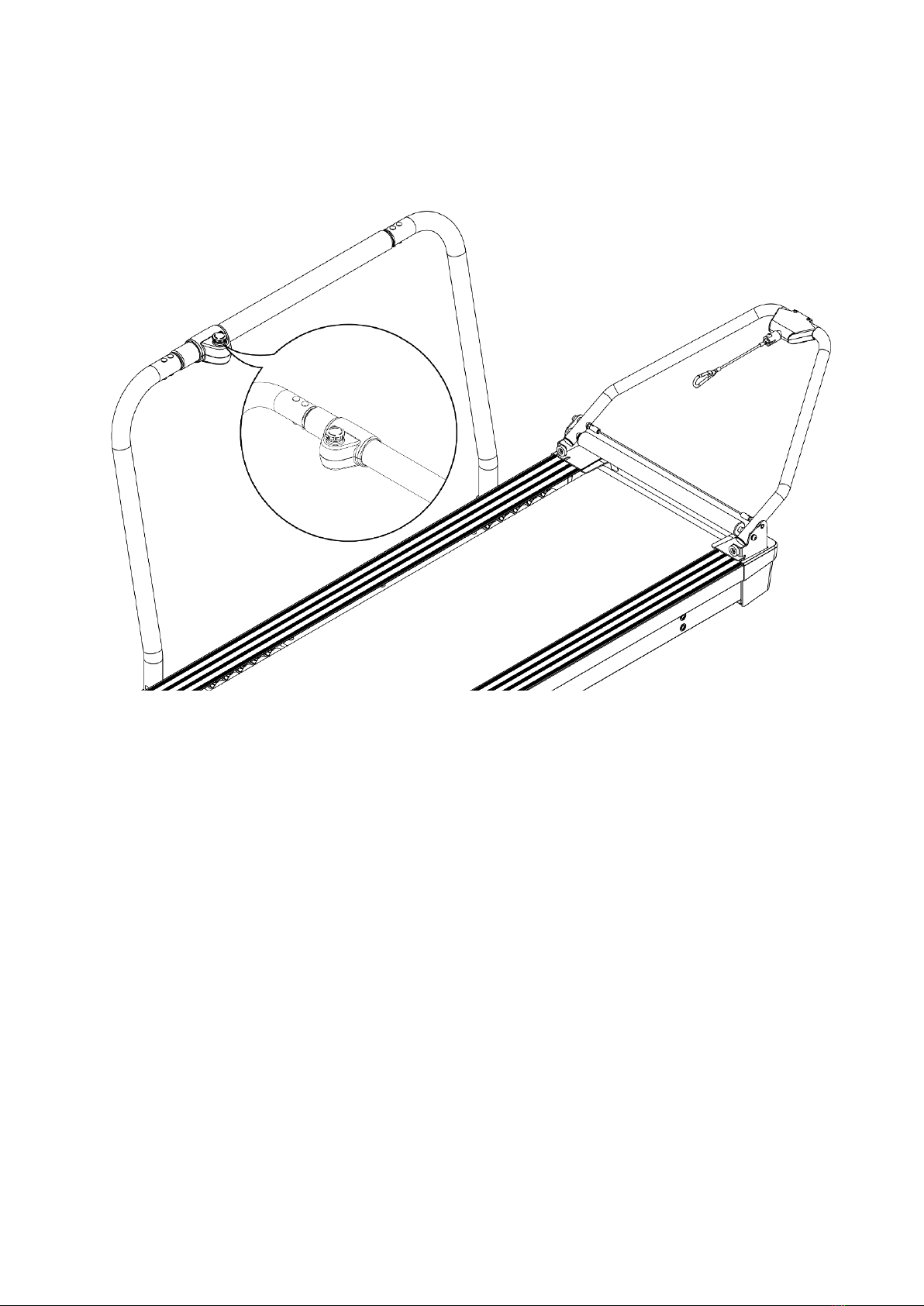

Step5.
Thread the wire of emergency stop button through the lateral hole on the front end of the
frame and connect it to the connecting wire of stop button of inverter.
Step6.
Clamp both ends of exposed wire with cable clip G. Then, put the cable clip into the hole of
handrail tube and frame for fixation.
※Installation method of cable clip: wire are clamped with cable clip, and then inserted into
the hole according the hole shapes and rotated by 90°for fixation.
Step7.
After finishing, please install the upper cover of electric components.
Rotated by 90
°
