Oricom FS300 User manual

User Manual
FS300
Non-Contact Infrared Thermometer
FS300 is included as a medical device on the Australian
Register of Therapeutic Goods (ARTG No. 198437).
FS300 is intended for use as a measuring device for determining the patient's body temperature.
ALWAYS READ THE LABEL AND USER GUIDE, USE ONLY AS DIRECTED.
Keep this user guide for future reference. Always retain your proof of purchase in case of warranty
service and register your product on line at AUSTRALIA: www.oricom.com.au
Please visit www.oricom.com.au for the latest copy of this user manual.
Oricom Customer Support: 1300 889 785 or [phone]

Need Help?
If you need assistance setting up or using your Oricom product now or in
the future, call Oricom Support.
Australia 1300 889 785 or [phone]
www.oricom.com.au
Mon-Fri 8am – 6pm AEST
New Zealand 0800 67 42 66
www.oricom.co.nz
Mon-Fri 10am – 8pm NZST

3
Non-Contact Forehead Infrared Thermometer
Table of contents
Contents
1. Product description...............................................................................9
2. Before rst use ...................................................................................10
3. Switching on and setting the thermometer..........................................10
4. Measuring body temperature ..............................................................10
5. Displaying stored measurements ........................................................12
6. Measuring object temperature ............................................................12
7. Battery replacement ............................................................................13
8. Error messages....................................................................................14
9. Cleaning and storage ...........................................................................15
10. Product specications........................................................................16
Customer support ....................................................................................18
Express warranty.....................................................................................19

4
Warning
Thank you for purchasing the Oricom FS300 Non-contact Infrared Thermometer.
The FS300 Non-contact Thermometer has been developed using the latest in infrared
technology. This technology allows the user to measure the temperature without physical
contact. To use this device correctly please follow the directions in this user guide. The
instructions provide important details on how to achieve accurate measurements.
Warning
!Please read this user guide carefully before initial use.
• Use this product only for its intended purpose as described in this manual and
follow all instructions.
• The measurement of temperature using this product does not represent a Doctors
medical examination.
• Consult with your medical professional if any abnormality is found.
• Do not take a temperature measurement over a scar or open tissue.
• Do not expose the product to temperatures below 20C (68F) or above 50C
(122F) or above humidity of 95% (≥95%RH)
• Do not drop the thermometer as it may cause damage
• Do not take the temperature with this product near heat sources such as in direct
sunlight, near a replace or stove.
• Do not use this product if it is not working properly, contact Oricom support.
• There are no user serviceable parts the only service required is battery
replacement and general cleaning please follow instructions in this user guide.
• If the product is not going to be used for an extended period of time please remove
the batteries and store the thermometer in a cool dry place.
• This product is NOT waterproof. Direct contact with water or other liquids should
be avoided.
• Do not leave the thermometer with infants or children at any time.
• The protective glass over the lens is fragile, handle with care. Do not touch the
glass of the infrared lens with bare ngers.
• Do not modify or repair the thermometer.

5
Warning
Many people may not have an elevated temperature even if they are ill. In the
following cases please consult your medical professional before using this product.
• Under 90-day-old infants
• People on steroids, antibiotics or antipyretics.
• People with compromised immune systems.
Cautions
• The reliability of the measurement cannot be guaranteed if the temperature is
measured from parts of body that are not recommended (anywhere other than the
forehead or behind the earlobe).
• Similar to other thermometers, measurement error may occur within a range of ±
0.2C ( ± 0.4F)
• Measurement should not be taken until completely relaxed at normal room
temperature.
• Please note that measurement may be incorrect after exercising, bathing or getting
wet in the rain.
• Temperature between right and left forehead could be different.
• Measurement may be incorrect when low battery ( ) signal is indicated. Replace
the battery and re-measure.
• When measuring the temperature of a liquid (milk, water) place the probe as close
as possible to the liquid but ensure that it is not immersed into the liquid as this
may damage your thermometer.
• Check your product regularly for damage and exhausted batteries.
NOTE:
ASTM laboratory accuracy requirements in the display range of 22 to
40°C(71.6°F to 104.0°F) for IR thermometers is ±0.3°C(±0.5°F), whereas
for mercuryin-glass and electronic thermometers, the requirement per ASTM
Standards E 667-86 and E 1112-86 is ±0.1°C(±0.2°F)

6
Warning
Simple Operation Principle
The body temperature is reected on the temporal artery.
• Temporal artery is the artery located closest to the skin and is spread on the
forehead. If the blood with body temperature reection passes the temporal
artery on forehead, corresponding amount of infrared rays will be generated.
From the infrared rays, the body temperature can be measured.
• This product is a contactless type thermometer and does not make
direct contact with forehead.
The temperature measurement can be taken 2 to 3cm away from the
body or object.
• This will decrease discomfort or possible infections caused by touch.

7
How to Take a Temperature
How to Take a Temperature
NOTE:
Temperature readings may vary according to the location of measurement from
forehead to temple. Therefore we recommend to measure the temperature at
more than 2 points on the forehead.
Use the highest temperature rating as the most accurate reading.
NOTE:
If sweating on the forehead is present we recommend changing the
measurement point to behind the earlobe.
Measurement Point
Measurement Point
behind the ear lobe
Sweating
Normal

8
How to Take a Temperature
Temperature Ranges
Body temperature means internal temperature of body. Normal temperature
even in a healthy person can vary within a small range. The temperature of a
person measured in the evening is normally 0.5C higher than early morning
and is also affected by the environment, time and activity. Refer to the table
below to nd out the normal body temperature ranges.
Normal temperature range at various parts of body
Armpit 34.7 ~ 37.3C (94.5 ~ 99.1F)
Mouth 35.5 ~ 37.5C (95.9 ~ 99.5F)
Rectum 36.6 ~ 38.0C (97.9 ~ 100.4F)
Ear 35.8 ~ 38.0C (96.4 ~ 100.4F)
Normal temperature range by age
0 ~ 2age 36.4 ~ 38.0C (94.5 ~ 100.4F)
3 ~ 10age 36.1 ~ 37.8C (97.0 ~ 100.0F)
11 ~ 65age 35.9 ~ 37.6C (96.6 ~ 99.7F)
Above 65age 35.8 ~ 37.5C (96.4 ~ 99.5F)
• Normal body temperature can vary between individuals it is recommended that
you record your body temperature when you are healthy as a reference point.
• Using your thermometer
- Measuring Body Temperature
Switch to body temperature measuring mode, and check the body temperature
on the temple area at a distance of 2 to 3cm.
- Measuring Bathing Water Temperature
Switch to daily wide temperature measuring mode, and check the water
temperature by aiming the thermometer at a distance of 2 to 3cm from the
water. Be careful not to get water on the Thermometer.
- Measuring the Nursing Bottle
Switch to daily wide temperature measuring mode, and check the temperature
by aiming the thermometer at a distance of 2 to 3cm from the babies bottle.

9
Product description
1. Product description
1LCD display
2Probe
3Start button
4MODE button
5MEM button
6Sound boutton
7Battery cover
Switching the device on. Starting temperature measurement.
Setting the measurement method.
Displaying stored measurements (max 32).
Setting the acoustic signal (On/Off).
Setting the measurement units (°C/°F).
Buttons Functions
Display Meaning
In body temperature mode.
In object temperature mode.
Memory mode.
Batteries require replacement.
Unit of temperature (°C/°F).

10
Before rst use
2. Before rst use
• Before rst use, insert the batteries supplied (2 x AAA Alkaline Batteries).
3. Switching on and setting the thermometer
• Press the Start button briey.
> The device switches on. After two seconds, the display shows that the
device is ready for use.
> The device always starts in body temperature mode.

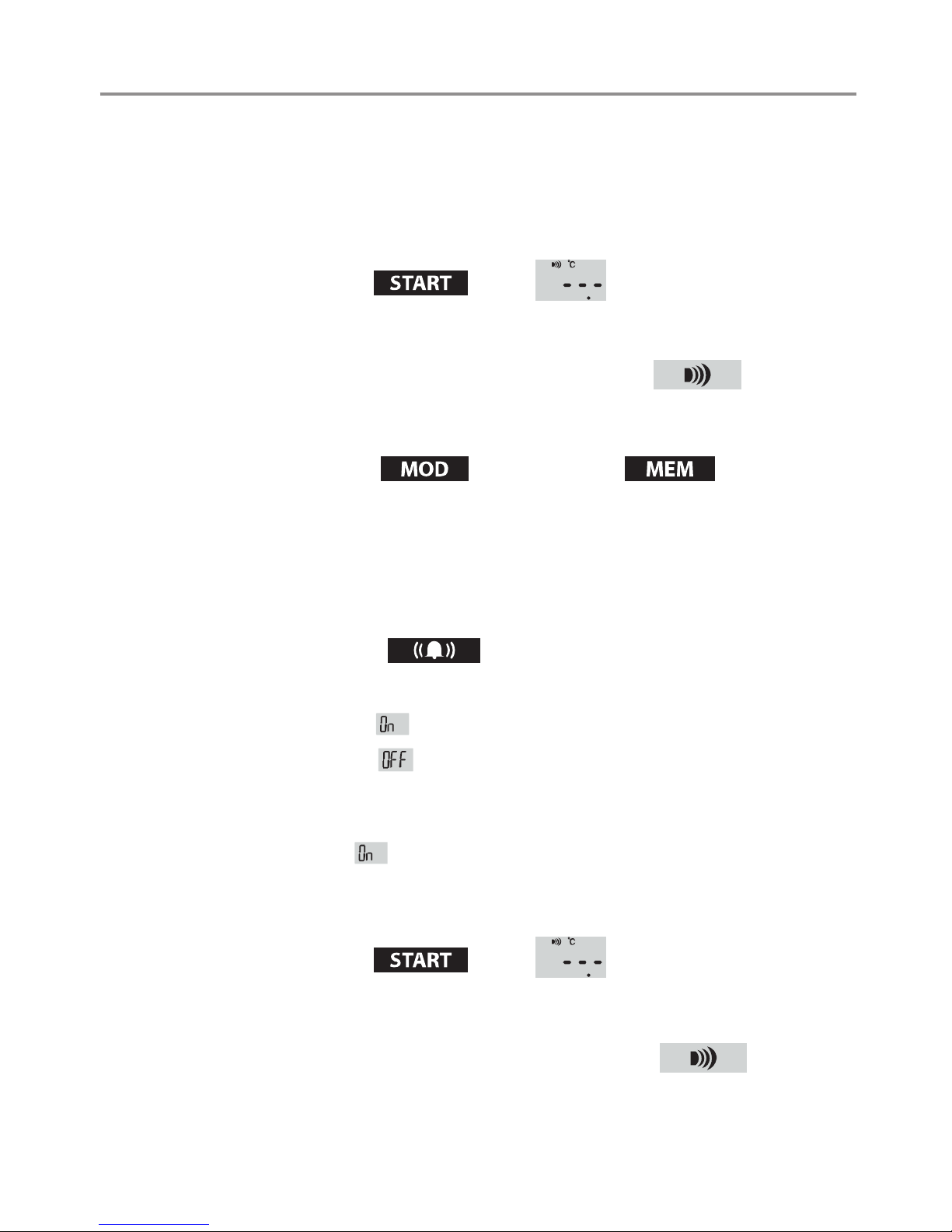

3-1. Setting the measurement unit
• Press the Mode button and MEM button simultaneously
for at least 3 to 4 seconds.
> The device switches to the other measurement unit.
> Possible measurement units : Celsius °C and Fahrenheit °F
3-2. Setting the measurement sound
• Press the Sound button briey.
> Each time the button is pressed, the sound switches on or off.
> If the display shows after pressing the button, the device emits sound.
> If the display shows after pressing the button, the device will not emit
sound.
> This setting is not stored. The next time the device is switched on, the
sound is reset to.
4. Measuring body temperature
• Press the Start button briey. .
> The device switches on. After two seconds, the display shows that the
device is ready for use.
> The device always starts in body temperature mode.

11
Before rst use
• Hold the thermometer 2 to 3cm from the measuring point.
> The ideal measuring point is the temple area.
• Press the Start button briey.
> Keep the distance until you hear the measurement completion beep.
> If the thermometer is in silent mode, keep the distance for approximately 2
seconds.
NOTE:
We recommend you change the measurement point to behind the earlobe
when sweat is present.
• Temperature readings may vary according to location.Therefore we
recommend to measure the temperature at more than 2 points on the
forehead.
• Then please recognize the highest temperature as the right temperature.
• Check the temperature on the LCD screen. This will be automatically stored.
• Read the temperature on the display.
> The measurement is automatically stored.
Recommended site of measurement is the temple area.
Normal
Measurement Point
behind the ear lobe
Sweating
Measurement Point

12
Displaying stored measurements
5. Displaying stored measurements
• Press the Start button briey.
> The device switches on. After two seconds, the display shows that the
device is ready for use.
• The device automatically stores the last 32 measurements.
• Press the MEM button briey.
> The most recent measurement is displayed.
• Each additional press of the MEM button calls up the next
most recent measurement. The number on the display indicates how many
measurements ago this reading was taken.
> The thermometer then changes to body temperature mode after 30 seconds.
• The device only stores measurements when in body temperature mode.
6. Measuring object temperature
• Press the Start button briey.
> The device switches on. After two seconds, the display shows that the
device is ready for use.
> The device always starts in body temperature mode.
• Press the Mode button briey.
> The device switches to the object temperature measuring mode.
• Check the measurement ready status on LCD.
• Hold the thermometer 2 to 3cm from the desired measuring point.
Press the Start button briey.
> Keep the distance until you hear the measurement
completion beep.
> If the thermometer is in silent mode, keep the
distance for approximately 2 seconds.

13
Battery Replacement
• Read the temperature from the display.
> Measurements in object temperature mode are not stored.
• Subject surface temperature and inner temperature can be different.
7. Battery Replacement
• The device requires two AAA Alkaline batteries.
> Open the battery compartment.
> For this purpose, slide down the battery compartment lid on the back.
• Take the used batteries out of the battery compartment.
• Insert new batteries.
> Observe the correct polarity.
• Close battery compartment.
> Used batteries should not be disposed of in normal household waste.
> Dispose of batteries in accordance to local recycle regulations.
Cautions
If you do nd the batteries have leaked uid please do not touch the batteries or
uid.
Dispose of the batteries properly do not wrap in metal or aluminium foil, wrap in
newspaper and dispose of carefully. Batteries may explode if burnt or exposed to
excessive heat.

14
Error messages
8. Error messages
Display Error description Trouble-shooting
The device temperature
is outside the operating
temperature range.
Operating temperature
approx.
15°C to 40°C
(59°F to 104°F)
The temperature of the
measuring point is above
the measurement range.
Measurement range for
body temperature
34°C to 42.5°C
(93°F to 108.5°F)
Measurement range for
object temperature :
15°C to 60°C
(59°F to 140°F)
The temperature of the
measuring point is below
the measurement range.
The batteries are weak. Change batteries.
Display appears briey
after changing
the batteries.
NOTE:
If the room temperature is between 15°C to 20°C(59°F to 68°F), the forehead
temperature can become lower due to the room temperature.

15
Cleaning and Storage
9. Cleaning and Storage
• The sensor is a very sensitive part and easily damaged. For accurate
measurement please keep the sensor clean.
• To clean the sensor please keep it facing down and carefully clean with an alcohol
moistened cotton bud, allow to dry for at least one hour before using.
• To clean the outside use a cloth moistened with alcohol or water.
• Do not use excessive force on the sensor.
• Do not immerse the product in water or any other liquid.
• Keep the product away from direct sunlight, dust and any other type of
contaminating substance.
• Keep the product at normal room temperature. The operating ambient temperature
range for this thermometer is 10C (50F) to 40C (104F)
• Please place the product in normal room temperature for 30 minutes prior to use if
it has been stored outside normal room temperature.

16
Product Specications
10. Product Specications
FS300
Item Details of description
Measurement method Infrared(IR) measurement,
Non-Contact measurement
Basic functions
Switches for Multi-measurements
(Body and Object temperatures)
Switches for Celsius/Fahrenheit, Memory function,
Sound controls(On,Off)
Ambient conditions 15°C to 40°C(59°F to 104°F), Humidity : below 90%
Atmospheric Pressure(hPa) 700~1060
Transport and
Storage condition
-20°C to 50°C(-4°F to 122°F), Humidity : below
95%RH Atmospheric Pressure(hPa) 700~1060
Measuring distance 2 to 3cm from the measuring point (temple area)
Measuring range
Body temperature : 34°C to 42.5°C (93.2°F to
108.5°F)
Accuracy : ±0.2°C (36°C to 39°C)
Other Accuracy : ±0.3°C
Object temperature: 15°C to 60°C (59°F to 140°F)
Accuracy : ±2°C
Measuring time Less than 2seconds, Continuous measurement
Resolution 0.1°C
Mode selection Body temperature, Object temperature
Memory function (for
body temperature only)
Automatic memory function
Conrm the result by using memory button
Can store up to 32 results space (1 to 32)
Sound Button sound, Measuring sound, Result sound, The
sound can be turned on and off by using Sound button
Screen type Liquid crystal display(mono LCD)

17
Product Specications
Display
Body temperature mode, Object temperature mode,
Memory location, Low Battery, °C/°F degree, Hi / Lo signs
for the temperature outside the measurable ranges
Button Start, Sound, Mode, Memory
Backlight Turned on for 3 seconds after measurement The
backlight turned off automatically
Power-saving Turned off automatically after one minute
Components FS300 Manual, Battery(AAA type) 2ea
Power Alkaline ( AAA 1.5V Battery 2 EA )
Measurable numbers More than 5,000 times
Size 62.4(W) x 41.8(D) x 103.1(H) mm
Weight 120g (without batteries)
This product is manufactured in Korea under strict quality supervision by:
HuBDIC CO., Ltd, B-301, TaeKwang Industrial Building, 191-1, Anyang 7-dong
Manan-gu, Anyang-si Gyeonggi-do Korea.
IMPORTED & DISTRIBUTED IN AUSTRALIA by the sponsor:- Oricom International
Pty Ltd, Unit 1, 4 Sovereign Place, South Windsor 2756 AUSTRALIA
Type BF Applied Parts
FS300 is included as a medical device on the Australian
Register of Therapeutic Goods (ARTG No. 198437).
FS300 is intended for use as a measuring device for
determining the patient's body temperature. ALWAYS
READ THE LABEL AND USER GUIDE, USE ONLY AS
DIRECTED.

18
Customer Support
Customer Support
If you have any problems setting up or using this product you will nd useful tips and
information in this user guide as well as “Frequently Asked Questions” on our website
www.oricom.com.au.
If you have further questions about using the product after reviewing the
resources above or would like to purchase replacement parts or accessories
please call our Customer Support Team. Our dedicated local support team
are more likely to be able to help you than the retailer where you made your
purchase.
Important
Please retain your purchase receipt and attach to the back page of this user
guide as you will need to produce this if warranty service is required. Take a few
moments to register your product online: www.oricom.com.au

19
EXPRESS WARRANTY
Express Warranty (Australia)
This Express Warranty is provided by Oricom International Pty Ltd ABN 46 086
116 369, Unit 1, 4 Sovereign Place, South Windsor NSW 2756, herein after
referred to as “Oricom”.
Oricom products come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a
major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major
failure.
Oricom warrants that the product is free from defects in materials or
workmanship during the Express Warranty Period.
This Express Warranty does not extend to any product from which the serial
number has been removed or was purchased outside of Australia.
Nothing in this Express Warranty excludes, restricts or modies any condition,
warranty, guarantee, implied term, right or remedy pursuant to the Australian
Consumer Law and which may not be so excluded, restricted or modied. For
such conditions, terms, guarantees and warranties that cannot be excluded,
restricted or modied, Oricom limits the remedies available to extent permitted
in the relevant legislation.
The Express Warranty Period will be 1 year from the date of purchase of the
product evidenced by your dated sales receipt.
You are required to provide proof of purchase as a condition of receiving Express
Warranty services.
You are entitled to a replacement product or repair of the product at our
discretion according to the terms and conditions of this document if your
product is found to be faulty within the Express Warranty Period. This Express
Warranty extends to the original purchaser only and is not transferable.

20
EXPRESS WARRANTY
Products distributed by Oricom are manufactured using new materials or new
and used materials equivalent to new in performance and reliability. Spare parts
may be new or equivalent to new. Spare parts are warranted to be free from
defects in material or workmanship for thirty (30) days or for the remainder of
the Express Warranty Period of the Oricom branded product in which they are
installed, whichever is longer. During the Express Warranty Period, Oricom will
where possible repair and if not replace the faulty product or part thereof. All
component parts removed under this Express Warranty become the property of
Oricom. In the unlikely event that your Oricom product has a recurring failure,
Oricom may always, subject to the Competition and Consumer Act 2010, at its
discretion, elect to provide you with a replacement product of its choosing that
is at least equivalent to your product in performance.
No change to the conditions of this Express Warranty is valid unless it is made in
writing and signed by an authorised representative of Oricom.
Oricom will not be liable under this Express Warranty, and to the extent
permitted by law will not be liable for any defect, loss, damage or injury arising
out of or in connection with a:
1. failure by you to adhere to the warnings and follow the instructions set out in
this user guide for the proper installation and use of the product;
2. wilful misconduct or deliberate misuse by you of the product;
3. any external cause beyond our control, including but not limited to power
failure, lightning or over voltage; or
4. modification to the product or services carried out on the product by
anyone other than Oricom or Oricom’s authorised service provider.
