Origin Acoustics Director D62 DT/SUR User manual

Installation Manual
D62 DT/SUR
D62
D64
D66
D68
Director 60 Series
Models:

2 1
844·674·4461
[e-mail] WWW.ORIGINACOUSTICS.COM
DIRECTOR 60 INSTALLATION MANUAL
Table of Contents
Introduction 1
Installation Requirements and Recommendations 1
What’s included 1
Required Tools/Items 2
Optional Tools/Items 2
Model D60 DT/SUR 3
Dual Tweeters 3
Surround 3
Stereo 3
Speaker Placement 4
Auxiliary Room (2 Speakers) 4
Dedicated Room Home Theater (5 Speakers) 4
Installation 5
1) Installing the Wire 5
2) Painting the Grille 7
3) Cutting the Hole 7
4) Installing the InstaMount 8
5) Connecting the Wires 9
6) Installing the Speaker 9
7) Listening Test and Adjustments 10
8) Installing the Grille 11
Troubleshooting 12
Technical Assistance 13
Specifications 15
Warranty 16
Limited Lifetime Warranty 16
Requirements and Warranty Coverage 17
Return Process 17
What’s included
• Template
• Speaker
• InstaMount (with 4
detachable ZipClips)
• Grille
Pivong
Woofer
InstaMountSpeaker
ZipClips
Locking Tab
Pivong
Tweeter
ZipClip Rails
Figure 1.1: Speaker and InstaMount
Introduction
Thank you for purchasing the Director 60 In-Ceiling Speaker.
At Origin Acoustics, we take pride in providing you with a high
quality product. All of Origin Acoustics’ speakers are designed to
have excellent sound quality, longevity, and a simple installation
process.
This instruction booklet covers the necessary information for a
smooth installation of your Director, including: the tools you will
need, step-by-step instructions for installation, troubleshooting
tips for any errors that may occur, and all warranty information. If
for any reason you experience problems or if you have installation
questions please call us at [phone]. Hours of operation are
8:00am to 5:00pm (Pacific Time), Monday through Friday.
Installation Requirements
and Recommendations

2 3
844·674·4461
[e-mail] WWW.ORIGINACOUSTICS.COM
DIRECTOR 60 INSTALLATION MANUAL
For this setup, use a
multi-stranded wiring designed
for amplifier to speaker connec-
tions. The gauge of wire used
can have an impact on the per-
formance of your speakers and
we would recommend that you
choose the largest wire size that
is practical for your installation.
Which gauge to select depends
on the length of wire to be used
on any particular speaker. In
general the shorter the run the
smaller the wire size you can
use, however you can never go
wrong by using a thicker gauge.
Wire Length Recommend-
ed Gauge
Feet Meter
0-100 0-30 16
50-150 15-45 14
100+ 30+ 12
Speaker Wire
Recommendations
Required Tools/Items
1. Keyhole or drywall saw
2. Speaker wire
3. Pencil
4. Wire stripper
5. Measuring tape
Optional Tools/Items
• Drill with ⅛” (3mm) drill
bit
To check for obstacles in ceiling
• Sti wire (like from a coat
hanger)
To check for obstacles in ceiling
• Stud finder To check for obstacles in ceiling
• Fish tape To route wire through walls
• Can of spray paint For painting the grille
• Can of compressed air For painting the grille
5
4
3
2
1
Figure 2.1: Tools
Model D60 DT/SUR
Dual Tweeters
The Dual Tweeter models can be used for either one channel (sur-
round) or two channels (stereo). A switch is located on the back of
the speaker to select which mode to use. One of the inputs is la-
beled for surround. This is the input that should be used if you’re
only using one channel.
Surround
In this mode, one channel is fed into both tweeters to be distribut-
ed throughout the area. This way in a multiple-speaker setup, one
speaker can be a dedicated le speaker and another a dedicated
right.
Stereo
In this mode, two channels are fed into the speaker: one channel
for each tweeter. This setup is ideal for small rooms such as walk-
in closets and bathrooms, as well as oddly-shaped areas such as
hallways. With both le and right channels in one speaker, only
one speaker is needed in smaller rooms. Or in areas like hallways,
both channels can be evenly distributed throughout the area with
multiple speakers.

4 5
844·674·4461
[e-mail] WWW.ORIGINACOUSTICS.COM
DIRECTOR 60 INSTALLATION MANUAL
Speaker Placement
Position the two speakers in
the middle of the room, no
less than 6’ (2m) apart. Ideal-
ly, the two speakers would be
placed an equal distance from
the listener. If the room has a
lower ceiling, the speakers can
be closer together. Also, if the
speaker placement is intended
for standing (as opposed to
sitting) listeners, the speakers
can be closer together. Figure
4.1 shows the sound coverage
of the room.
For better sound quality, avoid
installing the speakers near
corners.
Dedicated Room Home
Theater (5 Speakers)
The Le Rear (LR) and Right
Rear (RR) speakers should be in-
stalled just behind the listener,
one on either side. The Center
Channel (CC) speaker should
be placed above and slightly in
front of the television, with the
Le Front (LF) and Right Front
(RF) speakers placed equidis-
tant to either side.
Auxiliary Room (2 Speakers)
Listener
6’
(2m)
Le Speaker Right Speaker

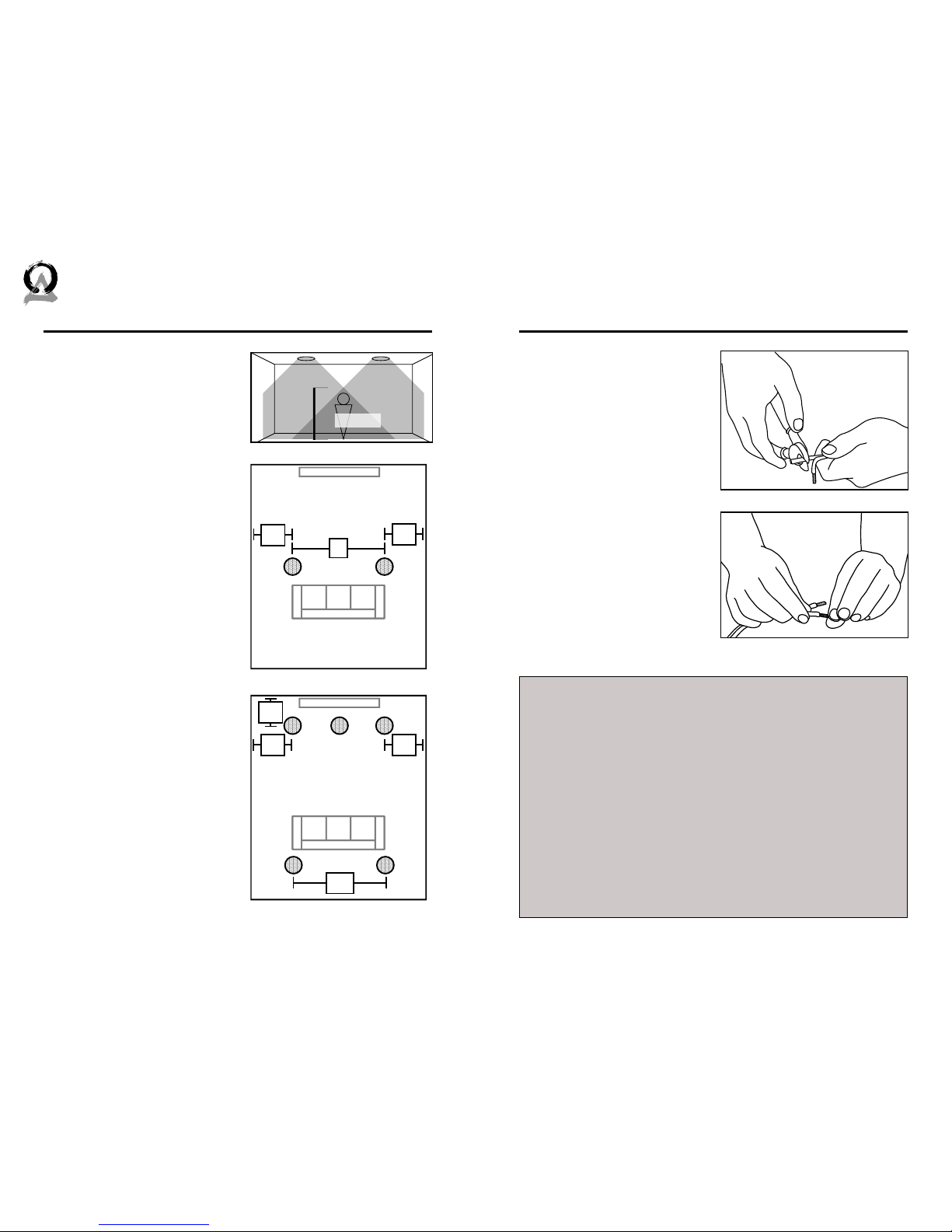

Figure 4.1: Sound Coverage
Listening Area
6’+
2m+
2’-3’
.5-1m
2’-3’
.5-1m
TV
Left
Speaker
Right
Speaker
Figure 4.2: 2 Speaker Setup
Listening Area
6’-10’
2-3m
2’-3’
.5-1m
TV
LF RF
RRLR
CC
2’-3’
.5-1m
2’-3’
.5-1m
Figure 4.3: 5 Speaker Setup
Installation
1) Installing the Wire
Strip ¼ to ½ inches (6 to 12
mm) of the insulation o both
ends of the wire. To avoid stray
strands, twist them at the end.
Connect the wire to the am-
plifier, and make sure the wire
connected to the le speaker
output will be routed to the le
speaker, right output to right
speaker, etc.
You will need a wire that has at least two conductors; one that can be
identified as the positive and the other as the negative. All two conductor
wires have some means of identifying which conductor is which, but at
times this identification may be subtle. It’s crucial that you keep track of
which wire you use for positive (+) and negative (-). Typically if the wires
are colored red and black, the red wire is used for positive and the black
wire is used for negative, but sometimes other colors or patterns are
used. You can choose whichever color of wire you want to be positive and
negative as long as you remain consistent throughout the install.
On both your amplifier and your speaker the connectors will be identi-
fied as red for positive and black for negative. It is very important to look
carefully at the speaker wires and be certain that the same wire that is
attached to the positive connector in the amplifier is attached to the pos-
itive connector in the speaker.
About Speaker Wire
Figure 5.1: Strip Wire
Figure 5.2: Twist Ends

6 7
844·674·4461
[e-mail] WWW.ORIGINACOUSTICS.COM
DIRECTOR 60 INSTALLATION MANUAL
Plan out how you’ll route the
wire to the desired speaker
location. There are several
methods for routing the wire,
and you will most likely need
to combine several of these
methods.
Under the Carpet:
One option is to li up the car-
pet and use tape wire to route
the wire under the carpet.
Behind the Baseboard:
The wire can be routed behind the baseboard by cutting a groove
out of the back of the baseboard, or by buying special baseboard
designed for concealing wires.
Through the Attic:
If the room is under the attic or a crawlspace, the wire can be rout-
ed through there.
Through the Basement:
Likewise, if there’s a basement or crawlspace under the floor, the
wire can be routed through there.
Route the wire through the walls and ceiling to the desired speak-
er location. Be sure to avoid all obstacles such as AC wiring, pipes,
and ducts.
If these speakers are being
installed in a new home during
construction, the installation
process will be a bit dierent (al-
though much simpler). For these
situations, it’s recommended
you purchase a bracket. In-
structions on how to install the
speakers are provided with the
bracket, or can be found on our
website. Visit www.originacous-
tics.com for more information.
For New Construction 2) Painting the Grille
In some situations the speakers
may look better if the color
matched the walls, ceiling, or
trim in the room. This can be
accomplished by painting the
grille. The grille must be paint-
ed with spray paint, and most
hardware stores will mix a can
of paint to match whatever col-
or you need.
Before painting, carefully
remove the thin cloth on the
underside of the grille. Lightly
spray the front of the grille
with the paint from a distance,
being careful not to plug any
of the holes. Diluting the paint
with paint thinner will lessen
the risk of filling any holes. If a hole is plugged, use a can of com-
pressed air to open it. Once the paint is dry, put the cloth back on
the grille.
3) Cutting the Hole
When you’ve decided on the locations for all of the speakers,
use the template to trace a circle lightly in pencil where the hole
should be. (If you don’t have a template, check the Specifications
section for cutout sizes.) If you’re unsure on whether there may
be obstacles (such as pipes or wires) where you plan on installing
the speaker, drill a ⅛ inch hole in the center of the circle, then put
a bent coat hanger through the hole to feel around. Use a keyhole
or drywall saw to cut the hole.
Figure 7.1: Remove Cloth
Figure 7.2: Paint Grille

8 9
844·674·4461
[e-mail] WWW.ORIGINACOUSTICS.COM
DIRECTOR 60 INSTALLATION MANUAL
Adjust the ZipClips so that
they’re positioned at the top
of the rail. This is done by in-
serting your finger under the
locking tab and gently liing
it outward, away from the rail,
while at the same time pulling
the ZipClips to the top of the
ZipClip rail.
Insert the InstaMount into the
hole in the ceiling by gently
bending the ZipClips inward.
Reach inside the InstaMount
and push the ZipClips down so
that the InstaMount is firmly in
place, but not too tight.
If for some reason the Insta-
Mount needs to be removed,
reach inside and li the locking
tabs to fully remove the Zip-
Clips. Aer the ZipClips have
been removed, the InstaMount
can be taken out.
4) Installing the InstaMount
Figure 8.1: Lower ZipClip (1)
Figure 8.2: Lower ZipClip (2)
Figure 8.3: Remove ZipClip
5) Connecting the Wires
Insert the wires into the con-
nectors, making sure that the
positive wire is being attached
to the red connection and the
negative wire is being attached
to the black connection. If the
negative and positive wires are
switched, speaker performance
will be drastically impacted.
6) Installing the Speaker
Fit the speaker into the Insta-
Mount, and twist it clockwise
into place.
Figure 9.2: Insert Speaker Figure 9.3: Secure Speaker
Figure 9.1: Connecting the Wires

10 11
844·674·4461
[e-mail] WWW.ORIGINACOUSTICS.COM
DIRECTOR 60 INSTALLATION MANUAL
7) Listening Test and Adjustments
Figure 10.1: Adjusting
the Tweeter
Figure 10.2: Adjusting the Woofer
The woofer on the D64, D66,
and D68 and tweeter on all but
the D62 DT/SUR can be pivoted
to direct the sound towards the
listening area. Or for a more
diused surround sound expe-
rience, the rear speakers can
be aimed towards the wall. To
aim the tweeter, gently apply
pressure to the rim with your
thumbs to pivot the tweeter.
To aim the woofer, gently apply
pressure to the rim and pivot it
in the desired direction.
The D66R and D68R have two
switches: one to adjust the tre-
ble, and one to adjust the bass.
The D64R only has one switch
for treble.
8) Installing the Grille
Fit the grille over the speaker. The grille uses magnets to be held
in place.
Bass: When a speaker is installed in a corner, the bass is amplified. If this
is the case, it may be best to turn the bass down.
Treble: When a room has a lot of hard surfaces like bare walls and hard-
wood floors, the treble will reflect o of these surfaces and increase. In
these situations, it may be a good idea to turn the treble down. Alternate-
ly, in rooms with carpet and things like curtains, the treble is oen ab-
sorbed. If this is the case, it would probably be best to turn up the treble.
Reasons to Adjust Bass and Treble
Figure 11.1: Bass & Treble Switches

12 13
844·674·4461
TECHSUPPORTORIGINACOUSTICS.COM WWW.ORIGINACOUSTICS.COM
DIRECTOR 60 INSTALLATION MANUAL
If you have any questions or concerns about installing or using
this product, you can reach us through one of the following meth-
ods:
Phone: [phone]
Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri
Email: [e-mail]
If you are having technical trouble, please include the model num-
ber and briefly explain what steps you took to resolve the problem
in your email, or be prepared to answer these questions over the
phone. If you are considering returning the product, it’s required
that you contact Origin Acoustics prior to any return attempts.
This way we can determine if the issue can be resolved without
returning the product, or if needed we can provide instructions
and support for the return process.
If possible, it’s oen good to try to isolate the problem first. For
example, if you’re playing a DVD on a television and there’s no
sound, try connecting an MP3 player to the system to see if that
works. If it does work, then the problem is with the television, DVD
player, or the cables connecting them. If it doesn’t work, the prob-
lem will be with the amplifier, speakers, or those cables.
Problem Possible Cause
No Sound
The volume may be turned down or muted. Check
the volume settings on both the amplifier and the
television/computer/CD player/etc.
Make sure the proper source is selected on the am-
plifier or receiver.
Check the cord connecting the amplifier with the
source. The cord may be damaged or plugged into
the wrong input or output.
Check the wires connecting the amplifier with the
speakers. Make sure they’re connected properly and
not damaged in any way.
Poor Sound Quality
If you hear something like static, or the sound is cut-
ting in and out, check the audio cables. If the prob-
lem increases when a cable is being moved, then the
cable is most likely faulty or not connected properly.
Today’s audio systems may have several places to
adjust the volume, for example your MP3 player may
have a volume control, and your amplifier may also
have one. Check to be certain that the volume isn’t
turned up past 80% on any device.
Try changing sources to be certain that the selection
you’ve chosen is a good quality recording.
Troubleshooting Technical AssistanceTechnical AssistanceTroubleshooting

14 15
844·674·4461
[e-mail] WWW.ORIGINACOUSTICS.COM
DIRECTOR 60 INSTALLATION MANUAL
Specifications
*DPSD = Dual Plane Stabilized Diaphragm
Specifications
Model Number D62 DT/SUR D62 D64 D66 D68
Part Number SCD2T60200 SCD60200 SCD60400 SCD60600 SCD60800
Tweeter Dome Aluminum Aluminum Aluminum Silk DPSD* Silk DPSD*
Tweeter Diameter 1” (25mm) 1” (25mm) 1” (25mm) 1” (25mm) 1” (25mm)
Woofer Cone IMG IMG IMG Glass Kevlar
Woofer Diameter 6.5” (165mm) 6.5” (165mm) 6.5” (165mm) 6.5” (165mm) 6.5” (165mm)
Adjustments N/A N/A Treble Treble & Bass Treble & Bass
Frequency Response 48Hz-20kHz 48Hz-20kHz 45Hz-20kHz 43Hz-20kHz 40Hz-20kHz
Impedance 8 ohm 8 ohm 8 ohm 8 ohm 8 ohm
Power Handling 5-125 watts 5-125 watts 5-140 watts 5-150 watts 5-160 watts
Sensitivity 89dB ± 3dB 89dB ± 3dB 89dB ± 3dB 90dB ± 3dB 90dB ± 3dB
Diameter 9.625” (244mm) 9.625” (244mm) 9.625” (244mm) 9.625” (244mm) 9.625” (244mm)
Cutout Diameter 8.75 - 9.375”
(220 - 240mm)
8.75 - 9.375”
(220 - 240mm)
8.75 - 9.375”
(220 - 240mm)
8.75 - 9.375”
(220 - 240mm)
8.75 - 9.375”
(220 - 240mm)
Mounting Depth 5.375” (135mm) 5.375” (135mm) 3.625” (92mm) 3.625” (92mm) 3.625” (92mm)

16 17
844·674·4461
[e-mail] WWW.ORIGINACOUSTICS.COM
DIRECTOR 60 INSTALLATION MANUAL
This warranty may not be valid if the product was purchased
through an unauthorized dealer. This warranty only applies to
the individual that made the original purchase, and it cannot be
applied to other purchases. The purchaser must be prepared to
provide proof of purchase (receipt). This warranty will not be val-
id if the identifying number or serial number has been removed,
defaced, or altered.
This warranty does not cover the following:
• Accidental damage
• Damage caused by abuse or misuse
• Damage caused by attempted repairs/modifications by
anyone other than Origin Acoustics or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage inputs in excess of the rated
maximum of the unit
• Damage inflicted during the return shipment
Warranty
Limited Lifetime Warranty
Origin Acoustics warrants to the original retail purchaser only that
this Origin Acoustics product will be free from defects in materials
and workmanship, provided the speaker was purchased from an
Origin Acoustics authorized dealer.
If the product is determined to be defective, it will be repaired or
replaced at Origin Acoustics’ discretion. If the product must be
replaced yet it is no longer manufactured, it will be replaced with
a model of equal to or greater value that is the most similar to
the original. If this is the case, installing the replacement model
may require mounting modifications; Origin Acoustics will not be
responsible for any such related costs.
Requirements and Warranty Coverage
Return Process
Before making any return attempts, it is required that you first
contact Origin Acoustics. Return product to Origin Acoustics
or your dealer, either in person or by mail. It’s preferable if the
product is returned in the original packaging. If this isn’t possi-
ble, the customer is responsible for insuring the shipment for the
full value of the product.
This warranty is in lieu of all other expressed or implied warran-
ties. Some states do not allow limitations on implied warranties,
so this may not apply depending on the customer’s location. (For
more information, see Magnuson-Moss Warranty Act.)
Return Process
Limited Lifetime Warranty
Requirements and Warranty Coverage
Warranty

©2014 Origin Acoustics. All copyrighted, trademarked and
patented elements mentioned herein are the sole property of
Origin Acoustics.
