Origin Acoustics SEASONS LANDSCAPE LS64 User manual

Installation Manual
LS64, LS44, OSUB12, OSUB10, OSUB8
SEASONS LANDSCAPE COLLECTION™
LS64 LS44
OSUB12 OSUB10 OSUB8

2
Seasons Landscape Collection™ Manual
Table of Contents
Introduction 1
Specifications 2
Tools & Items 4
Wire Recommendation 4
About Speaker Wire 4
Planning 5
Speaker Location 6
Subwoofer Location 6
Wire Planning 7
Satellite Speakers 8
Subwoofer 10
Installing the Wire 11
Troubleshooting 12
Technical Assistance 13
Warranty 14
Return Process 15

1
Seasons Landscape Collection™ Manual
Thank you for purchasing the Seasons Landscape LS 60 & 40 Speaker and/or
OSUB Subwoofer. At Origin Acoustics, we take pride in providing you with a high
quality product. All of Origin Acoustics’ speakers are designed to have excellent
sound quality, longevity, and a simple installation process.
Thisinstructionbookletcoversthenecessaryinformationforasmoothinstallation,
including: the tools you will need, step-by-step instructions for installation,
troubleshooting tips for any errors that may occur, and all warranty information.
If for any reason you experience problems or if you have installation questions
please call us at [phone]. Hours of operation are 8:00am to 5:00pm (Pacific
Time), Monday through Friday.
Introduction

2
Seasons Landscape Collection™ Manual
Specifications
MODEL LS64 LS44
PART OLS6600 OLS4400
Woofer 6” Poly, Passive Radiator 4 ” Poly
Tweeter 1” Titanium ” Titanium
Frequency Response 60Hz-20kHz 80Hz-20kHz
Power RMS 50 Watts 50 Watts
Power Peak 150 Watts 150 Watts
Impedance 8 ohm/70V 8 ohm/70V
Transformer Taps 70V – 50W/25W/12.5W/6.25W 70V – 30W/15W/7.5W/3.75W
Dimensions 11 x 7 x 7” (279 x 178 x 178mm) 8  x 5  x 5 ” (211 x 135 x 135mm)

3
Seasons Landscape Collection™ Manual
Specifications
MODEL OSUB12 OSUB10 OSUB8
PART OSUB12000 OSUB10000 OSUB8000
Woofer 12” Poly 10” Poly 8” Poly
Frequency Response 23Hz-100kHz 32Hz-100kHz 39Hz-100kHz
Transformer Taps 300 Watts 300 Watts 100 Watts
Impedance 8 ohm/70V 8 ohm/70V 8 ohm/70V
Dimensions 17  x 17  x 23 ”
(451 x 451 x 597mm)
15  x 15  x 21 ”
(400 x 400 x 546mm)
12  x 21  x 12 ”
(315 x 538 x 315mm)

4
Seasons Landscape Collection™ Manual
• Direct Burial Wire
• Speaker Wire
• Wire Stripper
• Measuring Tape
• Shovel
• Screwdrivers
Tools & Items
The gauge of wire used can have an impact on the performance of your speakers.
Use a multi-stranded wiring designed for amplifier to speaker connections.
Which gauge to select depends on the length of wire to be used on any particular
speaker. The longer your run is, the larger your wire size must be.
Wire Recommendation
Wire Length Wire Gauge
0 -100’ (0 - 30m) 16
50 - 150’ (15 - 45m) 14
Over 100’ (30m) 12
You will need a wire that has at least two conductors; one that can be identified
as the positive and the other as the negative. All two conductor wires have some
means of identifying which conductor is which, but at times this identification
may be subtle. It’s crucial that you keep track of which wire you use for positive
(+) and negative (-). Typically if the wires are colored red and black, the red wire
is used for positive and the black wire is used for negative, but sometimes other
About Speaker Wire

5
Seasons Landscape Collection™ Manual
The Landscape satellite speakers and subwoofers should be strategically placed
to evenly distribute sound throughout the outdoor area. Fully plan out the
locations of all satellite speakers, subwoofers and buried wires before beginning
the installation process.
Origin satellite speakers have been specially designed so that you can set them
in the 70v configuration for large installs, or for small installs they can be set to
8 for use with a standard AV receiver. (If using the OSUB8, 10 or 12 in 8 Ohm
we recommend using a dedicated subwoofer amplifier. *See Origin SUBA150,
SUBA500)
The first step to locating your speakers is to plan the speaker layout. Origin
Acoustics oers a free design service to help you map the optimal speaker
placements as well as recommended amplifier power and project scale. (Email
[e-mail] for more information.) If, however, you
want to plan the layout yourself, here are some guidelines.
Planning
colors or patterns are used. You can choose whichever color of wire you want to
be positive and negative as long as you remain consistent throughout the install.
On both your amplifier and your speaker the connectors will be identified as red
for positive and black for negative. It is very important to look carefully at the
speaker wires and be certain that the same wire that is attached to the positive
connector in the amplifier is attached to the positive connector in the speaker.

6
Seasons Landscape Collection™ Manual
Satellite speakers should be fairly
evenly spaced and aimed so they
cover the listening area uniformly. One
satellite speaker will provide sound to
about 250 to 500 sq , depending on
your loudness requirements. Origin
makes mounting hardware available
so that you can easily and securely
locate satellite speakers on the
ground, flat surfaces like walls or even on trees. You should avoid placing them
next to high-pressure sprinklers.
Speaker Location
Subwoofer
Speakers
Select a location for the subwoofer somewhat near the middle of the satellite
speaker arrangement. One subwoofer will provide bass to about 1000 to 2000
sq . When using multiple subwoofers, space them out evenly and about equal-
distance from the listening area. Subwoofers should be positioned away from
standing water.
Subwoofer Location

7
Seasons Landscape Collection™ Manual

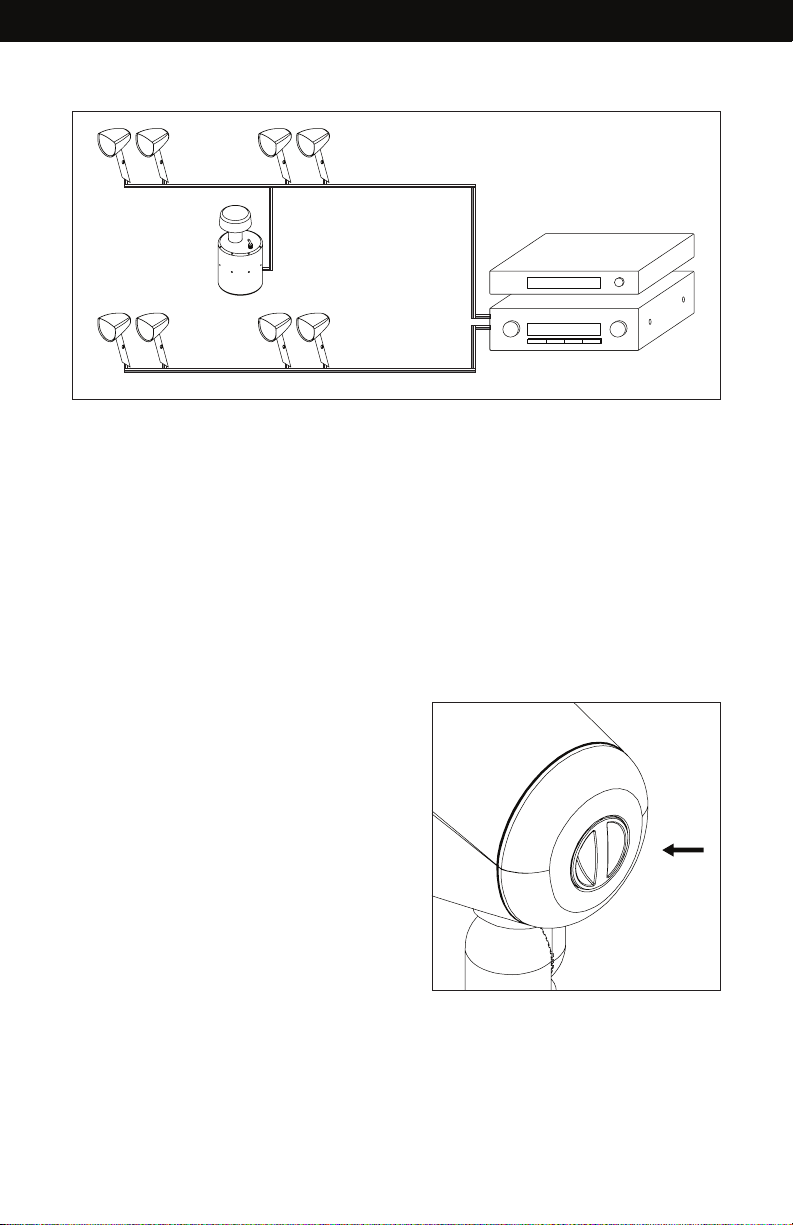

For most applications, we recommend wiring all subwoofers on a designated wire
run and satellites on a separate wire run. This will allow the Crown CDi amplifier
to use the presets with active crossovers that remove the bass from the satellites,
more eectively controls how the subwoofer interfaces with the satellites, permits
you to control the subwoofer-to-satellite balance and has the custom DSP (digital
signal processing) assigned to subwoofers and satellites separately.
All speakers on a wire run -- satellites or subwoofers -- can be daisy-chained (wired
in parallel). Subwoofers will need to be on CH1 and satellites on CH2.
Wire Planning
Subwoofers
Speakers
Source
Amplifier

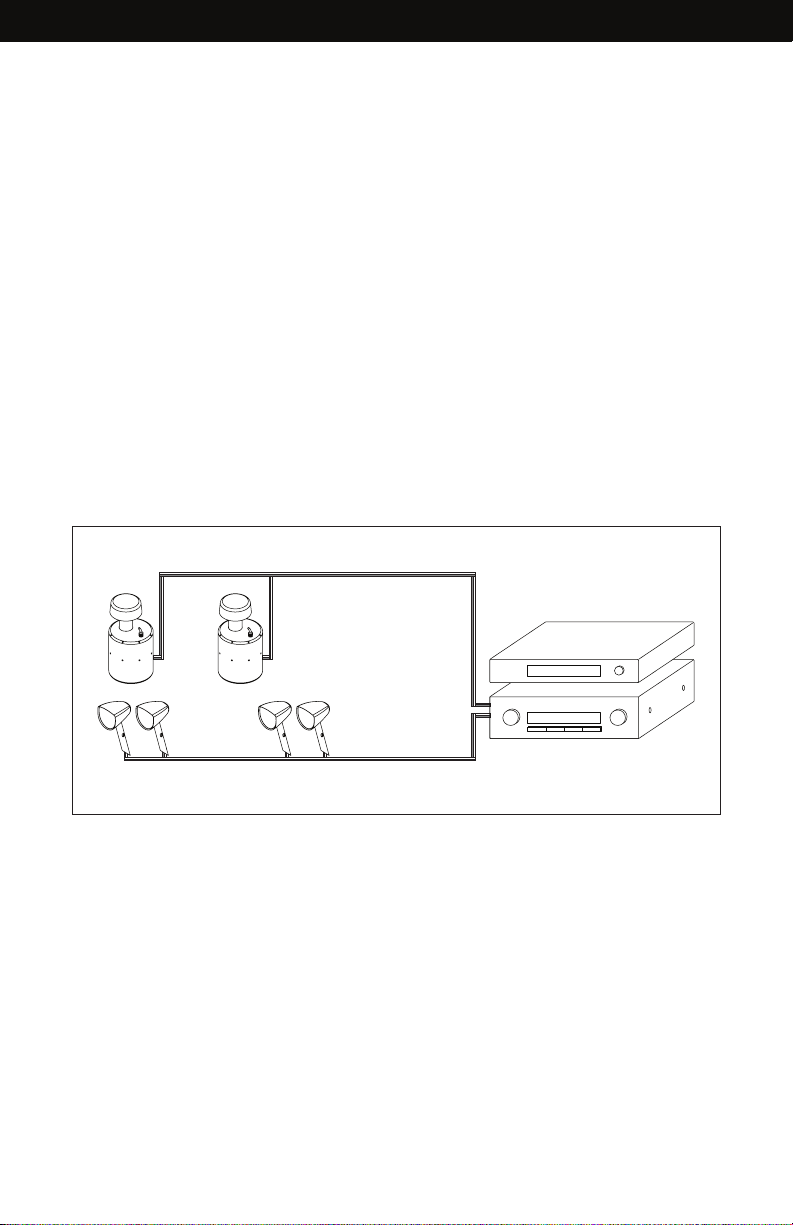

Another option that you may be more familiar with allows you to daisy-chain
satellites and subwoofers on the same wire run(s). With this approach, the Crown
presets still use custom DSP but the crossover between satellites and subwoofer
is passive. Subwoofer(s) can be connected to either channel anywhere in the
chain. When using more than one subwoofer, evenly distribute them between the
two channels.

8
Seasons Landscape Collection™ Manual
Install the satellite speakers with their
mounts. (Depending on the location
and type of mount, you may want
to connect the wires to the satellite
speakers first.)
To aim the satellite speaker up and
down, loosen the screw on the pole
until the satellite speaker can be
aimed, and then tighten it when it’s facing the appropriate direction. To prevent
1. Satellite Speakers
Small System Option:
For a smaller system, it’s possible to use an ordinary 8 Ohm receiver or amplifier.
For this use case, all speakers and subwoofers must be set to 8 ohm. (No more
than two speakers per channel)
Subwoofer
Speakers
Speakers
Source
Amplifier

9
Seasons Landscape Collection™ Manual
water damage, angle the satellite
speaker less than 45 degrees up.
To aim the satellite speakers side to
side on the tree or surface mount,
the satellite speaker first should be
screwed fully to the mount. Then,
loosen it until it’s facing the right
direction. Move the bolt just until it’s
snug against the mount.
The rear cover on the satellite speaker can be removed to adjust the wattage taps
to adjust the volume. Do not set it to 8 ohm unless you’re planning on using the
“Small System Option” discussed above.
To remove the back cover and access the wattage controls, unscrew the knob on
the back. Then the back panel can be removed. When reattaching the back panel,
make sure it’s oriented properly, or it may not fit.
|
|
|
|
|
8
Ω
3
0
W
1
5
W
7
.
5
W
3
.
7
5
W

10
Seasons Landscape Collection™ Manual
When you’ve decided on a subwoofer location, you’re ready to dig its hole.
OSUB8: 14” diameter, 15” deep
OSUB10: 20” diameter, 15” deep
OSUB12: 22” diameter, 17” deep
Use loose dirt to level the subwoofer. The subwoofer shouldn’t be in contact
with large rocks or large empty holes. Using the pipe clamp, attach the pipe to
the subwoofer. Do not li the subwoofer by holding the port tube as this could
damage the subwoofer.

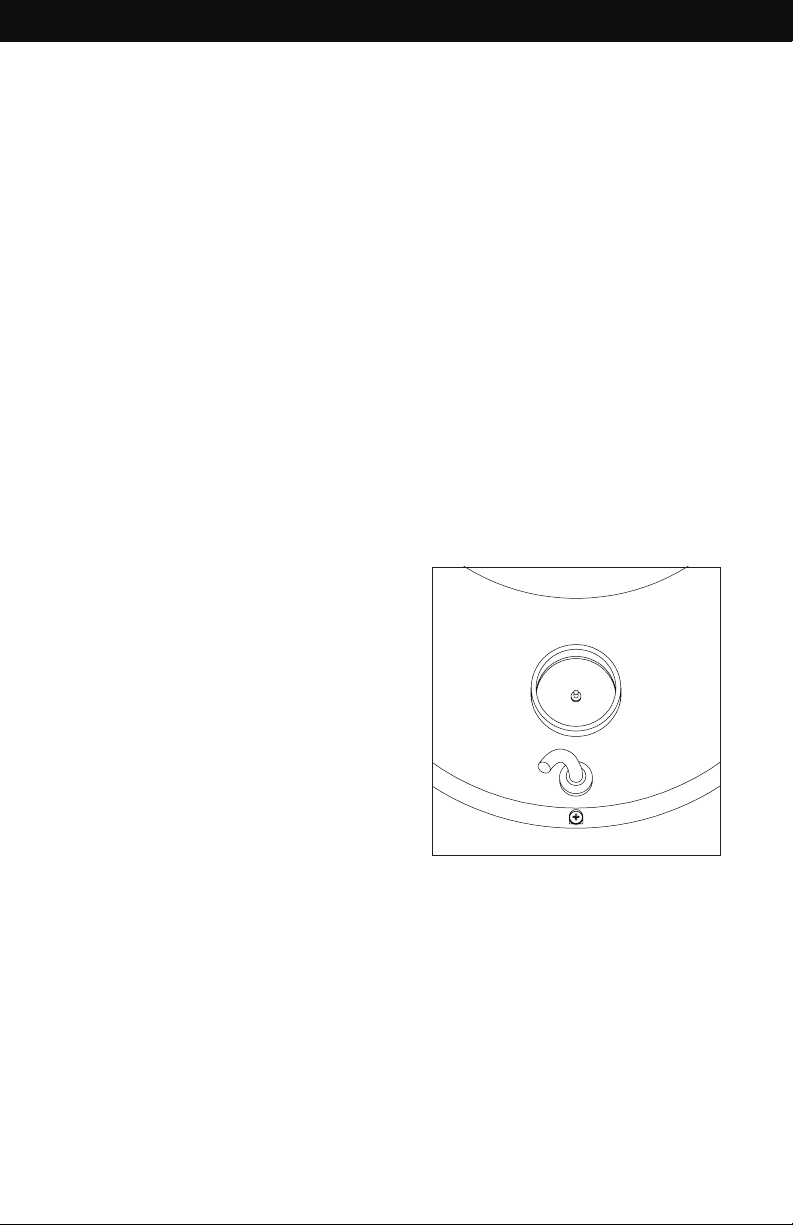

All Origin OSUB in ground subwoofers
can be switched from 8 Ohm or 70v.
Once you decided what type of system
you are going to run (8ohm or 70v)
please adjust the switch on the top
of the OSUB located under the cap.
Please note that the default position
for all satellites and subwoofers is 70v.
2. Subwoofer

11
Seasons Landscape Collection™ Manual
Dig a 5” trench where you plan on
laying out the wire. Run the wire from
the amplifier to your first satellite
speaker or subwoofer location.

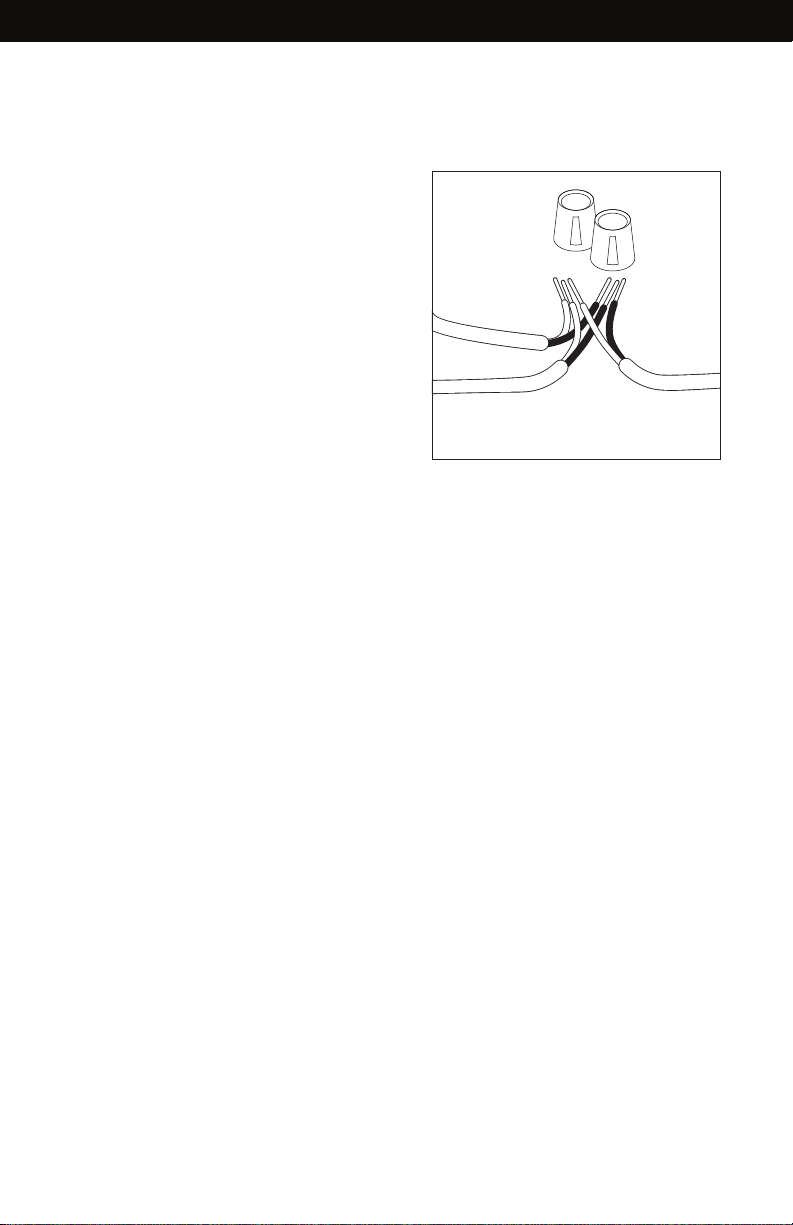

Using waterproof wire nuts (included),
connect the wire to the first speaker
using the following diagram as
reference.
Bundle all three of the positive wires (wire from the amplifier, the first satellite
speaker, and to the rest of the satellite speakers) together and connect them with
the first wire nut. Then do the same for all the negative wires.
Continue connecting the speakers in this fashion until you reach the end. Connect
the wires to the amplifier. Connect your music playing device and test the system.
If everything is working properly, fill all the holes and trenches.
2. Installing the Wire
Wire Nuts
From
Amplifier
To Remaining
Speakers
To Speaker

12
Seasons Landscape Collection™ Manual
If possible, it’s oen good to try to isolate the problem first. For example, if you’re
playing a DVD on a television and there’s no sound, try connecting an MP3 player
to the system to see if that works. If it does work, then the problem is with the
television, DVD player, or the cables connecting them. If it doesn’t work, the
problem will be with the amplifier, speakers, or those cables.
Troubleshooting
Problem Possible Cause
No Sound The volume may be turned down or muted. Check the volume
settings on both the amplifier and the television/computer/CD
player/etc.
No Sound Make sure the proper source is selected on the amplifier or
receiver.
No Sound Check the cord connecting the amplifier with the source. The
cord may be damaged or plugged into the wrong input or
output.
No Sound Check the wires connecting the amplifier with the speakers.
Make sure they’re connected properly and not damaged in any
way.
Poor Sound
Quality
If you hear something like static, or the sound is cutting in and
out, check the audio cables. If the problem increases when a
cable is being moved, then the cable is most likely faulty or not
connected properly.
Poor Sound
Quality
Today’s audio systems may have several places to adjust the
volume, for example your MP3 player may have a volume
control, and your amplifier may also have one. Check to be
certain that the volume isn’t turned up past 80% on any device.
Poor Sound
Quality
Try changing sources to be certain that the selection you’ve
chosen is a good quality recording.

13
Seasons Landscape Collection™ Manual
If you have any questions or concerns about installing or using this product, you
can reach us through one of the following methods:
Phone: [phone]
Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri
Email: [e-mail]
If you are having technical trouble, please include the model number and
briefly explain what steps you took to resolve the problem in your email, or
be prepared to answer these questions over the phone. If you are considering
returning the product, it’s required that you contact Origin Acoustics prior to any
return attempts. This way we can determine if the issue can be resolved without
returning the product, or if needed we can provide instructions and support for
the return process.
Technical Assistance

14
Seasons Landscape Collection™ Manual
Origin Acoustics warrants to the original retail purchaser only that this Origin
Acoustics product will be free from defects in materials and workmanship,
provided the speaker was purchased from an Origin Acoustics authorized dealer.
If the product is determined to be defective, it will be repaired or replaced at
Origin Acoustics’ discretion. If the product must be replaced yet it is no longer
manufactured, it will be replaced with a model of equal to or greater value that is
the most similar to the original. If this is the case, installing the replacement model
may require mounting modifications; Origin Acoustics will not be responsible for
any such related costs.
Limited 5 Year Warranty
This warranty may not be valid if the product was purchased through an unautho-
rized dealer. This warranty only applies to the individual that made the original
purchase, and it cannot be applied to other purchases. The purchaser must be
prepared to provide proof of purchase (receipt). This warranty will not be valid if
the identifying number or serial number has been removed, defaced, or altered.
Requirements & Warranty Coverage

15
Seasons Landscape Collection™ Manual
• Accidental damage
• Damage caused by abuse or misuse
• Damage caused by attempted repairs/modifications by anyone other than
Origin Acoustics or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage inputs in excess of the rated maximum of the unit
• Damage inflicted during the return shipment
Not Covered by Warranty
Before making any return attempts, it is required that you first contact Origin
Acoustics. Return product to Origin Acoustics or your dealer, either in person or by
mail. It’s preferable if the product is returned in the original packaging. If this isn’t
possible, the customer is responsible for insuring the shipment for the full value of
the product.
This warranty is in lieu of all other expressed or implied warranties. Some states do
not allow limitations on implied warranties, so this may not apply depending on
the customer’s location. (For more information, see Magnuson-Moss Warranty Act.)
Return Process

6975 S Decatur Blvd, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461
©2019 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
