oserio BHG-208 User manual

1
User Manual
BHG-208 Cardio Scale
Please keep the instruction manual at hand all the time for future reference.

2
Copyright Notice
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist., Taichung City 41262 Taiwan
Tel: [phone]
Fax: [phone]
Website: www.oserio.com E-mail: [e-mail]
Copyright© Charder Electronic Co., Ltd. All rights reserved.
This user manual is protected by international copyright law. All content is
licensed, and usage is subject to written authorization from Charder
Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any
damage caused by a failure to adhere to requirements stated in this
manual. Charder reserves the right to correct misprints in the manual
without prior notice, and modify the exterior of the product for quality
purposes without customer consent.

3
Table of Contents
I. Before Use 4
A. General Information 4
B. Connecting to o'Care app on smartphone 5
II. Product Description 6
A. Overview 6
B. Inserting Batteries 7
III. How to Use 8
A. Self-calibration 8
B. Conducting measurement 8
IV. Caring for your product 10
A. Use & Storage 10
B. Service and maintenance 10
V. Troubleshooting 11
VI. Product Specifications 12
A. Product Information 12
B. EMC Guidance and Manufacturer's Declaration 13

4
I. Before Use
A. General Information
Thank you for choosing this oserio product. Before use, please read this
user manual carefully, and keep it in a safe place for reference. It contains
important instructions regarding proper usage.
Intended Use
This product is intended to measure the weight and heart rate of children
or adults who can stand unassisted.
General Handling
Product should be placed on stable, flat, solid, non-slippery surface.
Place the product in an area free from direct sunlight, heating
equipment, high humidity, or extreme temperature change.
Never submerge in water.
Usage on soft surfaces (ex: carpet) may result in inaccurate results.
Disposal
All batteries contain toxic compounds; batteries should be disposed
of via designated competent organizations. Batteries should not be
incinerated.
This product is not to be treated as regular household waste, but
should be taken to a designated collection points for electronics.
Further information should be provided by local waste disposal
authorities.

5
B. Connecting to o'Care app on smartphone
The BHG-208 is designed to be used with the o'Care smartphone app,
making it easy to track body composition results for as many users as
needed.
An iOS or Android device (with operational Bluetooth and Wi-Fi) is
required to download the o'Care app, and retrieve measurement results
from the product.
[QR Code] [QR Code]
Google Play (Android Devices) App Store (Apple Devices)
After installation, product and app is ready for use. Create a user profile
as instructed by o'Care. The BHG-208 will automatically pair and sync
with your smartphone if the o'Care app is open during measurement.

6
II. Product Description

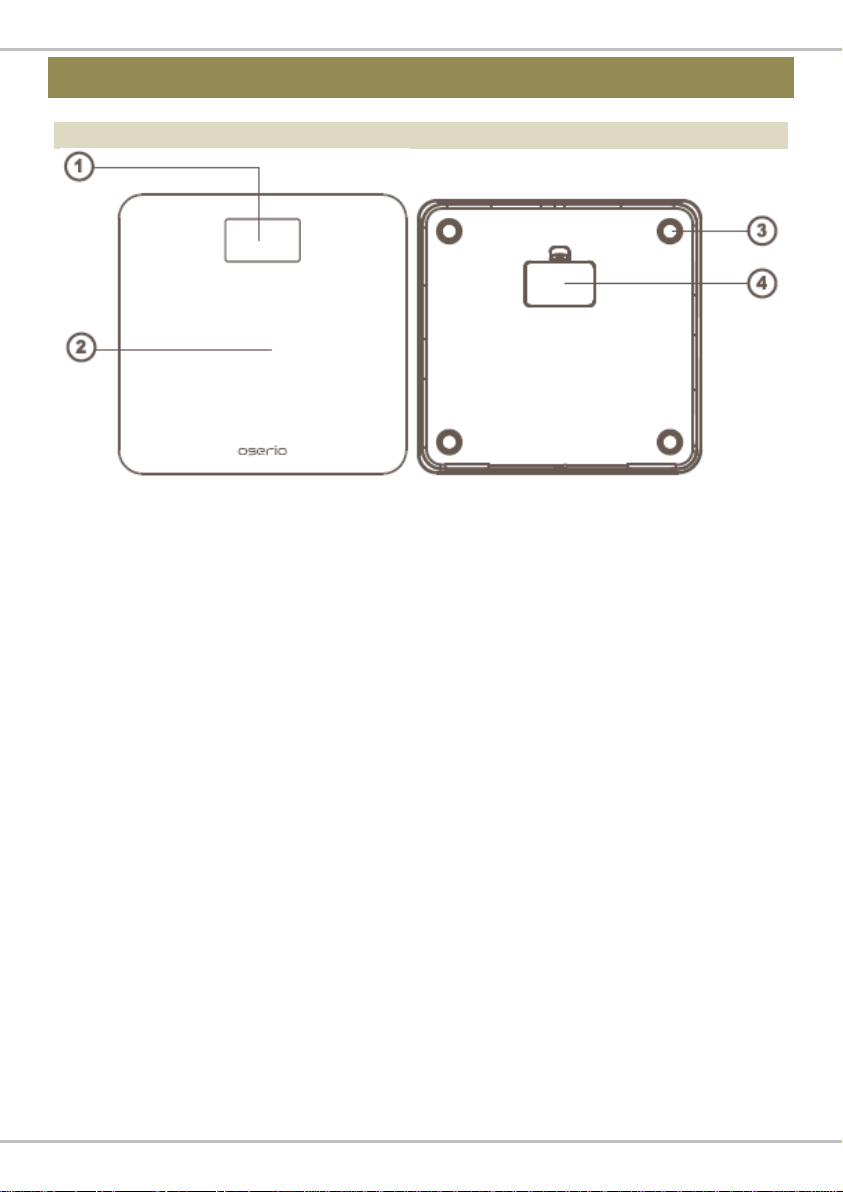

A. Overview
1. LED screen
2. Measurement platform
3. Feet
4. Battery cover

7
B. Inserting Batteries
1. Open battery housing cover
2. Remove battery cover
Insert 3 AAA batteries
Replace battery cover
NOTE: Ensure batteries are inserted in correct orientation. If batteries
are inserted incorrectly, product will not function. If product will not be
used for a long period of time (> 3 months), remove the batteries before
storage.

8
III. How to Use
A. Self-calibration
The product may require a quick self-calibration before being used for the
first time to ensure accuracy.
1. Place product on stable, flat, solid, non-slippery surface (no carpet).
2. Step on measurement platform. Weight will be displayed on screen.
3. Step off from measurement platform. After product turns off
automatically after a short period of time, self-calibration is complete.
B. Conducting measurement
Place product on stable, flat, solid,
non-slippery surface (no carpet). To
ensure accuracy, we recommend
performing self-calibration if product is
moved.
Open o'care app on smartphone and
log-in. Results will be automatically
transferred after measurement, so it is
important to select the correct user.
Stand on product for measurement. Try to
stand as still as possible. Weight result will
appear on screen. After weight is
measured, device will measure heart rate
(~15 seconds).
After measurement completion, screen will
alternate display of weight and heart rate.
Product will send results to smartphone.
(please open o'Care app prior to
measurement, to allow product to
automatically pair and sync)
After result transfer is complete, product
automatically shut down.

9
Syncing measurement results
1. If o'care app is not open on smartphone, results will not be
transferred. Product will automatically shut down 30 seconds after
completion of heart rate measurement.
2. Ensure that Bluetooth is enabled on smartphone.

10
IV. Caring for your product
A. Use & Storage
․Product should be stored in clean, cool, dry location when not in use,
away from direct sunlight and extreme temperatures.
․This product is not a toy. Children should not be allowed to play with
it.
․Avoid corrosive liquids and materials. Do not use detergents or
cleaners to clean the product. This may damage the coating
protecting the electrodes used for body composition measurement.
․Wipe the platform and display using clean soft cloth. Avoid rough,
sticky cloth, to prevent scratching the measurement platform and
screen panels.
B. Service and maintenance
The BHG-208 does not contain user-maintained parts. Service and
maintenance not described in this user manual should be performed only
by authorized technicians.

11
V. Troubleshooting
Error Messages
Error Message
Reason and action required
Low battery warning
Replace batteries
Overload or unstable weight
Total load exceeds product's maximum
capacity. Stay still and avoid movement
during measurement.
Data transfer error
Data sent from smartphone to product
resulted in error. Try measurement again.
Data transfer error
Data sent from product to smartphone
resulted in error. Try measurement again.
Heart Rate measurement error
Stay still and avoid movement during heart
rate measurement.

12
VI. Product Specifications
A. Product Information
Model
BHG-208 Cardio Scale
Battery
3 AAA batteries
Product
Weight
1.6 kg
Dimensions
Product: 290(W) x 300(D) x 25(H) mm
Screen: 76(W) x 42.5(D) mm
Operation
Environment Temperature: 5℃~35℃
Relative Humidity: 30%~85%
Storage
Environment Temperature: -20℃~60℃
Relative Humidity: 10%~95%
Capacity /
Graduation
5~180 kg x 0.1 kg
11~396 lb x 0.2 lb
Measurement
Sensors
4 weight sensors
BCG pulse measurement
Measurement
Output
Weight
Heart Rate

13
B. EMC Guidance and Manufacturer's Declaration
Guidance and manufacturer’s declaration-electromagnetic emissions
The BHG-208 Cardio Scale is intended for use in the electromagnetic environment specified
below. The customer or the user of the product should assure that it is used in such an
environment.
Emission test Compliance
Electromagnetic
environment-guidance
RF emissions CISPR 11
Group 1
The product uses RF energy only for
its internal function. Therefore, its
RF emissions are very low and are
not likely to cause any interference
in nearby electronic equipment.
RF emissions CISPR 11
Class B
The product is suitable for use in all
establishments, including domestic
establishments and those directly
connected to the public low-voltage
power supply network that supplies
buildings used for domestic
purposes.
Harmonic emissions IEC
61000-3-2
Class A
Voltage fluctuations /flicker
emissions IEC 61000-3-3
Compliance
Guidance and manufacturer’s declaration-electromagnetic immunity
The BHG-208 Cardio Scale is intended for use in the electromagnetic environment specified
below. The customer or the user of the product should assure that it is used in such an
environment.
Immunity test IEC 60601
test level Compliance level Electromagnetic environment-guidance
Electrostatic
discharge(ESD)
IEC 61000-4-2
±
8 kV contact
±2 kV, ± 4 kV,
± 8 kV, ± 15 kV
air
±
8 kV contact
±2 kV, ± 4 kV,
± 8 kV, ± 15 kV
air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be
at least 30%
Electrical fast
transient/burst
IEC 61000-4-4
± 2kV for
power supply
lines
+ 1kV for
input/output
lines
+ 2kV for power
supply lines
+ 1kV for
input/output
lines
Mains power quality should be
that of a typical commercial or
hospital environment.
Surge IEC
61000-4-5
± 1kV line(s) to
line(s)
± 2kV line(s) to
earth
+ 1kV line(s) to
line(s)
+ 2kV line(s) to
earth
Mains power quality should be
that of a typical commercial or
hospital environment.

14
Voltage Dips,
short interruptions
and voltage
variations on
power supply
input lines IEC
61000-4-11
0% UT for 0,5
cycle
0% UT for 1
cycle
70% UT(30%
dip in UT) for
25 cycles
0% UT for 5 s
0% UT for 0,5
cycle
0% UT for 1
cycle
70% UT(30%
dip in UT) for 25
cycles
0% UT for 5 s
Mains power quality should be
that of a typical commercial or
hospital environment. If the
user of the product requires
continued operation during
power mains interruptions, it is
recommended that the product
be powered from an
uninterruptible power supply or
a battery.
Power
frequency(50/60
Hz) magnetic field
IEC 61000-4-8
30 A/m
30 A/m
The product power frequency
magnetic fields should be at
levels characteristic of a typical
location in a typical commercial
or hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer’s declaration-electromagnetic immunity
The BHG-208 Cardio Scale is intended for use in the electromagnetic environment specified
below. The customer or the user of the product should assure that is used in such an
environment.
Immunity test
IEC 60601 test
level
Compliance
level
Electromagnetic
environment-guidance
Conducted RF
IEC 61000-4-6
Radiated RF IEC
61000-4-3
3 Vrms
150 KHz to 80 MHz
6 V in ISM bands
between 0,15 MHz
and 80 MHz
80 % AM at 1 kHz
3 V/m
80MHz to 2,7 GHz
3 Vrms
150 KHz to 80
MHz
6 V in ISM
bands between
0,15 MHz and
80 MHz
80 % AM at 1
kHz
3 V/m
80MHz to 2,7
GHz
Portable and mobile RF
communications equipment
should be used no closer to any
part of the product including
cables, than the recommended
separation distance calculated
from the equation applicable to
the frequency of the
transmitter.
Recommended separation
distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,5 GHz
Where P is the maximum output
power rating of the transmitter
in watts (W) according to the
transmitter manufacturer and d
is the recommended separation
distance in metres (m).
Field strengths from fixed RF
transmitters, as determined by
an electromagnetic site surveya,
should be less than the
compliance level in each

15
frequency rangeb.
Interference may occur in the
vicinity of equipment marked
with the following symbol:
NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV
broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be
considered. If the measured field strength in the location in which the product
is used
exceeds the applicable RF compliance level above, the product should be observed to verify
normal operation. If abnormal performance is observed, additional measures ma
y be
necessary, such as re-orienting or relocating the product.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distance between portable and mobile RF communications
equipment and the
BHG-208 Cardio Scale
The product is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the
product can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile
RF
communications equipment (transmitters) and the product as recommended below,
according to the maximum output power of the communications equipment.
Rated maximum output
power of transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d =1,2√
P
80 MHz to 800
MHz
d =1,2√
P
800 MHz to 2,5 GHz
d =2,3√
P
0,01
0,12
0,12
0,23
0,1
0,38
0,38 0,73
1
1,2
1,2
2,3
10
3,8
3,8
7,3
100
12
12 23
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in metres (m) can be estimated using the equation applicable to the
frequency of the transmitter, where p is the maximum output power rating of the transmitter in
watts (W) according to
the transmitter manufacturer.
NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected
by absorption and reflection from structures, objects and people.

16
Manufactured by:
Krell Precision (Yangzhou) Co., Ltd.
No.28, Xinyang Rd., Development Zone.,
Yangzhou City, Jiangsu Province, 225009, P.R.China
on behalf of
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist.,
Taichung City, 412, Taiwan (R.O.C.)
CD-IN-XXXXX REV 001 06/2020
