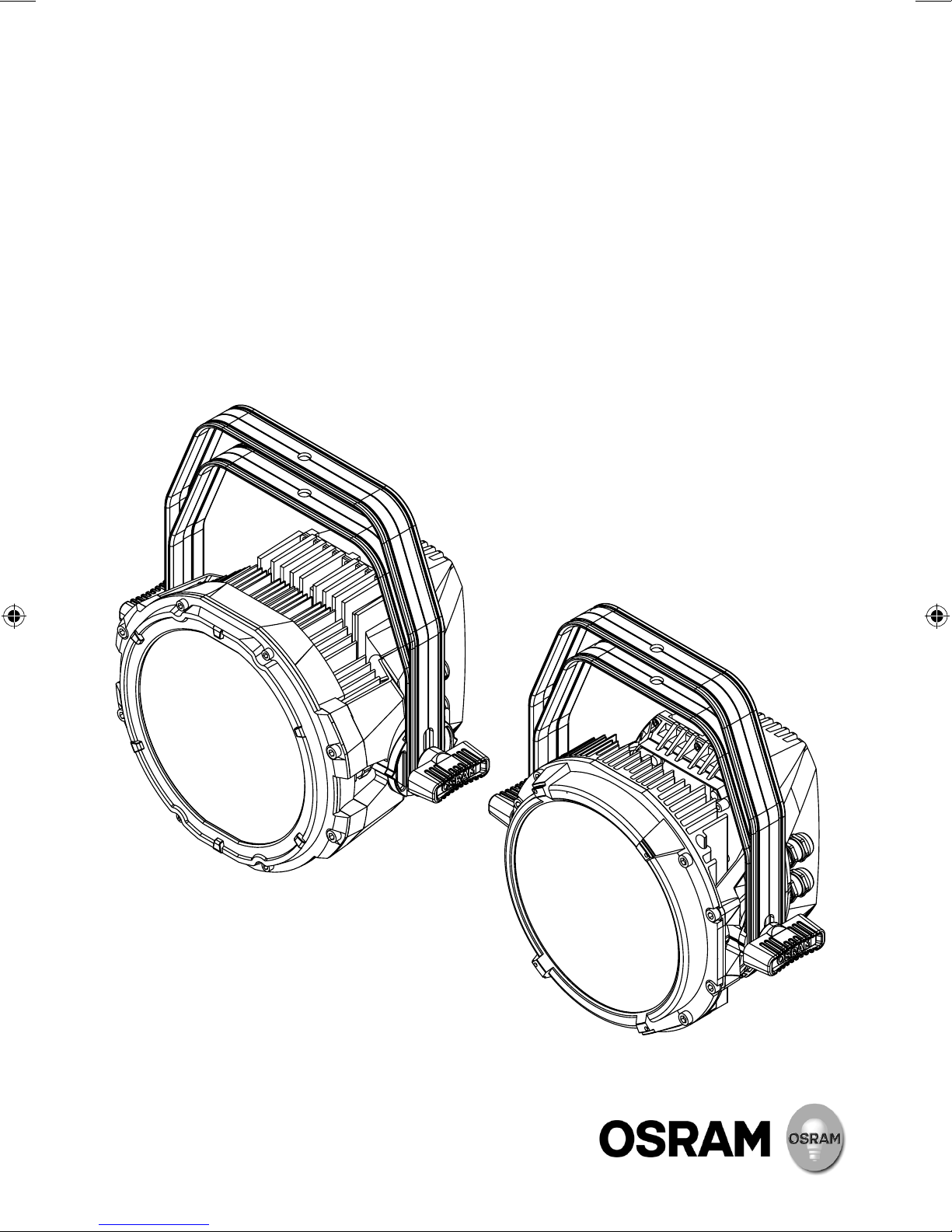

Osram KREIOS PAR162W VNSP IP 100-240V User manual

KREIOS PAR®
Indoor and Outdoor Series
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 1 2014/1/15 8:53:55

KREIOS PAR KREIOS PAR
32
CONTENT
1 Product Specification .................................................4
1.1 KREIOS PAR 162W IP - Outdoor ................................................... 4
1.2 KREIOS PAR 144W IP - Outdoor ................................................... 6
1.3 KREIOS PAR 162W - Indoor ....................................................... 8
1.4 KREIOS PAR 144W - Indoor ...................................................... 10
1.5 KREIOS PAR 108W - Indoor ...................................................... 12
2 Product Brief........................................................14
2.1 Fe atu res. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.2 Quick Start Guide .............................................................. 15
2.3 Master Mode.................................................................. 16
2.4 Synchronize Multi-controller ..................................................... 16
3 Method of Operation .................................................16
3.1 Push Button Operation .......................................................... 16
3.1.1 Basic Operation ............................................................... 17
3.1.2 Button Password .............................................................. 17
3.2 Menu structure ................................................................ 17
3.3 Menu description .............................................................. 19
3.3.1 Static Mode (STAT) ............................................................. 19
3.3.2 Auto-run Mode (AUTO) .......................................................... 19
3.3.3 DMX and Slave Selection (RUN). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.3.4 DMX Address Code Configuration (DMX) ........................................... 20
3.3.5 DMX512 Channel Mode Selection (PERS) ........................................... 20
3.3.6 ID Address Code Selection (ID) ................................................... 21
3.3.7 Over Temperature Protection Configuration (TEMP)................................... 21
3.3.8 Scene Edit (EDIT) .............................................................. 22
3.3.9 Local Equipment Setting (SET) ................................................... 23
3.3.10 White Balance Configuration (CAL1) ............................................... 24
3.3.11 Color Calibration............................................................... 25
3.3.12 Sound Active Mode (SOUD) ...................................................... 25
3.4 Console Operation ............................................................. 25
3.4.1 STAG channel mode ............................................................ 26
3.4.2 ARC.1 channel mode ........................................................... 29
3.4.3 AR1.s channel mode............................................................ 29
3.4.4 ARC.2 channel mode ........................................................... 30
3.4.5 AR1.d channel mode............................................................ 30
3.4.6 AR2.d channel mode ........................................................... 30
3.4.7 AR2.s channel mode............................................................ 31
3.4.8 HSV channel mode ............................................................. 31
3.4.9 Color selection*................................................................ 32
4 Edit learning Program ................................................33
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 2-3 2014/1/15 8:53:55

KREIOS PAR KREIOS PAR
54
224
252
329 224
224
218 184
252
341 224

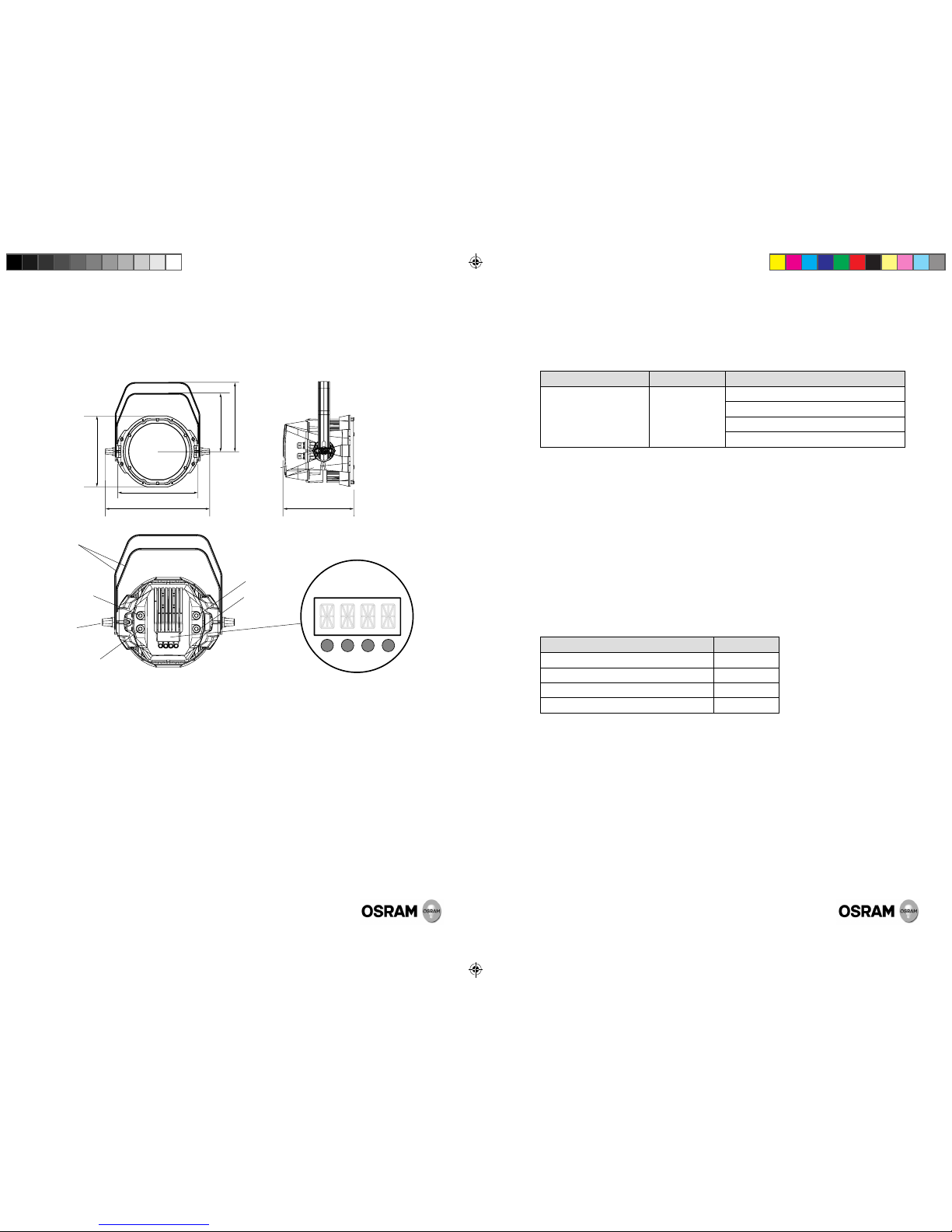

Power Output
Signal Output
Signal Input
Power Input
Knob
Arms
MENUENTER UP DOWN
Four-digit screen
and control panel
1 Product Specification

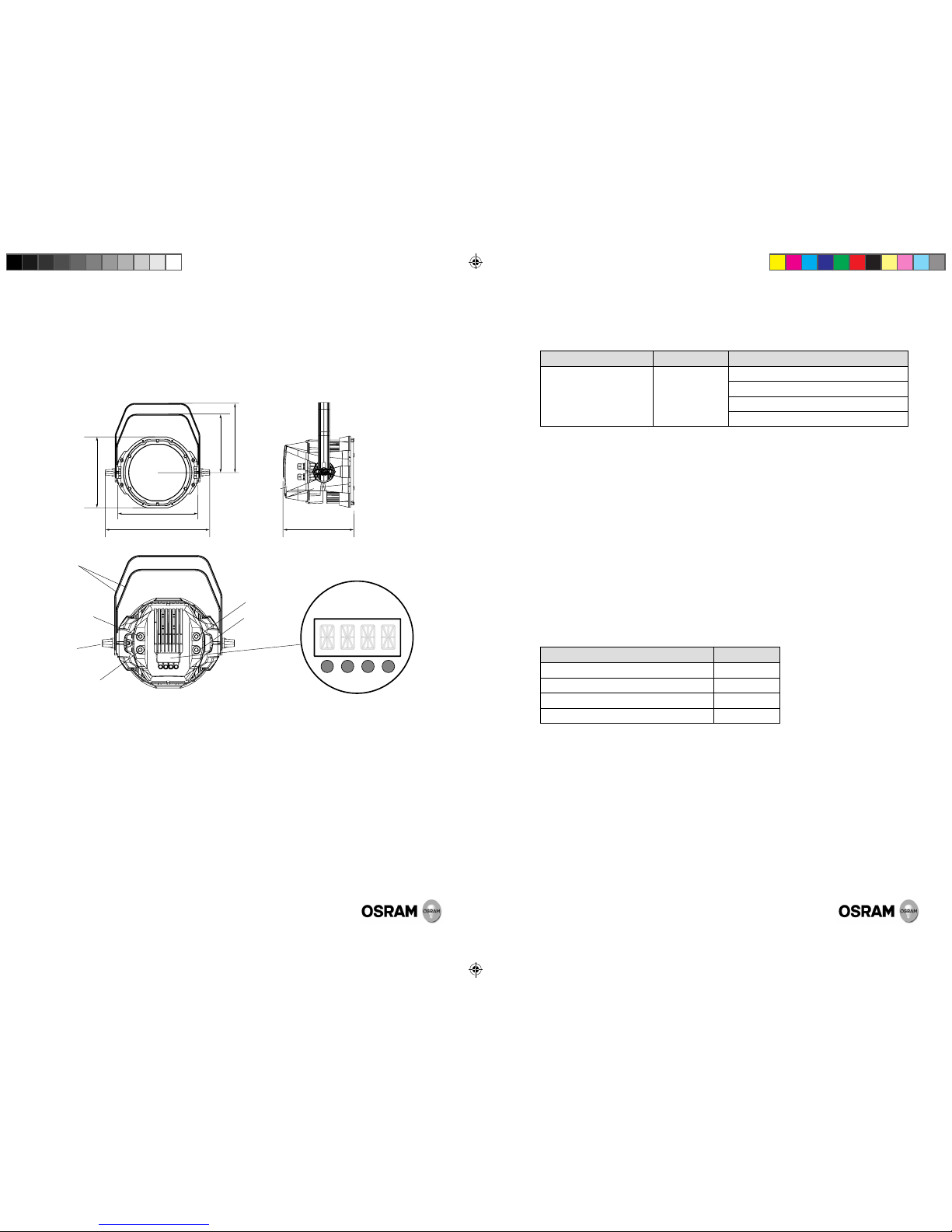

1.1 KREIOS PAR 162W IP - Outdoor
Product dimension
Light Source
54X 3W LEDs: 12 red, 18 green, 12 blue, 12 white
Product Models
Application Product name Model
LED stage Light for outdoor
or indoor used
KREIOS PAR IP
KREIOS PAR162W VNSP IP 100-240V
KREIOS PAR 162W NSP IP 100-240V
KREIOS PAR 162W MFL IP 100-240V
KREIOS PAR 162W WFL IP 100-240V
Electronic data:
Rated input Voltage: AC100V-240V, 50~60Hz
Power Factor: >90%
Control: DMX
Dimming: PMW
Environmental and assembly condition:
Allowed to outdoor use
Ambient temperature: -20°C~40°C
Case temperature <60°C
Storage temperature: -40°C~85°C
Optical system
Product Description Lens Angle
KREIOS PARI62W VNSP IP 100-240V 15°
KREIOS PAR 162W NSP IP 100-240V 30°
KREIOS PAR 162W MFL IP 100-240V 45°
KREIOS PAR 162W WFL IP 100-240V 60°
Appearance:
Weight: 7kg
Color of housing: black
IP Rating: IP65
Cooling method:
Light engine: passive, no fans; Driver: passive, no fans
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 4-5 2014/1/15 8:53:57

KREIOS PAR KREIOS PAR
76

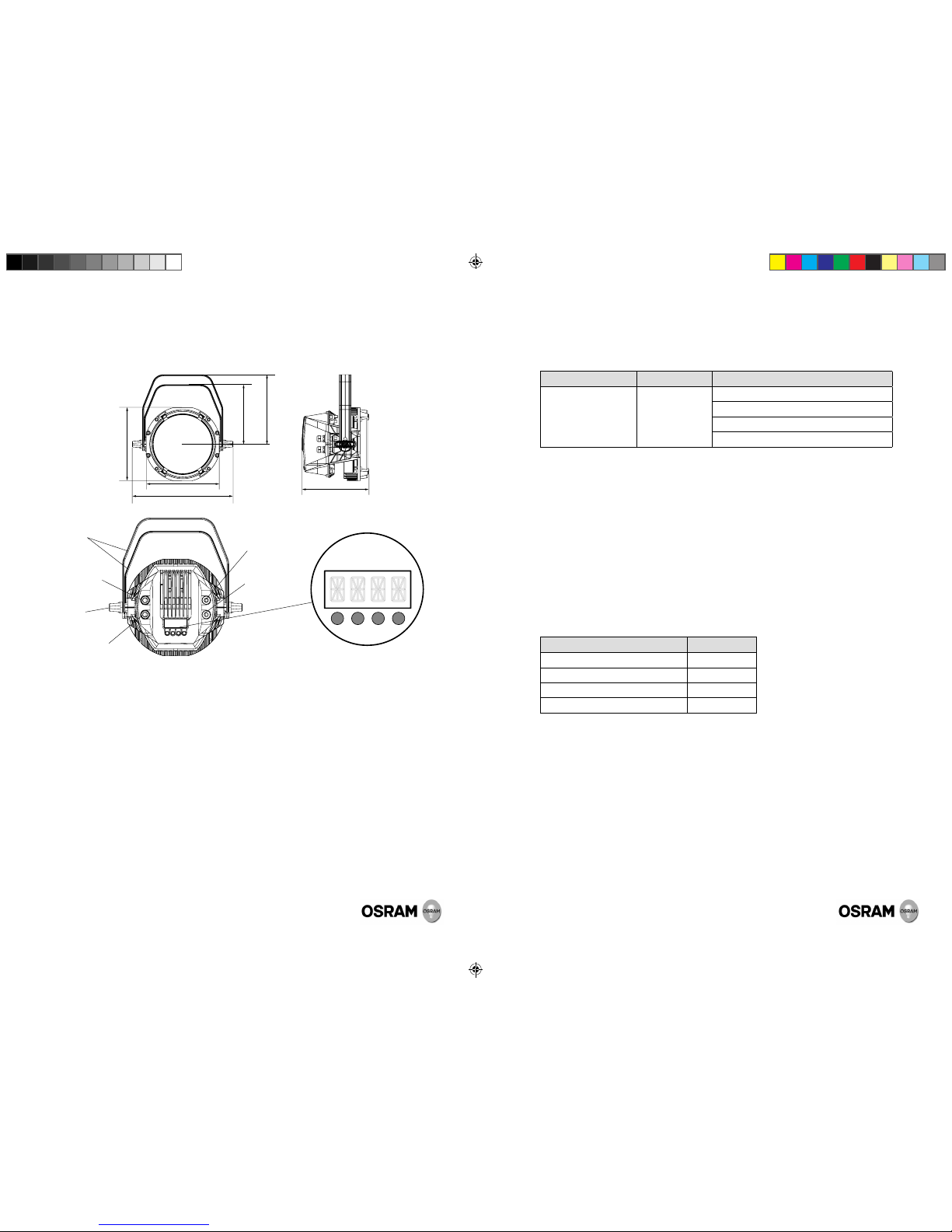

1.2 KREIOS PAR 144W IP - Outdoor
Product dimension
224
252
329 224
224
218 184
252
341 224
Power Output
Signal Output
Signal Input
Power Input
Knob
Arms
MENUENTER UP DOWN
Four-digit screen
and control panel
Light Source
48X 3W LEDs: 12 red, 12 green, 12 blue, 12 white
Product Models
Application Product name Model
LED stage Light for
outdoor or indoor used
KREIOS PAR IP
KREIOS PAR144W VNSP IP 100-240V
KREIOS PAR 144W NSP IP 100-240V
KREIOS PAR 144W MFL IP 100-240V
KREIOS PAR 144W WFL IP 100-240V
Electronic data:
Rated input Voltage: AC100V-240V, 50~60Hz
Power Factor: >90%
Control: DMX
Dimming: PMW
Environmental and assembly condition:
Allowed to outdoor use
Ambient temperature: -20°C~40°C
Case temperature <60°C
Storage temperature: -40°C~85°C
Optical system
Product Description Lens Angle
KREIOS PAR 144W VNSP IP 100-240V 15°
KREIOS PAR 144W NSP IP 100-240V 30°
KREIOS PAR 144W MFL IP 100-240V 45°
KREIOS PAR 144W WFL IP 100-240V 60°
Appearance:
Weight: 7kg
Color of housing: black
IP Rating: IP65
Cooling method:
Light engine: passive, no fans; Driver: passive, no fans
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 6-7 2014/1/15 8:53:57

KREIOS PAR KREIOS PAR
98
1.3 KREIOS PAR 162W - Indoor
Product dimension
Light Source
54X 3W LEDs: 12 red, 18 green, 12 blue, 12 white
220
220
315 201
179
209
MENUENTER UP DOWN
Four-digit screen
and control panel
Power Output
Signal Output
Signal Input
Power Input
Knob
Arms
Product Models
Application Product name Model
LED stage Light for
indoor used only KREIOS PAR
KREIOS PAR 162WVNSP 100-240V
KREIOS PAR 162W NSP 100-240V
KREIOS PAR 162W MFL 100-240V
KREIOS PAR 162W WFL 100-240V
Electronic data:
Rated input Voltage: AC100V-240V, 50~60Hz
Power Factor: >90%
Control: DMX
Dimming: PMW
Environmental and assembly condition:
Allowed to outdoor use
Ambient temperature: -20°C~40°C
Case temperature <60°C
Storage temperature: -40°C~85°C
Optical system
Product Description Lens Angle
KREIOS PAR 162W VNSP 100-240V 15°
KREIOS PAR 162W NSP 100-240V 30°
KREIOS PAR 162W MFL 100-240V 45°
KREIOS PAR 162W WFL 100-240V 60°
Appearance:
Weight: 5.5kg
Color of housing: black
IP Rating: IP20
Cooling method:
Light engine: passive, no fans; Driver: passive, no fans
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 8-9 2014/1/15 8:53:57

KREIOS PAR KREIOS PAR
1110
1.4 KREIOS PAR 144W - Indoor
Product dimension
Light Source
48X 3W LEDs: 12 red, 12 green, 12 blue, 12 white
220
220
315 201
179
209
MENUENTER UP DOWN
Four-digit screen
and control panel
Power Output
Signal Output
Signal Input
Power Input
Knob
Arms
Product Models
Application Product name Model
LED stage Light for
indoor used only KREIOS PAR
KREIOS PAR 144W VNSP 100-240V
KREIOS PAR 144W NSP 100-240V
KREIOS PAR 144W MFL 100-240V
KREIOS PAR 144W WFL 100-240V
Electronic data:
Rated input Voltage: AC100V-240V, 50~60Hz
Power Factor: >90%
Control: DMX
Dimming: PMW
Environmental and assembly condition:
Allowed to outdoor use
Ambient temperature: -20°C~40°C
Case temperature <60°C
Storage temperature: -40°C~85°C
Optical system
Product Description Lens Angle
KREIOS PAR 144W VNSP 100-240V 15°
KREIOS PAR 144W NSP 100-240V 30°
KREIOS PAR 144W MFL 100-240V 45°
KREIOS PAR 144W WFL 100-240V 60°
Appearance:
Weight: 5.5kg
Color of housing: black
IP Rating: IP20
Cooling method:
Light engine: passive, no fans; Driver: passive, no fans
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 10-11 2014/1/15 8:53:57

KREIOS PAR KREIOS PAR
1312
220
220
315 201
179
209
MENUENTER UP DOWN
Four-digit screen
and control panel
Power Output
Signal Output
Signal Input
Power Input
Knob
Arms
1.5 KREIOS PAR 108W - Indoor
Product dimension
Light Source
36X 3W LEDs: 12 red, 12 green, 12 blue
Product Models
Application Product name Model
LED stage Light
for indoor used
only
KREIOS PAR
KREIOS PAR 108W VNSP 100-240V
KREIOS PAR 108W NSP 100-240V
KREIOS PAR 108W MFL 100-240V
KREIOS PAR 108W WFL 100-240V
Electronic data:
Rated input Voltage: AC100V-240V, 50~60Hz
Power Factor: >90%
Control: DMX
Dimming: PMW
Environmental and assembly condition:
Allowed to outdoor use
Ambient temperature: -20°C~40°C
Case temperature <60°C
Storage temperature: -40°C~85°C
Optical system
Product Description Lens Angle
KREIOS PAR 108W VNSP 100-240V 15°
KREIOS PAR 108W NSP 100-240V 30°
KREIOS PAR 108W MFL 100-240V 45°
KREIOS PAR 108W WFL 100-240V 60°
Appearance:
Weight: 5.5kg
Color of housing: black
IP Rating: IP20
Cooling method:
Light engine: passive, no fans; Driver: passive, no fans
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 12-13 2014/1/15 8:53:57

KREIOS PAR KREIOS PAR
1514
2 Product Brief
2.1 Features
Four types of operating mode
External control Unit
– DMX512 Lighting Console (7 DMX channel modes are available for KREIOS PAR 162W/ KREIOS
PAR 162W IP/ KREIOS 144W/ KREIOS 144W IP, 5 DMX channel modes are available for KREIOS
108W)
– Master/Slave
Self-defined Program
– Powerful, useful, interesting software programming. Program without con- sole, fading, stepping,
strobing eect and random combination
– Download program data between luminaires (master to slave)
Static Mold
– Configure any color without console, and apply with strobe eect
Sound Active Mode
– Including two commonly used mode
“Software Blackout”
– Set the value of master DIM channel at 0 when executing internal program and self-defined program
under STAG mode (program run continually)
– Dierence from using “Hardware Blackout” such as “BLACKOUT” button: apply to individual (or
individual group of) luminaires only, avoid data clearance of console
ID Address Code
– Individual control of luminaires of lighting group (maximum 66) with the same address code under
– STAG mode (turn on, dynamic RGB, strobe, fade eect in sequence)
Non-linear Dimming and Linear Dimming
– 16-bit (60 thousand)
White Balance
– Multi configurations with dierent color temperature
Color Shift Correction
– Another description of “software controlled current”
Screen Saver
– Go into screen saver mode without operation in 30 seconds, and press any key to exit screen saver
mode
Over-temperature Protection
– Over temperature protection available
(Note: When temperature is at designated value, the controlling system will regulate the power
consumption to adjust the temperature until it’s balanced. The ranges of the temperature
adjustment will be different in different environments.)
2.2 Quick Start Guide
Operation Mode Switch and Configuration
– Any option displayed under main menu is defined as “external control mode”
• Default setting for the equipment is “DMX512 console control” with the 4th decimal point flicker-
ing, which receives DMX512 signals only. If doesn’t, please check if it is correctly connected to the
console.
• If you want to change DMX address code, please press the “MENU” button continually till “DMX”-
shown on the screen, then press “ENTER” to enter sub-menu
• If you need to choose DMX channel mode, please press the “MENU” button continually till “PERS”
shown on the screen, then press “ENTER” to enter sub-menu
• Five changing speed available, which decide softness of light changing ( “DIM” and 11th channel of
STAG mode under “SET” menu)
– If you need to apply “Master/Slave Control”, please enter “RUN” menu and select “SLAV”, and then
signals from master controller can be received (or download self-defined program from master
controller).
– Make sure that only one control unit connected (a master controller or a console): if multi signal
generators existing in the same channel, signals will interfere with each other and slave controller will
not receive data correctly.
– Please enter “STAT” menu to switch to “Static Mode” (switch to master mode automatically).
– Please enter “AUTO” menu to switch to “Auto-run Mode” (switch to master mode automatically).
– Please enter “SOUD” menu to switch to “Sound Active Mode” (switch to master mode automatically).
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 14-15 2014/1/15 8:53:57

KREIOS PAR KREIOS PAR
1716
2.3 Master Mode
Only under below 5 conditions, it can be a master controller to generate signals:
– Enter “STAT” menu
– Enter “AUTO” menu
– Enter “SOUD” menu
– Enter “EDIT” menu
– Use “UPLD” to upload self-defined program under “SET” menu
2.4 Synchronize Multi-controller
When control multi luminaires via console and apply strobe, auto run mode, the console is simply
used to generate channel data. Strobe and auto run effects are realized by individual luminaires.
Please note information below:
In practical use, unsynchronization can be caused by many reasons, such as dierent start time and con-
nection time to console. You can change the value of fader to fix them (e.g. adjust from 20 to 0 and back
to 20).
1. Due to crystal frequency deviation among dierent luminaires, unsynchronization will appear after a
long time running.
2. Two ways to keep synchronization during long time running:
a. Strobe and auto run eect under programmed console control
b. Under master/slave control mode
3 Method of Operation
3.1 Push Button Operation
MENU ENTER UP DOWN
3.1.1 Basic Operation
[MENU] Select main menu or return to previous menu
[ENTER] Enter or select sub-menu
[UP] Select menu or add value
[DOWN] Select menu or decrease value
3.1.2 Button Password
[UP, DOWN, UP, DOWN]+ [ENTER]
Press [UP], [DOWN], [UP], [DOWN] by turn,and press[ENTER] finally

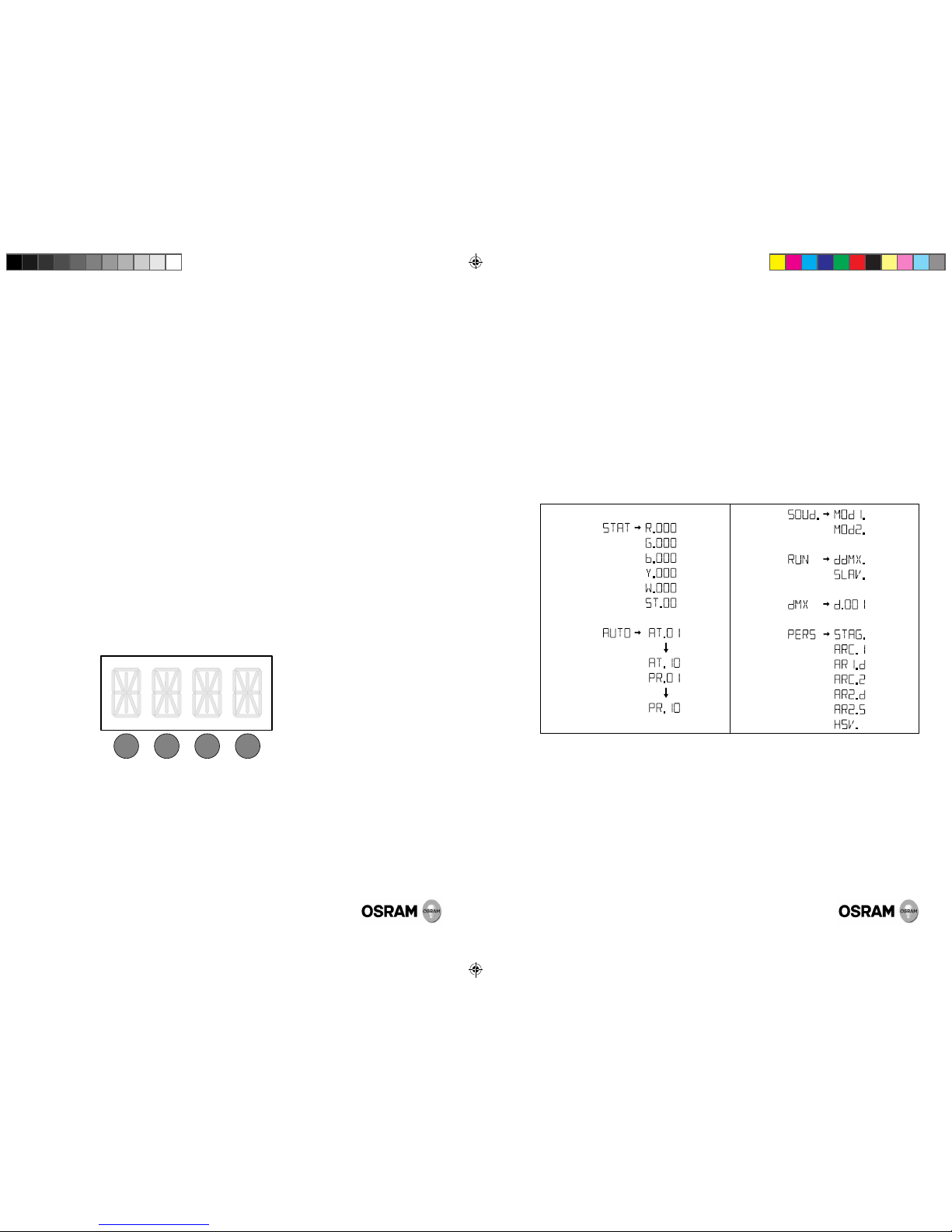

3.2 Menu structure
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 16-17 2014/1/15 8:53:59

KREIOS PAR KREIOS PAR
1918
3.3 Menu description
3.3.1 Static Mode (STAT)
Apply to Screenshot
KREIOS PAR 162W IP
KREIOS PAR 162W
Apply to Screenshot
KREIOS PAR 144W IP
KREIOS PAR 144W
Apply to Screenshot
KREIOS PAR 108W
• Select [STAT] menu and press [ENTER] to “Static Mode”, the LUM start generating signals automatically
as master controller
• Press[ENTER]button to sub-menu:[Red], [Green], [Blue], [Yellow], [White], [Strobe]
• Press [UP]/ [DOWN] button to select value
• Press [MENU] button to return to main menu (“External Control Mode”)
3.3.2 Auto-run Mode (AUTO)
Apply to Screenshot
All Models
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 18-19 2014/1/15 8:54:01

KREIOS PAR KREIOS PAR
2120
• Select [AUTO] menu and press [ENTER] to “Auto-run Mode”, the LUM start generating signals
automatically as master controller
• Press [UP]/ [DOWN] button to select pre-defined or self-defined program
• Press [MENU] button to return to main menu (“External Control Mode”)
• Press [MENU] button to return to main menu
3.3.3 DMX and Slave Selection (RUN)
Apply to Screenshot
All Models
• Select [DMX] menu and press [ENTER]; it is still “External Control Mode”
• Press [UP]/ [DOWN] to select value [1~512], press [MENU] button to return to main menu
3.3.4 DMX Address Code Configuration (DMX)
Apply to Screenshot
All Models (1~512)
• Select [PERS] menu and press [ENTER]; it is still “External Control Mode”
• Press [UP]/ [DOWN] button to select channel mode, please find detail via “channel mode list”
• Press [MENU] button to return to main menu
3.3.5 DMX512 Channel Mode Selection (PERS)
Apply to Screenshot
KREIOS PAR 162W
KREIOS PAR 144W
KREIOS PAR 162W IP
KREIOS PAR 144W IP
Apply to Screenshot
KREIOS PAR 108W
• Select [PERS] menu and press [ENTER]; it is still “External Control Mode”
• Press [UP]/ [DOWN] button to select channel mode, please find detail via “channel mode list”
• Press [MENU] button to return to main menu
3.3.6 ID Address Code Selection (ID)
Apply to Screenshot
All Models (1~66)
• Select [ID] menu and press [ENTER]; it is still “External Control Mode”
• Press [UP]/ [DOWN] button to select value [1~66], press [MENU] button to return to main menu
3.3.7 Over Temperature Protection Configuration (TEMP)
Apply to Screenshot
All Models (20~150)
• Select [TEMP] menu and press [ENTER], it is still “External Control Mode”
• Press [UP]/ [DOWN] button to select [CURR] or [TOP]
• Select [CURR] and press [ENTER], you can see current temperature in Celsius(Note: affected by
installation material and location, the value of temperature may not be precisely displayed and for
reference)
• Temperature only),press [MENU] button to return to main menu
• Select [TOP] and press [ENTER] button,set protection temperature (default 80), press [UP]/ [DOWN] to
change the value ( scope:20~150 ) ,press [MENU] to save and return to main menu
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 20-21 2014/1/15 8:54:03

KREIOS PAR KREIOS PAR
2322
3.3.8 Scene Edit (EDIT)
Apply to Screenshot
KREIOS PAR 162W
KREIOS PAR 162W IP
(0~255)
(0~255)
(0~255)
(0~255)
(0~255)
(0~20)
(0~255)
(0~255)
Apply to Screenshot
KREIOS PAR 144W
KREIOS PAR 144W IP
(0~255)
(0~255)
(0~255)
(0~255)
(0~20)
(0~255)
(0~255)
Apply to Screenshot
KREIOS PAR 108W
(0~255)
(0~255)
(0~255)
(0~20)
(0~255)
(0~255)
• Select [EDIT] menu and press [ENTER], the LUM start generating signals automatically as master
controller
• Press [ENTER] to sub-menu or select data options,press [MENU] button to return to main menu
• Press [UP]/ [DOWN] to select program, scene or value (refer to “EDIT learning program”)
3.3.9 Local Equipment Setting (SET)
Apply to Screenshot
All Models
• Select [SET] menu and press [ENTER]; it quits “External Control Mode”
• [UPLD] to submit self-defined data, press [ENTER] to confirm password, key-in the right password [UP,
DOWN, UP, DOWN] + [ENTER], light turns yellow* which means delivering data, and upload progress
bar will display on the screen, light turns green after finished. Light turns yellow* when slaves receive
data, and turns green after finished. If light of slave remains yellow, it means failure when receiving
data, please cut off the slave and reload data from master.
(*Note: for KREIOS PAR 162W/ KREIOS PAR 162W IP, the light color “yellow“ is actually green as
compensation.)
• [REST] is used to restore default settings, and press [ENTER] button for execution. Password: [UP,
DOWN, UP, DOWN] + [ENTER]
• [ID] is use to switch on/off ID address, press [ENTER] button, then press [UP]/ [DOWN] button, select
[ON] to permit ID address, [OFF] to shut down ID address
• [RGBW] is used to correct color shift, press [ENTER], and then press [UP]/[DOWN] button, select [ON]
to permit color shift correction,[OFF] to forbid. You can also set RGB proportion via [CAL2] menu
• [POW] is used to set power, press [ENTER],and then press [UP]/[DOWN] button to select [Normal] or
[High], [Normal=33%], [High=100%]
• [DIM] is used to set non-linear dimming, press [UP]/[DOWN] button to select, [OFF] to close dim speed,
[DIM1] to speed 1(fastest), [DIM2] to speed 2, [DIM3] to speed 3, [DIM4] to speed 4(slowest),slower
speed create softer lighting effect
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 22-23 2014/1/15 8:54:04

KREIOS PAR KREIOS PAR
2524
3.3.10 White Balance Configuration (CAL1)
Apply to Screenshot
KREIOS PAR 162W IP
KREIOS PAR 162W
(0~255)
(0~255)
(0~255)
(0~255)
(0~255)
Apply to Screenshot
KREIOS PAR 144W IP
KREIOS PAR 144W
(0~255)
(0~255)
(0~255)
(0~255)
Apply to Screenshot
KREIOS PAR 108W
(0~255)
(0~255)
(0~255)
• Select [CAL1] menu and press [ENTER]; it quits “External Control Mode”
• Press [UP]/ [DOWN] button to select [White 1~11], press [ENTER] button to set
• Press [ENTER] button to select [Red], [Green], [Blue], [Yellow]* or [White]
• Press [UP]/ [DOWN] button to select value [0~255]
(*Note: when DMX channel mode is[STAG],you can test these 11 kinds of white light via channel6;
[Yellow] is only applicable for KREIOS PAR 162W/ KREIOS PAR 162W IP Version, yellow stands for
“Green Compensation”)
3.3.11 Color Calibration
Apply to Screenshot
KREIOS PAR 144W
KREIOS PAR 108W
KREIOS PAR 144W IP
(0~255)
(0~255)
(0~255)
Apply to Screenshot
KREIOS PAR 162W
KREIOS PAR 162W IP
(0~255)
(0~255)
(0~255)
(0~255)
• Select [CAL2] menu and press [ENTER] to [RGBW]; it quits “External Control Mode”
• Press [ENTER] to select [Red], [Green], [Blue], [Yellow].
• Press [UP]/ [DOWN] button to change the proportion of color [25~255]
3.3.12 Sound Active Mode (SOUD)
Apply to Screenshot
All Models
• Select [SOUD]menu and press[ENTER]to “Sound Active Mode”, the LUM start generating signals
automatically as master controller
• Press [UP]/ [DOWN] button to select sound active mode
• MOD1:sound active color changing
• MOD2:sound active strobe
• Press[MENU]button to return to main menu(“External Control Mode”)
3.4 Console Operation
Channel list
Seven kinds of DMX channel modes:[STAG], [ARC.1]. [AR1.d], [ARC.2], [AR2.d], [AR2.S], [HSV]
*Note: Y represents Green color.
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 24-25 2014/1/15 8:54:06

KREIOS PAR KREIOS PAR
2726
3.4.1 STAG channel mode
( Please refer to corresponding list according to dierent product models)
Applicable for KREIOS PAR 162W/KREIOS PAR 162W IP products
Channel Value Function
10~255 Master Dimmer
20~255 Red(Select PR01~10 under CH9,CH2 controls TIME)
30~255 Green(Select PR01~10 under CH9,CH3 controls FADE)
40~255 Blue
50~255 Green compensation
60~255 White
70~5 Invalid
6~20 HIGH POWER(only when in NORMAL POWER model)
21~30 Invalid
31~255 Dynamic RGB(refer to “color selection table”)
80~10 No strobe
11~255 Strobe speed(fastest to 255)
90~20 Invalid
21~30 Pre-defined program 1
... ... (One program every 10 values)
110~12 0 Pre-defined program 10
12 1~13 0 Self-defined program 1
... ... (One program every 10 values)
211~22 0 Self-defined program
221~240 Sound active color changing
241~255 Sound active strobe
10 0~255 Speed control over pre-defined program(Speed control over
self-defined program via CH2,CH3)
11 0~9 Dimming speed(0~9 refer to dimming speed in SET menu)
10~29 Shut down
30~69 Speed 1(fastest)
70 ~129 Speed 2
13 0 ~18 9 Speed 3
190~255 Speed 4(slowest)
12 0~9 Invalid ID address
10~19 ID1
... ... (One ID every 10 values)
200~209 ID20
210 ID21
... ... (One ID for each value)
255 ID66
Applicable for KREIOS PAR 144W/KREIOS PAR 144W IP Products
Channel Value Function
10~255 Master Dimmer
20~255 Red(Select PR01~10 under CH8,CH2 controls TIME)
30~255 Green(Select PR01~10 under CH8,CH3 controls FADE)
40~255 Blue
50~255 White
60~5 Invalid
6~20 HIGH POWER(only when in NORMAL POWER model)
21~30 Invalid
31~255 Dynamic RGB(refer to “color selection table”)
70~10 No strobe
11~255 Strobe speed(fastest to 255)
80~20 Invalid
21~30 Pre-defined program 1
... ... (One program every 10 values)
110~12 0 Pre-defined program 10
12 1~13 0 Self-defined program 1
... ... (One program every 10 values)
211~22 0 Self-defined program 10
221~240 Sound active color changing
241~255 Sound active strobe
90~255 Speed control over pre-defined program(Speed control over
self-defined program via CH2,CH3)
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 26-27 2014/1/15 8:54:06

KREIOS PAR KREIOS PAR
2928
10 0~9 Dimming speed(0~9 refer to dimming speed in SET menu)
10~29 Shut down
30~69 Speed 1(fastest)
70 ~129 Speed 2
13 0 ~18 9 Speed 3
190~255 Speed 4(slowest)
11 0~9 Invalid ID address
10~19 ID1
…… ……(One ID every 10 values)
200~209 ID20
210 ID21
…… ……(One ID for each value)
255 ID66
Applicable for KREIOS PAR 108W Products
Channel Value Function
10~255 Master Dimmer
20~255 Red(Select PR01~10 under CH7,CH2 controls TIME)
30~255 Green(Select PR01~10 under CH7,CH3 controls FADE)
40~255 Blue
50~5 Invalid
6~20 HIGH POWER(only when in NORMAL POWER model)
21~30 Invalid
31~255 Dynamic RGB(refer to “color selection table”)
60~10 No strobe
11~255 Strobe speed(fastest to 255)
70~20 Invalid
21~30 Pre-defined program 1
... ... (One program every 10 values)
110~12 0 Pre-defined program 10
12 1~13 0 Self-defined program 1
... ... (One program every 10 values)
211~22 0 Self-defined program 10
221~255 Invalid
80~255 Speed control over pre-defined program(Speed control over
self-defined program via CH2,CH3)
90~9 Dimming speed(0~9 refer to dimming speed in SET menu)
10~29 Shutdown
30~69 Speed 1(fastest)
70 ~129 Speed 2
13 0 ~18 9 Speed 3
190~255 Speed 4(Slowest)
10 0~9 Invalid ID address
10~19 ID1
... ... (One ID every 10 values)
200~209 ID20
210 ID21
211 ID22
... ... (One ID every 10 values)
254 ID65
255 ID66
3.4.2 ARC.1 channel mode
Channel Value Function
10~255 Red
20~255 Green
30~255 Blue
3.4.3 AR1.s channel mode
Channel Value Function
10~255 Master dimmer
20~255 Red
30~255 Green
40~255 Blue
50~10 No Strobe
11~255 Strobe speed(fastest to 255)
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 28-29 2014/1/15 8:54:06

KREIOS PAR KREIOS PAR
3130
3.4.4 ARC.2 channel mode
( Please refer to corresponding list according to dierent product/models)
Applicable for KREIOS PAR 162W /KREIOS PAR 162W IP products
Channel Value Function
10~255 Red
20~255 Green
30~255 Blue
40~255 Ye llow
50~255 White
Applicable for KREIOS PAR 144W/KREIOS PAR 144W IP products
Channel Value Function
10~255 Red
20~255 Green
30~255 Blue
40~255 White
3.4.5 AR1.d channel mode
Channel Value Function
10~255 Master Dim
20~255 Red
30~255 Green
40~255 Blue
3.4.6 AR2.d channel mode
Applicable for KREIOS PAR 162W /KREIOS PAR 162W IP products
Channel Value Function
10~255 Master Dim
20~255 Red
30~255 Green
40~255 Blue
50~255 green compensation
60~255 White
Applicable for KREIOS PAR 144W /KREIOS PAR 144W IP products
Channel Value Function
10~255 Master Dim
20~255 Red
30~255 Green
40~255 Blue
50~255 White
3.4.7 AR2.s channel mode
Applicable for KREIOS PAR 162W /KREIOS PAR 162W IP products
Channel Value Function
10~255 Master Dim
20~255 Red
30~255 Green
40~255 Blue
50~255 green compensation
60~255 White
70~10 No Strobe
11~255 Strobe Speed (fastest to 255)
Applicable for KREIOS PAR 144W /KREIOS PAR 144W IP products
Channel Value Function
10~255 Master Dim
20~255 Red
30~255 Green
40~255 Blue
50~255 White
60~10 No Strobe
11~255 Strobe Speed (fastest to 255)
3.4.8 HSV channel mode
Channel Value Function
10~255 H tone (0~100%)
20~255 S saturation (0~100%)
30~255 V brightness (0~100%)
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 30-31 2014/1/15 8:54:07

KREIOS PAR KREIOS PAR
3332
3.4.9 Color selection
Channel Value
31~50 R 100% / G increase / B 0% / W 0%
51~70 R decrease / G 100% / B 0% / W 0%
71~90 R 0% / G 100% / B increase / W 0%
91~110 R 0% / G decrease / B 100% / W 0%
111~130 R increase / G 0% / B 100% / W 0%
131~150 R 100% / G 0% / B decrease / W 0%
151~170 R 100% / G increase / B increase / W 0%
171~190 R decrease / G decrease / B 100% / W 0%
191~200 R 100% / G 100% / B 100% / W* 100% (*For KREIOS PAR 108W, W 0%)
201~255 One color temperature(adjust via [CAL1]menu manually)every 5 value,e.g.:
201~205: 3200K
206~210: 3400K
211~215: 4200K
216~220: 4900K
221~225: 5600K
226~230: 5900K
231~235: 6500K
236~240: 7200K
214~245: 8000K
246~250: 8500K
251~255: 10000K
4 Edit learning Program
In this chapter, you will learn some extension functions. You can skip over this chapter, if you are not
interested in.
You can edit 10 program at most, 30 scenes for each program, and 8 data for each scene. These data
means:
R-Red,G-Green,B-Blue,Y-Green Compensation*,W-White,ST-Strobe,T-Time,F-Fade time
(*Note: “Y-Green Compensation” is applicable only for KREIOS PAR 162W/ KREIOS PAR 162W IP)
In order to help you understand functions of each data, and edit your own program quickly, we provide
below example for your reference. Initial data of each program as below:
Applicable for KREIOS PAR 162W/KREIOS PAR 162W IP products
Scene R G B Y W ST T F Effect
SC.01 255 0 0 0 0 0 2 2 R fade in(for 2 seconds)
SC.02 0 0 0 0 0 0 2 2 R fade out
SC.03 0255 0 0 0 0 4 2 G fade in(for 2 seconds),and remain 2
seconds
SC.04 0 0 0 0 0 0 4 2 G remain 2 seconds first,and fade
out(for 2 seconds)
SC.05 0255 255 0 0 0 2 2 GB fade in together(or green light fade
in)
SC.06 0 0 255 0 0 0 2 2 G fade out,B remain
SC.07 255 0 0 0 0 0 2 2 R fade in,with B fade out
SC.08 255 0 0 0 0 0 1 0 R remain 1 second
SC.09 0255 0 0 0 0 1 0 From R to G, G remain 1 second
SC.10 0 0 255 0 0 0 1 0 From G to B, B remain 1 second
SC.11 0 0 0 0 0 0 1 0 Shut down 1 second
SC.12 255 255 255 0 0 2 5 0 RGB strobe
... 0 0 0 0 0 0 0 0 Scene will be skipped over when time
value equals 0,until next scene which
time value unequal to 0. In this sample,
program will restart from scene 1.
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 32-33 2014/1/15 8:54:07

KREIOS PAR KREIOS PAR
3534
• Fade in or fade out effect is created by different value of two adjacent scenes, and light effect can only
display correctly when program runs continuously.
• If “Time” equals 0,the scene will be skipped over. If “Fade Time” is larger than “Time”, then “Time” will
be fading time.
• You can set “Strobe” and “Fade Time” simultaneously.
• If not familiar, you can write down the program on paper sheet and then key into the LUM, run the
program, check the progress and make adjustment.
• To grasp EDIT function is not a hard job, try to begin with easy programs and then complex ones. You
can create various of magnificent effects by yourself, use them and enjoy them.
• If use “REST” under “SET” menu to return to default, edited program will not be cleared out.
Applicable for KREIOS PAR 144W/KREIOS PAR 144W IP products
Scene R G B W ST T F Effect
SC.01 255 0 0 0 0 2 2 R fade in(for 2 seconds)
SC.02 0 0 0 0 0 2 2 R fade out
SC.03 0255 0 0 0 4 2 G fade in(for 2 seconds),and remain 2
seconds
SC.04 0 0 0 0 0 4 2 G remain 2 seconds first,and fade out(for 2
seconds)
SC.05 0255 255 0 0 2 2 GB fade in together(or green light fade in)
SC.06 0 0 255 0 0 2 2 G fade out,B remain
SC.07 255 0 0 0 0 2 2 R fade in, with B fade out
SC.08 255 0 0 0 0 1 0 R remain 1 second
SC.09 0255 0 0 0 1 0 From R to G, G remain 1 second
SC.10 0 0 255 0 0 1 0 From G to B, B remain 1 second
SC.11 0 0 0 0 0 1 0 Shut down 1 second
SC.12 255 255 255 0 2 5 0 RGB strobe
... 0 0 0 0 0 0 0 Scene will be skipped over when time value
equals 0,until next scene which time value
unequal to 0. In this sample, program will
restart from scene 1.
Applicable for KREIOS PAR 108W products
Scene R G B ST T F Effect
SC.01 255 0 0 0 2 2 R fade in(for 2 seconds)
SC.02 0 0 0 0 2 2 R fade out
SC.03 0255 0 0 4 2 G fade in(for 2 seconds),and remain 2 seconds
SC.04 0 0 0 0 4 2 G remain 2 seconds first,and fade out(for 2
seconds)
SC.05 0255 255 0 2 2 GB fade in together(or green light fade in)
SC.06 0 0 255 0 2 2 G fade out,B remain
SC.07 255 0 0 0 2 2 R fade in,with B fade out
SC.08 255 0 0 0 1 0 R remain 1 second
SC.09 0255 0 0 1 0 From R to G, G remain 1 second
SC.10 0 0 255 0 1 0 From G to B, B remain 1 second
SC.11 0 0 0 0 1 0 Shut down 1 second
SC.12 255 255 255 2 5 0 RGB strobe
... 0 0 0 0 0 0 Scene will be skipped over when time value
equals 0,until next scene which time value
unequal to 0. In this sample, program will restart
from scene 1.
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 34-35 2014/1/15 8:54:07

OSRAM GmbH
Steinerne Furt 62
86167 Augsburg, Germany
C10449058
G10502865
15 01 2014
 OSRAM CHINA LIGHTING LTD.
No. 1 North Industrial Road, Foshan,
Guangdong. Postal code: 528000
欧司朗（中国）照明有限公司
广东省佛山市工业北路1号 邮编: 528000
 PT OSRAM Indonesia
Jl. Siliwangi KM-1, Jatiuwung,
Tangerang 15134
 บริษัท ออสแรม (ประเทศไทย) จำ�กัด
อ�ค�รช�ญอิสสระท�วเวอร์ 2 ชั้น 19,
2922/251 ถนนเพชรบุรีตัดใหม่,
แขวงบ�งกะปิ เขตห้วยขว�ง, กรุงเทพฯ 10310
 OSRAM Pte Ltd
159 Sin Ming Road, #05-04 Amtech Building,
Singapore 575625
 OSRAM (Malaysia) Sdn Bhd
(Company No: 491867 X)
Unit 20-2, Level 20, CP Tower, No.11,
Jalan 16/11, Pusat Dagang Seksyen 16,
46350 Petaling Jaya, Selangor, Malaysia.
 OSRAM India Pvt. Ltd.
459B, EPIP, HSIIDC Industrial Estate, Kundli,
Distt.-Sonepat, – 131 028 Haryana (India)
Consumer care cell (address as per above)
Consumer care Tel. No. 0124-4150100
E-mail Id : customercar[email protected]
www.osram.com
 (주)오스람 코리아
경기도 안산시 단원구 신길동 1050-3
Tel: [phone]
 OSRAM Australia Pty. Ltd., Sydney
Level 11, 423 Pennant Hills Road,
NSW,
Australia, 2120
 臺灣歐司朗股份有限公司
地 址 : 臺北市中山區104松江路87號7樓
電話: [phone]
 OSRAM Prosperity Co. Ltd
Room 4007-4009, Oce Tower,
Convention Plaza, 1 Harbour Road,
Wanchai, Hong Kong
 OSRAM Pte Ltd
7th Floor, Lien Viet Building,
No. 2A Nguyen Thi Minh Khai Street,
Da Kao Ward, District 1,
Ho Chi Minh City, Vietnam
IMPORTANT SAFETY INSTRUCTIONS
When using your photographic equipment, basic safety precautions should always be followed,
including the following:
• Read and understand all instructions before using.
• Close supervision is necessary when any appliance is used by or near children. Do not leave appliance
unattended while in use.
• Care must be taken as burns can occur from touching hot parts.
• Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged –
until it has been examined by a qualified serviceman.
• Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.
• If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance
should be used. Cords rated for less amperage than the appliance may overheat.
• Always unplug appliance from electrical outlet before cleaning and servicing and when not in use.
Never yank cord to pull plug from outlet. Grasp plug and pull to disconnect.
• Let appliance cool completely before putting away. Loop cord loosely around appliance when storing
• To reduce the risk of electric shock, do not immerse this appliance in water or other liquids.
• To reduce the risk of electric shock, do not disassemble this appliance, but take it to a qualified
serviceman when service or repair work is required. Incorrect reassembly can cause electric shock
when the appliance is used subsequently.
• The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire,
electric shock, or injury to persons.
• Connect this appliance to a grounded outlet.
• Disconnect this unit from its source of supply before replacing.
• The luminaire should be mounted so that prolonged staring at the luminaire from a distance of less than
6.3m is unlikely.
KEEP THIS INSTRUCTION FOR FURTHER REFERENCE.
10502865 KREIOS PAR Indooroutdoor UI APAC OSRAMv5-draft.indd 36 2014/1/15 8:54:07
