Ossila L2002A3 User manual

Manual Version: 3.0.A
Product code: L2002A3
Product Version: 3.0
Software Version: 3.0

Contents
1. Overview..............................................................................................................................3
1.1 Applications .......................................................................................................................... 3
1.2 Contaminants........................................................................................................................ 3
2. EU Declaration of Conformity (DoC) ......................................................................................4
3. Safety...................................................................................................................................7
3.1 Warning ................................................................................................................................ 7
3.2 Use of Equipment.................................................................................................................. 7
3.3 Hazard Icons.......................................................................................................................... 7
3.4 General Hazards.................................................................................................................... 8
3.5 Power Cord Safety................................................................................................................. 9
3.6 Servicing................................................................................................................................ 9
3.7 Health and Safety –Installation ............................................................................................ 9
3.8 Health and Safety –Operation............................................................................................ 10
3.9 Health and Safety –Servicing.............................................................................................. 10
4. Unpacking .......................................................................................................................... 11
4.1 Packing List.......................................................................................................................... 11
4.2 Damage Inspection ............................................................................................................. 11
5. Specifications ..................................................................................................................... 11
6. System Components........................................................................................................... 12
7. Installation......................................................................................................................... 13
8. Operation...........................................................................................................................14
8.1 Overview............................................................................................................................. 14
8.2 User Interface ..................................................................................................................... 16
8.3 Practical Operation ............................................................................................................. 17
8.4 Program Operation ............................................................................................................. 17
8.5 Operational Safety .............................................................................................................. 21
9. Maintenance...................................................................................................................... 23
9.1 Cleaning .............................................................................................................................. 23
9.2 Repair and Service............................................................................................................... 23
9.3 Storage Conditions.............................................................................................................. 23
10. Troubleshooting ................................................................................................................. 23

3
1. Overview
The UV Ozone Cleaner is part of the Institute of Physics award-winning Solar Cell
Prototyping Platform*. It provides a simple, inexpensive, and efficient method of
obtaining ultra-clean surfaces free of organic contaminants. The UV Ozone Cleaner
can clean a wide range of substrates, such as quartz, silicon, gold, nickel, aluminium,
gallium arsenide, alumina, and glass slides.
The UV ozone cleaning process can produce an atomically clean surface in only a few
minutes. However, the substrate surface must be nominally clean beforehand. The
cleaning rate of UV ozone using atmospheric oxygen at ambient conditions depends
on the nature of the contaminant molecules, but is typically of the order of 0.1 - 1.0
Å/s. The exact exposure times and methods required to remove various contaminants
will vary and should be determined empirically.
The Ossila Solar Cell Prototyping Platform is a complementary collection of substrates,
materials, and equipment as part of a high-performance standard photovoltaic
reference architecture. This platform enables researchers to produce high-quality,
fully functional solar cells which can be used as a reliable baseline.
For more information: ossila.com/pages/solar-cell-prototyping-platform
1.1 Applications
•Improving surface hydrophilicity
•Surface cleaning
•Preparation for thin-film deposition and surface treatment
•Ultraviolet curing
•Surface sterilization
•Removal of surface monolayers
•Surface oxidation
1.2 Contaminants
•Photoresist
•Resins
•Human skin oils
•Cleaning solvent residues
•Plastic surface/silicon oil residues
•Solder flux

4
2. EU Declaration of Conformity (DoC)
We
Company Name: Ossila BV
Postal Address: Biopartner 3 building, Galileiweg 8
Postcode: 2333 BD Leiden
Country: The Netherlands
Telephone number: [phone]
Email Address: [e-mail]
declare that the DoC is issued under our sole responsibility and belongs to the
following product:
Product: UV Ozone Cleaner (L2002A3)
Serial number: L2002A3-xxxx
Object of declaration:
UV Ozone Cleaner (L2002A3)
The object of declaration described above is in conformity with the relevant Union
harmonisation legislation:
Low Voltage Directive 2014/35/EU
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
The following harmonised standards and technical specifications have been applied:
BS EN 61010-1:2010/A1:2019 Safety requirements for electrical equipment for measurement, control, and
laboratory use.
Signed:
Name: Dr James Kingsley
Place: Leiden
Date: 12/12/2022

5
Декларация за съответствие на ЕС
Производител: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Декларира с цялата си отговорност, че посоченото оборудване съответства на приложимото законодателство на ЕС за хармонизиране, посочено на предходната(-ите) страница(-
и) на настоящия документ.
[Čeština] Prohlášení o shodě EU
Výrobce: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Prohlašujeme na vlastní odpovědnost, že uvedené zařízeni je v souladu s příslušnými harmonizačními předpisy EU uvedenými na předchozích stranách tohoto dokumentu.
[Dansk] EU-overensstemme lseserklæring
Producent: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Erklærer herved, at vi alene er ansvarlige for, at det nævnte udstyr er i overensstemmelse med den relevante EU-harmoniseringslovgivning, der er anført på den/de
foregående side(r) i dette dokument.
[Deutsch] EU-Konformitätserklärung
Hersteller: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Wir erklären in alleiniger Verantwortung, dass das aufgeführte Gerät konform mit der relevanten EU-Harmonisierungsgesetzgebung auf den vorangegangenen Seiten dieses
Dokuments ist.
[Eesti keel] ELi vastavusavaldus
Tootja: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Kinnitame oma ainuvastutusel, et loetletud seadmed on kooskõlas antud dokumendi eelmisel lehelküljel / eelmistel lehekülgedel ära toodud asjaomaste ELi ühtlustamise
õigusaktidega.
[Ελληνικά] Δήλωση πιστότητας ΕΕ
Κατασκευαστής: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Δηλώνουμε υπεύθυνα όn ο αναφερόμενος εξοπλισμός συμμορφώνεται με τη σχεnκή νομοθεσία εναρμόνισης της ΕΕ που υπάρχει σnς προηγούμενες σελίδες του παρόντος
εγγράφου.
[Español] Declaración de conformidad UE
Fabricante: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Declaramos bajo nuestra única responsabilidad que el siguiente producto se ajusta a la pertinente legislación de armonización de la UE enumerada en las páginas anteriores
de este documento.
[Français] Déclaration de conformitéUE
Fabricant: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Déclarons sous notre seule responsabilité que le matériel mentionné est conforme à la législation en vigueur de l'UE présentée sur la/les page(s) précédente(s) de ce
document.
[Hrvatski] E.U izjava o sukladnosti
Proizvođač: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Izjavljujemo na vlastitu odgovornost da je navedena oprema sukladna s mjerodavnim zakonodavstvom EU-a o usklađivanju koje je navedeno na prethodnoj(nim) stranici(ama)
ovoga dokumenta.
[Italiano] Dichiarazione diconformità UE
Produttore: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Si dichiara sotto la propria personale responsabilità che l'apparecchiatura in elenco è conforme alla normativa di armonizzazione UE rilevante indicata nelle pagine precedenti del
presente documento.
[Latviešu] ES atbilstības deklarācija
Ražotājs: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Ar pilnu atbilclību paziņojam, ka uzskaitītais aprīkojums atbilst attiecīgajiem ES saskaņošanas tiesību aktiem, kas minēti iepriekšējās šī dokumenta lapās.
[Lietuvių k.] ES atitikties deklaracija
Gamintojas: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL,
atsakingai pareiškia, kad išvardinta įranga atitinka aktualius ES harmonizavimo teisės aktus, nurodytus ankstesniuose šio dokumento
[Magyar] EU-s megfelelőségi nyilatkozat
Gyártó: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Kizárólagos felelösségünk mellett kijelentjük, hogy a felsorolt eszköz megfelel az ezen dokumentum előző oldalán/oldalain található EU-s összehangolt jogszabályok vonatkozó
rendelkezéseinek.
[Nederlands] EU-Conformiteitsverklaring
Fabrikant: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Verklaart onder onze uitsluitende verantwoordelijkheid dat de vermelde apparatuur in overeenstemming is met de relevante harmonisatiewetgeving van de EU op de vorige
pagina('s) van ditdocument.
[Norsk] EU-samsvarserklæring
Produsent: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Erklærer under vårt eneansvar at utstyret oppført er i overholdelse med relevant EU-harmoniseringslavverk som står på de(n) forrige siden(e) i dette dokumentet.
[Polski] Deklaracja zgodności Unii Europejskiej
Producent: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Oświadczamy na własną odpowiedzialność, że podane urządzenie jest zgodne ze stosownymi przepisami harmonizacyjnymi Unii Europejskiej, które przedstawiono na
poprzednich stronach niniejszego dokumentu.
[Português] Declaração de Conformidade UE
Fabricante: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Declara sob sua exclusiva responsabilidade que o equipamento indicado está em conformidade com a legislação de harmonização relevante da UE mencionada na(s) página(s)
anterior(es) deste documento.
[Română] Declaraţie de conformitate UE
Producător: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Declară pe proprie răspundere că echipamentul prezentat este în conformitate cu prevederile legislaţiei UE de armonizare aplicabile prezentate la pagina/paginile anterioare a/ale
acestui document.
[Slovensky] Vyhlásenie o zhode preEÚ
Výrobca: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Na vlastnú zodpovednosť prehlasuje, že uvedené zariadenie je v súlade s príslušnými právnymi predpismi EÚ o harmonizácii uvedenými na predchádzajúcich stranách tohto
dokumentu.

6
[Slovenščina] Izjava EU o skladnosti
Proizvajalec: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
s polno odgovornostjo izjavlja, da je navedena oprema skladna z veljavno uskladitveno zakonodajo EU, navedeno na prejšnji strani/prejšnjih straneh tega dokumenta.
[Suomi] EU-vaatimustenmukaisuusvakuutus
Valmistaja: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Vakuutamme täten olevamme yksin vastuussa siitä, että tässä asiakirjassa luetellut laitteet ovat tämän asiakirjan sivuilla edellisillä sivuilla kuvattujen olennaisten
yhdenmukaistamista koskevien EU-säädösten vaatimusten mukaisia.
[Svenska] EU-försäkran omöverensstämmelse
Tillverkare: Ossila BV, Biopartner 3 building, Galileiweg 8, 2333 BD Leiden, NL.
Vi intygar härmed att den utrustning som förtecknas överensstämmer med relevanta förordningar gällande EU-harmonisering som fmns på föregående sidor i detta dokument.

7
3.Safety
3.1 Warning
3.2 Use of Equipment
The UV Ozone Cleaner is designed to be used as instructed. It is intended to be operated in a
laboratory environment under a fume cupboard/hood and is designed to be used in the
following environmental conditions:
•Indoors in a laboratory environment (pollution degree 2)
•Altitudes up to 2000 m
•Temperatures of 5°C to 40°C; maximum relative humidity of 80% up to 31°C.
The cleaner is supplied with a power cord (and if necessary, an additional power transformer)
for the country of purchase, in accordance with European Commission regulations and British
Standards. Use of any other electrical power cables, adaptors, or transformers is not
recommended.
3.3 Hazard Icons
The symbols shown in Table 3.1 can be found at points throughout the manual. Note each
warning before attempting any associated operations.
•Operate within fume cupboard in a room with suitable air ventilation at all times
•Only use the power cord (and transformer) supplied with the unit
•Mains inlet rated for 110-230V ± 10%. For 110V mains supplies
•Do not cover the ventilation slots
•If the lamp breaks, leave the room ventilating for at least 15 minutes and contact Ossila
•The unit must be connected to a earthed power outlet

8
Table 3.1 Hazard warning labels used in this manual.
Symbol
Associated Hazard
General warning or caution, which accompanying text will explain
Electrical shock
Severe injury or death by electrical shock
UV radiation
Ozone inhalation
Explosion
3.4 General Hazards
Before installing or operating the UV Ozone Cleaner, there are several health and safety
precautions which must be followed and executed to ensure safe installation and operation.
WARNING: Improper handling when operating or servicing this equipment can result in serious
injury. Read this manual before operating or servicing this equipment.
I. DANGER: DO NOT use the UV Ozone Cleaner in the presence of an explosive
atmosphere.
II. WARNING: To avoid electrical shock or injury, do not remove tray or try to access
any internal parts. Servicing should only be carried out by a trained professional.
Before servicing, disconnect the power cord and wait 10 minutes (high voltage
may persist in capacitors for some time after removal of power).
III. CAUTION: The UV Ozone Cleaner uses a ground-type power plug, which must be
connected to a earthed outlet to prevent electrical shock. The UV Ozone Cleaning
unit will be supplied with an earthed plug appropriate for the country of
purchase.

9
IV. The UV lamp is a mercury vapour lamp. The user may be exposed to mercury if
the lamp glass breaks. If this happens, please abide by the following rules to
minimise exposure:
•Ensure the power is disconnected to avoid the risk of electrocution.
•Store the container and UV Ozone Cleaner in a fume hood and leave the
room under ventilation for at least 15 minutes.
•Using cut-resistant gloves, collect any stray pieces of glass in a sealed
container. Dispose of the glass at a suitable collection point.
V. The UV Ozone Cleaner has a high voltage source. Do not attempt to open the
unit.
3.5 Power Cord Safety
I. Emergency power disconnect options: Use the power cord as a disconnecting
method and remove it from the power source. To facilitate disconnect, make
sure the power outlet for this cord is readily accessible to the operator.
II. Only use the power cord supplied with the UV Ozone Cleaner. Using an
unearthed plug may result in serious injury or death.
3.6 Servicing
If servicing is required, please return the unit to Ossila Ltd The warranty will be invalidated if:
•Modification or service has taken place by anyone other than an Ossila engineer.
•The Unit has been subjected to chemical damage through improper use.
•The Unit has been operated outside the usage parameters stated in the user
documentation associated with the Unit.
•The Unit has been rendered inoperable through accident, misuse, contamination,
improper maintenance, modification, or other external causes.
3.7 Health and Safety –Installation
I. High-intensity, mercury vapour lamps can generate extreme heat and
temperatures. Furthermore, ozone is a powerful oxidising agent and can react
explosively with combustible materials. Keep flammable materials a minimum
of three feet away from operating equipment.

10
II. The UV Ozone Cleaner is intended for operation inside a fully functioning fume
hood or fume cupboard only. There is no ozone filtration system incorporated
into the UV Ozone Cleaner.
3.8 Health and Safety –Operation
I. UV radiation can cause severe burns to the eyes and skin. An integrated safety
interlock prevents the lamp from being powered on whilst the tray is open. As a
precaution, never look directly into the sample chamber when the UV ozone
cleaner unit is powered on.
II. Ozone is a highly reactive substance and can cause adverse health effects at
the sites of initial contact: The respiratory tract, lungs —and at higher
concentrations, the eyes. The principal health effects are caused by irritation or
damage to the small airways of the lungs, and symptoms include coughing and
a feeling of tightness in the chest. Uncontrolled exposure to high levels of ozone
could lead to more severe health effects.
III. When operating the UV Ozone Cleaner, air flow in and around the unit must
remain unobstructed to prevent the unit from overheating. If the temperature
inside the sample chamber reaches above 60 °C, the unit will flash a high
temperature warning and automatically switch off the lamps to prevent
overheating. Allow the system to cool down to room temperature before
resuming use.
IV. IMPORTANT NOTE: Excessive cooling will diminish the lamp’s operating voltage
and effectiveness, whereas Inadequate cooling may cause damage to system
components.
V. The UV Ozone Cleaner has a high voltage source. Do not attempt to open the
unit.
3.9 Health and Safety –Servicing
I. Service or installation work that includes integrating electrical components
should only be performed by an Ossila engineer. Never alter the wiring of any
purchased equipment. If changes are made, such alterations may damage the
equipment, cause injury, or even death. At the very least, such alterations will
void your warranty.

11
II. If the fuses located in the fuse drawer at the back of the unit need changing, the
unit must be placed in a safe mode by switching the unit off and disconnecting
the power cord from the power socket.
4. Unpacking
4.1 Packing List
The standard items included with the UV Ozone Cleaner are:
•The UV Ozone Cleaner unit
•Power supply cord
4.2 Damage Inspection
Examine the components for evidence of shipping damage. If damage has occurred, please
contact Ossila directly for further action. The UV lamp is a mercury vapour lamp and the user
may be exposed to mercury only if the glass of the lamp is cracked or broken. If this happens,
please contact Ossila after abiding by these rules to minimise exposure:
1. Ensure the power is disconnected to avoid the risk of electrocution.
2. Store the container and UV Ozone Cleaner in a fume hood and leave the
room under ventilation for at least 15 minutes.
3. Using cut-resistant gloves, collect any stray pieces of glass in a sealed
container. Dispose of the glass at a suitable collection point.
5. Specifications
The UV Ozone Cleaner specifications are shown in Table 5.1

12
Table 5.1. UV Ozone Cleaner specifications
UV Ozone Cleaner
Specifications
UV Lamp
4 x 150 mm x 15 mm Synthetic Quartz UV lamp
UV lamp key wavelengths
185 nm and 254 nm
Power supply
110V-230V ± 10 %; 50/60Hz, 60 VA
Class of protection
Class I
Degree of protection
IP20
Maximum run time
59 minutes and 59 seconds
Safety features
Interlock; thermal cut-out; temperature
regulation
Unit dimensions
Width: 210 mm
Height: 228 mm
Depth: 310 mm
Tray dimensions
150 mm Ø
Fuses
1 A slow blow
Weight
5.45 kg
6. System Components

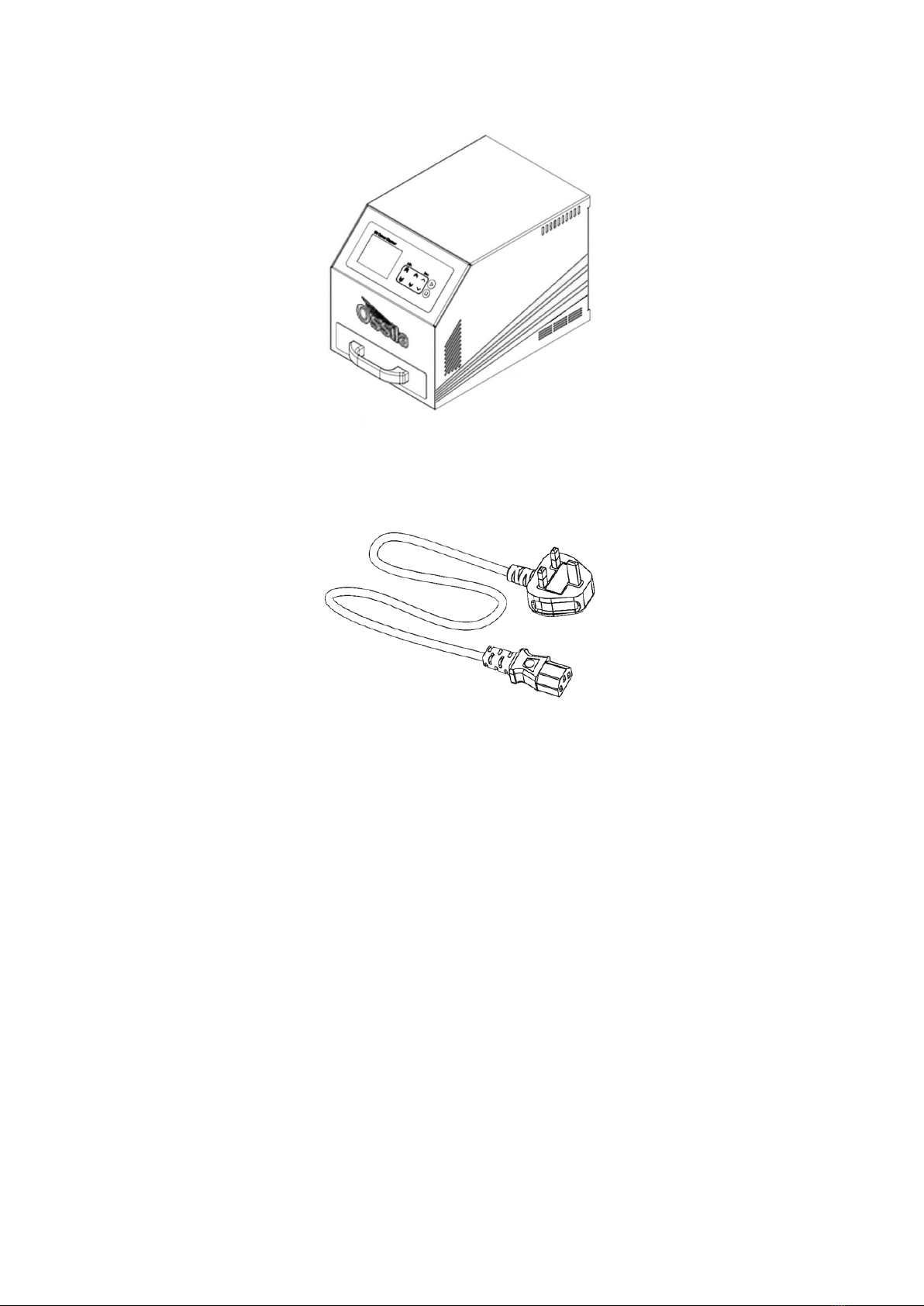

The UV Ozone Cleaner comprises two items:
•UV Ozone Cleaner unit (Figure 6.1)
•Power supply cord (Figure 6.2).
Figure 6.1 UV Ozone Cleaner

13
Figure 6.2 Main power cord adapter.
7. Installation
1. Place the unit on a solid, level surface inside a fume cupboard.
i. Ensure the area is free from vibrations, temperature extremes and highly
flammable or explosive materials.
2. Before plugging in the UV Ozone Cleaner, ensure the power switch on the unit is
switched to the ‘0 ’ position (off).
3. Connect the power cord to the UV Ozone Cleaner unit.
i. See Figure 7.1 to see how to connect the UV Ozone Cleaner to the power supply
cable.
4. Switch the UV Ozone Cleaner power switch to the ‘I’ position to turn on.

14
Figure 7.1 Plugging in the UV Ozone Cleaner power cord cable.
8. Operation
8.1 Overview
A top-down view of the UV Ozone Cleaner is shown in Figure 8.1, with all the relevant
components highlighted. Figure 8.2 shows the power cord socket, fuse socket, and the power
switch.
Figure 8.1. Components of the UV Ozone Cleaner.

15
Figure 8.2. UV Ozone power switch, fuse socket, and power socket position on the back panel.

16
8.2 User Interface
Figure 8.3 shows the front panel of the UV Ozone Cleaner. The function of each of the keypad
buttons is explained in Table 8.1.
Figure 8.3. UV Ozone Cleaner LCD screen and keypad.
Table 8.1. Operational buttons and their associated functions.
Button
Function
Starts operation for the Set Time programmed
Terminates the running program and resets the Set Time to zero
Increase the set time by 1 minute
Decrease the set time by 1 minute
Increase the set time by 10 seconds
Decrease the set time by 10 seconds
Increase the set time by 1 second
Decrease the set time by 1 second

17
8.3 Practical Operation
Operate within fume cupboard in a room with suitable air ventilation at all times.
1. Open the tray door.
2. Carefully load your sample to be cleaned onto the tray.
I. The tray surface may become slippery with use of the UV Ozone
Cleaner; take care to avoid your sample sliding off the surface.
II. WARNING: Should your sample fall inside of the UV Ozone Cleaner
unit, do not attempt to retrieve it. Doing so may result in damage
to the unit or personal injury. The UV Ozone Cleaner can operate
safely should small objects fall into the tray (providing the tray door
can be fully closed).
3. Program the UV Ozone Cleaner with the desired Set Time and press the start
button (see section below).
4. Once the program has finished, open the tray door and remove your sample.
8.4 Program Operation
WARNING! High voltage
The UV Ozone Cleaner is mains powered. Make sure the unit is connected to a
grounded power outlet. Ensure the area around the back of the unit is kept
clear. It is good practice to keep any cables around the unit in a tidy manner.
Avoid keeping any solvents around this piece of equipment.
WARNING! Ultraviolet light
The low-pressure mercury vapour grid lamp inside this equipment emits
harmful UV radiation. Avoid exposure at all times. Avoid keeping any solvents
around this piece of equipment.
WARNING! Inhalation hazard
Ozone is produced by this equipment during operation. Use only inside a fume
cupboard and in an area where appropriate ventilation is available.

18
1. Turn the UV Ozone Cleaner power switch on (position ‘I’); the bootup screen is shown
Figure 8.4.
Figure 8.4.Bootup screen.
2. During the bootup time, the user can enter the buzzer setting and temperature
reading menu screens for the UV Ozone Cleaner.
I. Press and hold both single-increment second buttons at the same time to see
the temperature readings display as in Figure 8.5.
Figure 8.5.Temperature readings display.
II. Press and hold both double-increment second buttons at the same time to
enter the buzzer settings as in Figure 8.6.

19
III. To change the buzzer settings, press the single-increment up second button to
turn the buzzer sound on, or the single-increment down second button to
turn the buzzer sound off.

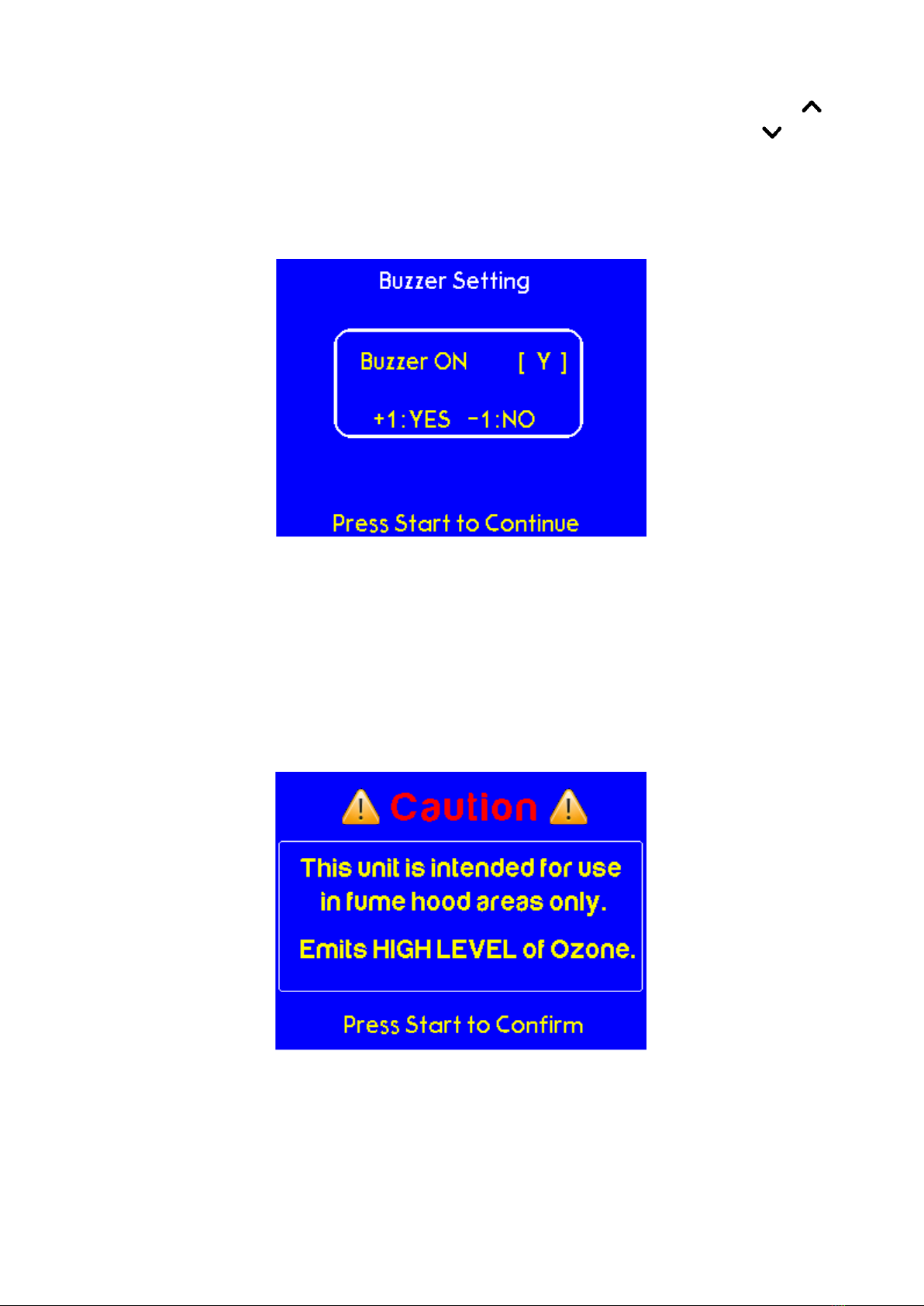

Figure 8.6.Buzzer settings menu.
3. To exit the Settings page, press the START button to proceed to continue.
4. The user must read the caution message and press START to enter the main screen of
the UV Ozone Cleaner as shown in Figure 8.7.
Figure 8.7.Caution screen
5. Modify the Set Time using the Minute (MIN) and Second (SEC) buttons on the keypad.
The maximum value of the timer is 59 min 59 secs (as shown in Figure 8.8).

20
Figure 8.8.Set Time screen.
6. Once the timer has been set, press the START button to run the program. The LCD will
display the following information (as shown in Figure 8.9).
I. The Elapsed timer will begin and the LED indicator light will switch on.
II. When the Elapsed time matches the Set Time, the one-note buzzer will sound —
indicating the program has finished.
III. While the program is running, the user can stop the program by pressing the
STOP button. This will also reset the Set Time to 00:00.
Figure 8.9. Set Time screen.
7. The fan in the unit will turn on when the cleaning program is started and will turn off once
the STOP button is pressed if the Tray Temperature is below 27°C. If the Tray Temperature reads
above 27°C, the fan will remain on for a further 20 minutes.
