oticon ConnectLine Streamer Pro 1.3A User manual

INSTRUCTIONS FOR USE Streamer Pro 1.3A
FOR USE
Streamer Pro 1.3A

Thank you
Thank you for choosing our product as your means to better hearing.
To support your efforts, we have put great care and attention into making sure that your
new Streamer has the highest quality and is easy to use and maintain.
The Streamer connects your hearing instruments wirelessly to different audio sources
and makes your hearing instruments work like wireless headphones. The Streamer
transmits the sound directly into both hearing instruments and thereby improves the
audio experience.
Information about the entire ConnectLine system is available online at www.oticonusa.
com/connectline. Here you will also find instructional “how-to videos” and a support sec-
tion answering frequently asked questions.
We recommend that you read this manual carefully before you start to use the device in
order to achieve the maximum benefit from your new Streamer. The manual describes
the most frequently used functions which are important to understand before you start
to use the Streamer. We also encourage you to read the “Getting Started” user guide,
which is included in the package. If you have any questions about the use or maintenance
of the Streamer, please contact your Hearing Care Professional.

Indication for use
The Streamer is intended to be used by wireless Oticon hearing instrument users
together with their hearing instruments. The Streamer is a communication interface
between the hearing instruments and other devices such as cell phones.
The Streamer can be connected to a range of external (additional) devices to enable
the hearing instrument user to better hear a TV or to communicate through Bluetooth-
enabled cell phones, etc.
The Streamer can also be used as a remote control that enables you to adjust the hearing
instrument volume and change programs in the hearing instruments.
The Streamer can be connected to an iPhone® 4 or later, allowing for the above functions
to be controlled by the ConnectLine App.

IMPORTANT NOTICE
Please familiarize yourself with the entire contents of this booklet before using your
Streamer. It contains instructions and important information about the use and
handling of your Streamer and batteries.
“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory
has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been
certified by the developer to meet Apple performance standards. Apple is not responsible for
the operation of this device or its compliance with safety and regulatory standards. Please
note that the use of this accessory with iPod, iPhone, or iPad may affect wireless perfor-
mance.
Apple, the Apple logo, iPhone, iPad, and iPod touch are trademarks of Apple Inc., registered in
the U.S. and other countries. App Store is a service mark of Apple Inc. Android and Google
Play are trademarks of Google Inc. The Android robot is reproduced or modified from work
created and shared by Google and used according to terms described in the Creative Com-
mons 3.0 Attribution License.

Contents
Package contents 8
Device view 11
Warnings 12
Basic functions - first-time use
Wearing the Streamer with the neck loop 16
Using the Streamer without the neck loop 18
Turning the Streamer on and off 20
Charging the Streamer 22
Battery low indicator 24
Remote control of the hearing instruments 28
Pairing the Streamer with a cell phone and other devices 30
Clear pairing 32
Continues on next page

Primary functions
Connectivity/streaming 34
Cell phone 35
Personalizing your Streamer 40
ConnectLine Phone solution 42
ConnectLine Microphone 44
ConnectLine TV solution 46
Secondary functions
ConnectLine App 48
Connectivity/streaming 49
Music/audio cable 50
Headset cable 52
Music/audio wireless 54
PC headset - wireless 56
T-coil (built-in) 58
FM receiver (optional) 60

Additional information
Avoiding heat, humidity and chemicals 62
Cleaning and maintenance 63
Accessories and spare parts 64
Technical information 67
Index 70

8
Package contents
Streamer Pro – what is included in the box:
The Streamer box contains the following elements:
Your new Streamer
Box 4Box 1
Neck loop - medium (page 16) Neck loop - long (page 16)
Protective skin (page 64)Cleaning clothCharger (page 22)

GETTINGSTARTED Streamer Pro
People First is our promise
to empower people
to communicate freely,
interact naturally and
participate actively
People First
121848UK /08.12
Please read this
user guide before
you start using your
new Streamer
Your new Streamer Pro cleaning cloth
Protective skin
(see page xx in IFU)
Box 4
Box 1
Neck loop - medium Neck loop - long
INSTRUCTIONS for use StreamerPro
Instruction for use (IFU)Getting started
Box 2
3.5mm mini Jack stereo cable
for MP3/music (see page 50 in IFU)
USB cable for charging
via e.g. computer
3.5mm splitter
cable for use with PCs
(see page yy)
Box 3
Charge base (see page 23 in IFU)
0000121848000001
Content of the Streamer Pro box
The Streamer box consists of the following elements:
Introduction
Thank you for choosing our product as
your means to better hearing.
The Streamer offers a wide range of
connectivity solutions tailored to
improve your everyday life with Oticon
hearing instruments.
For detailed information, secondary
functions or more advanced funtions
please refer to the included instruc-
tions for use, or the documentation,
including instructional videos online:
www.oticon.dk/connectline
Long
Medium
Wearing the Streamer
The neck loop is an integral part of the Streamer’s
electronic system. It is used as an antenna to transmit
sound to your hearing instruments.
For best possible sound and longest possible streaming
time, the Streamer should always be worn with one of
the included neck loops, as in the above figure.
More information:
page 16 in the Instruction for use.
Insert cable from the enclosed charger in
the micro USB socket in the bottom of the
Streamer.
Charging is indicated by a blinking green
indicator on the top.
We recommend that you charge the
Streamer daily e.g. during the night.
More information:
page 22 in the Instruction for use.
Charging the Streamer
PLACEHOLDER
PLACEHOLDER
PLACEHOLDER
PLACEHOLDER
PLACEHOLDER
PLACEHOLDER
PLACEHOLDER
PLACEHOLDER
PLACEHOLDER
PLACEHOLDER
PLACEHOLDER
INSTRUCTIONS for use Streamer Pro 1.2 app
9
Charger base (page 22)
Box 2
3.5 mm mini jack
stereo cable
for MP3/music
(page 50)
USB charger cable
(page 22)
3.5 mm headset
splitter cable for use
with PCs (page 52)
Getting Started
This guide (Instructions For Use)
*Optional Additional Accessory

11
Device view
Microphone
(page 44)
Volume control
(up/down)
(page 28)
Neck loop in/out
Neck loop
(page 16)
Phone
(page 35 & 42)
TV (page 46)
AUX selector
(page 49)
Microphone inlet
On/off button
Status
indicator
On/off indicator
Pairing
Battery
Mini jack
FM receiver
Power supply
On/off

12
You should familiarize yourself fully with the following general warnings and the entire
contents of this booklet before using your Streamer.
Products to be connected to external equipment
The safe use of the Streamer with the auxiliary input cable is determined by an external
signal source. When the input cable is connected to mains-operated equipment, this
equipment must comply with IEC-60065, IEC-60950, IEC-60601 or equivalent safety
standards.
The safety of recharging batteries with the USB connector only is determined by the
external equipment. When the USB connector is connected to mains-operated equip-
ment, this equipment should be UL-approved or comply with IEC-60065, IEC-60950,
IEC-60601 or other equivalent safety standards.
Explosives
There is a risk that Streamer will explode and cause serious injury.
Never expose the Streamer to extreme heat by putting it in the oven, microwave oven,
burning it or leaving it inside a parked car in the sun.
Warnings

13
Choking hazards
The Streamer is not a toy and therefore should be kept out of the reach of children and
anyone else who might swallow parts or otherwise cause injury to themselves. Special
attention should be paid to the smaller components in order to prevent children from
swallowing them and choking.
If a part is swallowed, see a doctor immediately.
Interference and implantable devices
The Streamer is designed to comply with the most stringent Standards of International
Electromagnetic Compatibility. However, the Streamer might cause interference with
other medical devices such as defibrillators and pacemakers.
• Please contact the manufacturer of your implantable device for information about the
risk of disturbance.
• Immediately remove the Streamer if interference is suspected. Do not use the
Streamer and seek advice.
Interference can also be caused by power line disturbances, airport metal detectors,
electromagnetic fields from other medical devices, radio signals and electrostatic dis-
charges.
Warnings

14
Use of the neck loop
If by accident the neck loop should get caught on something while the user is wearing it,
the neck loop is constructed to break automatically. Therefore, never try to shorten or
modify the neck loop in an unauthorized way. The neck loop should not be used for chil-
dren who weigh less than 11 kg.
Use in cars
Using the Streamer with a cell phone while driving can distract you. If driving conditions,
or traffic laws, demand it, pull off the road and park before making and answering calls.
Use on aircraft
The Streamer should not be used on board aircraft, unless specifically permitted by the
flight personnel.
Warnings

Battery replacement
Do not attempt to open the battery compartment, as it may damage the battery.
The service guarantee is void if there are signs of tampering.
Cell phone compatibility
Please refer to www.oticonusa.com/connectline for a list of cell phones that have been
tested comprehensively by Oticon, and have been found to fulfill the minimum require-
ments for ConnectLine compatibility at the time of testing. However, Oticon takes no
responsibility for such compatibility in general. Specifically, Oticon shall not be responsi-
ble for incompatibility resulting from future updates of the cell phones, nor from events
of incompatibility not covered by and/or found in these tests. Oticon takes no financial
responsibility in terms of reimbursements of cell phones that do not work as expected.
Before purchasing a new cell phone, you are advised to consult the list mentioned above.
Warnings
15

16
Basic functions - rst-time use
Wearing the Streamer – with the neck loop
The neck loop is an integral part of the Streamer’s electronic system. It is used as an
antenna to transmit sound to your hearing instruments.
For the best possible sound and longest possible streaming time, the Streamer should
always be worn with one of the included neck loops. The Streamer comes with two neck
loops, both long and medium lengths.
IMPORTANT NOTICE
Please use the neck loop carefully. Due to safety reasons (to avoid strangulation) the
neck loop will automatically release if it gets caught in something. Do not shorten or
modify the neck loop in any way, i.e., such as tie a knot to shorten the length. If a neck
loop breaks, it cannot be repaired and must be replaced immediately. Consult your
Hearing Care Professional for a replacement.

17
Neck loop
Inserting the neck loop
The neck loop snaps into the holes on the top of
the Streamer.
Note that when talking to somebody through the
Streamer, it is important that your voice can be
picked up by the built-in microphone on the top.
Microphone
Your voice
Sound from
Streamer to hearing
instruments

18

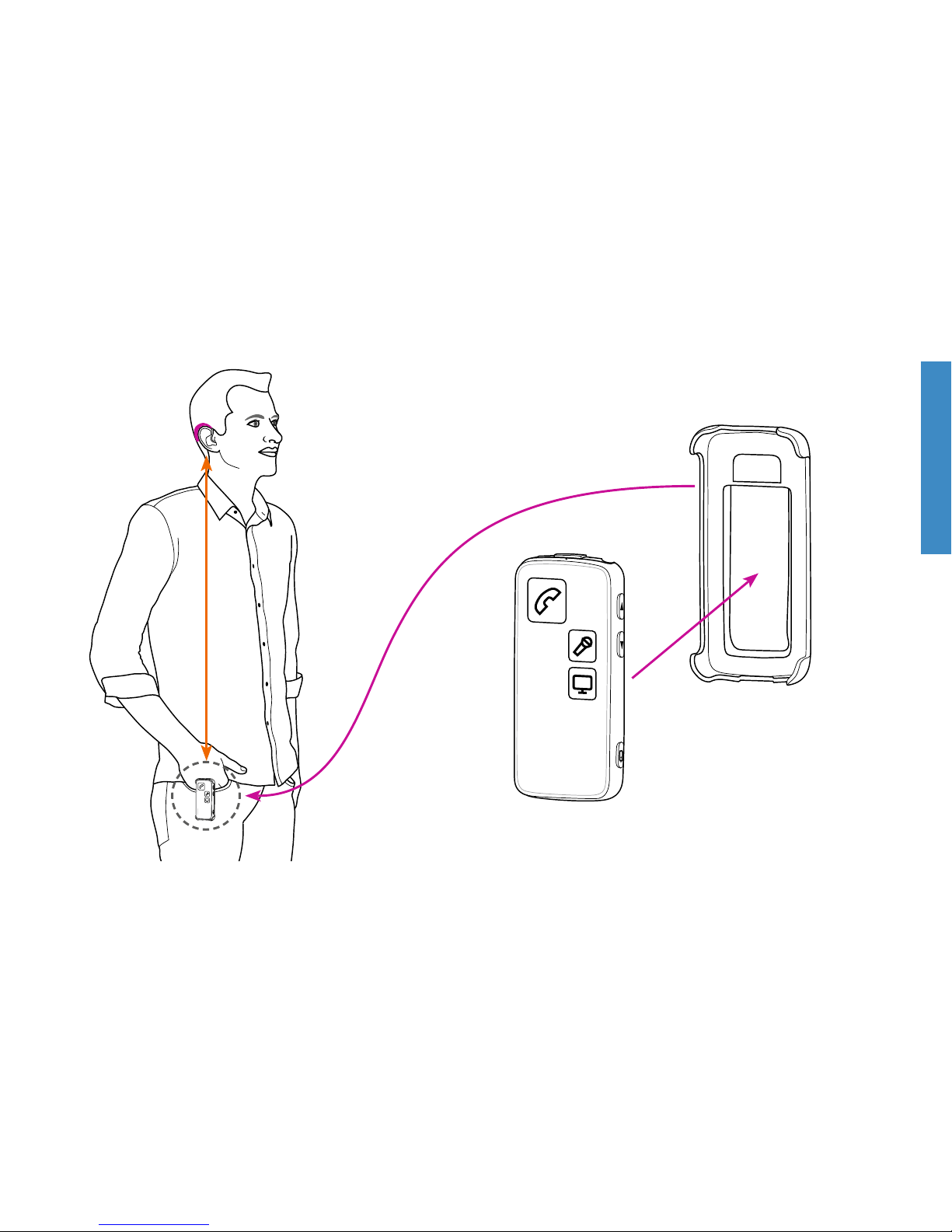

Using the Streamer without the neck loop
When using the Streamer without the neck loop, the distance to the hearing instrument
should be less than one meter. You may experience drop-outs in sound, which is why we
always recommend using the neck loop.
When using the Streamer without the neck loop, more power will be used – consequently
the maximum streaming time is reduced to 5 hours on one full charge.
IMPORTANT NOTICE
A defective neck loop should be replaced immediately.

19
No neck loop
Max 1 meter
Belt clip (optional)

20
Turning the Streamer on and off
Power on
Press the on/off button on the top of the Streamer for
approx. 2 seconds until all lights on the front and top flash
to indicate it is powered on.
Release the on/off button. The power indicator on the top
of the Streamer should now fade to green.
If the Streamer cannot power on, make sure it is charged
(page 22).
To see the status of the Streamer, press the on/off button
briefly.
Power off
Press and hold the on/off button on the top of the
Streamer for approx. 2 seconds until the green power
indicator is turned off.
