Welcome 5
Description 6
Naída UltraPower hearing system with earmold 7
Naída UltraPower is water resistant! 7
Short introduction 9
Inserting the battery 9
Switching ON/OFF 9
Controlling the volume 10
Selecting a hearing program 10
Preparation 11
Replacing the battery 11
Tamperproof battery compartment 12
Low battery warning 15
Identifying left and right hearing systems 16
Inserting Naída hearing system with
earmold into your ear 18
Secure ‘n Stay - an optional retention 21
Operation 23
Switching ON/OFF 23
FM system 24
Delayed activation 25
Controlling the volume 26
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 2

5
4
Your new Naída UltraPower hearing system uses the
very latest advances in digital wireless hearing
technology. Naída UltraPower offers you, automatically,
the highest sound quality, speech understanding
and listening comfort in all your hearing situations.
High-tech has turned highly sophisticated hearing
systems into convenient devices that are easy to use.
Please read this manual carefully to benefit from all
the features of your new Naída hearing system.
Ask your hearing care professional if you have any
questions.
Naída UltraPower is a quality product developed by the
Swiss company Phonak, a world leader in hearing
technology, innovation and reliability. With proper care
and usage, your Naída hearing system will support
your hearing and communication needs for many years.
If you want additional information about Naída
UltraPower, please visit the Phonak website
www.phonak.com.
Phonak – life is on
Welcome
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 4

7
6
Description
햲
햷
햸
햳
햴
햶
햵
햹
Naída UltraPower hearing system with earmold
햲 Microphone inputs with Wind and Weather
Protector (water resistant) for microphones
햳 Program switch (TacTronic)
햴 Programming cover
햵 Volume control
햶 Battery compartment with ON/OFF switch
(for children – Junior models, with battery lock)
햷 Hook/sound output
햸 Individual earmold
햹 Wind and Weather Protector (water resistant)
for battery compartment
Naída UltraPower is water resistant!
Thanks to the water resistant casing of Naída,
you will now have a new degree of freedom in your
daily life. The robust and dependable design of
Naída will allow you to benefit from amplification in
many more situations than before: during rigorous
labor, throughout strenuous exercise, while active
outdoors, or even when unexpectedly caught in the
rain.
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 6

89
Short introduction
Inserting the battery
Details see page 12
Switching ON/OFF
Details see page 23
ON OFF ON
Naída hearing systems, including the design-integrated
FM receiver (ML10i), are resistant to water, sweat and
dirt under the conditions listed below:
• Battery compartment and programming cover are
fully closed
• All three Wind and Weather Protectors are mounted
correctly
• The hearing system is used and maintained as
described in this user guide
Do not wear your hearing systems while
showering, or washing your hair.
Do not wear your hearing systems while in the
water: they are not designed for any kind of
swimming or diving activities.
The Naída hearing systems are not designed for
immersion in water or other liquids.
After perspiration or contact with water, the
hearing system must be cleaned. Please refer to
the relevant section in this user guide on page 55.
Proper use and maintenance of your hearing
system will prolong its life span.
For more information regarding water resistance,
see page 50.
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 8

11
10
Controlling the volume
Details see page 26
Volume up Volume down
Selecting a hearing program
Details see page 28
Short introduction
Replacing the battery
Use standard batteries size 675 for all Naída UP
(UltraPower) models.

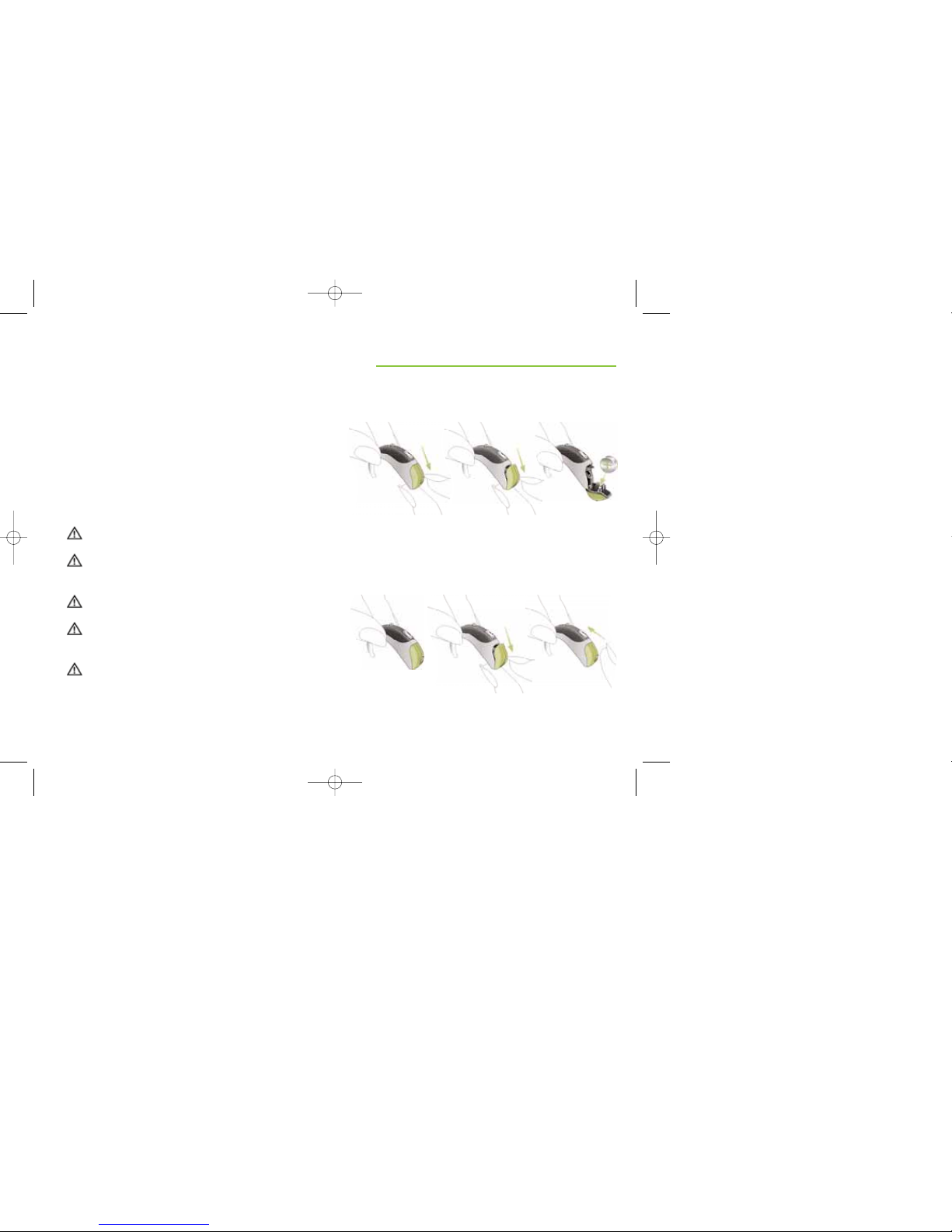

Using the nail grip, open the battery compartment
completely and remove the old battery 햲, 햳, 햴.
Remove the protective foil
from the new battery.
Preparation
햴
햳
햲
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 10

13
The battery can only be inserted when the latch is
open 햺. Move the latch over the inserted battery 햻
so that it lies against it. Lock the battery by pushing
towards the hearing instrument with your finger 햽.
Before you close the battery compartment, check that
the latch is locked in position and the battery can’t
be removed.
The tamperproof battery compartment is also
available for the design-integrated FM receiver and
the universal receiver audio shoe.
12
Insert the new battery with the “+” sign (flat side of
the battery) in line with the “+” marked on the battery
cover 햵, 햶. Push the battery door upwards to close it
햷.
Tamperproof battery compartment
For the Junior models (Naída III UP Jr and Naída V UP Jr)
the battery is locked inside the battery compartment
for safety reasons. The latch can easily be opened with
a fingernail. Place the fingernail in the groove and pull
the latch away from the hearing instrument 햸and
then push it upwards 햹.
Preparation
햶
햵
햷
햽
햺
햸햹
햻
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 12

15
14
Low battery warning
An acoustic signal gives you an early warning that the
battery is approaching exhaustion. You have usually
at least 30 minutes to replace the battery. With very
high quality batteries, this reserve may be higher. The
hearing system will repeat the low battery warning
approximately every 30 minutes.
Handle the battery compartment with care and
do not use excessive force.
If there is any resistance when shutting the
compartment, ensure that the battery is inserted
correctly.
If the battery is installed backwards, the
instrument will not work. Please open the battery
compartment and insert the battery correctly.
For the Junior models, the battery latch must be
placed back over the battery and locked,
before closing the battery compartment.
The battery compartment must be completely
closed to ensure that the hearing instrument is
water resistant.
When your hearing system is not in use, leave
the battery compartment open to allow any
moisture to evaporate.
We recommend to only use batteries which your
hearing care professional approves and sells.
Preparation
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 14

17
16
Identifying left and right hearing systems
It is important to use the correct hearing system for
each ear.
Your hearing care professional can mark the hearing
systems for you. The color code on the lower part
of the battery compartment will identify left and right
hearing systems.
The color code is as follows:
blue = left red = right
If you have a design-integrated FM solution (ML10i)
mounted on your hearing systems, the color code is
situated on the ML10i module identifying left and right
hearing systems, refer to the drawing below.
blue = left red = right
Preparation
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 16

19
18
Place the canal portion of the earmold inside your ear
canal. If it is difficult to get it into place, stretch your
ear by pulling it gently backwards and upwards with
your other hand. When the canal portion is in place,
twist the earmold backwards so that it fits into the
concha and the helix portion is under the fold.
Now position the hearing
system behind the ear.
Be careful not to twist the
tubing.
Inserting Naída
hearing system
with earmold into
your ear
Using the hand on the same side you wear your
hearing system, grasp the earmold between the thumb
and index finger.
Raise your hand to your ear, making sure the canal
portion of the earmold faces your ear. Tilt your hand
slightly forward.
Preparation
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 18

21
20

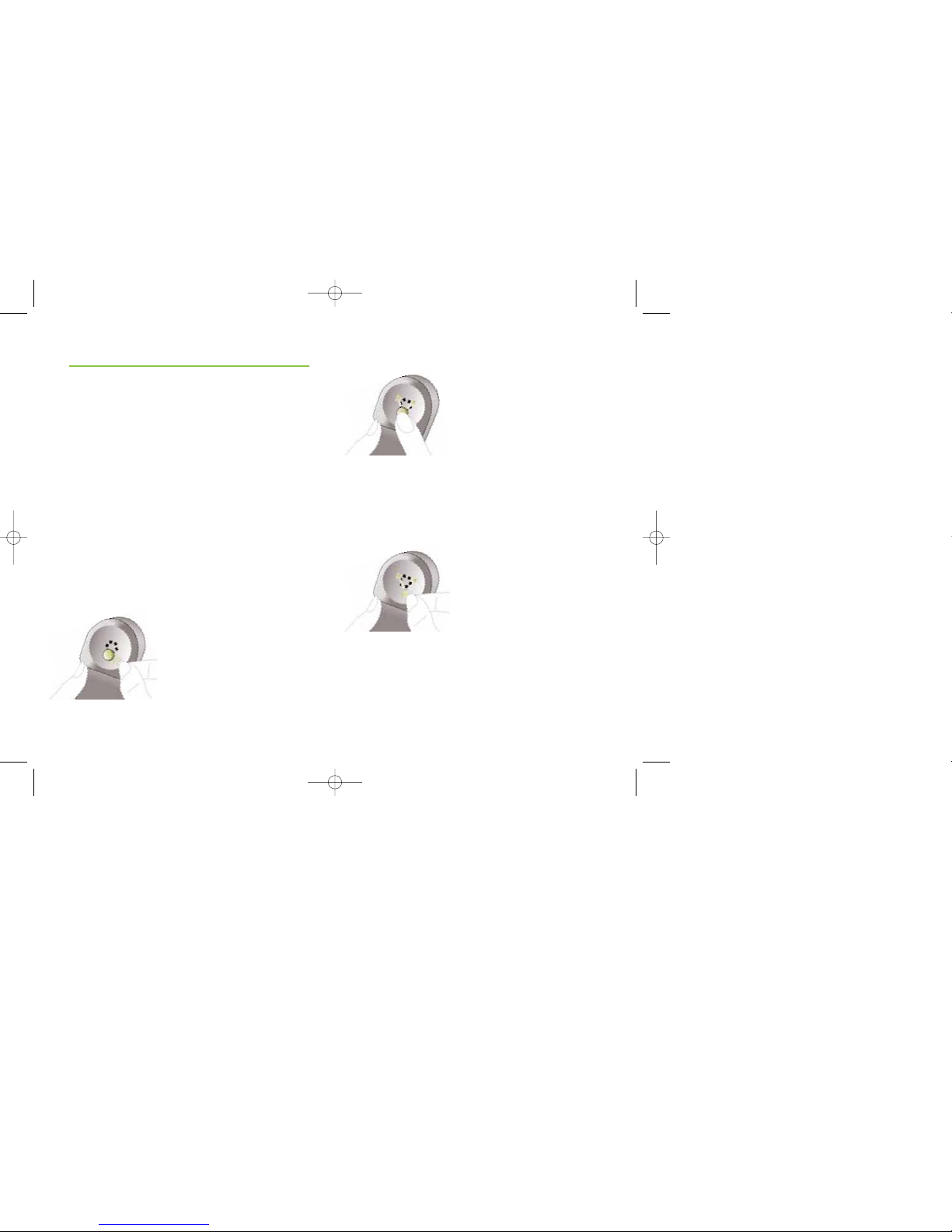

Check the placement of the earmold by tracing the
contour of the ear with your finger.
To remove your hearing system, grasp the earmold,
not the tubing, and pull it out of your ear gently but
firmly.
Preparation
Secure ‘n Stay - an optional retention
Secure ‘n Stay is an optional retention that can be easily
mounted on the hearing instrument 햲, 햳.
햲햳
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 20

23
22
Switching ON/OFF
Switching OFF

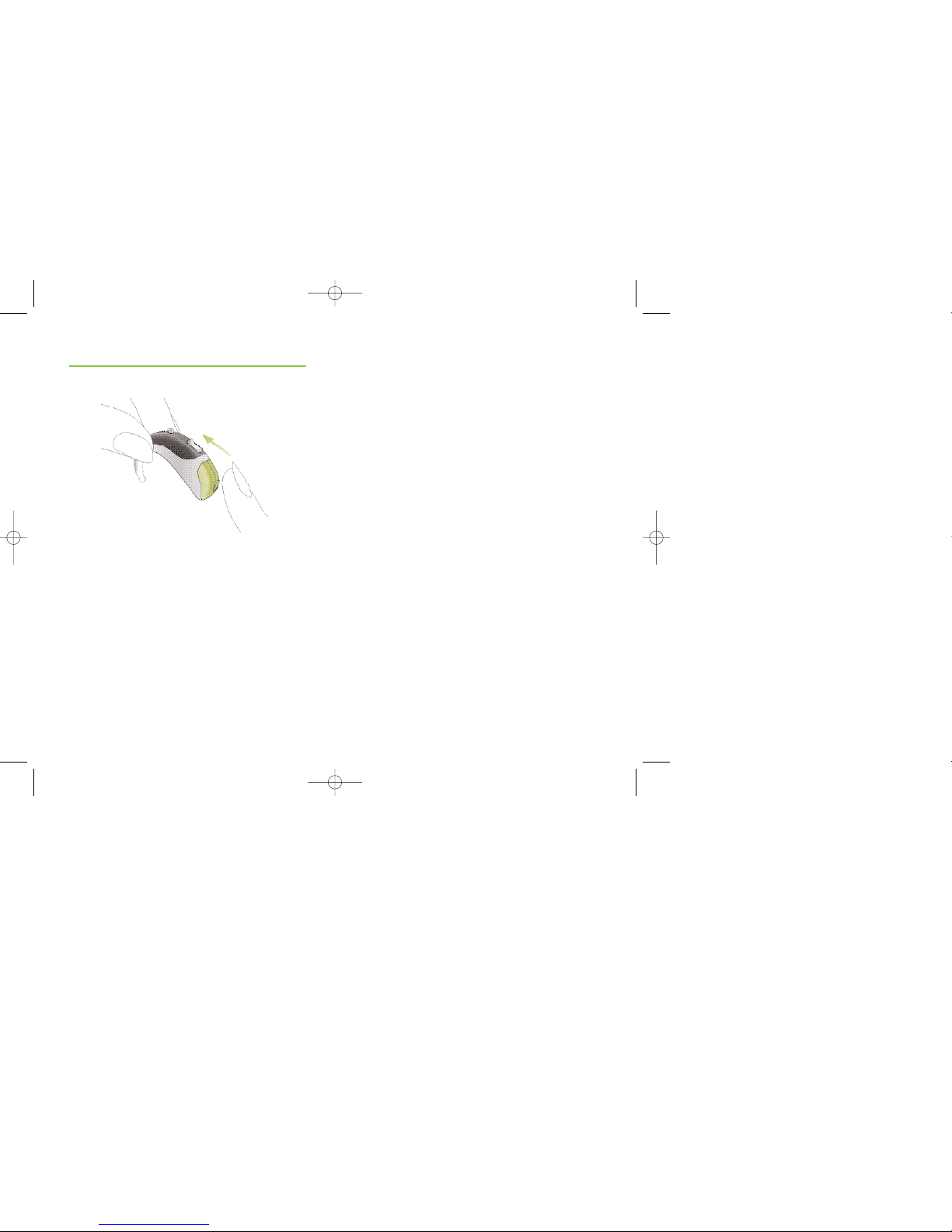

Using the nail grip, slightly open the battery cover
until it snaps to its OFF position.
Preparation
Secure ‘n Stay supports the retention of the hearing
instrument behind the ear 햴, 햵and gives extra
comfort during sport activities, when playing, etc. Ask
your hearing care professional for more information.
It can also be used if a FM system is attached to your
hearing instrument.
Note:
Before using Secure 'n Stay, please carefully read the
instructions.
햵햴
Operation
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 22

25
24
Switching ON
Close the battery compartment. Your Naída hearing
systems are always working in the initial hearing
program, and at the preset volume when turned ON.
FM system
Switching ON/OFF on a design-integrated ML10i FM
or on an universal FM receiver with an audio shoe
(see page 41 resp. 44) can easily be done as described
above.
Operation
Delayed activation
Your hearing care professional may have delayed
the activation of your Naída hearing system after
switching ON (9 or 15 seconds), in order to avoid
any disturbance while placing it on your ear.
The activation is confirmed by an acoustic signal.
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 24

27
26
Controlling the volume
The volume of your Naída hearing system can be
adjusted above or below the preset volume.
Volume up
Volume down
Operation
Note:
• A beep confirms each action on the volume
control. A double beep indicates that you have
reached the limit of your volume control range.
• The volume control switch can be replaced
with a locked version, specially designed for small
children. Your hearing care professional can
easily do this adaptation. The volume control can
then only be operated via myPilot (see page 33),
or by hand using a pin-shaped item, like a pen. To
be pressed on the upper resp. lower part of the
volume control as on page 26.
QuickSync – controlling two hearing instruments
An automatic synchronization for volume adjustments
and program selection, QuickSync, is integrated in
Naída V UP models. Users wearing two hearing instruments
have to activate the functionality on one instrument
and the other instrument will be adjusted automatically.
Your hearing care professional may have deactivated
this wireless syncronization.
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 26

29
28
Selecting a hearing program
Automatic program selection
The program selection in Naída is fully automatic.
Naída recognizes different hearing environments and
automatically selects the most appropriate hearing
program.
Additional program selection
Upon request, your hearing care professional can program
for you additional individual hearing programs dedicated
to specific hearing situation or FM (wireless
communication) use. Additional programs are available
via myPilot (see page 33) and/or with the program
switch.
QuickSync - controlling two hearing instruments
QuickSync, an automatic synchronization for volume
adjustments and program selection is integrated in
Naída V UP models. Users wearing two hearing
instruments have to activate the functionality on one
instrument and the other instrument will be adjusted
automatically. Your hearing care professional may have
deactivated this wireless syncronization.
Operation
Important
Ask your hearing care professional to print out
the complete description of your individual hearing
programs and how to access them with your myPilot
and/or your program switch.

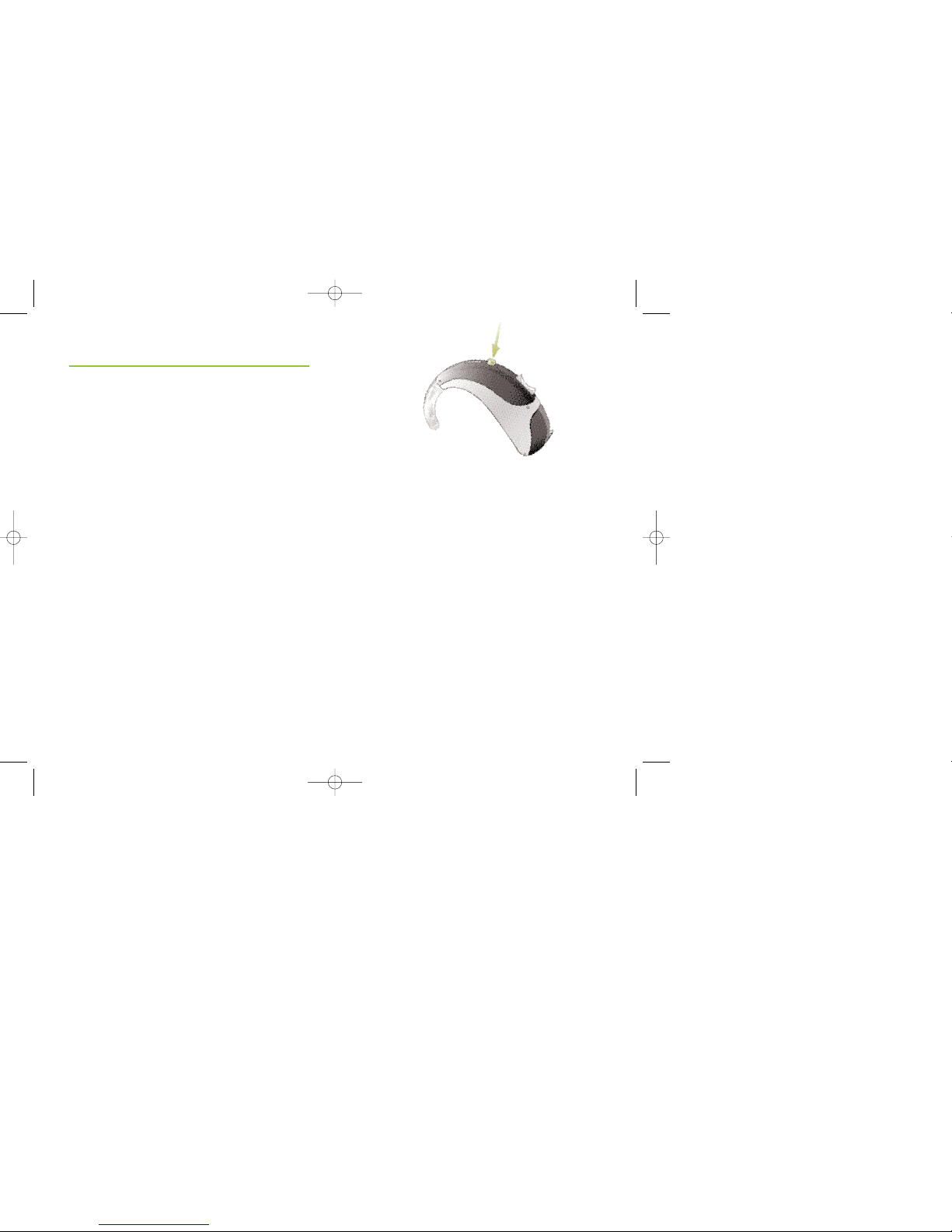

Program switch (TacTronic)
The program switch allows manual toggling between
the “Automatic Mode”, “Mute Mode” and individual
hearing programs. A short melody confirms the selection
of the “Automatic Mode”.
Telecoil (optional)
Your hearing care professional may have activated a
telecoil (T-coil) in your Naída hearing systems. The
programs with T-coil are used to listen to telephones
that are compatible with hearing system or via
inductive loop systems (present in some school settings,
theaters, churches, etc.) as well as other wireless
solutions (e.g. Phonak MyLink FM system).
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 28

31
30
Operation
EasyPhone
The EasyPhone function enables your Naída hearing
system to automatically select your telephone program
when the telephone handset is held close to your ear.
An acoustic signal confirms the switching.
It automatically returns to the previous hearing program
when the telephone handset is removed from your ear.
Some telephones produce a magnetic field strong enough
to activate your EasyPhone function. Most types of
telephones require an additional magnet fixed on the
receiver to activate this function.
Fixing the EasyPhone magnet
Clean the telephone handset
thoroughly.
Hold the telephone handset nearly
vertically, similarly to making
a telephone call. Hold the magnet
near to the “listening end” of your
telephone handset and release it.
The magnet will automatically flip
to the correct side.
If you hold the telephone
receiver in your right hand
when making telephone
calls, position the magnet in
the upper right half of the
receiver.
If you hold the telephone
receiver in your left hand
when making telephone
calls, position the magnet
in the upper left half of
the receiver.
Use the double-sided adhesive
tape to stick the magnet to
the location described above.
Do not cover the sound
openings of your handset.
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 30

33
32
Use of EasyPhone
Use the telephone in a normal manner. An acoustic
signal indicates the activation of the EasyPhone
program. At the beginning, you may need to move the
handset slightly to find the optimum position for a
reliable switching and comfortable hearing.
If necessary, move the magnet to another position on
the handset to increase your comfort of use.
Keep magnets out of reach of children and pets.
If a magnet is swallowed, please seek the advice
of a medical practitioner.
The magnet used to strengthen the magnetic
field of your phone may affect some medical
devices or electronic systems.
Always keep the magnet (or the telephone
equipped with the magnet) at least 30 cm (12”)
away from pacemakers, credit cards, floppy disks
or other magnetically sensitive devices.
Too high distortion during dialing or phoning
may mean that the phone receiver is stressed by
the magnet. To avoid any damage, please move
the magnet to another place on the telephone
receiver.
Operation
The myPilot command center is an optional accessory
for all Naída systems. It allows a convenient, user
friendly and discrete control of all the functions of your
hearing system and offers additional benefits.
• Volume control
• Program selection
• Automatic mode selection
• Clock and Alarm
• Battery status
For detailed information on the use of your myPilot,
please refer to its user guide or ask your hearing care
professional.
myPilot (optional)
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 32

35
34
For optimum results, position your myPilot as shown
in the drawing.
Do not use your myPilot in locations where
it is forbidden to use electronic devices, for
instance on airplanes.
myPilot is available in two stylish colors:
high-tech gray or white.
Operating range
max. 50 cm (20”)
myPilot (optional)
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 34

37
36
FM compatibility
iCom also offers FM accessibility when a universal
Phonak FM receiver is connected.
Do not use your iCom in locations where
it is forbidden to use electronic devices, for
instance on airplanes.
iCom is an optional accessory

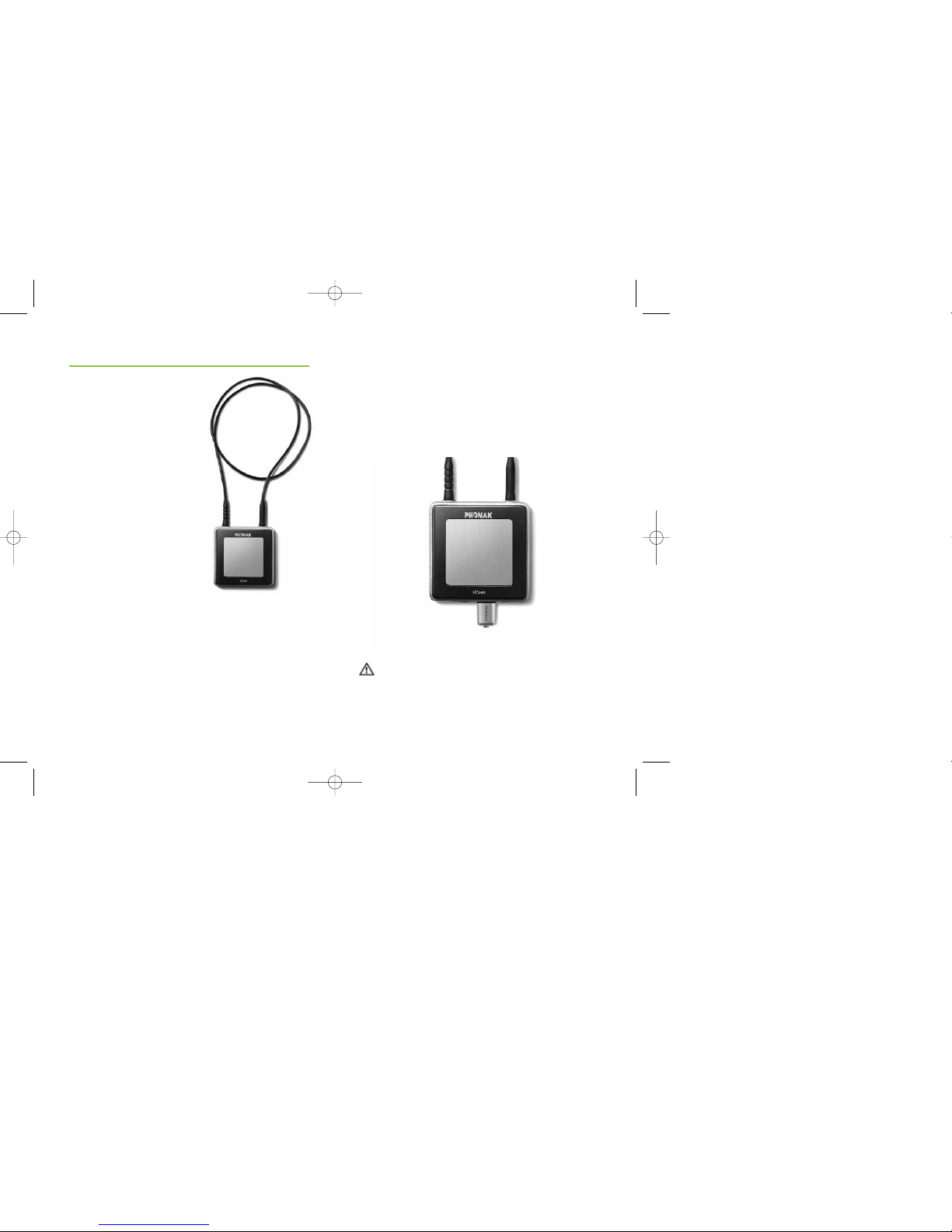

available for all Naída
instruments. With the push
of a single button, iCom
connects your hearing system
with the technology
around you (mobile phones,
audio equipment, FM, etc.).
Bluetooth connections
iCom offers a simple way to connect your mobile
phone via Bluetooth to your hearing system.
iCom is also capable of transmitting a stereo
audio signal from any Bluetooth enabled device
(built-in or via an adapter) such as MP3 players,
laptops, computers and televisions.
iCom (optional)
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 36

39
38
FM communication (optional)
Your Naída hearing system is equipped with Direct
Audio Input (DAI). It allows you to fully benefit from
the high-end FM systems from Phonak.
FM systems greatly improve communication when
noise, distance or reverberation is a problem. A wireless
FM communication system consists of a transmitter
and a receiver. The transmitter transmits the signal to
the receiver.
For more information about the use of FM receivers
or transmitters, please refer to the appropriate user
guide or ask your hearing care professional.
FM solutions for Naída
Phonak offers two FM solutions for your Naída hearing
system:
1. Design-integrated FM receiver (see below)
2. Universal FM receiver (see page 44)
1. Design-integrated FM receiver ML10i
ML10i: Perfectly integrated in
the Naída design
for daily use.
Switching ON/OFF on the hearing system can easily
be done (see page 23).
P58243_Pho_GB_Naida.qxp 30.11.2007 15:13 Uhr Seite 38
