Introduction to this booklet
This booklet guides you on how to use and maintain your new ConnectLine
Microphone. Please read the booklet carefully including the Warning
section. This will help you get the most out of your new ConnectLine
Microphone.
If you have additional questions about the use of your ConnectLine
Microphone, please contact your hearing care professional.
For your convenience, this booklet contains a navigation bar to help you
navigate easily through the different sections.
About Startup Handling Warnings More info
Intended use
The Microphone is intended to be used by a person speaking to a hearing
aid user, in order for the hearing aid user to better hear the person. The
Microphone will transmit the speech from the speaker directly to the hearing
aid user.

Table of contents
About
What’s in the box? 6
Product overview 7
How the Microphone works 8
Charging / power indicator 10
Startup
Pairing / initial setup (only needed once) 12
Handling
Start / turn on / resume sound from Microphone 16
Pause sound 18
Resume sound from Streamer Pro 20
Check sound 22
Turn off Microphone 23
Warnings
Not a toy 24
Use on aircraft 24
Active Implants 24
Do not expose to great heat 25
Cleaning 25
Only charge from UL/IEC approved equipment 25
Use of the lanyard 25
Explosives 26
Products complying with R&TTE 26
X-ray, CT, MR, PET scanning and electrotherapy 26
More info
Warranty certificate 28
International warranty 29
Important additional information 32

Instructions for use
Microphone
*Power supply will vary from
country to country.
6 7
About Startup Handling Warnings More info
What’s in the box? Product overview
Microphone
Power supply (charger)
Carry pouch Lanyard
This manual
Status indicator (orange)
Microphone input (voice)
Power indicator (green)
On/off button
Microphone input
(noise detector),
do not cover
About

8 9
How the Microphone works
The Microphone will transmit the speech from the speaker directly to the
hearing aid user.

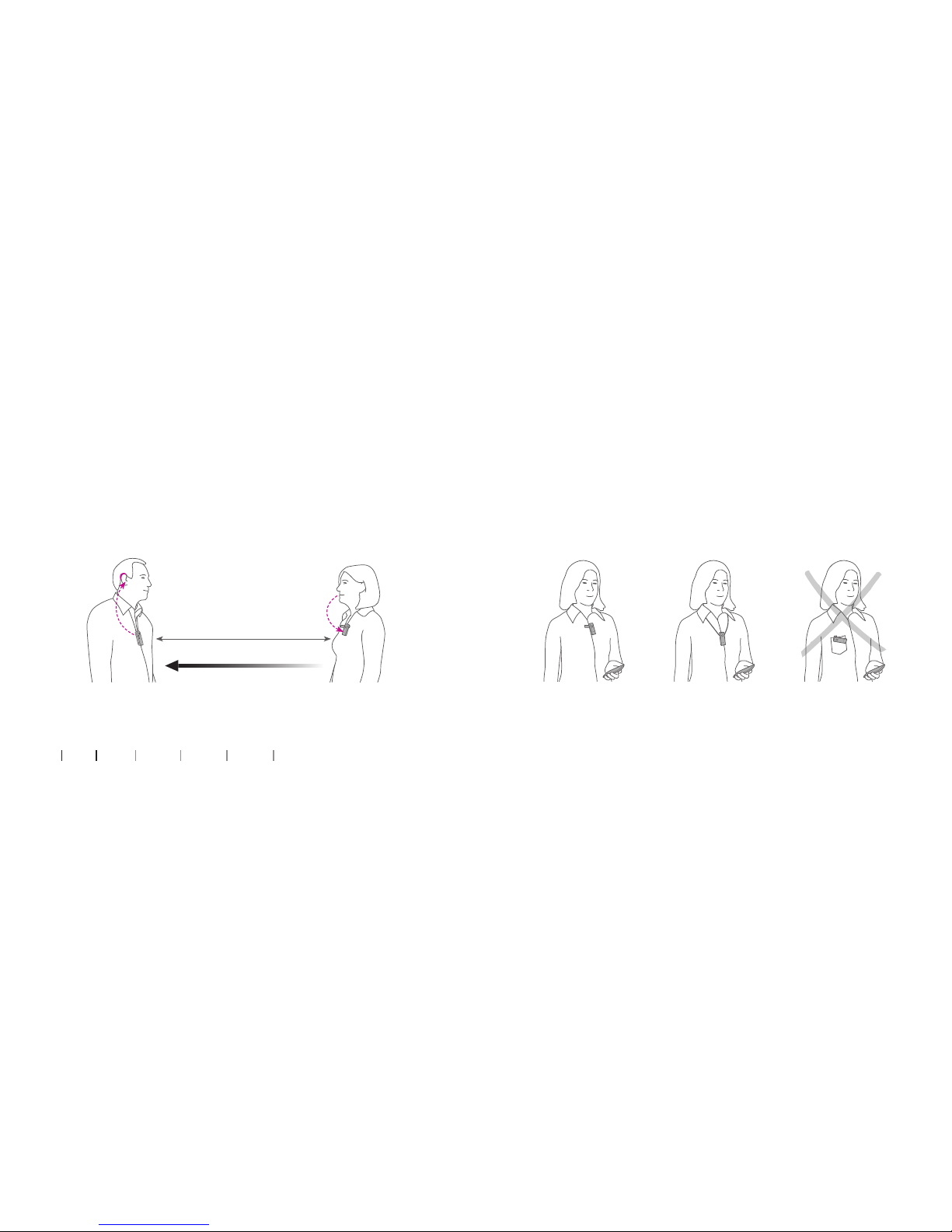

The Microphone should point towards the speaker’s mouth within a distance
of 10 to 20 cm.
About Startup Handling Warnings More info
Note: A Microphone will only work with one Streamer at a time
SpeakerHearing aid user
Up to 15 metres
Clip
wearing
Wearing with
lanyard
Wrong
wearing

10 11
Charging / power indicator

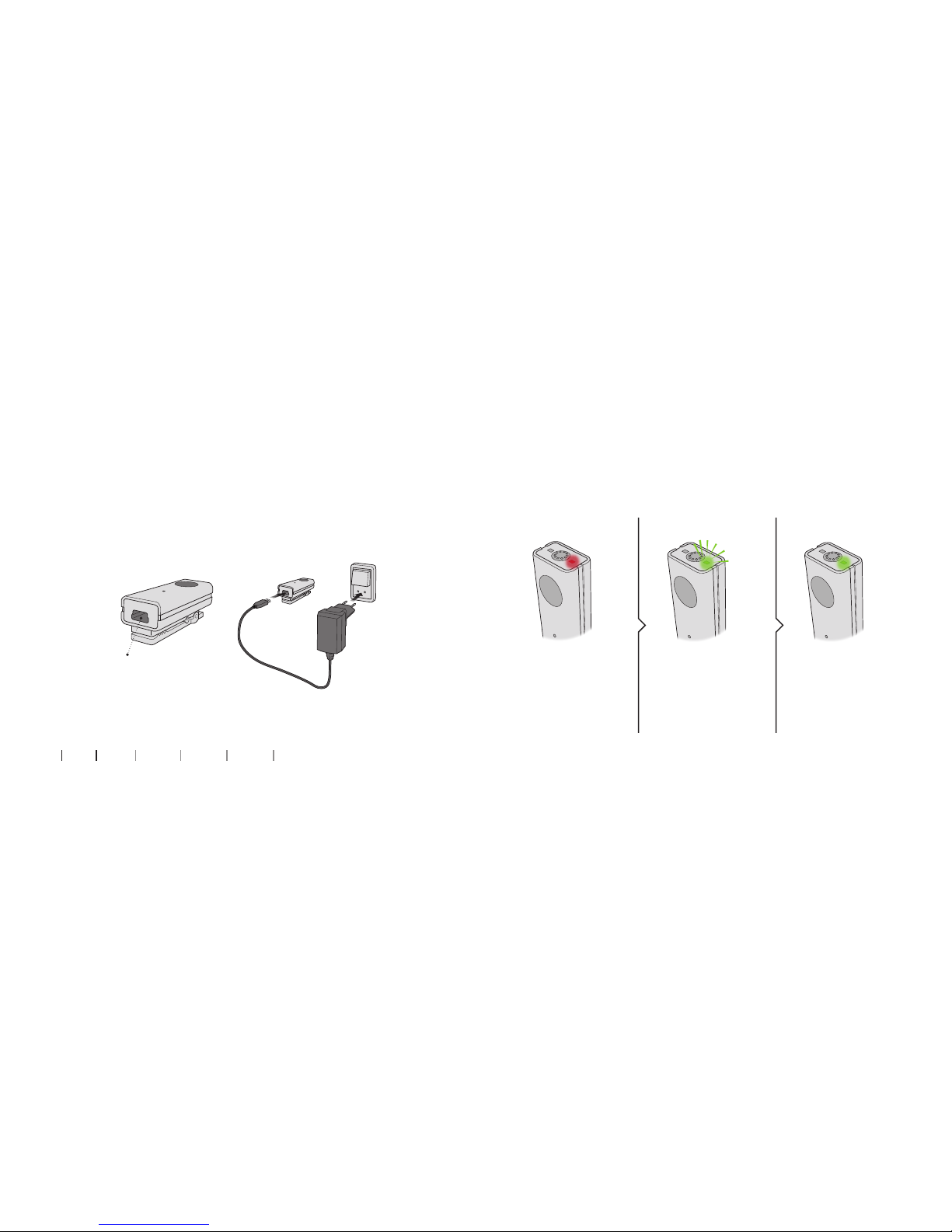

To charge the Microphone, connect the power supply cord to
the mini USB connector placed at the bottom of the Microphone.
About Startup Handling Warnings More info
Battery charge connector
(mini USB)
Blinking green light Constant green light
Battery low.
Maximum 20 minutes
of speaking time left.
Charging. Fully charged after
approx. 1.5 hours and can
be used for 5 hours on a
full charge.
Constant red light

12 13
About Startup Handling Warnings More info
Pairing / initial setup (only needed once)

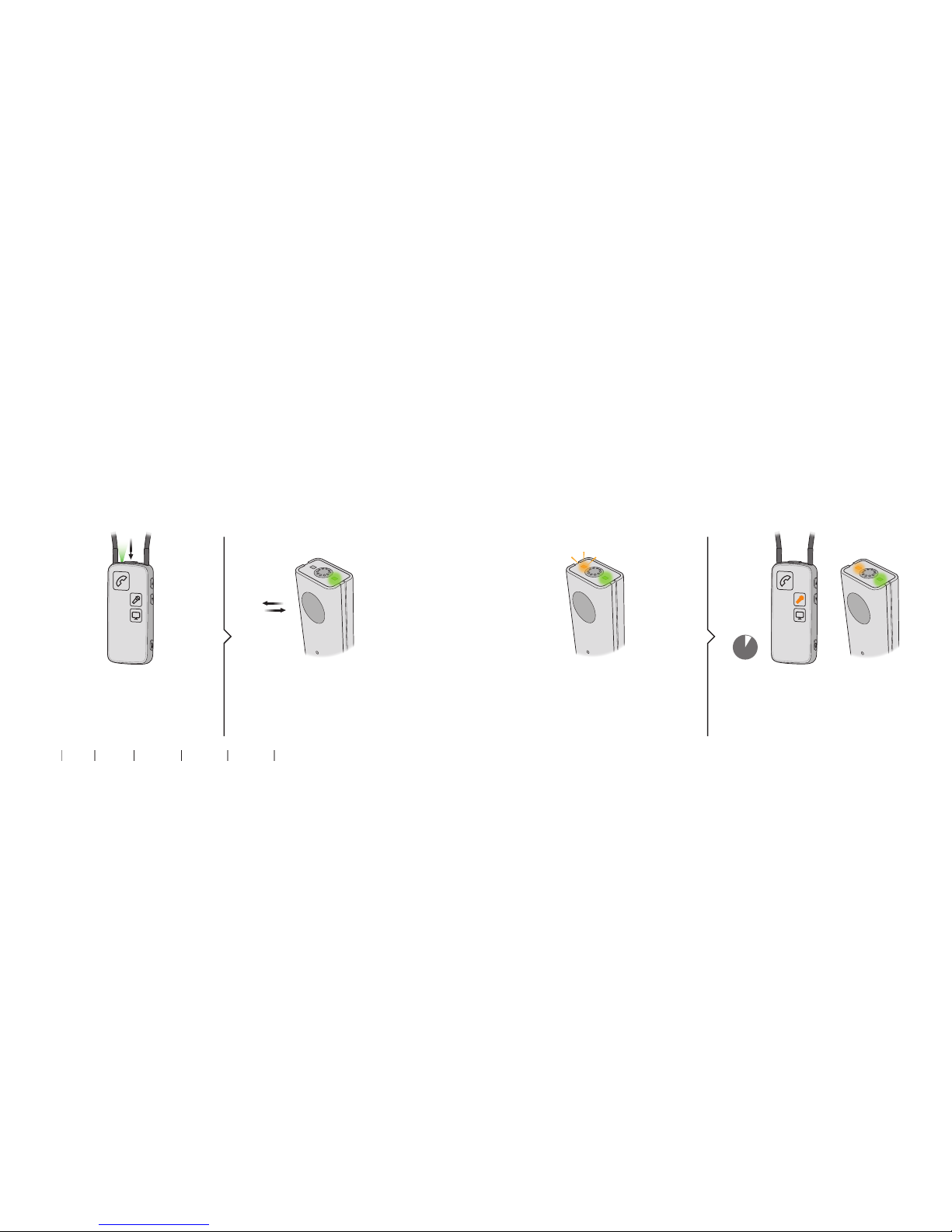

1. Streamer Pro in pairing mode 2. Microphone in pairing mode
Press and hold the on/off button on
the top.
Hold until blue light flashes. Press and hold the on/off button on
the Microphone for 6 seconds until
orange light flashes rapidly.
Orange light is flashing rapidly in pairing
mode.
6 secs 6 secs
Startup

14 About Startup Handling Warnings More info

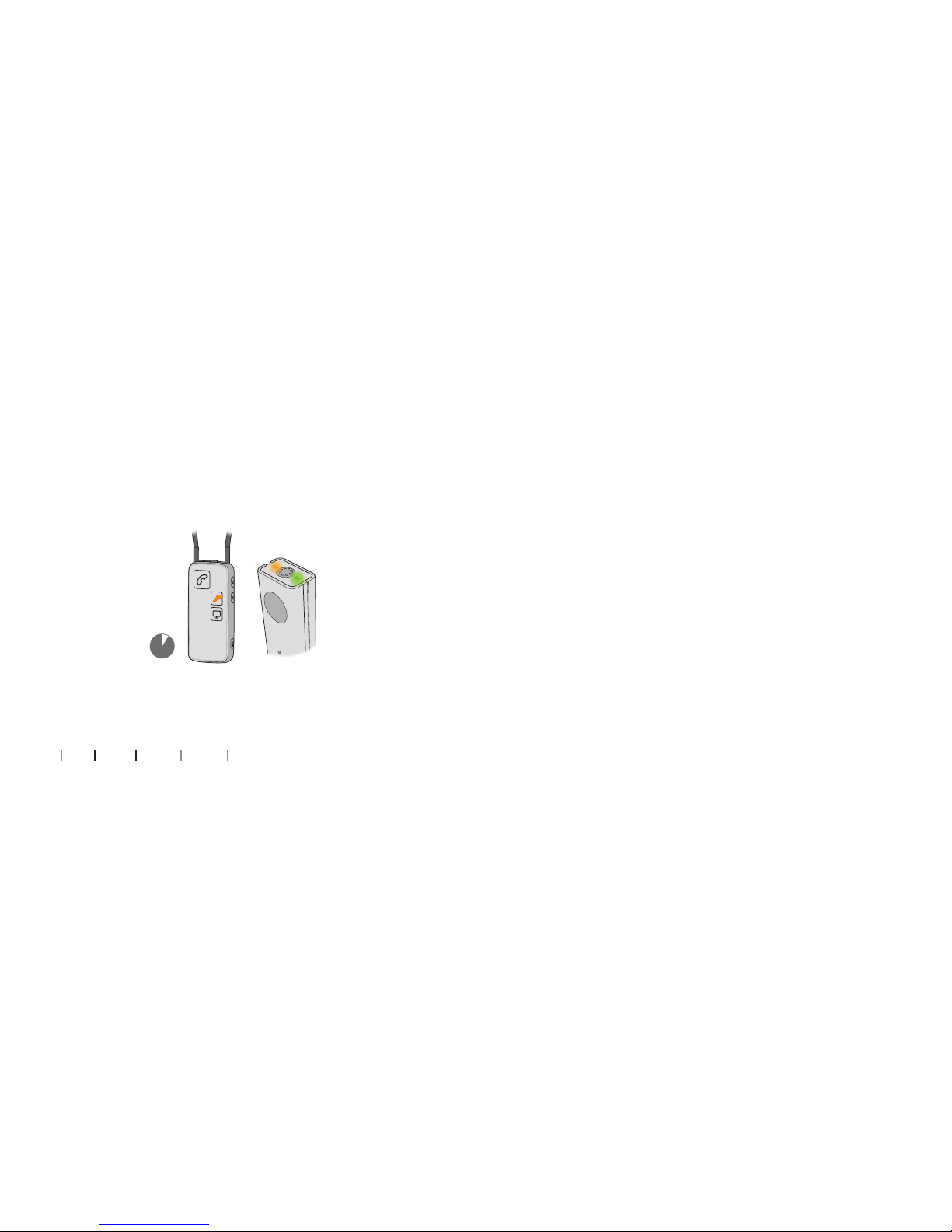

3. Microphone paired
Wait up to 1 minute until orange light on
Streamer Pro is on and orange
light on Microphone is on.
1 min

16 17
About Startup Handling Warnings More info
Press the on/off button on the top un-
til all lights on the front and top flash
to indicate it is powered on.
Short press on the on/off button. Orange light slowly pulsating. Orange light on Streamer Pro on and
orange light on Microphone on.
Start / turn on / resume sound from Microphone

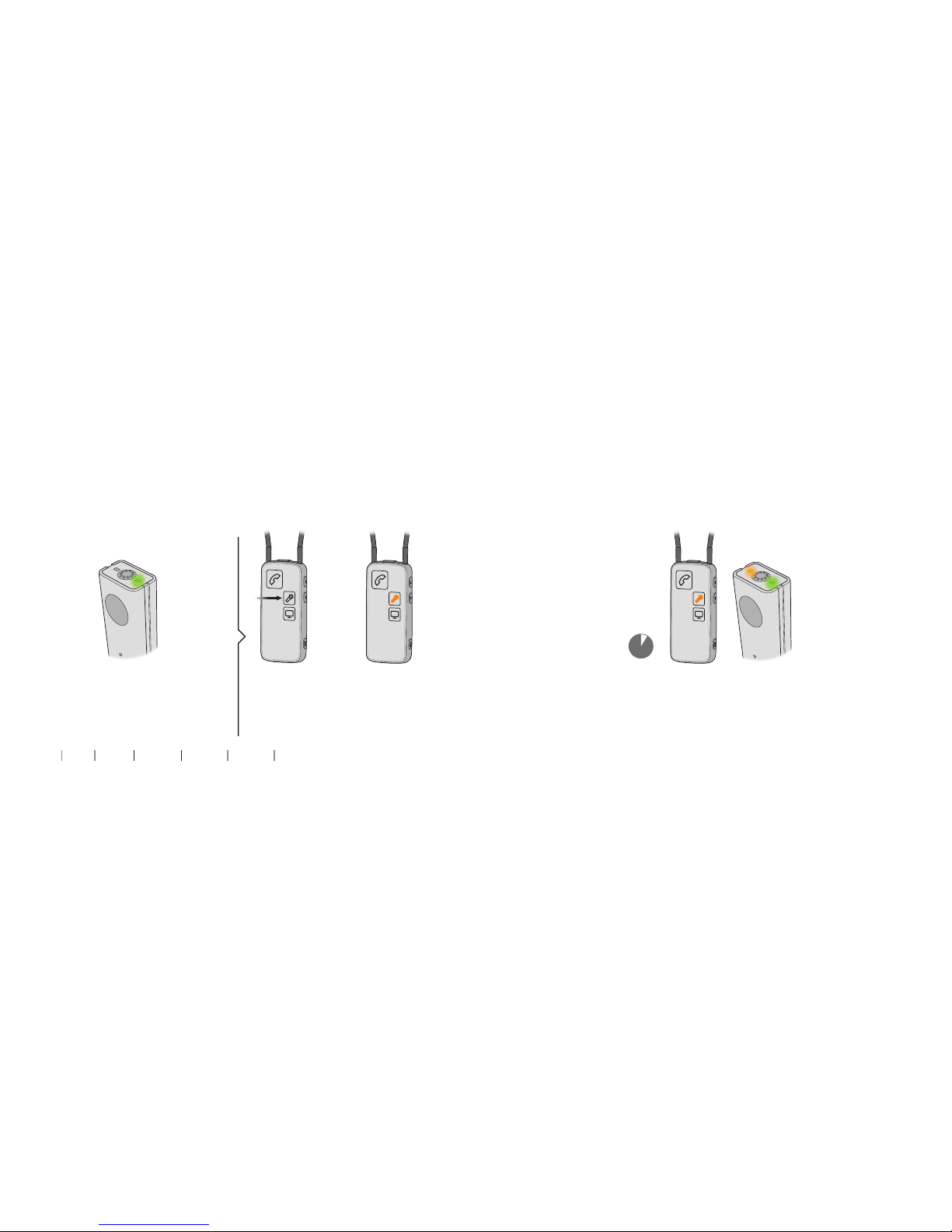

1. Make sure Streamer Pro is on 2. Start / turn on Microphone
3. Sound from Microphone to
Streamer Pro
5 secs
Handling

18 19
About Startup Handling Warnings More info
Pause sound
a. Pause sound from Microphone b. Pause sound from Streamer Pro
Short press on
on/off button.
Short press on
Streamer Pro mic
button.
Orange light on
Microphone turns
off.
Orange light
Streamer Pro off.
Orange light on Streamer Pro turns
off.
Orange light on Microphone turns off.

20 21
About Startup Handling Warnings More info

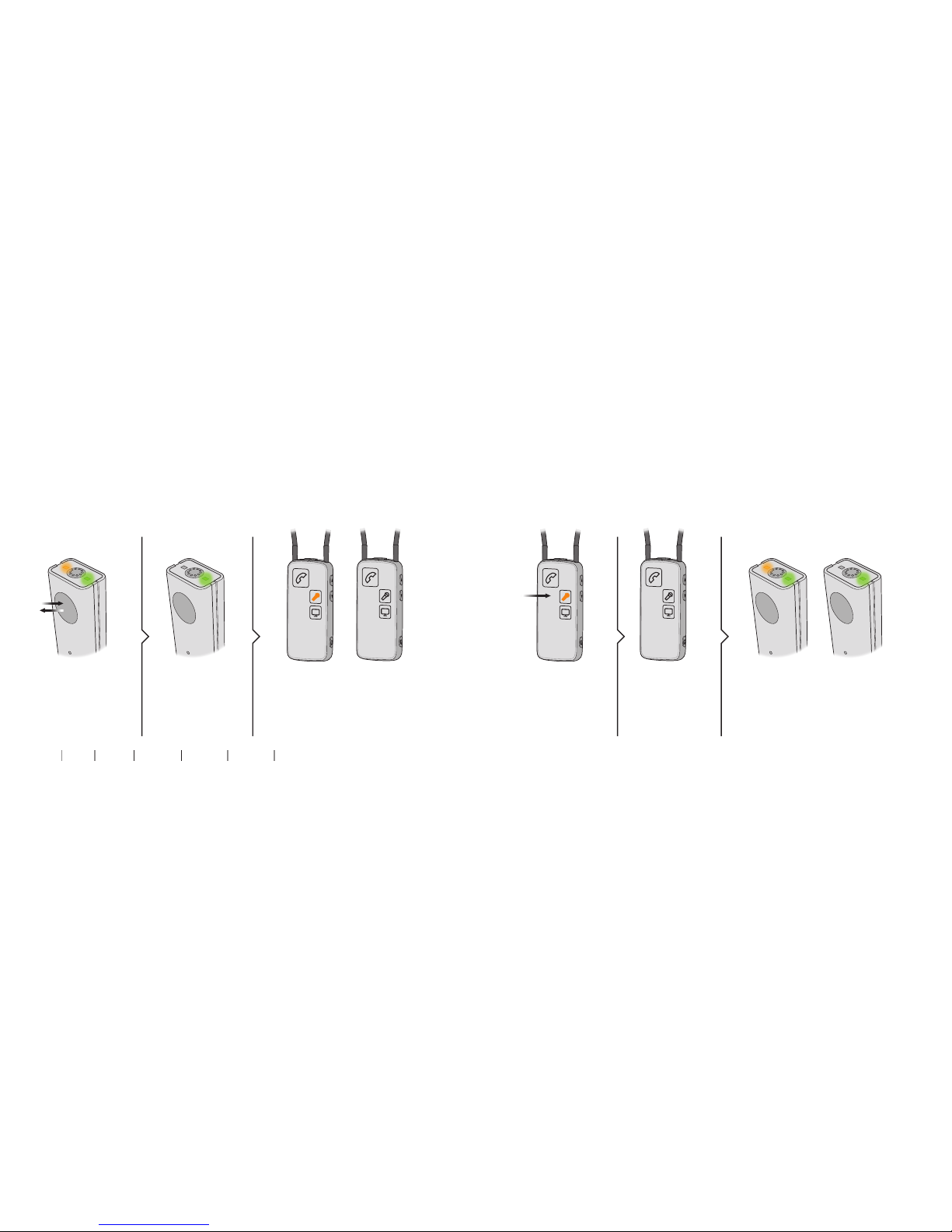

Resume sound from Streamer Pro
1. Microphone has to be on 2. Start sound from Streamer Pro
(Green light is on) Short press on
Streamer Pro mic
button.
Orange light on
Streamer Pro
slowly pulsating.
3. Sound from Microphone to Streamer Pro
After 2 seconds, orange light on
Microphone turns on.
2 secs

22 23
About Startup Handling Warnings More info
Check sound Turn o Microphone
Tap the top of the Microphone to check that the
sound is heard in the hearing aids.
Press and hold for two seconds, until green light
turns off.

24 25
About Startup Handling Warnings More info
Please familiarise yourself with the entire
contents of this booklet before using
your ConnectLine Microphone. It contains
instructions and important information
about the use and handling of your
ConnectLine Microphone.
Not a toy
• The ConnectLine Microphone is not a toy
and therefore should be kept out of the
reach of children and anyone else who
might swallow parts or otherwise cause
injury to themselves. Special attention
should be paid to the smaller compo-
nents in order to prevent children from
swallowing them and choking. If a part is
swallowed, see a doctor immediately.
Use on aircraft
• The ConnectLine Microphone should
not be used onboard an aircraft unless
specifically permitted by the flight
personnel.
Active Implants
• Caution must be taken with active im-
plants. Your ConnectLine Microphone has
a wireless transmission. Please keep the
microphone at least 15 cm away from the
implant, e.g. do not carry it in a breast
pocket. In general, please follow the
guidelines recommended by manufac-
turers of implantable defibrillators and
pacemakers on use with mobile phones.
• If you have an active brain implant,
please contact the manufacturer of your
implantable device for information about
the risk of disturbance.
Do not expose to great heat
• Never expose the ConnectLine Micro-
phone to great heat by putting it in the
oven or microwave oven or by burning it.
There is a risk that it will explode and
cause serious injury.
Cleaning
• Oticon recommends cleaning on a
regular basis, using a damp cloth
without solvents.
• Do not immerse ConnectLine Microphone
in water or other liquids.
Only charge from UL/IEC approved
equipment
• The safety of recharging batteries with
the USB connector only is determined by
the external equipment. When the
USB connector is connected to mains-
operated equipment, this equipment
should be UL approved or comply with
IEC 60950, IEC-60065, IEC-60601 or
equivalent safety standards.
Use of the lanyard
• If by accident the lanyard should get
caught on something while wearing it,
the lanyard is constructed to unlatch.
Therefore, never try to shorten or modify
the lanyard in an unauthorised way. The
lanyard should not be used for children
weighing less than 11 kg.
Warnings
Warnings

26
Explosives
• The power source in your microphone
has insufficient energy to cause fire
under normal conditions of use. The
microphone has not been tested for
compliance with international standards
concerning explosive atmospheres. It is
recommended not to use your micro-
phone in areas where there is a danger
of explosions.
Products complying with R&TTE
• When using the ConnectLine Microphone
in Norway it must be ensured that no
radio transmission is performed within
a 20 km radius from the centre of Ny-
Aalesund.
X-ray, CT, MR, PET scanning and
electrotherapy
• Do not wear the microphone during
X-ray, CT / MR / PET scanning, electro-
therapy or surgery.
Warnings
About Startup Handling Warnings More info

28 29
International warranty
The manufacturer, Oticon, issues a
one-year limited warranty to the original
consumer of this product.
This warranty comes into effect upon the
date of original purchase of this equip-
ment, and will remain in effect for one
calendar year from that date.
Please notice that extended warranties
may apply in your country. Please contact
your local hearing care professional for
more information.
What is covered by this warranty?
Any electronic component which, because
of workmanship, manufacturing or design
defects, fails to function properly under
normal use during the life of this warranty
will be replaced or repaired at no charge for
parts or labour when returned to the point
of purchase. Transportation is paid by the
customer. If it is determined that repair
is not feasible, the entire unit may be re-
placed with an equivalent unit upon mutual
agreement of the hearing care professional
and customer.
About Startup Handling Warnings More info
Warranty certicate
Name of owner: ___________________________________________________________
Dispenser: _______________________________________________________________
Dispenser address: ________________________________________________________
Dispenser phone: _________________________________________________________
Purchase date:____________________________________________________________
Warranty period: _______________ Month: ____________________________________
Model: _______________________ Serial no.: __________________________________
More info

30 31
About Startup Handling Warnings More info
What is not covered by this warranty?
This one-year limited warranty does not
cover:
• Malfunctions resulting from abuse,
neglect or accident.
• Peripheral accessories as itemised within
the product brochure, when such items
are later than 90 days from the original
purchase.
• Batteries.
• Instruments connected, installed, used
or adjusted in a manner contrary to the
instructions provided.
• Consequential damages and damag-
es resulting from delay or loss of this
instrument. The exclusive remedy under
this warranty is strictly limited to repair
or replacement as herein provided.
• Products damaged in transit unless
investigated by the shipper and returned
to the warrantor with the investigation
report.
The manufacturer reserves the right to
make changes in the design or construc-
tion of any of its instruments at any time
without incurring any obligation to make
any changes whatsoever in units previous-
ly purchased. This warranty is in lieu of all
other expressed warranties by the man-
ufacturer. No representative or person is
authorised to represent or assume for the
manufacturer any liability in connection
with the sale or use of this product other
than as set forth above.
If your ConnectLine Microphone requires
service under the terms of this warran-
ty, carefully package the instrument to
prevent damage in transit and return it to
the point of purchase. Include a detailed
description of the problem, your full name,
billing and shipping address and telephone
number.
The above warranty does not affect any
legal rights that you might have under ap-
plicable national legislation governing sale
of consumer goods. Your point of purchase
may have issued a warranty that goes be-
yond the clauses of this limited warranty.
Please consult your point of purchase for
further information.

32 33
Important additional information
The ConnectLine wireless Microphone con-
tains a radio transmitter using a frequency
hopping technology working in the ISM-
band at 2.4 GHz.
The peak conducted output power of the
transmitter is less than 6 dBm and the
antenna is a small PCB antenna with a
directional gain of less than 2 dBi (dB over
an isotropic or omni-directional antenna).
The emission power from the ConnectLine
Microphone is below international emission
limits for Human Exposure. For comparison,
the radiation of the ConnectLine Micro-
phone is less than unintended electromag-
netic radiation from for example hair dry-
ers, electric shavers etc. The ConnectLine
Microphone complies with international
standards concerning Electromagnetic
Compatibility.
USA and Canada
Due to the limited size available on the
device, many of the relevant approval
markings are found in this document.
This instrument is certified under:
FCC ID: U28MIC110
IC: 1350B-MIC110
The device complies with Part 15 of the FCC
rules and RSS-210 of Industry Canada.
Operation is subject to the following two
conditions:
This device may not cause harmful interfer-
ence. This device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interfer-
ence to radio communications. However,
there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful in-
terference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encour-
aged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
About Startup Handling Warnings More info

34
Oticon hereby declares that this Connect-
Line Microphone is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC.
Declaration of conformity is available at:
Oticon A/S
Kongebakken 9
DK-2765 Smørum
Denmark
www.oticon.global
Waste from electronic
equipment must be
handled according to
local regulations.
About Startup Handling Warnings More info
N1175
164253UK / 02.16
164253UK / 02.16

0000164253000001
Other manuals for ConnectLine
10
Table of contents
Other oticon Microphone manuals

oticon
oticon EduMic User manual

oticon
oticon connectline microphone User manual

oticon
oticon ConnectLine User manual

oticon
oticon ConnectLine Streamer Pro User manual

oticon
oticon ConnectClip User manual

oticon
oticon ConnectClip User manual

oticon
oticon ConnectLine User manual

oticon
oticon ConnectLine User manual
