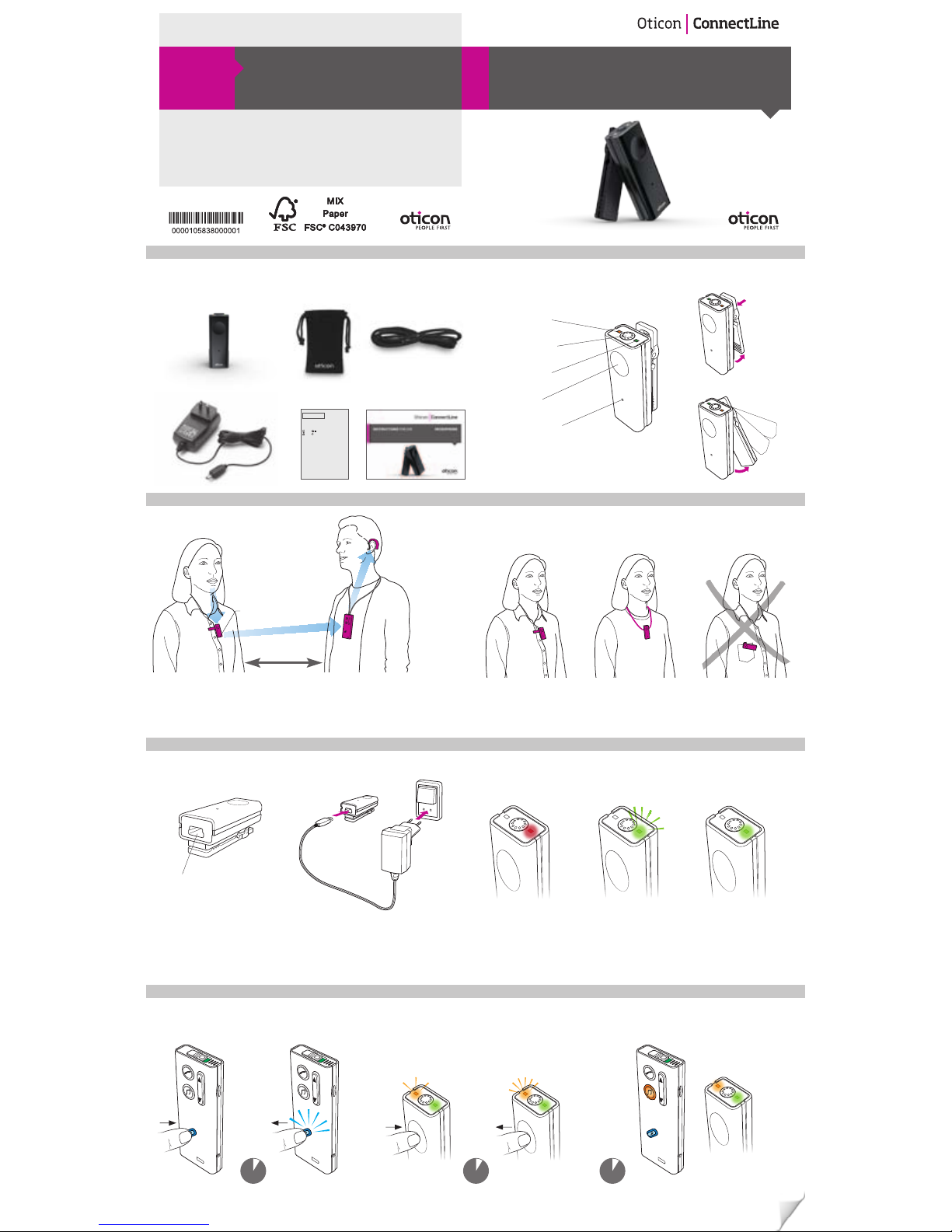

People First INSTRUCTIONS FOR USE MICROPHONE
Pairing / intial setup (only needed once)
Charging / power indicator
The microphone should point towards the speakers mouth with in a
distance of 10 to 20 cm.
The Microphone will transmit the speech from the Speaker directly
to the Hearing instrument user.
Note: A Microphone will only work with one Streamer at a time
Status indicator
(orange)
Microphone input
(Voice)
Power indicator
(green)
On off button
Microphone input
(noise detector),
do not cover
Battery Charge connector
(mini USB)
Battery Low
Maximum 20 min.
speaking time left
Charging Fully charged
After approx. 1.5 hour.
Will last for 5 hours use
2. Microphone in pairing mode
Press and hold for 6 seconds until orange
Light flashes rapidly
1. Streamer in pairing mode
Hold until blue
light flashes
Orange light is flashing
rapidly in pairing mode
Press
3. Microphone paired
Wait up to 1 minute until Streamer light
is orange and microphone light is orange
What’s in the box? Product overview
Up to 15 m
Microphone
Speaker
Clip
wearing
Constant
red light
Wearing with
Lanyard
Blinking
green light
Wrong
wearing
Constant
green light
Streamer.
Should always
be worn with
the neck-loop
Hearing Instrument user
Microphone
Power supply (charger) This manualImportant
Information
LanyardCarry pouch
1 min6 secs6 secs
105838UK / 11.10
How the Microphone works
To charge the microphone, connect the power supply cord to the
mini USB connector placed at the bottom of the microphone.
A statement that the emission limits for Human Exposure is
fullled; Connectline Microphone example:
The emission power from the Connectline Microphone is below
international emission limits for Human Exposure. For comparison,
the radiation of the Connectline Microphone is less than unintended
electromagnetic radiation from for example hair dryers, electric
shavers etc. The Connectline Microphone complies with international
standards concerning Electromagnetic Compatibility.
Products complying with R&TTE:
Identication of member states or geographical areas within a mem-
ber state where the device is meant to be used. In original language,
in short form e.g. GB, FR, DE or with pictograms Information about
restrictions of use, if any. In original language. Example: Use of this
device in the UK requires an approval of frequency.
USA and Canada
“Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.”
Due to the limited size available on the device, many of the relevant
approval markings are found in this document.
This instrument is certied under:
The device complies with Part 15 of the FCC rules and RSS-210 of
Industry Canada.
Operation is subject to the following two conditions:
This device may not cause harmful interference. This device must
accept any interference received, including interference that may
cause undesired operation.
ID: U28MIC01
IC: 1350B-MIC01
Changes or modications made to the equipment not expressly
approved by Oticon may void the FCC’s authorisation to operate the
equipment.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
for more information see www.oticon.com
Oticon hereby declares that this Connectline Microphone is in compli-
ance with the essential requirements and other relevant provisions of
Directive 1999/5/EC. Declaration of conformity is available at:
Oticon A/S
Kongebakken 9
DK-2765 Smørum
Denmark
www.oticon.com
Not a toy
The Connectline Microphone is not a toy and therefore should be
kept out of the reach of children and anyone else who might swallow
parts or otherwise cause injury to themselves. Special attention
should be paid to the smaller components in order to prevent children
from swallowing them and choking. If a part is swallowed, see a doc-
tor immediately.
Use on aircrafts
The Connectline Microphone should not be used onboard aircrafts
unless specically permitted by the ight personnel.
Implantable devices
The Connectline Microphone is designed to comply with the most
stringent Standards of International Electromagnetic Compatibility.
However, Connectline Microphone might cause interference with
other medical devices such as defribillators and pacemakers. Please,
contact the manufacturer of your implantable device for information
about the risk of disturbance. Interference can also be caused by
power line disturbances, airport metal detectors, electromagnetic
elds from other medical devcies, radio signals and eletrostatic
discharges.
Do not expose to great heat
Never exposure the Connectline Microphone to great heat by putting
it in the oven, micro wave oven or burning it. There is a risk that it
will explode and cause serious injury.
Cleaning
Oticon recommends cleaning on a regular basis, using a damp cloth
witout solvents. Do not immerse Connectline Microphone in water or
other liquids.
Only charge from UL/IEC approved equipment
The safety of recharging batteries with the USB connector only is
determined by the external equipment. When the USB connector is
connected to mainsoperated equipment, this equipment should be
UL approved or comply IEC 60950, IEC-60065, IEC-60601 or equiva-
lent safety standards.
Use of the Lanyard
If by accident the lanyard should get caught on something while
wearing it, the lanyard is constructed to release. Therefore, never
try to shorten or modify the lanyard in an unauthorized way. The
lanyard should not be used for children who weights less than 11 kg.
International Warranty
Detailed information as to the nature of the emitted radiation (type,
intensity and distribution), means of protecting the patient and the
user and on ways of avoiding misuse and of eliminating the risks
inherent in installation.
IMPORTANT NOTICE
Please familiarise yourself with the entire contents of this booklet
before using your Connectline Microphone. It contains instructions
and important information about the use and handling of your
Connectline Microphone.
0682
N1175
Waste from electronic
equipment must be
handled according to
local regulations.
R 202NYLJMS0624458
Important product information
Turn page
Page 1

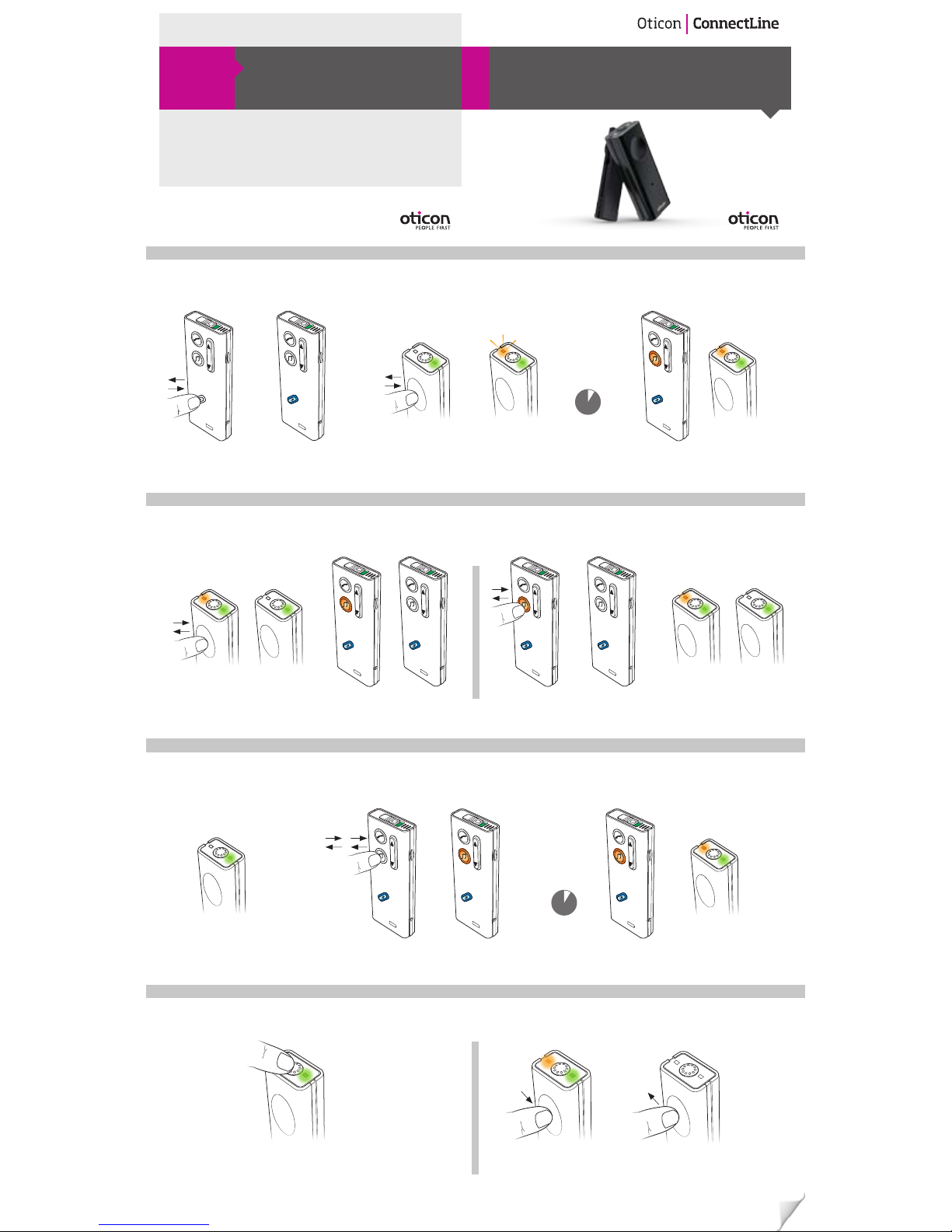

a. Pause sound from Microphone b. Pause sound from Streamer
Start/ turn on/resume sound from Microphone
1. Make sure Streamer is on 2. Start /turn on Microphone 3. Sound from Microphone to Streamer
Check sound
Pause sound
Turn off Microphone
Short press on
on/off
Orange light on Streamer
turns off
Orange light
slowly pulsating
Short press on
Streamer audio
button
Orange light Microphone
turns off
Orange light
Streamer off
Blue light slowly pul-
sating on Streamer
Orange light
on Microphone
turns off
Short press on connect
button
Short press on
on/off button
Resume sound from Streamer
1. Microphone has to be on 3. Sound from Microphone to Streamer2. start sound from Streamer
Two short
presses
1 2
two short presses
on audio button
Orange light
Streamer slowly
pulsating
After 2 seconds, orange light Microphone
turns on
(green light on)
Press and hold two seconds, until green light turns off
Orange light Streamer on and orange
light Microphone on
Tap the top of the microphone to check that the sound is heard in
the hearing instruments
